IMB Multifor - 9104 - 9mm Punch & Die for TRIS Work Units
Description
IMB Multifor - 9104 - 9mm Punch & Die for TRIS Work Units
Product No.: 9104
Tool Size: 9mm Round
For Machine Type: IMB Multifor TRIS Work Units
Includes
Male Punch: 9104M
Female Die: 9104F
Inner Spare: 9104S
More Sizes Available Here
Description

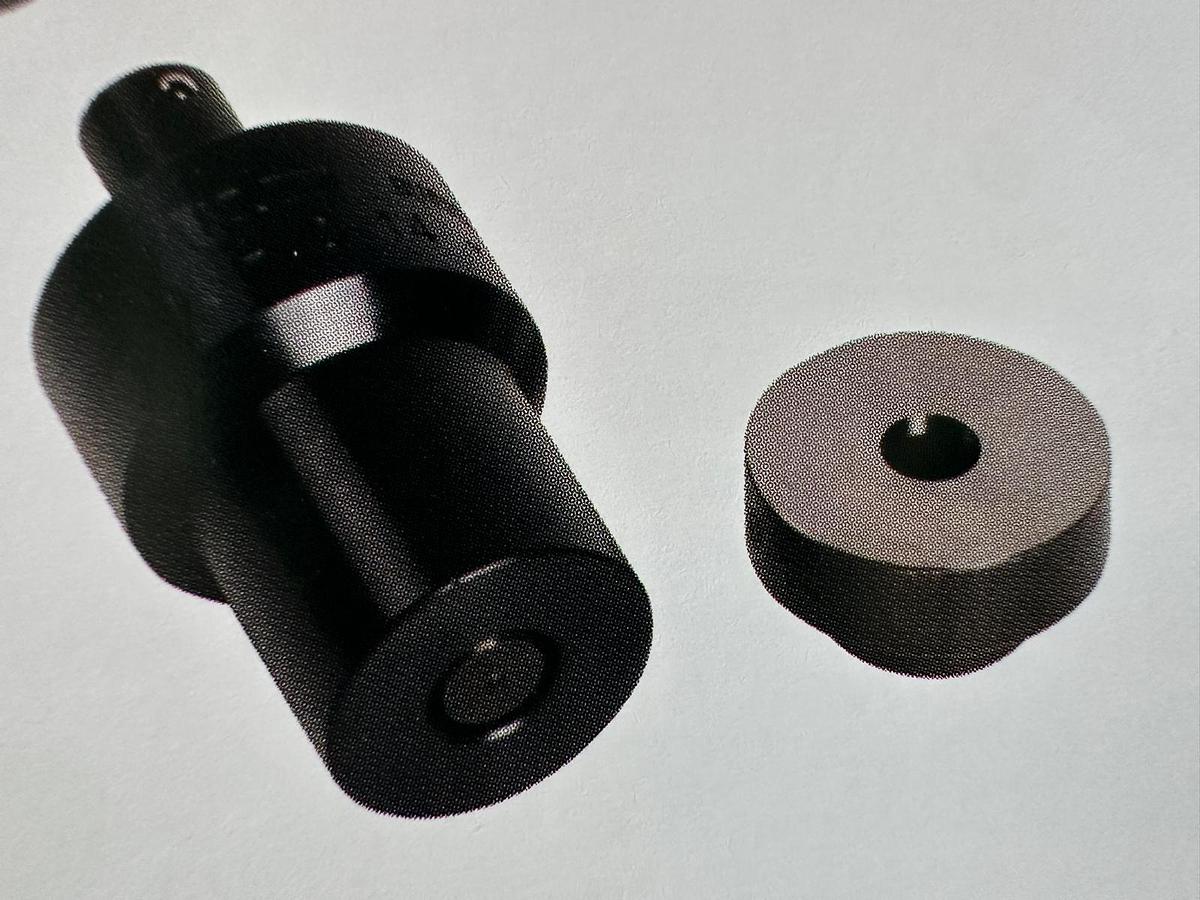

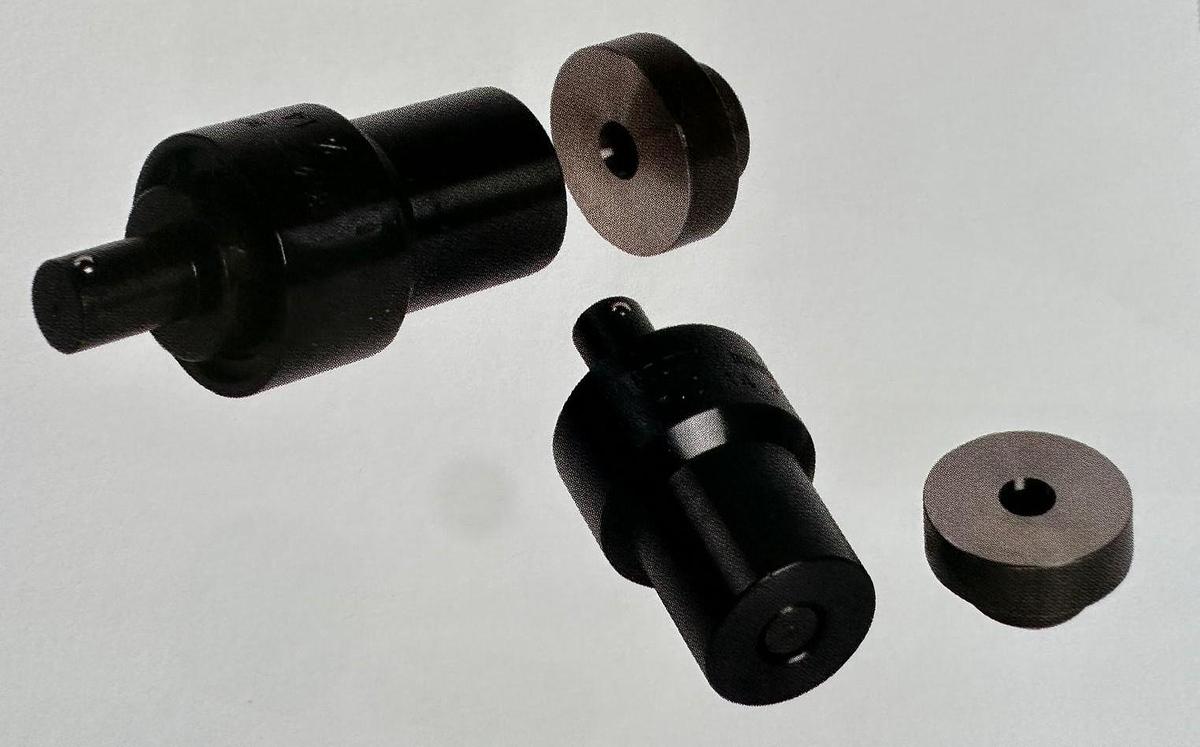

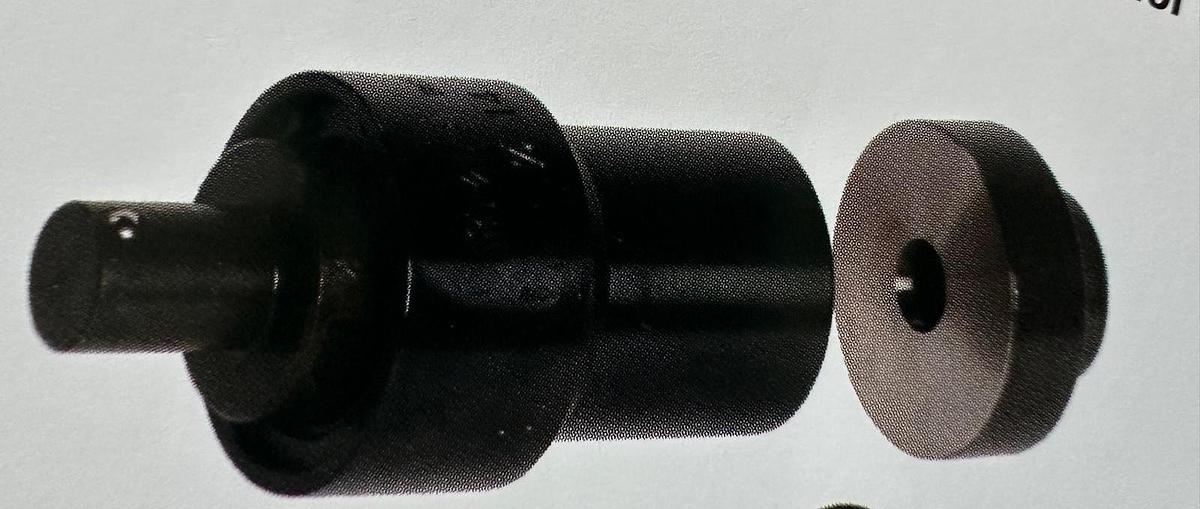

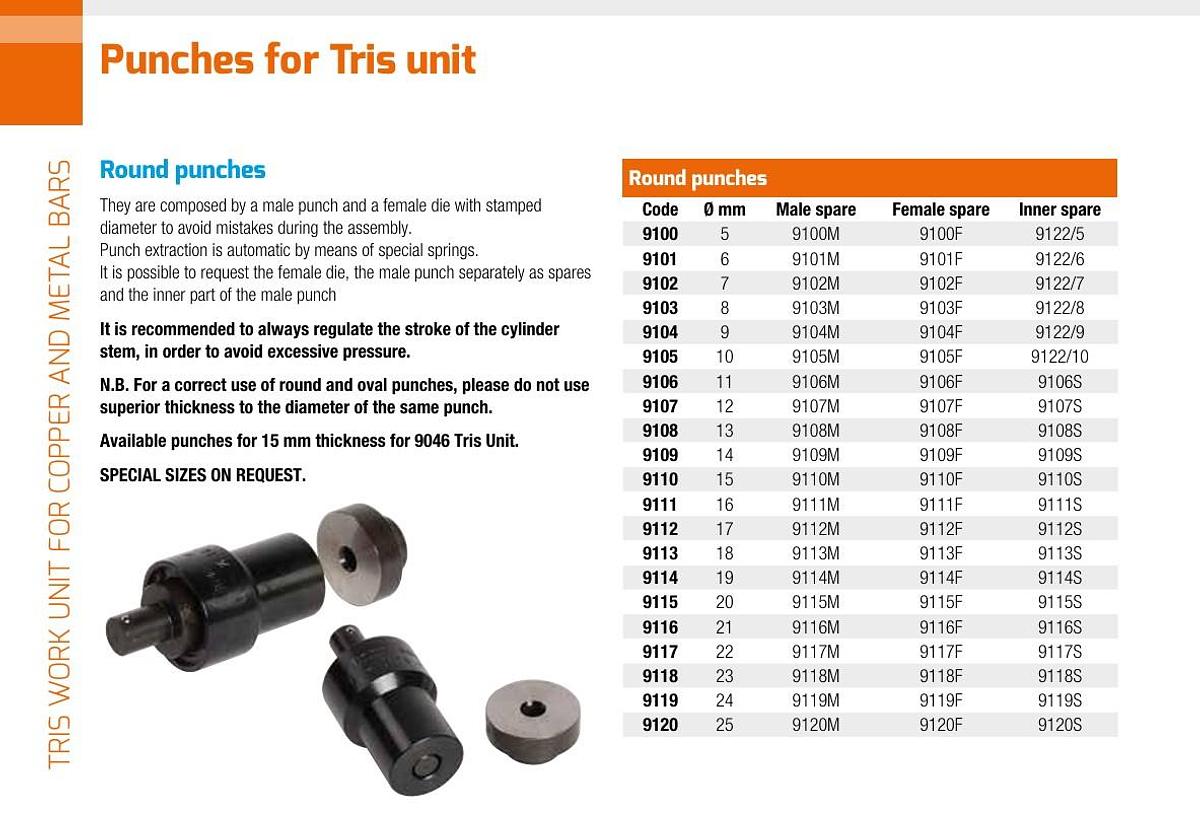

Round Punches: They are composed by a male punch and a female die with stamped diameter to avoid mistakes during the assembly. Punch extraction is automatic by means of special springs. It is possible to request the female die, the male punch and the inner part of the male punch separately as spares. It is recommended to always regulate the stroke of the cylinder stem, in order to avoid excessive pressure.
N.B. For a correct use of round and oval punches, please do not use superior thickness to the diameter of the same punch.
Punches for 15 mm thickness for 9046 Tris Unit also available.
Special Sizes Available Upon Request
Compatible Machines
IMB Multifor 9042 TRIS Work Unit
IMB Multifor TRIS 9042/AL Work Unit
IMB Multifor 9045 Horizontal TRIS Work Unit
IMB Multifor 9045V Vertical TRIS Work Unit
IMB Multifor 9046 TRIS 30Ton Work Unit
Specifications
| Manufacturer | IMB Multifor |
| Model | 9104 - 9mm Punch & Die for TRIS Work Units |
| Condition | New |
| Stock Number | 9104 |
| Product No. | 9104 |
| Tool Size | 9mm Round |
| Male Punch | 9104M |
| Female Die | 9104F |
| Inner Spare | 9104S |
