IMB Multifor 9045V Vertical TRIS Work Unit for Busbar Fabrication

IMB Multifor 9045V Vertical TRIS Work Unit for Busbar Fabrication

Product No.: 9045V

Manufacturer: IMB Multifor

Product Type: Vertical TRIS Work Unit for Busbar Fabrication

Description

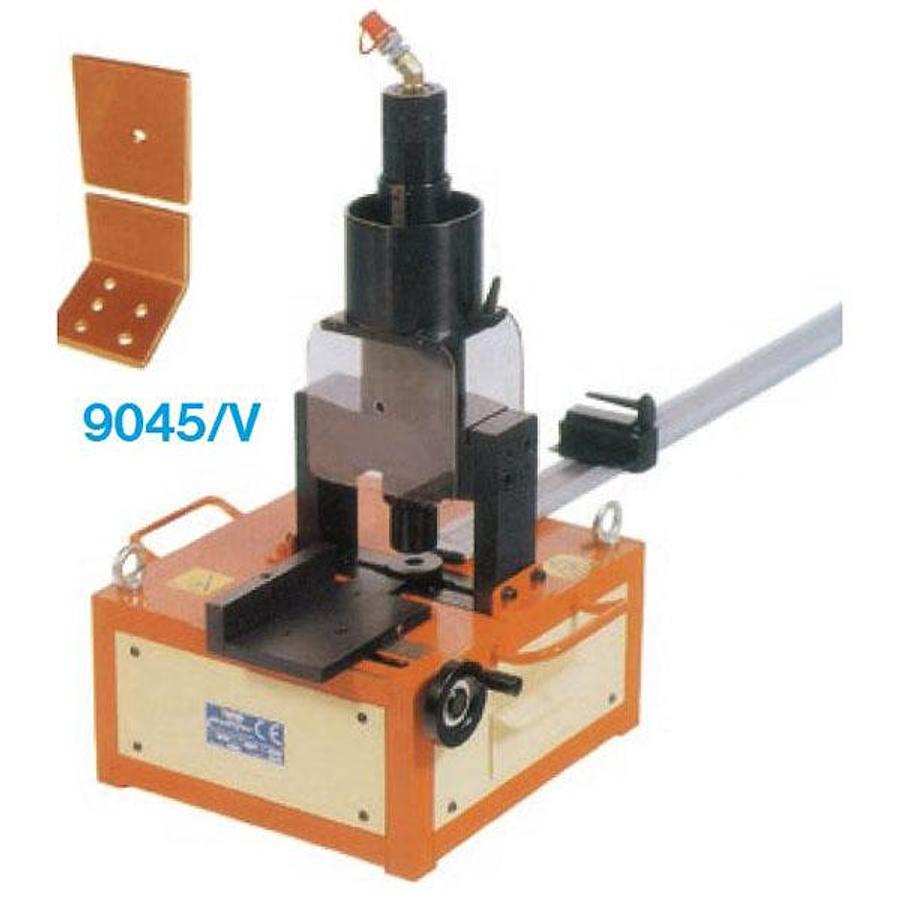

It has the same characteristics of the Unit 9042. Its cylinder is vertically fixed.

USED ONLY FOR CUTTING AND PUNCHING OPERATIONS.

It uses the same tools of the TRIS 9042. Small dimensions and weight. It is supplied with 1-meter ruler

Equipment such as punches, tools and accessories for TRIS units are suitable for small and large projects and help make things easier for operators practically and for saving time.

Specifically, the TRIS 9042 can be used with Multifor pumps and control units. This equipment is considerably versatile as it can carry out many different processes. The TRIS is made up of a single-acting hydraulic cylinder which has:

• A practical tool change system
• One side which is hinged and can be opened completely that allows bars to be inserted and taken our simply and quickly
• A stem-mount gauge in millimetres that controls the tool stroke and helps with machining repetition without error
• A protractor for reading the angle during bending operations (on request). This allows you to carry out repetitive work without having to check measurements or angles every time.

To obtain maximum working precision as well as to save on processing times, this tool is specially designed and logically and practically manufactured. It comes with all adjustments and references to quickly position the bars or to carry out necessary machining without having to trace or mark.

Technical Specfications

Power: 200 kN

Maximum working pressure: 700 Bar

Stroke: 50 mm

Adjustable stroke: 40 mm

Amount of oil required for full stroke: 0.180 lt.

Length: 530 mm

Width: 1310 mm (with Ruler)

Height: 720 mm

Weight: 67 kg

Punching & cutting copper bars, metal shapes and DIN metal shapes, all just with one Tris fabrication unit

Punching

Material Type: Copper, aluminium or steel bars

Max Thickness: 12 mm

Round Holes: From Ø 5 to Ø 25 mm

Slot/Oblong Holes: From 7 x 13 mm to 18 x 25 mm

For thicknesses greater than 12 mm, you would need to contact our Technical Department

Equidistant punching can be carried out on bars of max. 120 mm.

The holes are made using special punches that extract automatically from the bar.

Cutting

Material Type: Copper, aluminium or steel bars

Max Thickness: 12mm

Min Thickness: 5mm

Max Width: 120mm

For widths greater than 120 mm and thicknesses greater than 12 mm, contact our Technical Department.

** Requires an Electro-Hydraulic Pump for use. Not included in supply.

Recommended Pumps can be found here

Tooling & Accessories can be found here
