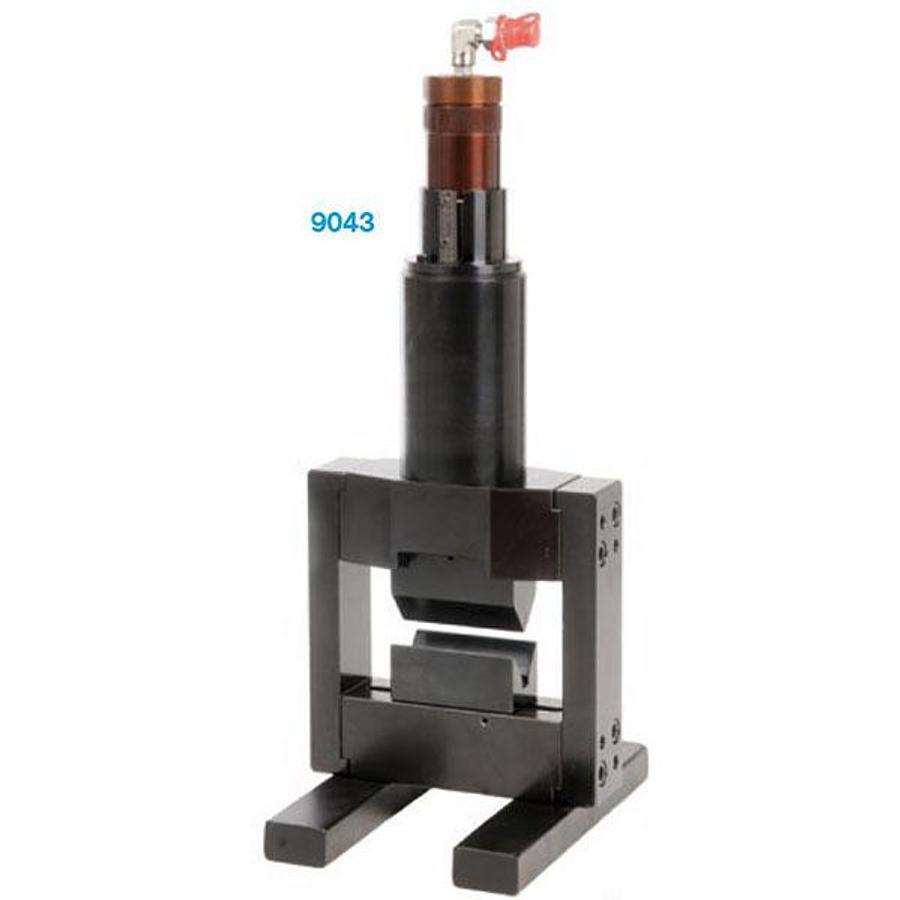

IMB Multifor 9043 TRIS Work Unit for Busbar Fabrication

IMB Multifor 9043 TRIS Work Unit for Busbar Fabrication

Product No.: 9043

Manufacturer: IMB Multifor

Product Type: Single Cylinder TRIS Work Unit for Busbar Fabrication for Small Quanities or Site Work.

Description

For occasional and on field workings. For bending, cutting and punching. We have created it expressly for small quantities. It differs from our Tris Units with bench for its simplicity and lightness as it has no specific accessories, making it simple and light.

Its structure is fixed and it is used in vertical position.

We recommend to fix it on a bench or on a working table, in order to have stability.

The cylinder has an adjustable run.

Bar benders are simplified with only one male punch supplied with n. 2 female dies of different dimensions for various thicknesses. (Max 10 mm) and different bending radius.

It is supplied complete with bending tools.

Tools for cutting and punching are the same of our standard Tris unit 9042.

It can be used with all of our IMB Multifor power units.

Supplied with 1-meter ruler

Technical Specfications

Power: 200 kN

Maximum working pressure: 700 Bar

Stroke: 50 mm

Adjustable stroke: 40 mm

Amount of oil required for full stroke: 0.180 lt.

Length: 230 mm

Width: 130 mm

Height: 610 mm

Weight: 34 kg

Punching, bending, cutting copper bars, metal shapes and DIN metal shapes.

Punching

Material Type: Copper, aluminium or steel bars

Max Thickness: 12 mm

Round Holes: From Ø 5 to Ø 25 mm

Slot/Oblong Holes: From 7 x 13 mm to 18 x 25 mm

For thicknesses greater than 12 mm, you would need to contact our Technical Department

Equidistant punching can be carried out on bars of max. 120 mm.

The holes are made using special punches that extract automatically from the bar.

Bending

Material Type: Copper, aluminium or steel bars

Max Thickness: 12mm

Min Thickness: 3mm

Max Width: 120mm

Tools for bars 160 mm wide are available upon request

Cutting

Material Type: Copper, aluminium or steel bars

Max Thickness: 12mm

Min Thickness: 5mm

Max Width: 120mm

For widths greater than 120 mm and thicknesses greater than 12 mm, contact our Technical Department.

** Requires an Electro-Hydraulic Pump for use. Not included in supply.

Recommended Pumps can be found here

Tooling & Accessories can be found here
