ERKO SH 300 Busbar Processing Station - Busbar Cutting Bending Punching Machine

Description

ERKO SH 300 busbar processing station. Cut, bend, punch & offset copper and aluminium busbars. 150kN force, 630 bar hydraulic system.

Compact Busbar Cutting, Bending & Punching Machine – 630 Bar Hydraulic System

The ERKO SH 300 Busbar Processing Station is a compact, high-performance multi-function machine designed for cutting, bending, punching, offsetting and nut inserting on aluminium and copper busbars.

This machine is ideal for electrical panel builders, switchgear manufacturers, and industrial electrical contractors looking for a portable yet powerful busbar processing solution.

🚀 Key Features

• ✔️ All-in-one busbar processing station
• ✔️ Cutting, bending, punching & offsetting functions
• ✔️ Compact and portable design (only 57kg)
• ✔️ High force hydraulic system (150kN / 630 bar)
• ✔️ Precision adjustment for repeatable operations
• ✔️ Works with ERKO hydraulic pumps and power packs
•


The ERKO SH 300 is designed to:

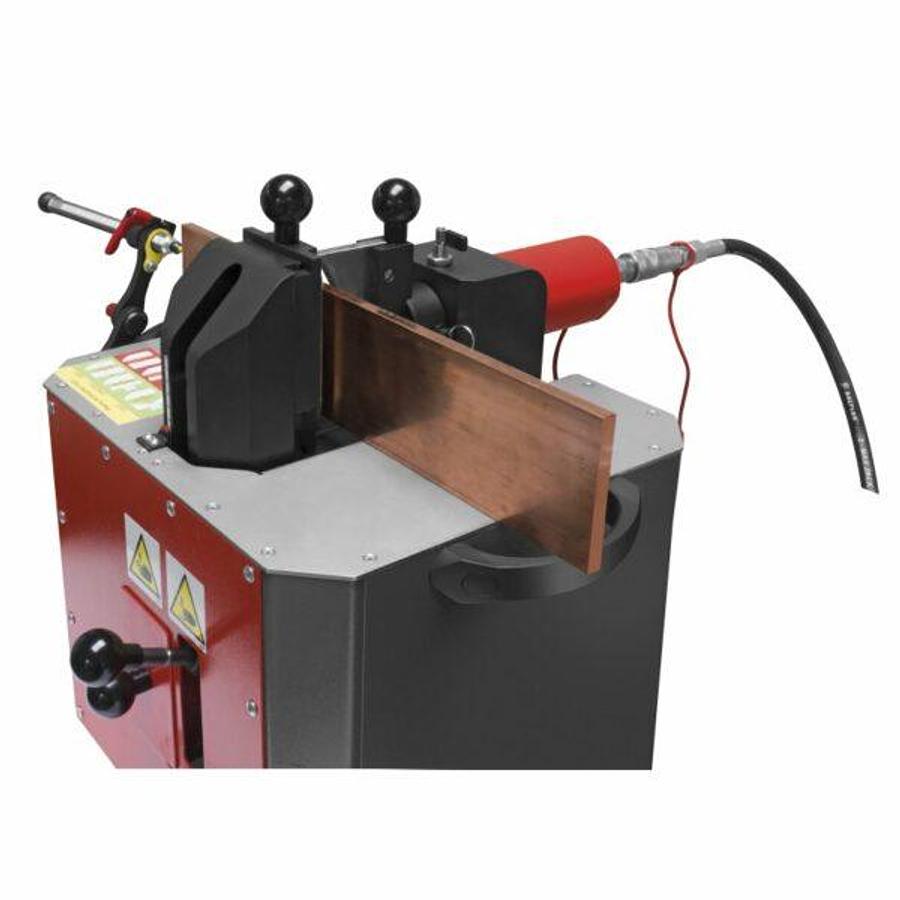

• Cut busbars cleanly and burr-free

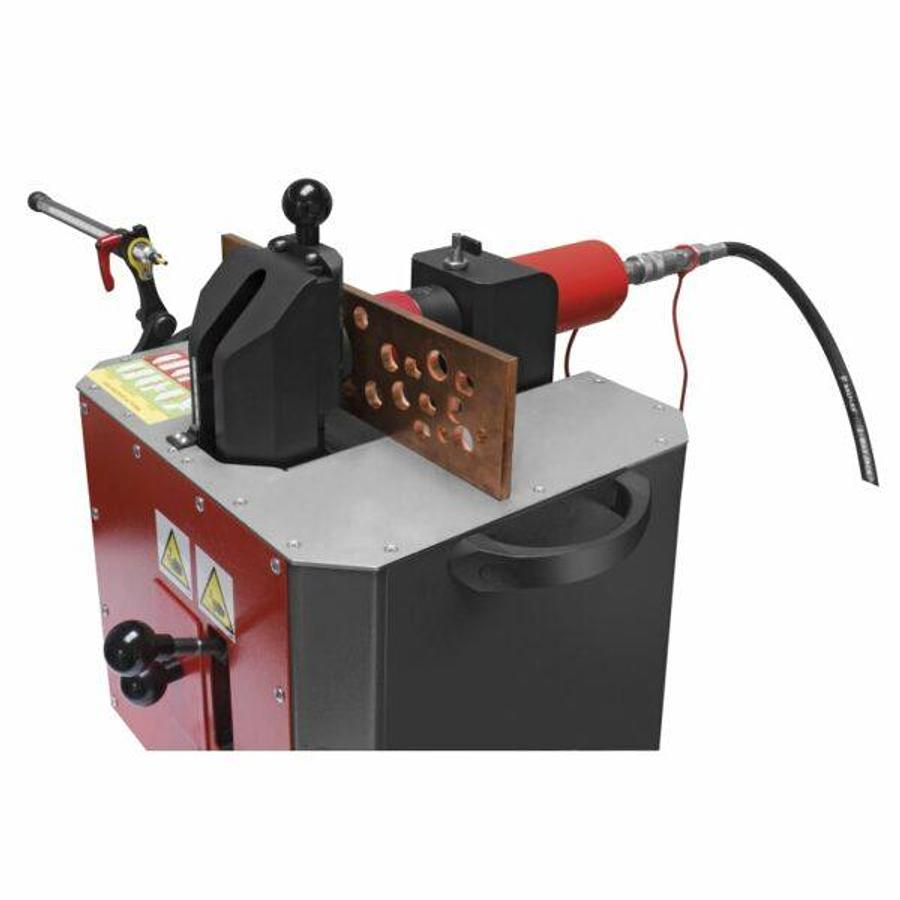

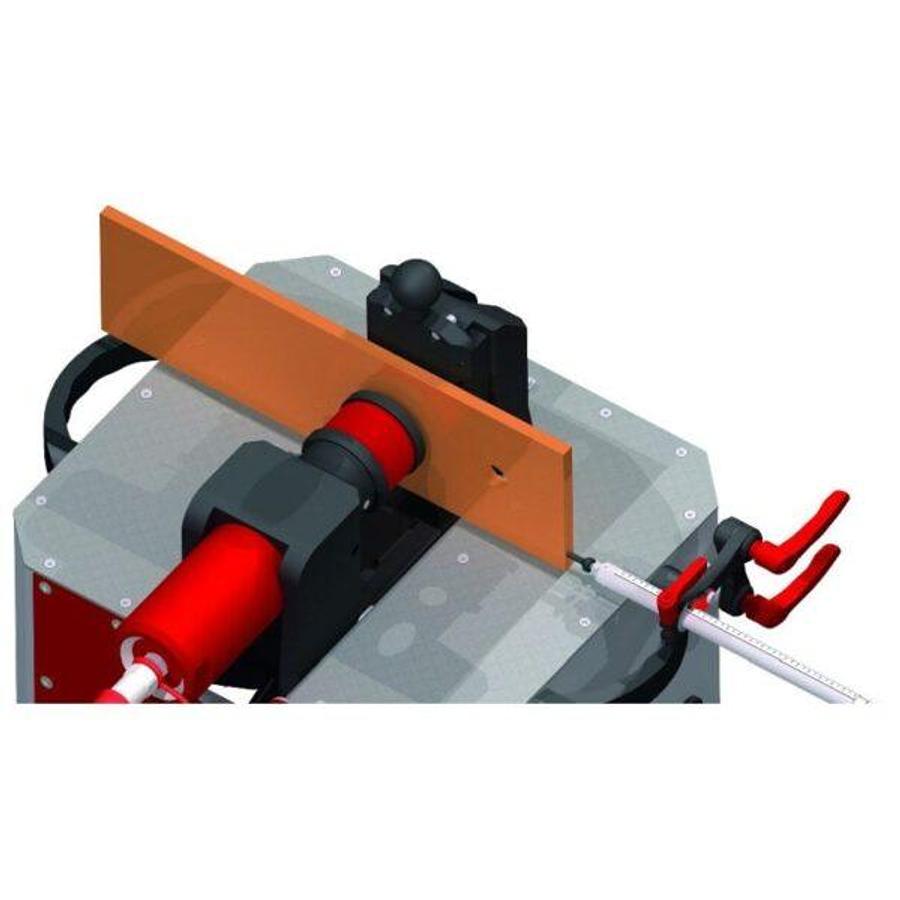

• Punch round, oval and rectangular holes

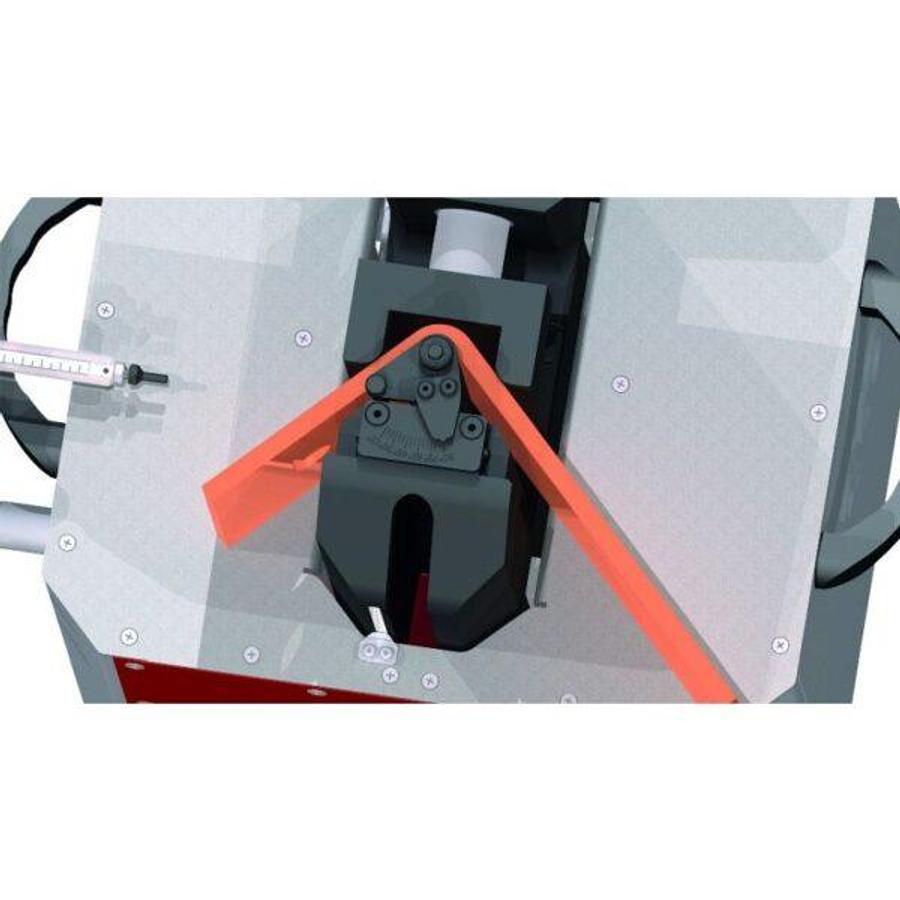

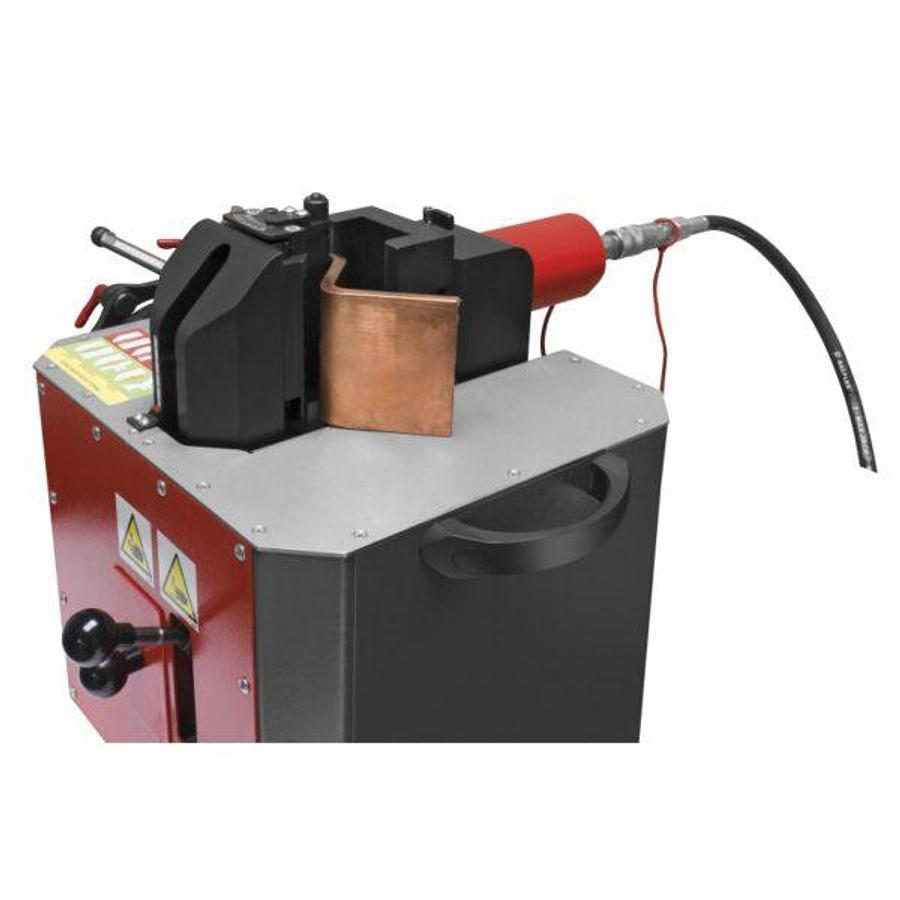

• Bend busbars accurately between 15° and 90°

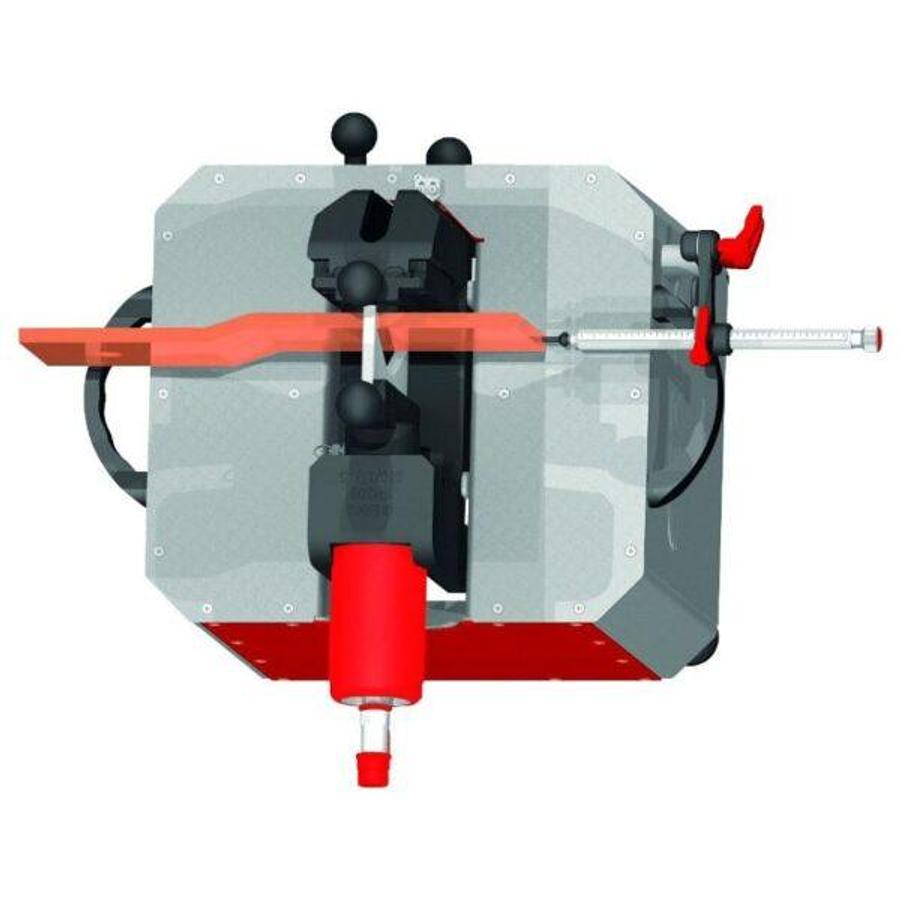

• Offset busbars for complex layouts
• Insert nuts for electrical assembly work
•


This compact unit offers professional workshop capability in a portable format, making it ideal for both factory and on-site use.

📦 Included Equipment

• ✅ Bending Station
• ✅ Punching Station
• ✅ Shearing (Cutting) Station
• ✅ Length Stop - 200mm
• ✅ Insert for repeatable bending (with limit switch)
• ✅ Busbar Cutter

⚙️ Technical Specifications

🔹 Busbar Capacity

• Min Width: 30 mm
• Max Width: 125 mm
• Min Thickness: 5 mm
• Max Thickness: 10 mm

🔹 Punching Capacity

• Min Hole Diameter: 6.6 mm
• Max Hole Diameter: 21 mm

🔹 Bending

• Max Bending Angle: 90°
• Min Bending Angle: 15°

🔹 Hydraulic System

• Pressure: 630 Bar
• Force: 150 kN
• Requires an Electro-Hydraulic Pump for use

🔹 Dimensions & Weight

• Dimensions (L x W x H): 550 x 540 x 430 mm
• Weight: 57 kg

🔧 Advanced Features

• Adjustable bending angle indicator (5° resolution)
• Bumper with measuring scale (200mm range, 1mm accuracy)
• Height adjustment of working body (1mm precision)
• Burr-free punching and cutting

➕ Optional Extras Available

• ERKO AH Hydraulic Pump
• Bending insert (SH 301)
• Cutting insert (SH 305)
• Offset insert dies (various sizes)
• Round hole punch (SH 303)
• Adapter for punches (SH 303-03)
• Oval hole punch (SH 304)
• Rectangular punch (SH 309 – custom sizes available)
• Nut inserting tool (SH 307)

🏭 Typical Applications

• Electrical panel manufacturing
• Switchgear production
• Busbar fabrication
• Industrial electrical installations
• Power distribution systems

💡 Why Choose the ERKO SH 300?

• Compact and portable design for flexible use
• High force output (150kN) for industrial performance
• Accurate and repeatable processing
• Multi-function capability in one machine
• Compatible with a wide range of ERKO hydraulic units

This machine is ideal for professionals needing a space-saving yet powerful busbar processing solution.

🔌 Compatible Power Units

The SH 300 works with:

• H800 Hydraulic Foot Pump
• AH100 Battery Hydraulic Unit
• AH500 / AH550 Electric Hydraulic Units
• AH500L Hydraulic Unit

📩 Contact us for pricing, lead time, or full specification details.

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed.
