€2,525 + VAT

Cormak HBS 320 Manual Bandsaw

1

Poland

orCall +353 838108745

Description

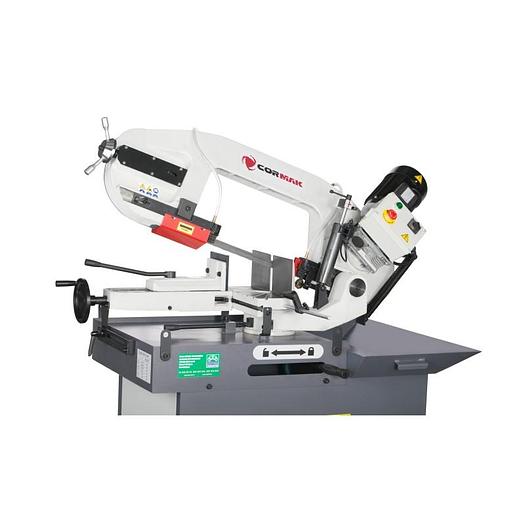

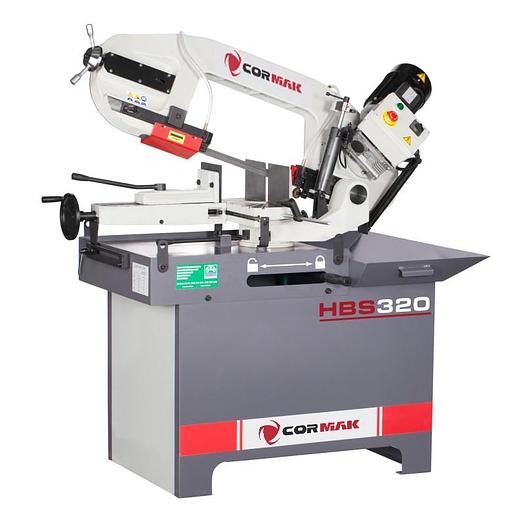

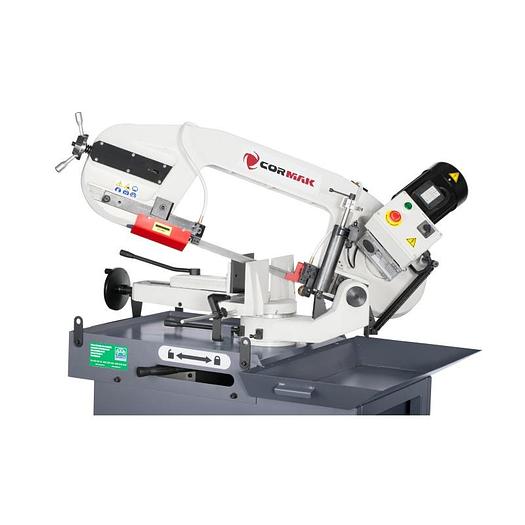

Cormak HBS320 Manual Bandsaw


Machine Description

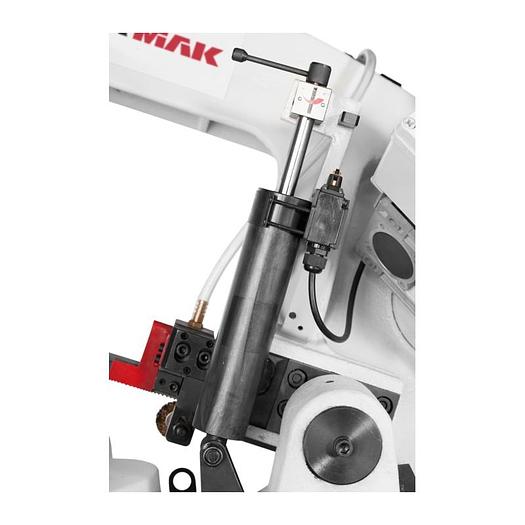

The CORMAK HBS320 band saw for metal provides cutting at any angle from -45° to + 60°. The material can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Band saw perfect for cutting tubes, profiles and other materials.


Machine Features

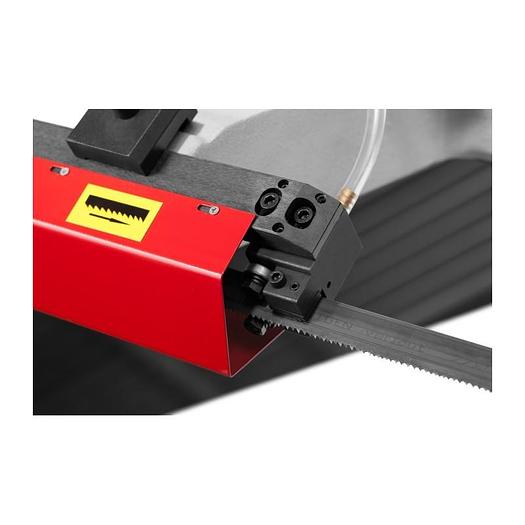

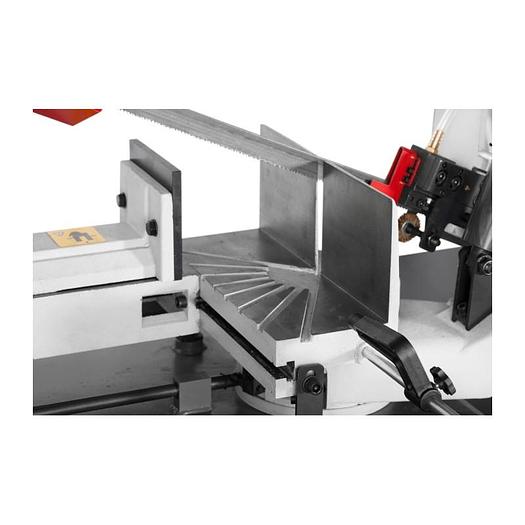

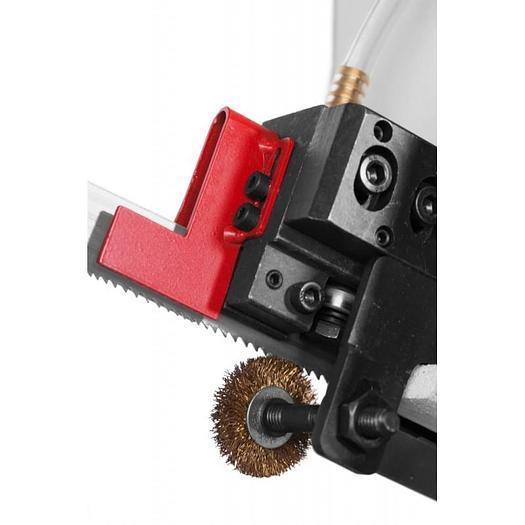

Operator starts the machine by pressing the START button and sets cutting speed. After the cycle is finished the machine automatically stops and the operator lifts the arm to the starting position. The band saw arm is made of massive, uniform cast iron, and together with 27 mm wide cutting band enables high quantity cutting of structural steel, stainless steel and tools. The vice is located in an adjustable bed and equipped with a quick clamp. Blade guides are equipped with a ball bearings system and cemented carbides, ensuring excellent cutting precision and straight cut. It has a huge impact on the band guiding, its durability, accuracy and cutting quality. The carbide guiding drastically reduces the wear of both the machine and the blade.

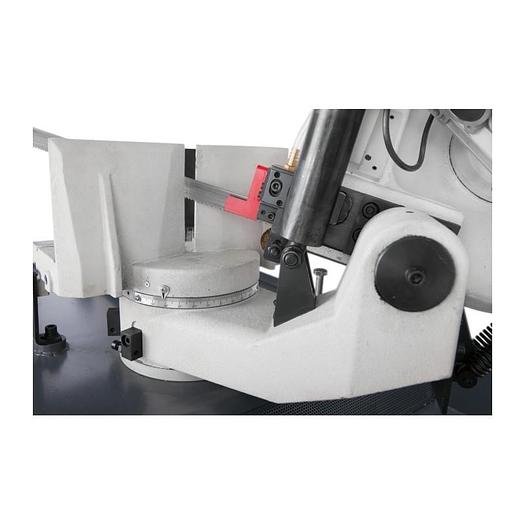

The base is enclosed, constituting a rigid welded body of steel sheets. A separate flood coolant container with an electropump is inside. The shape of the base upper part constitutes a tank for flood coolant draining and chips produced during cutting. Cast iron workbench is attached to the base, with a double-sided swivel arm and a control panel.


The feed speed is controlled by the control panel. There are 2 cutting band speeds: 44 and 88 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.


Technical Details

Ø max: 260 mm /Straight cutting

H×B max: 320×160 mm /Straight cutting

Power supply: 3–phase, 400V

Total power: 2.1 kW

Arm lowering control: hydraulic cylinder

Band dimensions: 2730×27×0.9 mm

Cutting speed: stepless 0–50 m/min

Band speed: 44 / 88 m/min

Vice base height: 920 mm

Dimensions: 1400×880×1550 mm

Weight: 330 kg


Cutting Capacities

0º:

Round: ø260mm

Rectangle: 320 x 160mm

Square: 255 x 255mm


45º R:

Round: ø210mm

Rectangle: 210 x 200mm

Square: 210 x 210mm


45º L:

Round: ø160mm

Rectangle: 220 x 130mm

Square: 160 x 160mm


60º R:

Round: Ø135mm

Rectangle: 135 x 130mm

Square: 130 x 130mm


Specifications

ManufacturerCormak
ModelHBS 320 Manual Bandsaw
ConditionNew
Ø max260 mm /Straight cutting
H×B max320×160 mm /Straight cutting
Power supply3–phase, 400V
Total power2.1 kW
Arm lowering controlhydraulic cylinder
Band dimensions2730×27×0.9 mm
Cutting speedstepless 0–50 m/min
Band speed44 / 88 m/min
Vice base height920 mm
Dimensions1400×880×1550 mm
Weight330 kg
