IMB Multifor - 9140 Flex - 13 x 18mm Oval/Oblong Punch & Die for TRIS Units
Description
IMB Multifor - 9140 Flex - 13 x 18mm Oval/Oblong Punch & Die for TRIS Units
Product No.: 9140 Flex
Manufacturer: IMB Multifor
Tool Type: Oval/Oblong Punch & Die with Step for Flexible Busbars
Dimensions: 13 x 18mm
For use with: IMB Multifor TRIS Units
Description

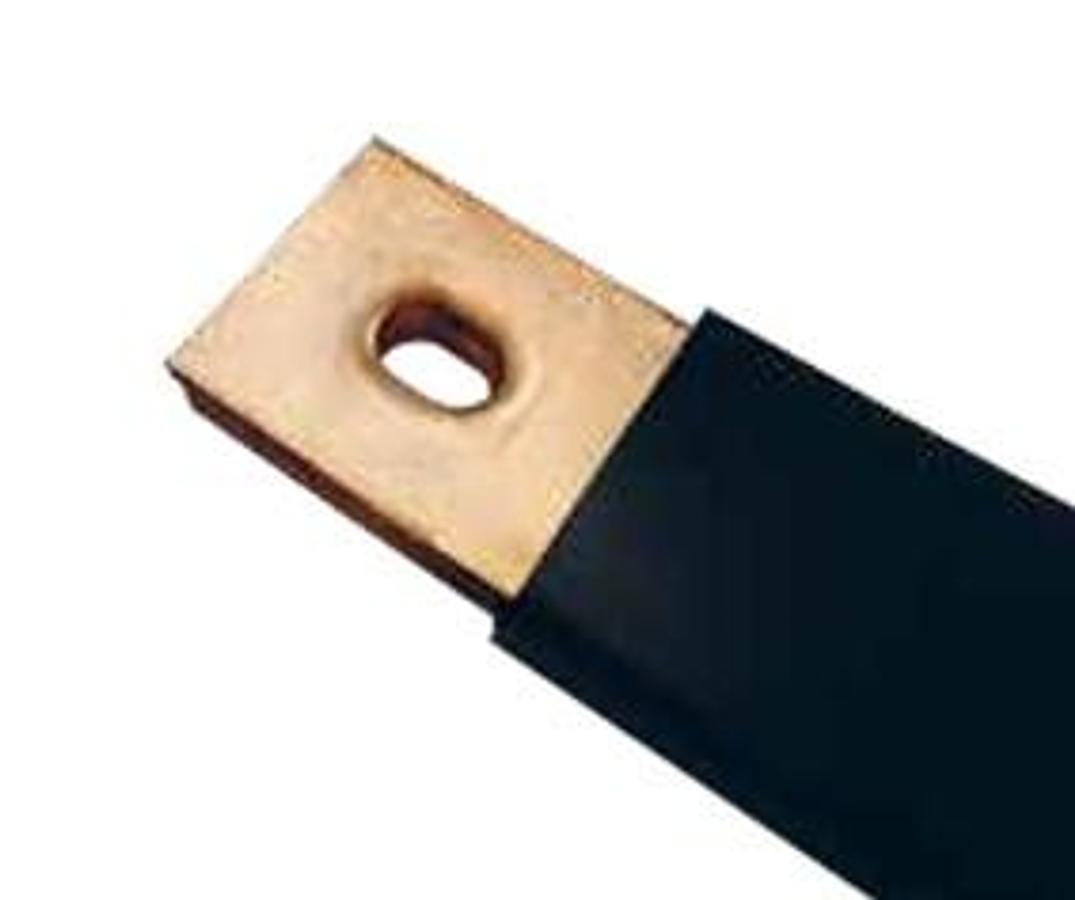

This solution for oval/oblong holes has 3 standard sizes: 9x15mm, 11x17mm & 13x18mm with a special shape, which reduces the distance between the hole and the protective sheath. It also cuts down the specific pressure on the bar to get a better result, both aesthetic and functional.
Can be used with all IMB Multifor Tris Units.

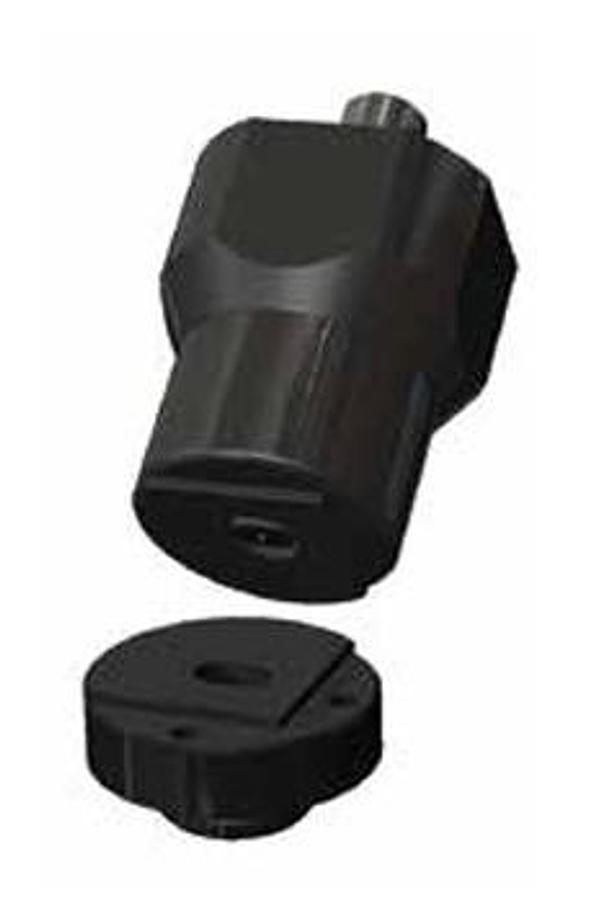

Includes
Male Punch: 9140M Flex
Female Die: 9140F Flex
Technical Specifications
Dimensions: 13 x 18mm
Centre Cistance Hole - Protection: 18mm
Edge Hole - Protection: 11.5 - 9mm
Specifications
| Manufacturer | IMB Multifor |
| Model | 9140 Flex - 13 x 18mm Oval/Oblong Punch & Die for TRIS Units |
| Condition | New |
| Stock Number | 9140 Flex |
| Product No. | 9140 Flex |
| Manufacturer | IMB Multifor |
| Dimensions | 13 x 18mm |
| For use with | IMB Multifor TRIS Units |
| Male Punch | 9140M Flex |
| Female Die | 9140F Flex |
| Centre Distance Hole-Protection | 18mm |
| Edge Hole - Protection | 11.5 - 9mm |
