Alfra 01421 - 22.5mm Hole Puncher with 2 Flattened Sides
Description

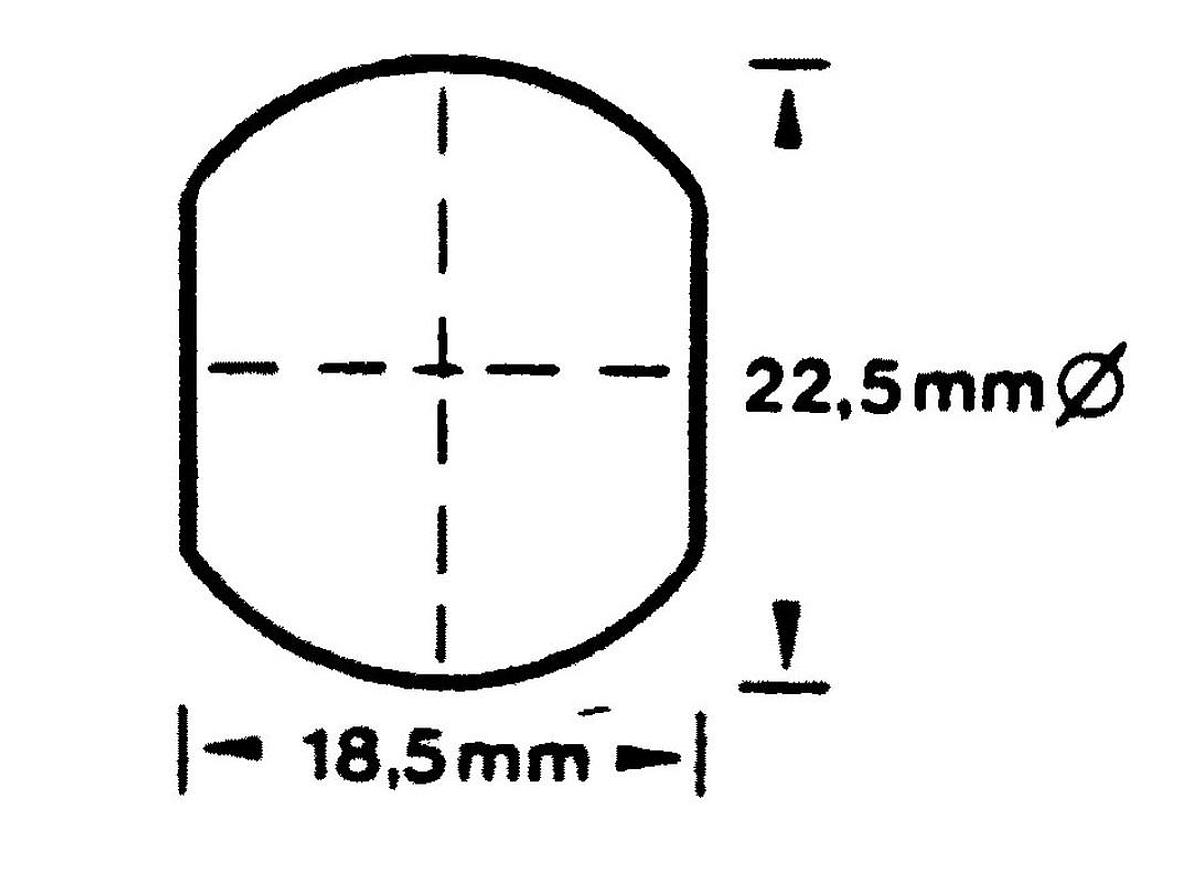

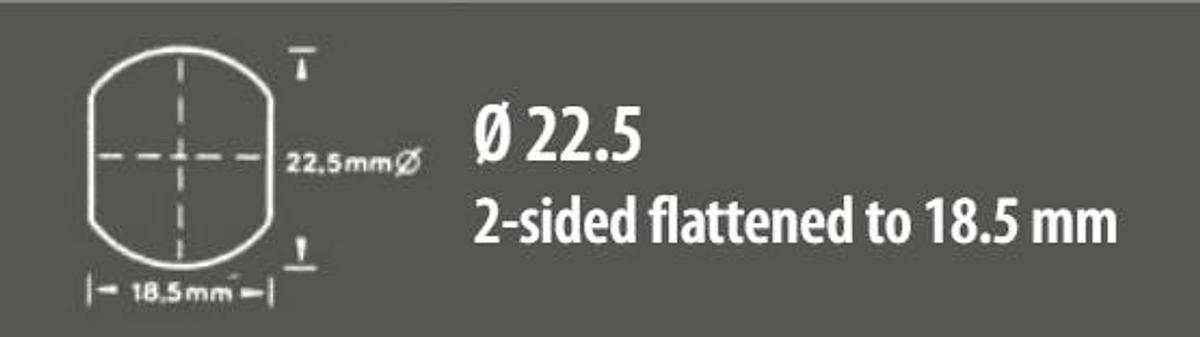

Alfra 01421 - 22.5mm Hole Puncher with 2 Sides Flattened to 18.5mm
Product No.: 01421
Product Type: Hole Puncher for Special Forms
Size: 22.5mm Diameter with 2 Sides Flattened to 18.5mm
Max Material Thickness: 2.0mm
Pre-Drill Size: 14mm
For use with
Manual Tools
02012 - SKP-1 Hydraulic Cylinder
02013 - SKP-1 Mini Hydraulic Cylinder
Description
Special projects require special hole puchers . No problem for us! We fulfill additional wishes with special shapes for sheet steel or stainless steel: for example, lugs for anti-twist devices, flattened sides or dimensions for profile cylinders. Do you have precise ideas about a hole puncher for your project? Individuality is our strength. We supply round, square and rectangular hole punchers according to specifications or sketches. Special shapes are also possible. Convince yourself of the quality of our technical advice. All we need for your inquiry are the dimensions, sheet thickness and material number, as well as a decision on manual or hydraulic operation.
- All hole punchers are fitted with side ejection for the waste piece. No jamming in the die
- The hole puncher is supplied in a heavy duty, practical plastic case
Includes
01347 - Drawbolt
01351 - Counternut/Bridge
01352 - Ball bearing pressure nut
01353 - Adapter for hydraulic use
More Special Forms Available Here
Specifications
| Manufacturer | Alfra GmbH |
| Model | 01421 - 22.5mm Hole Puncher with 2 Flattened Sides |
| Condition | New |
| Stock Number | 01421 |
| Product No. | 01421 |
| Max Material Thickness | 2.0mm |
| Pre-Drill Size | 14mm |
