Alfra 01368 - Hole Puncher® Sub-Min-D 41.9 x 11.3mm for Connectors
Description
Alfra 01368 - Hole Puncher® Sub-Min-D 41.9 x 11.3mm for Connectors
Product No.: 01368
Product Type: Puncher for Connectors
Size: 41.9 x 11.3mm
Connector Type: 25 Pins
Max Material Thickness Steel: 1.75mm
Max Material Thickness Stainless Steel: 1.25mm
Pre-Drill Size: 10mm
For use with
Manual Tools
02012 - SKP-1 Hydraulic Cylinder
02013 - SKP-1 Mini Hydraulic Cylinder
Description

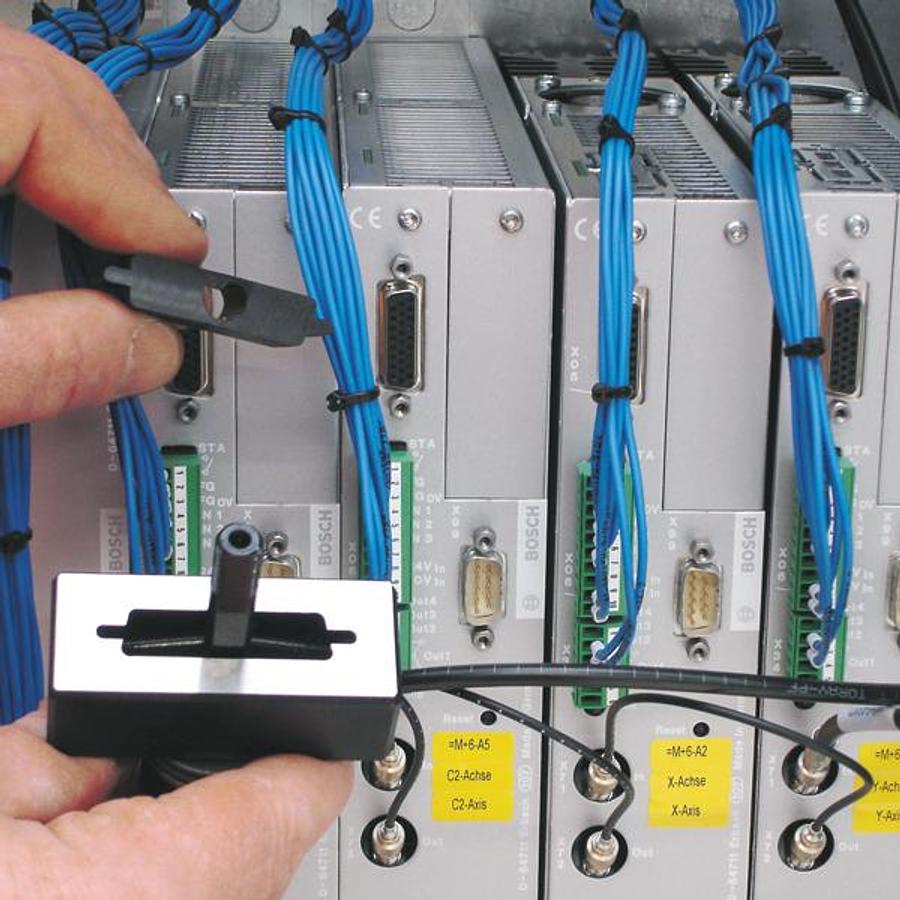

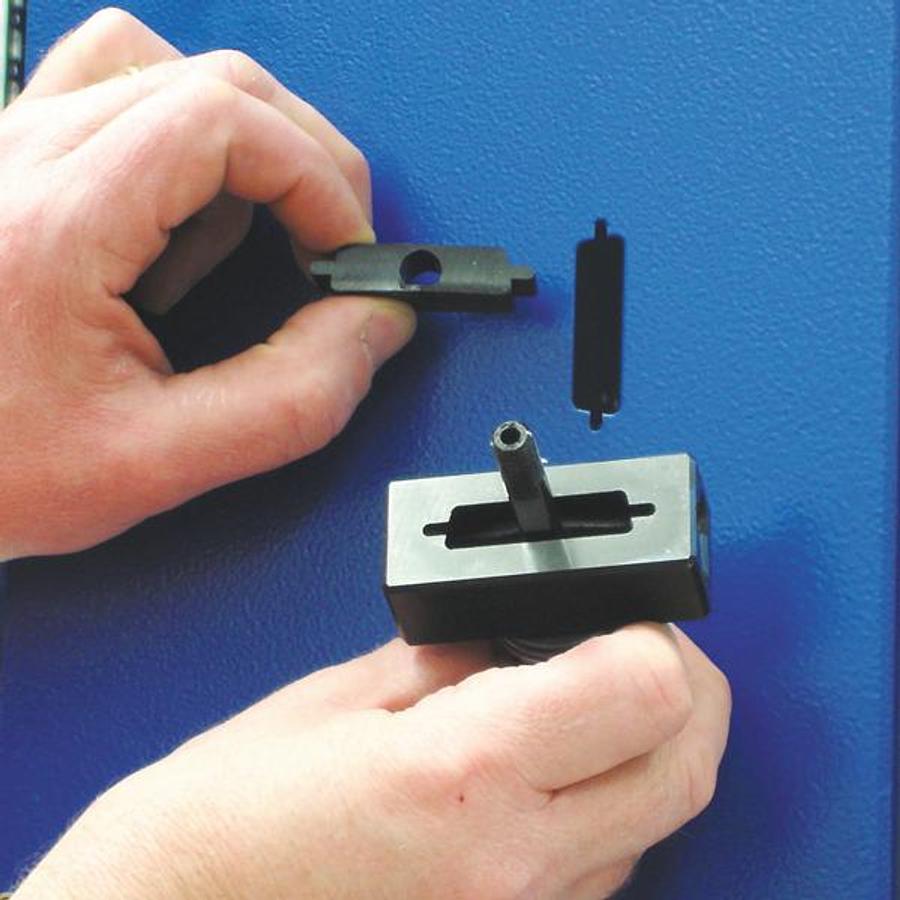

Our Sub-Min-D is one of the specialists belonging to the Alfra-hole puncher family. The core competency: Punching out openings for 9 up to 50 pin connectors. Special anti-rotating axes are serving as a tension bolt for puch and die. Like all ALFRA square or rectangular punchers, the Sum-Min-D is equipped with a sideways puncher part ejection, to avoid the tilting of the waste piece in the die.
- For "Sub-Min-D" multiple plug connectors - for sheet steel (S235) and stainless steel
- For punching out the cutout for 9-50-pins plug connectors.
- Anti-rotation axles for punches and dies are used as draw bolts.
- All hole punchers are fitted with side ejection for the waste piece. No jamming in the die
- The hole punchers are supplied in heavy duty, practical plastic cases

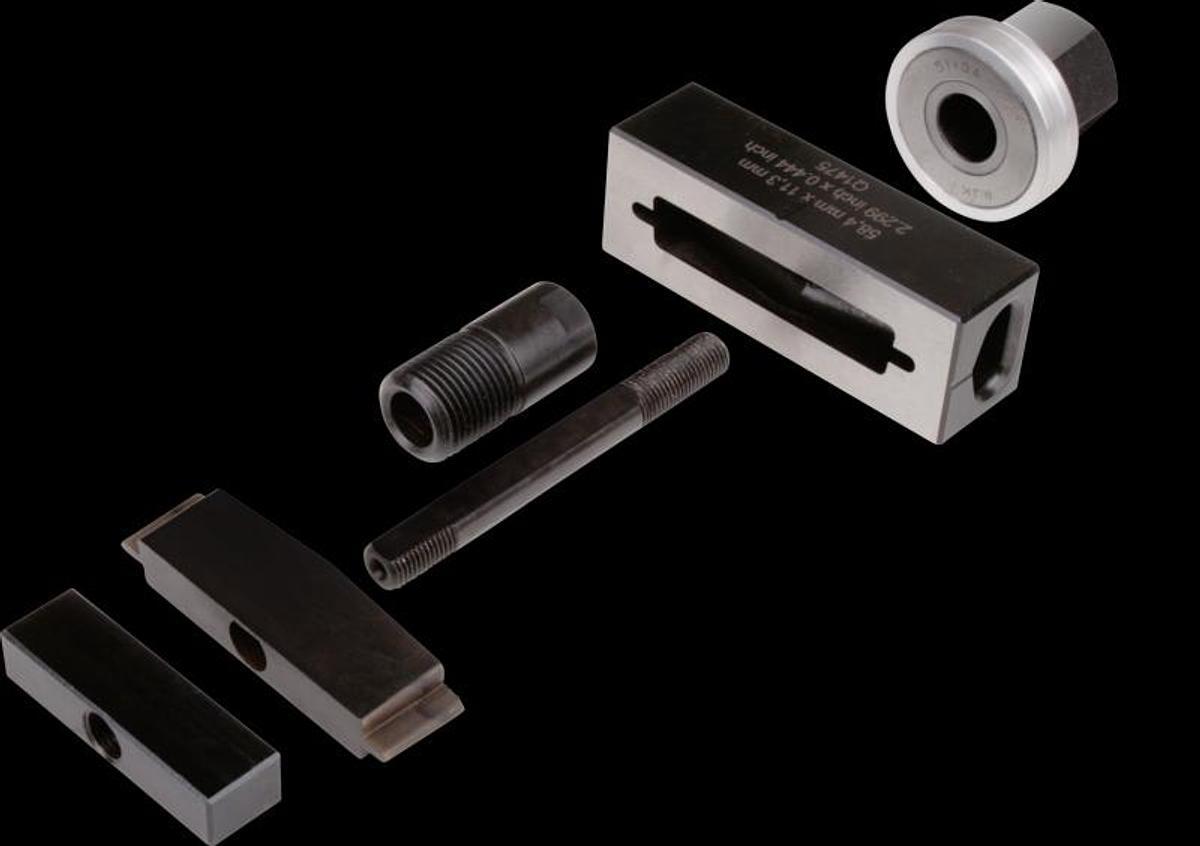

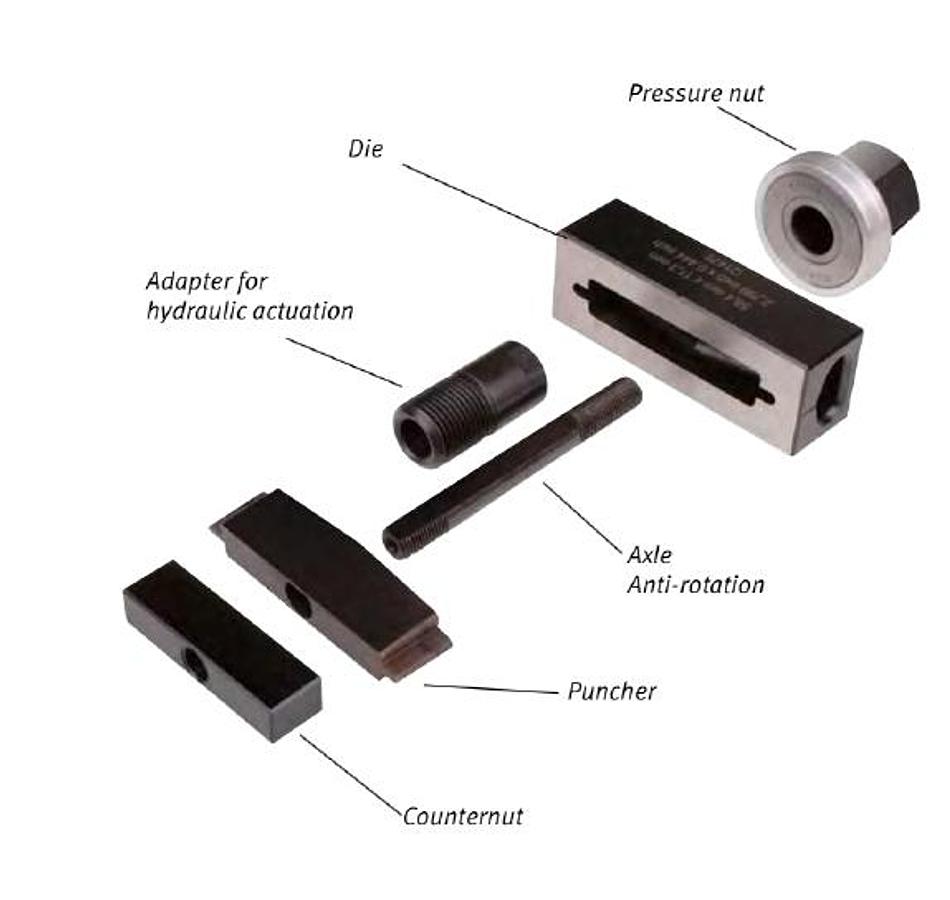

Includes
01438 - Drawbolt
01447 - Counternut/Bridge
01352 - Ball bearing pressure nut
01353 - Adapter for hydraulic use
More Sizes Available Here
Specifications
| Manufacturer | Alfra GmbH |
| Model | 01368 - Hole Puncher® Sub-Min-D 41.9 x 11.3mm for Connectors |
| Condition | New |
| Stock Number | 01368 |
| Product No. | 01368 |
| Product Type | Puncher for Connectors |
| Size | 41.9 x 11.3mm |
| Connector Type | 25 Pins |
| Max Material Thickness Steel | 1.75mm |
| Pre-Drill Size | 10mm |
