Alfra 014311 FormCut+® Square Hole Puncher - 125.0 x 125.0mm

Alfra 014311 FormCut+® Square Hole Puncher - 125.0 x 125.0mm

Prod No: 014311

Alfra Range: FormCut+®

Tool Type: FormCut+® Square Hole Puncher for Sheet Steel (S235) & Stainless Steel (VA)

Size: 125.0 x 125.0mm

Material Thickness: 2.0mm

Pre-Drill: 30mm

For use with

02012 - SKP-1 Hydraulic Cylinder

02013 - SKP-1 Mini Hydraulic Cylinder

Includes

01343 - Draw bolt

01356 - Counter nut

Note: Other sizes available here

Description

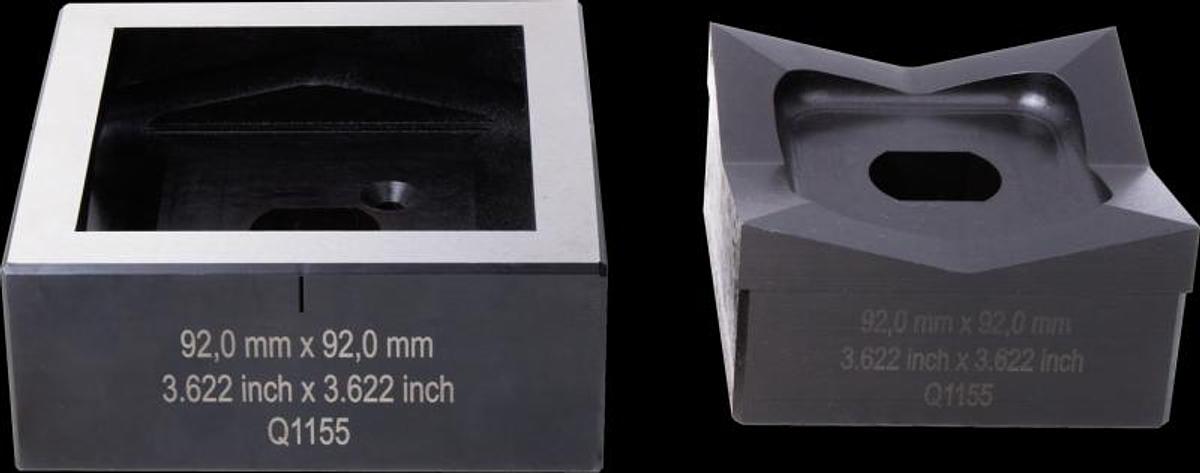

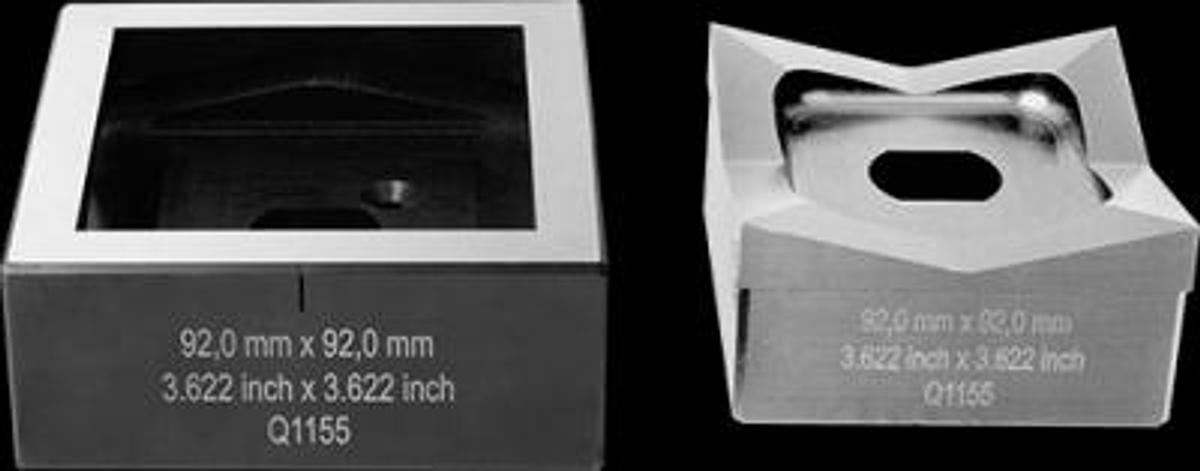

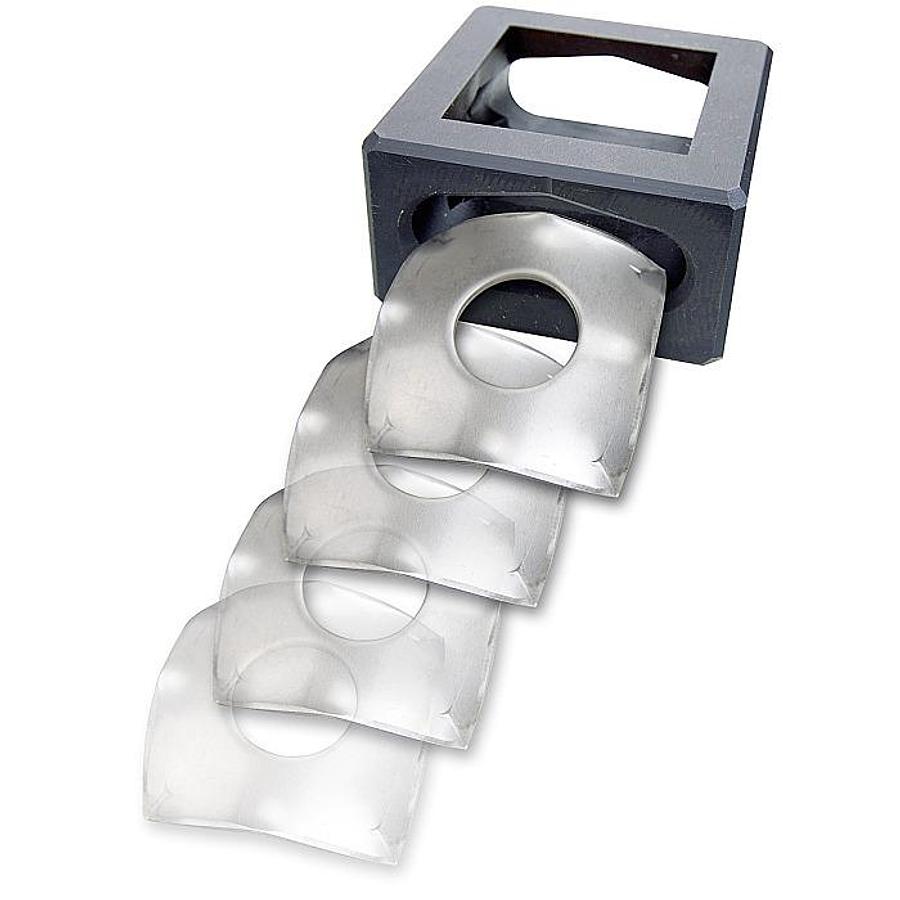

The Alfra FormCut+® hole puncher is used for square or rectangular cut outs. These punch-outs are for example necessary for heavy duty connectors or for openings to insert control cabinet fans. Because of the sideways puncher part ejection, the waste piece doesn’t tilt in the die and can be disposed easily.

The version for square-shaped punch-outs is available from 12.7 mm x 12.7 mm up to 138.0 mm X 138.0 mm. Depending on the model, the square shaped puncher is suitable for stainless steel sheets with a material thickness from 1.25 mm up to 2.0 mm. Also, FormCut+® range is the perfect application solution for 6-, 10-, 16- or 24-pin connectors. Depending on the model, rectangular shaped punch-outs with the FormCut+® range are possible with the measurements from 21.8 mm x 25.8 mm to 68.0 mm x 138.0 mm.

Usable up to a material thickness of:

From 1.25mm to 2.0mm depending on Punch Size

Features

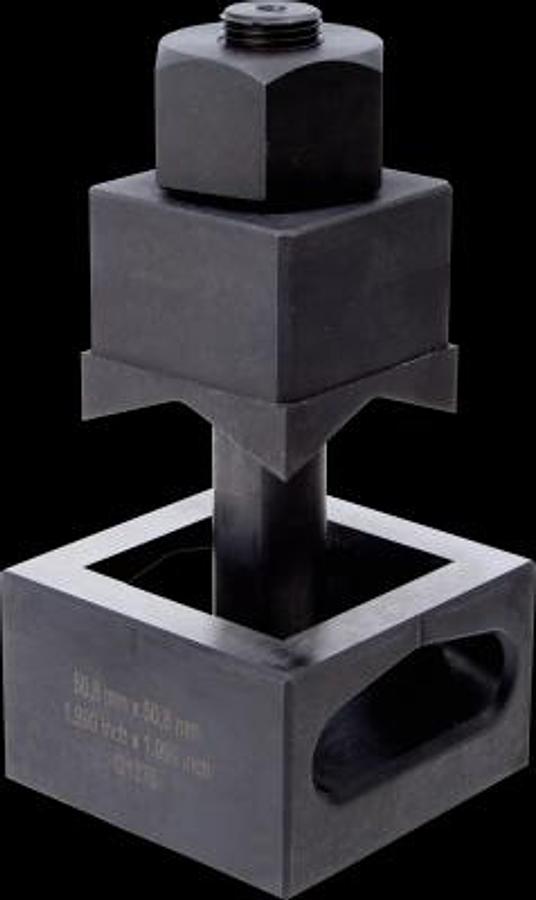

• With sideways puncher part ejection
• With UNF fine thread
• With 4 crosshair markings for simple central alignment

Notes

The max. material thickness at which a square or rec­tangular hole puncher (or even special tool) can be used always depends on the draw bolt and the cross-section of the tool (length x width or special shape)
