Alfra 01652 Split Hole Puncher TriCut+ Set
or
Call +353 838108745
Description
Alfra 01652 Split Hole Puncher TriCut+ Punching Tool Set
Prod No: 01652
Tool Type: Split hole puncher TriCut+® for sheet steel (S235) and stainless steel
Includes
TriCut+® Punch Sizes: 16.2, 20.4,25.4,32.5 & 40.5mm

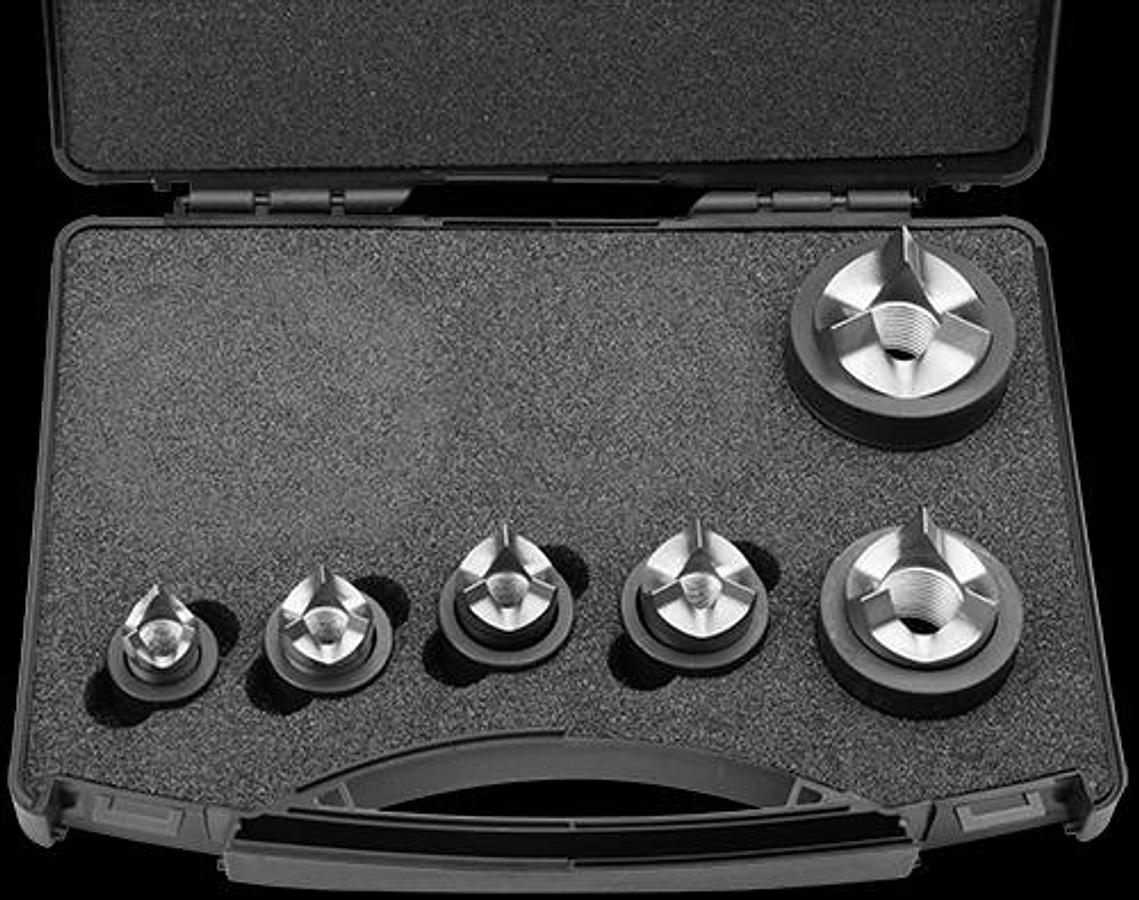

Heavy Duty Carry Case
Description

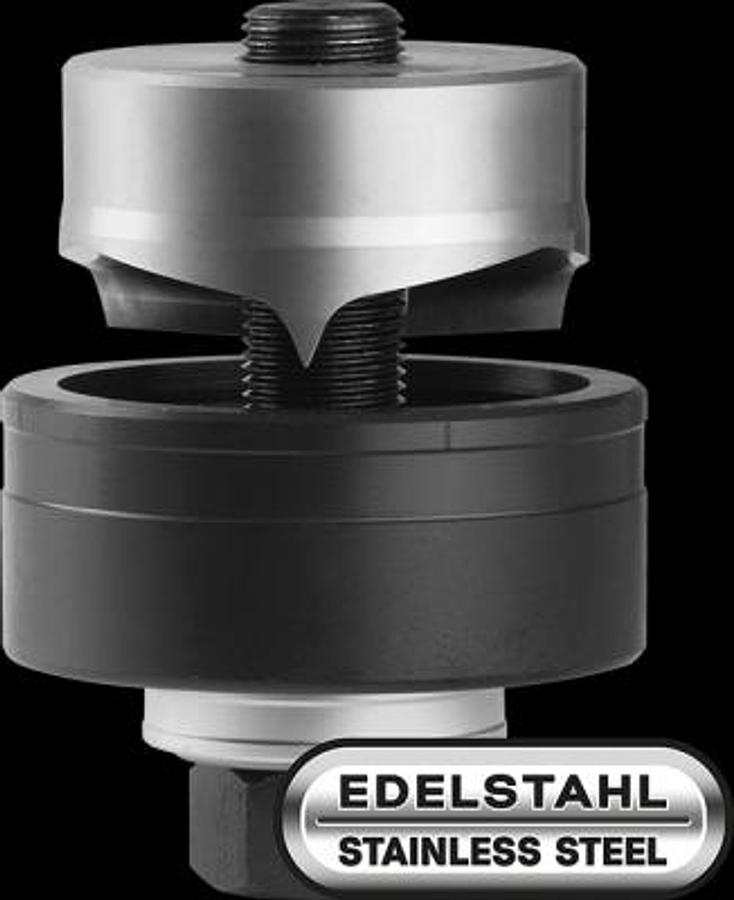

The big plus of this hole puncher made by Alfra is the outstanding performance on stainless steel – for example for punch-outs in control cabinets or for production facilities in the food industry.

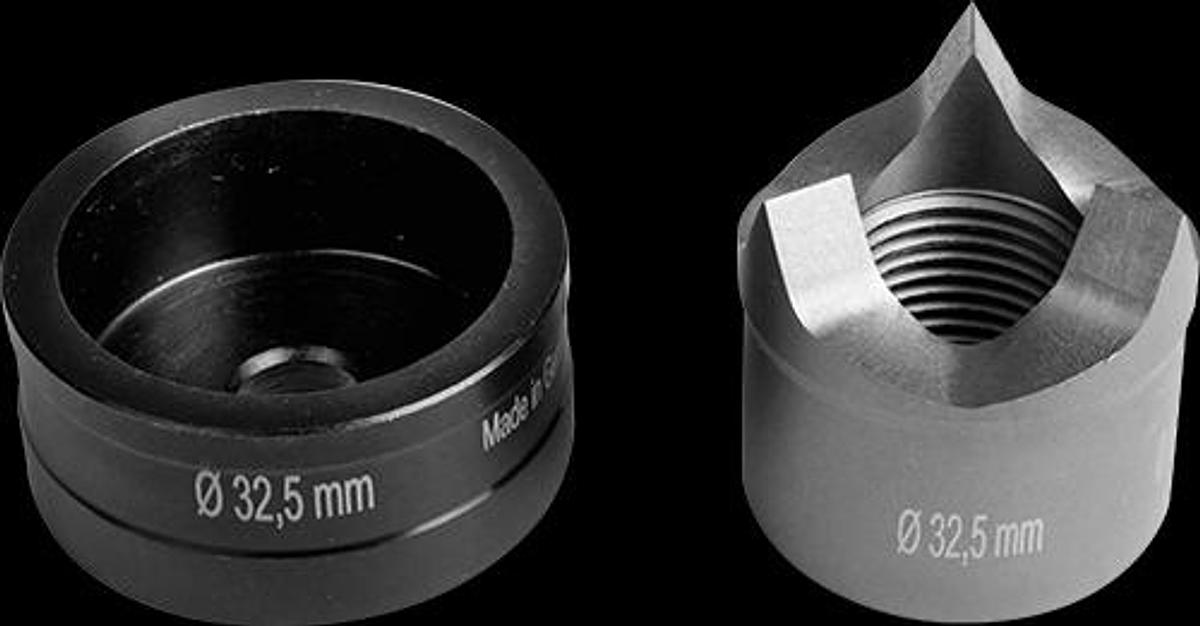

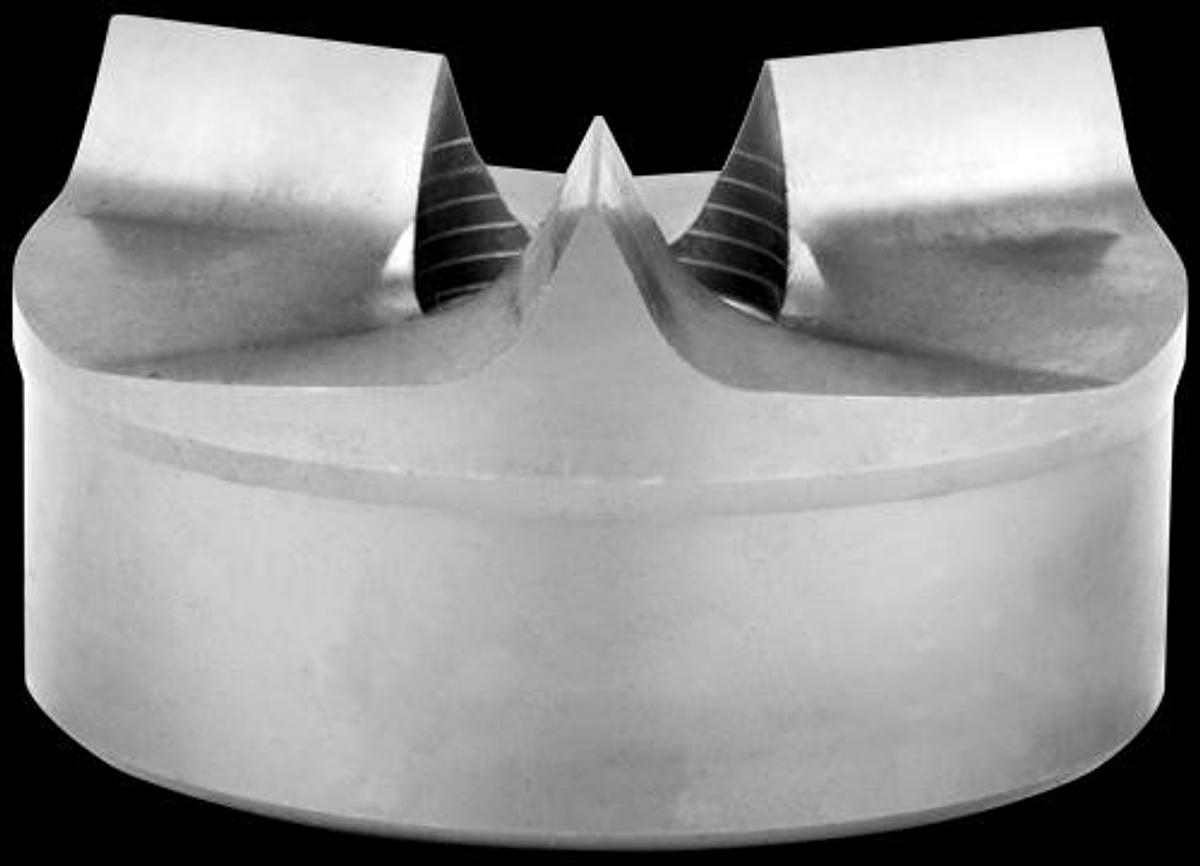

The waste piece is punched into three pieces. That’s why it doesn’t tilt in the die.
The Tricut+ can punch holes into stainless steel from a material thickness up to 2,5 mm (19,0 mm ; ¾“ screw or draw bolt)or on stainless steel from a thickness up to 2,0 mm (11,1 mm screw or draw bolt).
Features
- With 3-fold split
- With UNF fine thread
- With 4 crosshair markings for simple central alignment
Specifications
| Manufacturer | Alfra GmbH |
| Model | 01652 Split Hole Puncher TriCut+ Set |
| Condition | New |
| Stock Number | 01652 |
| Prod No | 01652 |
| TriCut+® Punch Sizes | 16.2, 20.4,25.4,32.5 & 40.5mm |
