Alfra Compact Combi™ Tricut™ 10 Piece Punching Tool Set - 01766
Description
Alfra Compact Combi™ TriCut™ 10 Piece 90° Punch Driver Set
10 Piece Punching set TriCut™
Prod No: 01766
Description
Compact Combi® manual 90° puncher is for use in construction of switch gear and control cabinets – suitable for all hole puncher types.
Loading only takes place in the tension direction and makes work considerably easier.
Note: TriCut™ Punches are for use with sheet steel only.
Features:
Precisely-matched overpressure valve
Reinforced handle – soft touch
Body hard-anodised, stable grip, elegant
Weighs only 1.75 kg
High-compression cylinder bore surface
Lasered production code on rear
High punching force of 75 kN

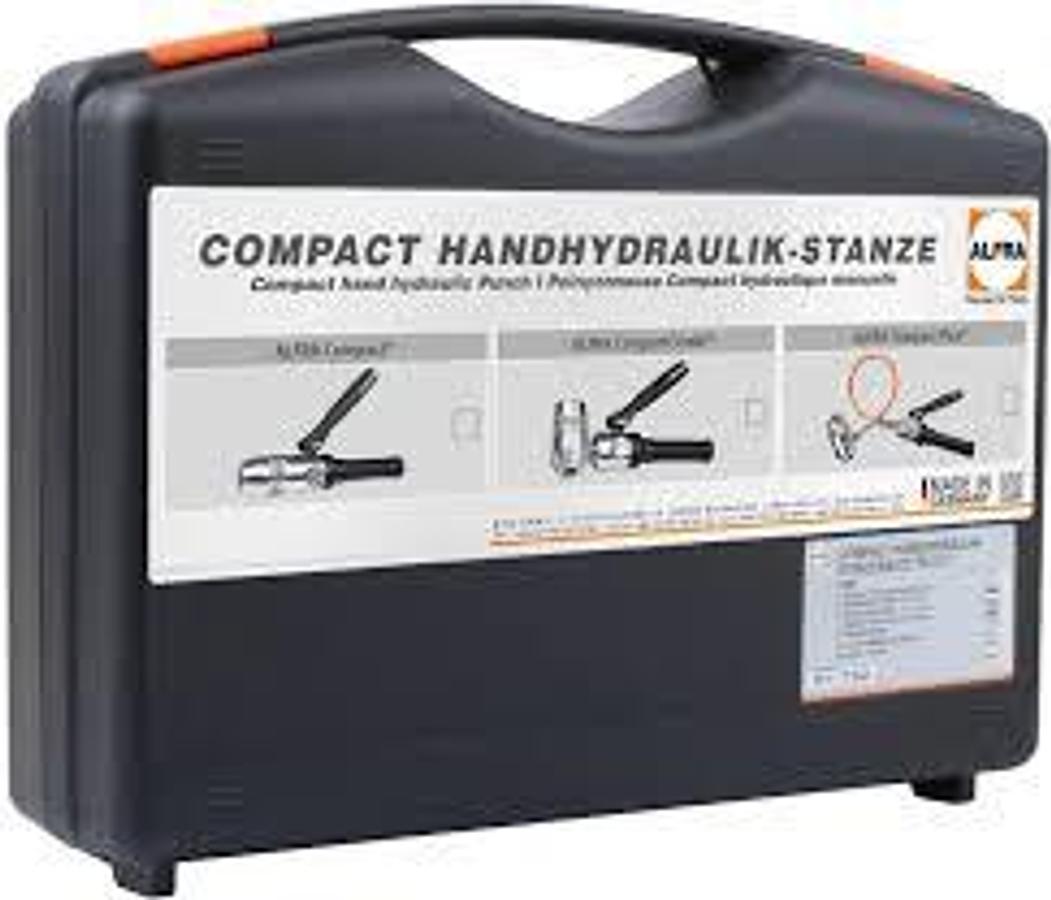

Includes:

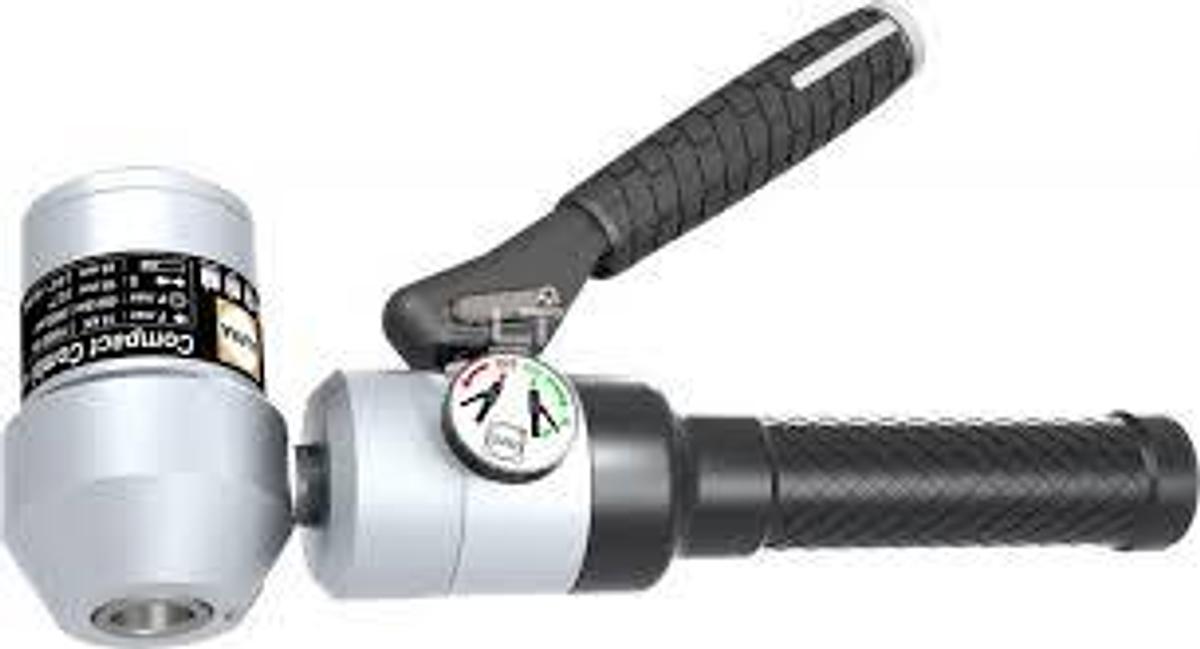

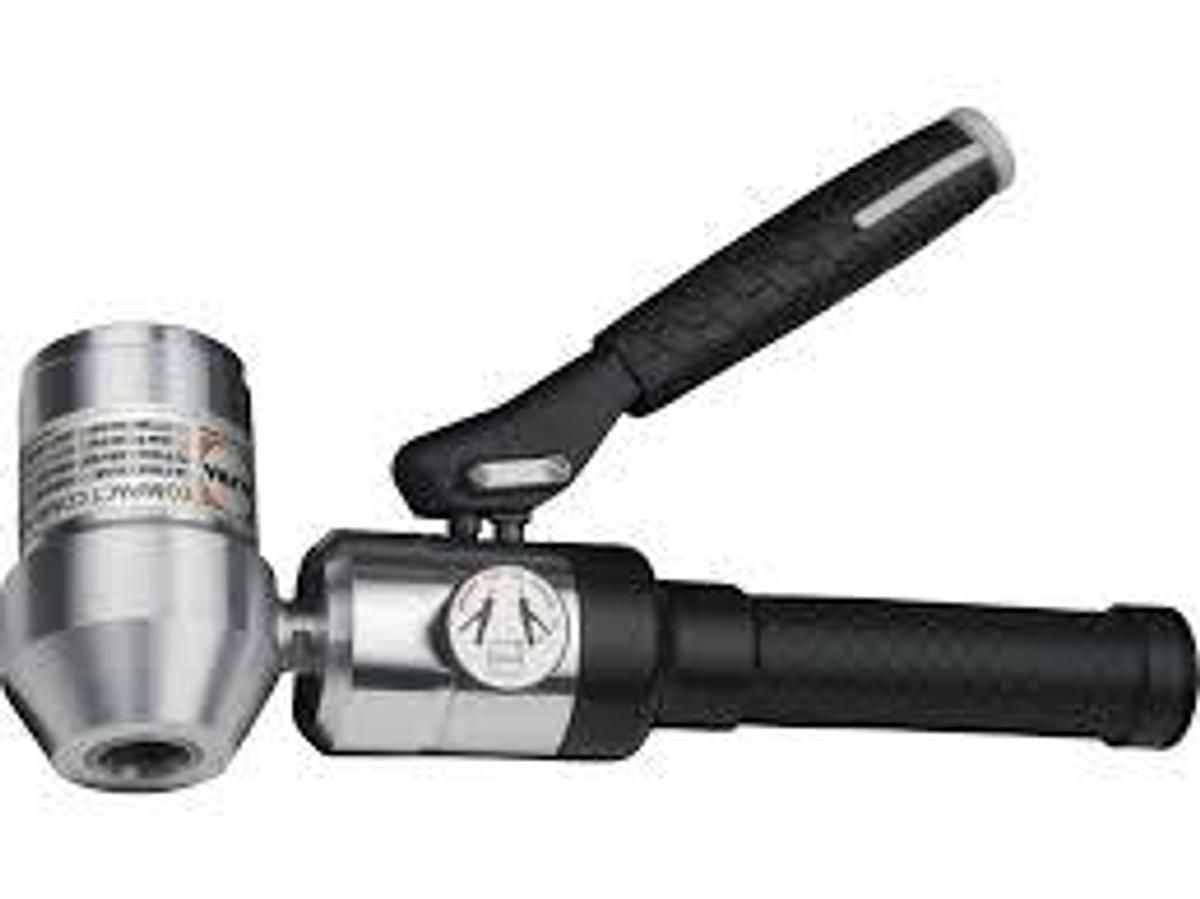

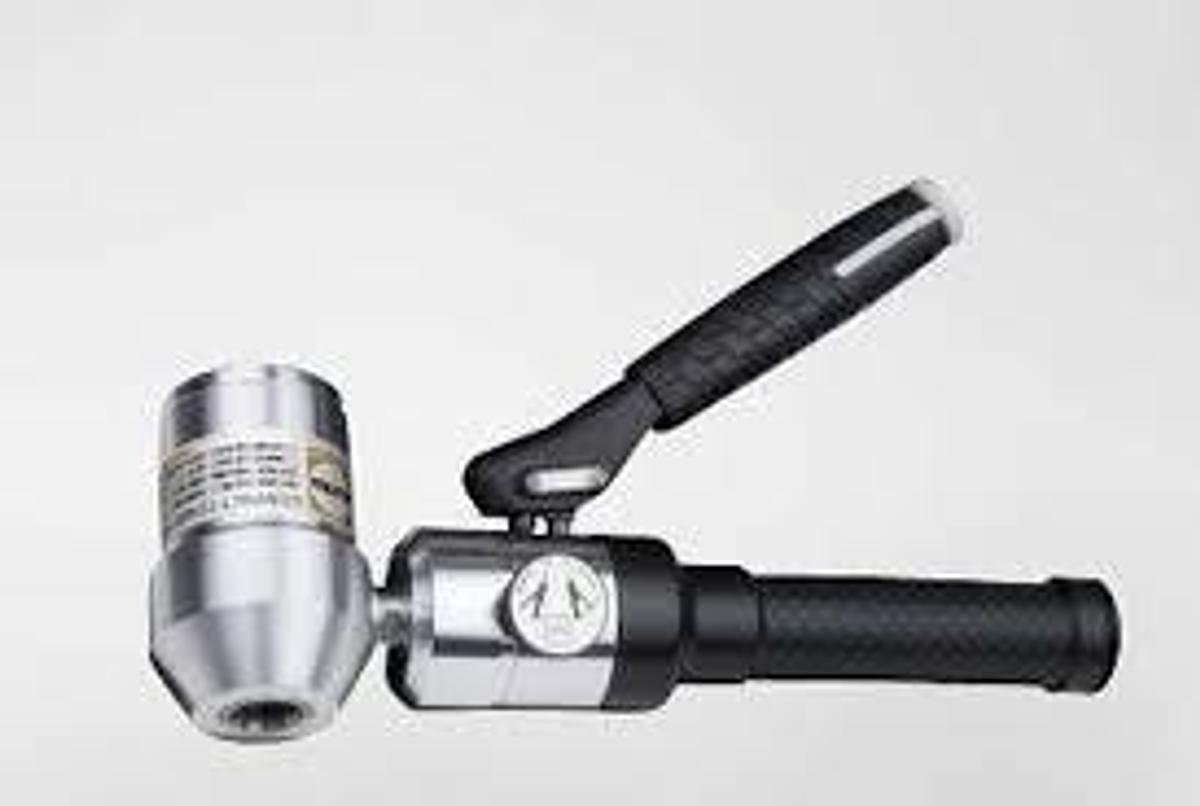

Compact Combi® Manual 90° Puncher: 1 (02050)
Tricut® Punches & Dies: 16.2,20.4,25.4,32.5 & 40.5mm
1 draw bolt: Ø 19 mm
1 draw bolt: Ø 19 x 9.5 mm
1 HSS pre-drill: Ø 11 mm
1 spacer sleeve set: (3-part)
Punching Capacity
Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel
(with special draw bolt and spacer sleeve)
Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel (with special draw bolt and spacer sleeve)
Technical Specifications
Punching force: 75 kN
Hydraulic pressure max.: 680 bar
Piston stroke: 18 mm
Tool mounting: 19 mm
Hydraulic medium: HLP32 hydraulic oil
Weight: 1.75 kg
Specifications
| Manufacturer | Alfra GmbH |
| Model | 01766 Compact Combi™ Tricut™ 10 Piece Punching Tool Set |
| Condition | New |
| Stock Number | 01766 |
| Prod No | 01766 |
| Compact® Manual 90° Puncher | 1 (02050) |
| Tricut® Punches & Dies | 16.2,20.4,25.4,32.5 & 40.5mm |
| 1 draw bolt | Ø 19 mm |
| 1 HSS pre-drill | Ø 11 mm |
| 1 spacer sleeve set | (3-part) |
| Punching force | 75 kN |
| Hydraulic pressure max. | 680 bar |
| Piston stroke | 18 mm |
| Tool mounting | 19 mm |
| Hydraulic medium | HLP32 hydraulic oil |
| Weight | 1.75 kg |
