Alfra Compact Combi™ Tricut™ 14 Piece Punching Tool Set - 01753

Alfra Compact Combi™ TriCut™ 14 Piece 90° Punch Driver Set

14 Piece Punching set TriCut™

Prod No: 01753

Description

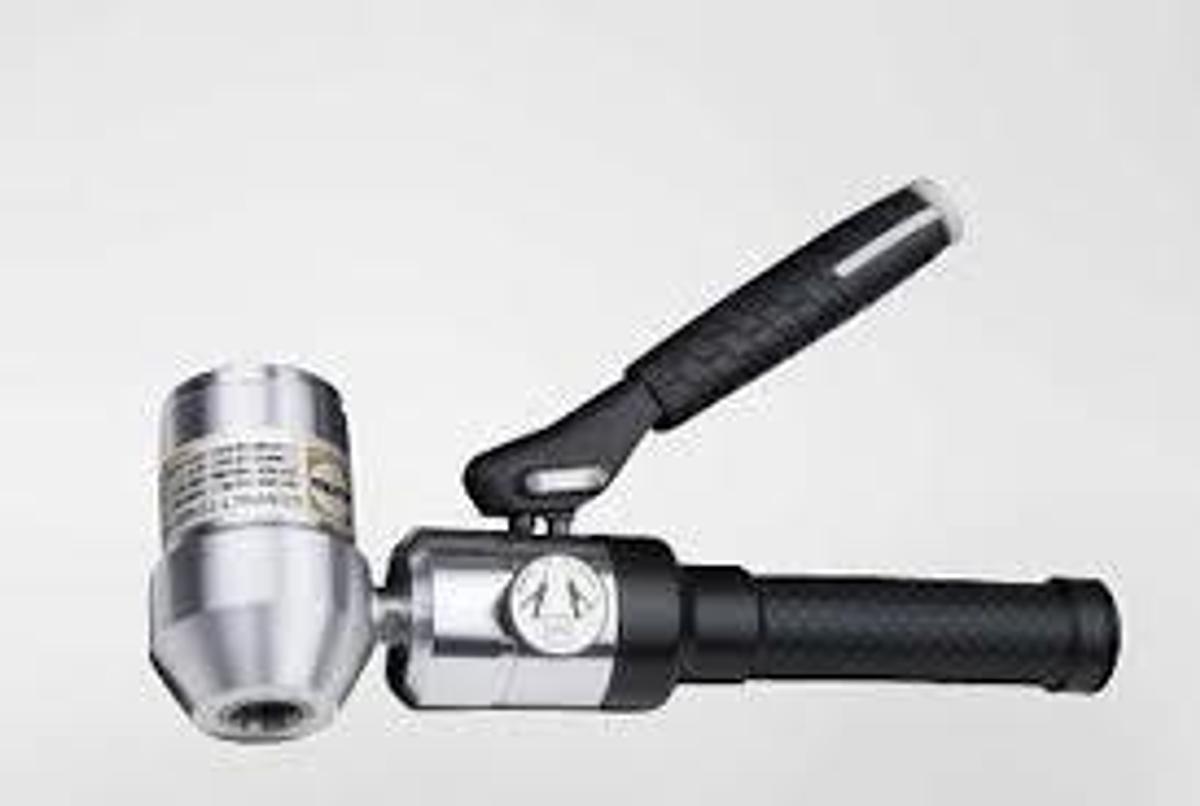

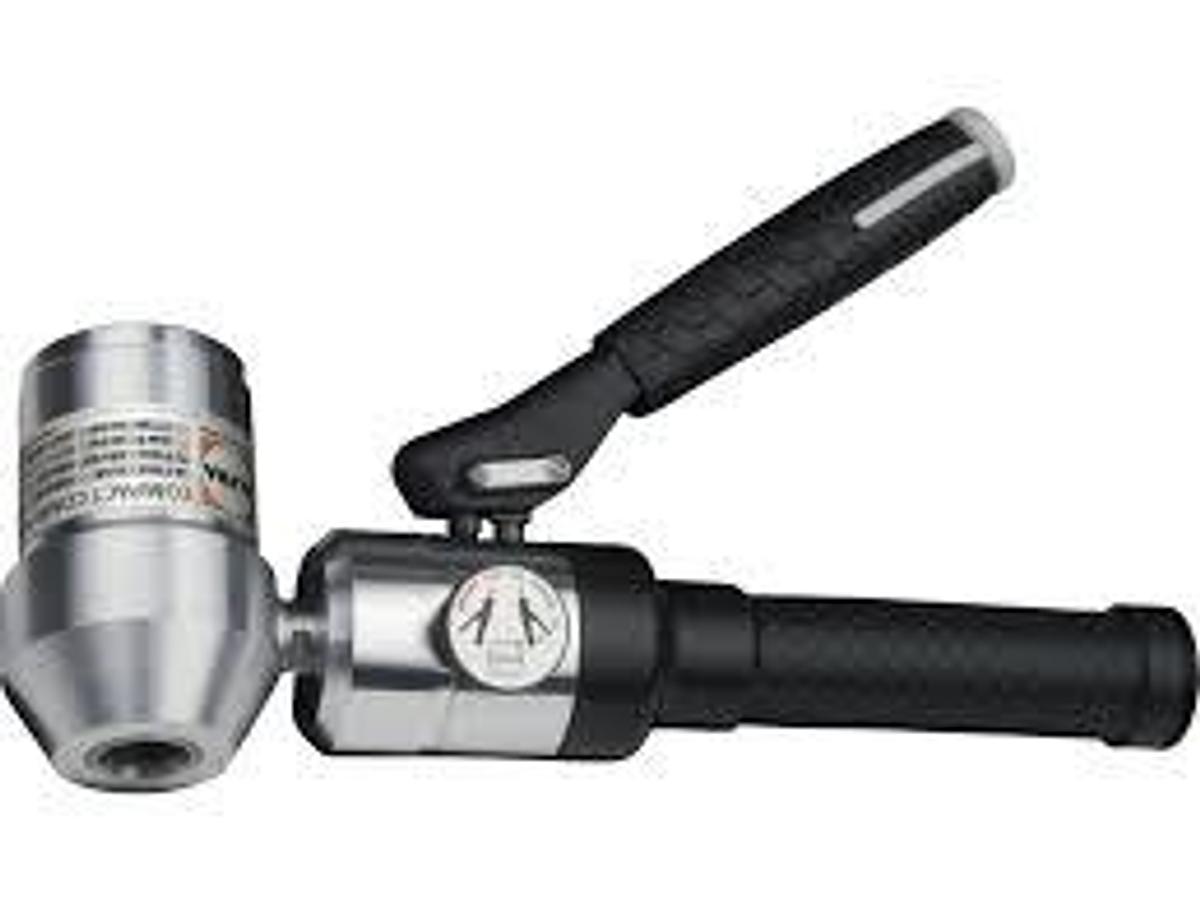

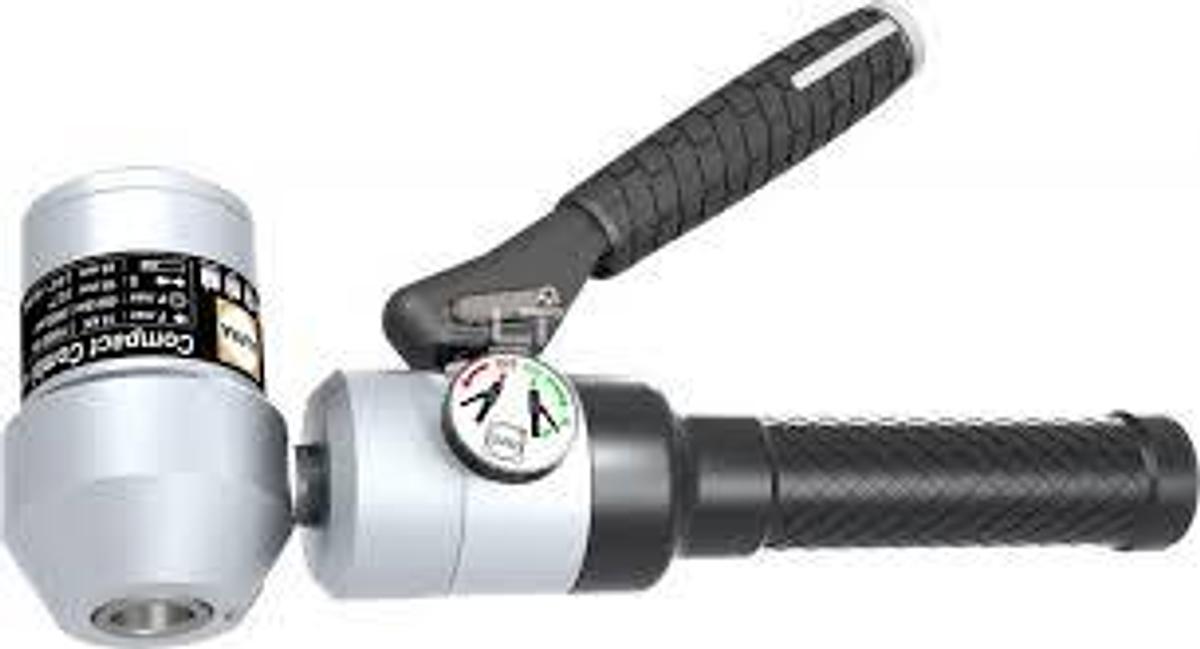

Compact Combi® manual 90° puncher is for use in construction of switch gear and control cabinets – suitable for all hole puncher types.

Loading only takes place in the tension direction and makes work considerably easier.

Note: TriCut™ Punches are for use with sheet steel only.

Features:

Precisely-matched overpressure valve

Reinforced handle – soft touch

Body hard-anodised, stable grip, elegant

Weighs only 1.75 kg

High-compression cylinder bore surface

Lasered production code on rear

High punching force of 75 kN

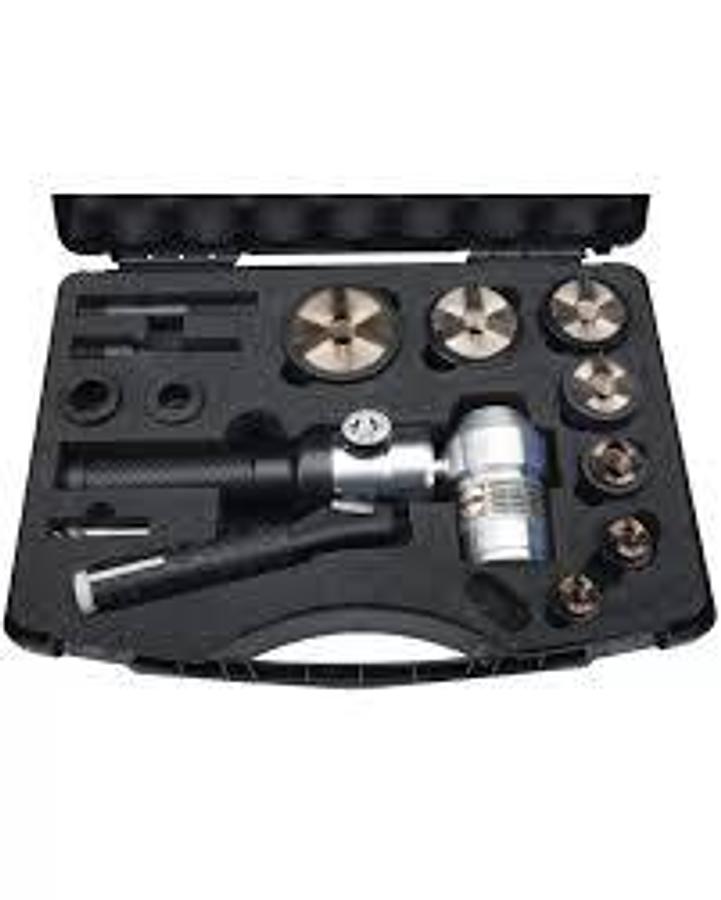

Includes:

Compact Combi® Manual 90° Puncher: 1 (02050)

Tricut® Punches & Dies: 15.2,18.6,20.4,22.5,28.3,37,47,54,60mm

1 draw bolt: Ø 19 mm

1 draw bolt: Ø 19 x 9.5 mm

1 HSS pre-drill: Ø 11 mm

1 spacer sleeve set: (3-part)

Punching Capacity

Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel

(with special draw bolt and spacer sleeve)

Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel  (with special draw bolt and spacer sleeve)

Technical Specifications

Punching force: 75 kN

Hydraulic pressure max.: 680 bar

Piston stroke: 18 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 1.75 kg
