Alfra Compact Combi™ Tricut+™ 13 Piece Punching Tool Set - 01651

Alfra Compact Combi™ TriCut+™ 13 Piece 90° Punch Driver Set

13 Piece Punching set TriCut+™

Prod No: 01651

Description

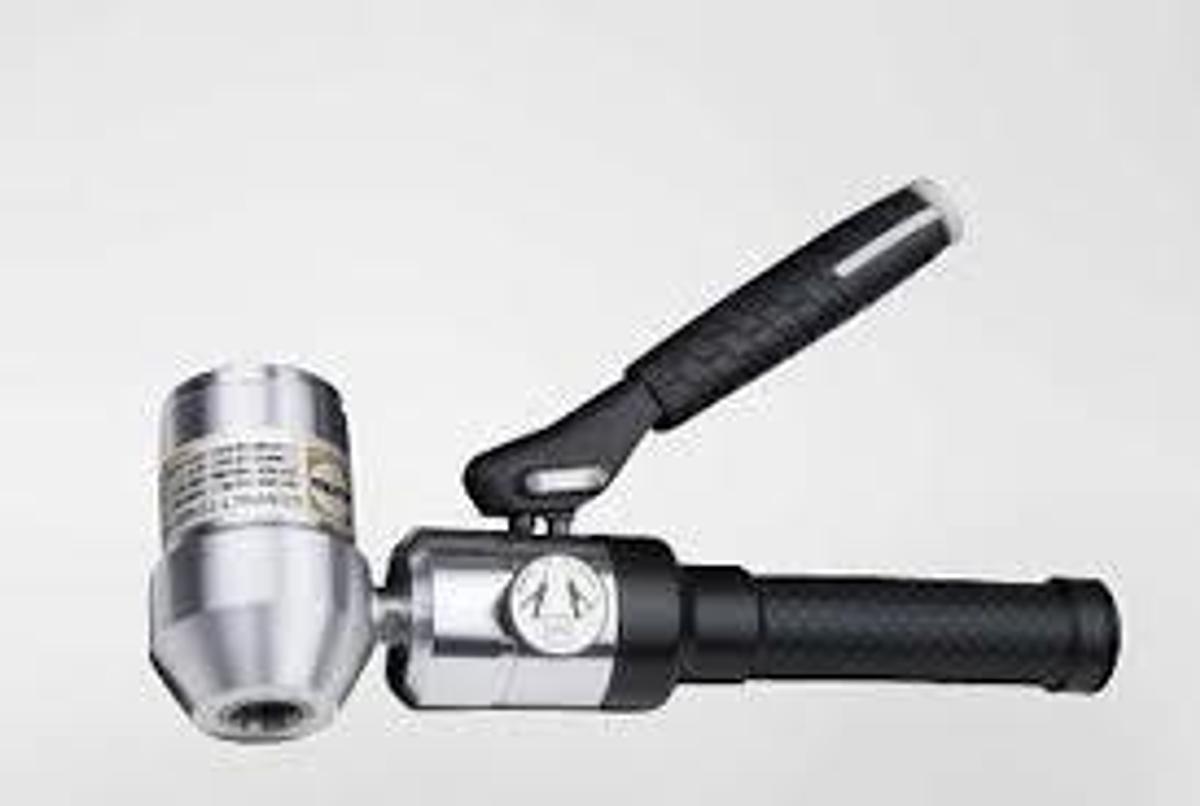

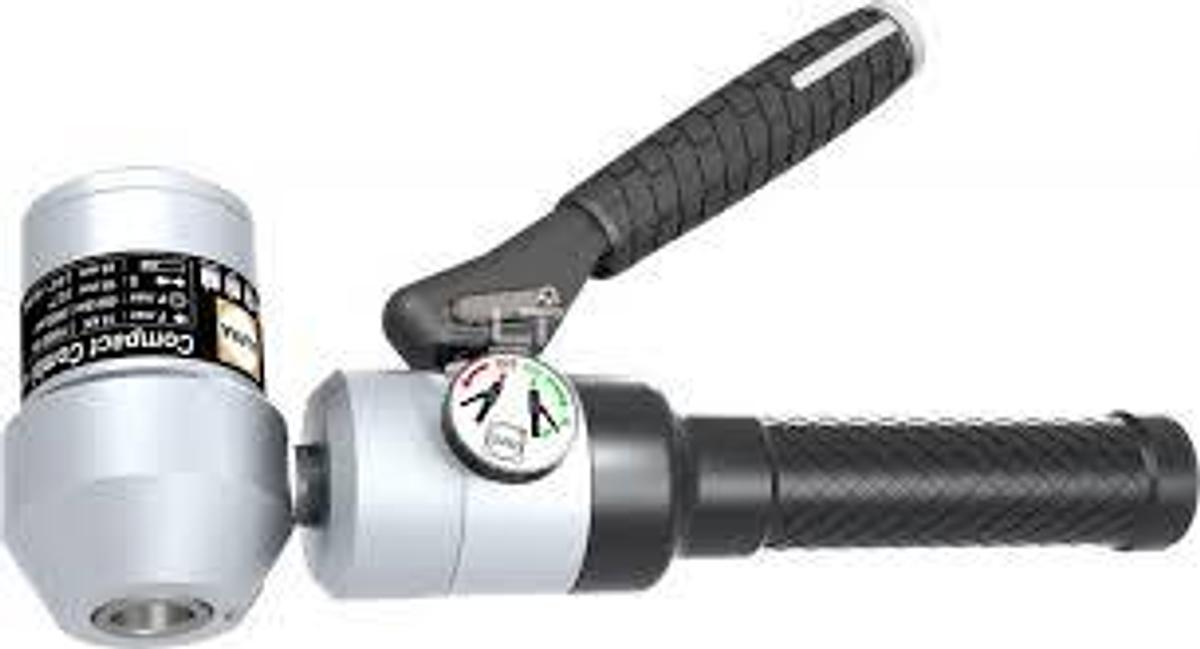

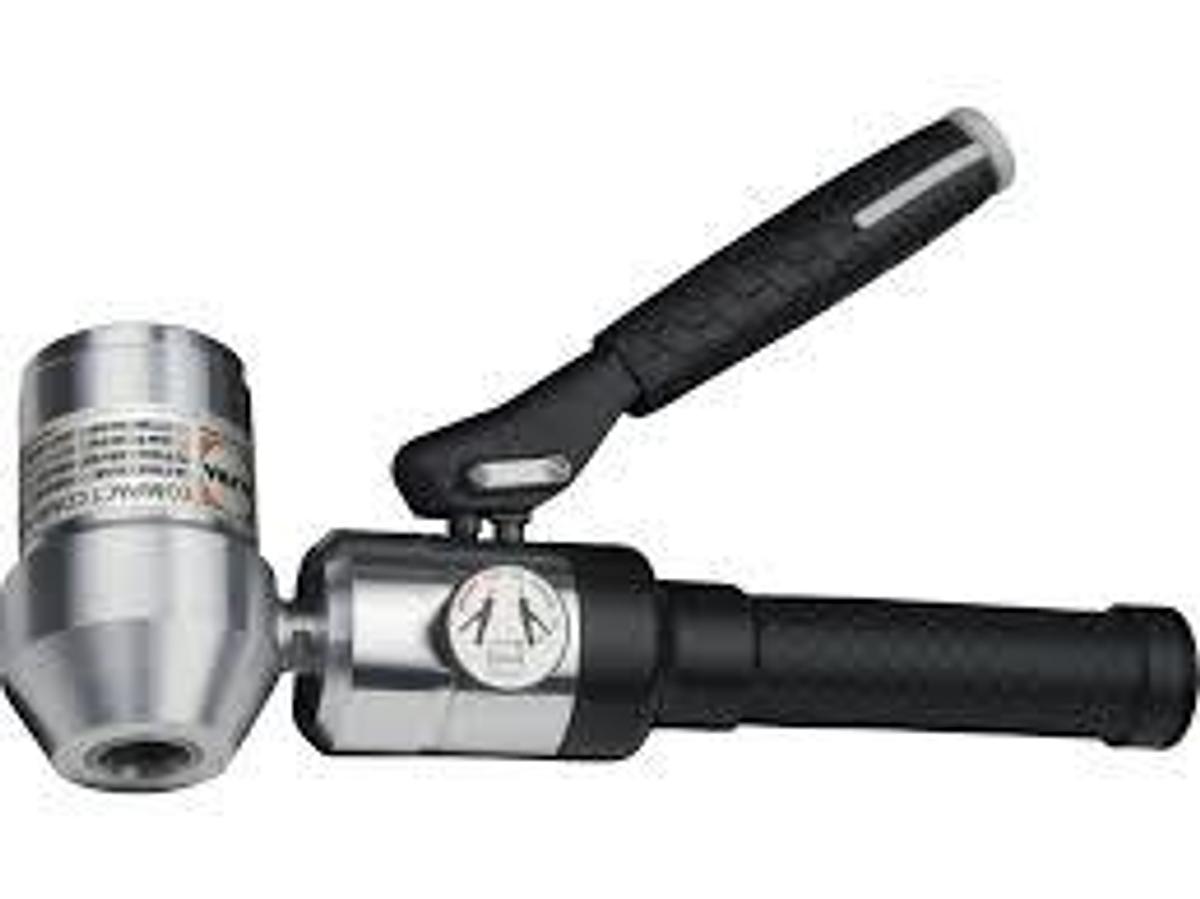

Compact Combi® manual 90° puncher is for use in construction of switch gear and control cabinets – suitable for all hole puncher types.

Loading only takes place in the tension direction and makes work considerably easier.

Note: TriCut+™ Punches are for use with sheet steel and stainless steel.

Features:

Precisely-matched overpressure valve

Reinforced handle – soft touch

Body hard-anodised, stable grip, elegant

Weighs only 1.75 kg

High-compression cylinder bore surface

Lasered production code on rear

High punching force of 75 kN

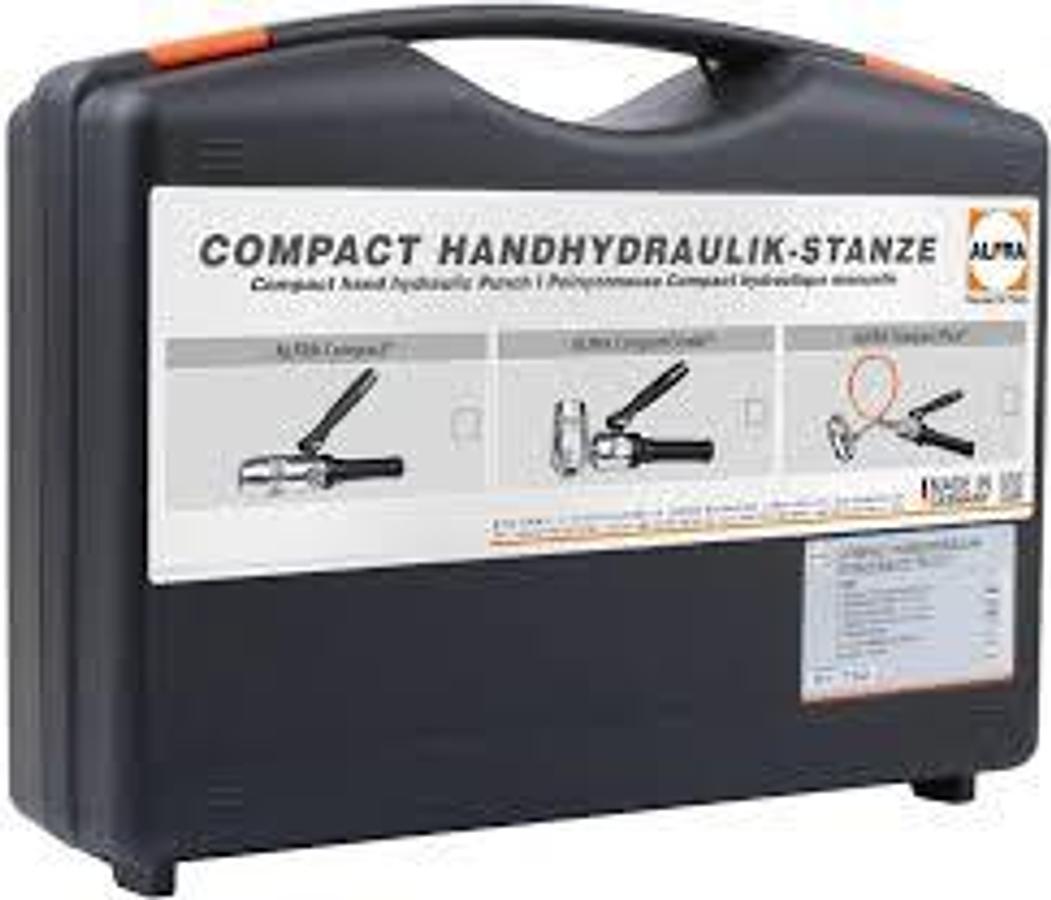

Includes:

Compact Combi® Manual 90° Puncher: 1 (02050)

TriCut+® Punches & Dies: 15.2,18.6,20.4,22.5,28.3,37,47 & 54mm

1 draw bolt: Ø 19 mm

1 draw bolt: Ø 19 x 9.5 mm

1 HSS pre-drill: Ø 11 mm

1 spacer sleeve set: (3-part)

Punching Capacity

Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel

(with special draw bolt and spacer sleeve)

Circular Holes S/S: Up to Ø 82 mm in 2.0 mm stainless steel (F = 600 N/mm2). Ø 89-152mm in 1.5mm S/S (with special draw bolt and spacer sleeve)

Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel  (with special draw bolt and spacer sleeve)

Shaped Holes in S/S: Up to 68 x 68mm in 2.0mm stainless steel (F = 600 N/mm2). 92 x 92mm in 1.5mm Stainless steel (with special draw bolt and spacer sleeve)

Technical Specifications

Punching force: 75 kN

Hydraulic pressure max.: 680 bar

Piston stroke: 18 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 1.75 kg
