Kitchen & Walker 45″ T2 Radial Arm Drill

Description

Kitchen & Walker 45″ T2 radial arm drilling machine for sale. Heavy duty industrial radial drill with approx. 45mm drilling capacity, large work envelope and box table. Ideal for fabrication and engineering workshops. Available from Used Machine Tools Ireland.

Heavy Duty Industrial Radial Arm Drilling Machine

Available now from Used Machine Tools Ireland, this Kitchen & Walker Model 45″ T2 Radial Drill is a robust British-built industrial drilling machine designed for heavy engineering, fabrication and workshop applications.

Kitchen & Walker radial drills are widely known for their durability, precision and heavy cast construction, making them a popular choice in fabrication shops, maintenance departments and general engineering environments.

This machine offers large drilling capacity, a wide working envelope and flexible positioning, allowing operators to drill large components without repositioning the workpiece.

Key Features

• Heavy duty Kitchen & Walker radial arm drilling machine
• Approx. 45 mm drilling capacity in steel
• Large 1100 mm radial reach
• ±180° arm rotation
• T-slotted box table for heavy workpiece clamping
• Power arm elevation
• Adjustable spindle speeds and feeds
• Heavy cast iron construction for rigidity
• Designed for industrial engineering workshops

This machine is ideal for drilling, tapping, boring and reaming operations on large steel components and fabricated structures.

Technical Specifications

Machine Type: Radial Arm Drilling Machine

Manufacturer: Kitchen & Walker

Model: 45″ T2

Drilling Capacity

• Maximum drilling capacity (steel): approx 45 mm
• Maximum drilling capacity (cast iron): approx 55–60 mm
• Maximum tapping capacity: approx M24

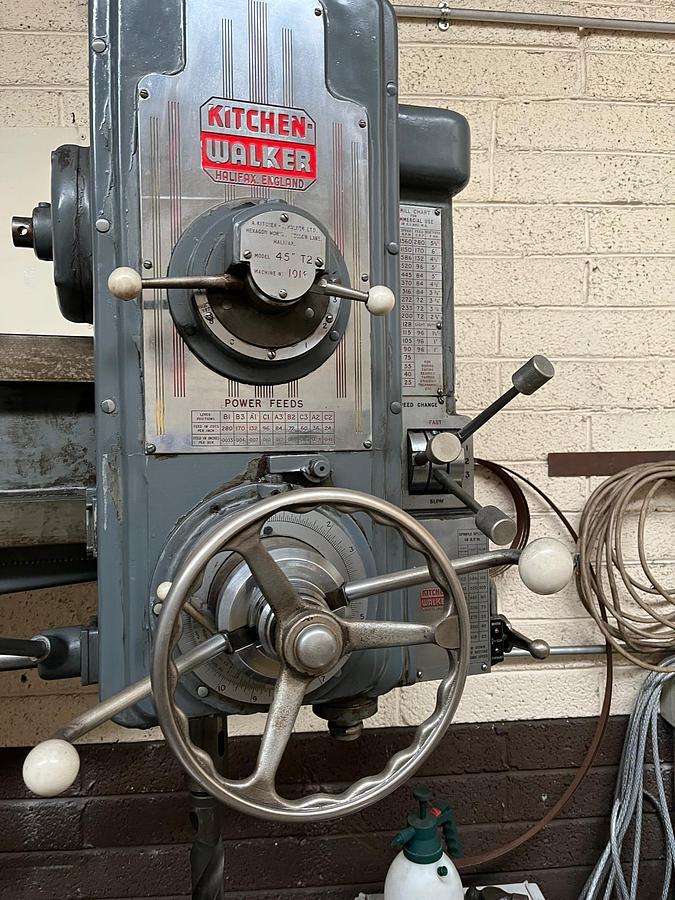

Spindle & Head

• Spindle taper: MT4
• Spindle travel (quill stroke): approx 220 – 315 mm
• Number of spindle speeds: 6 – 16
• Spindle speed range: approx 72 – 1240 RPM
• Power feed rates: approx 0.06 – 0.20 mm/rev

The spindle head allows both heavy slow drilling and higher speed finishing operations.

Working Envelope

• Maximum distance spindle to column: approx 1100 mm
• Minimum distance spindle to column: approx 260 – 350 mm
• Maximum distance spindle to base: approx 1200 mm
• Minimum distance spindle to base: approx 300 – 840 mm
• Arm rotation: ±180°
• Head horizontal travel: approx 900 mm

This large working range allows drilling across large plates and fabricated assemblies without moving the workpiece.

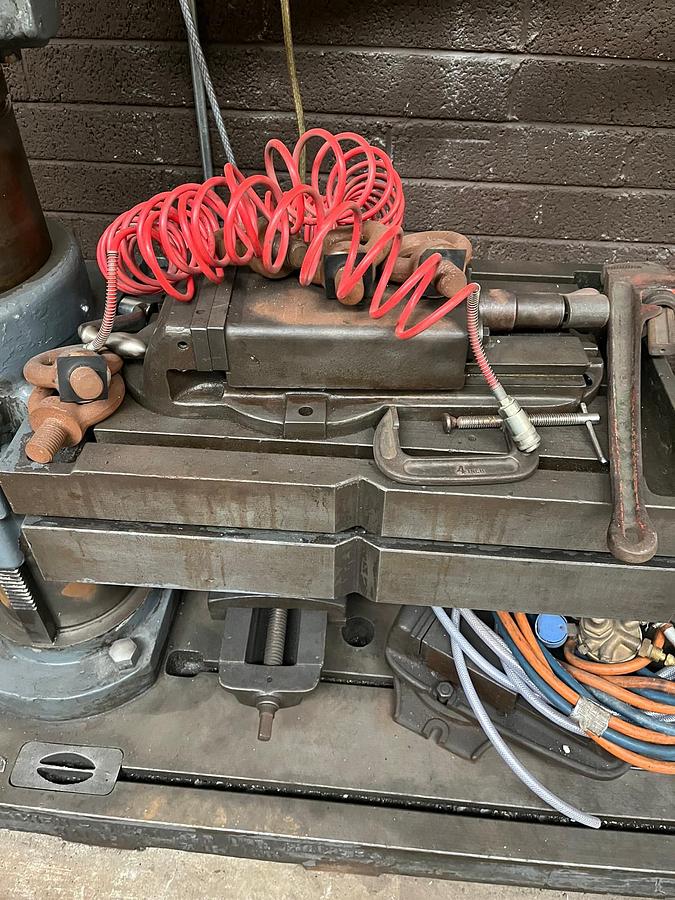

Table & Base

• Heavy duty T-slotted box table
• Approx table size: 700 × 500 × 360 mm
• Base plate size: approx 1750 × 750 mm

The box table design allows secure clamping of large engineering components.

Motor Specification

• Main spindle motor: approx 2.25 kW (3 hp)
• Arm elevation motor: approx 0.75 kW
• Coolant pump motor: approx 0.13 kW

Machine Dimensions

Approximate overall machine size:

• Length: 2100 – 2300 mm
• Width: 1000 – 1100 mm
• Height: 2600 – 2700 mm

Machine Weight

Approximate weight:

2800 – 3500 kg

Heavy cast construction ensures excellent rigidity and drilling stability.

Applications

Kitchen & Walker radial drills are widely used in:

• Structural steel fabrication
• Heavy engineering workshops
• Toolrooms
• Maintenance departments
• Machine shops
• Manufacturing plants
•


Typical operations include:

• drilling
• tapping
• boring
• reaming
• machining large plates and components

Why Choose Kitchen & Walker Radial Drills

Kitchen & Walker machines are known for:

• Heavy duty British engineering
• Long service life
• Excellent rigidity
• Reliable industrial performance
• Simple mechanical design for easy maintenance

Many machines remain in service for decades in engineering workshops worldwide.

Transport & Loading

Approx transport specifications:

• Transport length: approx 2.2 m
• Transport width: approx 1.1 m
• Transport height: approx 2.6 m
• Shipping weight: approx 3 tonnes

Machine can be loaded onto transport.

Notes: *Specifications are given in good faith but not guaranteed*
