Cormak KMT Craft 250 x 310DM Bandsaw

Cormak KMT Craft 250 x 310DM Manual Bandsaw

Machine Type: Manual Bandsaw

Capacity: 250mm

Power: 3 Phase 400V

Machine Description

Solid Manual bandsaw with a variable speed invertor and 27mm wide bandsaw blade.

Machine Features

Solid construction

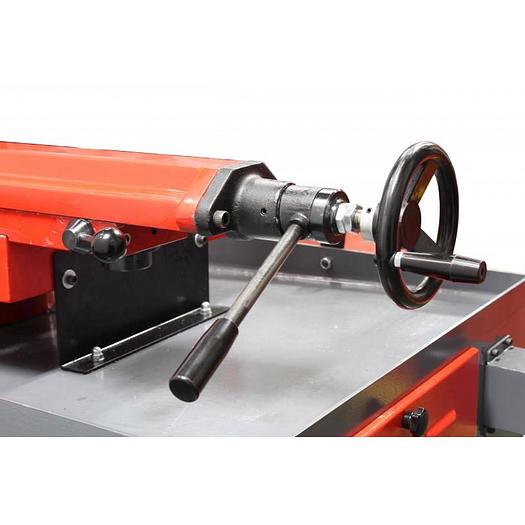

Quick vise clamp

Inverter speed control 25-90 m / min

Swivel arm, material stays stationary

Double bevels, 45 ° left, 60 ° right

Readable scale

Sliding vice for left and right bevels

Coolant pump

Brushes for cleaning saw chips

Technical Details

Main Motor: 1.4 kW, ~ 1400 rpm

Band Speed: 25 - 90 m / min

Blade Dimensions: 3150 x 27 x 0.9 mm

Weight: 480 kg

Working Height: 915 mm

Dimensions: 750 x 1650 x 1150 mm

Capacity

Capacity 0º (Round): 250mm

Capacity 0º (Rectangular): 250 x 310mm

Capacity 0º (Square): 250 x 250mm

Capacity 45º R (Round): 190mm

Capacity 45º R (Rectangular): 190 x 250mm

Capacity 45º R (Square): 190 x 190mm

Capacity 45º L (Round): 180mm

Capacity 45º L (Rectangular): 100 x 250mm

Capacity 45º L (Square): 150 x 150mm

Capacity 60º R (Round): 120mm

Capacity 60º R (Rectangular): 120 x 140mm

Capacity 60º R (Square) 120 x 120mm
