€3,010 + VAT

Alfra GmbH AMT 150 Assembly Table

5

Germany

orCall +353 838108745

Description

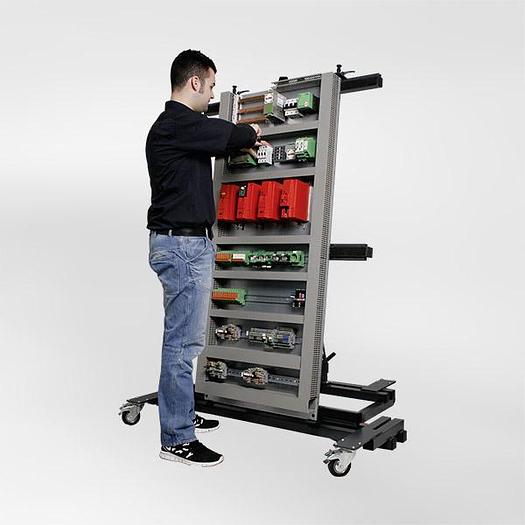

Alfra AMT 150 Assembly Table


Product No: 03100


Description

What does the perfect workplace for control cabinet builders look like? The AMT from Alfra provides the answer: Equip control cabinets ergonomically and exactly in the position that is best suited to you. The angle of inclination, which can be infinitely adjusted with a hand crank, allows the table to be aligned between 0 and 80 degrees. Depending on your stature and preferences, you can work in a sitting or standing position. It is also possible to carry out the necessary procedures on the complete housing of the control cabinet. The AMT 150 holds mounting plates with a surface area of up to 1,100 x 1,900 millimeters with a maximum load of 200 kg. The mounting plate can be fixed by means of a clamping unit with quick-release fastener, which virtually eliminates the risk of the plate or the control cabinet housing slipping. As an option for both ALFRA mounting table models, the switch cabinet set allows the machining of smaller control cabinets as a whole. In this case, the housing is fixed by means of quick clamps and retaining belts.


Simple, variable fixing of mounting panels using quick-action clamp.

Intelligent release system enables unrestricted processing of the entire mounting panel

Infinitely variable adjustment from vertical to horizontal using handcrank or battery drill

Infinitely variable height adjustment via angle of inclination


Scope of delivery

Assembly table AMT 150

2 x clamping unit with bolt

2 x clamping unit with quick lock

Screw adapter for operating with battery drill


Technical Specifications

Adjustable angle of inclination: 0 - 80°

Working height: Fixed 100 cm

Guide rollers with total fixing: 4

Max. size mounting panels W x H: 1,100 x 1,900 mm

Max. useful load: 200 kg

Space requirement: 1,400 x 1,200 mm

Weight: 83 kg


Options

Screw Adapter for Operation with Battery Drill - Prod No: 03100-004

Specifications

ManufacturerAlfra GmbH
ModelAMT 150 Assembly Table
ConditionNew
Product No03100
Adjustable angle of inclination0 - 80°
Working heightFixed 100cm
Max. useful load200 kg
Space requirement1,400 x 1,200 mm
Weight83 kg
