Alfra Akku-Compact Flex Punching Driver Tool

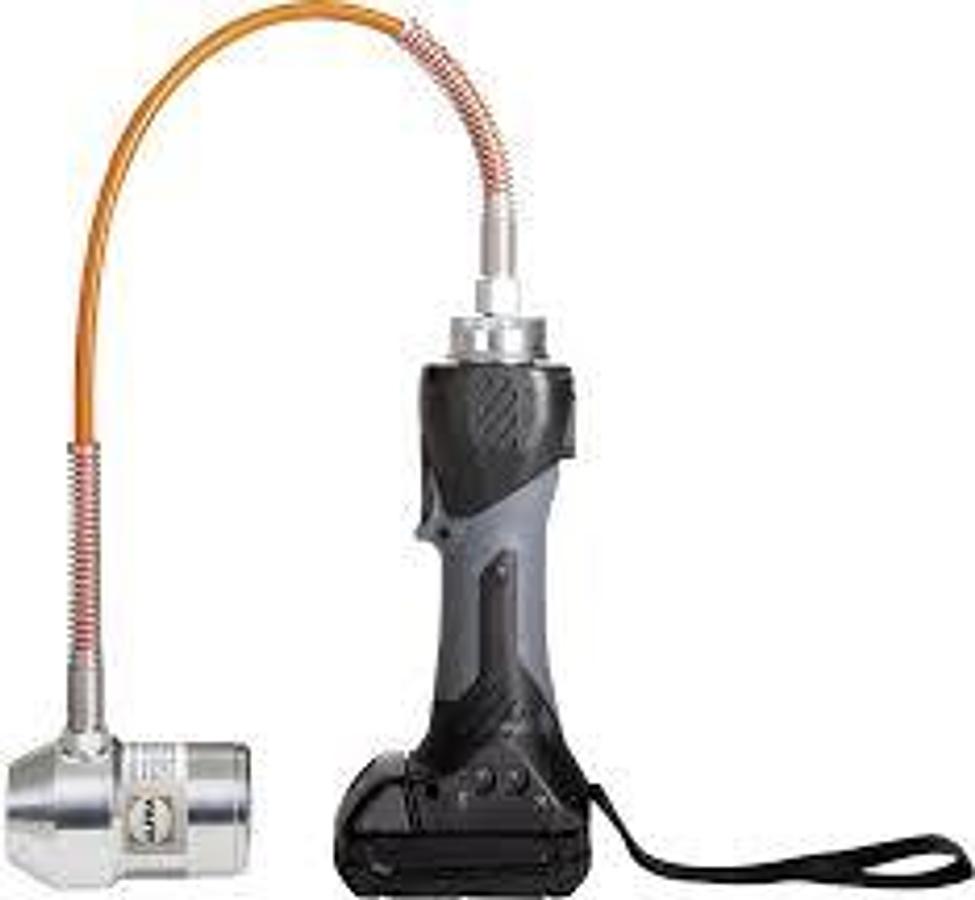

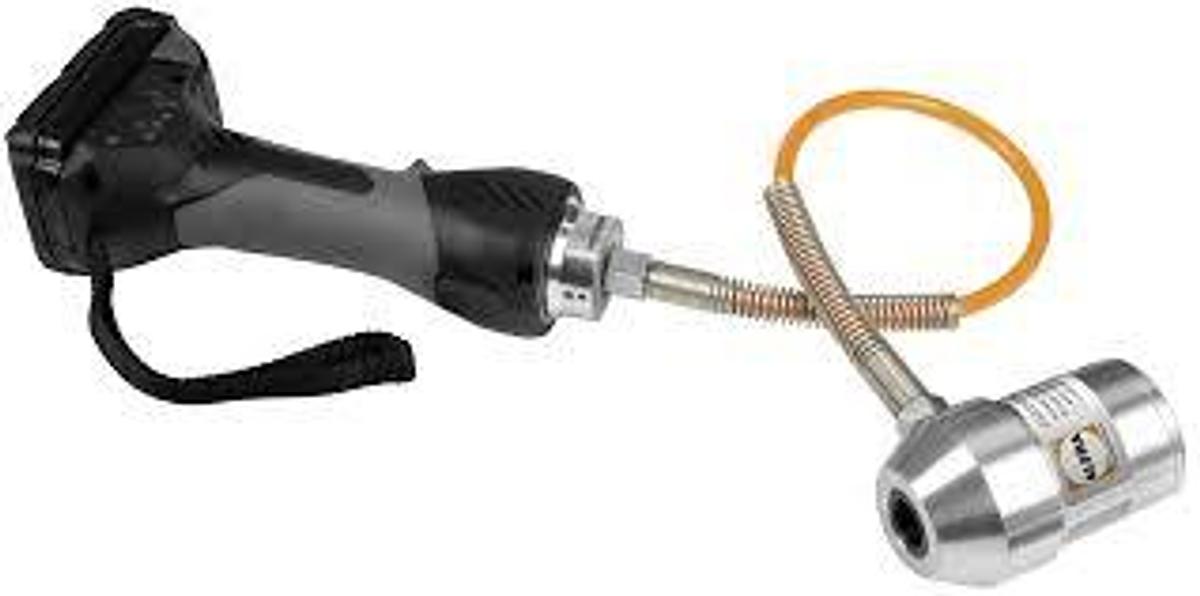

Alfra Akku-Compact Flex™ Punch Driver

Prod No: 02082

Description

Akku-Compact Flex® is designed for use in construction of switch gear and control cabinets - suitable for all hole puncher types.

Loading only takes place in the tension direction and makes work considerably easier.

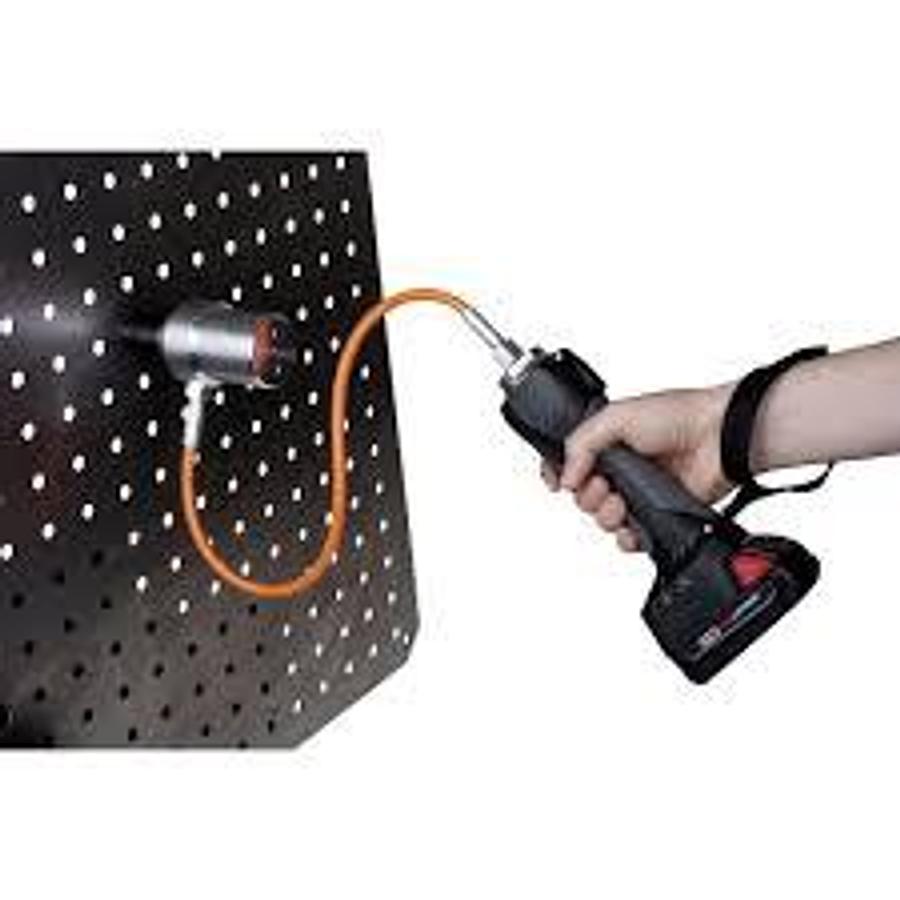

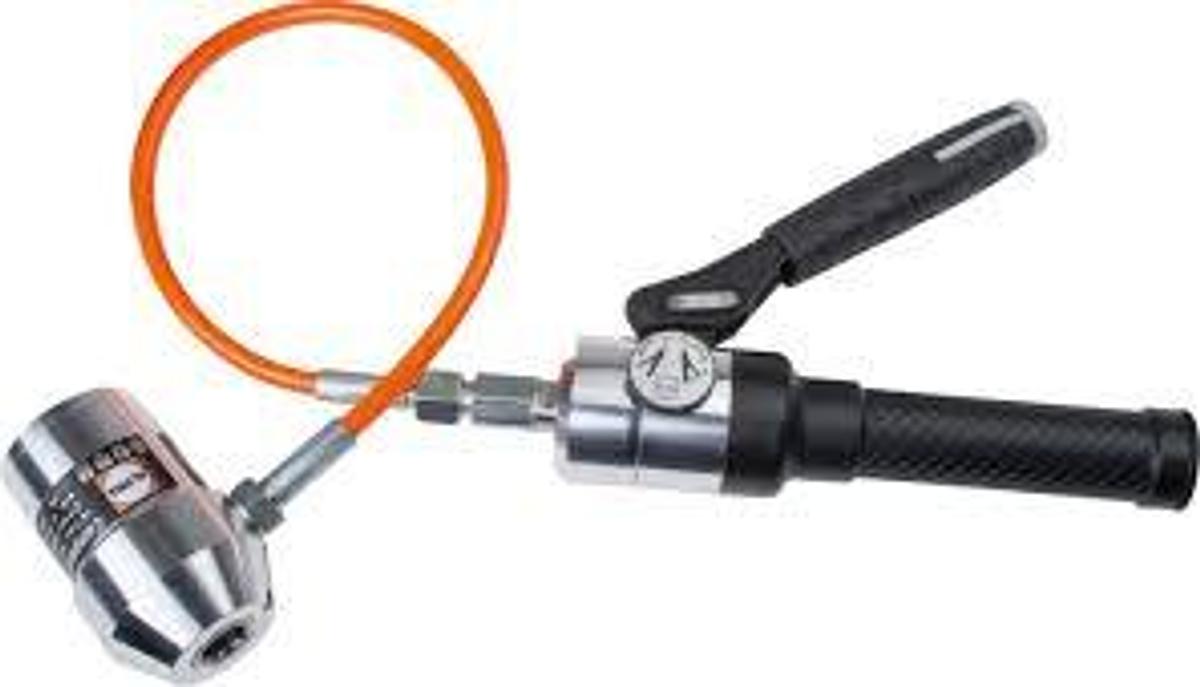

Practical manual hydraulics with 18 V LiON battery for punching circular, square and rectangular cutouts in control cabinet and switch gear construction.

Extremely easy to handle and light thanks to high-tensile aluminium head.

Features

• Handle inset soft touch
• High-pressure hose - flexible, elastic
• USB interface for readable pressure values, service intervals etc ...
• Pressure sensor - automatic detection of puncher breakthrough. Once the material has been punched through, the puncher can not damage the die
•  Light and easy to handle, only 2.5 kg including battery

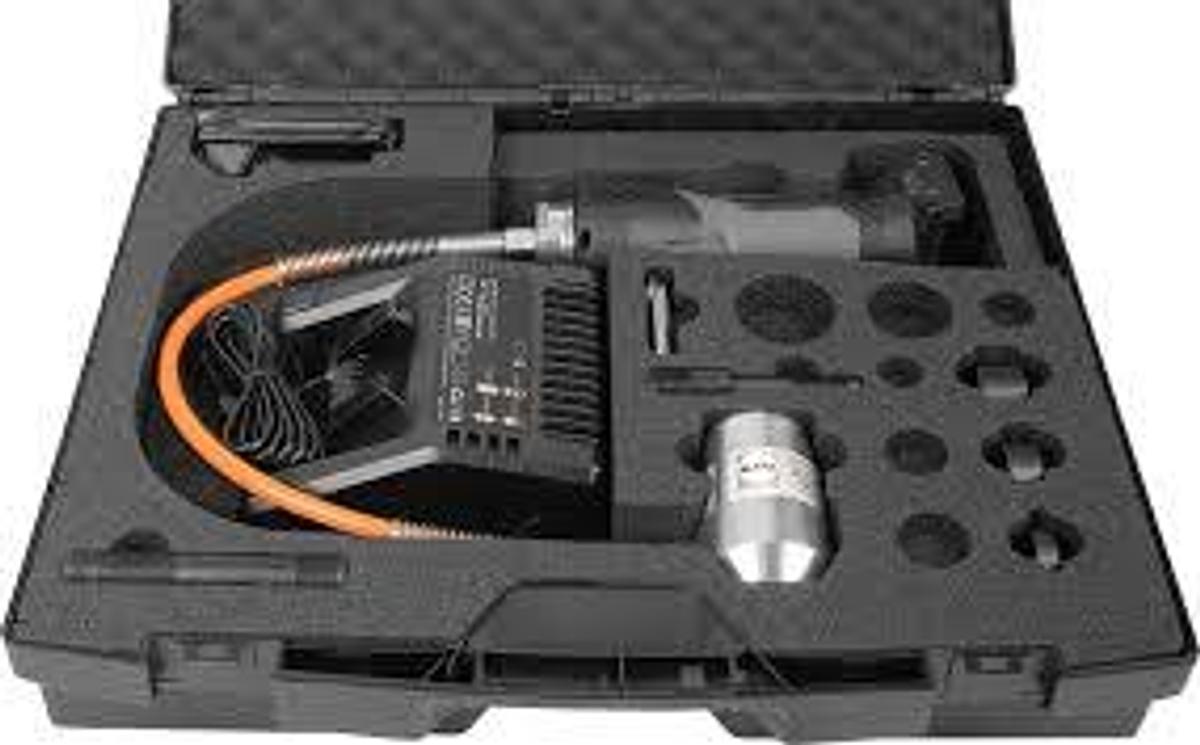

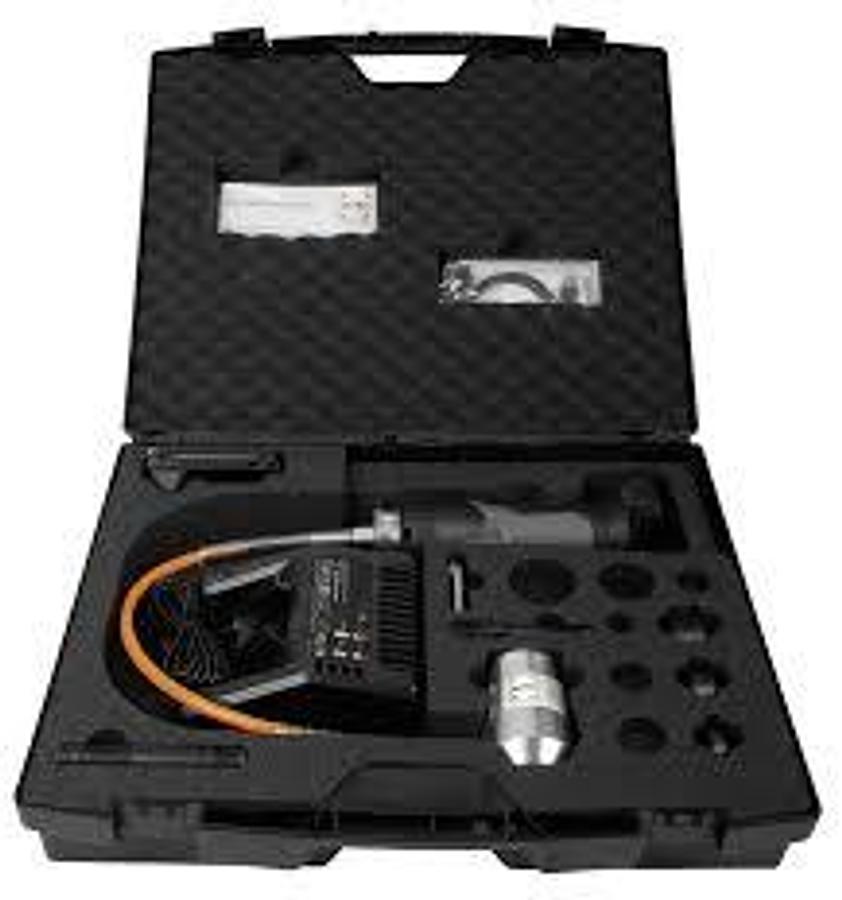

Scope of delivery

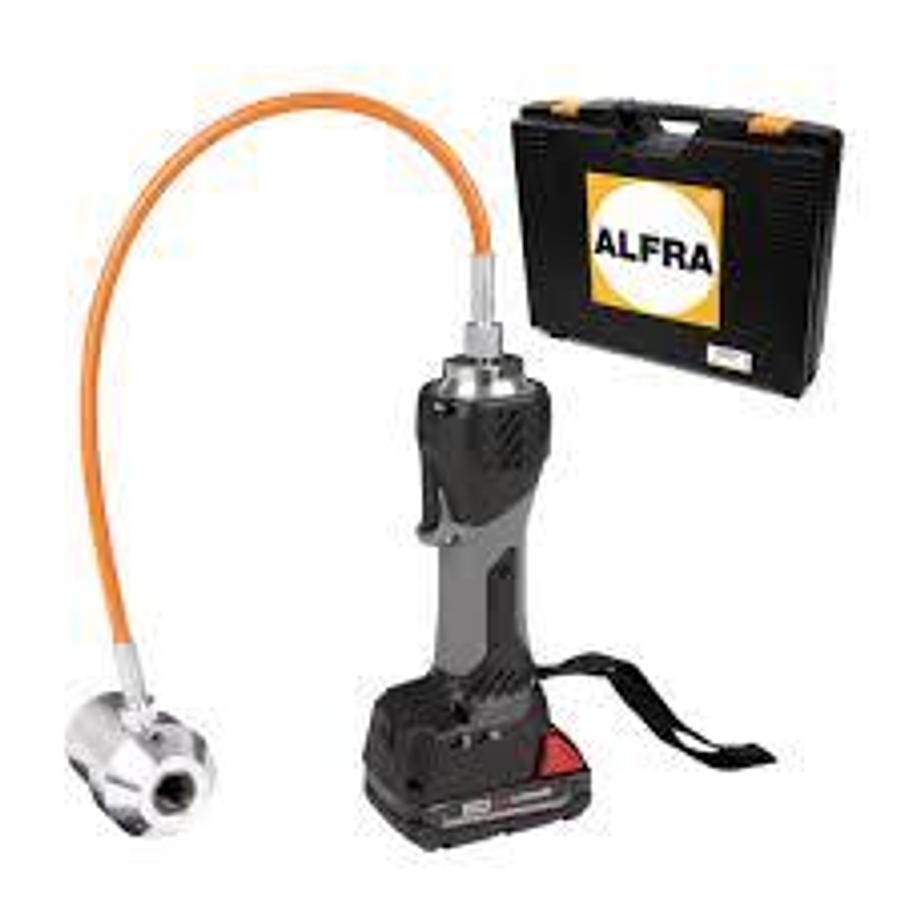

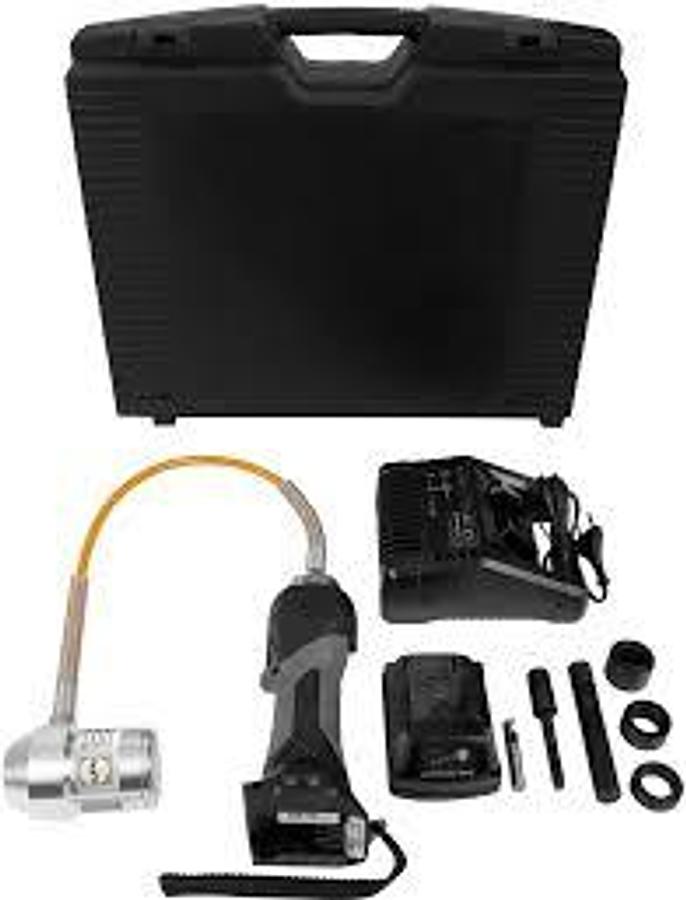

ALFRA Akku-Compact Flex® manual hydraulics

with 1 battery 18 V, charger 18 - 28 V

Draw bolts - 9.5 x 19 mm - Prod.-No. 02003

Draw bolts - 19 x 120 mm - Prod.-No. 02002

Spacer sleeve set 3-part - Prod.-No. 02004

Pre-drill 11 mm 0 - Prod.-No. 08023

In heavy duty, practical plastic case

Optional Extras

02082-01 Spare Battery - Accu Li-Ionen 1,5Ah 18V

02082-03 Additional Battery Charger - Charger 220-240 V for Accu-Compact Flex

01395 Special draw bolt for square holes 92 x 92 mm

01398L Special draw bolt for round holes 89 - 152 mm

01396 Special spacer sleeve

Technical Specifications:

Max. punching force: 75 kN

Max. hydraulic pressure: 680 bar

Battery: 18 V Li-Ion / 1.5 Ah

Charging time: 30 mins. after full discharge

Use: -10° - +40° C

Piston stroke: 18 mm

Hydraulic hose length: 600 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 2.5 kg with Battery

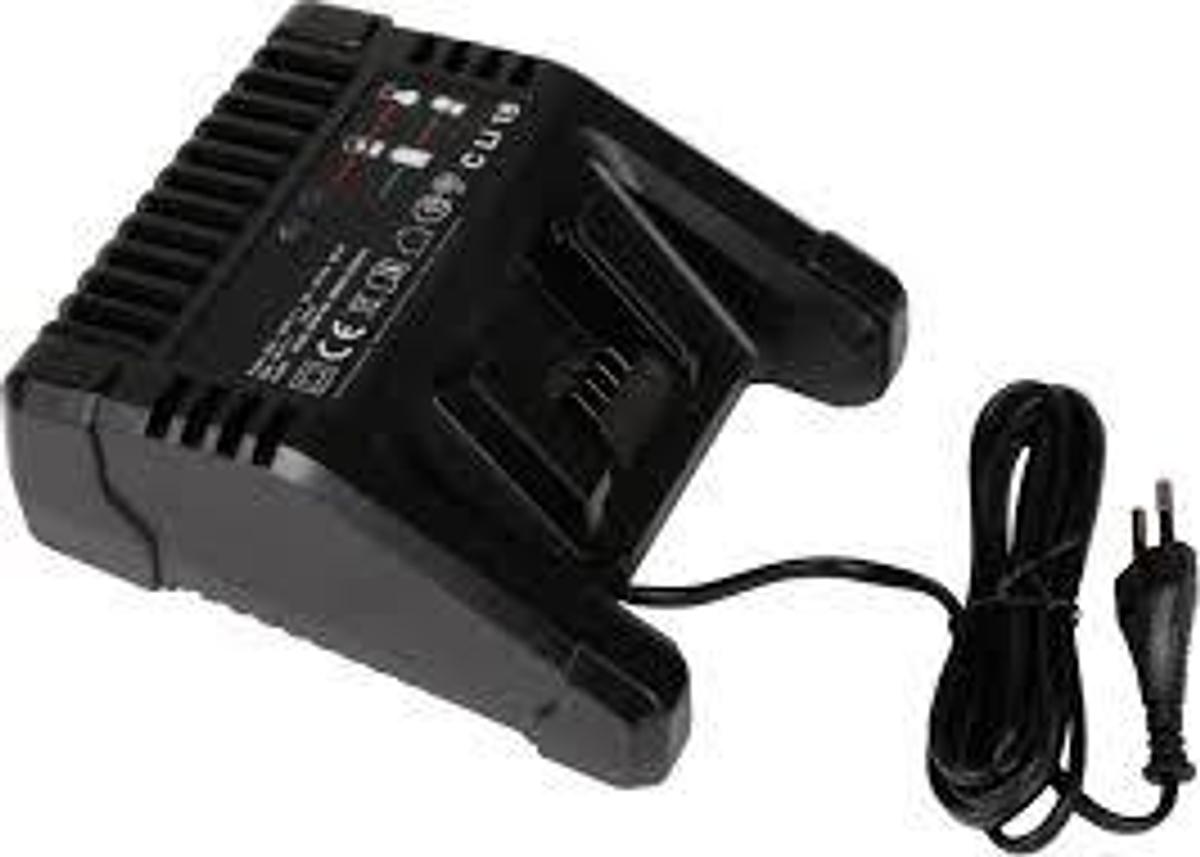

Battery charger

Charges all batteries 18-28 V, compatible for NiCD, NiMH and Li-Ion batteries.

Automatic temperature monitoring. Battery cell overcharging is prevented by switchover from rapid charging to trickle charging.

The charging state is shown by the LED display.

The PCB is completely enclosed.

Punching capacity with 1.5 Ah battery

Punching Capacity

Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel (with special draw bolt and spacer sleeve)

Circular Holes S/S: Up to Ø 82 mm in 2.0mm stainless steel (F = 600 N/mm2). Ø 89-152mm in 1.5mm S/S (with special draw bolt and spacer sleeve)

Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel  (with special draw bolt and spacer sleeve)

Shaped Holes in S/S: Up to 68 x 68mm in 2.0mm stainless steel (F = 600 N/mm2). 92 x 92mm in 1.5mm Stainless steel (with special draw bolt and spacer sleeve)

Approx Battery Life

195 x Ø 22.5 mm MonoCut® to 2.5 mm S235 or

165 x Ø 22.5 mm TriCut® to 2.5 mm S235

or

105 x Ø 63.5 mm MonoCut® to 2.5 mm S235 or

65 x Ø 63.5 mm TriCut® to 2.5 mm S235
