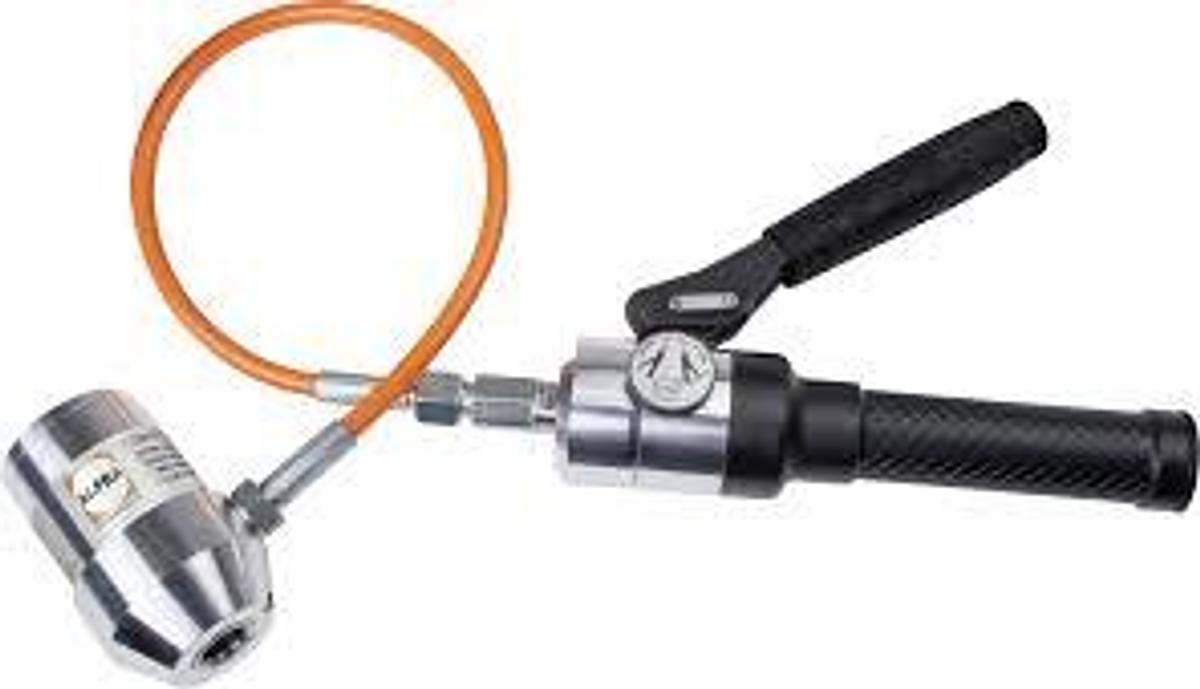

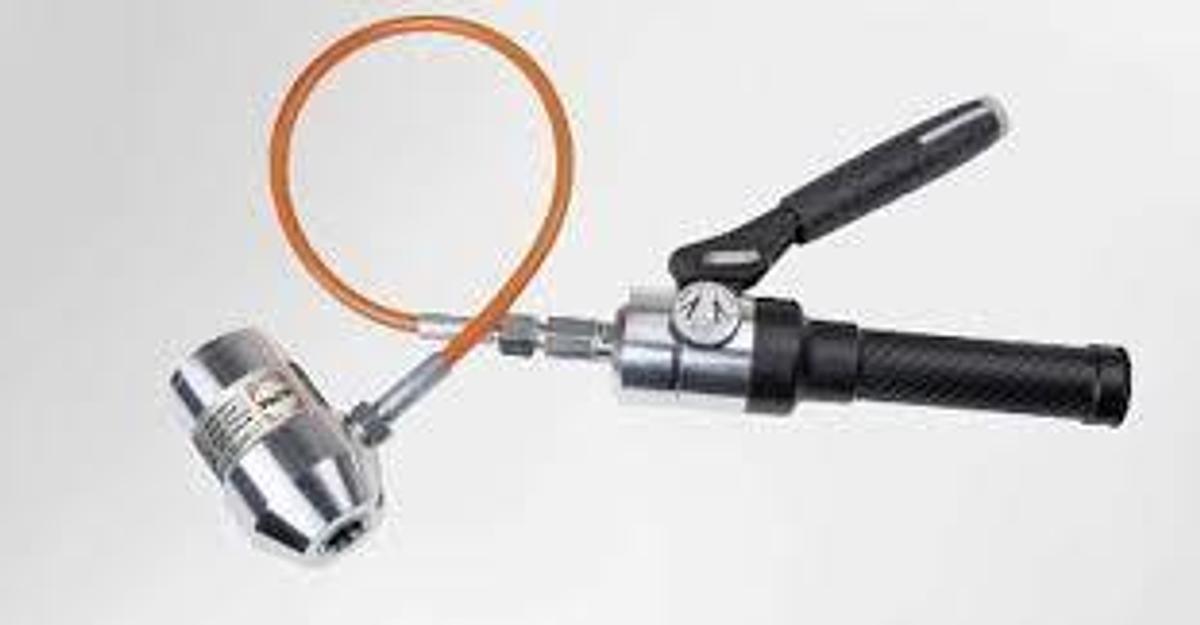

Alfra Compact Flex™ Punching Tool Driver

Alfra Compact Flex™ Manual Punch Driver

Prod No: 02065

Description

When it comes to flexibility, our ALFRA Compact Flex® is the artist among hand punches. What‘s so special about it? Its elastic high-pressure hose for positioning the punch head even under

the most challenging of conditions. Thanks to this flexible connection between the body and the head of the device, the punch can always be positioned exactly where it is needed. For example, near the edges of the housing. With 75 kN punching force at a dead weight of just 2 kg, the ALFRA Compact Flex® is a lightweight power pack that is compatible with all types of sheet metal punch.

Features

• Elastic hydraulic hose for almost unlimited applications, e.g. in the equipped control cabinet with limited space conditions
• Precisely tuned pressure relief valve protects against damage to the cylinder
• Reinforced, comfortable soft-touch handle to prevent slipping
• Balanced transmission ratio in the hydraulics for power-saving application
• Heavy-duty aluminium design for reduced weight at just 2 kg
• Roller-finished, particularly smooth cylinder running surfaces protect against wear – even under heavy loads
• High punching force 75 kN

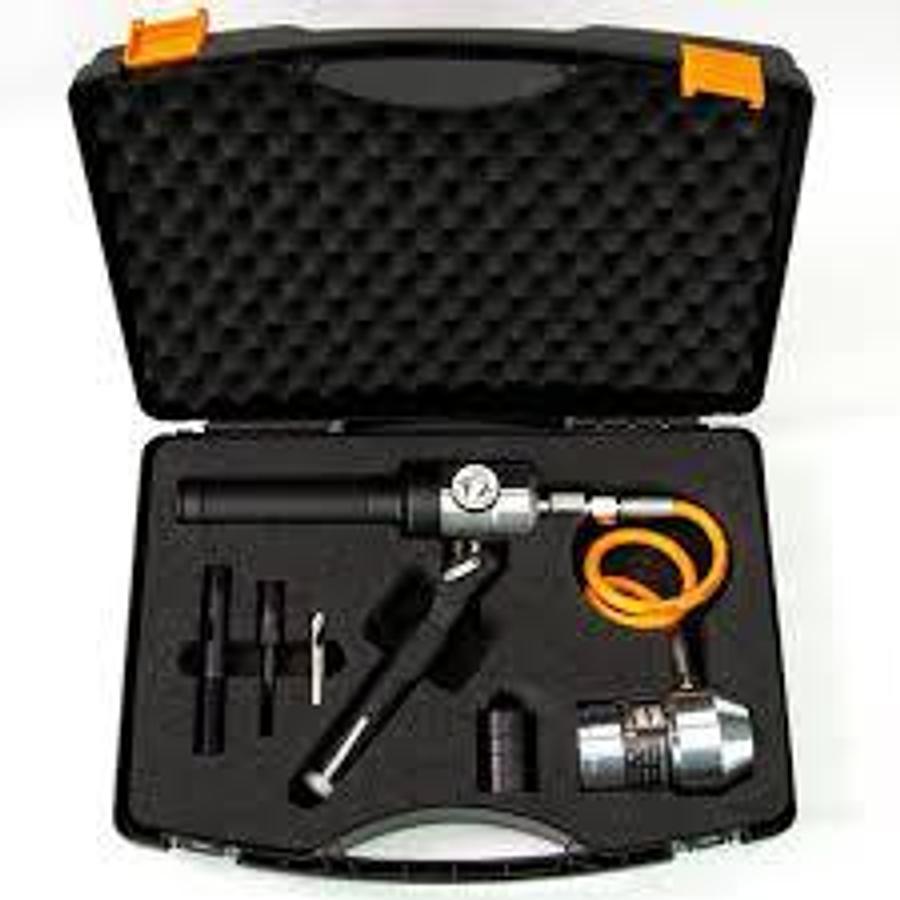

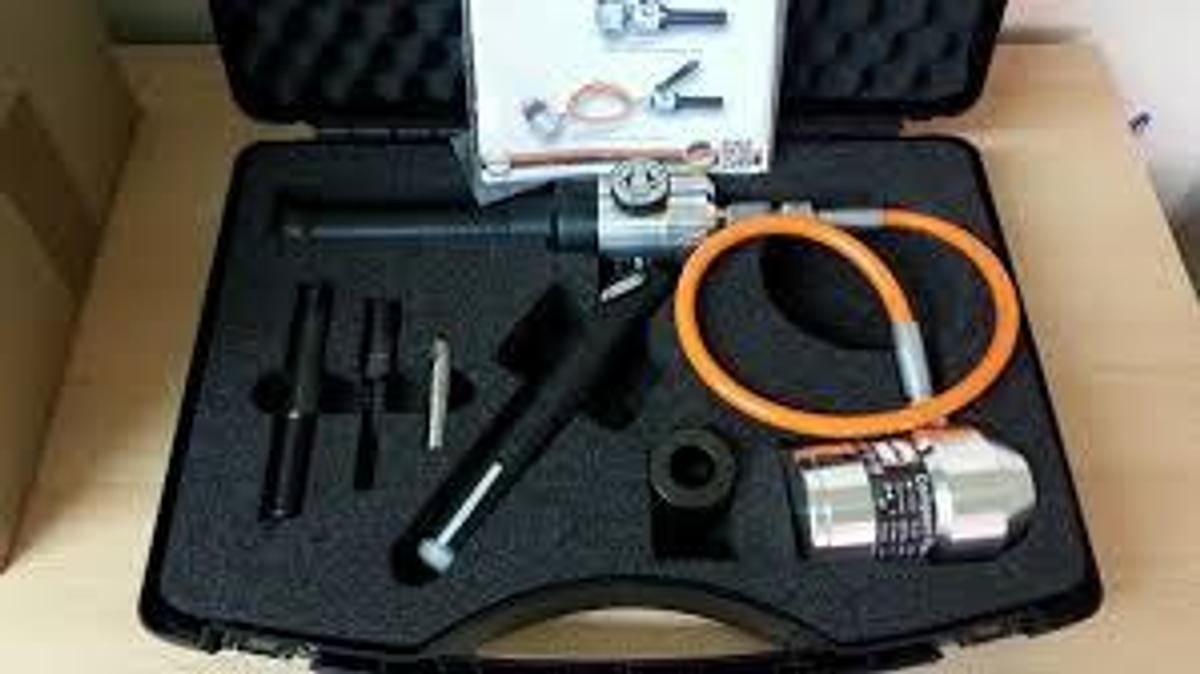

Scope of Delivery

1 Compact Flex® manual hydraulic punch

1 Draw bolt Ø 19.0mm

1 Draw bolt Ø 19.0 x 9.5 mm

1 HSS pre-drill Ø 11.0 mm

1 Spacer sleeve set 3-part

1 Heavy Duty Case

Punching Capacity

Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel (with special draw bolt and spacer sleeve)

Circular Holes S/S: Up to Ø 82 mm in 2.0 mm stainless steel (F = 600 N/mm2). Ø 89-152mm in 1.5mm S/S (with special draw bolt and spacer sleeve)

Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel (with special draw bolt and spacer sleeve)

Shaped Holes in S/S: Up to 68 x 68mm in 2.0mm stainless steel (F = 600 N/mm2). 92 x 92mm in 1.5mm Stainless steel (with special draw bolt and spacer sleeve)

Technical Specfications

Punching force: 75 kN

Hydraulic pressure max.: 680 bar

Piston stroke: 18 mm

Hydraulic hose length: 600 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 2.0 kg
