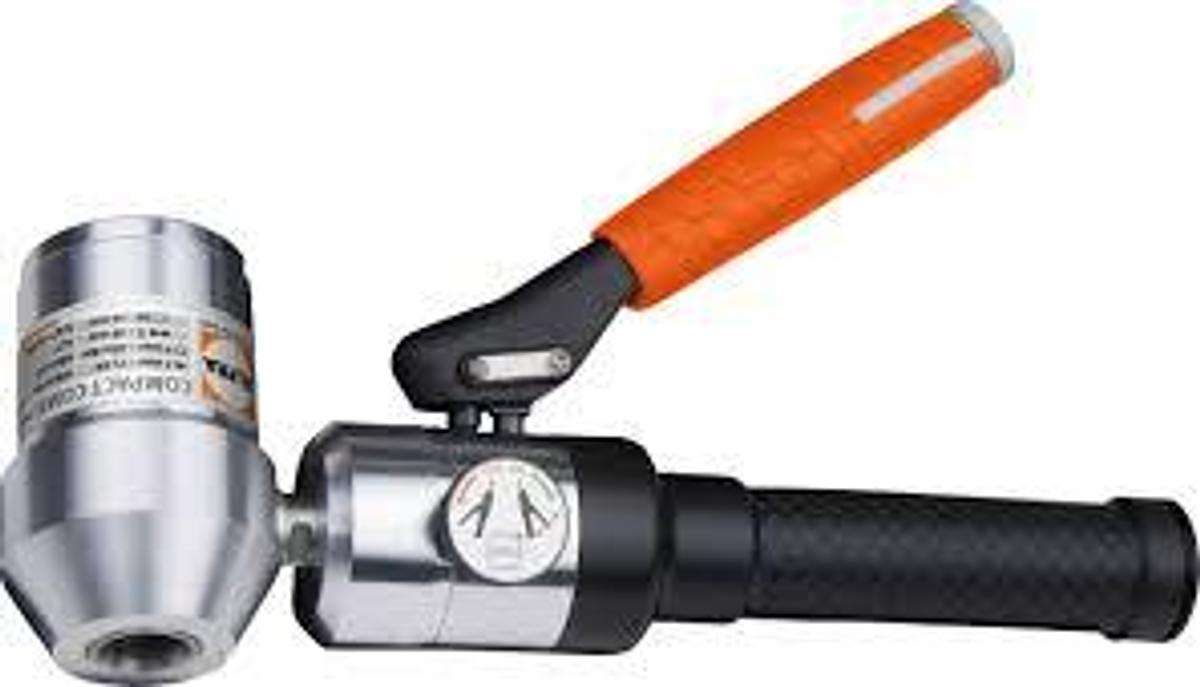

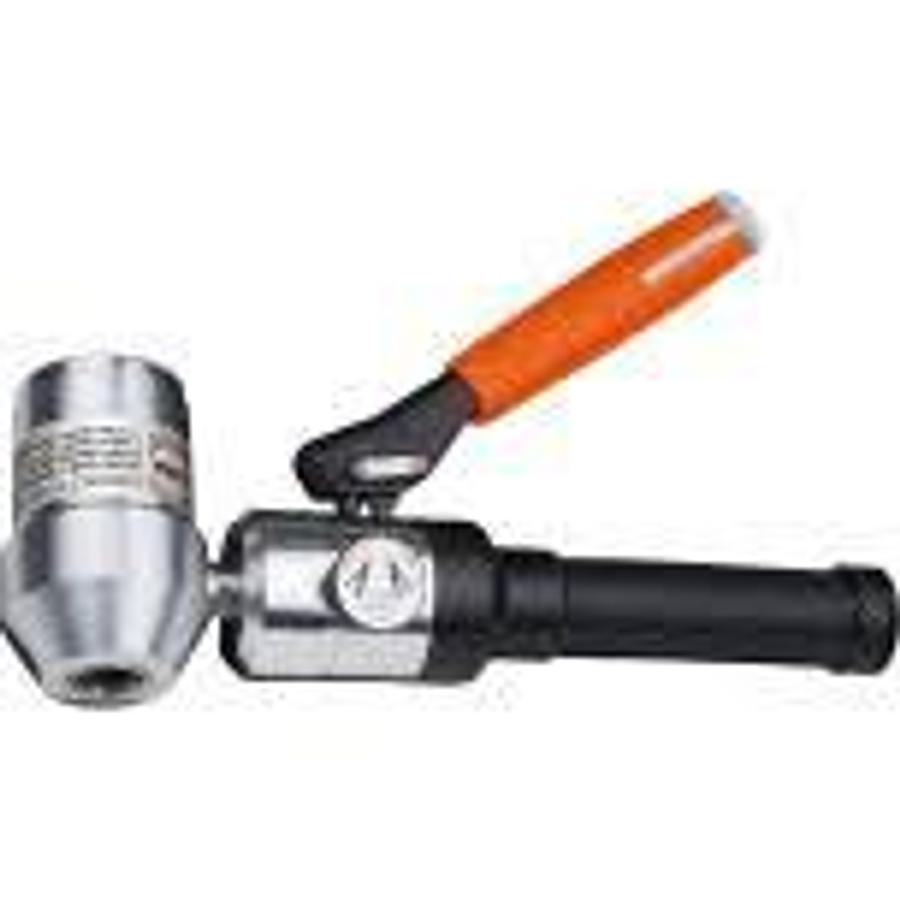

Alfra Compact™ Combi 90° Punching Tool Driver

Alfra Compact™ Combi 90° Punch Tool Driver

Prod No: 02050

Description

If you are mobile, you can quickly adapt to unusual conditions. This also applies to our Compact Combi®, with a head that can be rotated through 90 degrees. Is it getting tight in the control cabinet or is another work situation making it difficult to use a manual punch? No problem, because our “articulated one” can overcome even these challenges.

Features

• Movable punching head for effortless positioning
• Precisely tuned pressure relief valve protects against damage to the cylinder
• Reinforced, comfortable soft-touch handle to prevent slipping
• Heavy-duty aluminium design for reduced weight at just 1.75 kg
• Roller-finished, particularly smooth cylinder running surfaces protect against wear – even under heavy loads
• High punching force 75 kN

Punching Capacity

Circular Holes M/S: Up to Ø 82 mm in 3.0 mm sheet steel (S235). Ø 89-152mm in 2mm Sheet Steel (with special draw bolt and spacer sleeve)

Circular Holes S/S: Up to Ø 82 mm in 2.0 mm stainless steel (F = 600 N/mm2). Ø 89-152mm in 1.5mm S/S (with special draw bolt and spacer sleeve)

Shaped Holes M/S: Up to 68 x 68mm in 3.0 mm sheet steel (S235). 92 x 92mm in 2mm Sheet Steel  (with special draw bolt and spacer sleeve)

Shaped Holes in S/S: Up to 68 x 68mm in 2.0mm stainless steel (F = 600 N/mm2). 92 x 92mm in 1.5mm Stainless steel (with special draw bolt and spacer sleeve)

Technical Specifications

Punching force: 75 kN

Hydraulic pressure max.: 680 bar

Piston stroke: 18 mm

Tool mounting: 19 mm

Hydraulic medium: HLP32 hydraulic oil

Weight: 1.75 kg
