€674 + VAT @ 23%

Alfra KFT 250 Edge Deburring & Bevelling Machine

5

Germany

orCall +353 838108745

Description

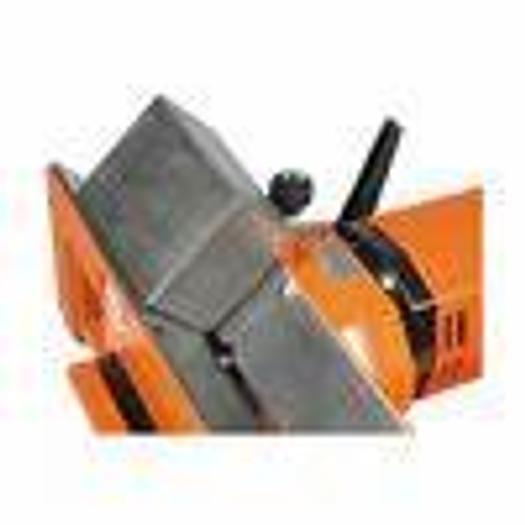

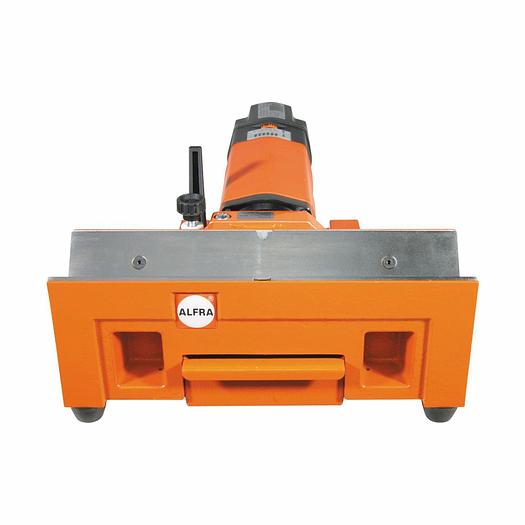

ALFRA KFT 250 Edge Deburring & Beveling Machine


Edge-Milling and deburring devices for universal use

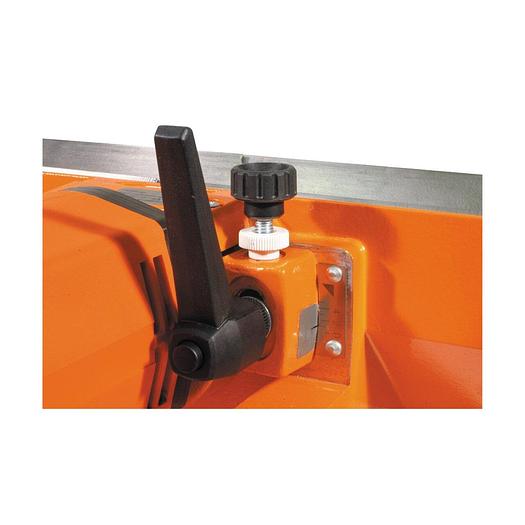

ALFRA KFT 250 Edge Deburring unit offers a high-performance motor with double-bearing mounted milling spindle, full wave control electronics and fine adjustment to milling depth and bevel width. This hand-operated unit can perform 45˚ bevels and deburring of larger pieces, profiles, supports, sheet metal panels with 90˚ mounting. This machine carries a 1-year warranty

Features:

  • Up to 9/32 inch (7 mm) Bevel Capacity
  • High powered 1050 Watt motor
  • 8000-25000 RPM
  • 45º bevel angle

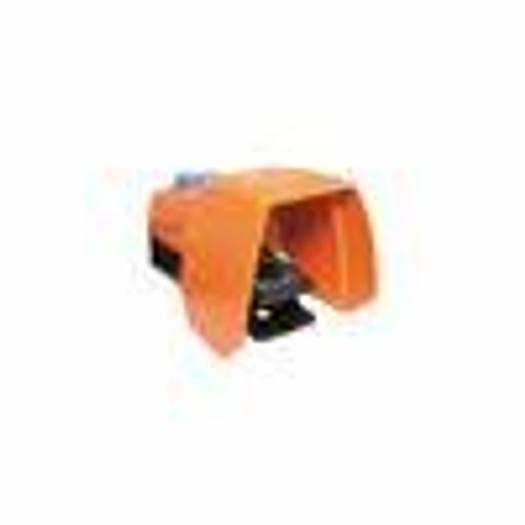

  • Foot switch (optional)

Package Includes:

  • ALFRA KFT 250 Deburring Machine (1)
  • Guide Rails (1 set)
  • Collet 8 mm with clamping nut (1)
  • Chip Collecting container (1)
  • Operating Tools (1 set)
  • User manual (1)
  • Carrying case (1)


Technical Specifications:

Prism mounting: L = 250 mm / W = 40 mm

End mill Ø: TCT as per DIN, Ø 8 mm

Max. bevel width in multiple work steps: 1 - 5 mm, depending on material

Edge angle: 45°

High-performance motor: yes

Motor performance: 1,050 watt

Infinitely variable speed control: 8,000 – 25,000 min-1

Full-wave control electronics: yes

Clamping neck Ø: 43mm

Voltage: 230 V, 50 – 60 Hz + 110 V, 50 – 60 Hz

Weight: 5.0 kg

Dimensions: (L x W x H): 360 x 250 x 110 mm

Cable length: 3.0 m



Specifications

ManufacturerAlfra
ModelKFT 250 Edge Deburring & Bevelling Machine
ConditionNew
Edge angle45°
High-performance motoryes
Motor performance1,050 watt
Infinitely variable speed control8,000 – 25,000 min-1
Full-wave control electronicsyes
Clamping neck Ø43mm
Weight5.0 kg
Cable length3.0 m
