Alfra GmbH SKF 63-15 Bevel Milling Machine

Description
Alfra Deburring Technology SKF 63-15, 230 Volt, 50HZ - Bevel Milling Machine

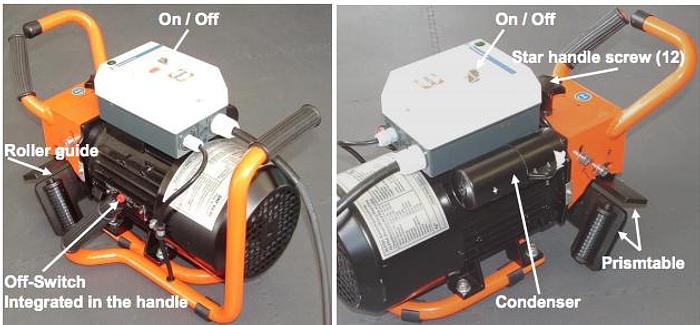

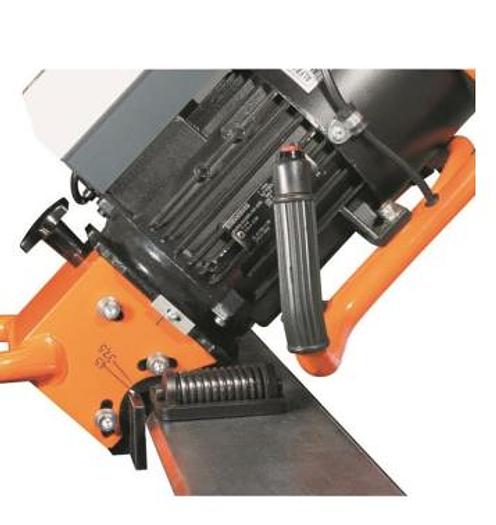

The ALFRA bevel milling machine SKF 63-15 is a unit for the preparation of welds, bevelling of metallic materials resp. The low weight (please compare with our competition) enables the use on almost every work place and a rattling-free, steady milling operation. The machine is suitable for milling steel, VA, cast iron and nonferrous heavy metal by one-hand operation. To make operation easier the SKF 63-15 is equipped with a wheel-table plate.
Technical Specifications
Motor/Voltage: 230 V AC, 50 Hz – other voltages / frequencies on request with overload protection and restart barricade.
Capacity: 1100 W
Rotation Speed: 2870 min-1
Land Width: 15 mm max., progressively adjustable
Weight: 21 kg

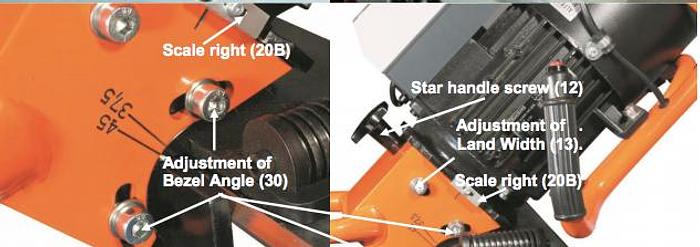

Bevel Angle: 15-20-30-45-60° progressively adjustable
Dimension (L x W x H): 440x200x280 mm

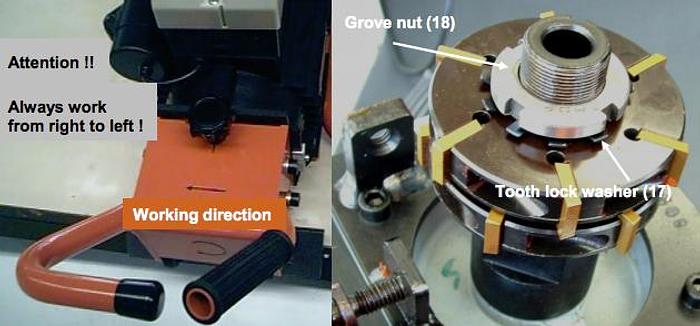

Tools: 2 units off disk milling cutters - 63 mm, each with 6 pieces indexable inserts.
Specifications
Manufacturer | Alfra GmbH |
Model | SKF 63-15 Bevel Milling Machine |
Condition | New |
Motor/Voltage: | 230 V AC, 50 Hz – other voltages / frequencies on request with overload protection and restart barricade. |
Land Width: | 5 mm max., progressively adjustable |
Dimension (L x W x H): | 440x200x280 mm |
Tools: | 2 units off disk milling cutters - 63 mm, each with 6 pieces indexable inserts. |
Capacity | 1100 W |
Rotation Speed | 2870 min-1 |
Weight | 21 kg |
Bevel Angle | 15-20-30-45-60° progressively adjustable |
