€3,470 + VAT

Alfra GmbH APS 120 Hydraulic Punching Unit

5

Germany

orCall +353 838108745

Description

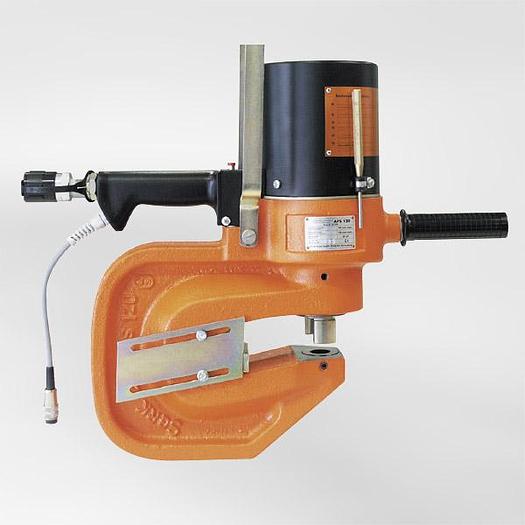

Alfra Press Hydraulic Punching Unit APS 120


Product No: 23004


Punching Unit Description

47.3 kg weight, 44 tons punching force, 700 bar, 110 mm jaw depth - the ALFRA-Press APS 120 is a genuine power package. Belonging to the series of our hydraulic punches it hast he potential to punch heavy metal plates and even T-beams with a material thickness up to 16 mm. Depending on the used pump, the punching time for one hole is between 7 and 10 seconds. The APS 120 is compatible with the Alfra hydraulic pumps AHP-M or AHP-L. The maximum hole diameter is 25 mm (25X18 mm for long holes).

Easily portable, fully automatic, hydraulic punching equipment for steel, bridge, container, crane and metal construction.


  • Mobile usage, no material transport.
  • Virtually noiseless punching.
  • Easy positioning through stop function of the punch.


Includes

Hose assembly 5 m

Spanner

Punch & Die: Ø 22 mm

1 x Depth adjustment

1 x Suspension bracket


Technical Specifications:

Max. hole-Ø: 25 mm

Max. oblong hole: 25 x 18 mm

Max. material thickness (S235): 16 mm

Overall punch time with pump: AHP-M: approx. 10 sec.

Overall punch time with pump: AHP-L: approx. 7 sec.

Jaw depth: 110 mm

Max. pressure: 700 bar (10,150 psi)

Punching force: 44 T

Punch stroke: 25 mm

Weight: 47.3 kg


Specifications

ManufacturerAlfra GmbH
ModelAPS 120 Hydraulic Punching Unit
ConditionNew
Product No23004
Max. pressure700 bar (10,150 psi)
Punching force44 T
Punch stroke25 mm
Max. oblong hole25 x 18 mm
Max. hole-Ø25 mm
Punch & DieØ 22 mm
Max. material thickness (S235)16 mm
Jaw depth110 mm
Weight47.3 kg
