€2,590 + VAT

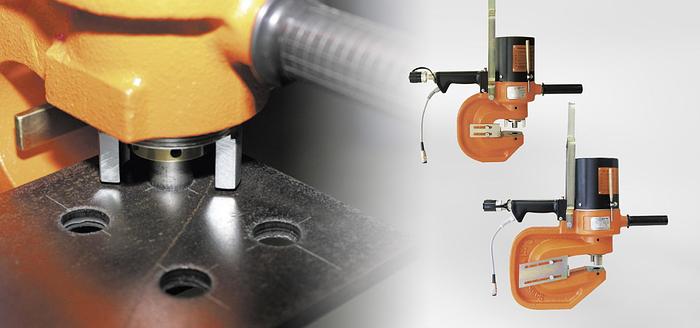

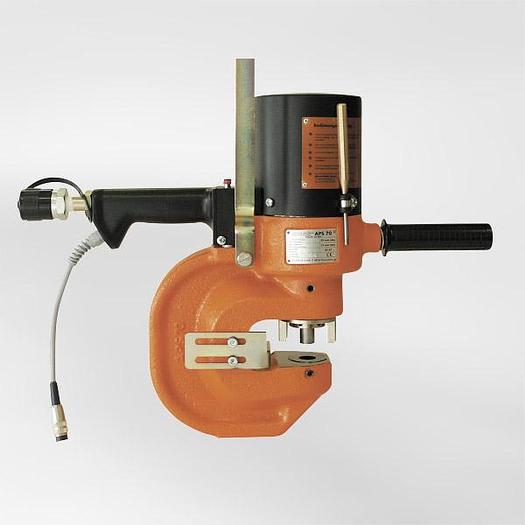

Alfra GmbH APS 70 Hydraulic Punching Unit

5

Germany

orCall +353 838108745

Description

ALFRA-Press - Hydraulic Punching Unit APS 70


Product No: 23002


Punching Unit Description

29,9 kg weight, 30 tons punching force, 700 bar, 70 mm jaw depth - the ALFRA-Press APS 70 is a genuine power package. Belonging to the series of our hydraulic punches it has the potential to punch heavy metal plates and even T-beams with a material thickness up to 13 mm. Depending on the used pump, the punching time for one hole is between 3 and 5 seconds. The APS 70 is compatible with the Alfra hydraulic pumps AHP-M or AHP-L. The maximum hole diameter is 22 mm (22X14 mm for oblong holes).

Easily portable, fully automatic, hydraulic punching equipment for steel, bridge, container, crane and metal construction.


  • Mobile usage, no material transport.
  • Virtually noiseless punching.
  • Easy positioning through stop function of the punch.


Includes

Hose assembly 5 m/spanner

Punch & Die: Ø 18 mm

1 x Depth adjustment

1 x Suspension bracket


Technical Specifications

Max. hole-Ø: 22 mm

Max. oblong hole: 22 x 14 mm

Max. material thickness (S235): 13 mm

Overall punch time with pump: AHP-M: approx. 5 sec.

Overall punch time with pump: AHP-L: approx. 3 sec

Jaw depth: 70 mm

Max. pressure: 700 bar

Punching force: 30 T

Punch stroke: 18 mm

Weight: 29.9 kg



Specifications

ManufacturerAlfra GmbH
ModelAPS 70 Hydraulic Punching Unit
ConditionNew
Product No23002
Max. pressure700 bar
Punching force30 T
Max. hole-Ø22 mm
Max. oblong hole22 x 14 mm
Max. material thickness (S235)13 mm
Punch stroke18 mm
Punch & DieØ 18 mm
Jaw depth70 mm
Weight29.9 kg
