€4,139 + VAT @ 23%

Vacubest plate with integrated RB 50 X, 230V with MT 2 arbor, 110v

5

Germany

orCall +353 838108745

Description

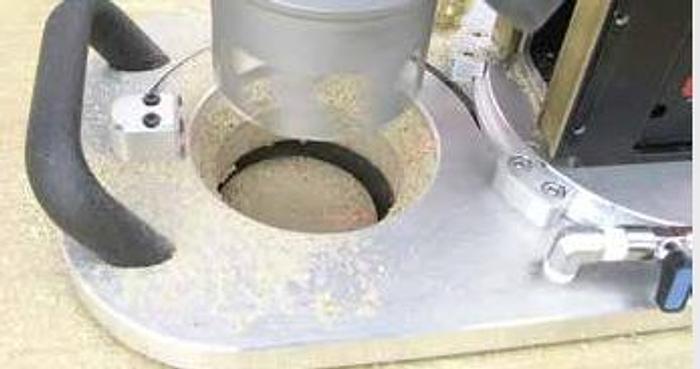

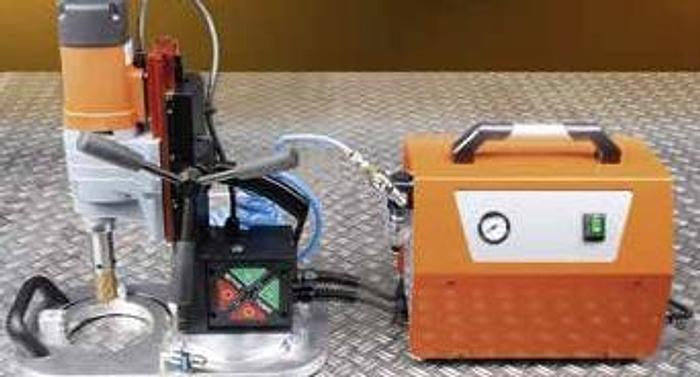

Alfra Drilling Machines Vacubest plate with integrated RB 50 X, 230V with MT 2 arbor, 110v



Product features:

Automatic shut-off of motor in case of vacuum loss

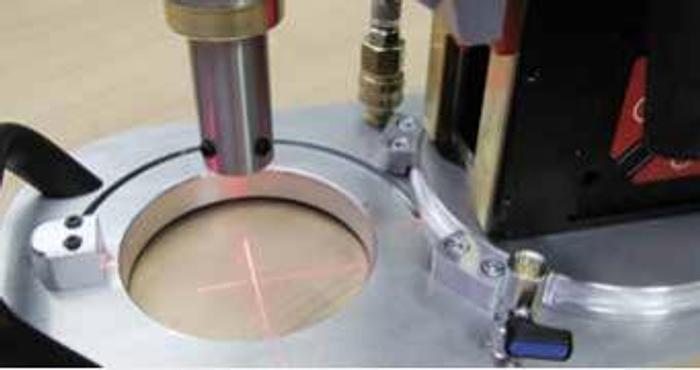

Adjustable laser cross

Machine is mounted on the vacuum plate rotatable by 270°

Vacuum pump can be controlled by the core drilling machine

Use on non-magnetic surfaces such as aluminium, copper, brass, stainless steel, plastics, wood and textured surface (e.g. corrugated and chequer plate)


Technical specifications:

Core drilling in metal: Ø 12.0 - 50.0 mm

Drilling in wood: Ø 12.0 - 100.0 mm

Drilling depth: 50 mm

Power consumption: 1200 W 2

speed gearbox: 250/450 rpm

Arbor: available as 19 mm Weldon or MT2

Coolant feed: automatically integrated from the top through the spindle

Voltage: 230 volt or 110 volt (50-60 Hz)

Vacuum adhesion force: 9000 N

Tool force: (at - 0.9 bar): 2300 N

Printing: - 0.9 bar / - 90kPa


Specifications

ManufacturerAlfra GmbH
ModelVacubest plate with integrated RB 50 X, 230V with MT 2 arbor, 110v
ConditionNew
Drilling depth50 mm
Power consumption1200 W 2
Speed gearbox250/450 rpm
Vacuum adhesion force9000 N
Core drilling in metalØ 12.0 - 50.0 mm
Drilling in woodØ 12.0 - 100.0 mm
Tool force(at - 0.9 bar)
Printing0.9 bar / - 90kPa
