€818 + VAT @ 23%

Alfra GmbH RB 35/50X

5

Germany

orCall +353 838108745

Description

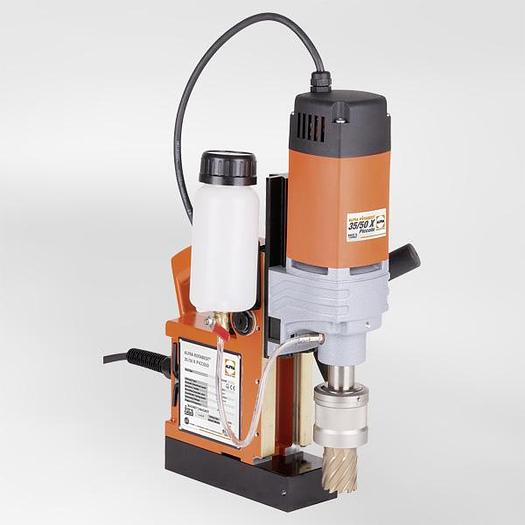

Alfra Drilling Machines RB 35/50X

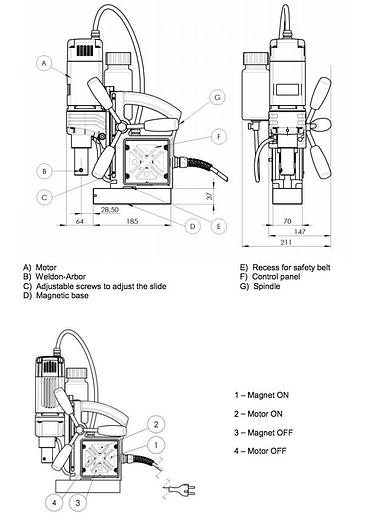

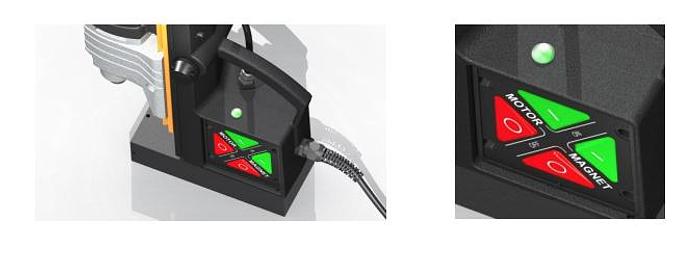

The magnetic core drilling machine can be fixed with a switchable electromagnet on ferromagnetic workpieces. The electromagnet and the motor can be switched on and off with the large buttons of the control panel. The LED above the front panel shows the operating status of the machine. A self-adjusting dovetail guide on which the motor is mounted can be adjusted in height with the star handle. On the back of the machine are the nameplate and an attachment for the enclosed Allen keys.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 50.0 mm

Cutting depth: 50.0 mm

Twist drill: Ø 1.0 to 16.0 mm with quick-release chuck MT 2 up to Ø 20.0 mm with MT2 DIN 345 direct

Counterboring: Ø 10.0 - 40.0 mm

Tapping: with tapping attachment: M3 - M20

Arbor: MT2

Stroke: 190 mm

Height adjustment: 100 mm

Gearbox – on-load speed: 1. Step 250 rpm 2. Step 450 rpm

Power consumption: 1.200 W

Voltage: 230 V 50/60 Hz 110 V 50/60 Hz

Magnetic holding force: 12,000 N

Tool-Force (10 mm): 3,500 N

Min. material thickness: 6 mm

Magnetic base: 92 x 220 mm

Weight: 15.0 kg


Features:

Motor

Motor emergency stop



Gearboxes

Oil bath gearbox



Slide

Stepless adjustment

Self-adjusting guide



Operation

Soft-touch grips

Membrane keyboard

Holder for Allen key

Cord length 5 m



Magnet

Sensor/LED

Permanent magnet



Specifications

ManufacturerAlfra GmbH
ModelRB 35/50X
ConditionNew
Cutting depth50.0 mm
Tappingwith tapping attachment
ArborMT2
Stroke190 mm
Height adjustment100 mm
Power consumption1.200 W
Magnetic holding force12,000 N
Tool-Force (10 mm)3,500 N
Min. material thickness6 mm
Magnetic base92 x 220 mm
Weight15.0 kg
