€6,065 + VAT

RHTC Profi Punch 16 - Hydraulic Punching Machine

5

Netherlands

orCall +353 838108745

Description

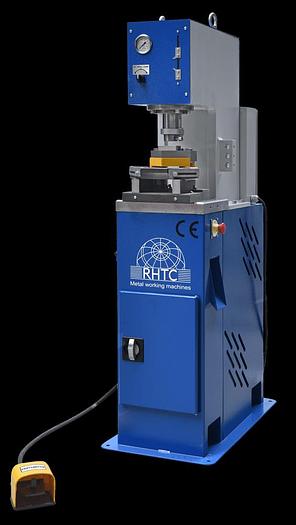

RHTC Presses Profi Punch 16 - Hydraulic

The Profi Punch ’16 is an hydraulic punching machine that can be used as a C-frame press as well.

Our punching machines can be delivered with several punch tools (standard or custom-made). These tools can be fixed directly under the pressure plunger of this hydraulic punching machine. Thanks to this punching system, a wide range of punching and pressing operations can be done with only one machine (and interchangeable tooling).

This hydraulic punching machine is made in Europe.


The Profi Punch is a punching machine designed for deforming material by punching / shearing holes and making undercuts in sheets and sections. It can be used for punching sheets up to 4 mm thickness, depending on the punch tool and material. Made in Europe.

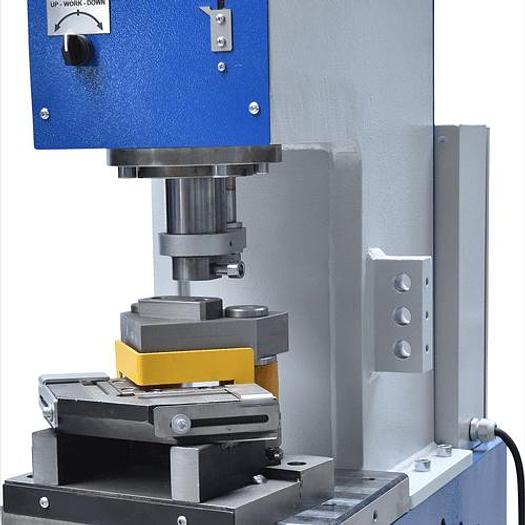

This punching machine is characterized by a durable and simple design for an easy operation. The punching system consists of an interchangeable punch tool and immobile die. The Profi Punch can be delivered with several punch tools (standard or custom-made). Thanks to this punching system, a wide range of punching operations can be done with only one machine (and the interchangeable tooling)

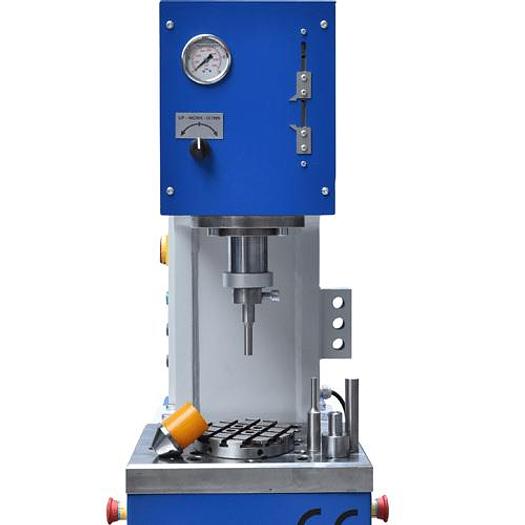

The hydraulic Profi Punch can be used as a punching machine as well as a C-frame press. It has an adjustable piston stroke up to 70 mm, pressure regulation and the punch tools can be fixed directly onto the pressure plunger. Made in Europe.


Available in:

10 TON

16 TON (hydraulic)


Technical specifications:

Pressure force [tn]: 16

Motor power [kW]: 2.2

Min. working speed [mm/sec]: 2

Max. working speed [mm/sec]: 9.8

Return speed [mm/sec]: 20

Piston stroke [mm]: 70

Throat depth [mm] 160

Total length [mm]: 800

Total width [mm]: 450

Overall height [mm]: 1430

Weight [kg]: 350


Features:

Can be used as punching machine and C-frame press

Adjustable piston stroke up to 70 mm

Manual / Automatic mode

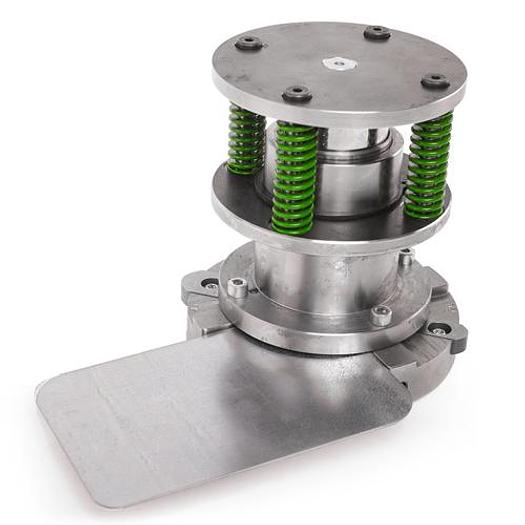

Interchangeable punch tools, for example:

Corner wedge shaped punch

Pipe cutter for perpendicular pipe

Slotted hole punch

Corner rounding notcher

Corner cutting notcher

Hole puncher for pipes

Sheet metal cutter



Specifications

ManufacturerRHTC
ModelProfi Punch 16 - Hydraulic Punching Machine
ConditionNew
Pressure force [tn]16
Motor power [kW]2.2
Min. working speed [mm/sec]2
Max. working speed [mm/sec]9.8
Return speed [mm/sec]20
Piston stroke [mm]70
Total length [mm]800
Total width [mm]450
Overall height [mm]1430
Weight [kg]350
