€1,195 + VAT

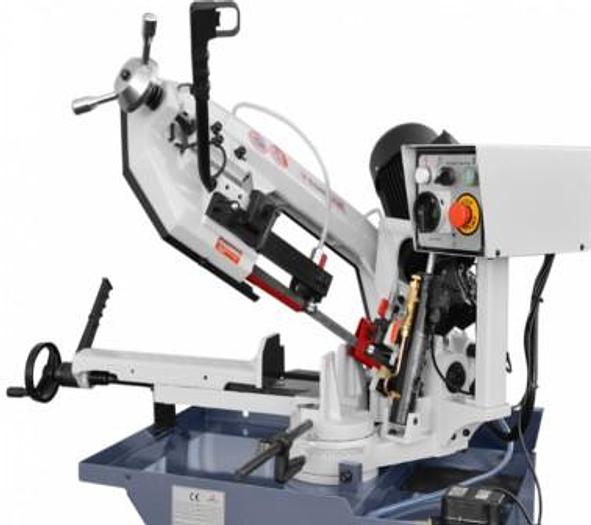

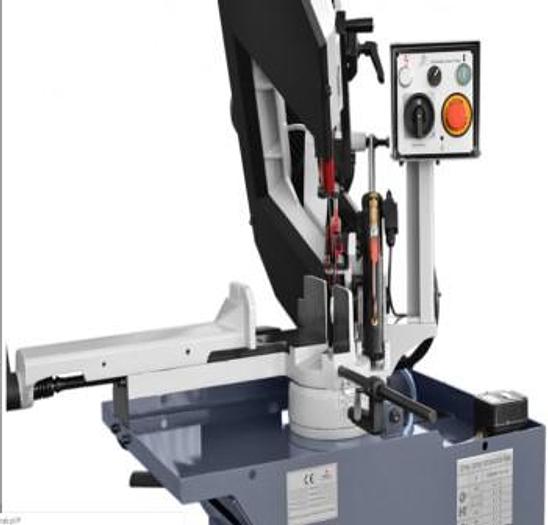

Cormak BS170G Single Phase Bandsaw

5

Poland

orCall +353 838108745

Description

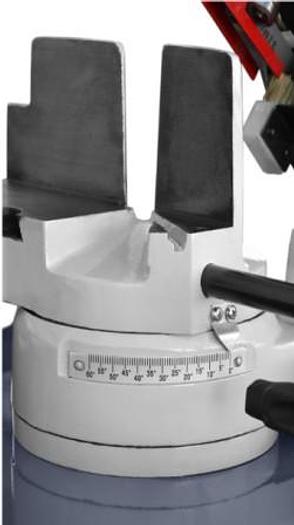

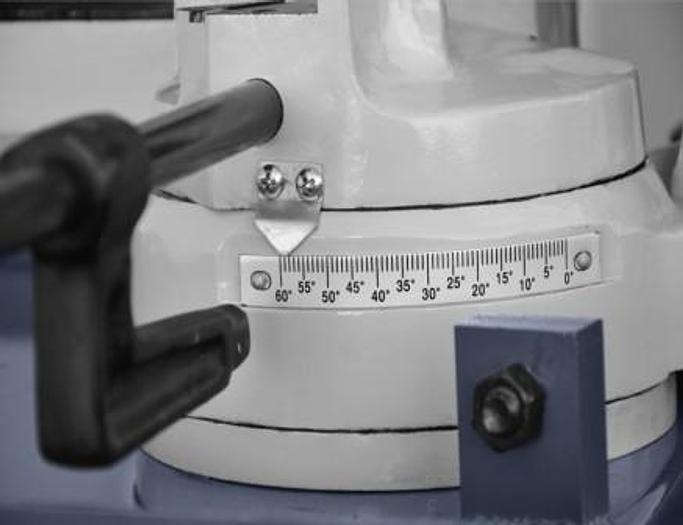

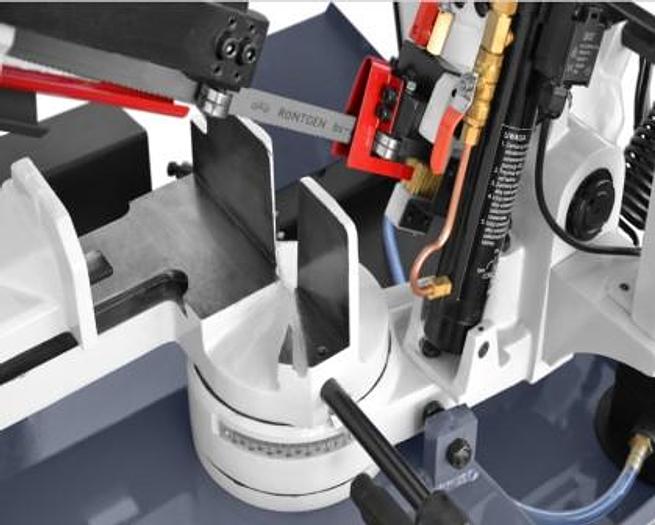

Cormak BS 170G Single Phase Bandsaw CORMAK BS 170G band saw, equipped with a hydraulic cylinder, cooling and an arm swivelling up to 60º, is used commonly in ironworking, where precision, quality and cutting speed are essential. Includes a quick acting vise Controlled either through the control or via the handle trigger TECHNICAL DATA Distance from the vice to the floor: 890 mm Dimensions of blade: 2085 x 20 x 0.9 mm Motor Power: S1 100%: 1.1kW; S6 40%: 1.5 kW Blade speed: 36m/min Cutting Speed: 0-50m/min Variable Arm Lowering: Hydraulic Cylinder Weight: 200 kg CUTTING CAPACITIES 0º: Round: ø170mm Rectangle: 170 × 120mm Square: 170 x 170mm 45º R: Round: ø120mm Rectangle: 120 × 110mm Square: 110 x 110mm 60º R: Round: Ø70mm Rectangle: 70 × 60mm Square: 60 x 60mm Machine Description CORMAK BS 170G single phase band saw, equipped with a hydraulic cylinder, cooling and an arm swivelling up to 60º, is used commonly in ironworking, where precision, quality and cutting speed are essential. This metal cutting horizontal band saw with a swivel arm provides straight cutting and at any angle from 0 degrees to 60 degrees .Material can be fed manually or by any feeding device, meanwhile the blade feed is gravitational controlled by a hydraulic cylinder. Appropriate speed of arm lowering is controlled on the control panel. Blade guides are equipped with a set of roller bearings. This has a huge impact on the band guiding, its life, cut straightness, cutting accuracy and quality. Particular kinds and types of materials require particular cutting speeds. The rigid saw arm is made of cast Iron. Control panel is is conveniently located next to the saw arm. The drive is via mechanical transmission (not belt). The blade is tensioned on two cast iron drive wheels with a hand tightener and guided by a set of roller bearings. The base is designed as a rigid welded body of sheet steel. Inside is a separate flood coolant container with an electropump. The base body constitutes a tank for flood coolant draining and chips produced during cutting. After the cutting process is complete the blade drive is switched off automatically. Safety is ensured with blade guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the blade breaks.

Specifications

ManufacturerCormak
ModelBS170G 230V Single Phase Bandsaw
ConditionNew
Blade Size2085 x 20 x 0.9 mm
Blade speed36m/min

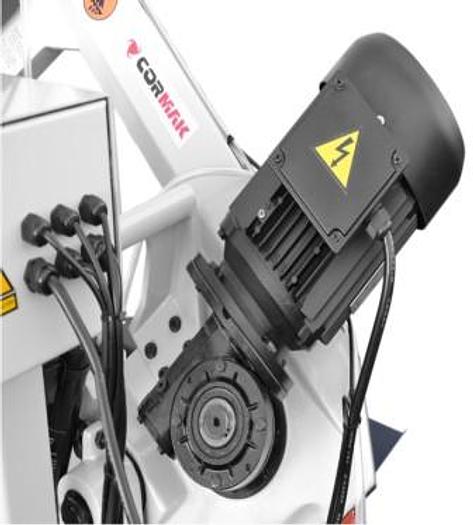

Motor PowerS1 100%: 1.1kW; S6 40%: 1.5 kW

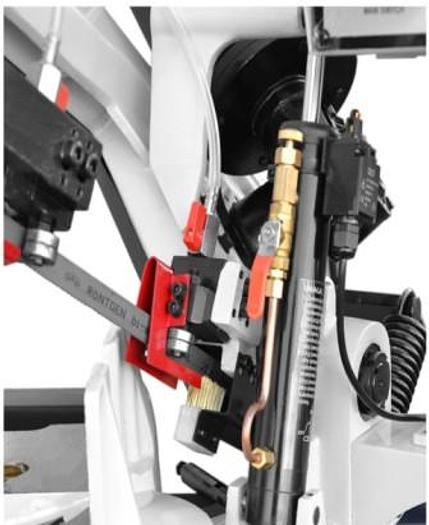

Arm LoweringHydraulic Cylinder
Cutting Speed0-50m/min Variable
Capacity 0º (Round)170mm
Capacity 0º (Rectangular)170 x 120mm
Capacity 0º (Square)170 x 170mm
Capacity 45º R (Round)120mm
Capacity 45º R (Rectanagular)120 x 110mm
Capacity 45º R (Square)110 x 110mm
Capacity 60º R (Round)70mm
Capacity 60º R (Rectangular)70 x 60mm
Capacity 60º R (Square)60 x 60mm
Weight200 kg
