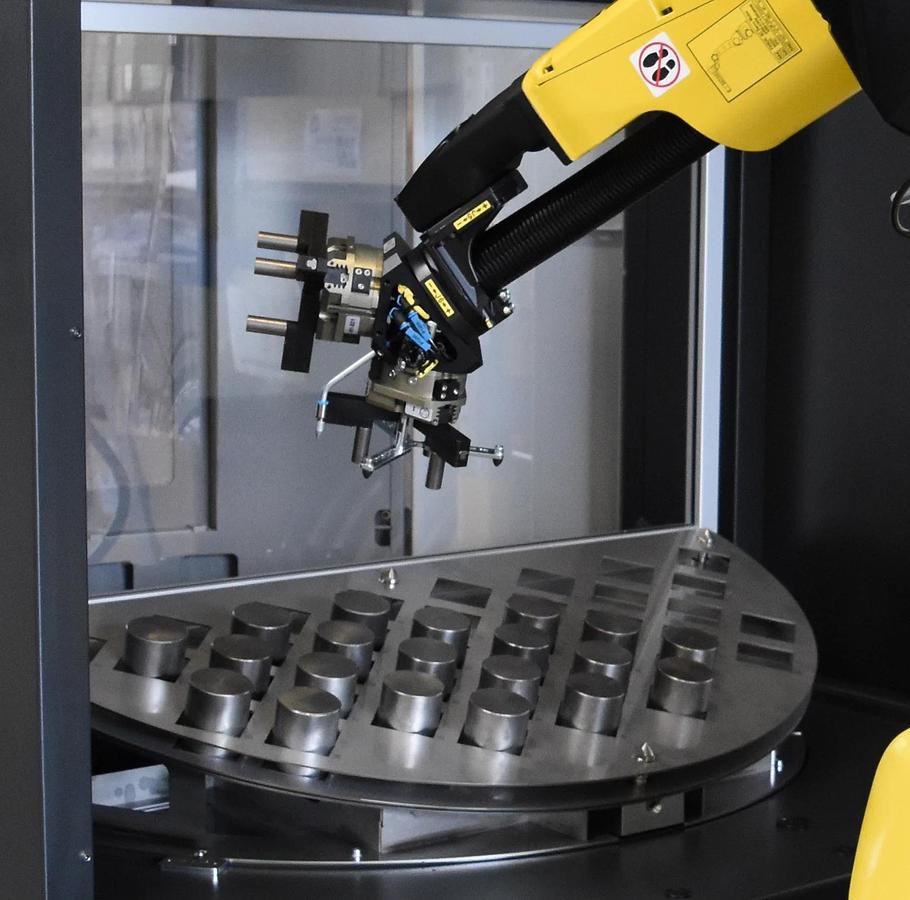

Halter Universal Compact 12 Loading Robot
Description
Halter LoadAssistant Universal Compact 12 Loading Robot The HALTER LoadAssistant® is a robotic system for automatic loading of your CNC machine. The CNC robot can be connected to any new or existing CNC lathe or milling machine and easily moved from one machine to another.
The Universal Compact 12 is a robotic loading solution for turning and milling with the smallest footprint in our Universal product range, at the most competitive price in the market. covering the complete range of workpieces up to 135 mm.
Complete plug-and-play solution for each brand of CNC machine. Set-up time takes less than 5 minutes. No experience with robotics is required. Easily moved from one CNC machine to another. Reliable technology. Weight Capacity: 12KG Designed for Lathes & Milling Machines
Turning/Milling
The Universal Compact 12 is a compact loading robot for turning and milling, covering the complete range of workpieces up to 135 mm.
For turning and milling
Maximum diameter 135 mm - maximum dimension LxW 135 mm x 135 mm
Axis loading up to 250 mm
New batch set-up within 5 minutes
Preparing new batch while the robot is running
Machine access is maintained
Minimum floor space
With a 12 kg robot arm
Many extra functionalities
Specifications
| Manufacturer | Halter CNC Automation |
| Model | LoadAssistant Universal Compact 12 Loading Robot |
| Condition | New |
| Stock Number | 969339 |
| Weight Capacity | 12Kg |
| Control | Halter SmartControl |
| Standard robot-machine interface for every CNC-machine | Yes |
| Max. number of CNC-machines to connect with | 4 |
| Touch Screen Size | 12" |
| Intuitive and graphical programming in 12 steps | Yes |
| Robot | Fanuc 6 Axis Robot |
| No. of controlled axes | 6 |
| Gripper | 2 or 3 Finger Gripper |
| Other Grippers Available | Yes |
| Safety Scanner | Fanuc DCS area in combination with the Sick floor scanner |
| Portable | Yes |
| Workpiece diameter (min-max) | 10mm - 135mm |
| Minimum Workpiece (L x W) | 10mm x 10mm |
| Maximum Workpiece (L x W) | 135mm x 135mm |
| Maximum load capacity robot arm | 12 kg |
| Maximum height of workpiece | 150 mm |
| Maximum total weight on rotating table | 500 kg |
| Max Number of Workpieces for Grid Plate 10-35mm | 166 |
| Max Number of Workpieces for Grid Plate 23-55mm | 92 |
| Max Number of Workpieces for Grid Plate 23-85mm | 44 |
| Max Number of Workpieces for Grid Plate 23-115mm | 32 |
| Max Number of Workpieces for Grid Plate 23-135mm | 18 |
| Workpiecce Specific Grid Plates | Optional |
| Long Shaft Capacity | Yes |
| Power | 400V |
| Dimensions (L x D x H) | 1250 x 1250 x 2220mm |
| Weight | 800kg |
