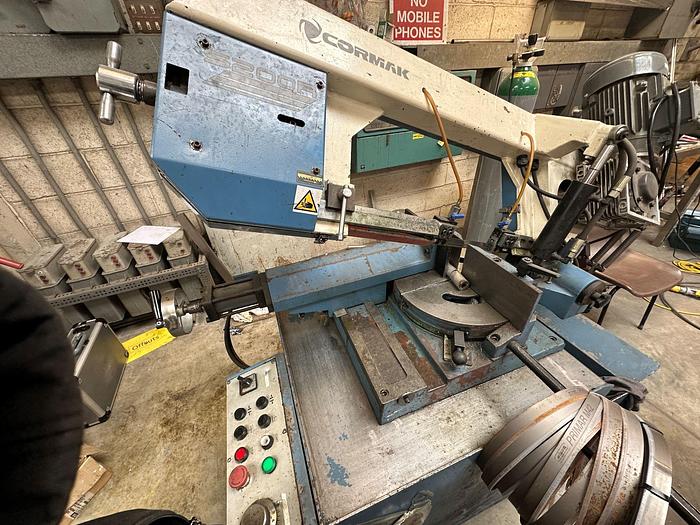

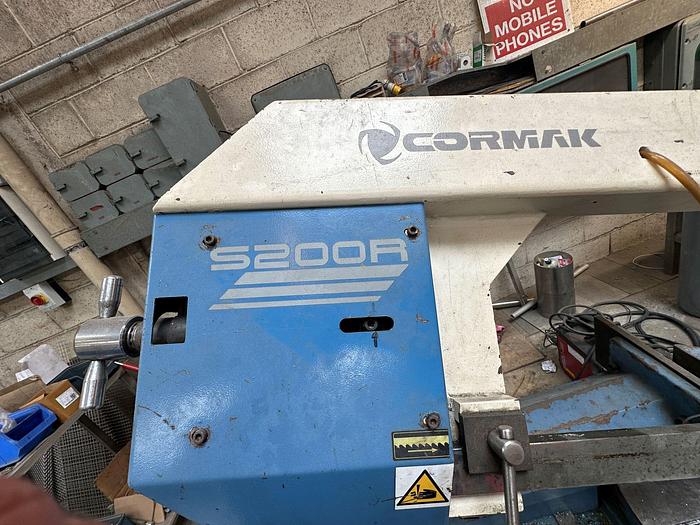

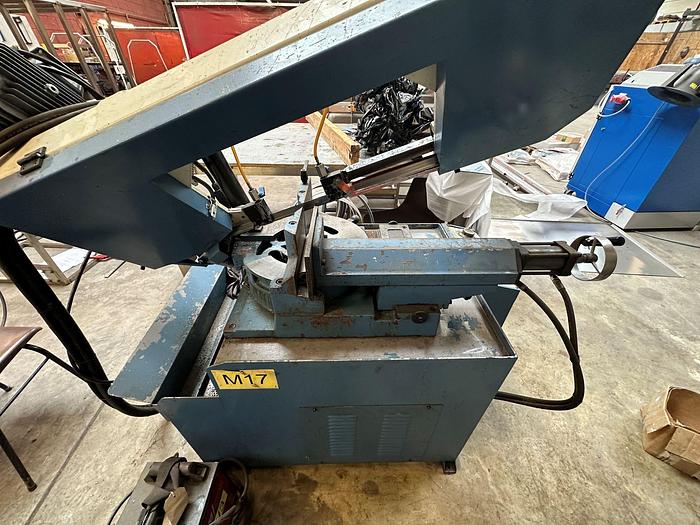

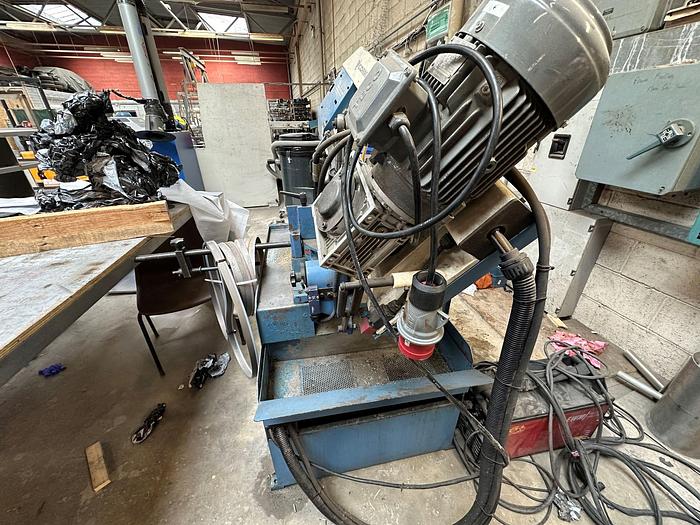

2019 Cormak S-200RH Bandsaw

Cormak S-200RH Semi-Automatic Bandsaw

Machine Type: Double Mitre Semi Automatic Bandsaw

Year: 2019

Condition: Good

Includes

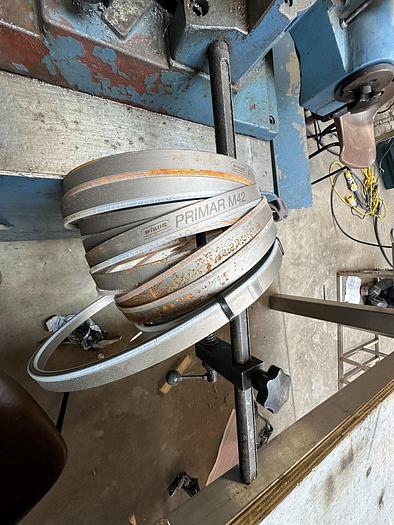

5 x Blades

Technical Specifications

Type: Semi-Automatic

Raising and lowering of arm:Hydraulic with smooth adjustment of the lowering of the arm

Band speed: 35/70 mm / min

Cutting for angles: Left from 45 ° to 60 ° right

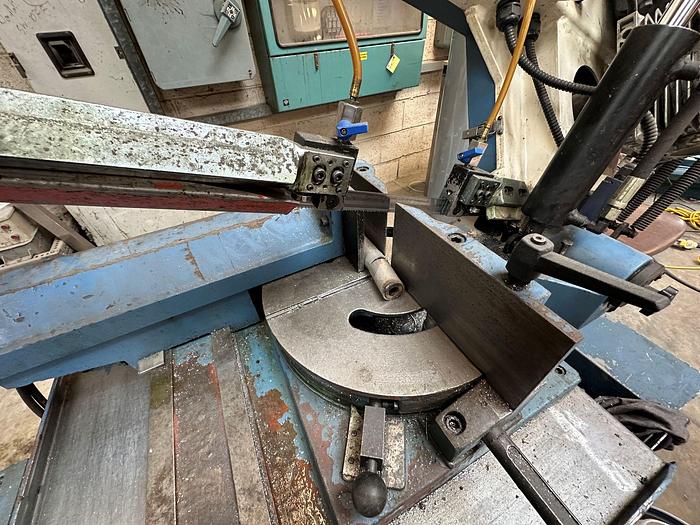

Vice: Hydraulic

Minimum cutting diameter: Ø 5 mm

Minimum length of material in vice: 30 mm

Height of the vice base: 780 mm

Blade size: 27 x 0.9 x 2910 mm

Total power: 2.1 kW

Machine Dimensions (L x W x H): 1600 x 800 x 1400 mm

Weight: 530 kg

Cutting Capacities

0º

Round: ø250mm

Rectangle: 320 x 240mm

Square: 240 x 240mm

45º R

Round: ø220mm

Rectangle: 235 x 120mm

Square: 210 x 210mm

45º L

Round: ø200mm

Rectangle: 220 x 120mm

Square: 190 x 190mm

60º R

Round: Ø110mm

Rectangle: 155 x 110mm

Square: 100 x 100mm
