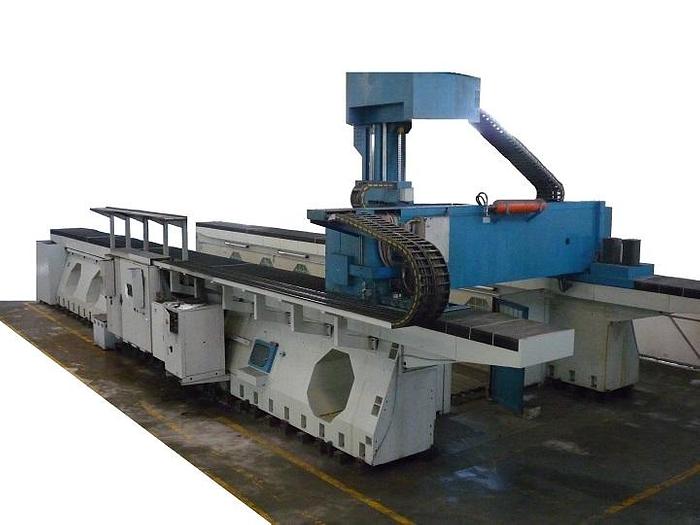

Refurbished 2003 Correa Pantera Bridge Type Milling Machine
or
Call +353 838108745
Description

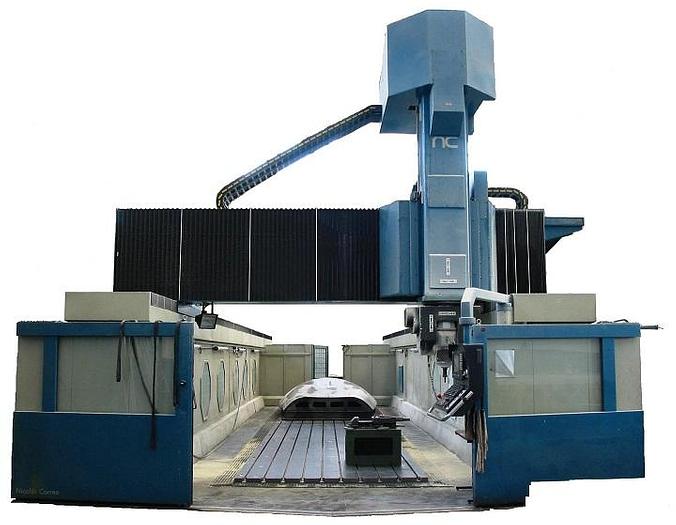

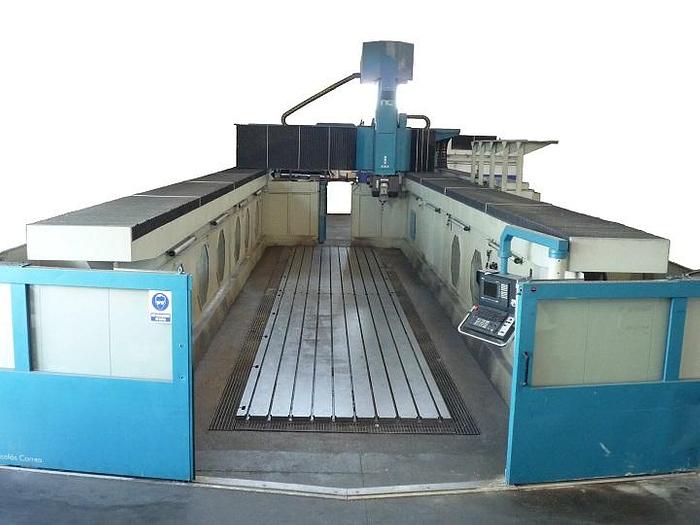

Refurbished Correa Pantera Bridge Type Milling Machine
Year of Manufacture: 2003
Year Refurbished: 2019
6 Month Warranty

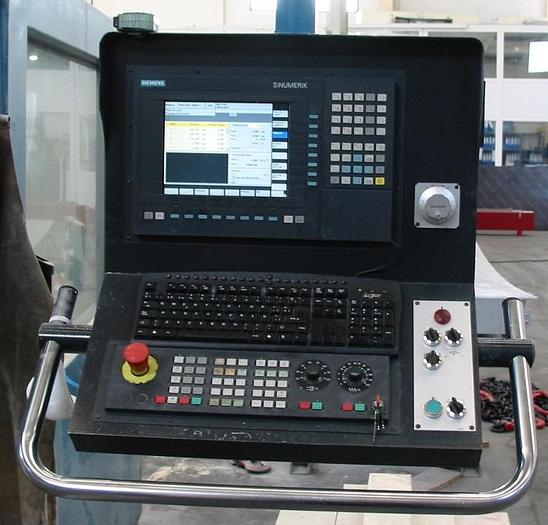

Control: Siemens 840D
Table Size: 14000 x 2500mm
Travels
X: 14000mm
Y: 3100mm
Z: 1200mm
Dist Between Columns: 4417mm

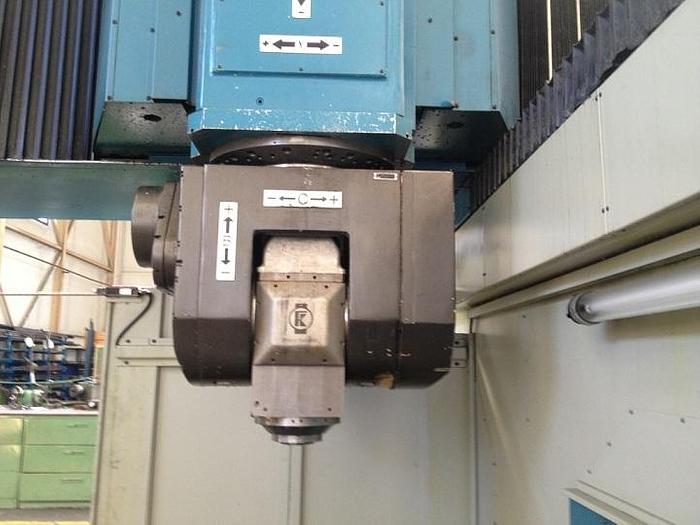

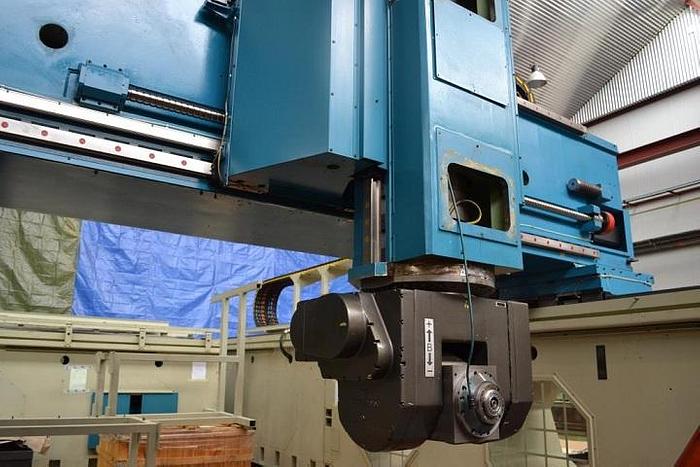

Milling Head
5 Axis "C5" Electro Spindle
Taper: HSK63
Spindle Speed: 18,000rpm
Machine Dimensions
L: 15000mm
W: 8418mm
H: 6033mm
Includes
Guarding
24 Tool Auto Tool Changer
Internal & External Coolant
Electronic Handwheel
Specifications
| Manufacturer | Correa |
| Model | Pantera |
| Year | 2003 |
| Condition | Refurbished |
| Stock Number | 00142 |
| Year of Manufacture | 2003 |
| Year Refurbished | 2019 |
| Control | Siemens 840D |
| Table Size | 14.000 x 2.500 mm |
| Max Part Weight | 15.000 Kg/m2 |
| Tool Clamping System | Hydraulic |
| ATC | 24 Tool Positions |
| Head Type | 5 Axis “C5C” Electrospindle 18.000 rpm |
| Spindle Speed | 18.000 rpm |
| Taper | HSK 63 |
| Travels (X) | 14000mm |
| Travels (Y) | 3100mm |
| Travels (Z) | 1200mm (220 - 1420mm |
| Distance Between Columns | 4417mm |
| Machine Dimensions (L x W x H) | 15000 x 8418 x 6033 mm |
| Machine Weight | 135,000 Kg |
