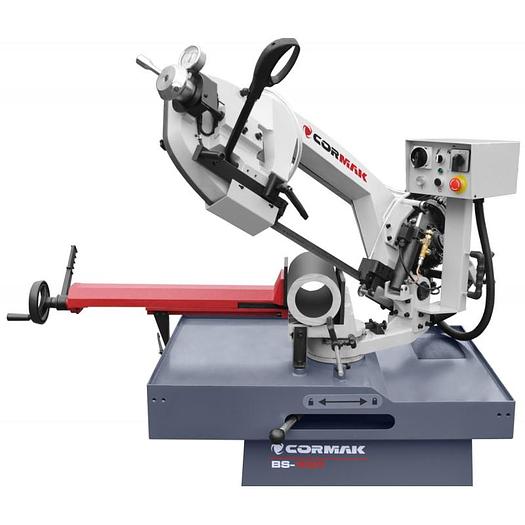

Machine Description

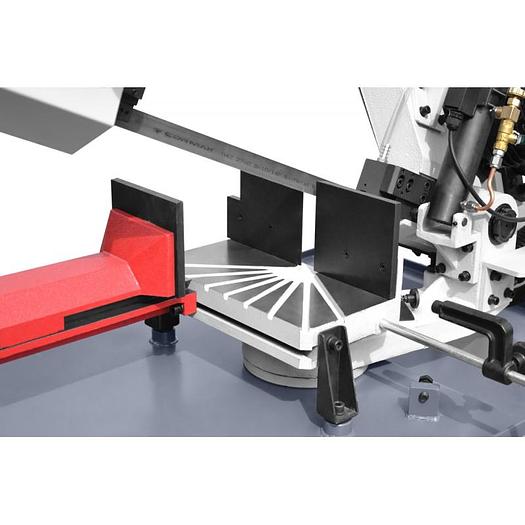

The BS-320 band saw for metals with a swivel arm enables cutting mitre cutting in the range from -45 ° to 60 °. The material to be cut can be fed manually or with any mechanical device, while the tool feed is automatic. Blade guides are equipped with special carbide inserts and bearings. This has a huge impact on the blade guiding, its service life, straightness, accuracy and quality of the cut. Carbide guiding significantly reduces the wear of the machine and the saw blade. The machine is equipped with an efficient cooling pump with a closed coolant circuit.

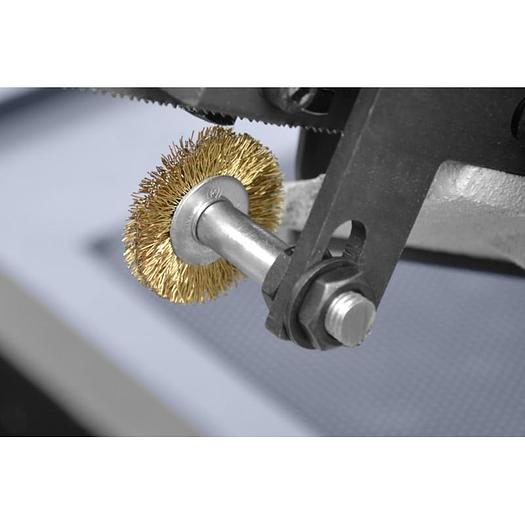

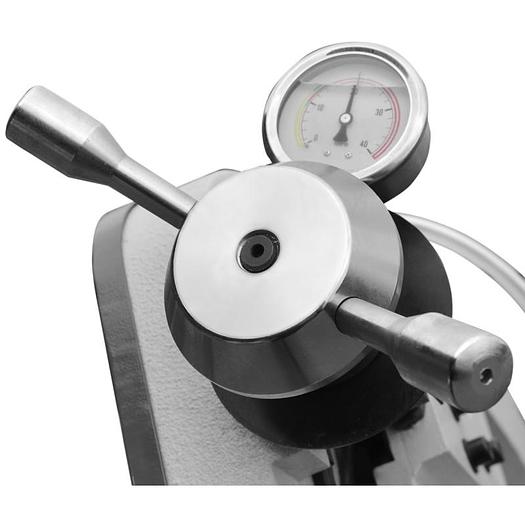

The arm is equipped with an automatic blade tension sensor, it is tilted by 25 degrees, which increases the life of the blade. A cleaning brush is attached to the bottom of the arm for perfect cleanliness and blade function. The machine is driven by a worm gear. The machine has a three-phase motor with two cutting speeds and thermal motor protection. The saw has a CLOCK TENSOMETER - a band tension sensor and an automatic switch in the event of a cutting band breaking.

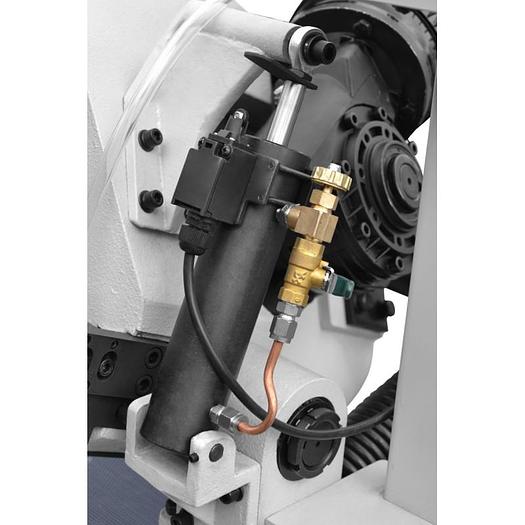

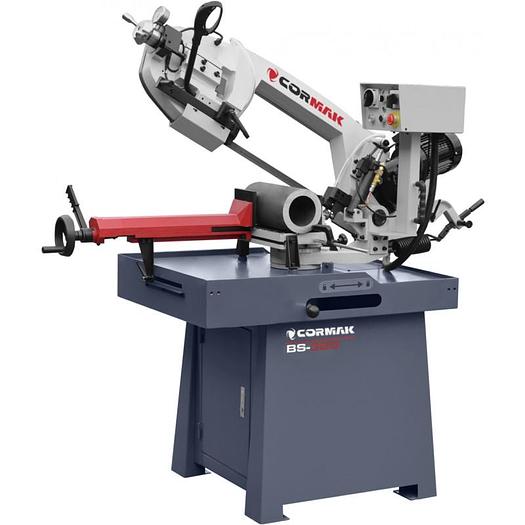

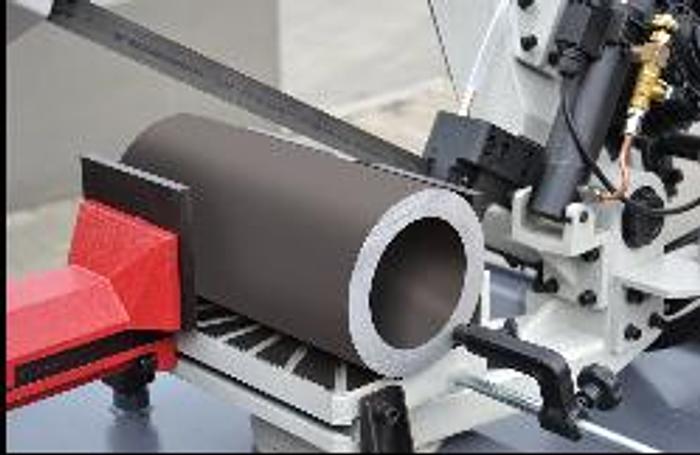

The design of the upper part of the base serves as a basin for draining the coolant and catching the chips produced during the cutting of the material. A cast iron workbench with a swivel arm and a control panel on a separate arm is attached to the base. In the cutting process, the main cutting movement is the movement of the cutting band and the movement of the lower arm. The speed of the arm drop (cutting speed) is regulated by a hydraulic actuator.

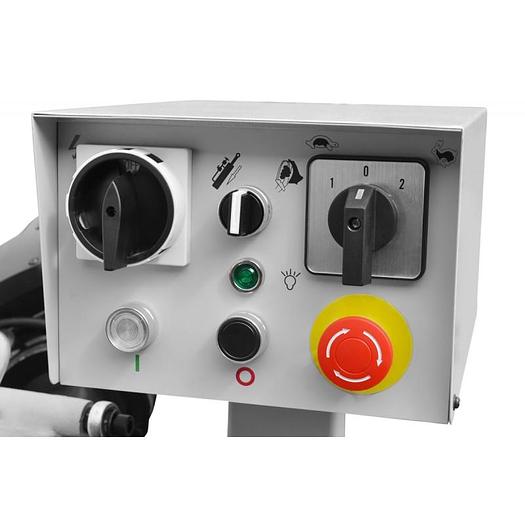

The feed rate is regulated on the cutting machine's control panel. We can choose between two speeds of the cutting band: 37.5 and 75 m / min. In the lower position of the arm (after cutting the material), the saw band drive is automatically turned off. Safety will be ensured by cutting band covers and micro switches stopping the engine operation after the end of the cutting cycle or opening any of the covers, additional protection consists in switching off the cutter automatically in the event of the cutting band breaking.

Technical Specifications

Ø max: 245 mm /Straight cutting

H×B max: 320×195 mm /Straight cutting

Power supply: 3–phase, 400V

Total power: 1.5 kW

Arm lowering control: hydraulic cylinder

Band dimensions: 2680×27×0.9 mm

Cutting speed: stepless 0–50 m/min

Band speed: 37.5 / 75 m/min

Vice base height: 950 mm

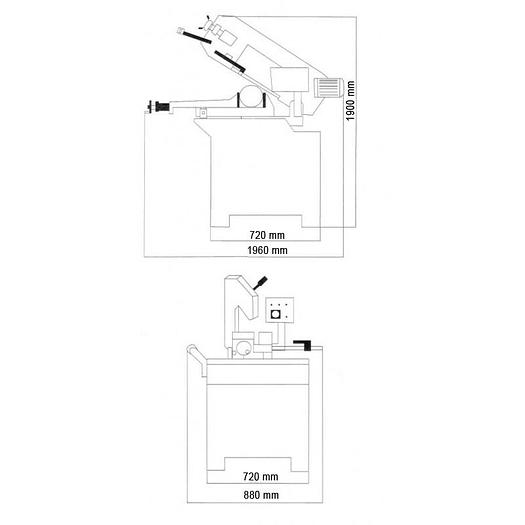

Dimensions: 2000×860×1500 mm

Weight: 246 kg

Cutting Capacities

0º:

Round: ø245mm

Rectangle: 320 x 195mm

Square: 245 x 245mm

45º R:

Round: ø190mm

Rectangle: 200 x 180mm

Square: 190 x 190mm

45º L:

Round: ø190mm

Rectangle: 200 x 100mm

Square: 155 x 155mm

60º R:

Round: Ø130mm

Rectangle: 120 x 140mm

Square: 130 x 130mm
