€764.50 + VAT

Cormak G5012WA Portable Bandsaw

10

Poland

orCall +353 838108745

Description

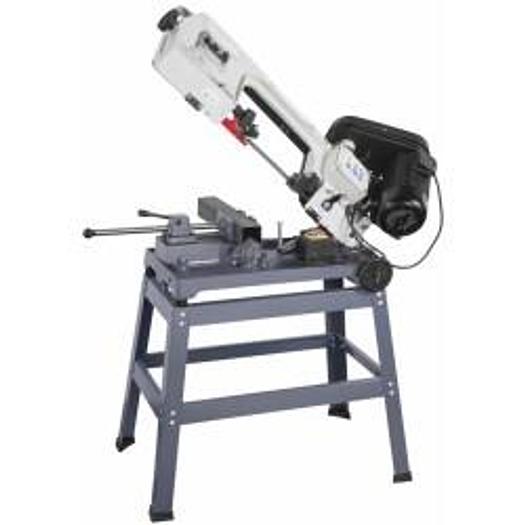

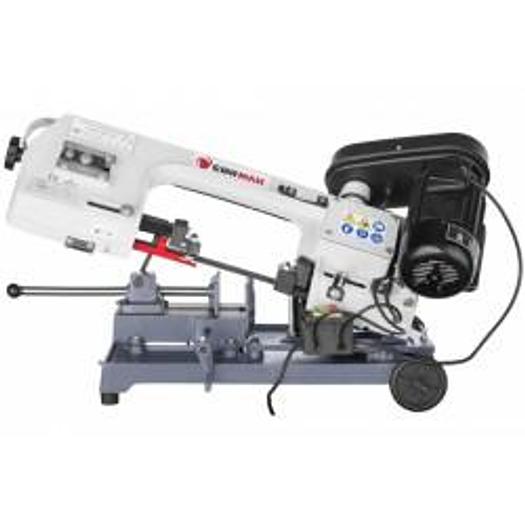

CORMAK G5012WA portable band saw

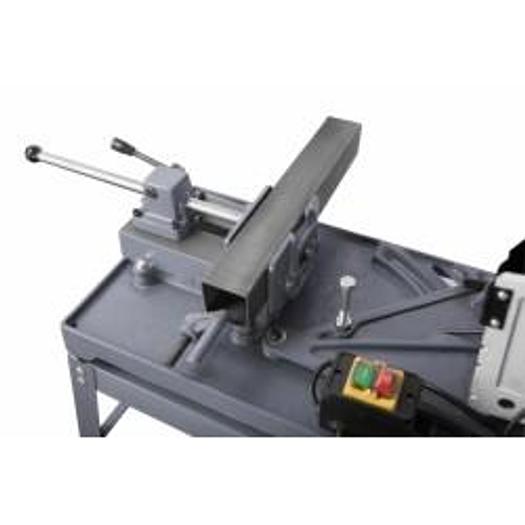

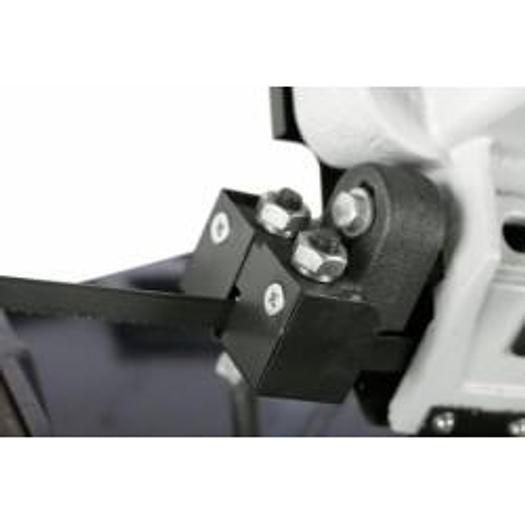

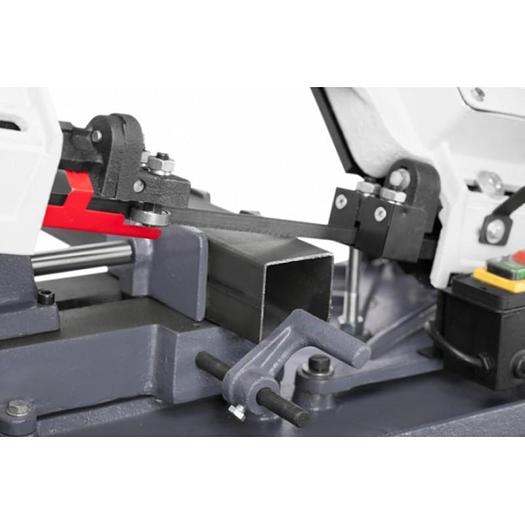

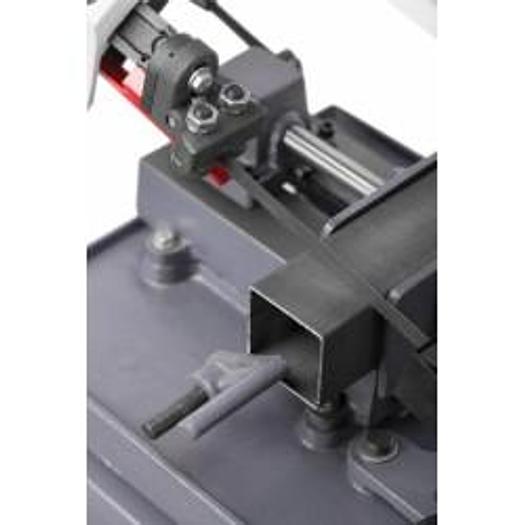

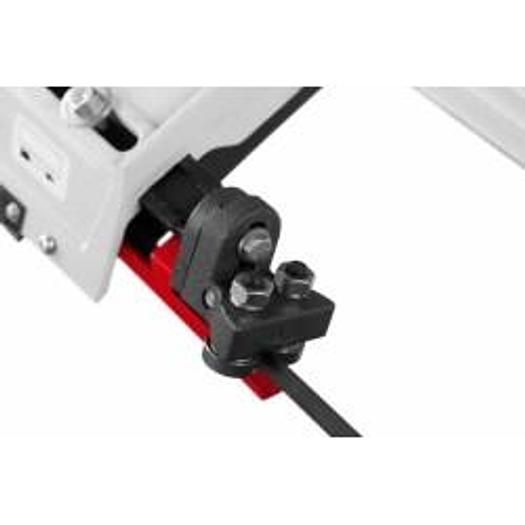

Portable metal cutting bandsaw stands out due to its high efficiency and easy operation. Swivel vice secures optimum cutting range. These band saws are an interesting proposal for every professional craftsman. Modest dimensions make it portable to construction sites, assemblies etc. It can also cut vertically. Machine Features Band saw arm made of profiled ductile iron secures rigidity during operation and absorbs all types of vibrations. Three speeds of the band adjustable by a belt drive. Swivel vice secures material cutting at 0–45 Degree angles. Appropriate band tilt provided by a set of roller bearings. Straight cut ensured by a set of bearings guiding the band. Cast iron worktable with a vice for clamping material and to which the machine arm is fixed, directly influences the stability of the machine. Electrical installation meets all CE requirements. The machine has a limit switch stopping it after the cutting process is finished, a safety button consistent with IP54. The machine is by default equipped with a quick-clamping vice and a length stop. Detachable base and the possibility of vertical cutting make it a portable and smart choice for construction, assembly work and workshops. Technical Data Power: Single Phase Blade size: 1640 x 13 x 0.65 mm Blade speeds: 20/29/50 m/min Weight: 92 Kg Cutting Capacity 90º Round: ø115 mm Rectangle:100 x 150 mm Square:100 x 100 mm 45º Round: ø100 mm Rectangle:100 x 60 mm Square: 60 x 60 mm

Specifications

ManufacturerCormak
ModelG5012WA Portable Bandsaw
ConditionNew
Blade speed20/29/50m/min
Electrical PowerSingle Phase
Bandsaw Blade Size1640 x 13 x 0.65 mm
Blade cutting size1640 x 13 x 0.65 mm
Capacity 90º (Round)115mm
Capacity 90º (Rectangular)100 x 150mm
Capacity 90º (Square)100 x 100mm
Capacity 45º R (Round)100mm
Capacity 45º R (Rectanagular)100 x 60mm
Capacity 45º R (Square)60 x 60mm
Weight92Kg
