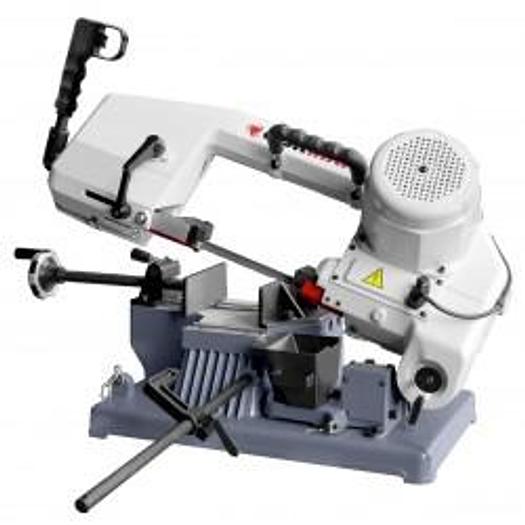

Cormak G5010B Portable Bandsaw
Description
Cormak G5010B Portable Single Phase Bandsaw
Machine Description
Band saw for metal cutting with the possibility of cutting at an angle of 45 °. Thanks to the use of high-quality materials and construction solutions that have been tested for years, it is ideally suited for construction sites and for professional repair shops. The belt is guided on precision ball bearings which guarantees precise and silent operation without vibrations and extends the life of the cutting band. For cutting profiles, pipes, solid materials, plastics, etc. Convenient handle for easy transport. Automatic cut off - limit Quiet, vibration-free operation thanks to the use of high quality materials. The blade is guided on precision ball bearings
Technical Details
Blade cutting size: 1470x13x.65 mm
Motor: 1/2hp 50hz 1430rpm
Blade speeds: 50 hz: 45 m / min; 60hz: 54m / min
Package size: 715x370x458mm
Weight: 29 Kg
Cutting Capacity
90º
Round: ø105 mm
Rectangle:100 x 150 mm
Square:100 x 100 mm
45º
Round: ø80 mm
Rectangle:100 x 60 mm
Square: 60 x 60 mm
Standard Equipment
Bi-metal blade
Clamping vice
Workpiece stop
Specifications
| Manufacturer | Cormak |
| Model | G5010B Portable Bandsaw |
| Condition | New |
| Blade speed | 50 hz: 45 m / min; 60hz: 54m / min |
| Electrical Power | Single Phase |
| Motor | 1/2hp 50hz 1430rpm |
| Capacity 90º (Round) | 105mm |
| Capacity 90º (Rectangular) | 100 x 150mm |
| Capacity 90º (Square) | 100 x 100mm |
| Capacity 45º R (Round) | 80mm |
| Capacity 45º R (Rectanagular) | 100 x 60mm |
| Capacity 45º R (Square) | 60 x 60mm |
| Machine dimensions (l x w x h) | 715 x 370 x 458mm |
| Weight | 29 Kg |
| Bandsaw Blade Size | 1470 x 13 x 0.65 mm |
