2007 Bomar Ergonomic 320.250DGH
Description

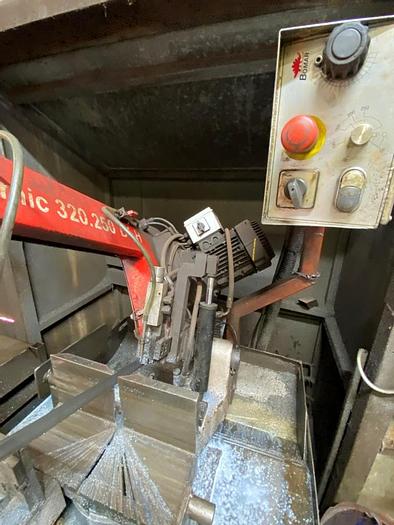

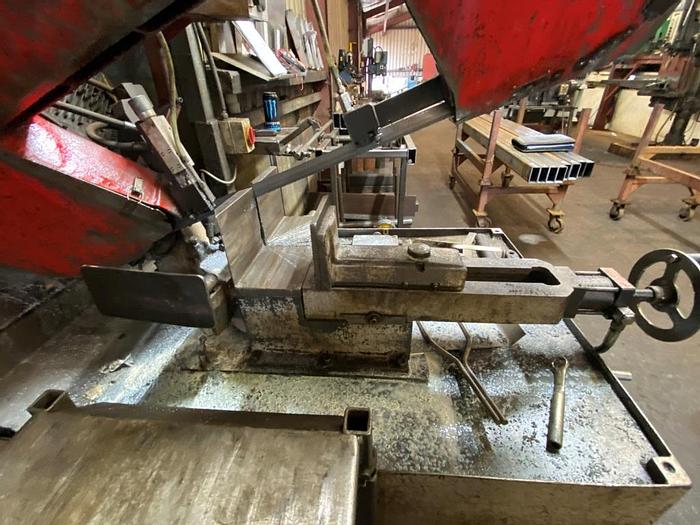

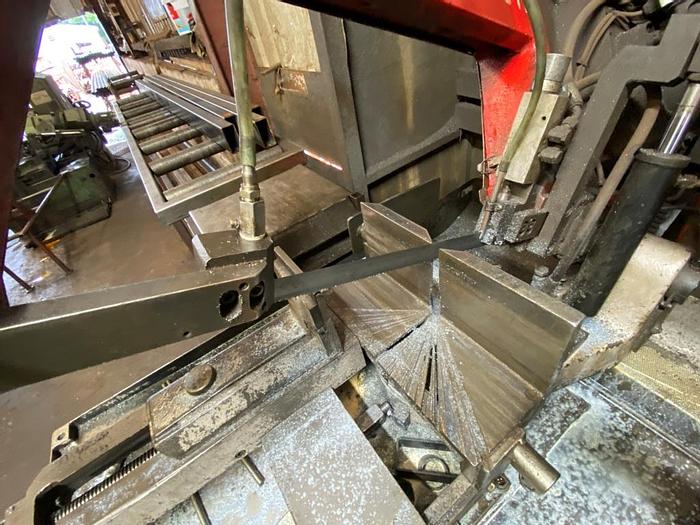

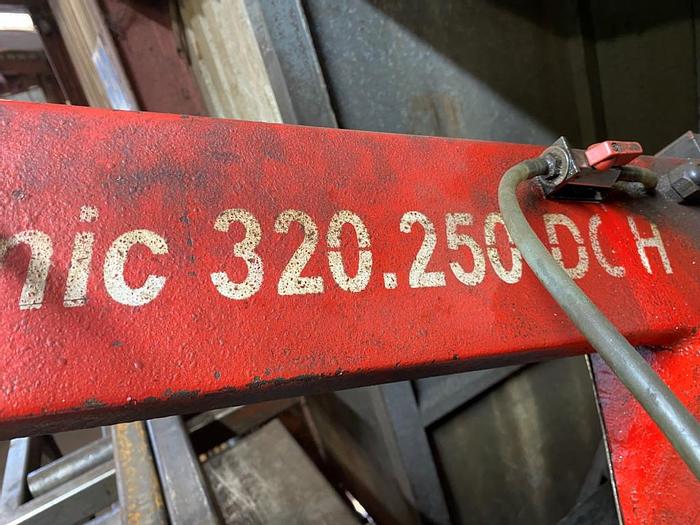

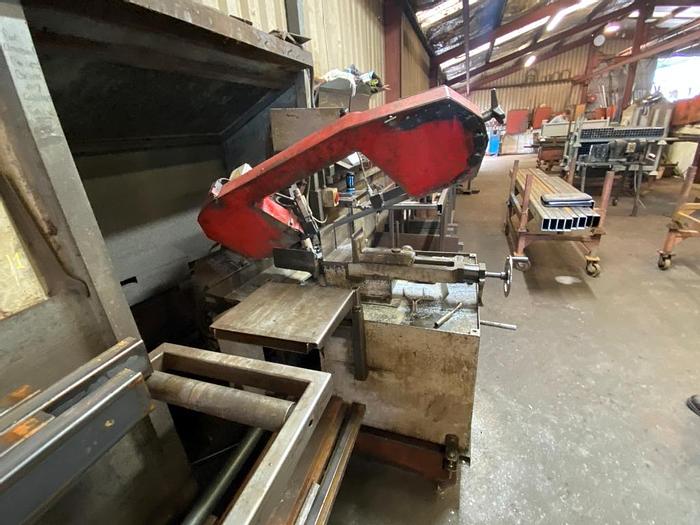

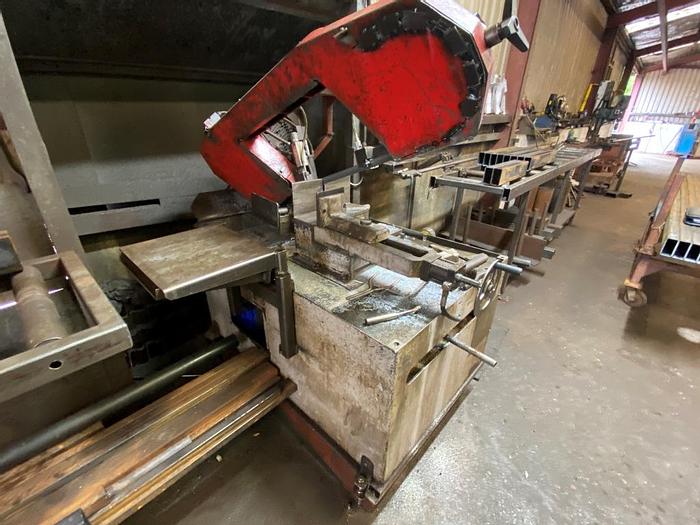

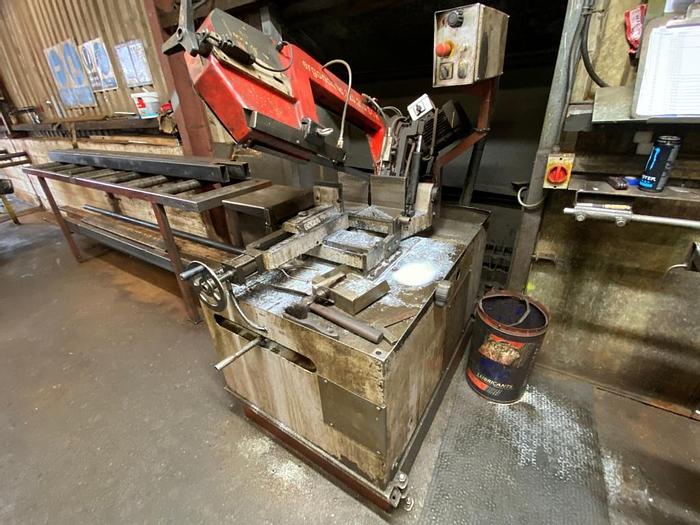

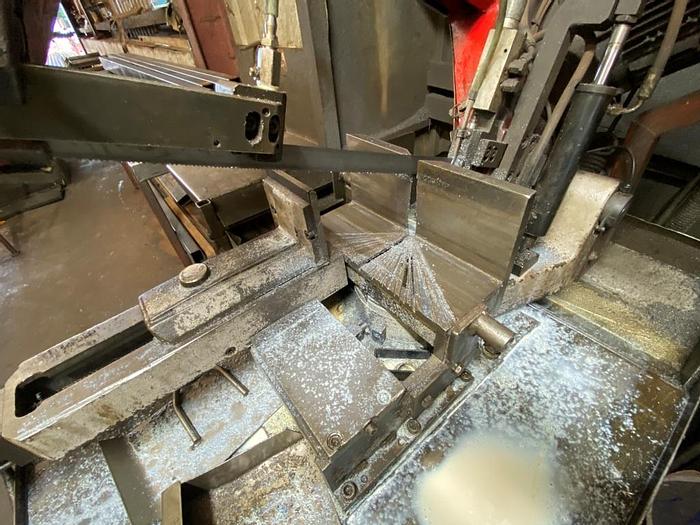

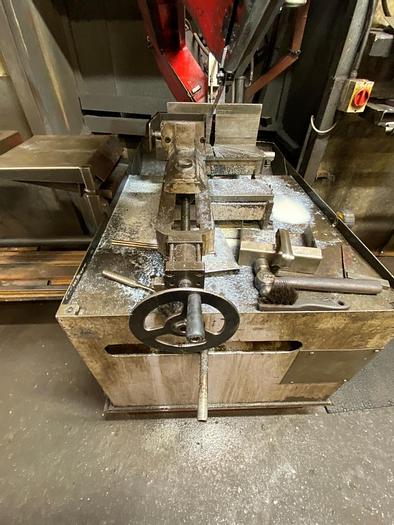

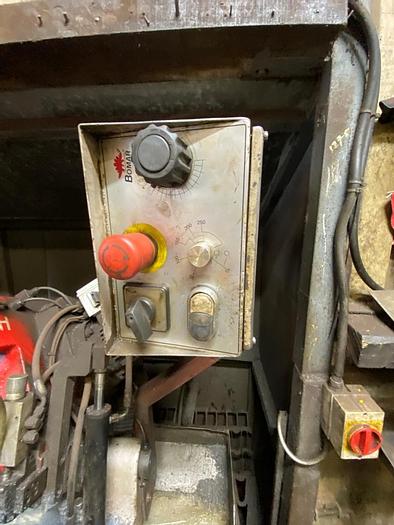

2007 Bomar Ergonomic 320.250 DGH Bandsaw
Machine Type: Semi Automatic Double Mitre Bandsaw
Year: 2007
Power: 400V/3 Phase
Condition: OK, Swivel Lock needs to be tightened.
Technical Specification
Blade Dimensions: 2910 x 27 x 0.9mm
Min Capacity: ø5 mm
Min Scrap Length: 15mm
Vice Height: 760mm
Blade Speed: 40/80m/min
Motor Power: 1.5kW
Total Installed Power: 3.35kVA
Dimensions: 1650 x 900 x 1250mm
Weight: 352kg
Cutting Capacity
Capacity 0º (Round): 250mm
Capacity 0º (Rectangular): 320 x 200mm
Capacity 0º (Square): 240 x 240mm
Capacity 45º R (Round): 225mm
Capacity 45º R (Rectangular): 230 x 120mm
Capacity 45º R (Square): 195 x 195mm
Capacity 45º L (Round): 180mm
Capacity 45º L (Rectangular): 230 x 70mm
Capacity 45º L (Square): 160 x 160mm
Capacity 60º R (Round): 120mm
Capacity 60º R (Rectangular): 130 x 95mm
Capacity 60º R (Square): 95 x 95mm
Specifications

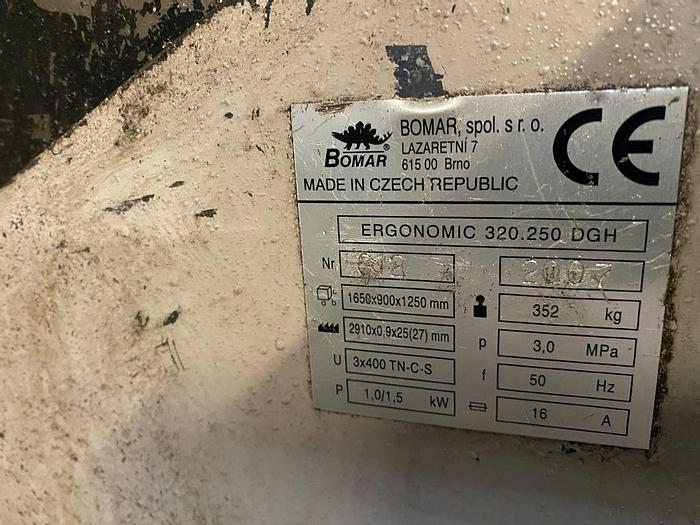

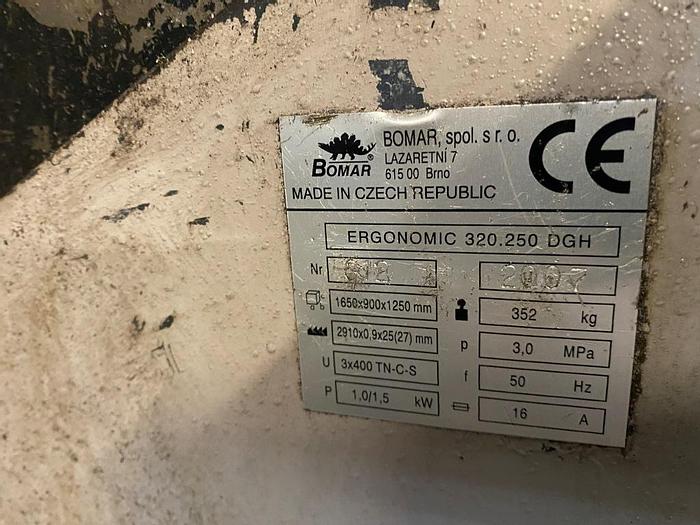

| Manufacturer | Bomar |
| Model | Ergonomic 320.250DGH |
| Year | 2007 |
| Condition | Used |
| Serial Number | 612 |
| Year | 2007 |
| Power | 400V/3 Phase |
| Min Capacity | ø5 mm |
| Min Scrap Length | 15mm |
| Vice Height | 760mm |
| Blade Speed | 40/80m/min |
| Motor Power | 1.5kW |
| Total Installed Power | 3.35kVA |
| Weight | 352kg |
| Capacity 0º (Round) | 250mm |
| Capacity 0º (Rectangular) | 320 x 200mm |
| Capacity 0º (Square) | 240 x 240mm |
| Capacity 45º R (Round) | 225mm |
| Capacity 45º R (Rectangular) | 230 x 120mm |
| Capacity 45º R (Square) | 195 x 195mm |
| Capacity 45º L (Round) | 180mm |
| Capacity 45º L (Rectangular) | 230 x 70mm |
| Capacity 45º L (Square) | 160 x 160mm |
| Capacity 60º R (Round) | 120mm |
| Capacity 60º R (Rectangular) | 130 x 95mm |
| Capacity 60º R (Square) | 95 x 95mm |
