Cormak HBS 210 Manual Bandsaw
Cormak HBS 210 Manual Bandsaw
Power: 3 Phase/400V

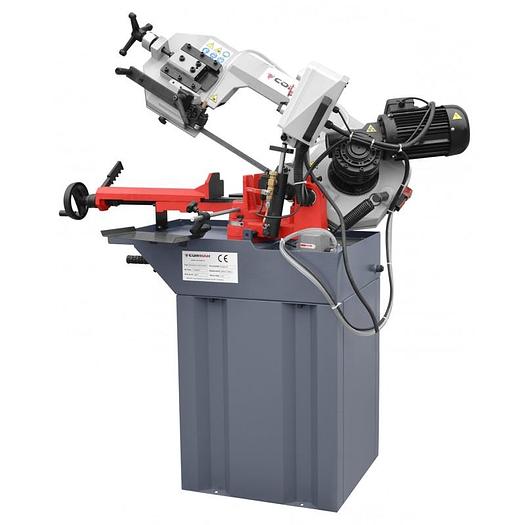

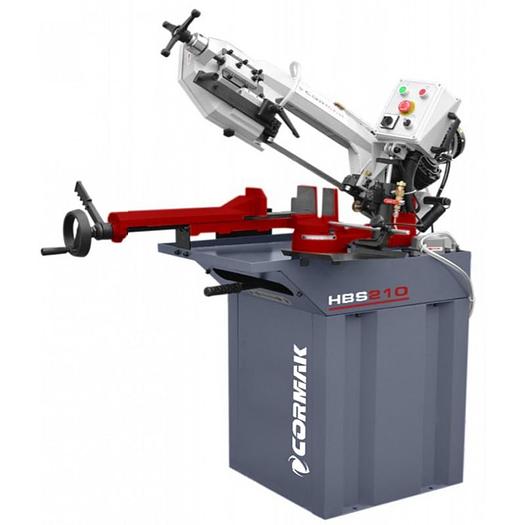

CORMAK HBS210 band saw, equipped with a hydraulic cylinder, cooling and an arm swivelling up to 60º, together with blades from renowned German company Röntgen, is used commonly in ironworking, where precision, quality and cutting speed are essential.

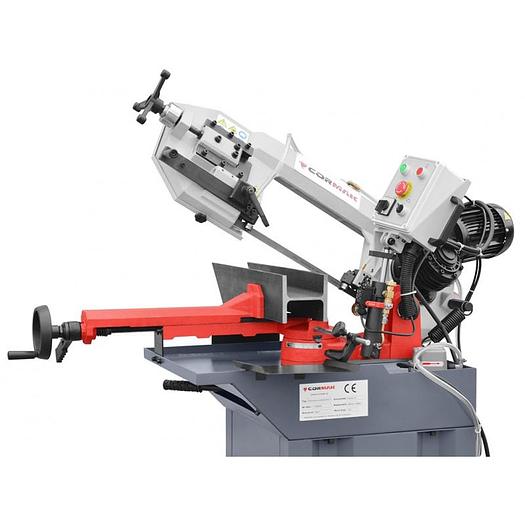

Horizontal band saw for metal with swiveling arm allows straight cutting of material and at mitring from 0º to 60º. The drive from the electric motor to the wheel driving the cutting band is transmitted with a motor with a MECHANICAL transmission (not belt). The cutting band is tensioned on two cast iron wheels with a hand tightener and guided by a set of roller bearings.

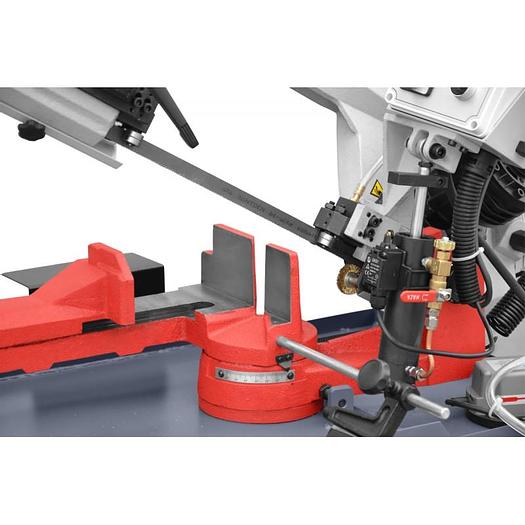

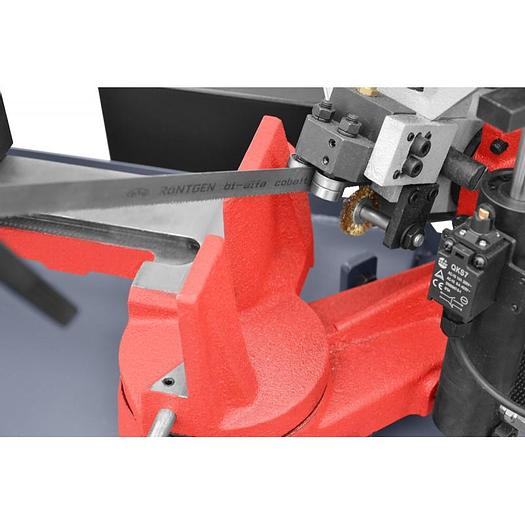

Material to be cut can be fed manually or by any feeding device, meanwhile the arm feed is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Appropriate speed of arm lowering is obtained due to the valve controlling oil flow between hydraulic cylinder chambers. Band guides are equipped with a set of roller bearings. This has a huge impact on the band guiding, its life, cut straightness, cutting accuracy and quality.
Appropriate machining speed (band travel speed) is achieved by through the control panel. Particular kinds and types of materials require particular cutting speeds. Rigid arm is made of SHAPED CAST IRON. Control panel is placed by the arm.
The base is designed as a rigid welded body of steel sheets. Inside is a separate flood coolant container with an electropump. The shape of the base upper part constitutes a tank for flood coolant draining and chips produced during cutting. Cast iron workbench is attached to the base, with a swivel arm and control panel on separate arm. The main cutting move in the cutting process is moving the cutting band and the arm lowering feed. The arm lowering speed (the cutting speed) is adjusted with the hydraulic cylinder.
The feed speed is controlled by the control panel. There are 2 cutting band speeds: 32.5 and 65 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.
Band dimensions: 2110 × 0.9 × 20 mm
Motor: S1 100%: 0.75 kW
Power supply: 400V 50Hz
Band speed: 32.5/65 m/min (50Hz)
Weight: 173 kg
Packaging dimensions: 1150 × 560 × 930 mm
Capacity 0º (Round): 170mm
Capacity 0º (Rectangular): 170 x 210mm
Capacity 0º (Square): 170 x 170mm
Capacity 45º R (Round): 130mm
Capacity 45º R (Rectangular): 120 x 110mm
Capacity 45º R (Square): 110 x 110mm
Capacity 60º R (Round): 70mm
Capacity 60º R (Rectangular): 60 x 60mm
Capacity 60º R (Square): 60 x 60mm
|Model||HBS 210 Manual Bandsaw|
|Power supply||400V 50Hz|
|Motor||S1 100%: 0.75 kW|
|Band speed||32.5/65 m/min (50Hz)|
|Capacity 0º (Round)||170mm|
|Capacity 0º (Rectangular)||170 x 210mm|
|Capacity 0º (Square)||170 x 170mm|
|Capacity 45º R (Round)||130mm|
|Capacity 45º R (Rectangular)||120 x 110mm|
|Capacity 45º R (Square)||110 x 110mm|
|Capacity 60º R (Round)||70mm|
|Capacity 60º R (Rectangular)||60 x 60mm|
|Capacity 60º R (Square)||60 x 60mm|
