€1,350 + VAT

Cormak BS712SW 27mm Manual Bandsaw

10

Poland

orCall +353 838108745

Description

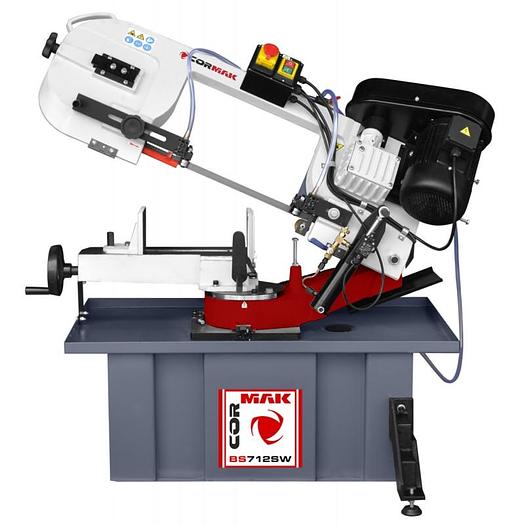

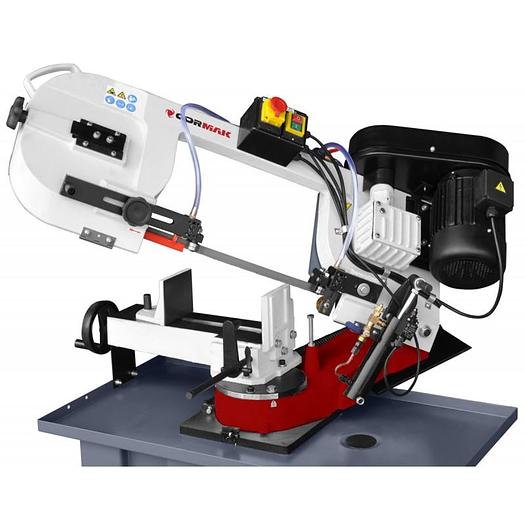

Cormak BS 712SW 27mm Manual Single Phase Bandsaw


Machine Description Professional, very powerful and efficient metal band saw with 45° swivel arm, CORMAK BS 712 SW is based on refined solutions making it unrivaled in its class.


Arm made of shaped spheroidal cast iron ensures rigidity during operation and absorbs all vibrations. Control panel is located on the arm of the cutter. It features high efficiency and simple handling. Provides cutting in vertical plane and in the plane perpendicular to the axis of the cut material, or at any angle in 45° – 90° range. Element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Suitable speed of arm lowering is obtained thanks to the valve controlling oil flow between hydraulic cylinder chambers.

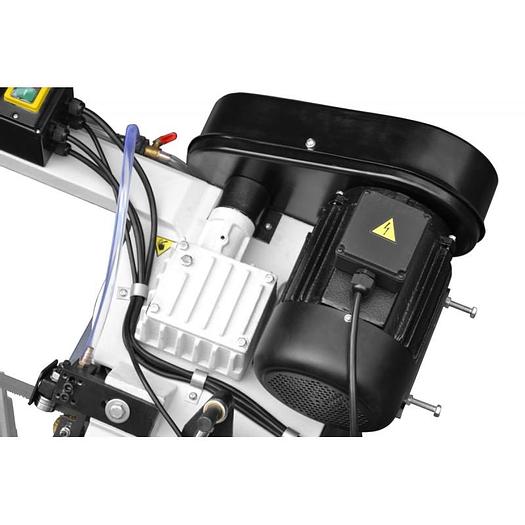

Rugged, stable and refined construction as well as the arm made of uniform cast iron provide high rigidity and stability while cutting, ensuring accuracy and long-term reliability. The design of the 20 mm saw blade used in the machine makes it possible to cut large quantities of elements. Required band linear velocity is obtained by changing the ratio on the belt pulley between the worm gear and the driving motor.


Technical Specification

Blade dimensions: 2360×27×0.9 mm

Motor power: 1.1 kW

Band speeds: 22/33/45/65 m/min

Power supply: 3 Phase 400V

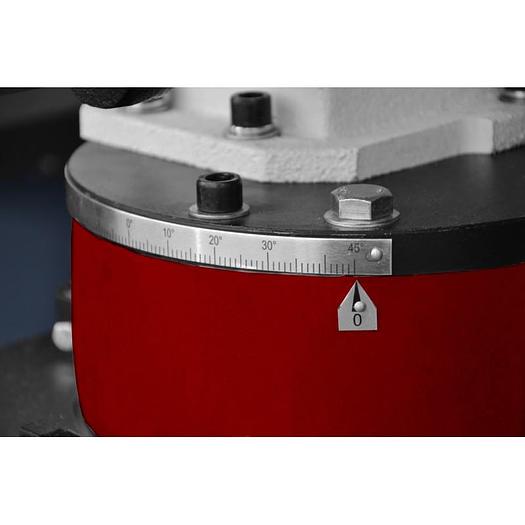

Cutting range: 45°L – 45°R

Weight: 235 kg

Specifications

ManufacturerCormak
ModelBS712SW 27mm Manual Bandsaw
ConditionNew
Blade length2360 x 27 x 0.9 mm
Electrical Power400V
Blade speed4 Speeds - 22/33/45/65 m/min-1
Total power1,1 kW
Capacity 90º (Round)205mm
Capacity 90º (Rectangular)215 x 205mm
Capacity (Square 90º)205 x 205mm
Capacity 45º L (Round)150mm
Capacity 45º L (Rectangular)100 x 200mm
Capacity 45º L (Square)130 x 130mm
Capacity 45º R (Round)140mm
Capacity 45º R (Rectangular)140 x 90mm
Capacity 45º R (Square)90 x 90mm
Feed Rate0-50 m/min (stepless feed)
Feed ControlStepless - hydraulic cylinder
Vice Base Height600mm
Blade TensionManually Adjusted
Machine Dimensions (L x W x H)1250 x 700 x 1000 mm
Weight190 kg
