Cormak HBS 275V Manual Bandsaw

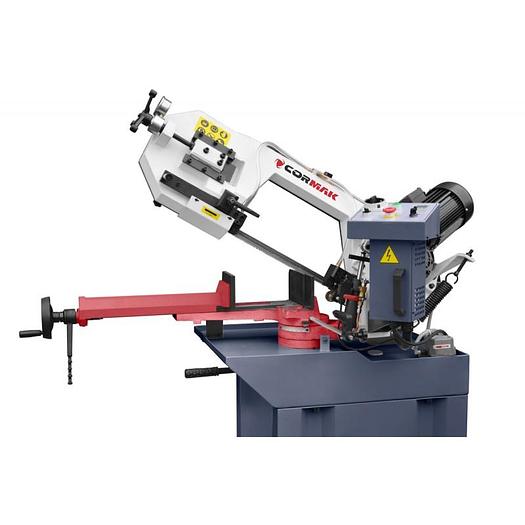

CORMAK HBS275V Manual Bandsaw

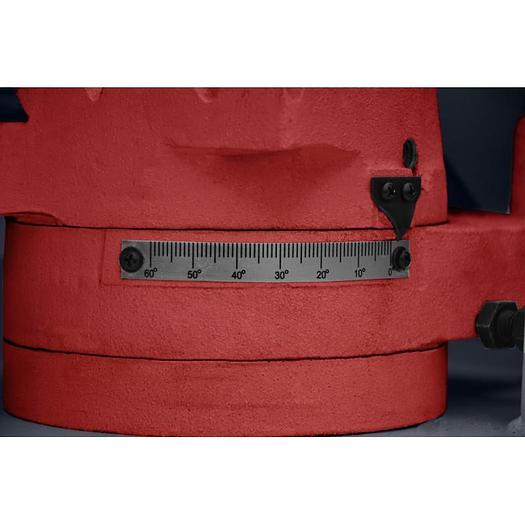

Professional, powerful and efficient band saw for metal, equipped with an arm swiveling up to 60º. This model has a strain gauge and carbide guides of cutting band, along with stepless band speed adjustment. Perfect for non-ferrous metals.

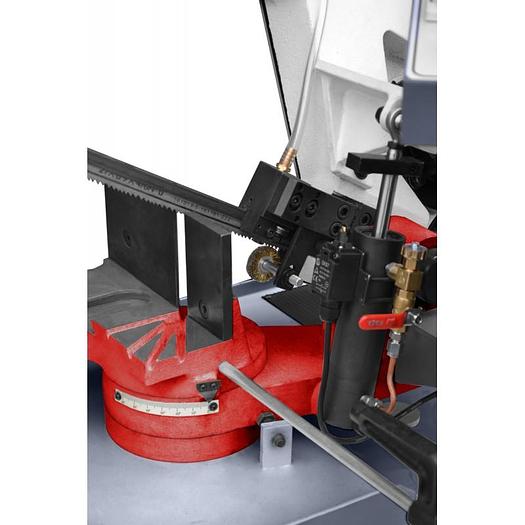

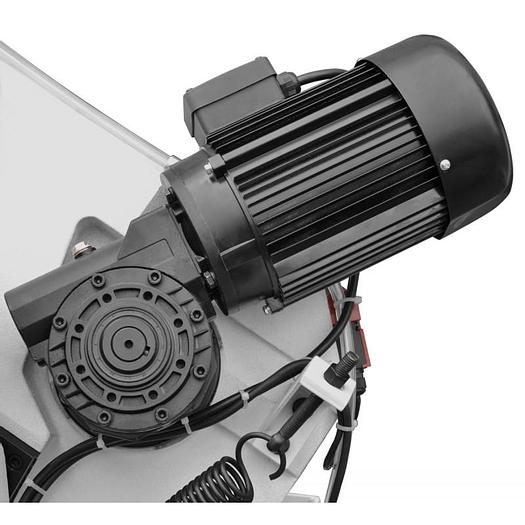

Control panel is located by the arm. The drive from the electric motor directed to the cutting band driving wheel is transmitted by a motor with worm drive. The cutting band is tensioned on two cast iron wheels with a manual tightener and guided by adjustable rolling and linear set of carbide guides.
Belt drive is protected by an unlockable guard attached to the body on hinges. The base is enclosed, constituting a rigid welded body of steel sheets. A separate flood coolant container with an electropump is inside.

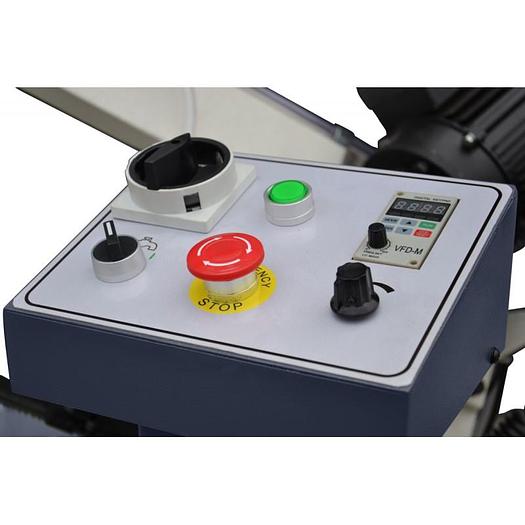

Control panel is located on a separate arm. The main cutting motion in the cutting process is moving the cutting band. The arm lowering speed (the cutting speed) is adjusted with a hydraulic cylinder.
Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.
TECHNICAL DATA Distance from the vice to the floor: 900 mm Dimensions of blade: 2455 x 27 x 0.9 mm
Arm Lowering: Stepless
Band Speed: Variable Adjustment 20-90m/min
Blade Tensioning: Manual Connected Power: 400V 3 Phase Total power: 1.5kw
Coolant Pump: 0.075kW Blade speed: 37.5/75 m/min-1 Diameter drive wheel / belt: 330 mm
Dimensions: 1320x760 x 950mm Weight: 227 kg CUTTING CAPACITIES 0º: Round: ø220mm Rectangle: 270 × 140mm Square: 200 x 200mm 45º R: Round: ø160mm Rectangle: 160 × 140mm Square: 160 x 160mm 60º R: Round: Ø100mm Rectangle: 120 × 100mm Square: 100x100mm
|Model||HBS 275V Manual Bandsaw|
|Blade length||2455 x 27 x 0.9 mm|
|Blade speed||37.5/75 m/min-1|
|Connected Power||400V 3 Phase|
|Total power||1.5 kw|
|Capacity (round 90 °)||220mm|
|Capacity (rectangular 90 °)||270 x 140mm|
|Capacity (Square 90º)||225 x 225mm|
|Capacity 45º R (Round)||160mm|
|Capacity 45º R (Rectanagular)||160 x 140mm|
|Capacity 45º R (Square)||160 x 160mm|
|Capacity 60º R (Round)||100mm|
|Capacity 60º R (Rectangular)||120 x 100mm|
|Capacity 60º R (Square)||100 x 100mm|
