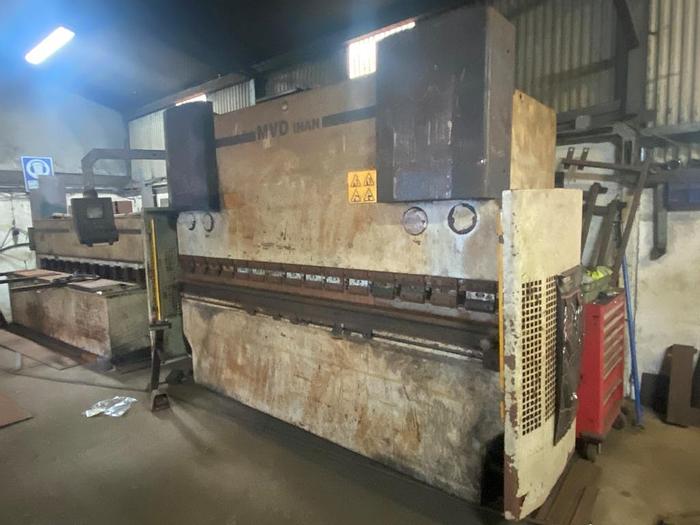

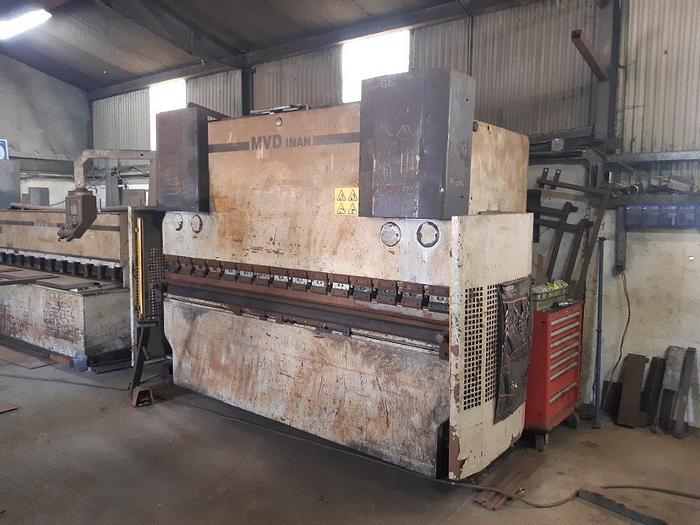

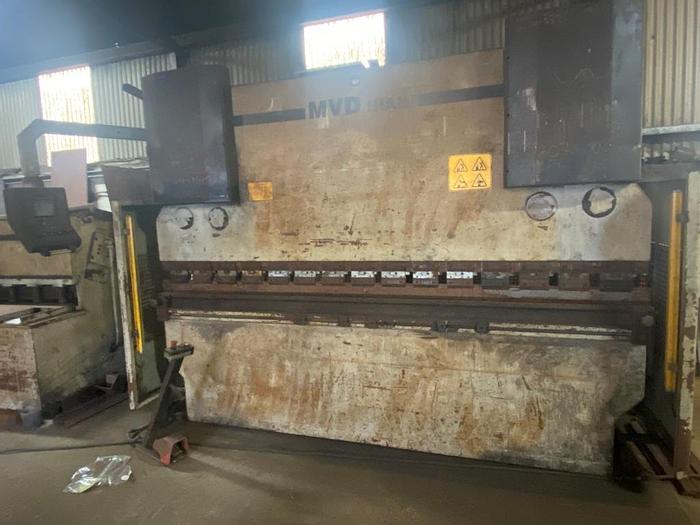

2007 MVD Inan HAP 30160 NC Hydraulic Pressbrake
Sold
Description

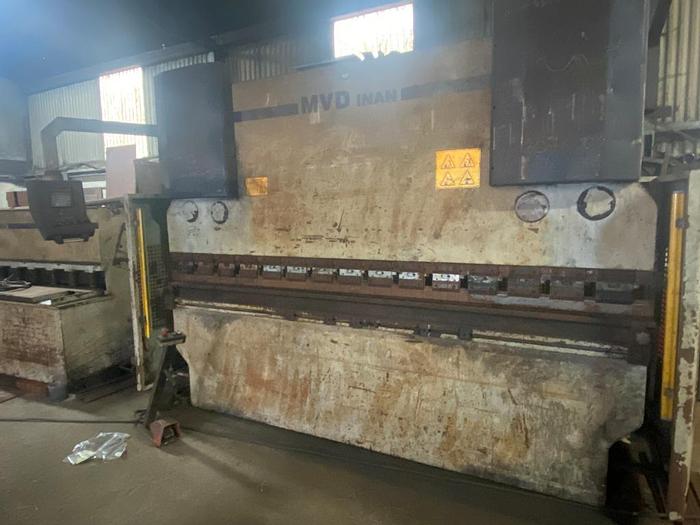

2007 MVD Inan HAP30160 NC Hydraulic Pressbrake
Machine Type: NC Controlled Hyrdualic Pressbrake
Year: 2007

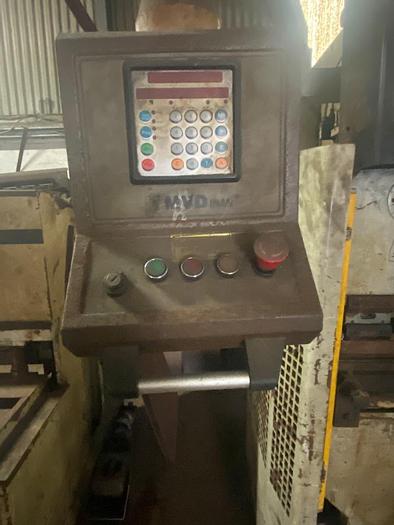

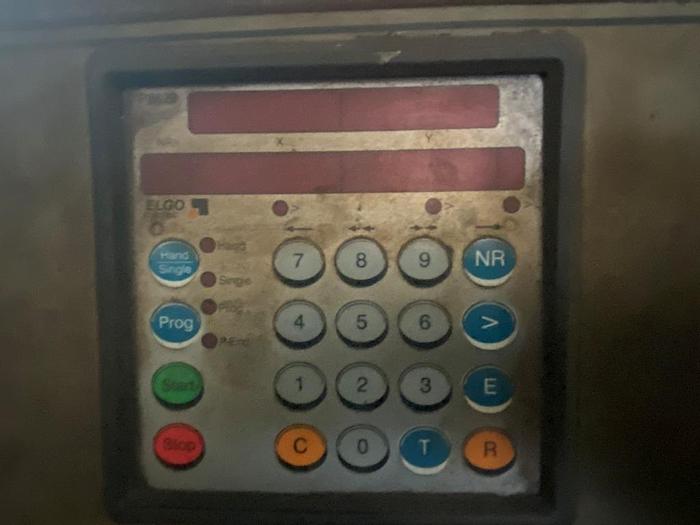

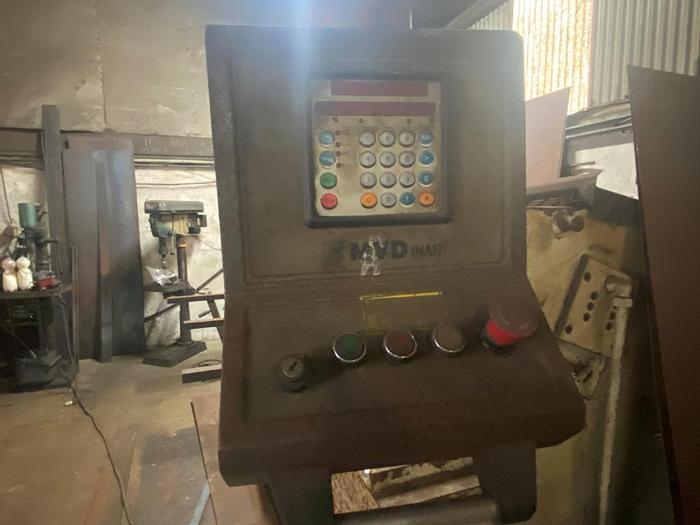

Control: Elgo P88 Control
Axes: 3 Axis Machine
Condition: Good (only dirty)
Includes:
Full length Top & Bottom Tools

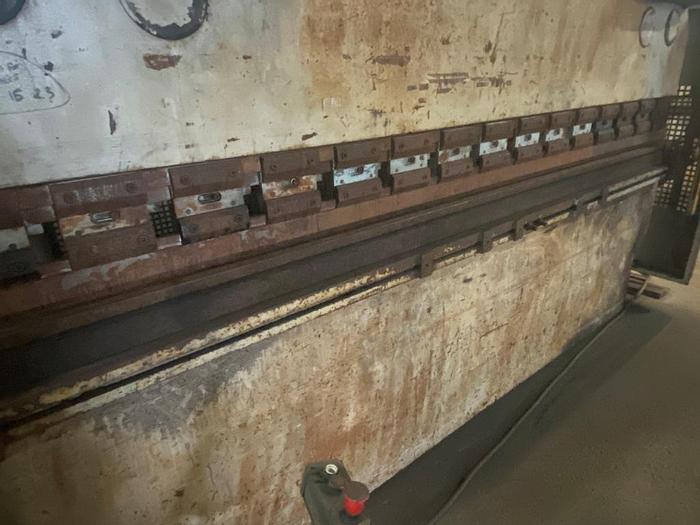

New Top Tool Hangers on Machine

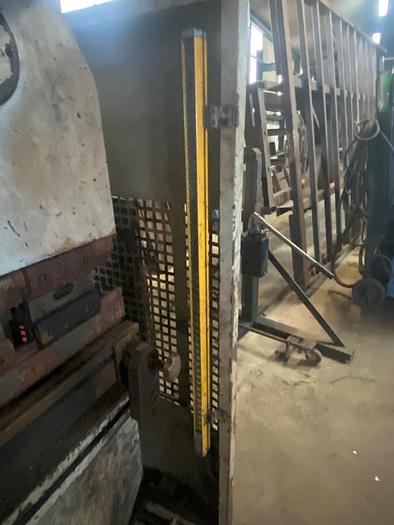

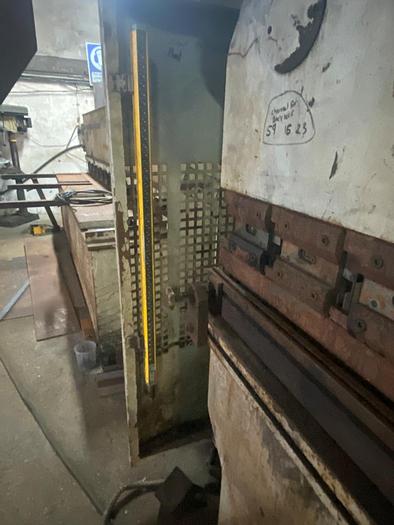

Light Curtains

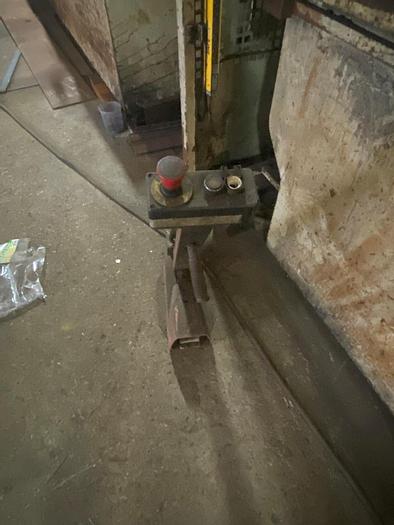

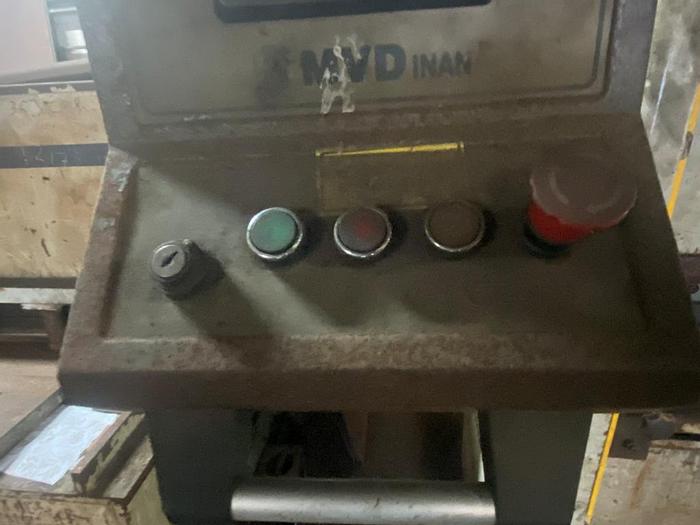

Wanderer Type Foot Pedal
Technical Details
Max Tonnage: 160T
Max Bending Length: 3100mm
Distance Between Side Frames: 2800mm
Axes: Y, X, Manual R
Max Depth: 320mm
Max Stroke: 300mm
Opening Height: 380mm
Top Tool Type: Euro Style

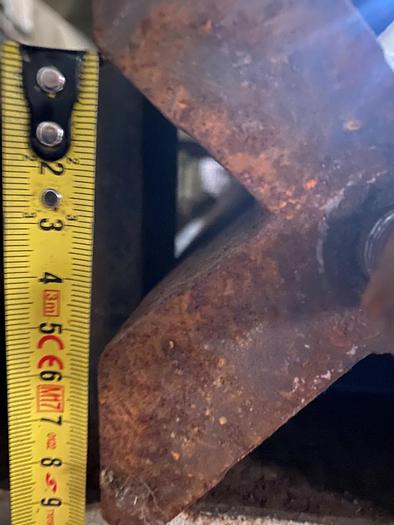

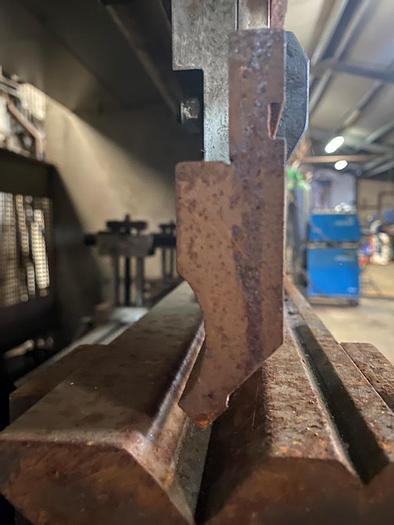

Top Tool: Goose Neck

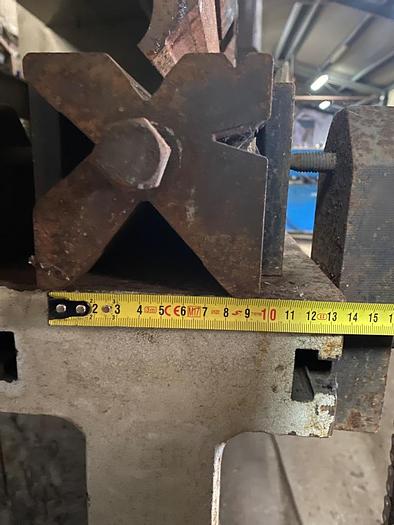

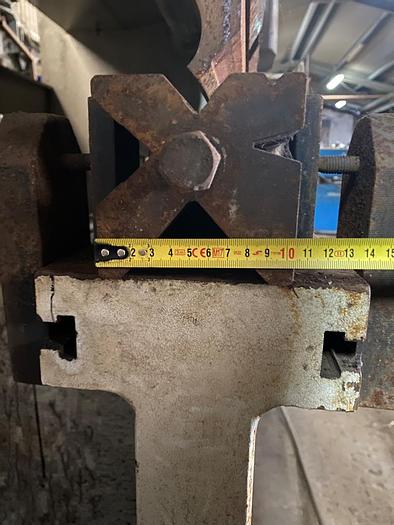

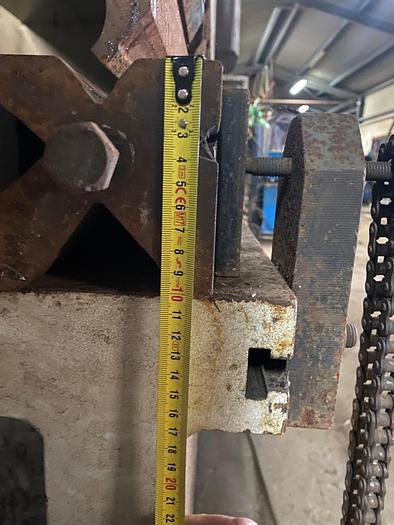

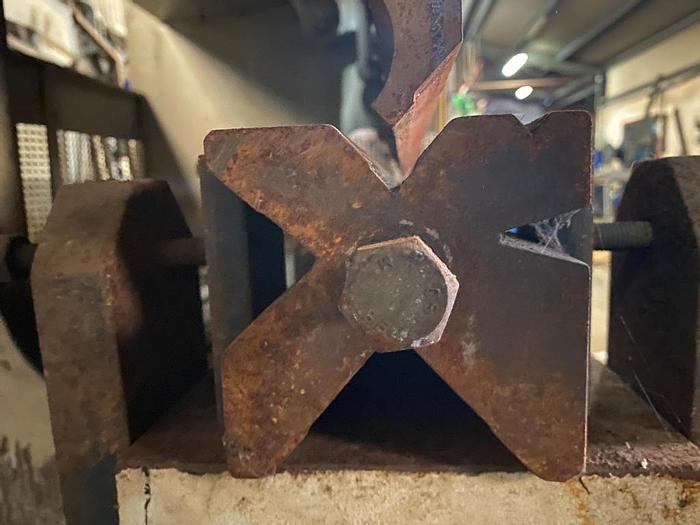

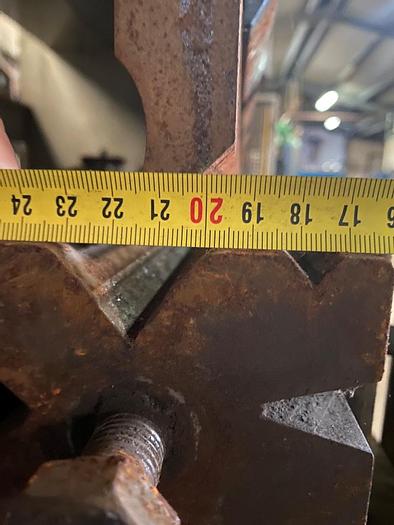

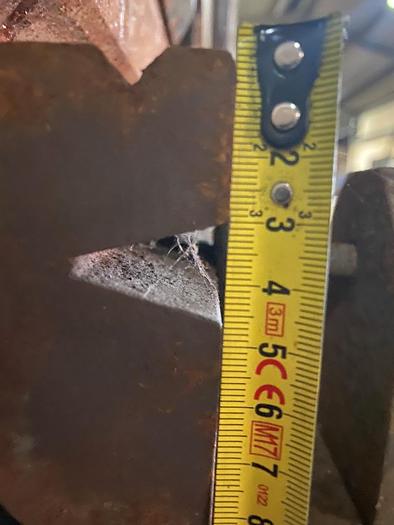

Bottom Tool Type: 100 x 100mm Multivee Block
Bottom Tool Vee Sizes (5): 80, 55, 30, 16, 10mm
Motor Power: 15kW
Electrical Connection: 400V/3 Phase/50Hz
Machine Dimensions (Approx): 3600 x 1650 x 2350mm
Machine Weight (Approx): 8500kg
Specifications
| Manufacturer | MVD Inan |
| Model | HAP 30160 NC Hydraulic Pressbrake |
| Year | 2007 |
| Condition | Used |

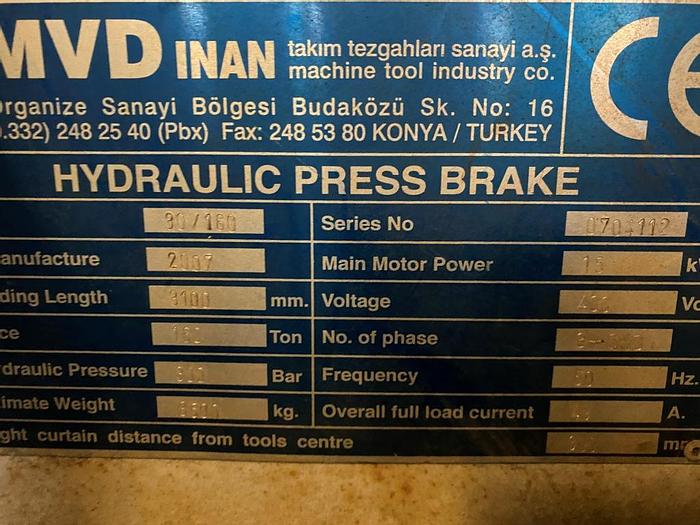

| Serial Number | 0704112 |
| Machine Type | NC Controlled Hyrdualic Pressbrake |
| Year | 2007 |
| Control | Elgo P88 Control |
| Axes | 3 Axis Machine |
| Condition | Good (only dirty) |
| Max Tonnage | 160T |
| Max Bending Length | 3100mm |
| Distance Between Side Frames | 2800mm |
| Axes | Y, X, Manual R |
| Max Depth | 320mm |
| Max Stroke | 300mm |
| Opening Height | 380mm |
| Top Tool Type | Euro Style |
| Top Tool | Goose Neck |
| Motor Power | 15kW |
| Electrical Connection | 400V/3 Phase/50Hz |
| Machine Weight (Approx) | 8500kg |
