1997 Weiler E35 CNC Lathe | Weiler Control | 54mm Bore

1997 Weiler E35 Cycle-Controlled CNC Lathe

Used 1997 Weiler E35 CNC / Cycle-Controlled Lathe for Sale – Weiler D1 Control – 410mm Swing – 54mm Spindle Bore – 3,000rpm – 10 Tool Holders

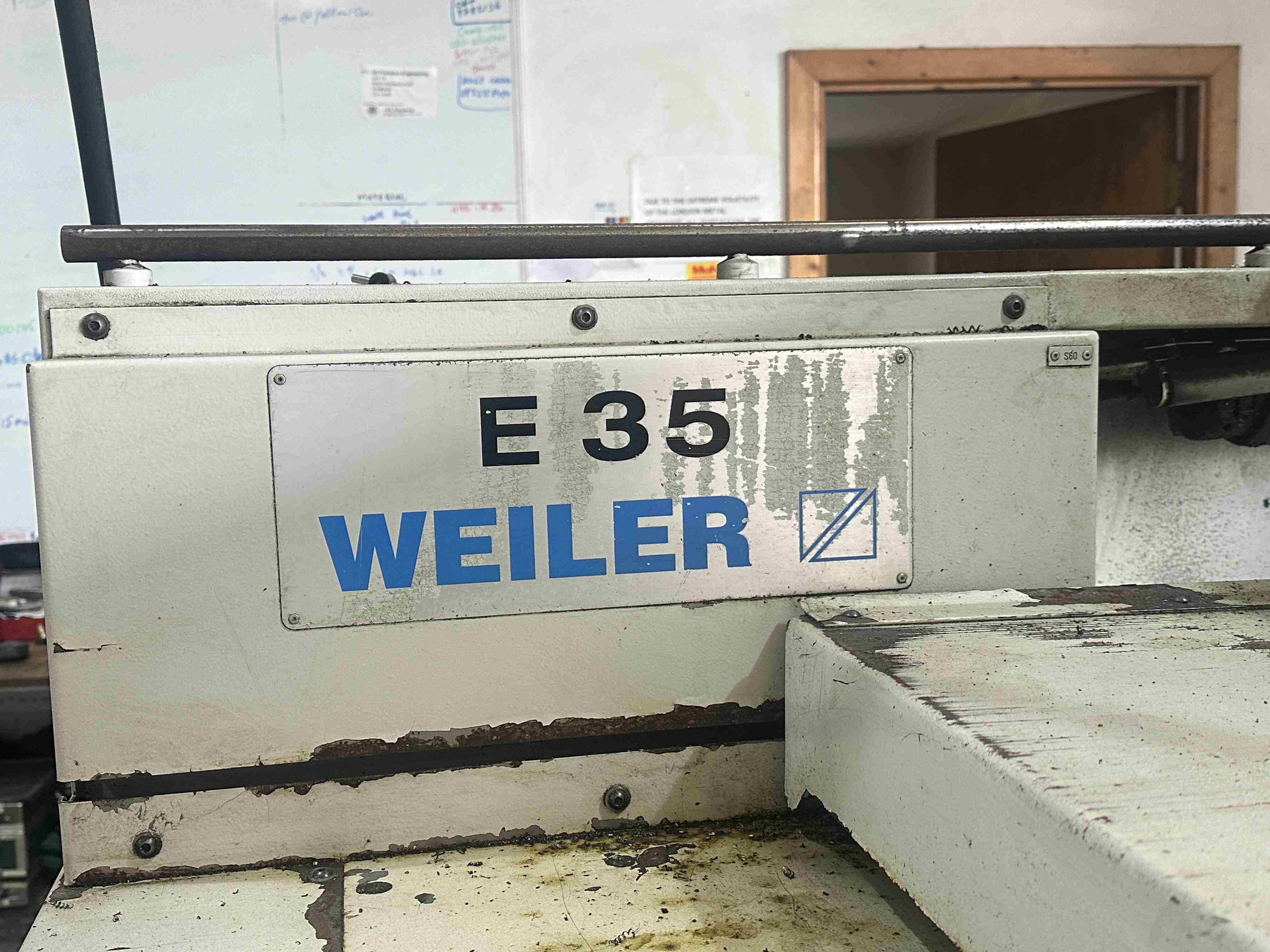

Manufacturer: Weiler

Model: E 35

Machine Type: CnC Lathe

Year: 1997

Condition: Working Well

Machine Description

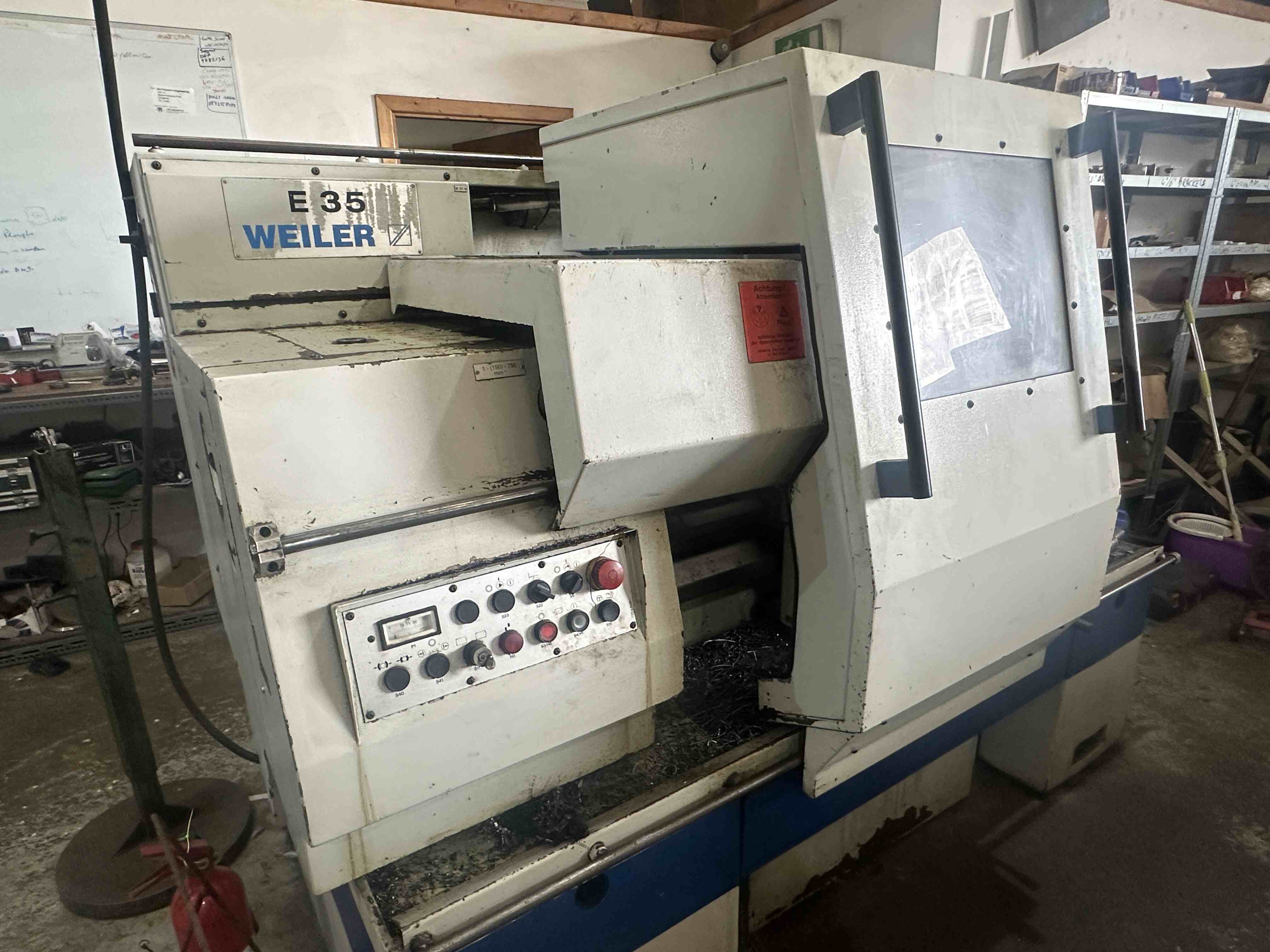

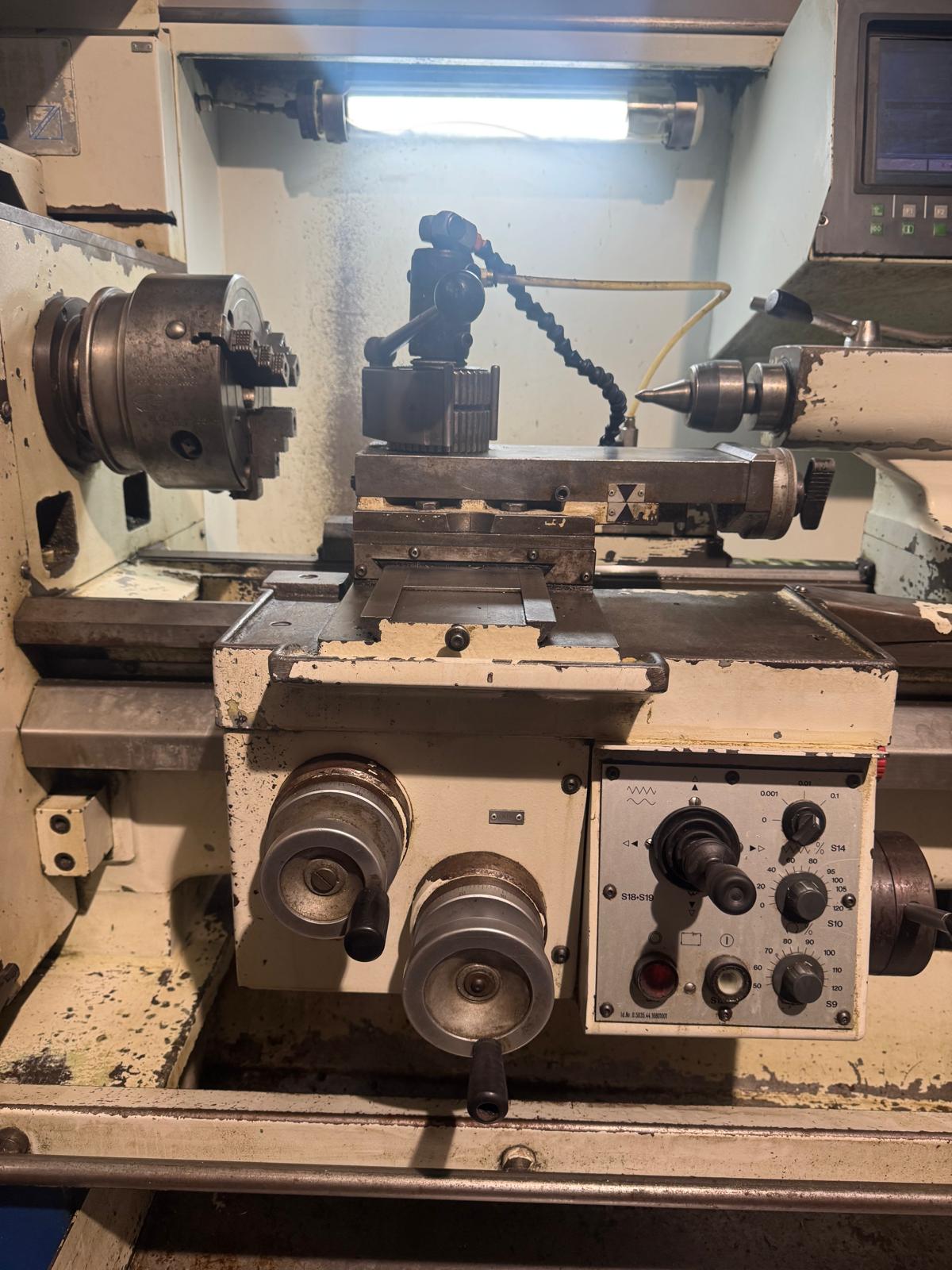

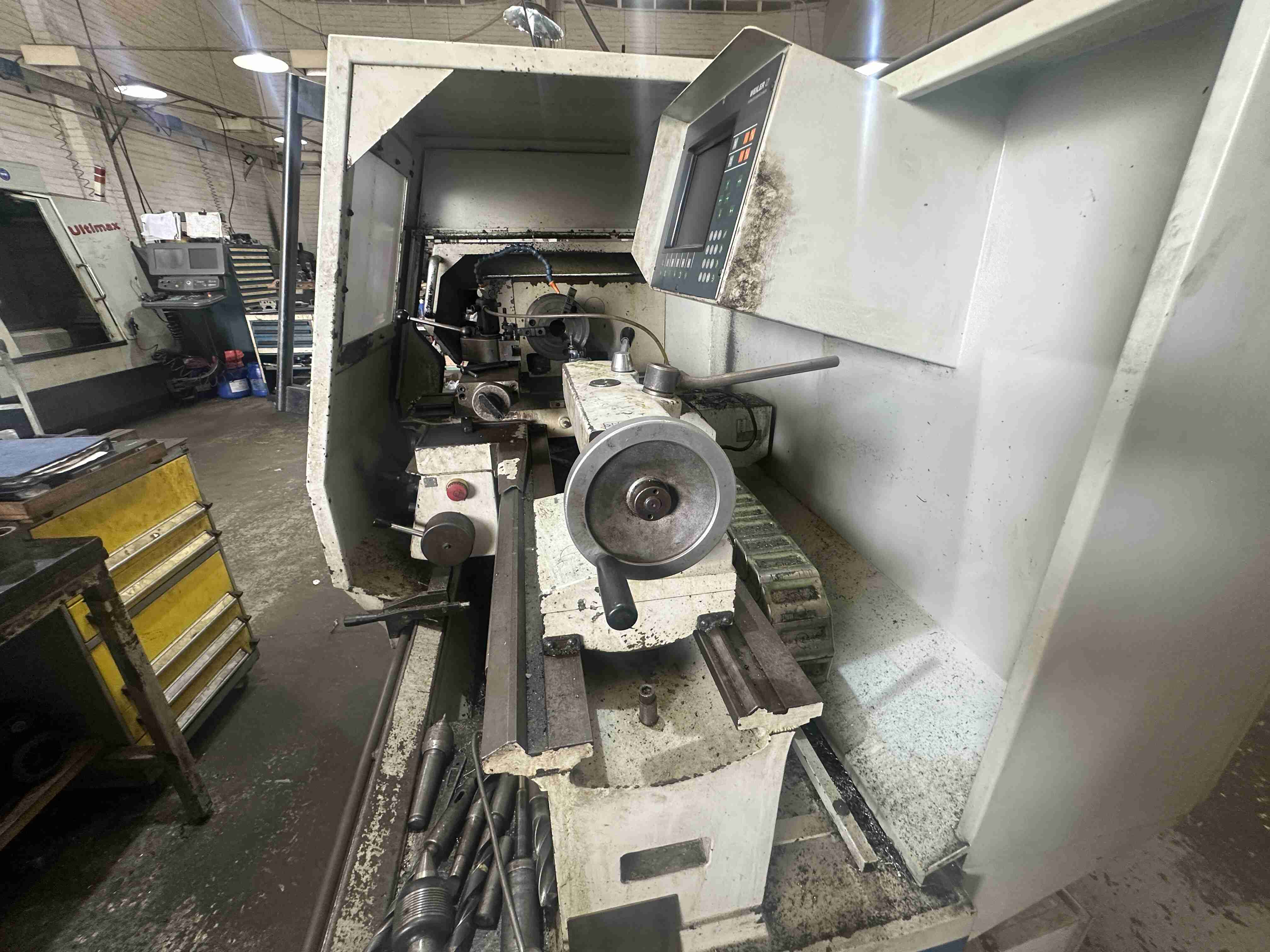

The Weiler E35 is a high-quality German-built precision lathe combining the flexibility of a conventional centre lathe with the productivity of CNC/cycle-controlled machining.

This machine is equipped with the Weiler digital conversational cycle control, allowing straightforward manual machining as well as programmed turning cycles for repeat work, tapers, radii and other common turning operations.

With approximately 410mm swing over the bed, 54mm spindle bore and spindle speeds up to 3,000rpm, the E35 is particularly well suited to precision engineering, toolroom work, maintenance departments, repair work and small-to-medium batch production.

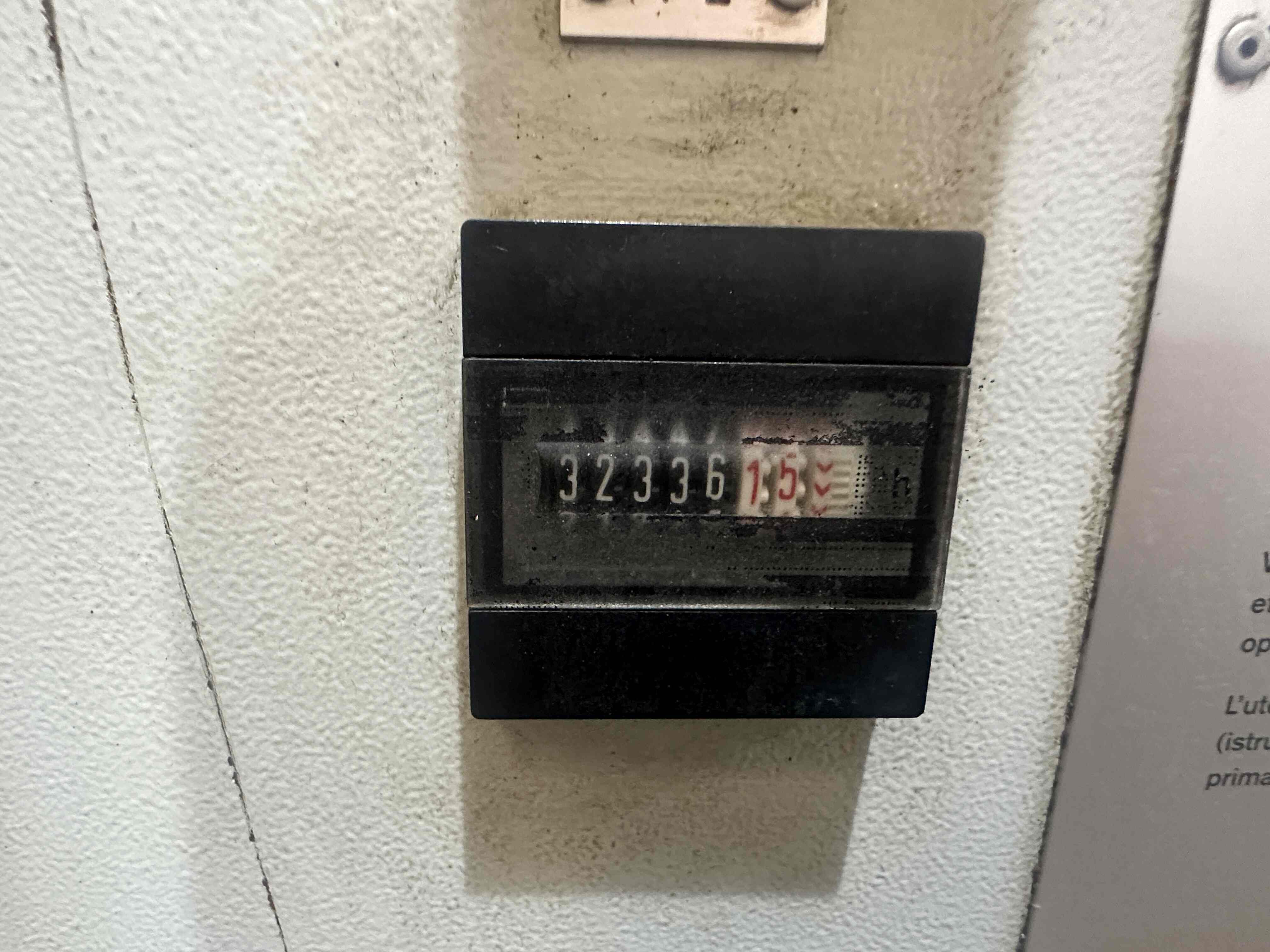

The machine has approximately 33,000 power-on hours and is supplied with 10 quick-change toolpost holders.

Main Specifications

Manufacturer: Weiler Werkzeugmaschinen

Model: E35

Year: 1997

Serial Number: 323

Machine Type: Cycle-Controlled / CNC Centre Lathe

Control: Weiler Digital Cycle Control / D1-type control

Power-On Hours: Approx. 33,000 hours

Turning Capacity

Swing Over Bed: 410mm

Swing Over Cross Slide: 200mm

Centre Height: 200mm

Spindle Bore: 54mm

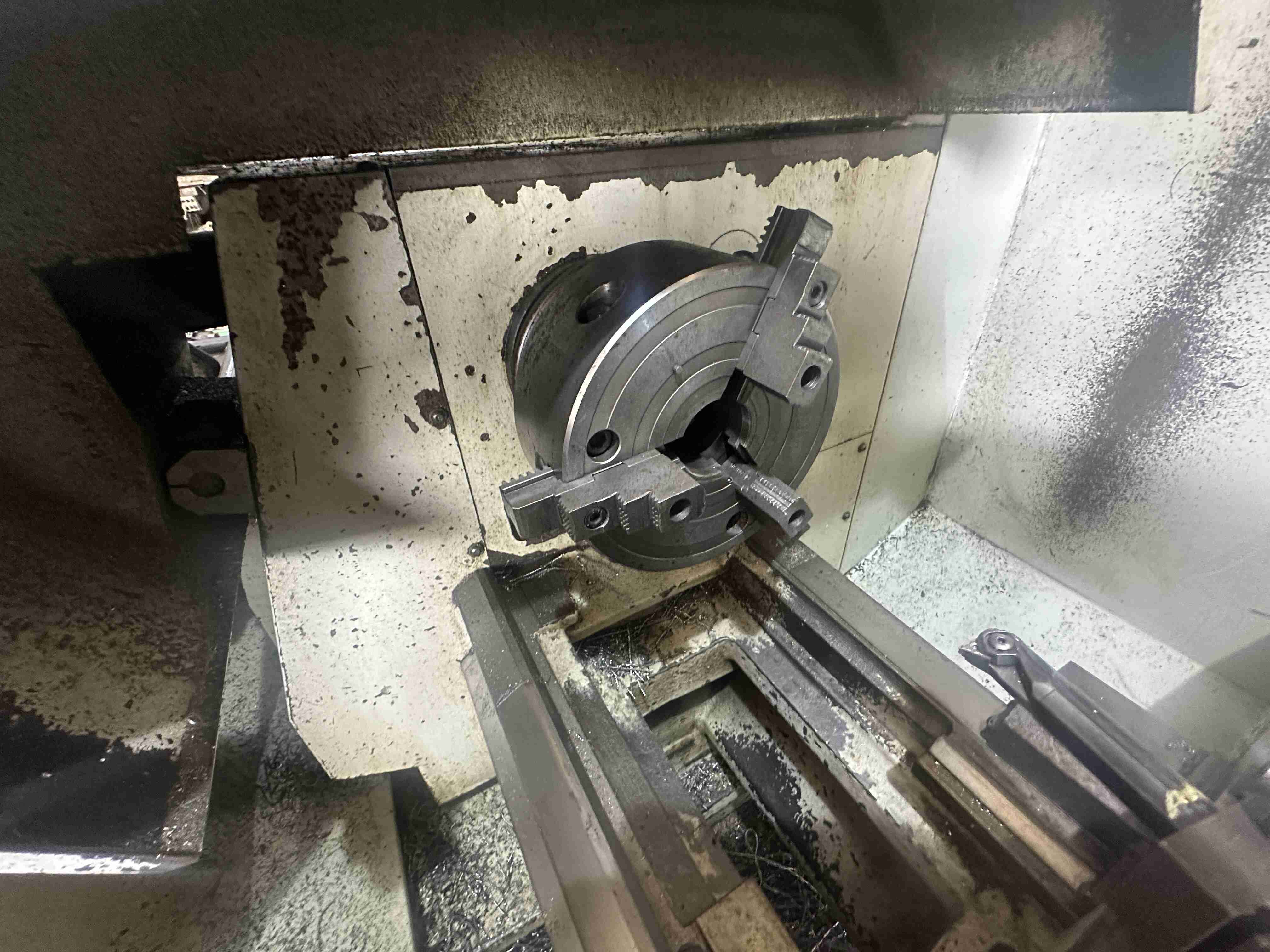

Maximum Chuck Diameter: 250mm

Distance Between Centres: 950mm

Spindle

Spindle Speed Range: 1–3,000rpm

Spindle Power: 7.5kW

Maximum Spindle Torque: 700Nm

Spindle Bore: 54mm

Spindle Internal Taper: MT6

Spindle Nose: DIN 55027 Size 6 type

The combination of a 54mm spindle bore and substantial torque makes the E35 suitable for both precision finishing and heavier general turning work.

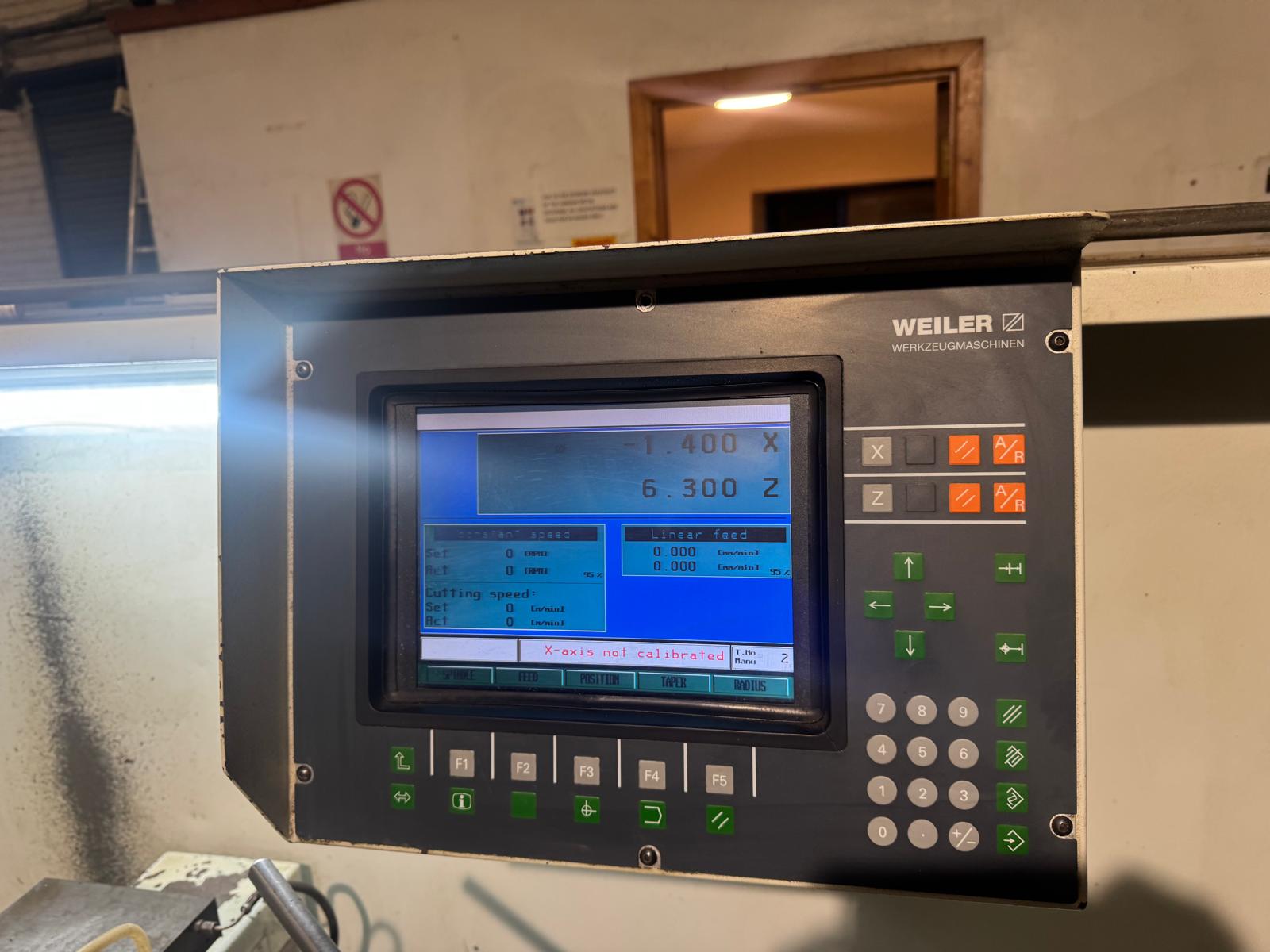

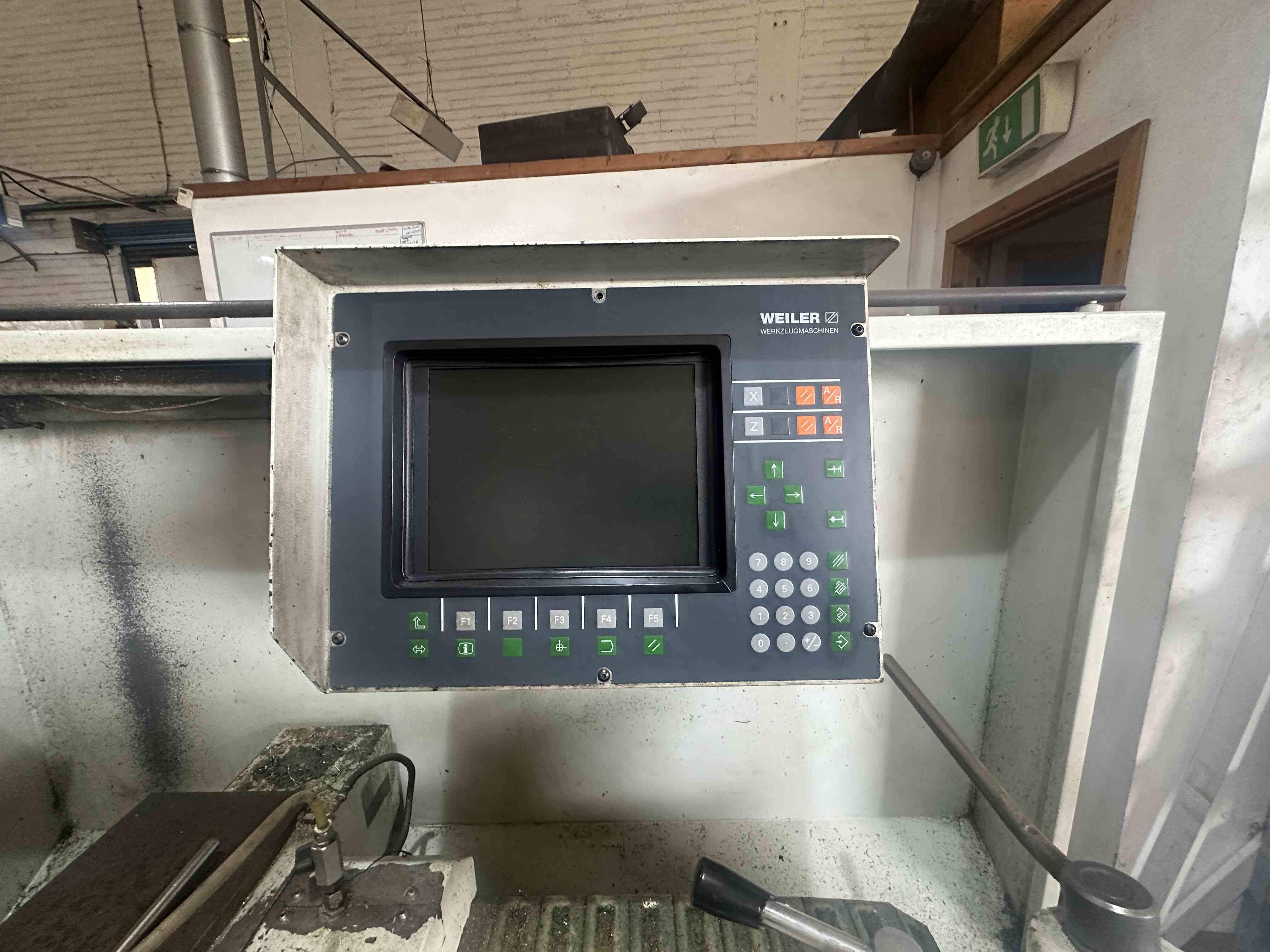

Weiler Cycle Control

The machine is fitted with the Weiler conversational cycle control, designed to make CNC turning accessible without requiring full conventional G-code programming for every job.

The control provides functions for operations such as:

• Straight turning
• Facing
• Taper turning
• Radius turning
• Threading
• Positioning
• Feed control
• Spindle speed control
• Repetitive machining cycles
• Manual machine operation
• Conversational cycle programming

This type of control makes the E35 particularly attractive to toolrooms and general engineering workshops where both one-off components and repeat batches are produced.

Feed & Axis Performance

Longitudinal Feed Range: 0.001–20mm/rev

Cross Feed Range: 0.001–20mm/rev

Longitudinal Rapid Traverse: 10m/min

Cross Rapid Traverse: 5m/min

Cross Travel: 230mm

Tailstock

Tailstock Taper: MT4

Tailstock Quill Diameter: 65mm

Tailstock Quill Stroke: 120mm

The tailstock allows the machine to support longer workpieces and carry out drilling, reaming and centre-working operations.

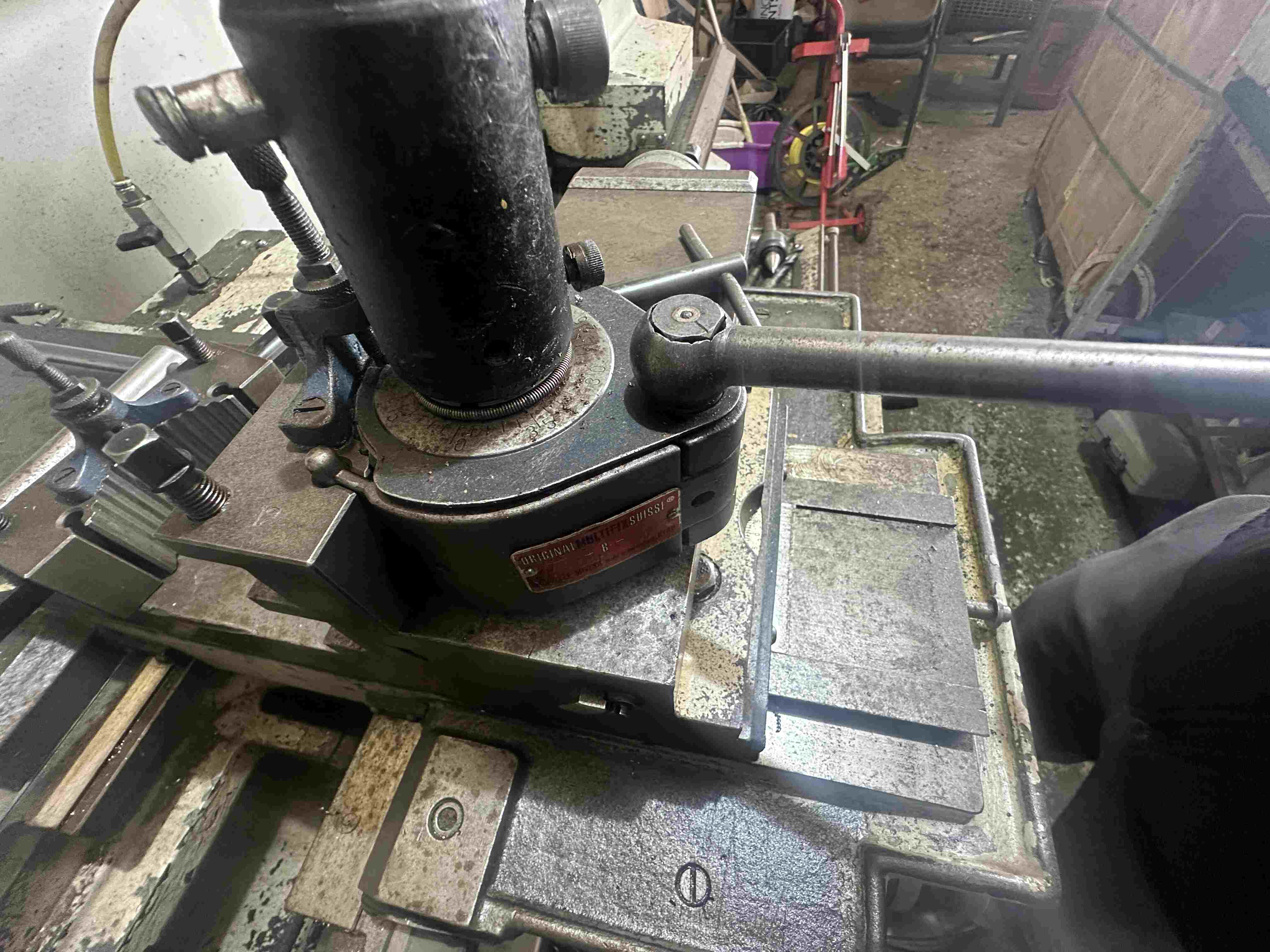

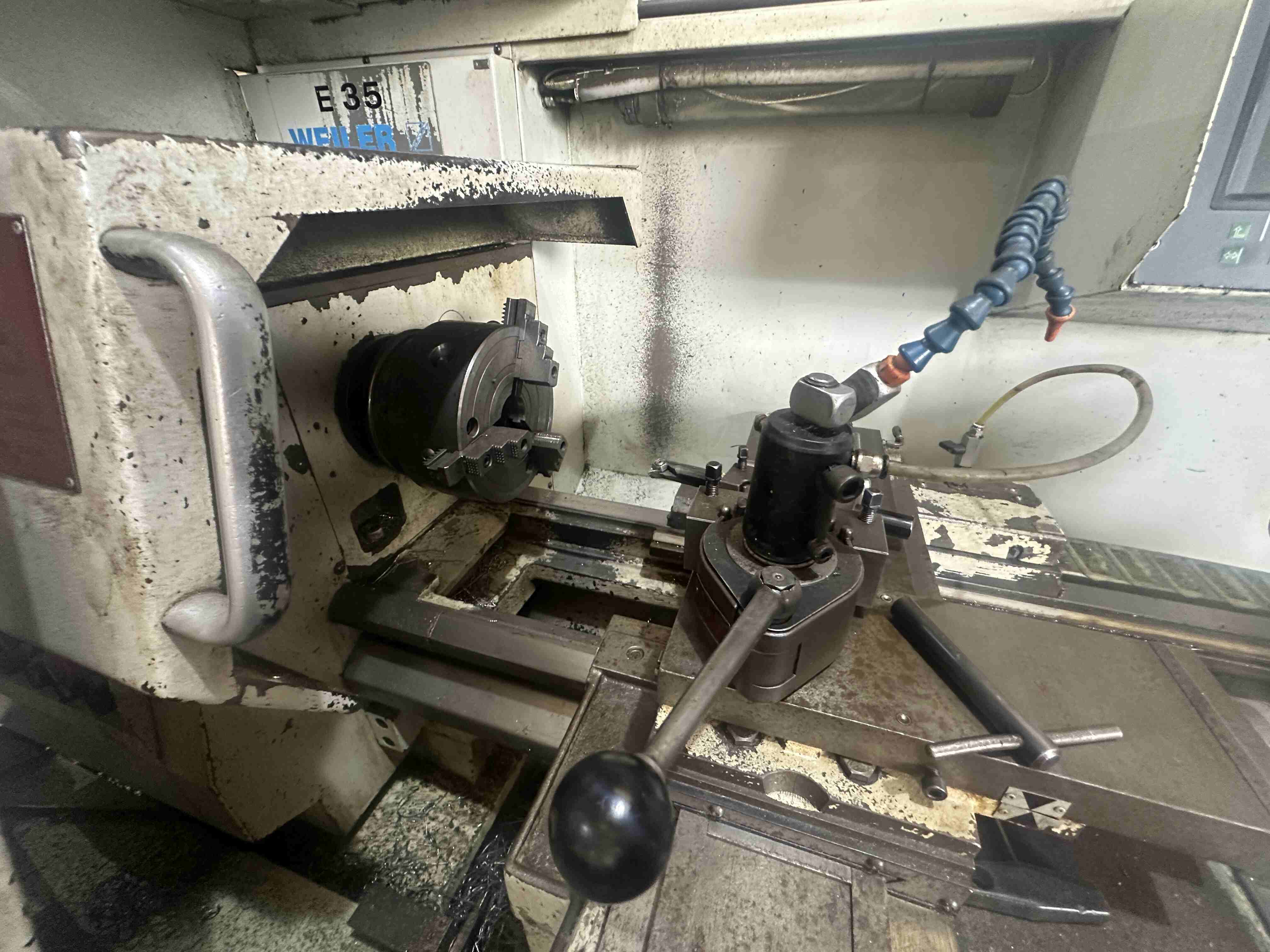

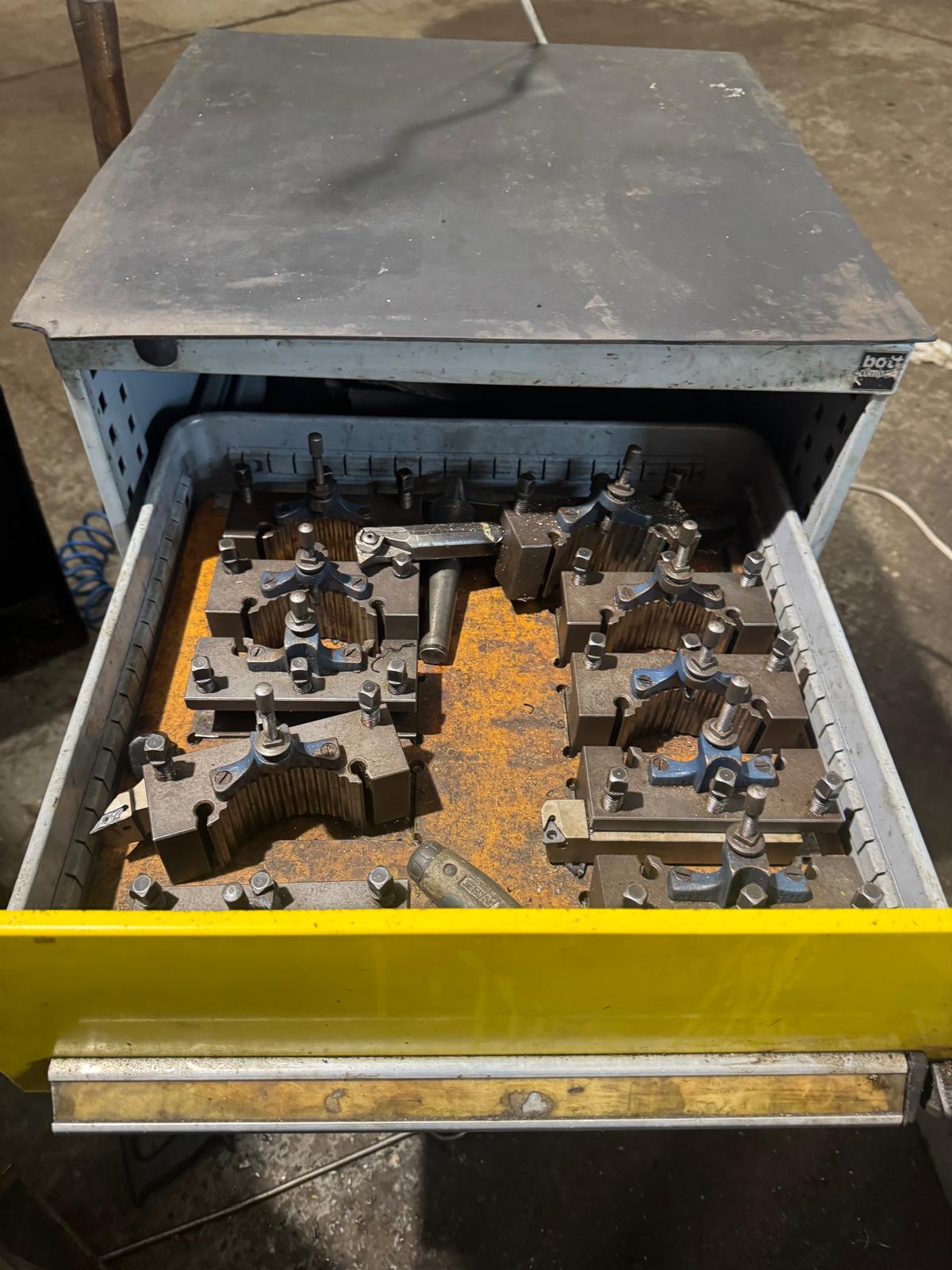

Tooling Included

The machine is supplied with:

10 quick-change toolpost holders

This provides a useful selection of holders for turning, facing, boring and threading tools and reduces the additional tooling investment required by the purchaser.

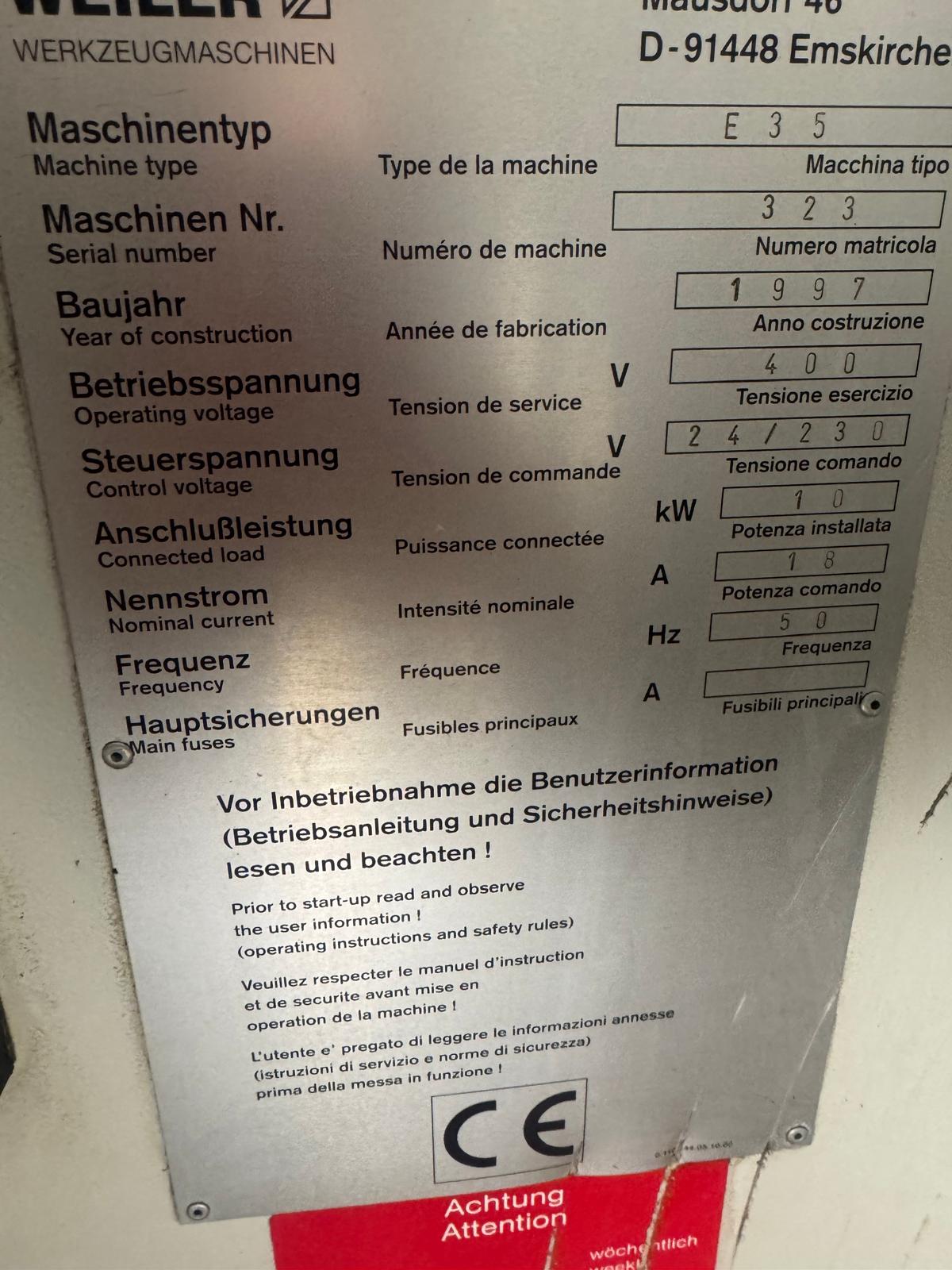

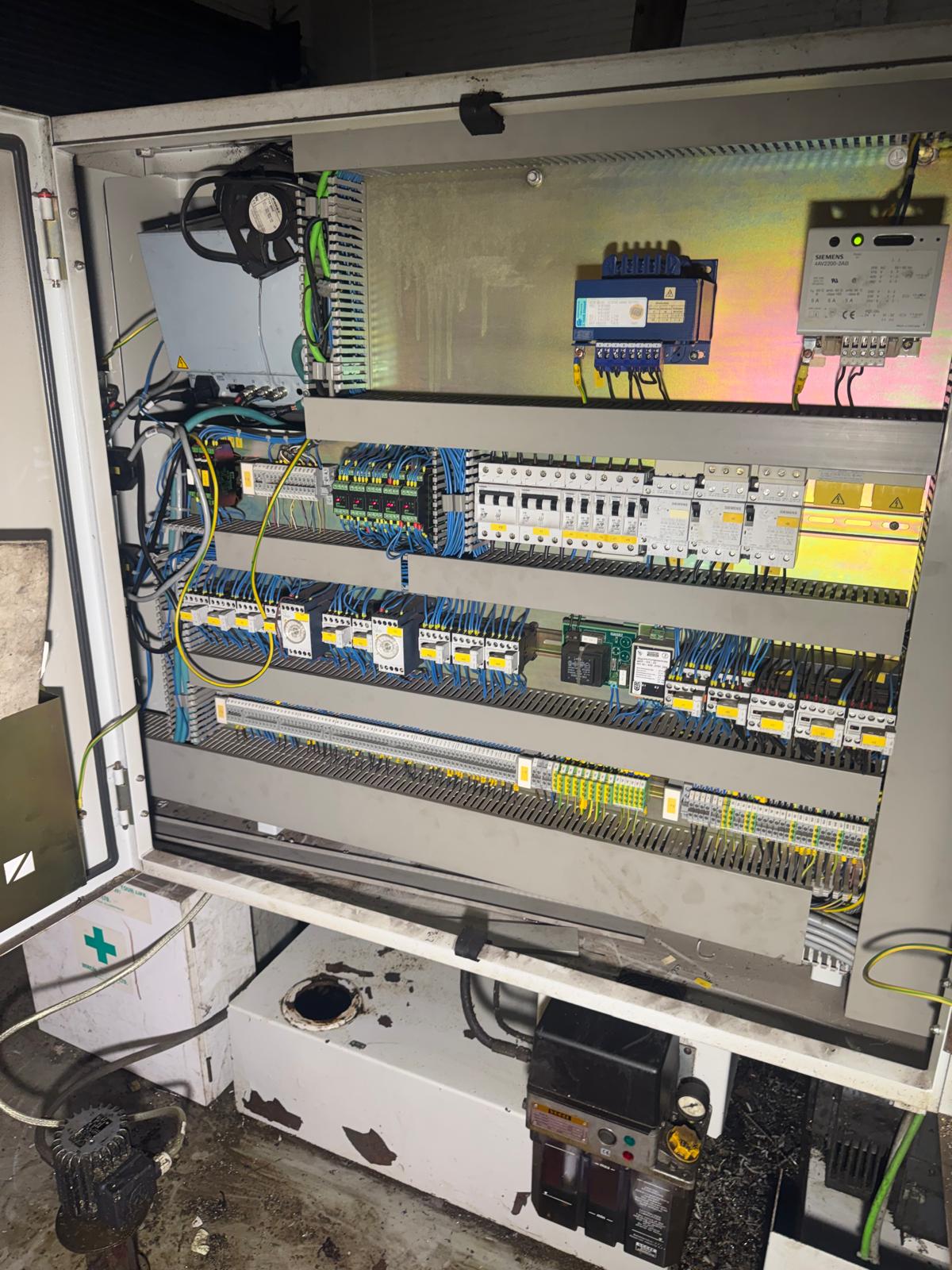

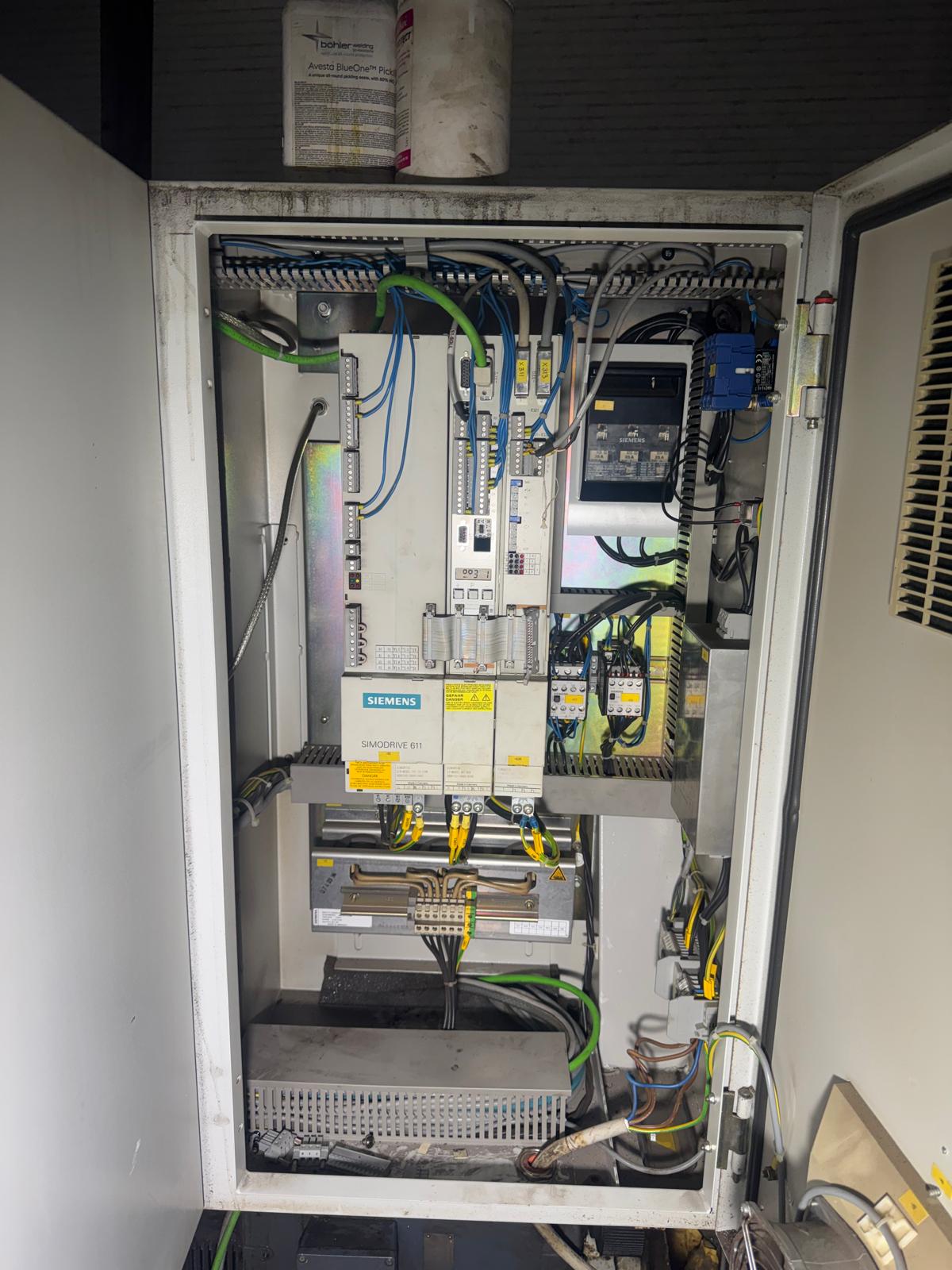

Electrical Specification

Operating Voltage: 400V

Frequency: 50Hz

Connected Load: 10kW

Nominal Current: 18A

Control Voltage: 24 / 230V

The machine is therefore configured for a standard European industrial three-phase electrical supply, subject to correct installation.

Approximate Machine Dimensions

Overall Length: 2,300mm

Overall Width: 1,400mm

Overall Height: 1,700mm

Machine Weight: 2,100kg

Key Features

• 1997 Weiler E35
• German-built precision lathe
• Weiler conversational cycle control
• Manual and cycle-controlled operation
• Approx. 410mm swing over bed
• Approx. 200mm swing over cross slide
• Approx. 54mm spindle bore
• Spindle speeds up to 3,000rpm
• Approx. 7.5kW spindle motor
• Approx. 700Nm spindle torque
• MT4 tailstock
• Powered longitudinal and cross feeds
• Rapid traverse
• Suitable for metric and imperial threading
• Approx. 33,000 power-on hours
• 10 quick-change toolpost holders included
• 400V / 50Hz
• Approx. 2,100kg machine weight

What is a Weiler E35?

The Weiler E35 is a precision cycle-controlled centre lathe designed to bridge the gap between a conventional manual lathe and a fully automatic CNC production lathe.

The operator can use the machine much like a traditional centre lathe for one-off work while also using the Weiler control to program repetitive turning cycles.

This makes the E35 particularly suitable for companies producing a wide variety of components in relatively small quantities.

Typical Applications

The Weiler E35 is suitable for:

• General precision turning
• Toolroom machining
• One-off component manufacture
• Small and medium production batches
• Maintenance machining
• Repair work
• Shaft machining
• Bush manufacture
• Flange machining
• Thread cutting
• Taper turning
• Precision engineering
• Prototype manufacture
• Subcontract engineering
• Training and technical workshops

Ideal Toolroom & General Engineering Lathe

Weiler machines have a strong reputation for build quality, rigidity and precision, and the E35 remains popular with toolrooms, maintenance departments and precision engineering companies.

Unlike a conventional CNC turning centre, the E35 retains the flexibility and accessibility of a centre lathe while providing automatic turning cycles when required.

This makes it especially useful where component quantities vary from single parts to repeat batches.

Used Weiler E35 for Sale

Used Machine Tools Ireland supplies used CNC lathes, centre lathes, machining centres and precision engineering machinery throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

Contact us if you are searching for a:

used Weiler E35, Weiler E35 for sale, Weiler D1 lathe, cycle controlled lathe, conversational CNC lathe, used CNC lathe Ireland, used Weiler lathe UK, German CNC lathe, toolroom CNC lathe, 54mm spindle bore lathe, 400mm swing lathe, precision centre lathe or second-hand engineering machinery Europe.

Worldwide delivery can be arranged.

Machine Summary

Manufacturer: Weiler

Model: E35

Year: 1997

Serial Number: 323

Control: Weiler Digital Cycle Control

Machine Type: Cycle-Controlled / CNC Centre Lathe

Swing Over Bed: Approx. 410mm

Swing Over Cross Slide: Approx. 200mm

Spindle Bore: Approx. 54mm

Spindle Speed: Approx. 1–3,000rpm

Spindle Power: Approx. 7.5kW

Tailstock: MT4

Connected Load: 10kW

Electrical Supply: 400V / 50Hz

Power-On Hours: Approx. 33,000

Tooling: 10 Quick-Change Toolpost Holders Included

Machine Weight: Approx. 2,100kg

Please Note: All specifications, dimensions, capacities, speeds and machine details quoted above are approximate and are provided for guidance only.
