Cormak ZX7055 DRO Drilling-Milling Machine

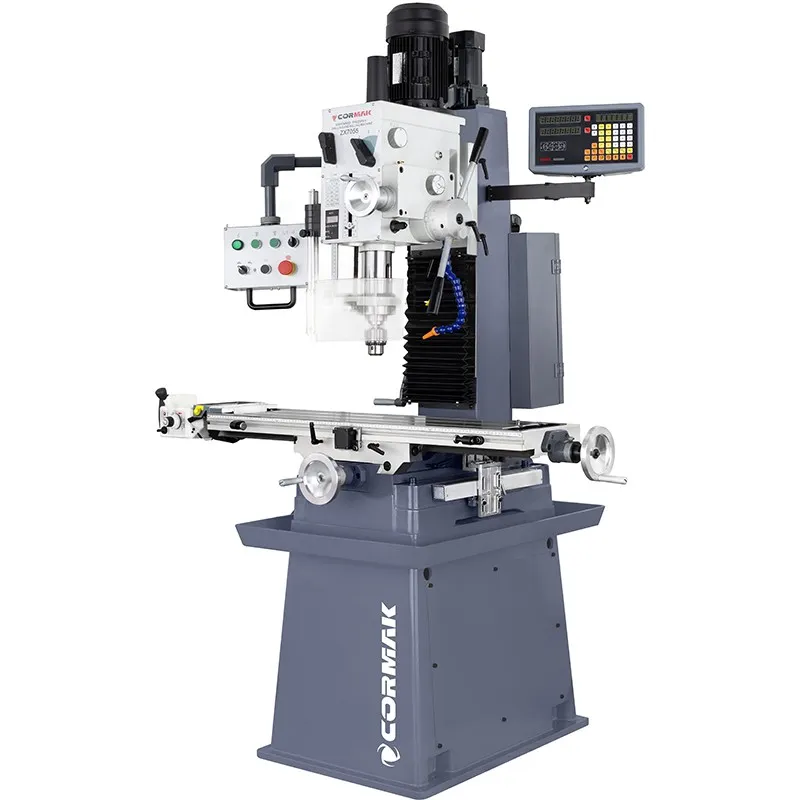

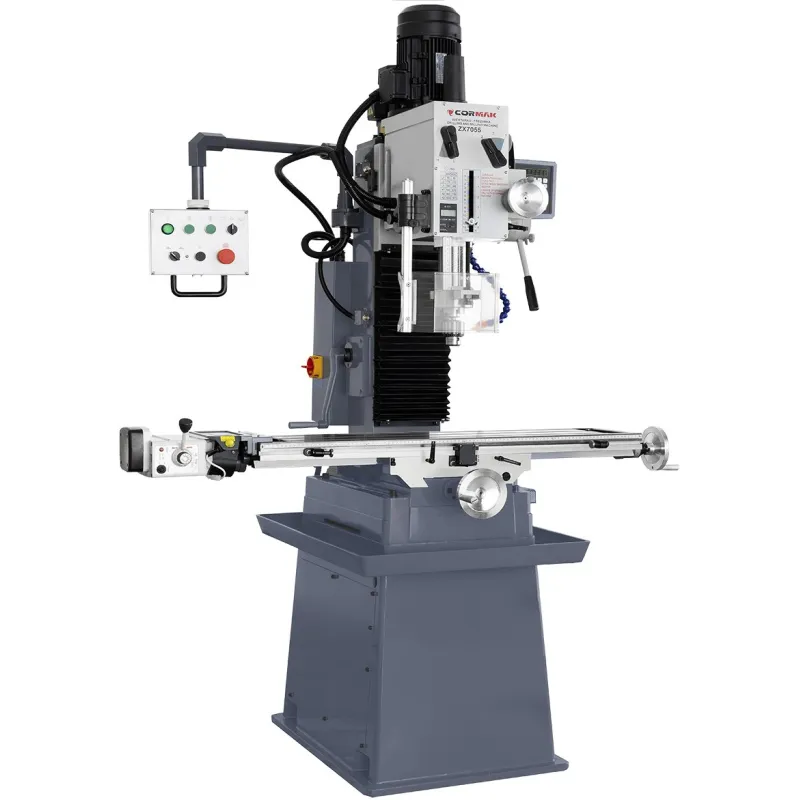

Cormak ZX7055 DRO Milling & Drilling Machine

Manufacturer: Cormak

Model: ZX7055 DRO

Machine Type: Manual Milling & Drilling Machine with Digital Read Out

Condition: New

Machine Description

Invest in modernity and versatility with the CORMAK ZX7055 DRO drilling–milling machine — a perfect choice for small and medium-sized maintenance and production departments. This mid-sized machine not only features an automatic vertical head feed and tapping function, but also comes equipped with a built-in digital readout system as standard. Discover the reliable features that make the ZX7055 DRO an excellent addition to your workshop:

Key Features

• Heavy, rigid cast-iron body: The solid cast-iron structure provides the foundation for long-term durability and machining precision. The ZX7055 DRO maintains stability even during the most demanding operations.
• Automatic feed: Save time and increase productivity thanks to automatic feed. The motor-driven vertical head enables efficient material processing without constant operator supervision.

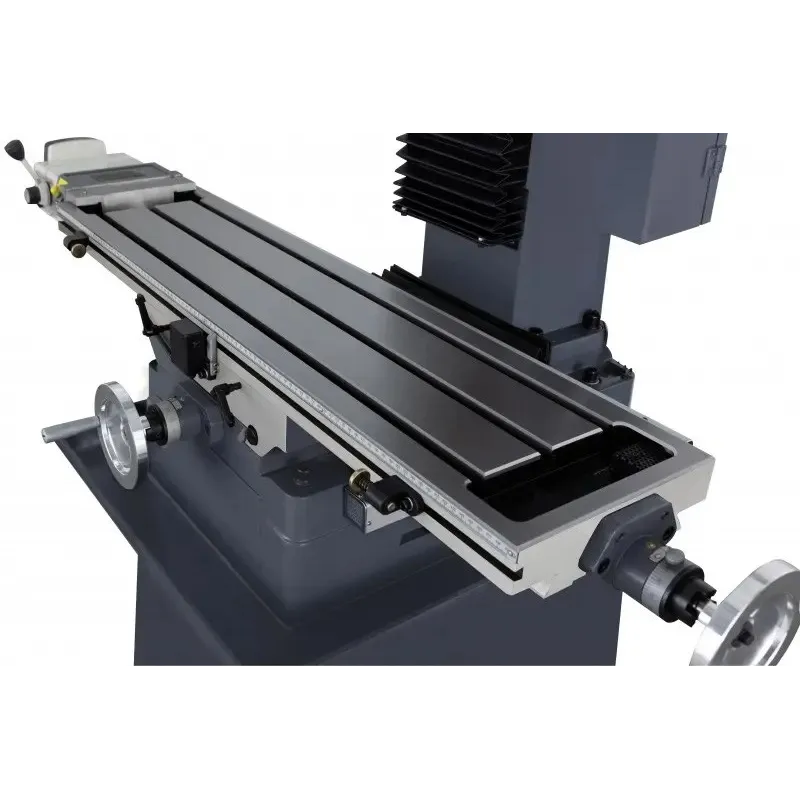

• Massive cross table with precision-ground surface: A focus on accuracy from the ground up — the robust cross table with a finely ground surface ensures excellent flatness and precision during machining.
• Dovetail-type guideways: Precision dovetail guideways guarantee smooth, accurate movement across all three axes, allowing for highly precise machining results.
• Quiet operation with ground gears: Concentrate on your work, not the noise. The ground gear system ensures smooth, quiet operation for a more comfortable working environment.
• Right and left spindle rotation: Full control and flexibility — the spindle’s reversible rotation allows for a wide range of machining applications.

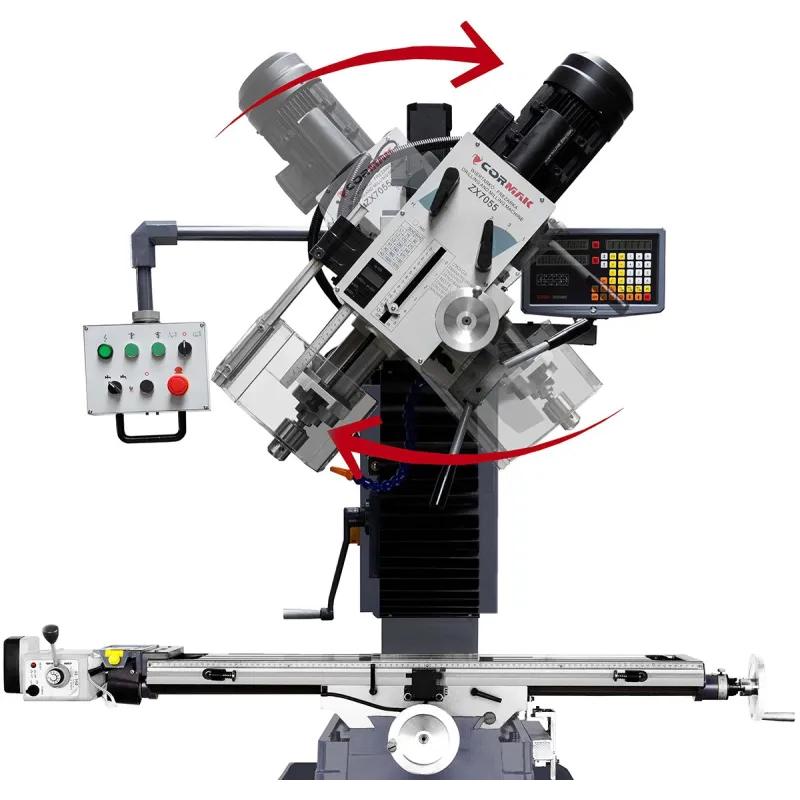

• Tilting head ±90° and adjustable head height: Adapt easily to any task. The head can be tilted ±90° and adjusted vertically, enabling precision machining under any conditions.

Applications

The ZX 7055 DRO is recommended for toolrooms, maintenance departments, metalworking workshops and small-batch production facilities requiring a versatile drilling–milling machine that combines drilling, milling, counterboring and tapping operations in a single machine.

Standard Equipment

Automatic spindle feed

Two-axis digital readout system (DRO)

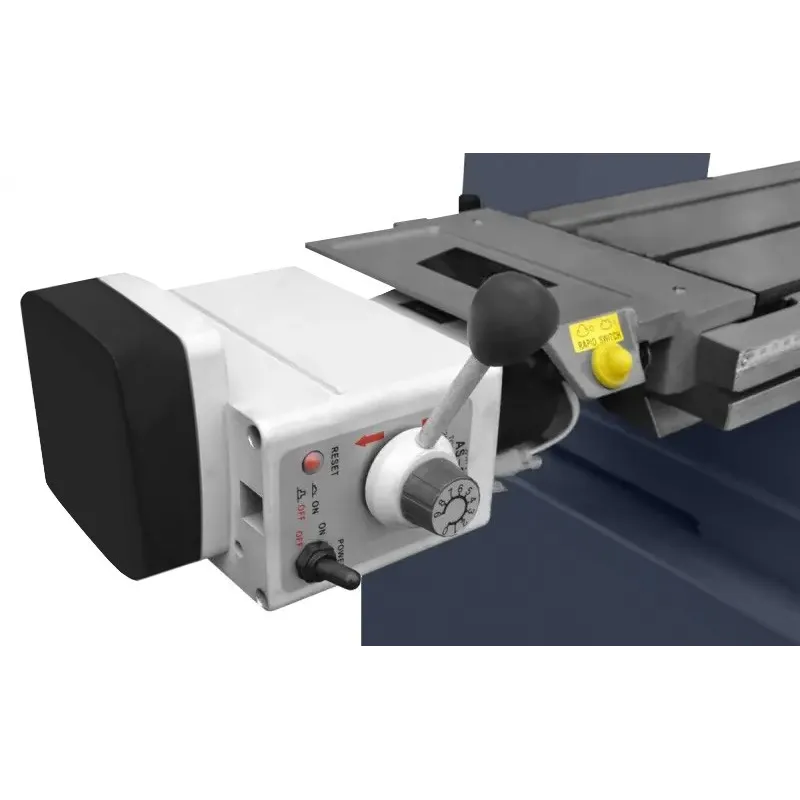

Longitudinal table power feed with adjustable speed

Motorised vertical head height adjustment

Coolant system

Machine base

Optional Equipment

Swivel, tilting and precision machine vices

Rotary tables and dividing heads

Tapping heads and milling heads

End mills (HSS, HSSE, HSS-PM, solid carbide)

Straight-shank and taper-shank drill bits

Milling inserts, hand taps and machine taps

Workholding clamping set

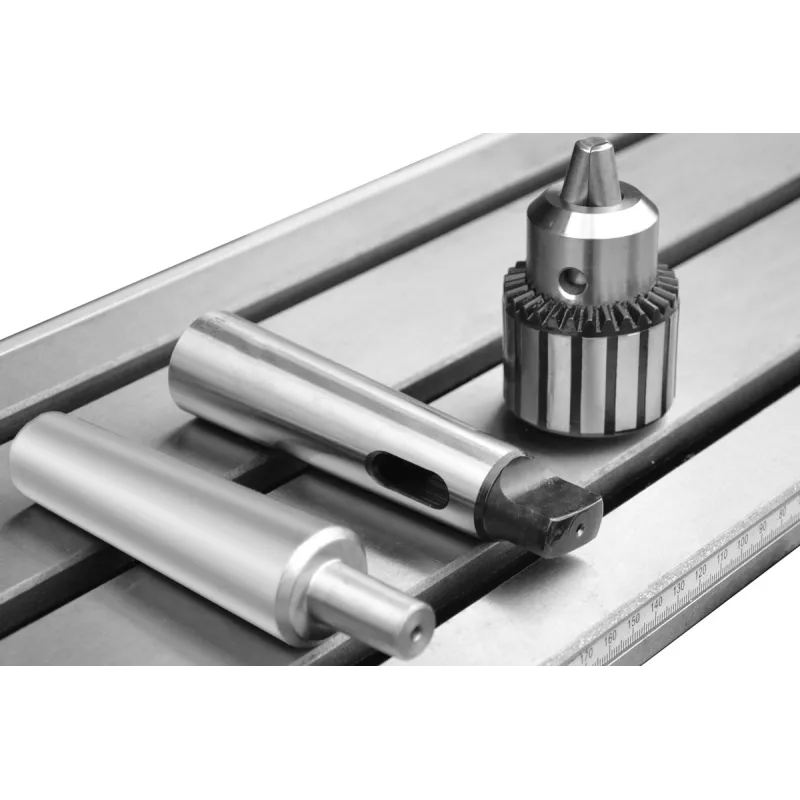

Toolholders (collets, Weldon), driving arbors and drill chucks

Technical Specifications

Maximum Drilling Capacity Cast Iron (HT200): 45mm

Maximum Drilling Capacity Steel: 32mm

Maximum Face Milling Capacity: 80mm

Maximum End Milling Capacity: 32mm

Worktable Dimensions: 1000 × 240mm

Table Travel (X/Y): 670 / 185mm

Head Swivel Angle: ±90°

Maximum Tapping Capacity: M24

Spindle Taper: MT4

Motor Power: 1.5kW/2.1HP

Spindle Speeds: 75, 180, 280, 600, 1000, 1600 rpm

Spindle Feed Rates: 0.1 / 0.18 / 0.26 mm/rev

Spindle Travel Automatic: 125mm

Distance from Spindle to Column Surface: 235mm

Maximum Distance from Spindle Nose to Worktable: 460mm

Net Weight: 425kg

Overall Dimensions: 1,300×760×2,200mm

The CORMAK ZX7055 DRO is a modern, high-precision machine that redefines metalworking performance. Order today and experience outstanding productivity and accuracy in your workshop!
