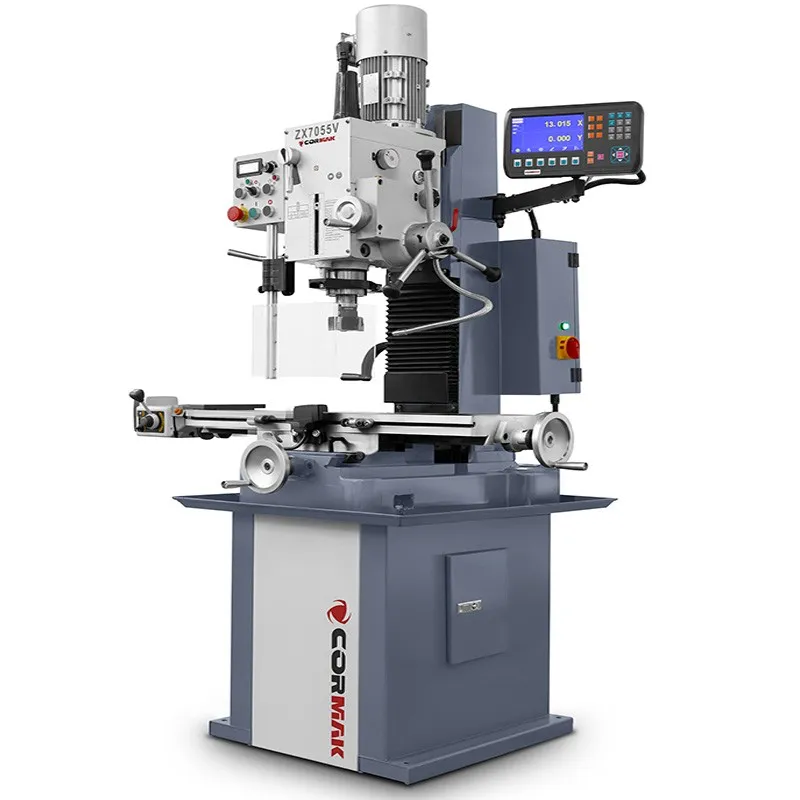

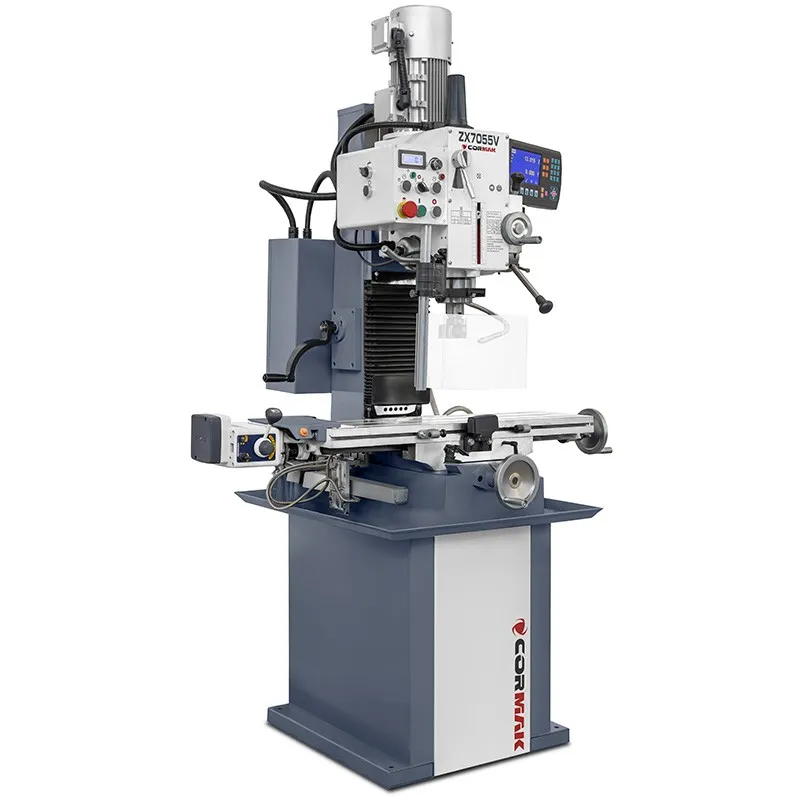

Cormak ZX7055 Vario DRO Drilling-Milling Machine

Cormak ZX7055 Vario DRO Milling & Drilling Machine

Manufacturer: Cormak

Model: ZX7055 Vario DRO

Machine Type: Manual Milling & Drilling Machine with Variable Speed & Digital Read Out

Condition: New

Machine Description

The ZX 7055 VARIO DRO drilling–milling machine from CORMAK is a powerful universal milling machine for drilling, milling and tapping steel and cast iron. Its heavy-duty cast construction, continuously variable spindle speed in two ranges and digital position readout ensure consistent accuracy in one-off and small-batch production.

Key Features

• Rigid cast iron base and column – provide stability when machining demanding workpieces, reduce vibration and extend tool life.
• Continuously variable spindle speed in 2 ranges: 75–438rpm (low range) and 438–2,500rpm (high range) – allowing optimal cutting parameters to be selected according to tool diameter and material.

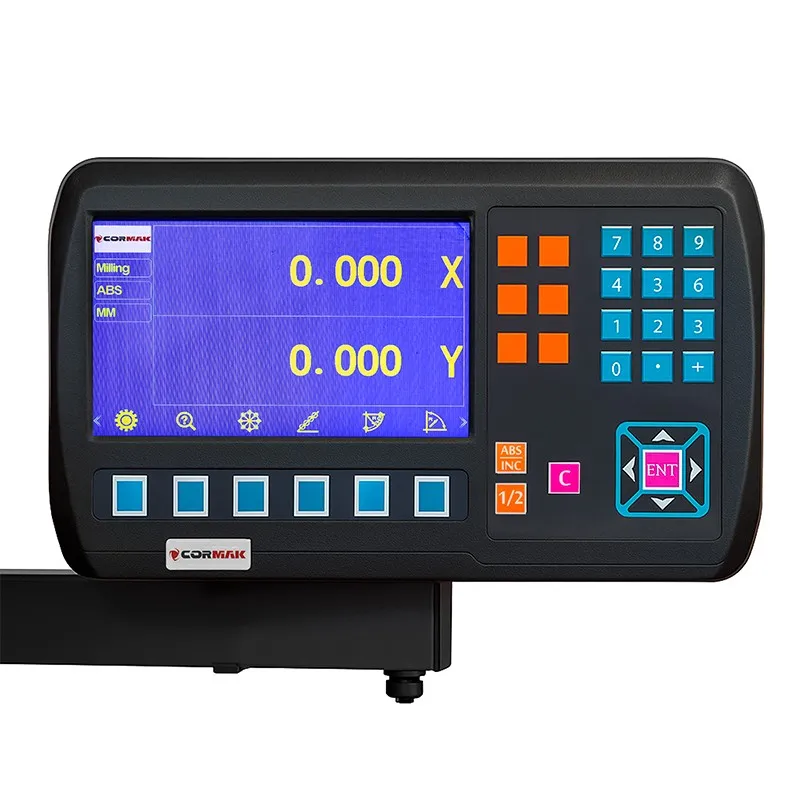

• 2-axis digital readout (DRO) – enables rapid positioning without vernier reading errors and reduces setup time.
• Automatic spindle feed – ensures uniform cutting and reduces the risk of drill bit breakage during deep drilling operations.
• Tapping function – automatically reverses spindle rotation when the preset thread depth is reached.
• Precision-ground gears – ensure quiet transmission operation and consistent spindle torque.
• Dovetail slideways on the axes – provide precise table movement and reliable machine geometry.
• Swivelling head ±90° with height adjustment – facilitates chamfering, undercutting and angled machining operations.
• Forward/reverse spindle rotation – enables safe tapping and tool withdrawal.
• Efficient cooling system that effectively dissipates heat during machining, prevents overheating of the tool and workpiece, and consequently improves machining precision and extends cutting tool life.

Construction & Technology

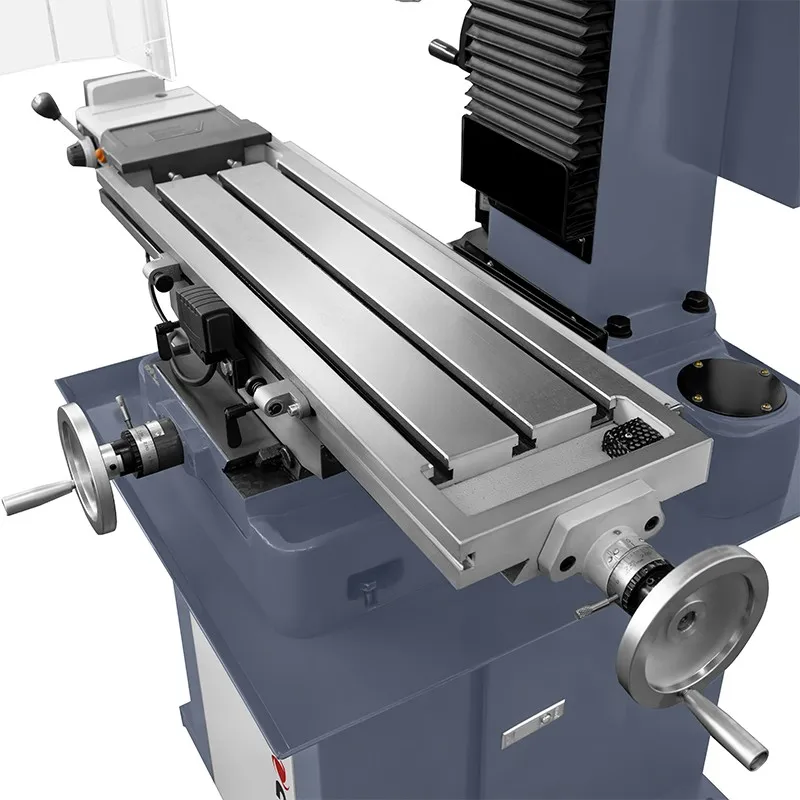

The machine is built around a heavy cast iron structure with wide slideways, minimising deflection during face milling and end milling operations. The heavy-duty cross table features a large working surface with a precision-ground surface, ensuring a flat reference surface for workpiece positioning. The spindle, featuring an MK4 taper, is powered by an S1/S6 1.5/1.8kW motor with continuously variable speed control. The integrated cooling system stabilises the temperature in the cutting zone and improves surface finish quality.

Machining Precision Efficiency

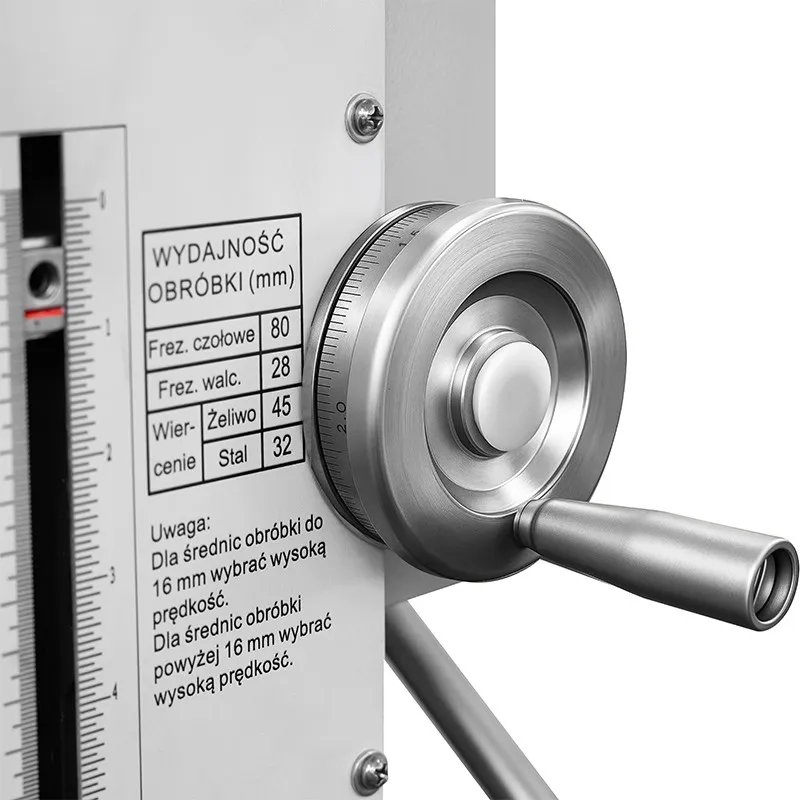

The combination of a 2-axis DRO, precision-ground transmission gears and robust slideways ensures high dimensional repeatability and a smooth surface finish. The automatic spindle feed and two spindle speed ranges allow stable cutting parameters to be selected for drilling steel up to Ø32mm and cast iron up to Ø45mm, as well as face milling up to Ø80mm and end milling up to Ø28mm. Ergonomic head height adjustment reduces changeover times in both high-volume and one-off production.

Applications

The ZX 7055 VARIO DRO is recommended for toolrooms, maintenance departments, metalworking workshops and small-batch production facilities requiring a versatile drilling–milling machine that combines drilling, milling, counterboring and tapping operations in a single machine.

Standard Equipment

Continuously variable spindle speed control

2-axis digital readout

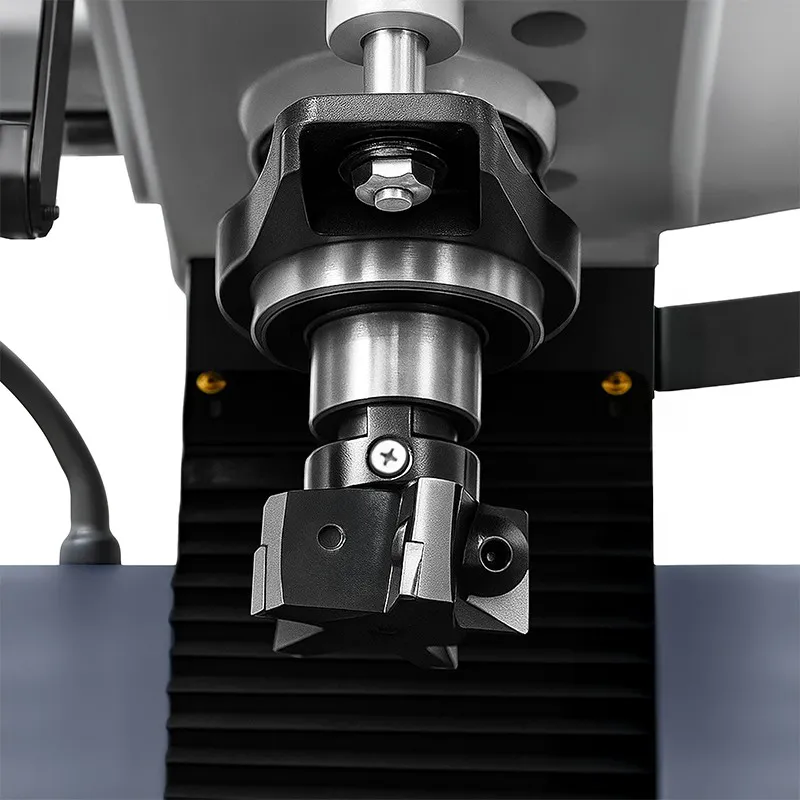

80mm face milling cutter with inserts

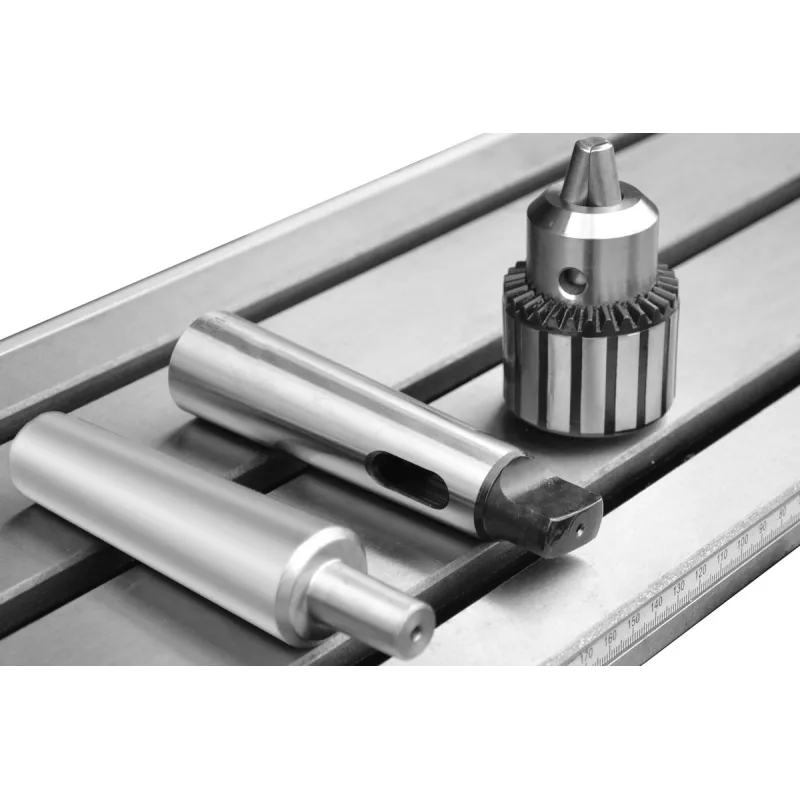

Drill chuck

Cooling system

Machine Stand

Optional Equipment

Automatic longitudinal table feed with adjustable speed

Swivel, tilting and precision machine vices

Rotary tables and dividing heads

Tapping heads and milling heads

End mills (HSS, HSSE, HSS-PM, solid carbide)

Straight-shank and taper-shank drill bits

Milling inserts, hand taps and machine taps

Workholding clamping set

Toolholders (collets, Weldon), driving arbors and drill chucks

Technical Specifications

Maximum Drilling Capacity Cast Iron (HT200): 45mm

Maximum Drilling Capacity Steel: 32mm

Maximum Face Milling Capacity: 80mm

Maximum End Milling Capacity: 28mm

Worktable Dimensions: 820 × 240mm

Table Travel (X/Y): 595 / 185mm

Maximum Tapping Capacity: M24

Spindle Taper: MT4

Spindle Speed Motor S1/S6: 1.5 / 1.8kW

Low speed range: 75–438rpm

High speed range: 438–2,500rpm

Spindle Travel Manual: 107mm

Spindle Travel Automatic: 100mm

Distance from Spindle to Column Surface: 250mm

Maximum Distance from Spindle Nose to Worktable: 445mm

Net Weight: 350kg

Overall Dimensions: 1,084×924×1,550mm

Height with stand: 2,150mm

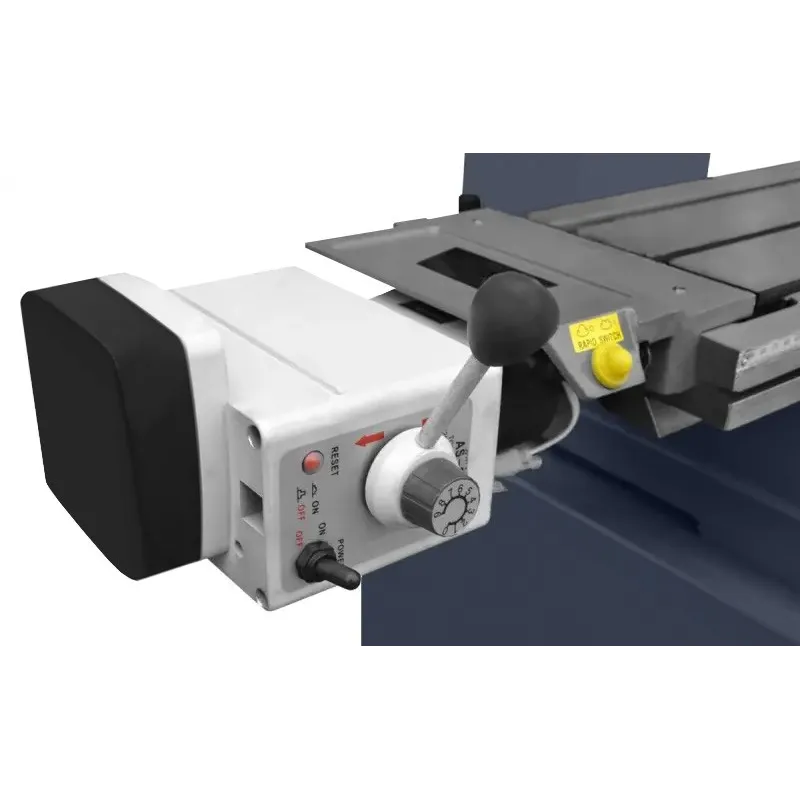

**Note: Table Autofeed in pictures not included as standard
