2001 Okamoto ACC-450DXA

2001 Okamoto ACC-450DXA Surface Grinder | 450 x 150mm

Used 2001 Okamoto ACC-450DXA Hydraulic Surface Grinding Machine for Sale – 450 x 150mm Grinding Capacity – Automatic Grinding Cycle – Spare Grinding Wheels Included

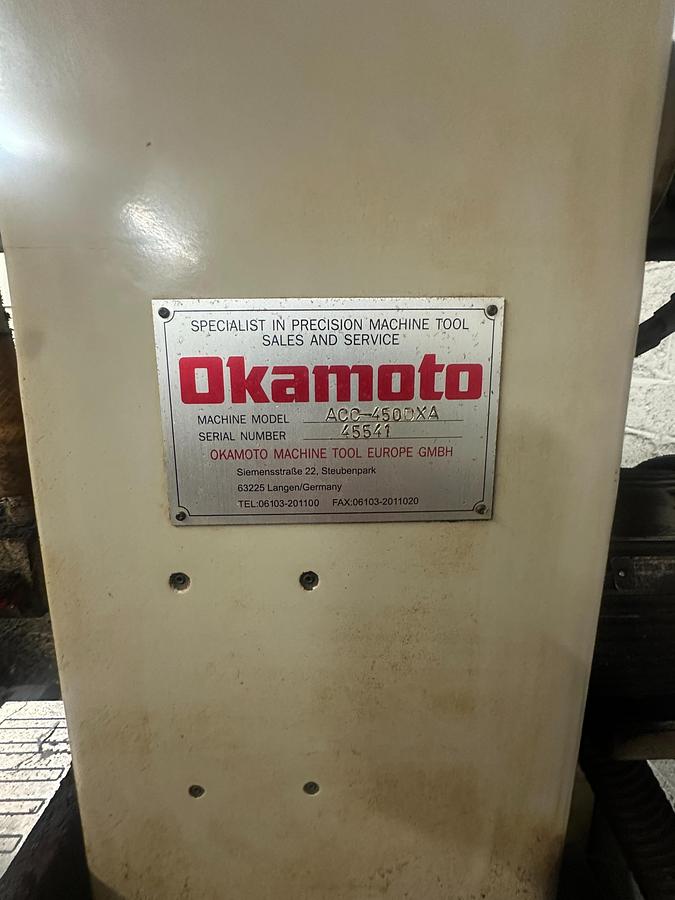

Manufacturer: Okamoto

Model: ACC-450DXA

Machine Type: Hydraulic Surface Grinder

Year: 2001

Condition: Working Well

Includes:

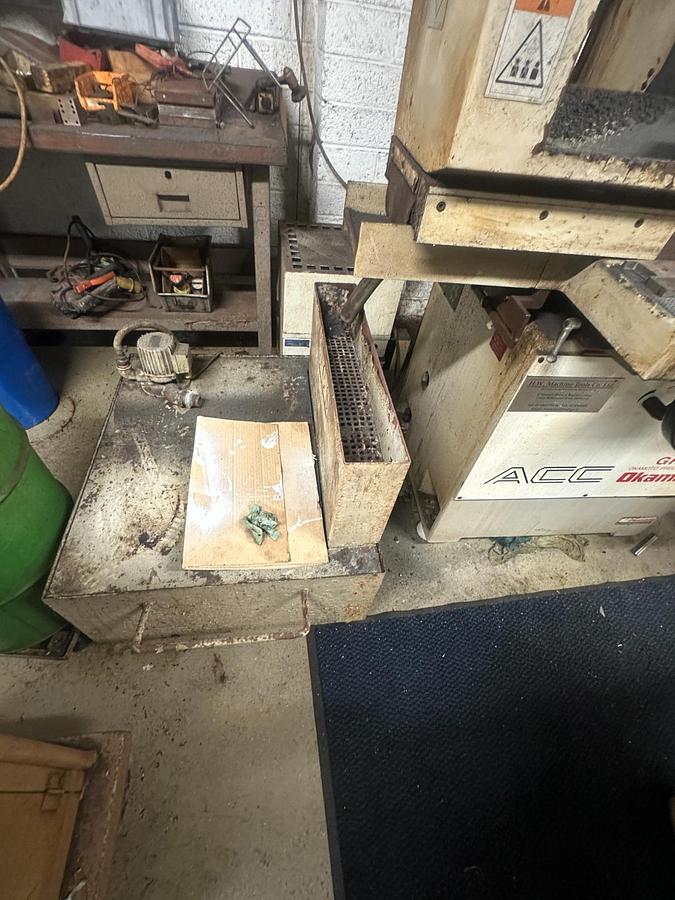

Coolant Equipment

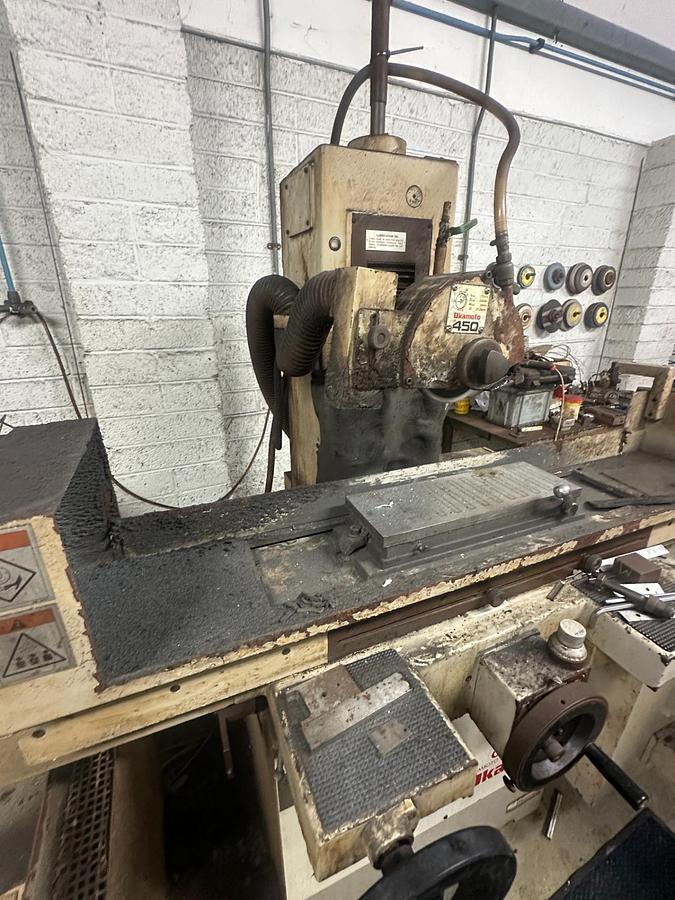

Magnetic Chuck

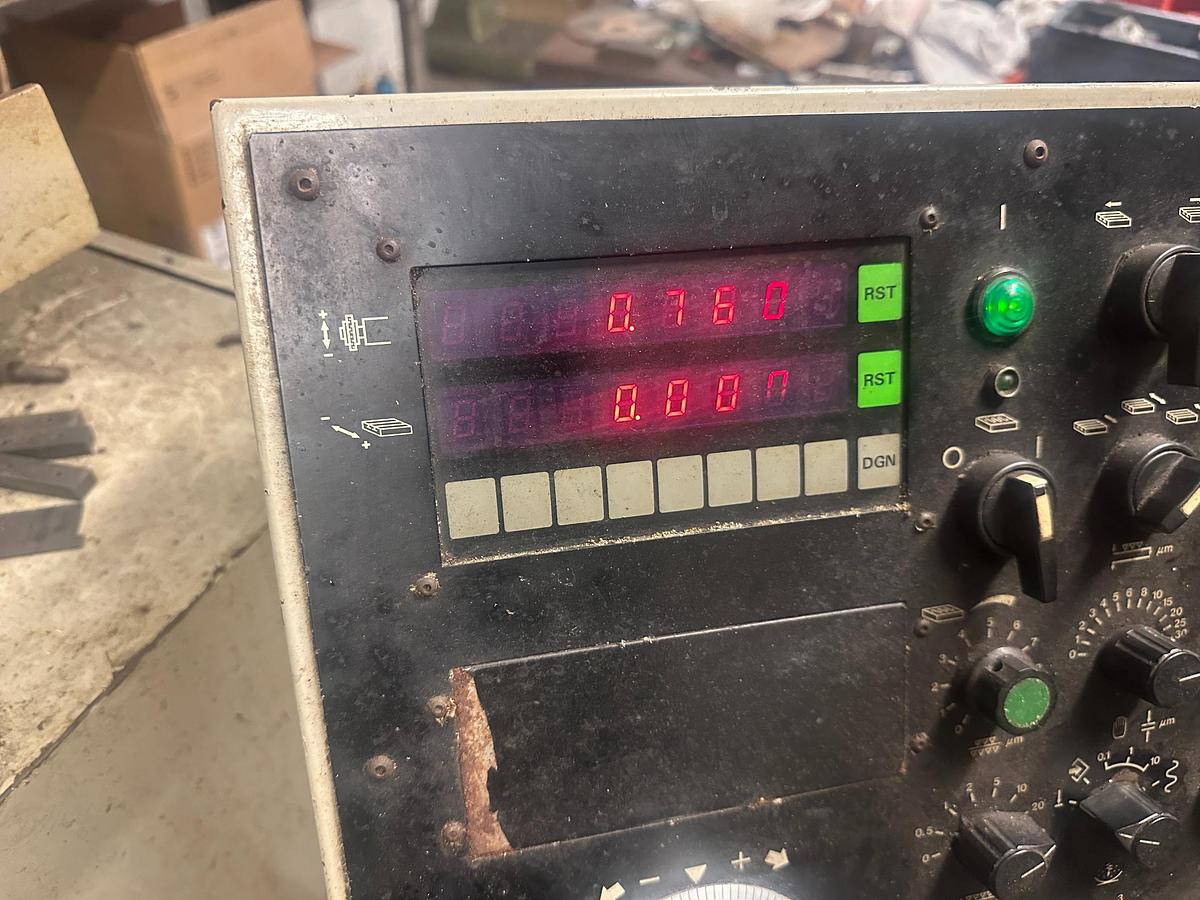

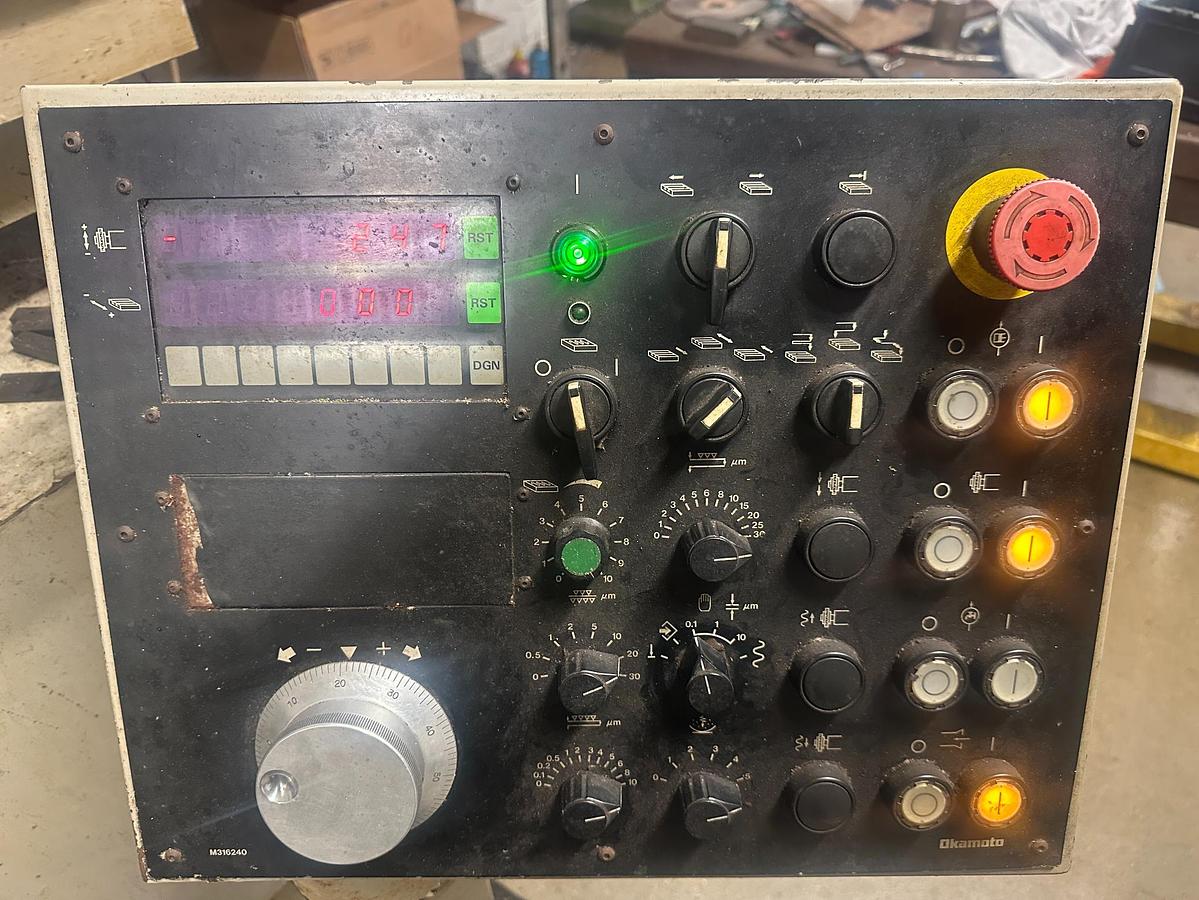

Cross Feed Digital Display

Vertical Digital Display

Wheel Guard

Spare Grinding Wheels

Machine Description

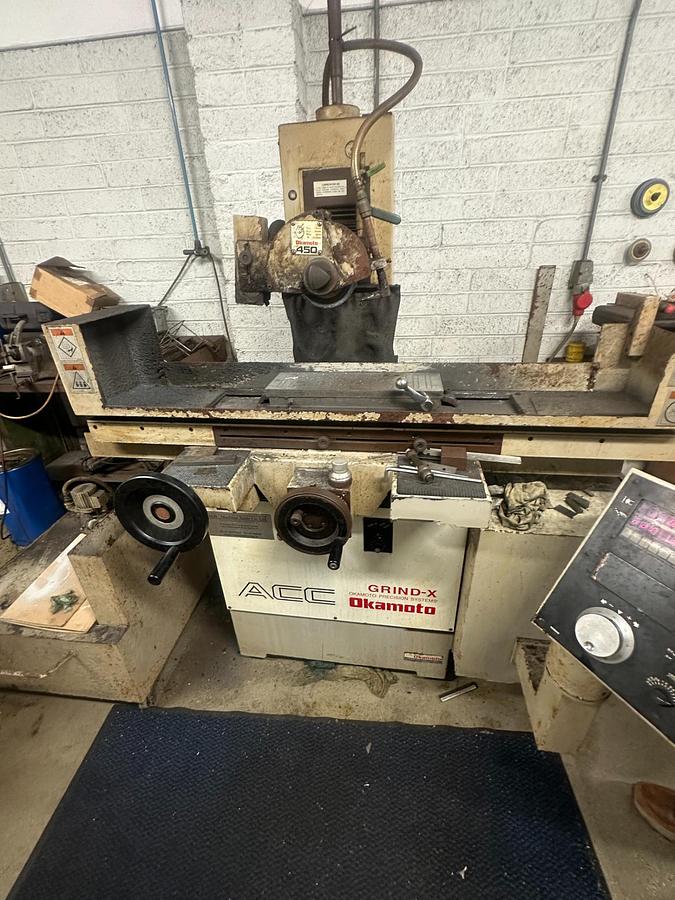

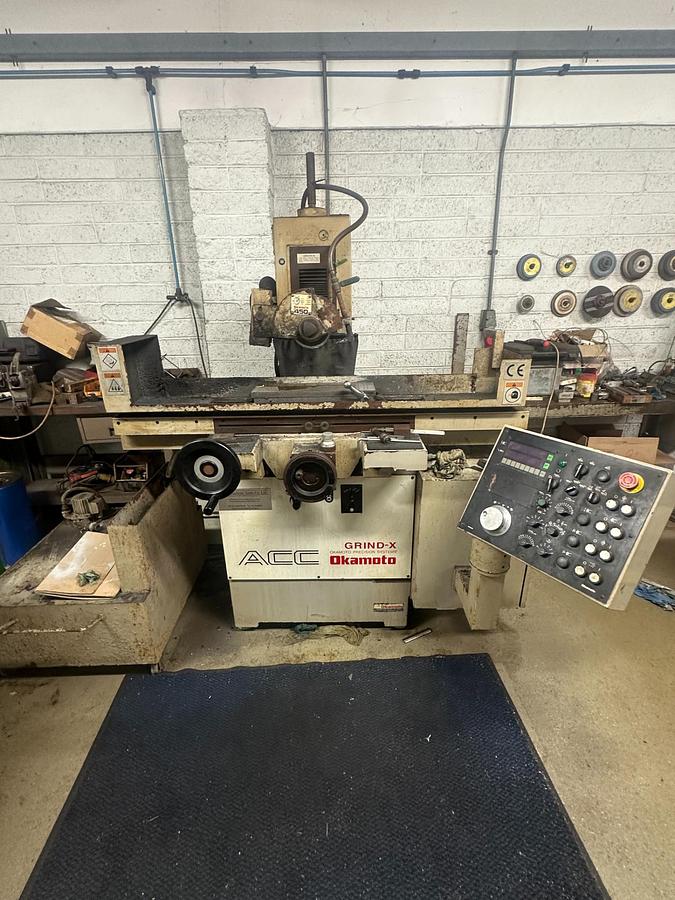

Used 2001 Okamoto ACC-450DXA precision surface grinder available for sale.

The Okamoto ACC-450DXA is a compact, high-quality hydraulic surface grinding machine designed for accurate flat and form grinding applications in precision engineering, toolrooms, mould and die shops and general manufacturing environments.

The machine provides an approximate 450 x 150mm grindable surface, with 530mm longitudinal table travel and 175mm cross travel, making it particularly suitable for precision grinding of small and medium-sized components.

The DXA version features an automatic grinding cycle, combining hydraulic table movement with controlled crossfeed and vertical grinding functions to provide repeatable production grinding while remaining straightforward to set and operate.

This machine is supplied with a selection of spare grinding wheels.

Main Specifications

Manufacturer: Okamoto

Model: ACC-450DXA

Year: 2001

Machine Type: Precision Hydraulic Surface Grinder / Surface Grinding Machine

Grinding Capacity

Maximum Grindable Surface: Approx. 450 x 150mm

Table Working Area: Approx. 510 x 150mm

Longitudinal Travel: Approx. 530mm

Cross Travel: Approx. 175mm

Distance from Grinding Wheel to Table: Approx. 60–510mm

Maximum Table Load: Approx. 120kg

The generous longitudinal movement relative to the 450mm grinding length allows the wheel to clear the component during the grinding cycle.

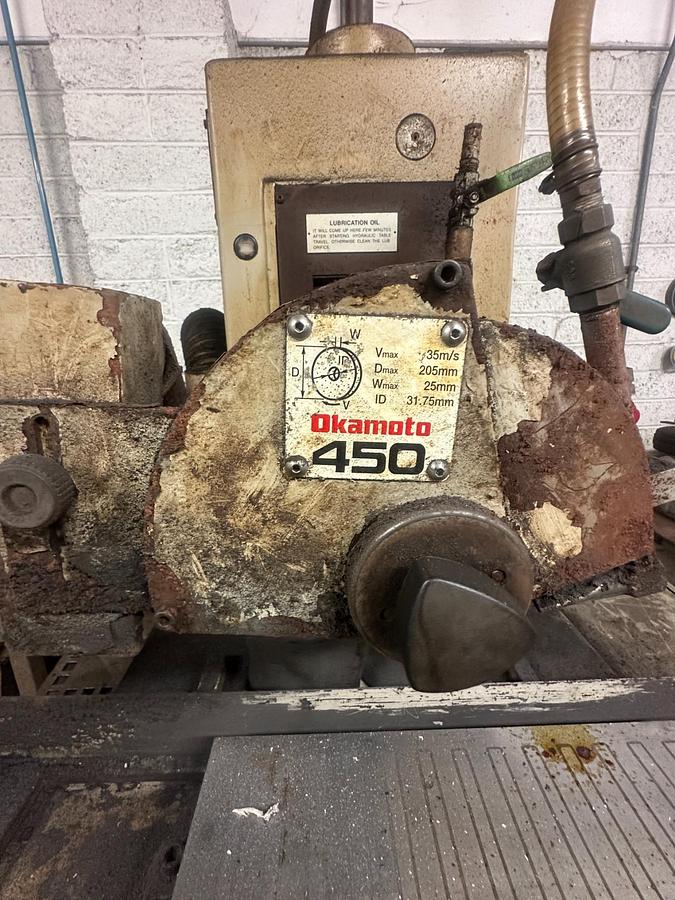

Grinding Wheel & Spindle

Grinding Wheel Diameter: Approx. 205mm

Grinding Wheel Peripheral Speed: Approx. 2,400m/min

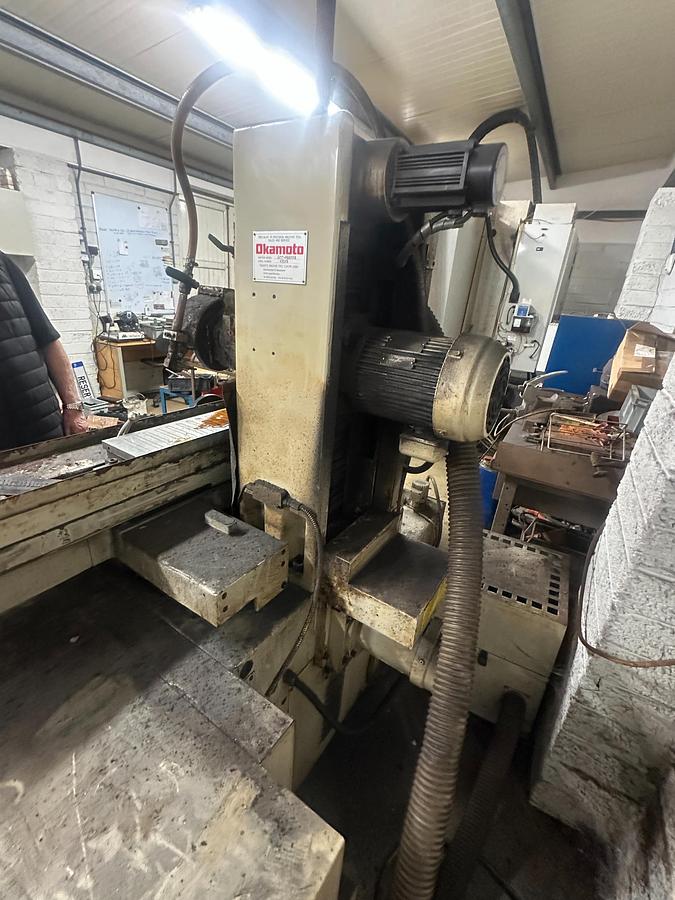

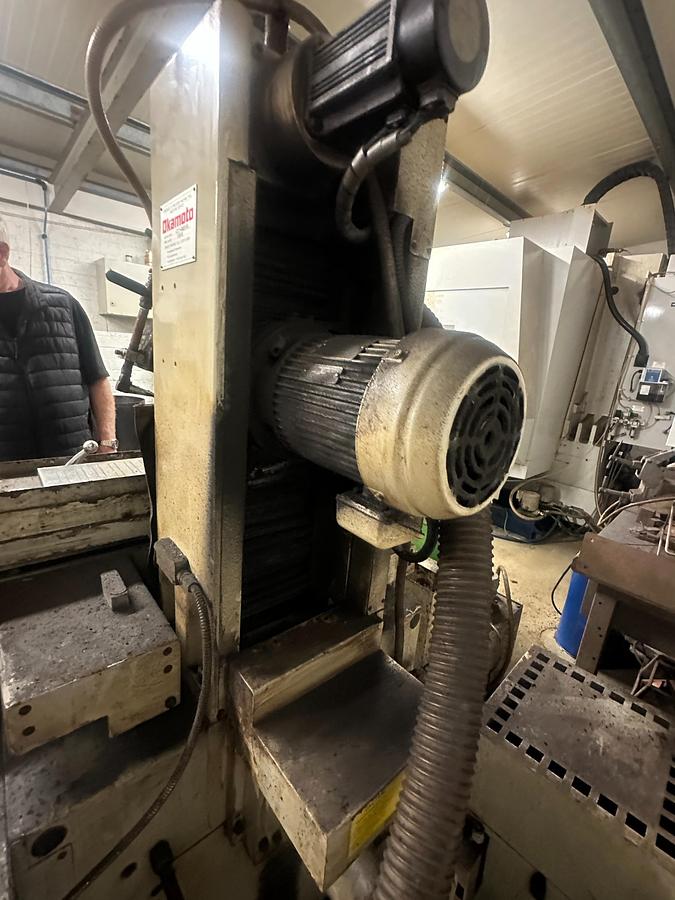

Grinding Spindle Motor: Approx. 1.5kW

The spindle arrangement is designed for precision surface grinding where good finish, flatness and dimensional accuracy are required.

Additional Drive Motors

Hydraulic Pump Motor: Approx. 0.75kW

Crossfeed Motor: Approx. 0.75kW

Grinding Head Up/Down Motor: Approx. 0.4kW

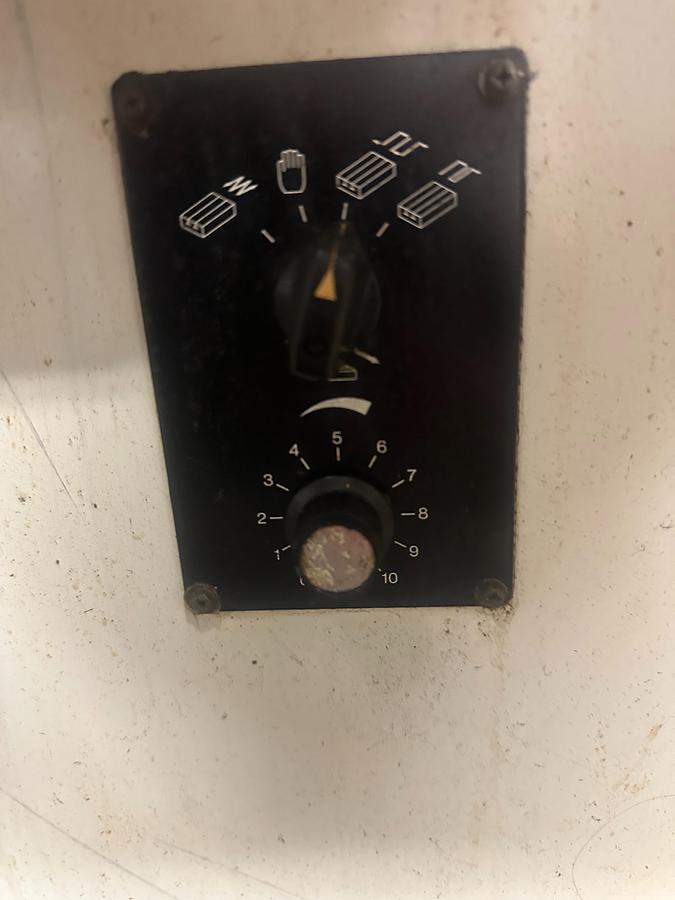

DXA Automatic Grinding Cycle

The ACC-450DXA version is designed to provide an automatic grinding cycle, making it suitable for repetitive precision surface grinding operations.

The DX-series design incorporates features aimed at both rough and finish grinding, including:

• Automatic grinding-cycle capability
• Hydraulic longitudinal table movement
• Powered crossfeed
• Powered vertical grinding-head movement
• Coarse and fine vertical feed
• Precision feed adjustment
• Robust saddle-type construction
• Hand-finished precision guideways
• Automatic lubrication system

These features make the ACC-450DXA suitable for both one-off toolroom work and repetitive component grinding.

Precision Okamoto Construction

The ACC-450 DX series was designed as a compact precision surface grinder with a rigid machine base and column.

Its double-V guideway arrangement and precision slideway construction are intended to provide stable table movement and maintain grinding accuracy over long-term use.

This type of machine is well suited to workshops requiring greater precision and productivity than a basic manual surface grinder while retaining straightforward operation.

Spare Grinding Wheels Included

The machine is supplied with a selection of spare grinding wheels.

Having additional wheels available allows the purchaser to select different abrasive types and specifications to suit individual materials, grinding operations and surface-finish requirements.

Approximate Machine Dimensions

Overall Length: Approx. 1,940mm

Overall Width: Approx. 1,317mm

Overall Height: Approx. 2,129mm

Machine Weight: Approx. 1,250kg

Typical Applications

The Okamoto ACC-450DXA is suitable for precision grinding applications including:

• Precision surface grinding
• Tool and die manufacture
• Mould making
• Toolroom work
• Press tool manufacture
• Precision engineering components
• Hardened steel components
• Gauge manufacture
• Machine tool components
• Fixture and jig manufacture
• Engineering maintenance work
• Small and medium batch production
• Flat grinding
• Finish grinding
• Form grinding applications

What is an Okamoto ACC-450DXA?

The Okamoto ACC-450DXA is a hydraulic precision surface grinding machine designed to produce accurate flat surfaces and close dimensional tolerances.

The workpiece is normally secured to the machine table while the grinding wheel removes controlled amounts of material as the table passes beneath the wheel.

Unlike a basic manual surface grinder, the DXA configuration provides an automatic grinding cycle, making it particularly useful where repeated passes, controlled feed and consistent finished dimensions are required.

With approximately 450 x 150mm grinding capacity, the ACC-450DXA provides a compact footprint while retaining useful capacity for general precision engineering work.

Key Features

• 2001 machine
• Okamoto ACC-450DXA
• Precision hydraulic surface grinder
• Approx. 450 x 150mm grinding capacity
• Approx. 510 x 150mm table
• Approx. 530mm longitudinal travel
• Approx. 175mm cross travel
• Approx. 120kg maximum table load
• Approx. 205mm grinding wheel diameter
• 1.5kW grinding spindle motor
• Hydraulic longitudinal table movement
• Powered crossfeed
• Powered grinding-head elevation
• DXA automatic grinding cycle
• Precision saddle-type construction
• Automatic lubrication
• Selection of spare grinding wheels included
• Compact precision grinding machine
• Approx. 1,250kg machine weight

Used Okamoto Surface Grinder for Sale

Used Machine Tools Ireland supplies used grinding machines, CNC machine tools and precision engineering machinery throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

Contact us if you are searching for a:

used Okamoto ACC-450DXA, Okamoto ACC 450 DXA for sale, used Okamoto surface grinder, hydraulic surface grinder, 450mm surface grinder, precision surface grinding machine, automatic surface grinder, toolroom grinder, magnetic chuck surface grinder, flat grinding machine, used surface grinder Ireland, second-hand surface grinder UK, used grinding machine Europe or precision engineering machinery.

Machine Summary

Make: Okamoto

Model: ACC-450DXA

Year: 2001

Type: Hydraulic Precision Surface Grinder

Grinding Capacity: Approx. 450 x 150mm

Table: Approx. 510 x 150mm

Longitudinal Travel: Approx. 530mm

Cross Travel: Approx. 175mm

Wheel-to-Table Distance: Approx. 60–510mm

Maximum Table Load: Approx. 120kg

Grinding Wheel Diameter: Approx. 205mm

Spindle Motor: Approx. 1.5kW

Machine Weight: Approx. 1,250kg

Included: Selection of Spare Grinding Wheels

Please Note: All specifications, dimensions, capacities, speeds, weights and machine details quoted above are approximate and are provided for guidance only. Specifications can vary according to individual machine configuration and equipment fitted. Prospective purchasers should verify all important specifications, accessories, machine condition and operating requirements prior to purchase.
