2007 Milltronics VM22 CNC VMC | Centurion 7 | 24 Tool ATC

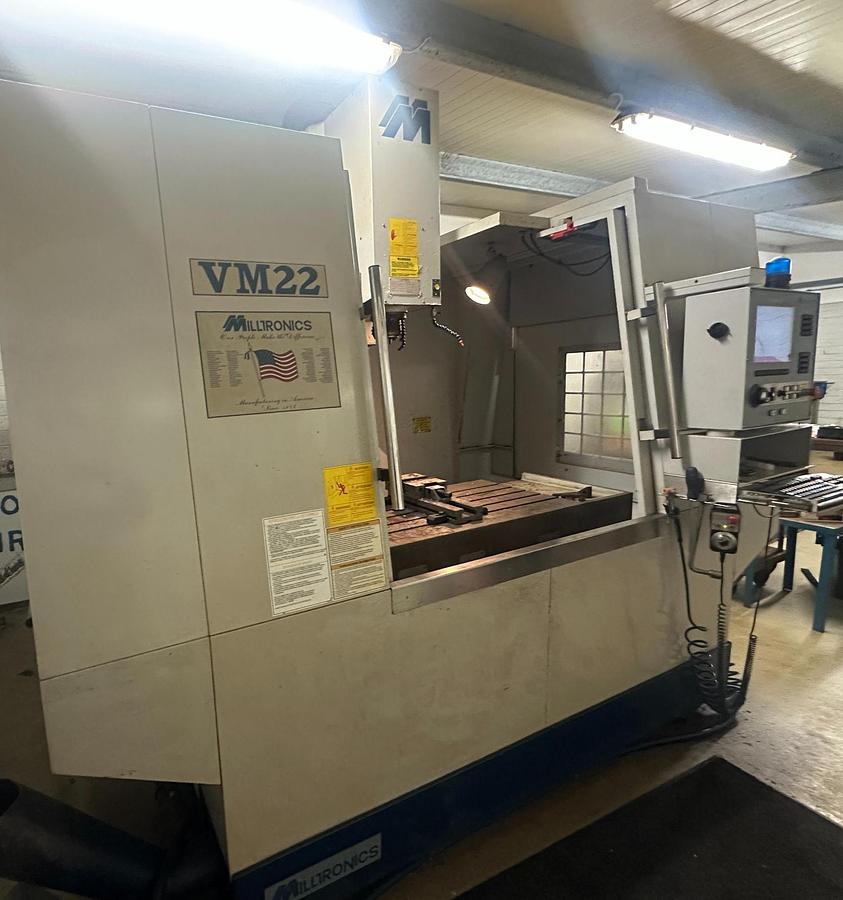

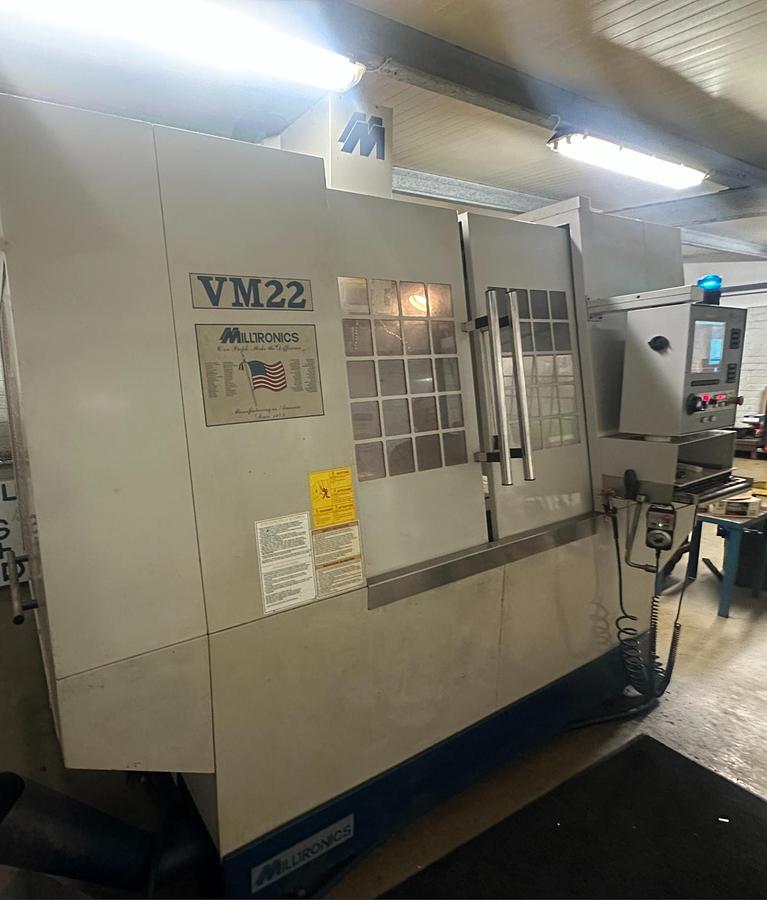

2007 Milltronics VM22 CNC Vertical Machining Centre

Used 2007 Milltronics VM22 vertical machining centre for sale. Centurion 7 control, 1016 x 559 x 660mm travels, 8,000 rpm spindle, 24-tool ATC and tooling included.

Manufacturer: Milltronics

Model: VM22

Machine Type: 3 Axis Vertical Machining Centre

Year: 2007

Control: Centurion 7

Includes: Large Selection of Tool Holders

Machine Description

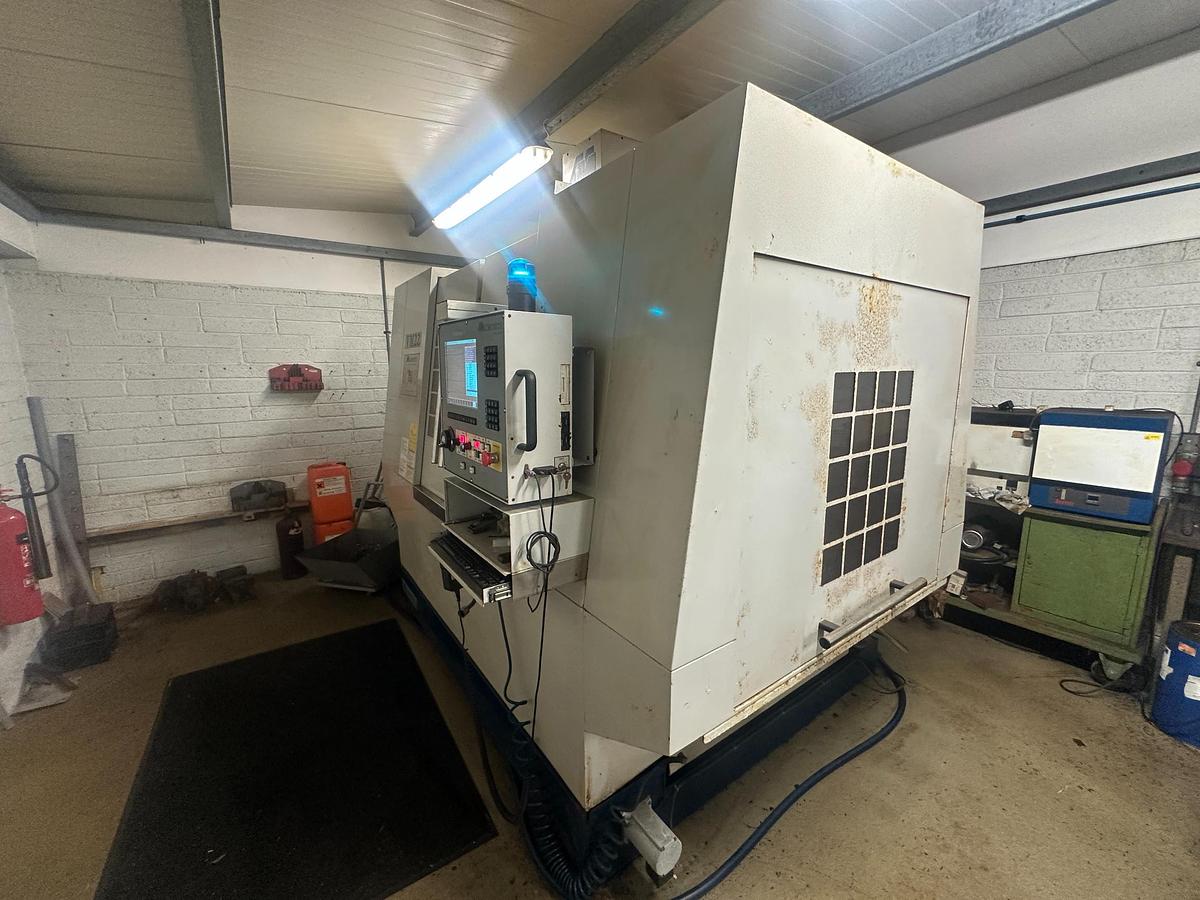

Used 2007 Milltronics VM22 CNC Vertical Machining Centre available for sale.

A substantial American-built 3-axis vertical machining centre offering a generous working envelope, 24-station automatic tool changer, 8,000 rpm spindle and the well-established Milltronics Centurion 7 CNC control.

This particular machine is a VM22 Series B and is supplied with a large selection of tooling, making it an attractive package for general precision engineering, subcontract machining, toolroom work, mould work and batch production.

The VM22 provides approximately 1,016mm X-axis travel, 559mm Y-axis travel and 660mm Z-axis travel, combined with a large 1,143 x 610mm table. Published VM22 specifications confirm these dimensions along with a 24-tool ATC and 8,000 rpm spindle.

Technical Specifications

Manufacturer: Milltronics Manufacturing Company

Model: VM22

Series: B

Year: 2007

Machine Type: CNC Vertical Machining Centre / Vertical CNC Milling Machine

Control: Milltronics Centurion 7

Number of Axes: 3

Serial Number: 9868

Axis Travels

X-Axis Travel: Approx. 1,016mm / 40"

Y-Axis Travel: Approx. 559mm / 22"

Z-Axis Travel: Approx. 660mm / 26"

The 40" x 22" x 26" working envelope is one of the defining specifications of the VM22.

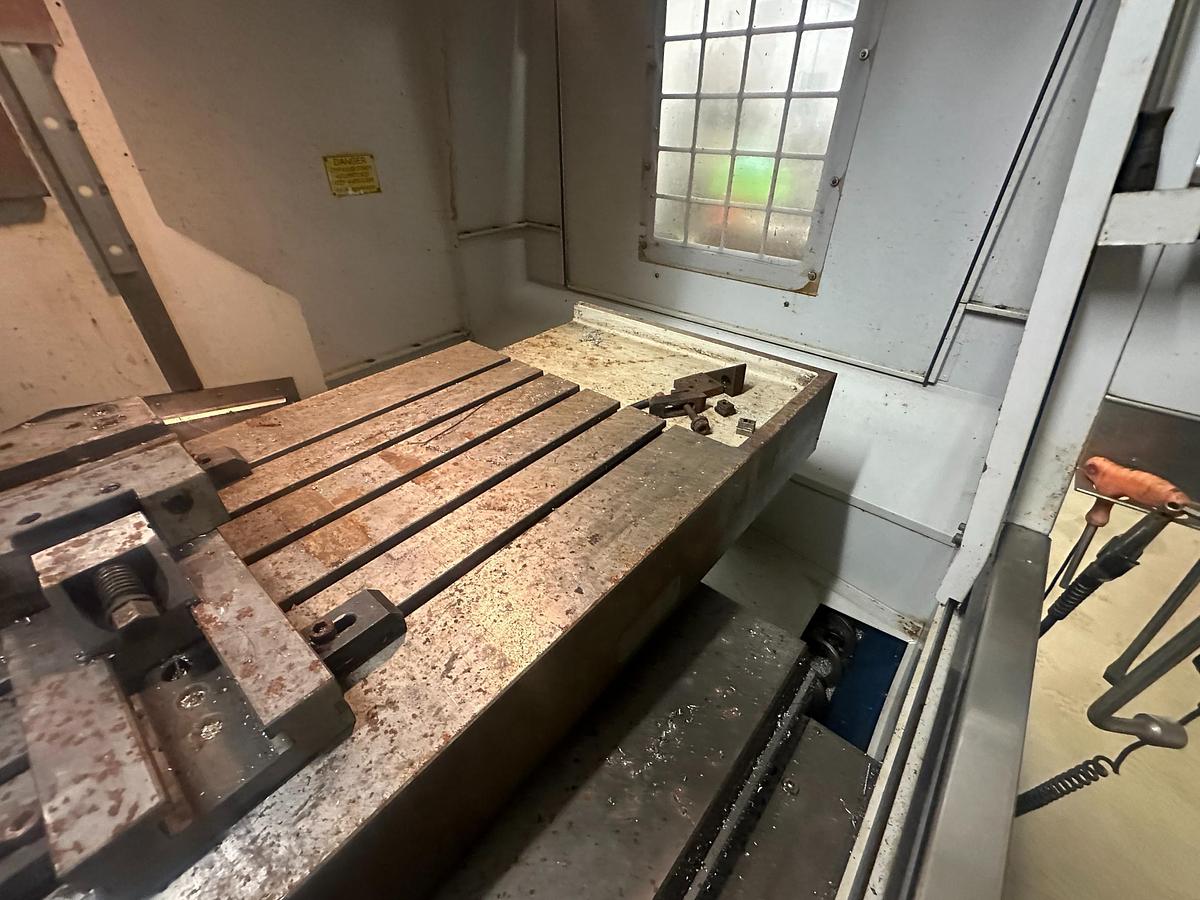

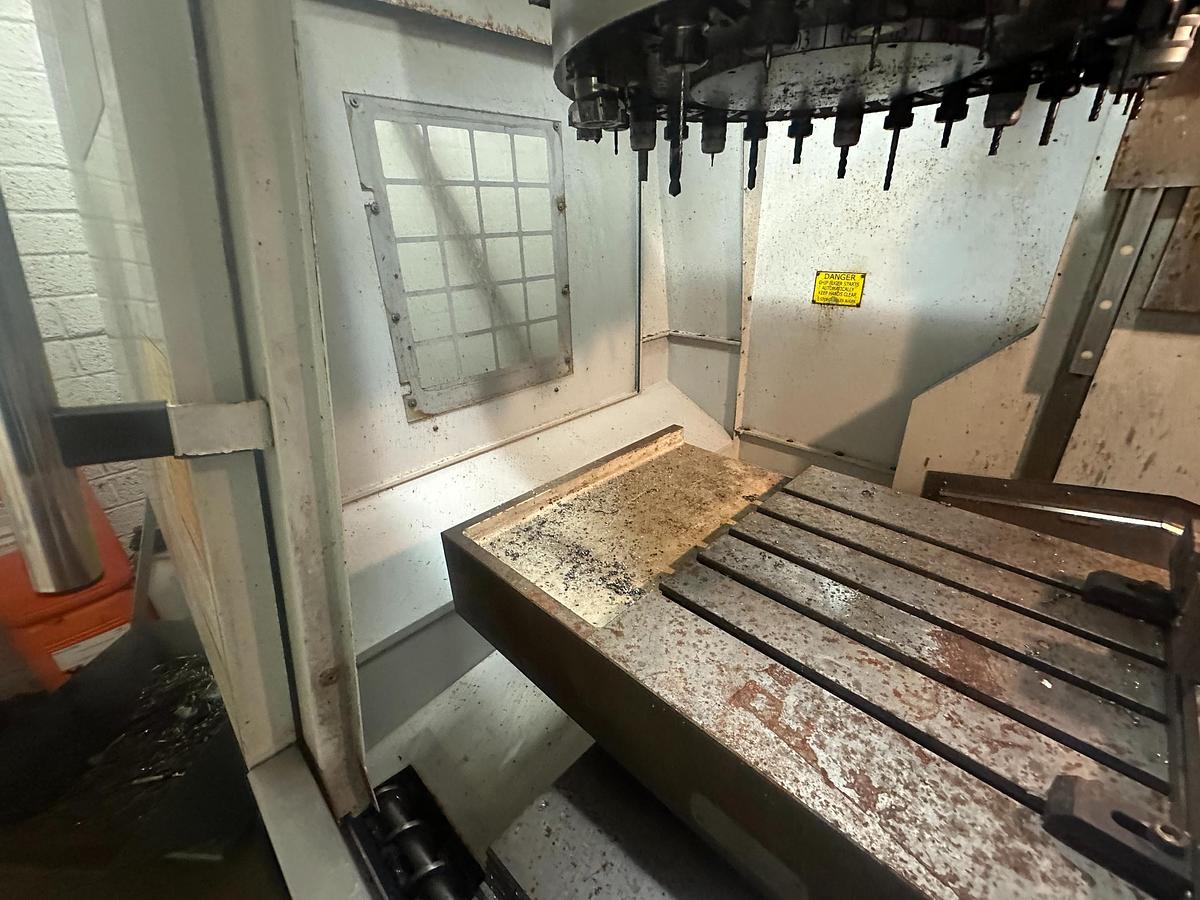

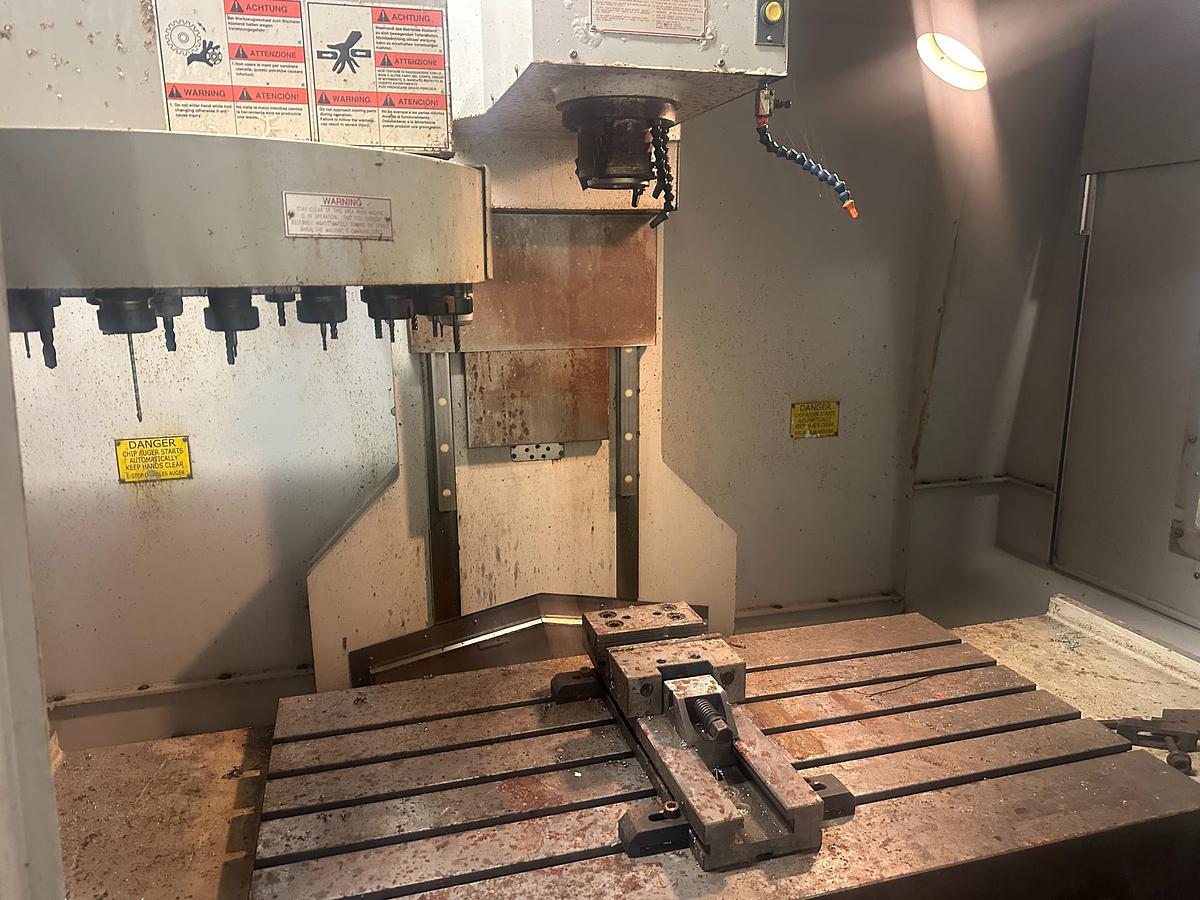

Worktable

Table Size: Approx. 1,143 x 610mm / 45" x 24"

The large table and 22" Y-axis travel provide useful capacity for larger components, multiple vices and production fixtures.

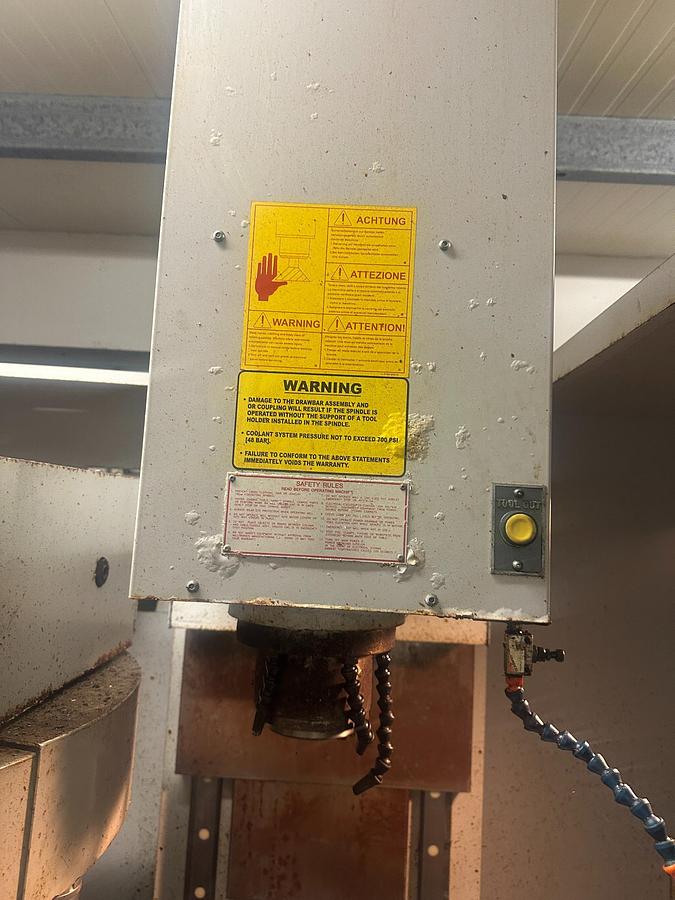

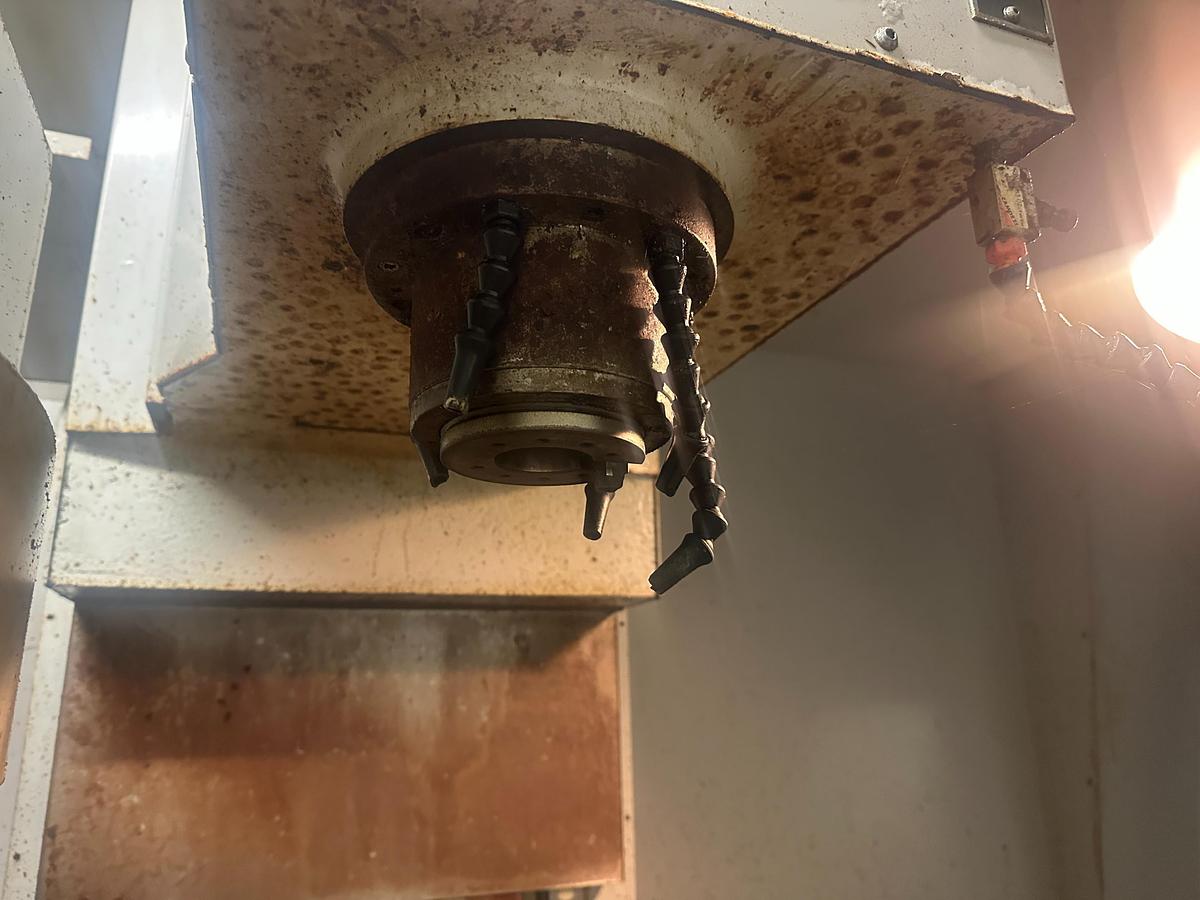

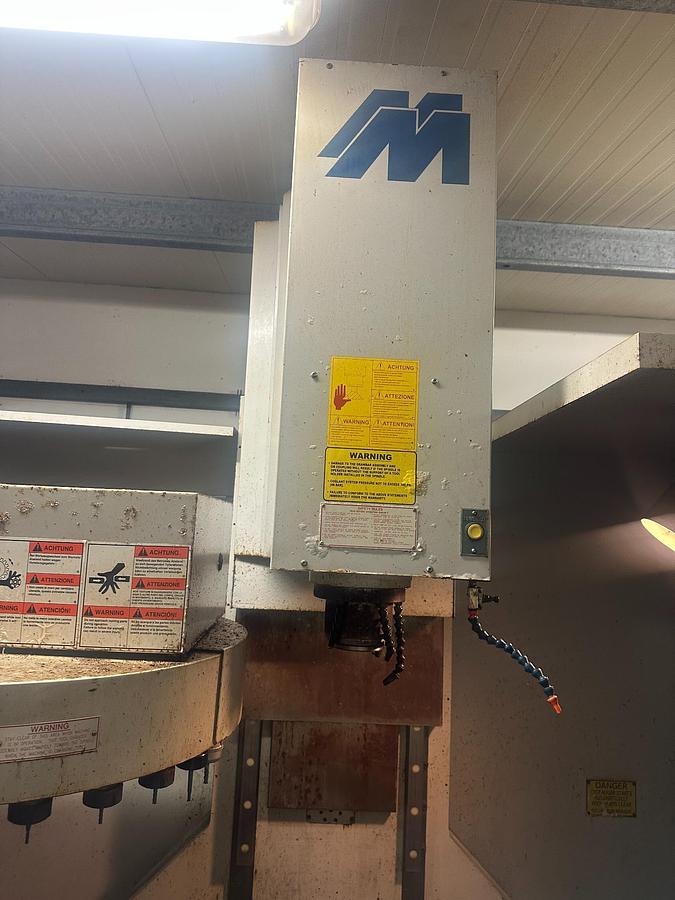

Spindle

Maximum Spindle Speed: Approx. 8,000 rpm

Spindle Power: Approx. 24 HP / 18kW peak rating

Spindle Taper: 40 Taper / CT40-type specification

The combination of a 40-taper spindle and substantial machine construction makes the VM22 suitable for both general milling and heavier material-removal work.

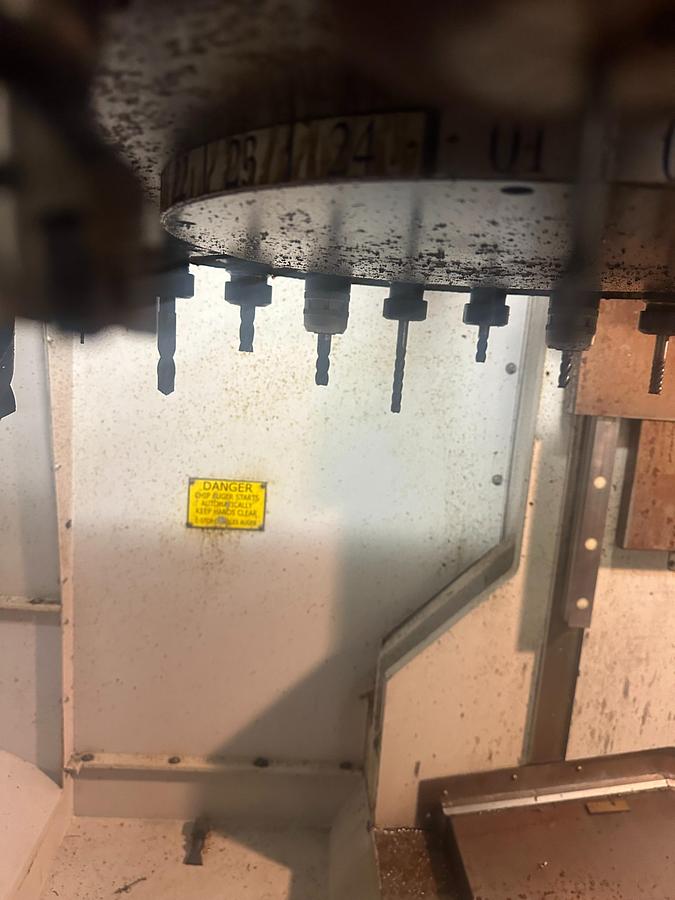

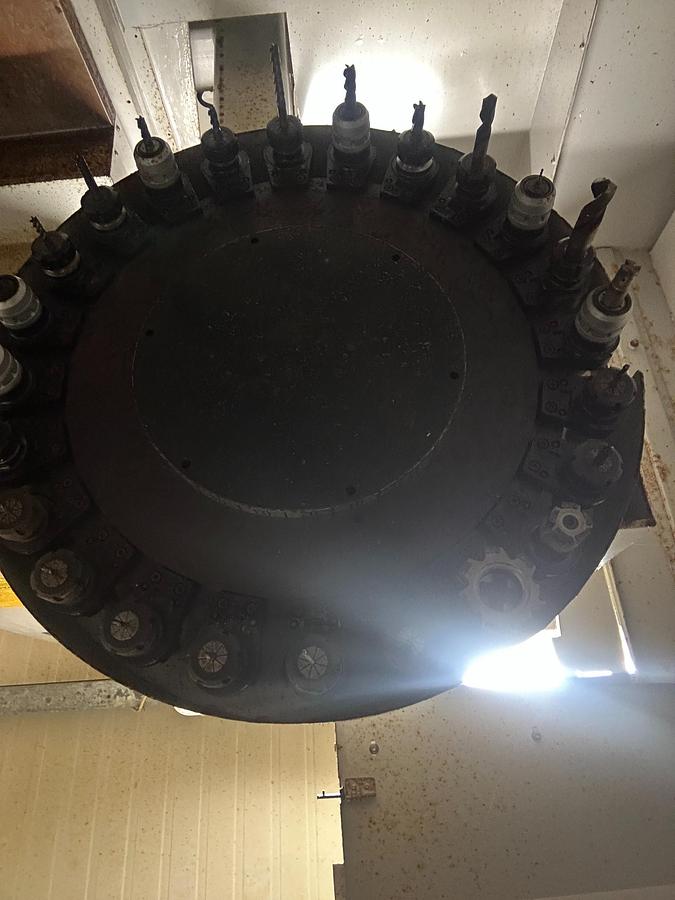

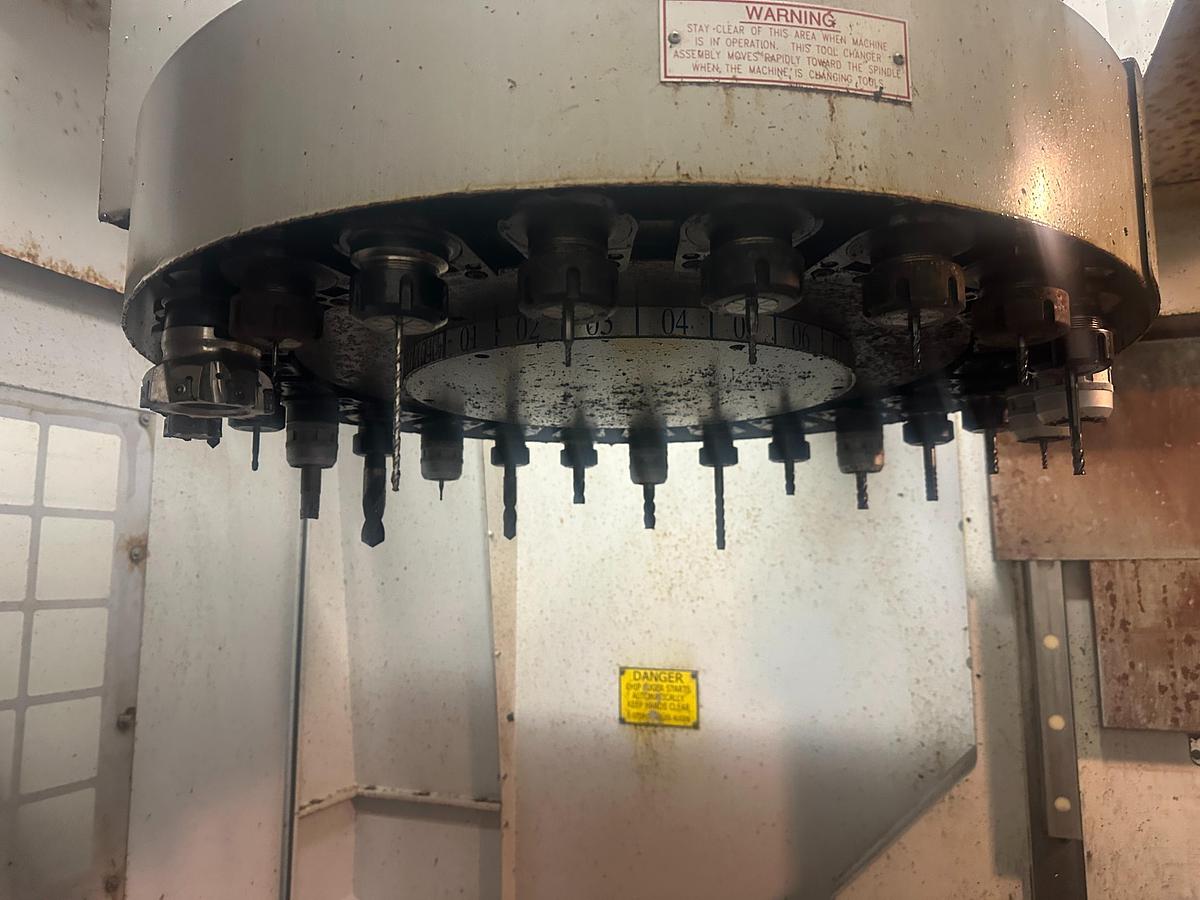

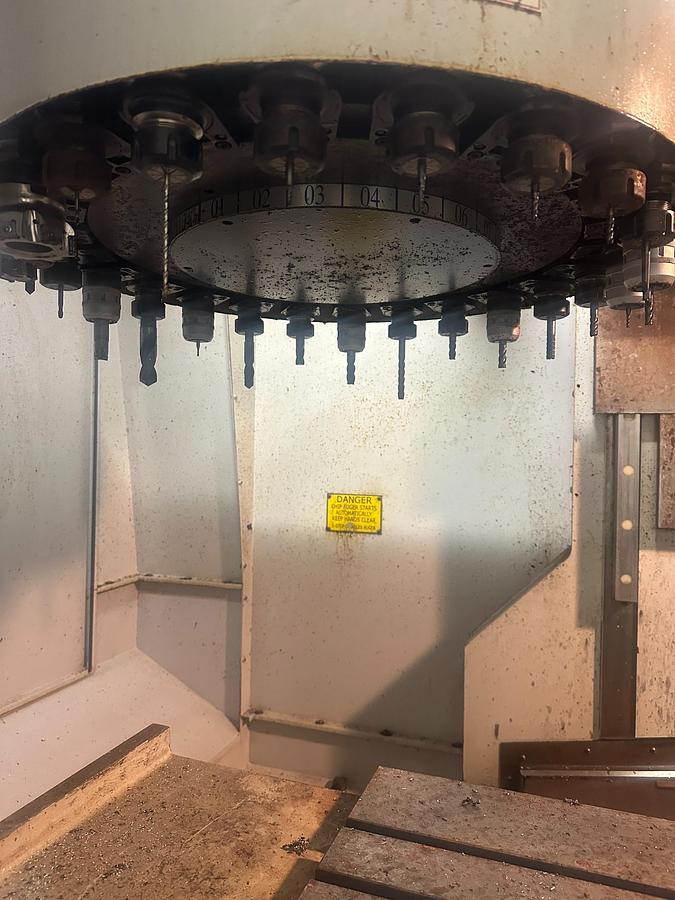

Automatic Tool Changer

Tool Capacity: 24 Tools

The machine is equipped with a 24-position automatic tool changer, providing sufficient tooling capacity for multi-operation machining without frequent manual tool changes.

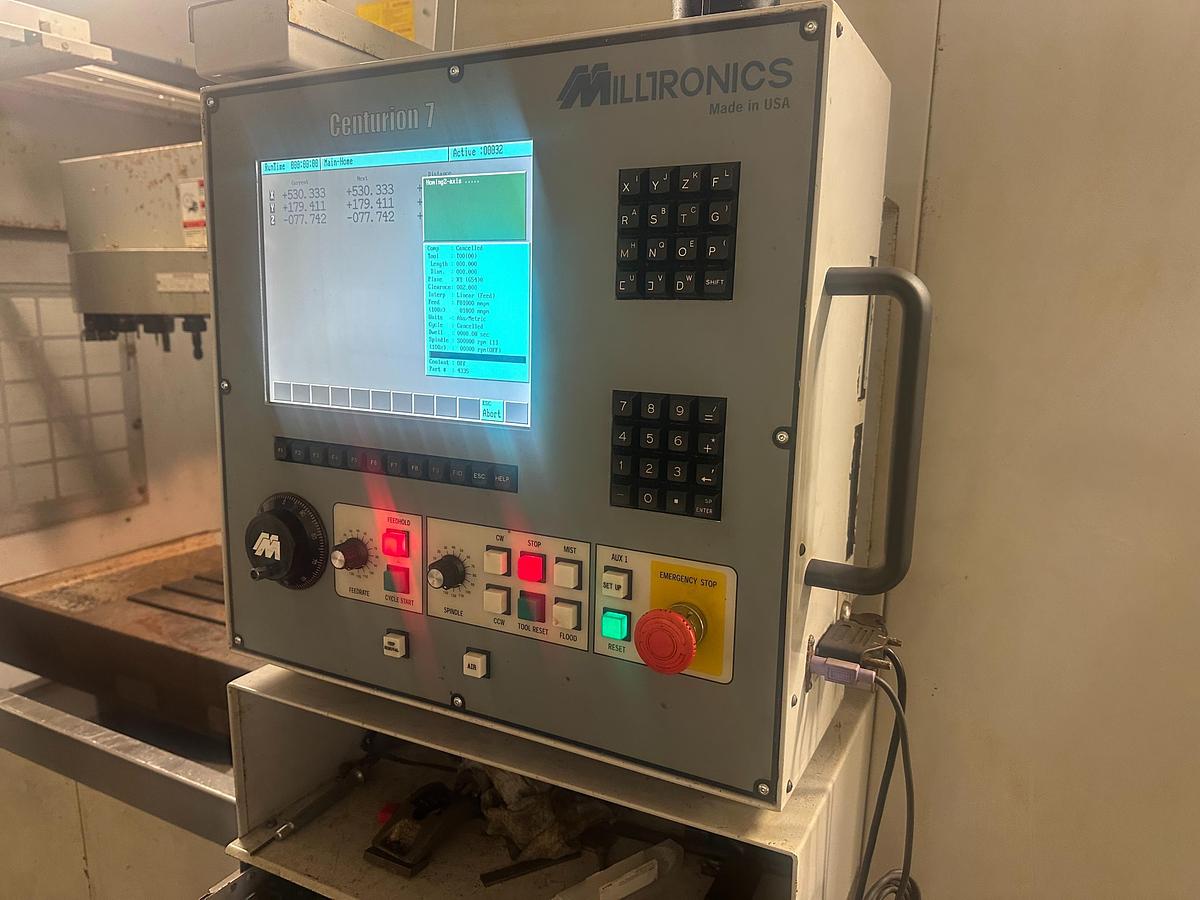

Milltronics Centurion 7 CNC Control

The machine is equipped with the Milltronics Centurion 7 CNC control.

The Centurion series became particularly popular in toolrooms and general engineering companies because of its conversational programming capability while still supporting conventional CNC/G-code programming.

This makes the machine particularly suitable for:

• One-off components
• Small-batch machining
• Toolroom work
• Subcontract machining
• Prototype manufacture
• Production milling
• Operators transitioning from manual to CNC machining

Tooling Included

A large selection of tooling is included with the machine.

This represents a useful additional package for a buyer and may reduce the initial tooling investment required to put the machining centre into production.

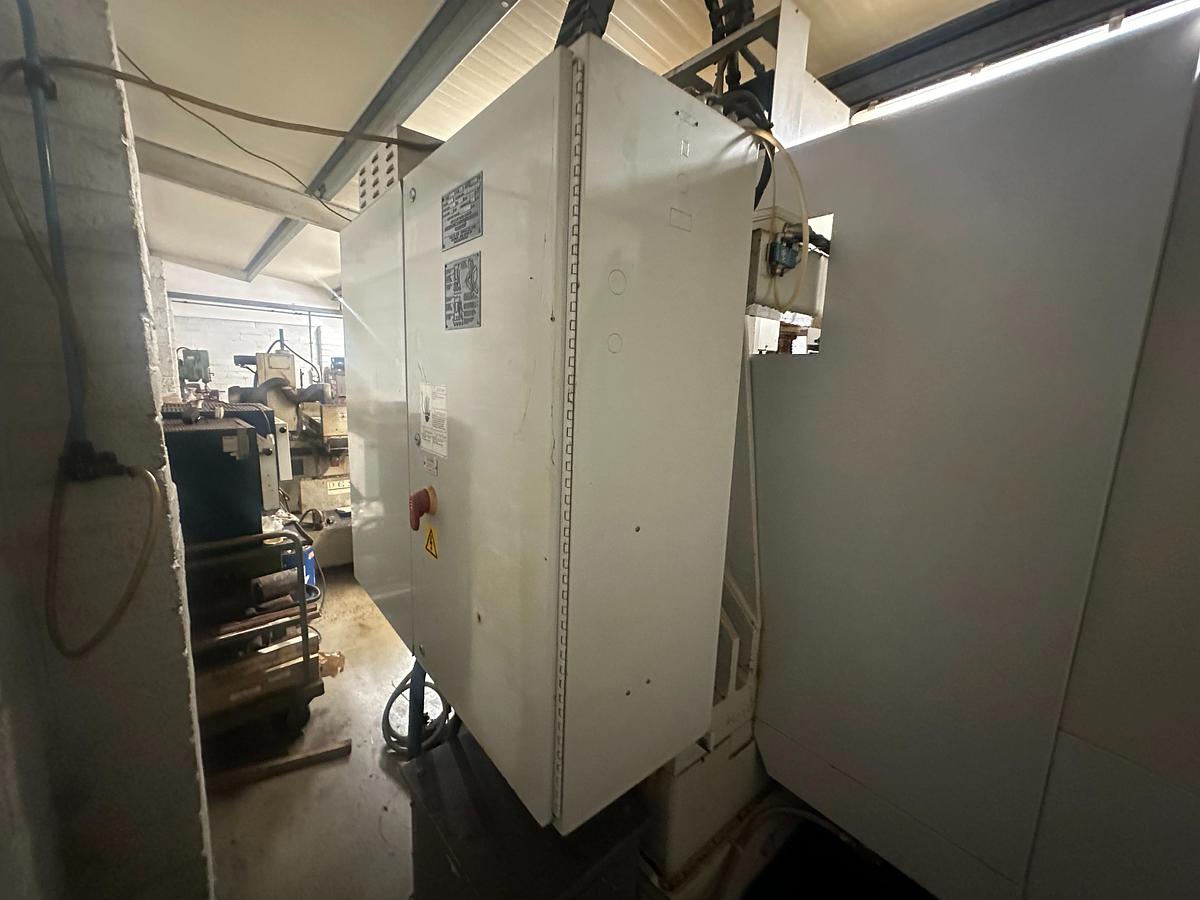

Electrical Specification

Input Voltage: 400V

Phase: 3 Phase

Frequency: 50/60Hz

Full Load Current: Approx. 50A

Largest Load: Approx. 40A

Approximate Machine Size & Weight

Machine Length: 3,050mm

Machine Width: 2,440mm

Machine Height: 2,740mm

Approximate Machine Weight: 7,250kg

Key Features

• 2007 Milltronics VM22 Series B
• American-built CNC vertical machining centre
• Milltronics Centurion 7 CNC control
• 3-axis machine
• X travel approx. 1,016mm
• Y travel approx. 559mm
• Z travel approx. 660mm
• Large 1,143 x 610mm table
• 8,000 rpm spindle
• 40-taper spindle
• 24-tool automatic tool changer
• Large working envelope
• Fully enclosed machining area
• Coolant system
• Suitable for general CNC milling
• Large selection of tooling included

What is a Milltronics VM22?

The Milltronics VM22 is a heavy-duty American-built CNC vertical machining centre designed for general production, toolroom and mould-making applications.

Its 40" x 22" x 26" travel envelope gives it considerably more Y-axis capacity than many conventional 40" VMCs, making it useful for wider components and larger fixtures.

Typical Applications

The Milltronics VM22 is suitable for:

• Precision CNC milling
• Toolroom machining
• General engineering
• Subcontract machining
• Mould and die machining
• Jig and fixture manufacture
• Prototype manufacture
• Aluminium machining
• Mild steel machining
• Stainless steel machining
• Component production
• Drilling and tapping
• Multi-operation machining
• Small and medium batch production

Large-Capacity 3-Axis CNC Machining Centre

With approximately 1 metre of X travel and 560mm of Y travel, the VM22 offers a useful machining envelope for engineering companies requiring more capacity than a smaller compact VMC.

The 24-tool automatic tool changer allows a good selection of milling cutters, drills, taps and finishing tools to remain loaded, while the included tooling adds further value for a purchaser looking for a production-ready machining package.

Used Milltronics VM22 for Sale in Ireland, UK & Europe

Used Machine Tools Ireland supplies used CNC machining centres, milling machines, lathes and engineering machinery throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

Contact us if you are searching for a:

used Milltronics VM22, Milltronics VM22 for sale, used CNC machining centre Ireland, used vertical machining centre UK, 40 taper VMC, 1000mm X travel machining centre, Centurion 7 CNC machine, 24 tool machining centre, American CNC milling machine, used Milltronics CNC, 3-axis VMC, second-hand CNC milling machine or used engineering machinery Europe.

Machine Summary

Make: Milltronics

Model: VM22 Series B

Year: 2007

Control: Milltronics Centurion 7

X Travel: Approx. 1,016mm

Y Travel: Approx. 559mm

Z Travel: Approx. 660mm

Table: Approx. 1,143 x 610mm

Spindle Speed: Approx. 8,000 rpm

Spindle Taper: 40 Taper

ATC: 24 Tools

Electrical Supply: 440V, 3 Phase, 50/60Hz

Tooling: Large selection included

Approx. Machine Weight: 7,250–7,300kg

Please Note: All specifications, dimensions, speeds, capacities, weights and machine details quoted above are approximate and are provided for guidance only. Specifications can vary between individual Milltronics VM22 machines and configurations. Prospective purchasers should verify all important specifications, tooling and operating requirements prior to purchase.
