Used 1983 Fritz Müller SDZ 250.6.2 250 ton hydraulic press with 900 x 1100mm bed, draw cushion, PanelView 600 control and Dimeco coil line.

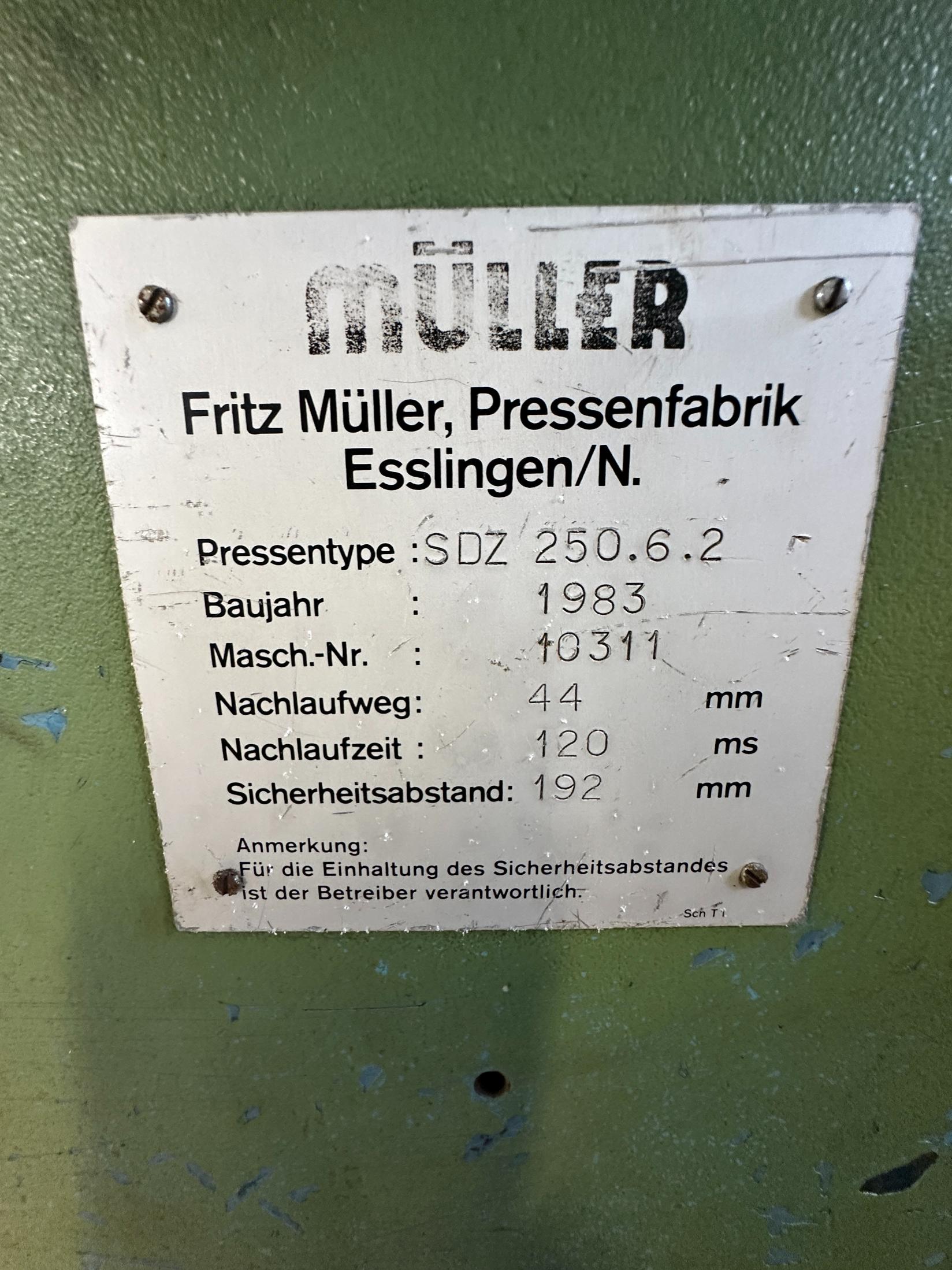

Manufacturer: Fritz Müller

Model: SDZ 250.6.2

Machine Type: Double-column hydraulic drawing / forming press

Year: 1983

Condition: Very Good

Please Note: Machine is offered EX WORKS. Dismantling, removal and loading are extra.

Includes:

Dimeco Type 2372/19 powered decoiler

Dimeco Type 1675/11/DV straightener

Dimeco Type 1080/C leveller

Machine Description

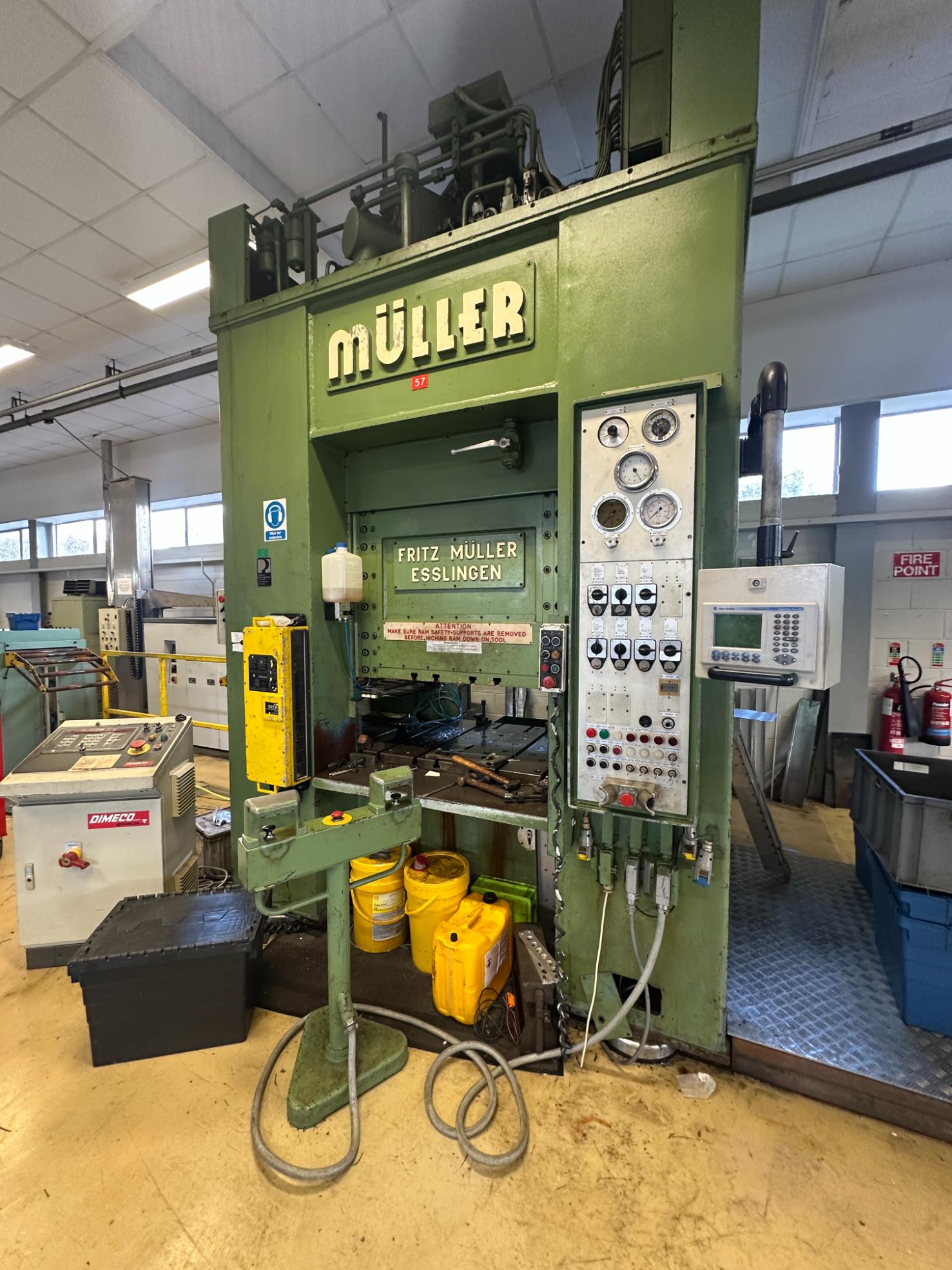

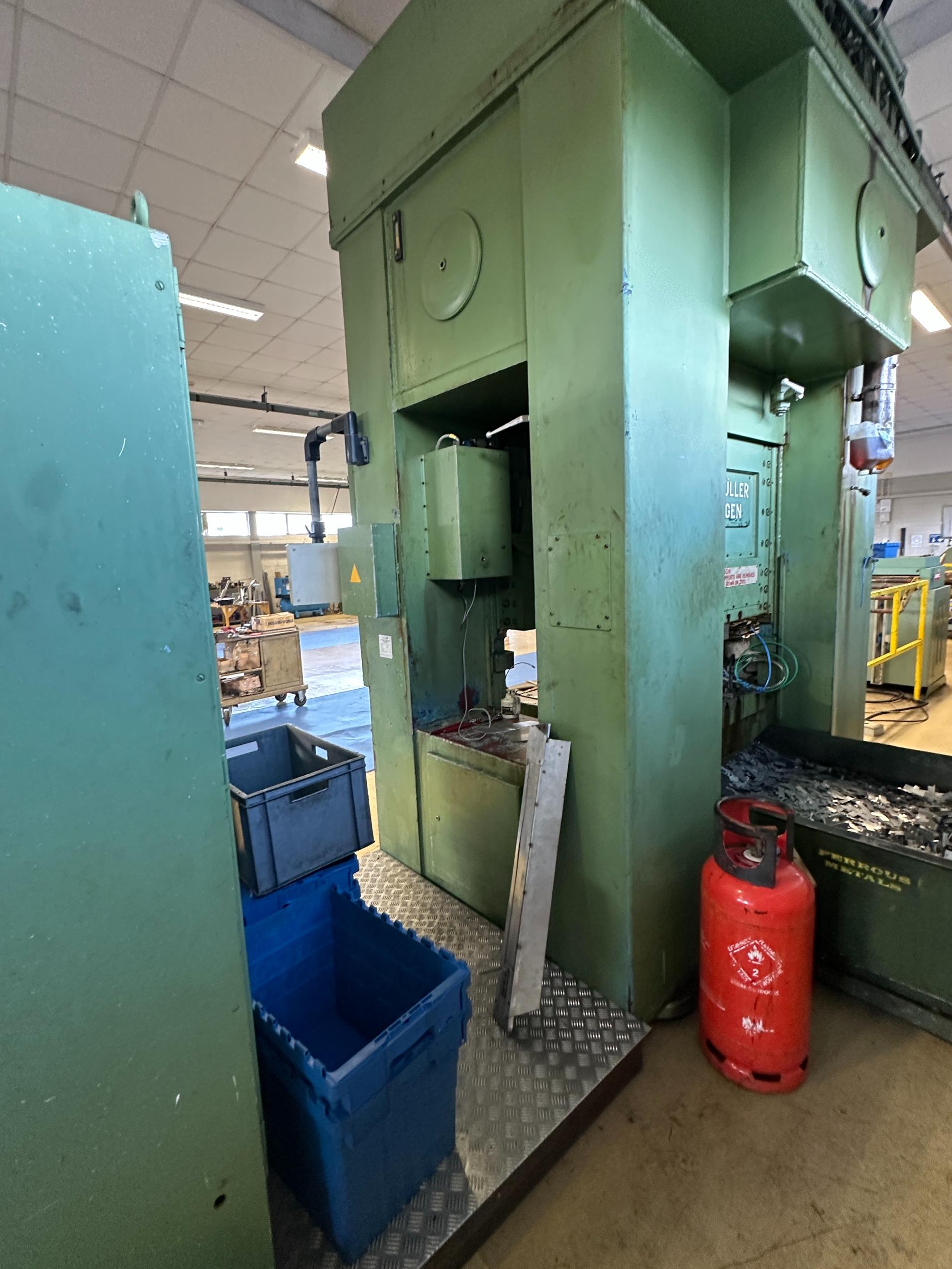

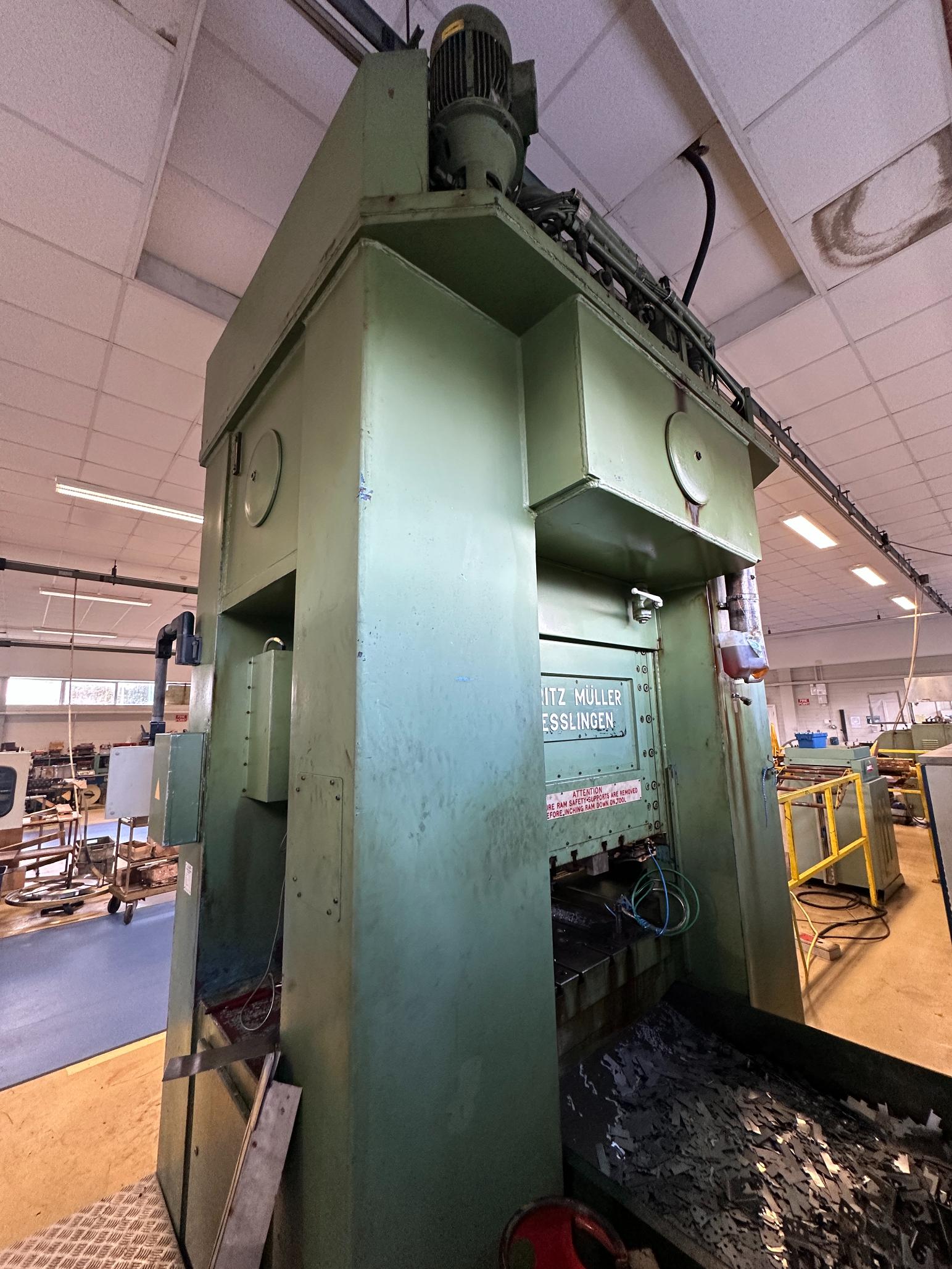

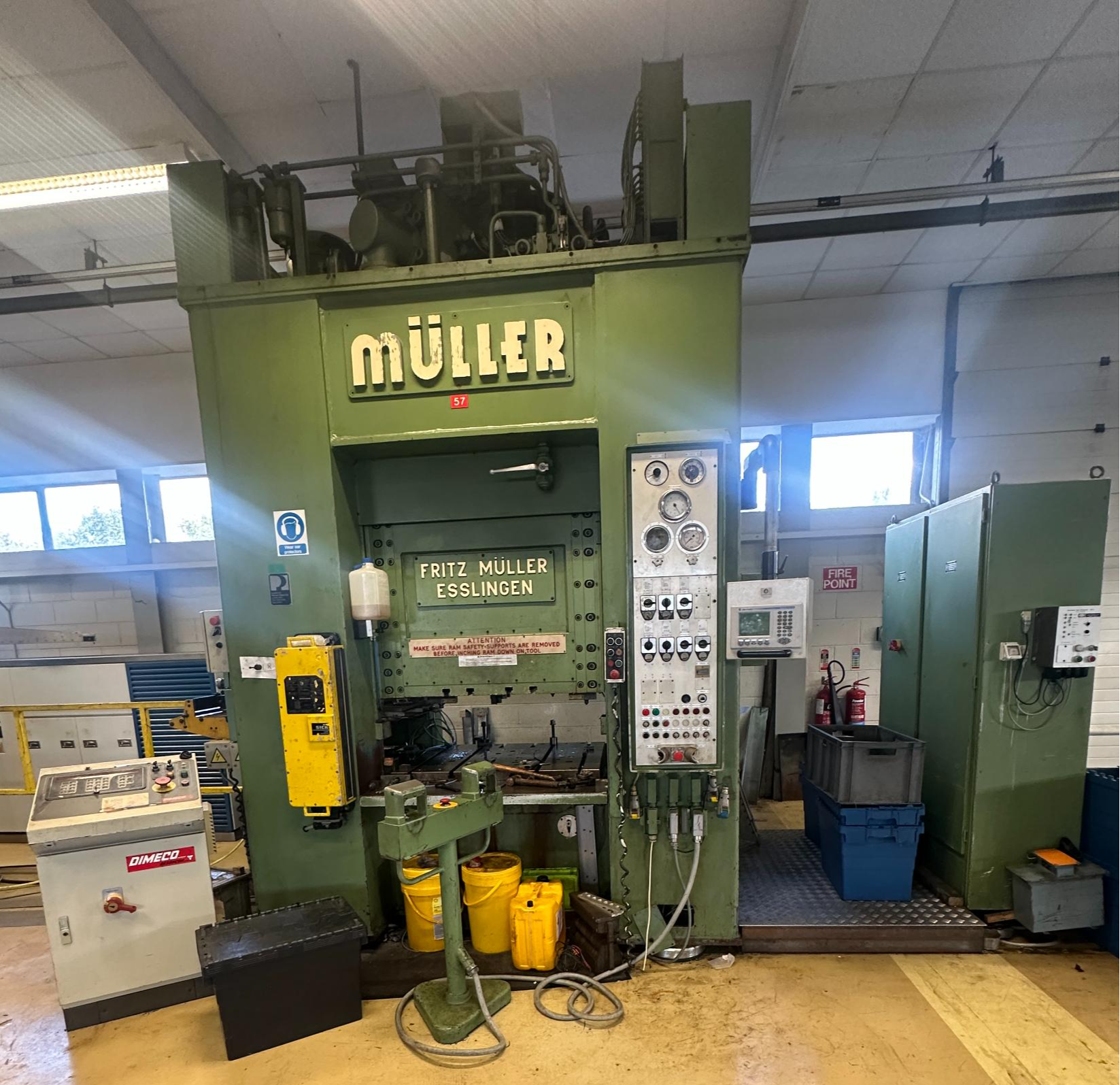

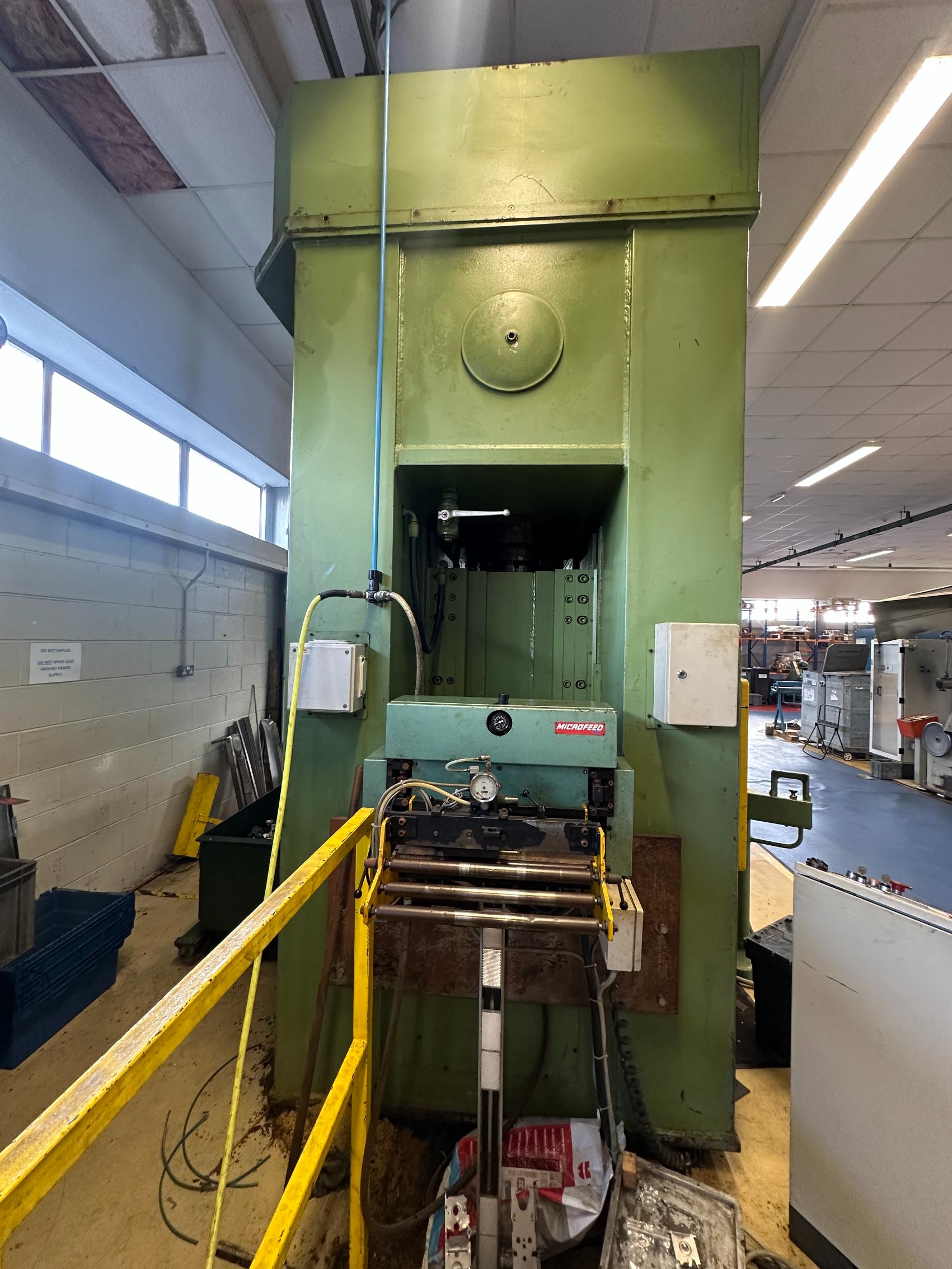

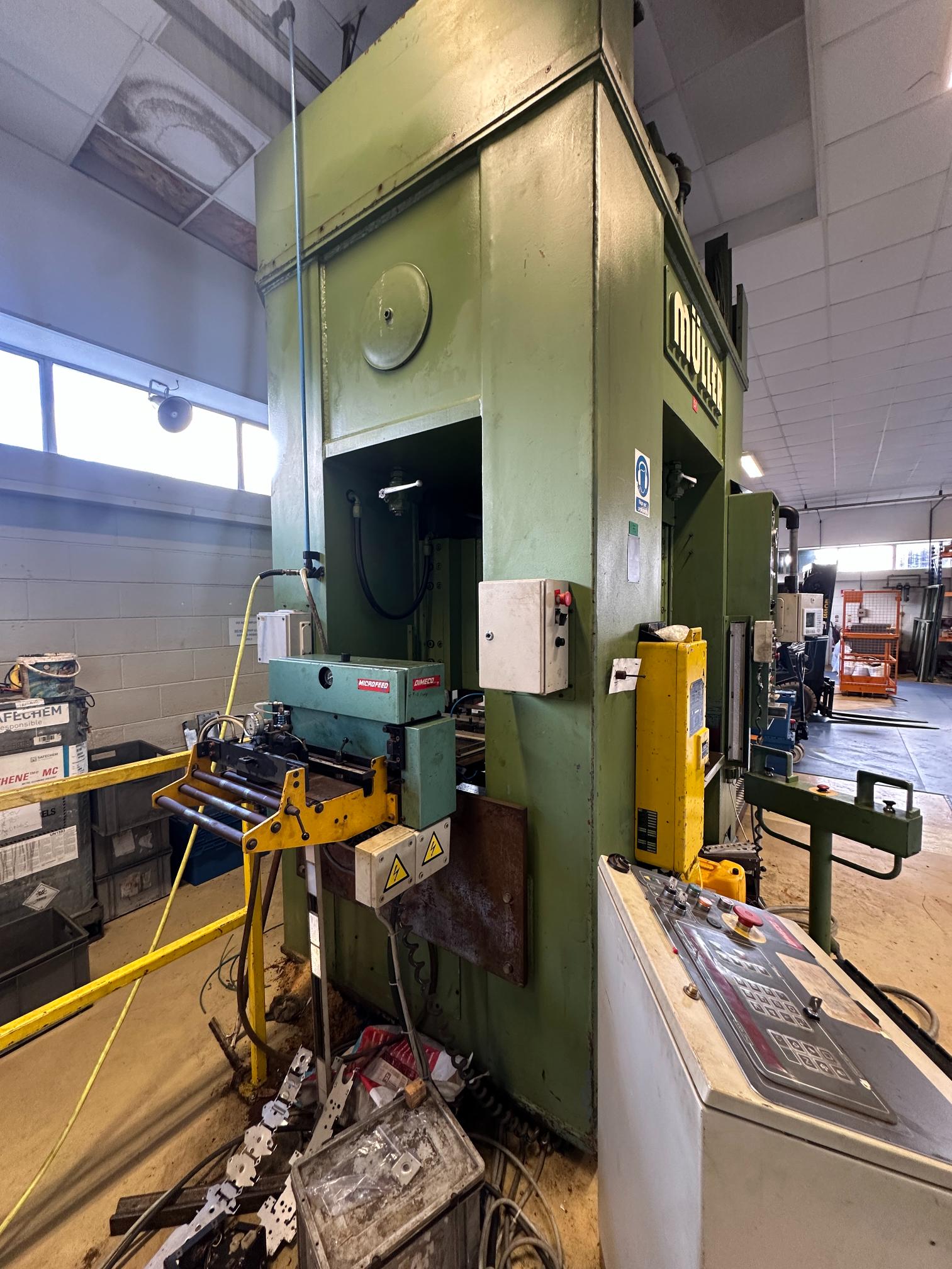

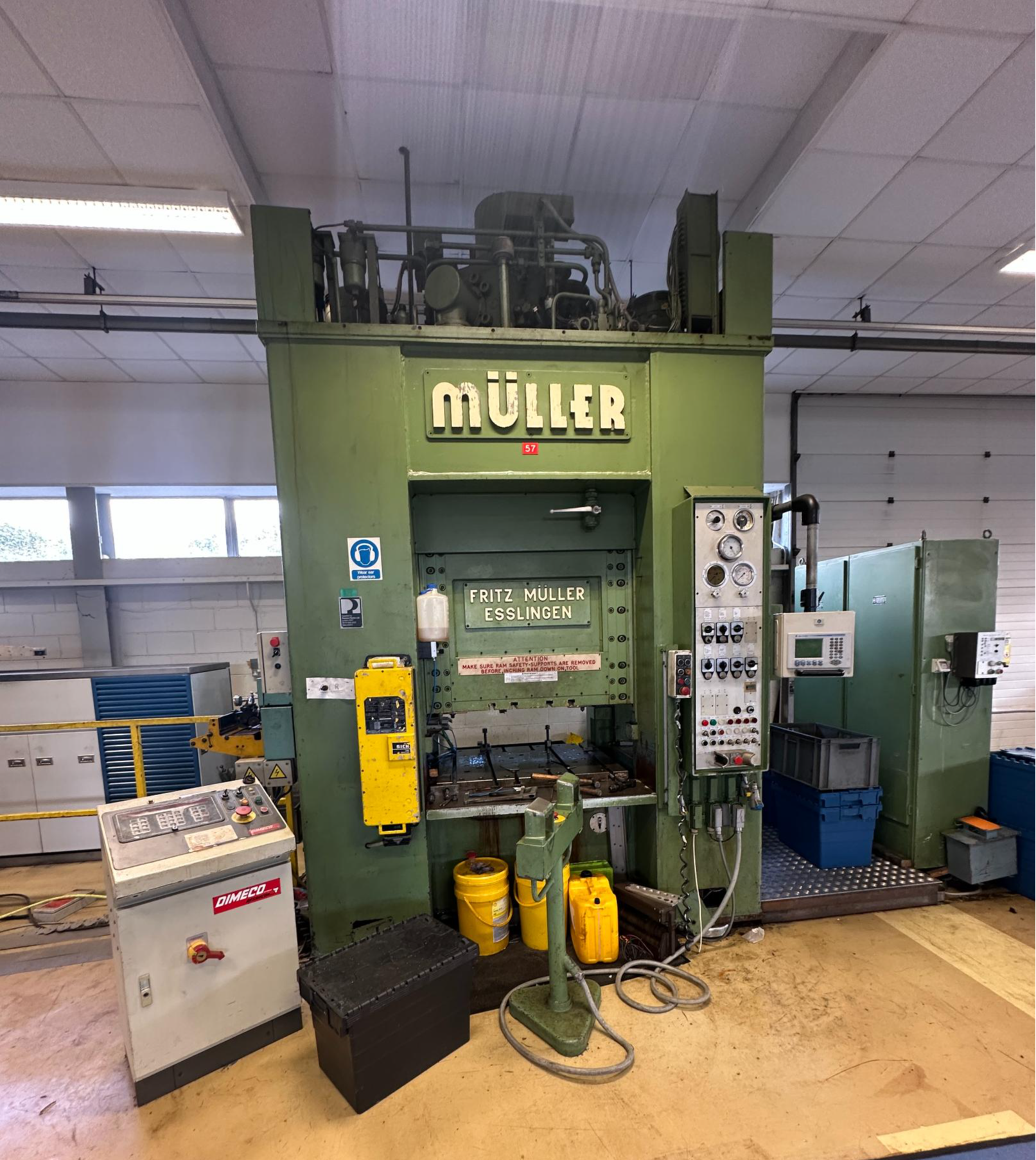

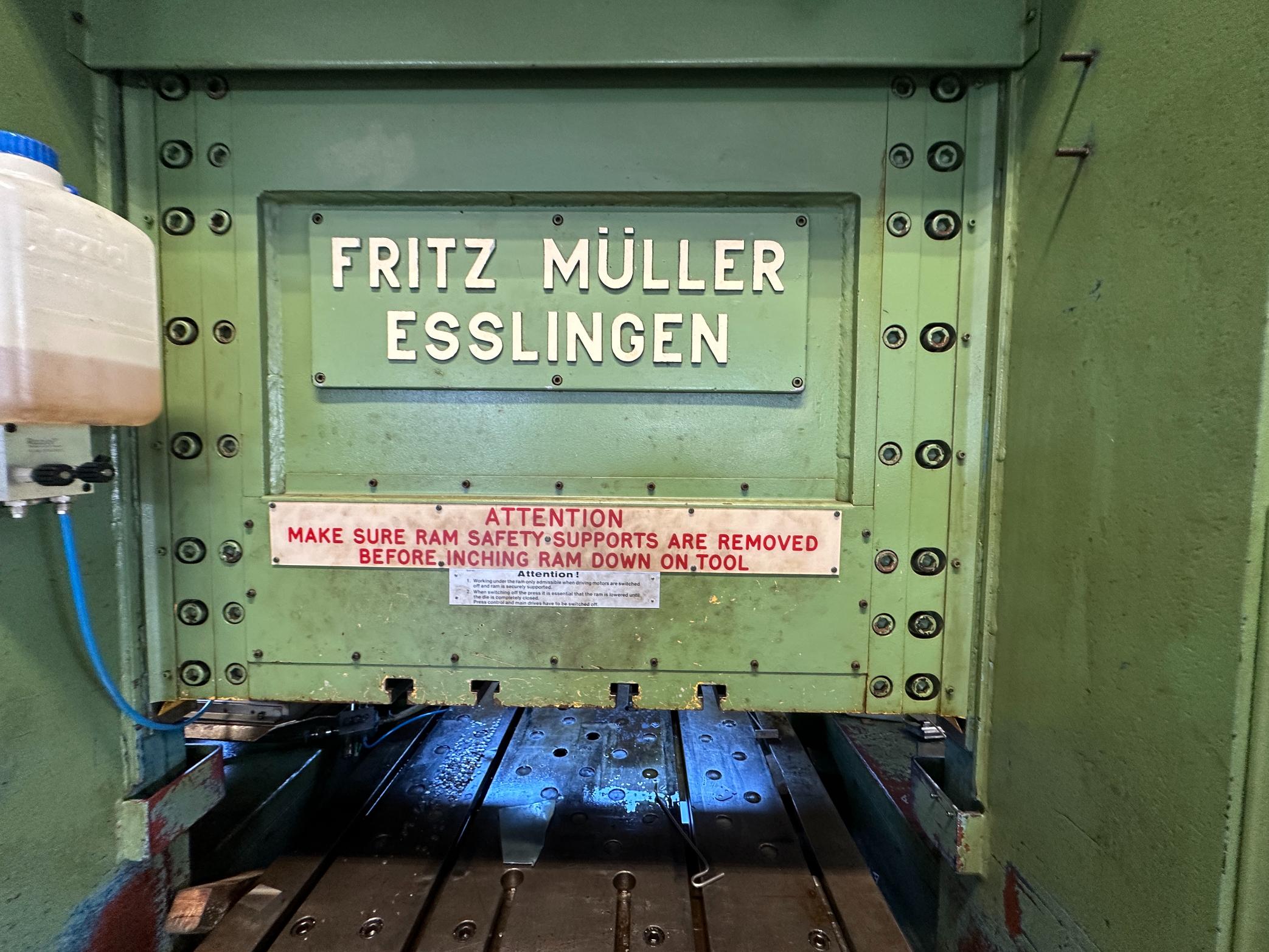

Used 1983 Fritz Müller SDZ 250.6.2 250 tonne double-column hydraulic press, complete with Allen-Bradley PanelView 600 operator control, hydraulic draw cushion, safety light curtain and 1990 Dimeco coil handling line incorporating powered decoiler, straightener and levelling equipment.

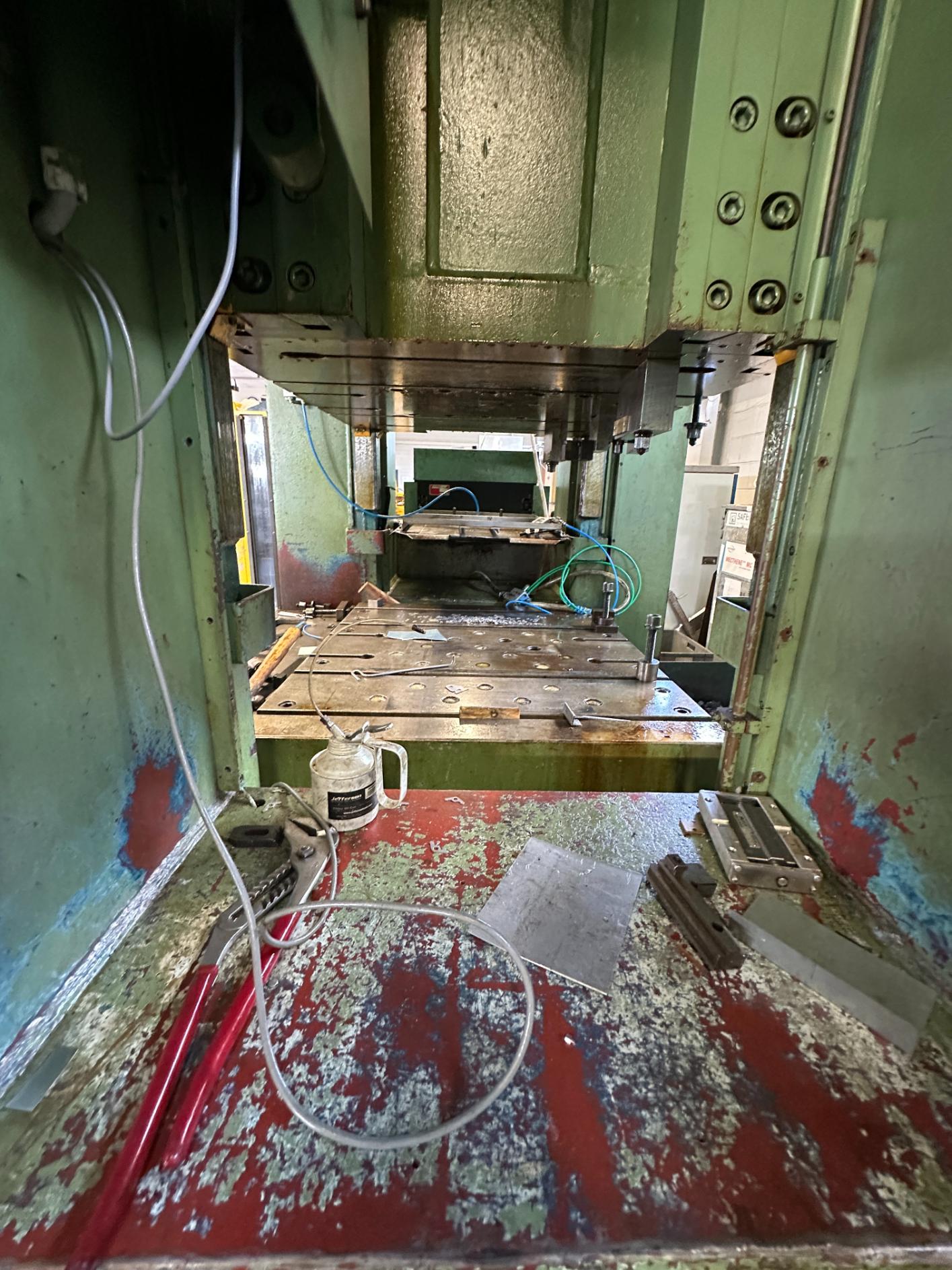

The press features a substantial 900 × 1100 mm working bed and a nominal pressing capacity of 250 tonnes / approximately 2,500 kN, making it suitable for a broad range of sheet metal forming, drawing, stamping, blanking, pressing and coil-fed production applications.

The included Dimeco line comprises:

• Dimeco Type 2372/19 powered decoiler
• Dimeco Type 1675/11/DV straightener
• Dimeco Type 1080/C leveller
• All Dimeco equipment manufactured 1990

Together, the press and coil equipment provide the basis for a complete production line for processing sheet material directly from coil.

Technical Specification

Manufacturer: Fritz Müller

Model / Type: SDZ 250.6.2

Year: 1983

Machine Type: Double-column hydraulic drawing / forming press

Nominal Press Force: 250 tonnes / approx. 2,500 kN

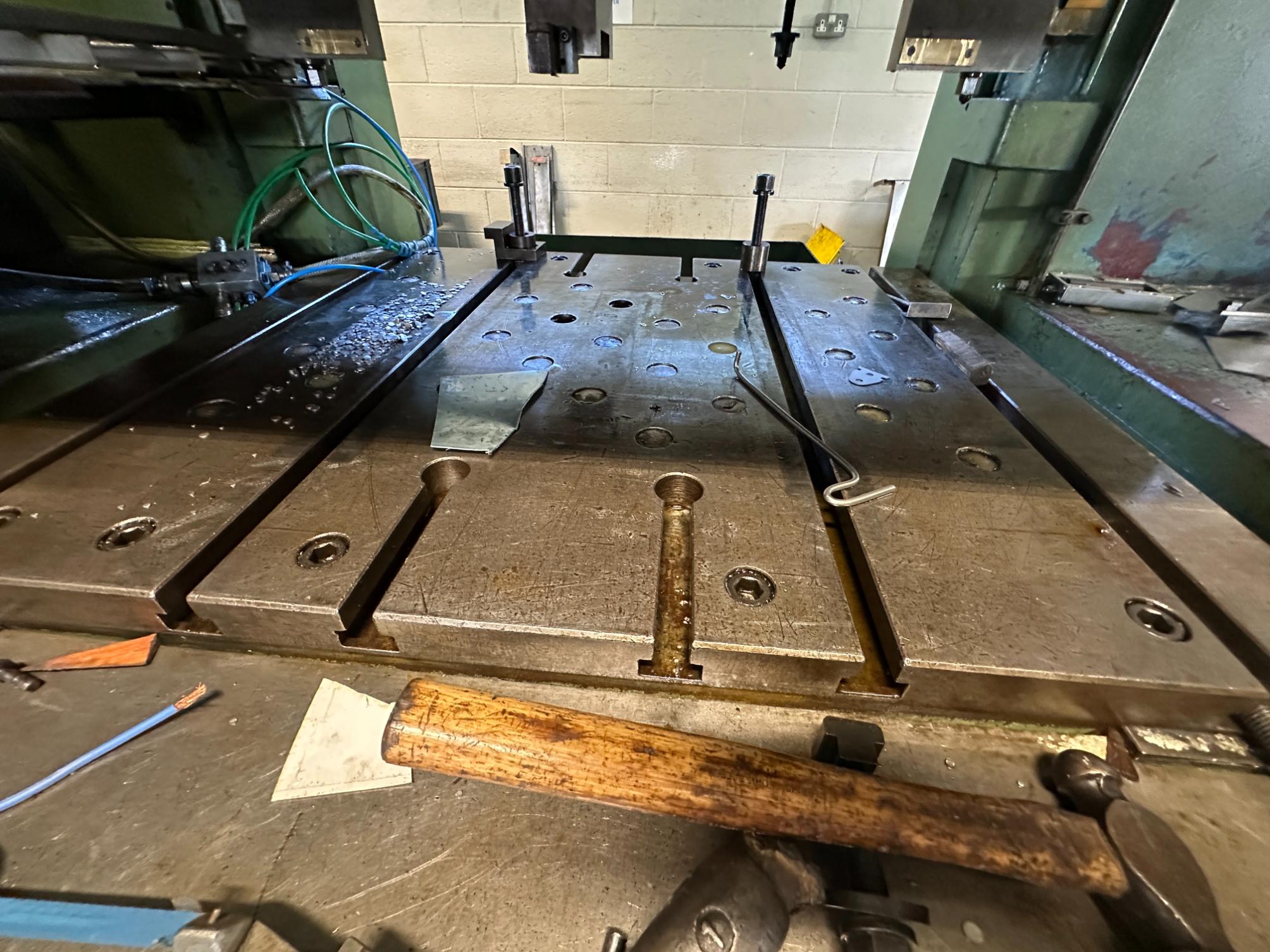

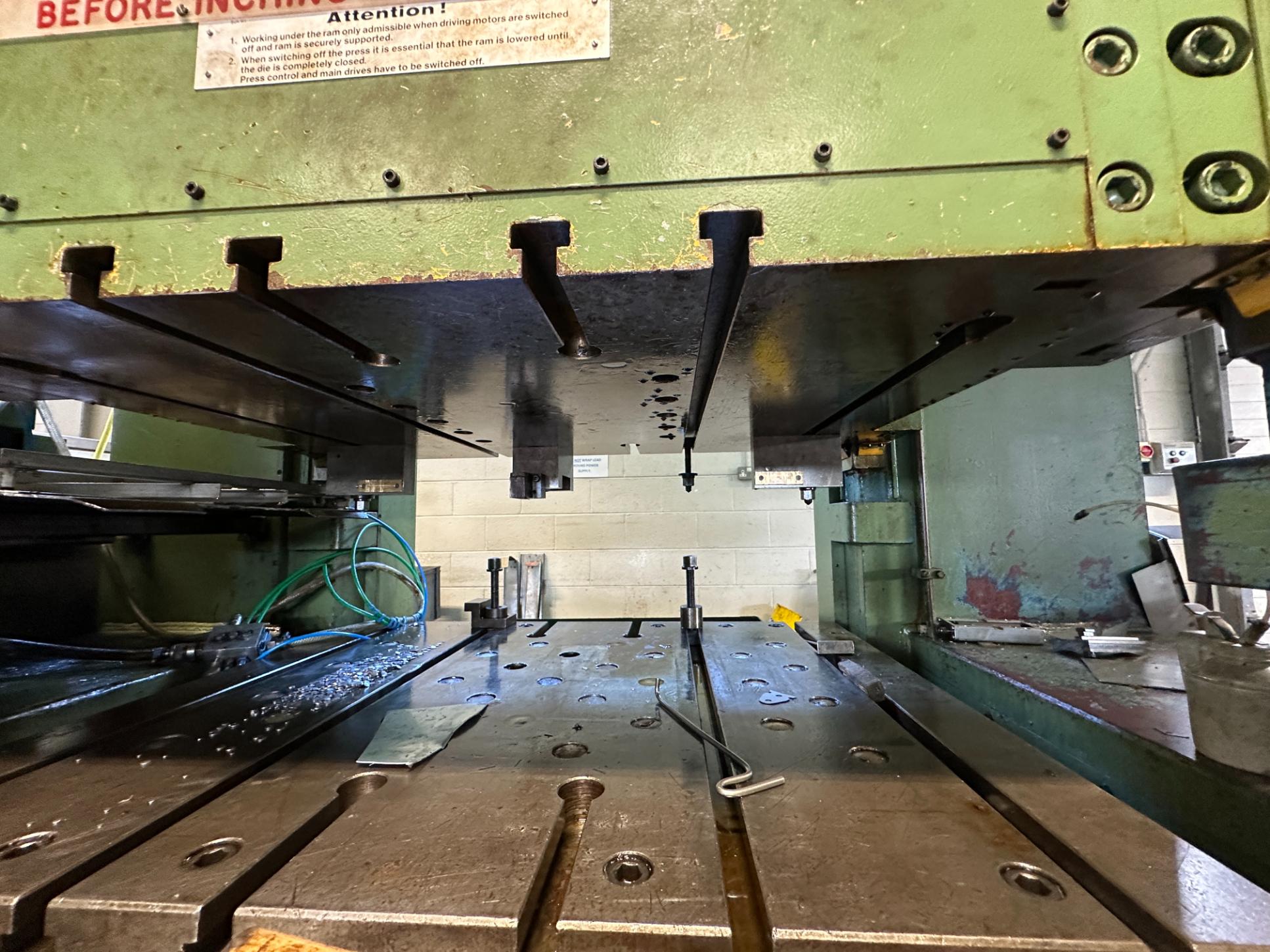

Bed / Table Size: 900 × 1100 mm

Control: Allen-Bradley PanelView 600

Draw Cushion: Hydraulic draw cushion fitted

Safety System: Safety light curtain

Operation: Hydraulic production press

Distance Between Columns: 1,125 mm

Ram Stroke: 250 mm

Maximum Table-to-Ram Distance: 800 mm

Table Size: 1,100 × 900 mm

Draw Cushion Force: 63 tonnes

Draw Cushion Stroke: 100 mm

Draw Cushion Area: 700 × 400 mm

Ram Area: 1,080 × 900 mm

Side Opening: 700 mm

Oil Capacity: Approx. 1,000 litres

Drive Power: Approx. 35 kW

Machine Weight: Approx. 23 tonnes

Approx. Overall Dimensions: 2.5 × 2.3 × 4.5 m

Coil Line: Dimeco - 1990

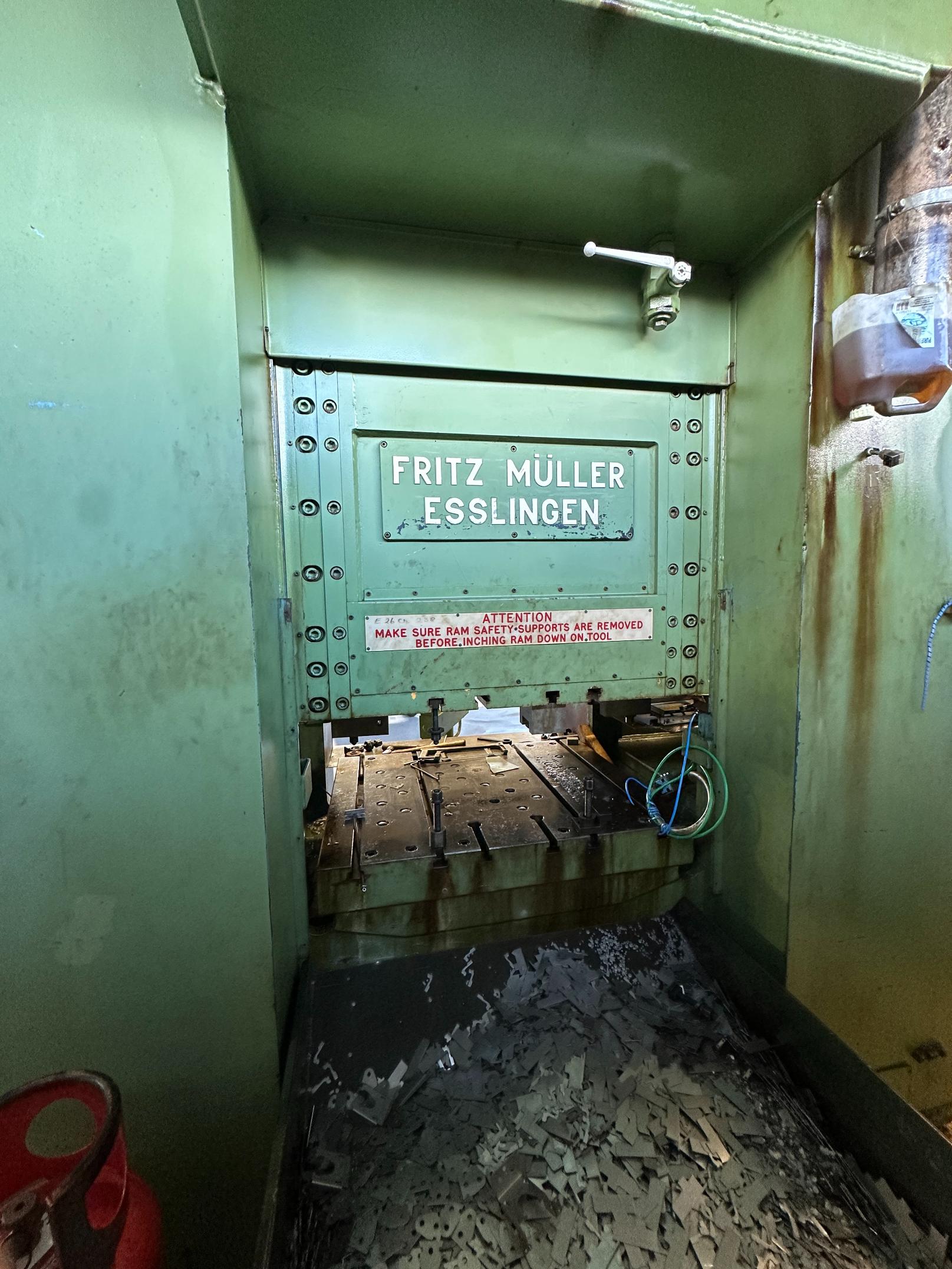

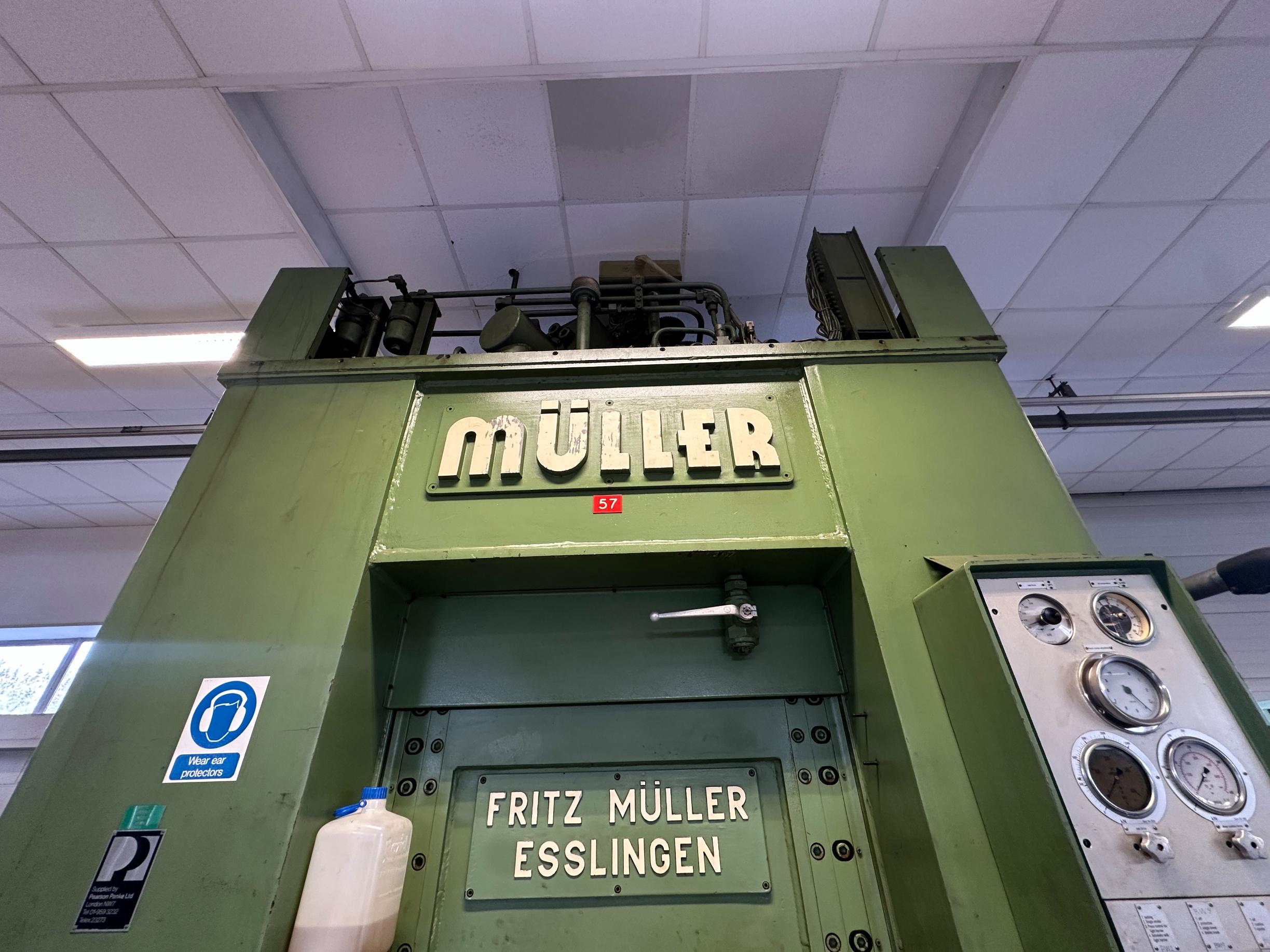

Fritz Müller was a long-established German hydraulic press manufacturer based in Esslingen. The business subsequently became part of Müller Weingarten, and Schuler today continues service and rebuilding activities for Müller Weingarten press products

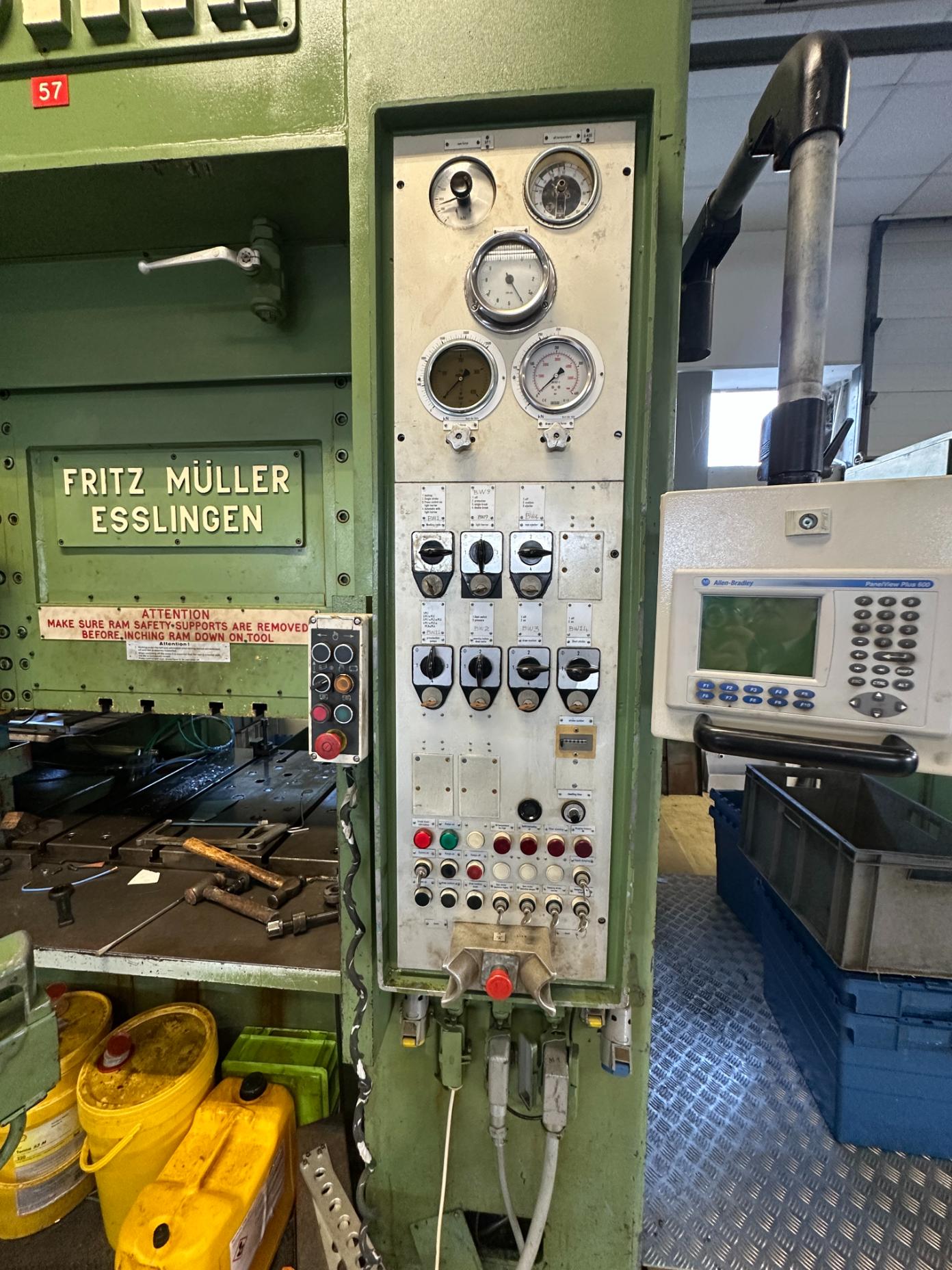

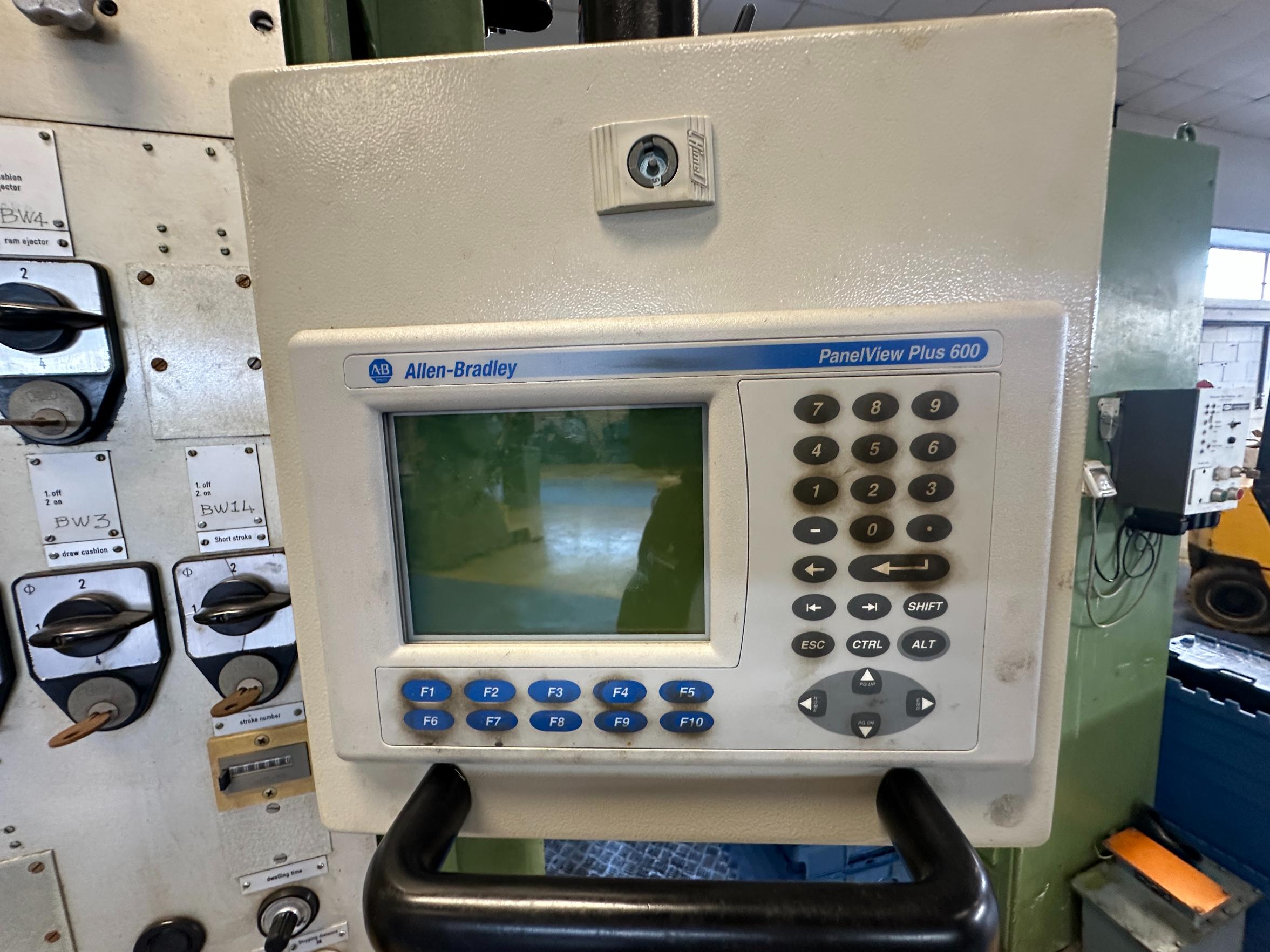

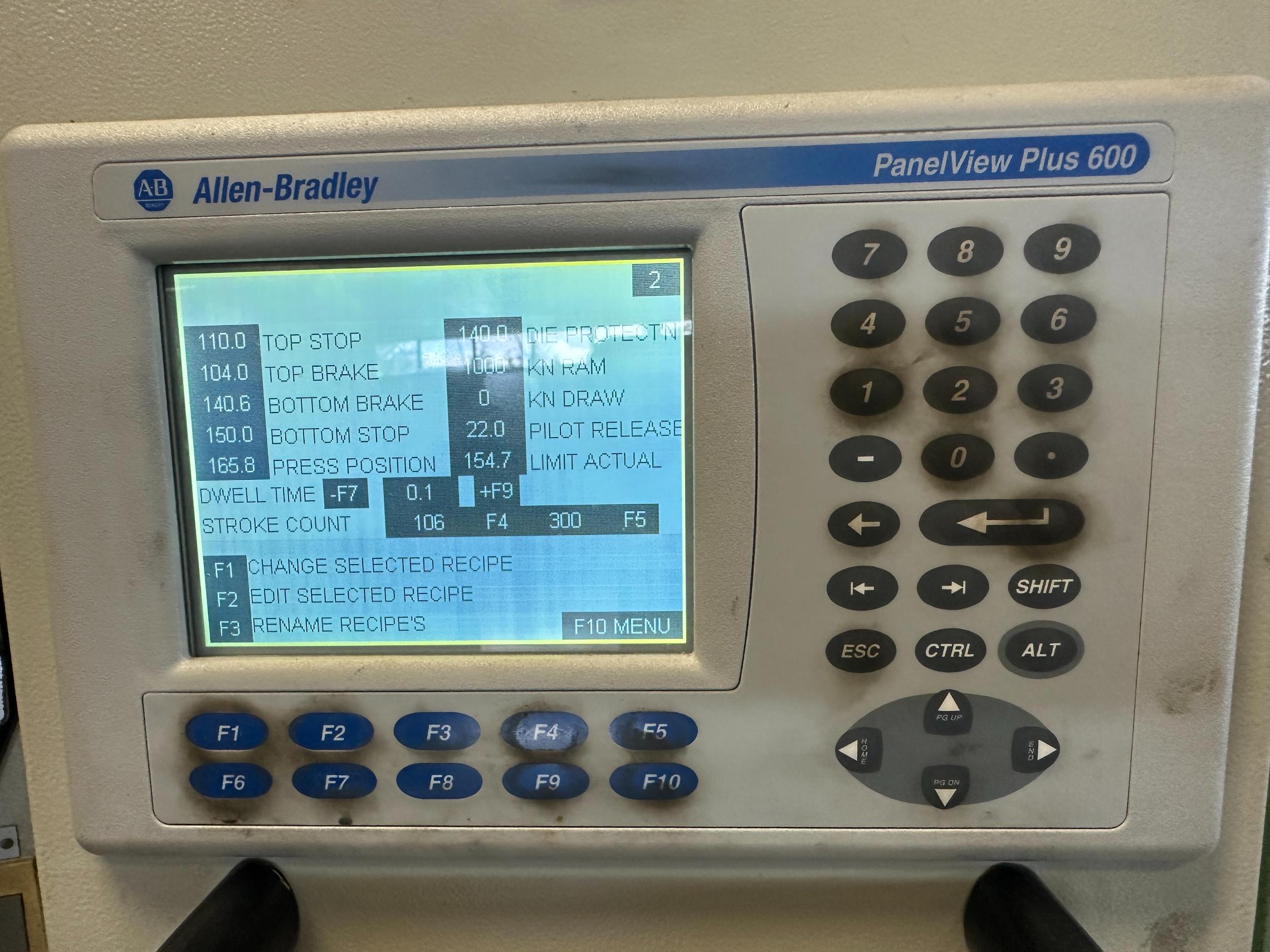

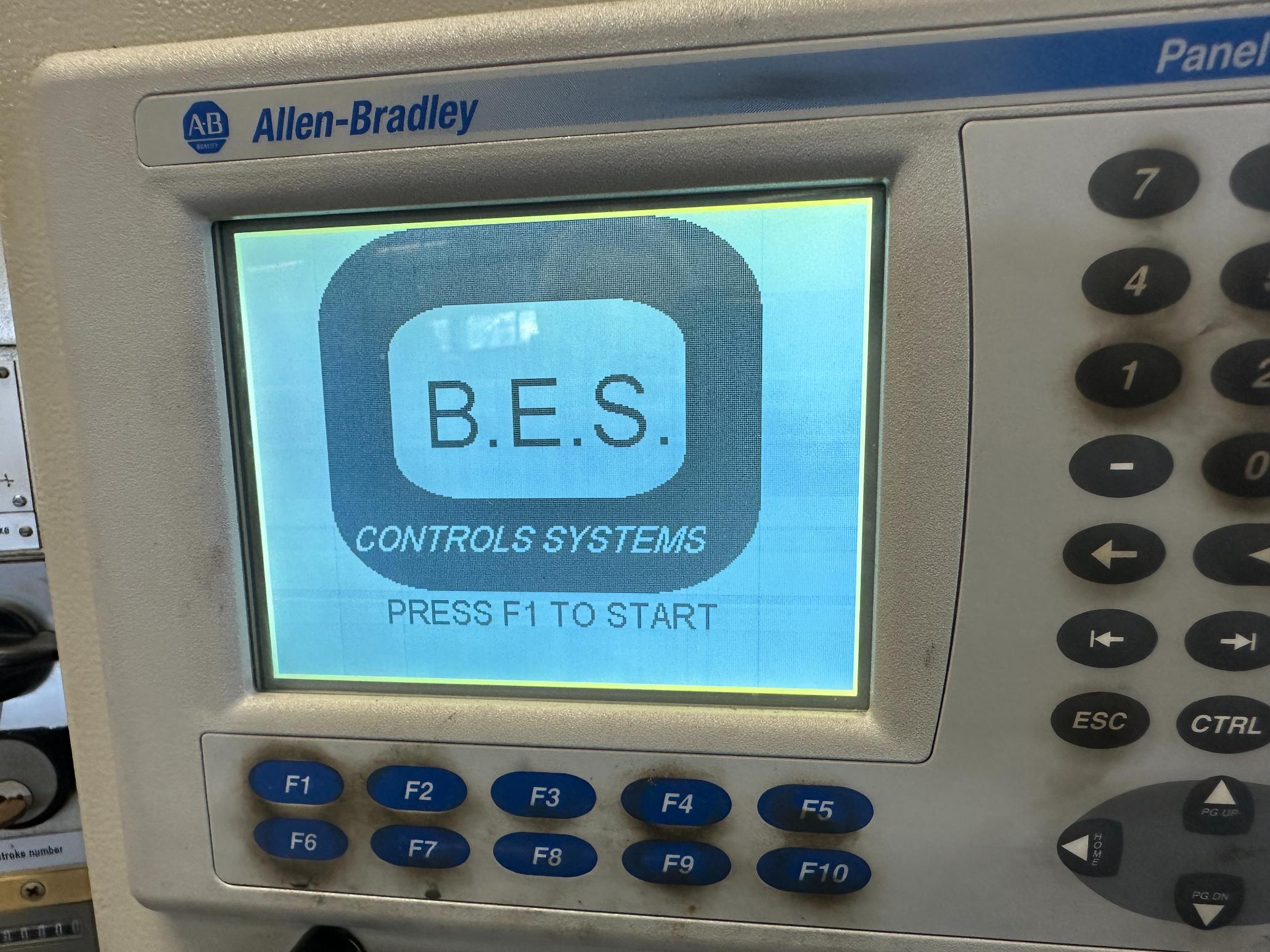

Allen-Bradley PanelView 600 Operator Control

The machine is fitted with an Allen-Bradley PanelView 600 industrial operator interface / HMI, providing the operator interface for machine functions and production settings.

Hydraulic Draw Cushion

The press incorporates a hydraulic draw cushion in the table, an important feature for sheet-metal forming and deep-drawing applications.

A draw cushion provides controlled opposing force underneath the component during the forming operation. This is particularly useful for:

• Deep drawing
• Cup and shell forming
• Controlled sheet-metal forming
• Preventing uncontrolled material flow
• Reducing wrinkling during drawing
• Multi-stage forming operations

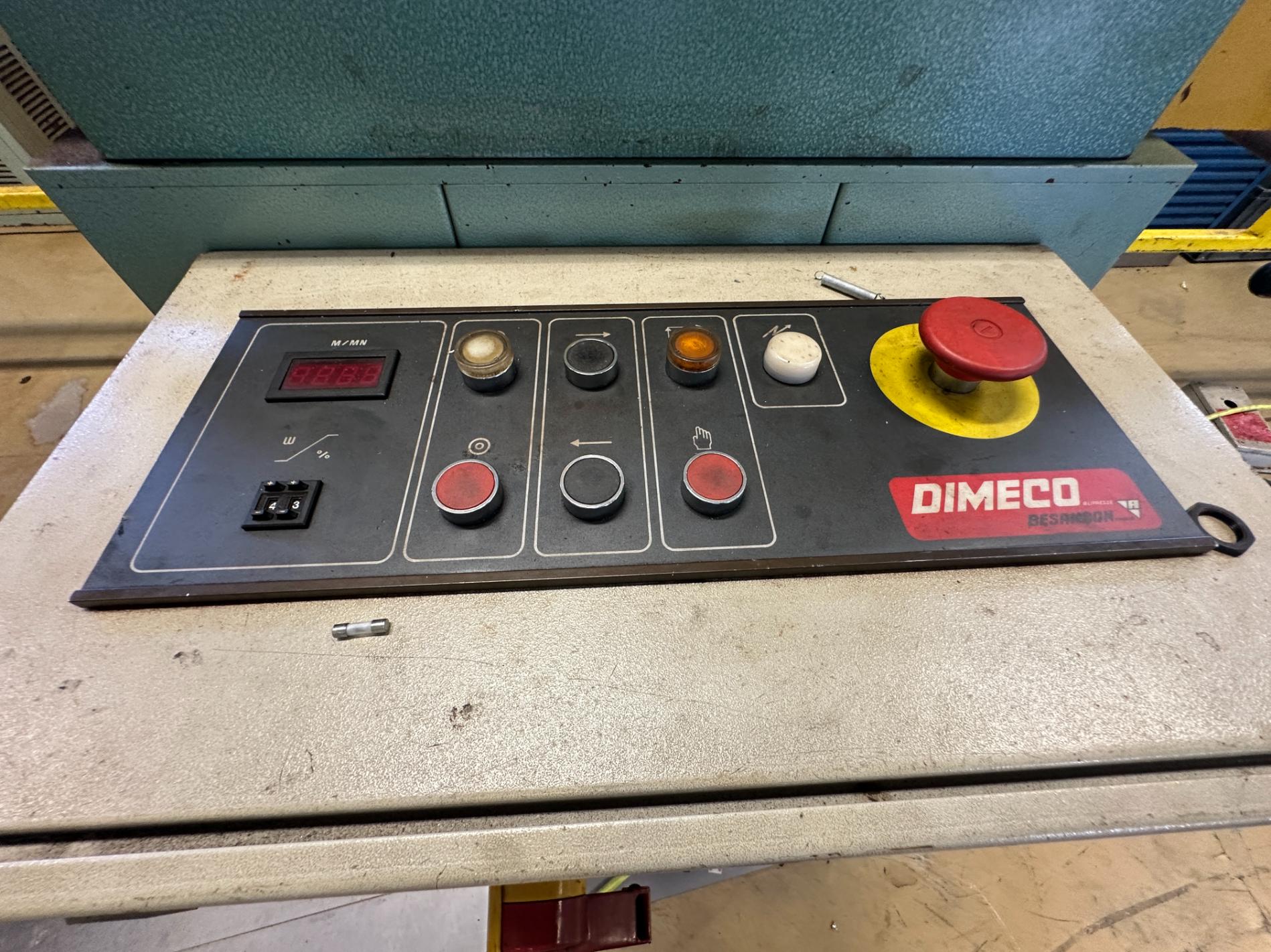

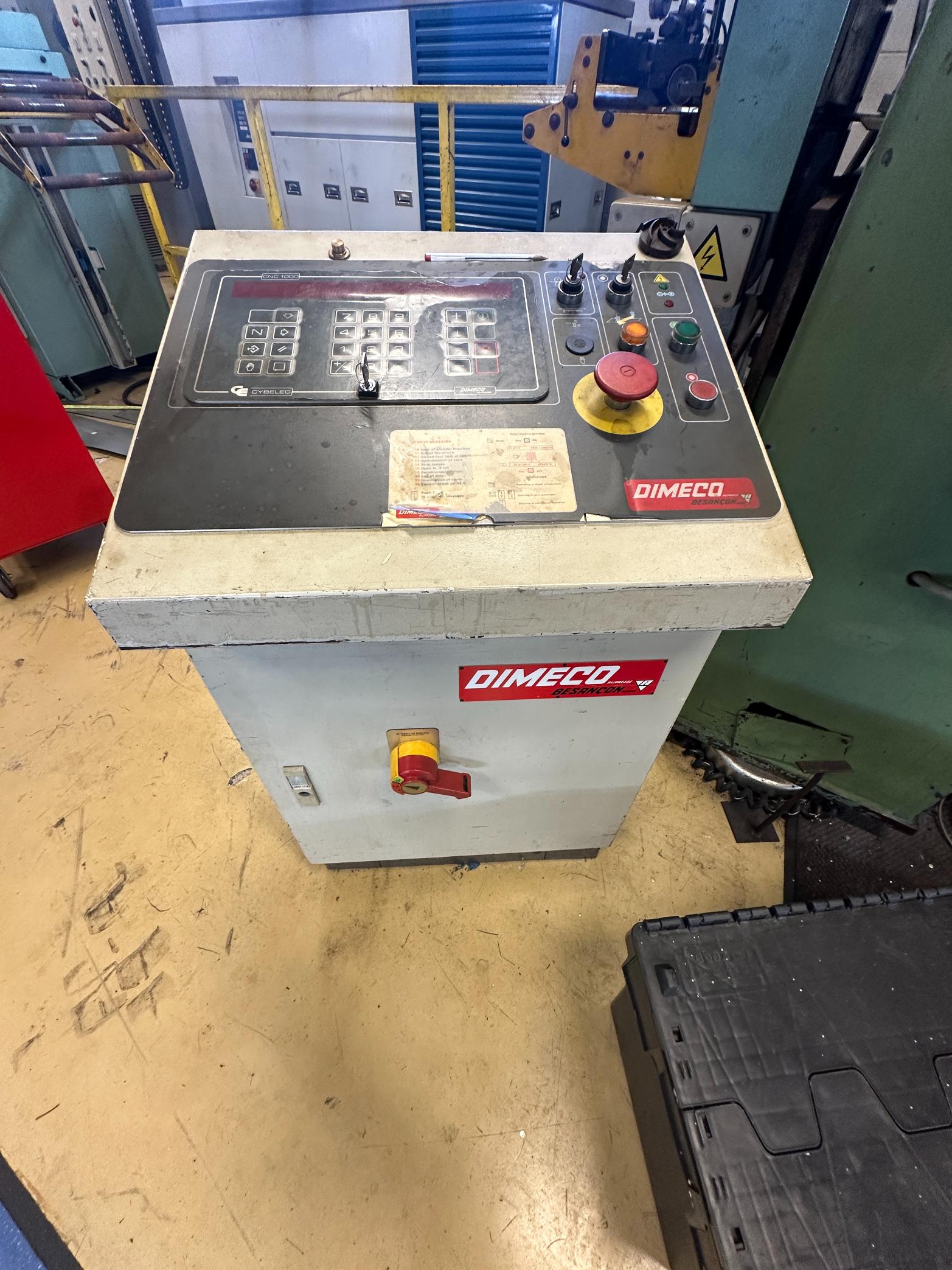

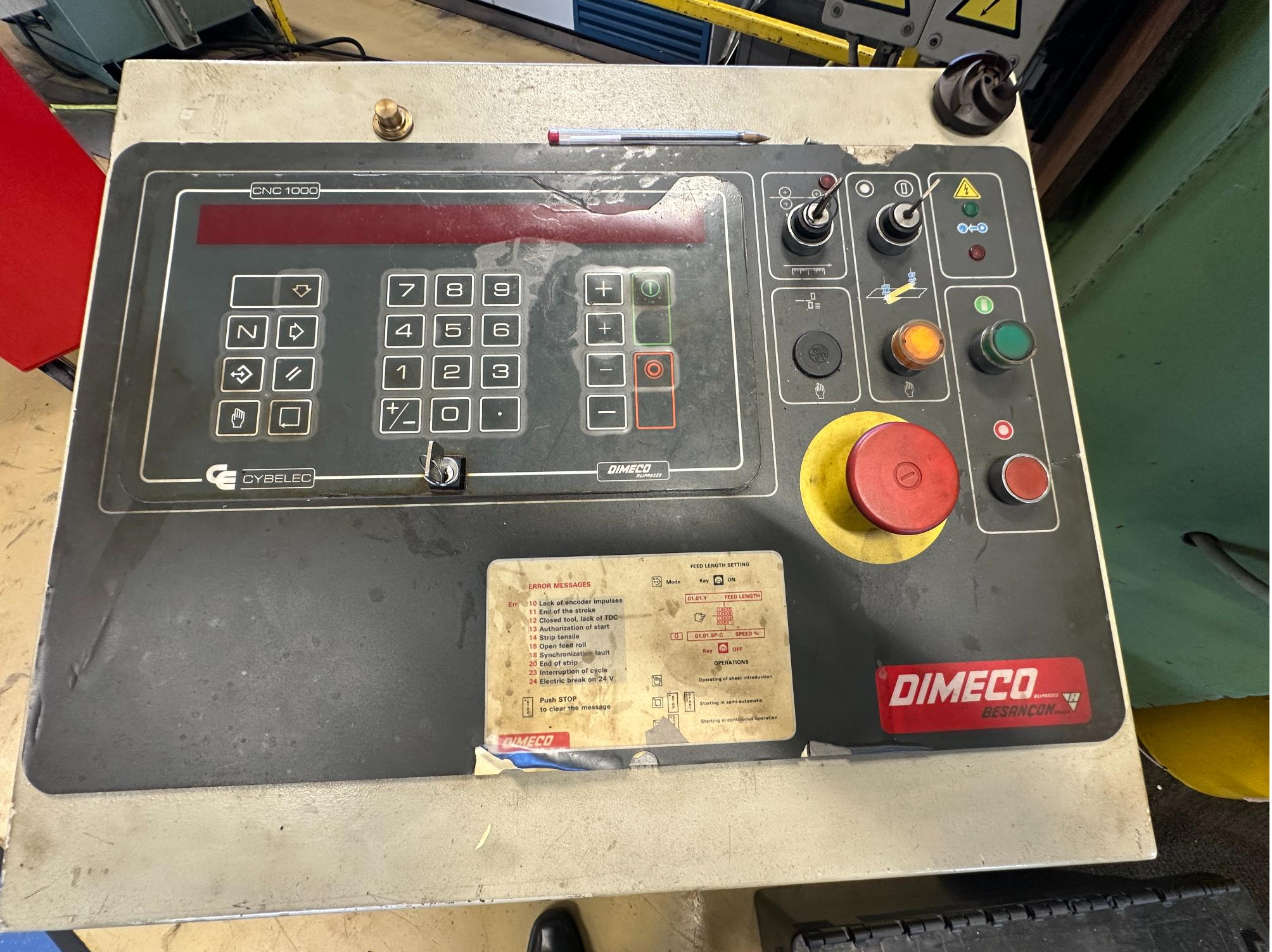

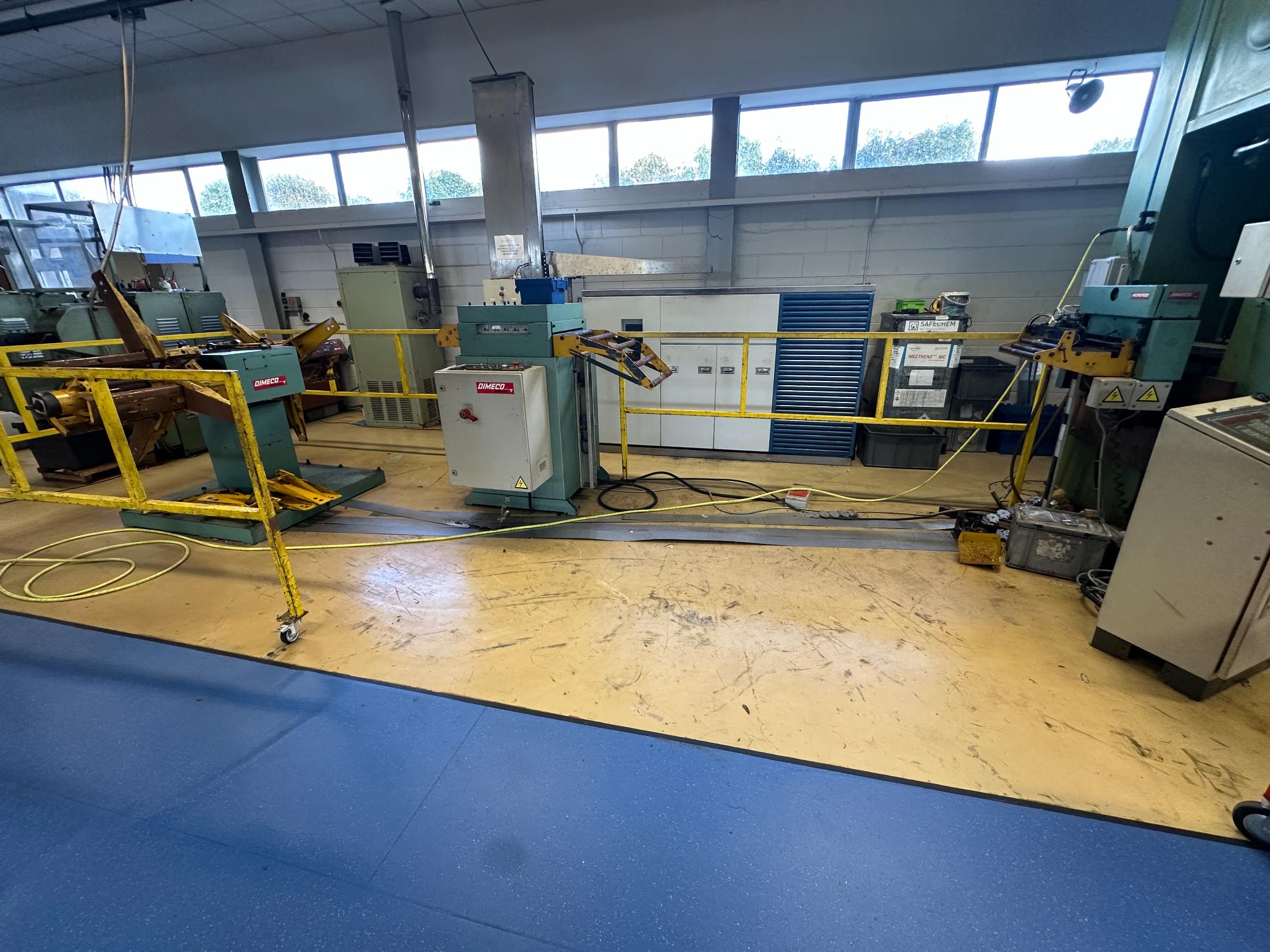

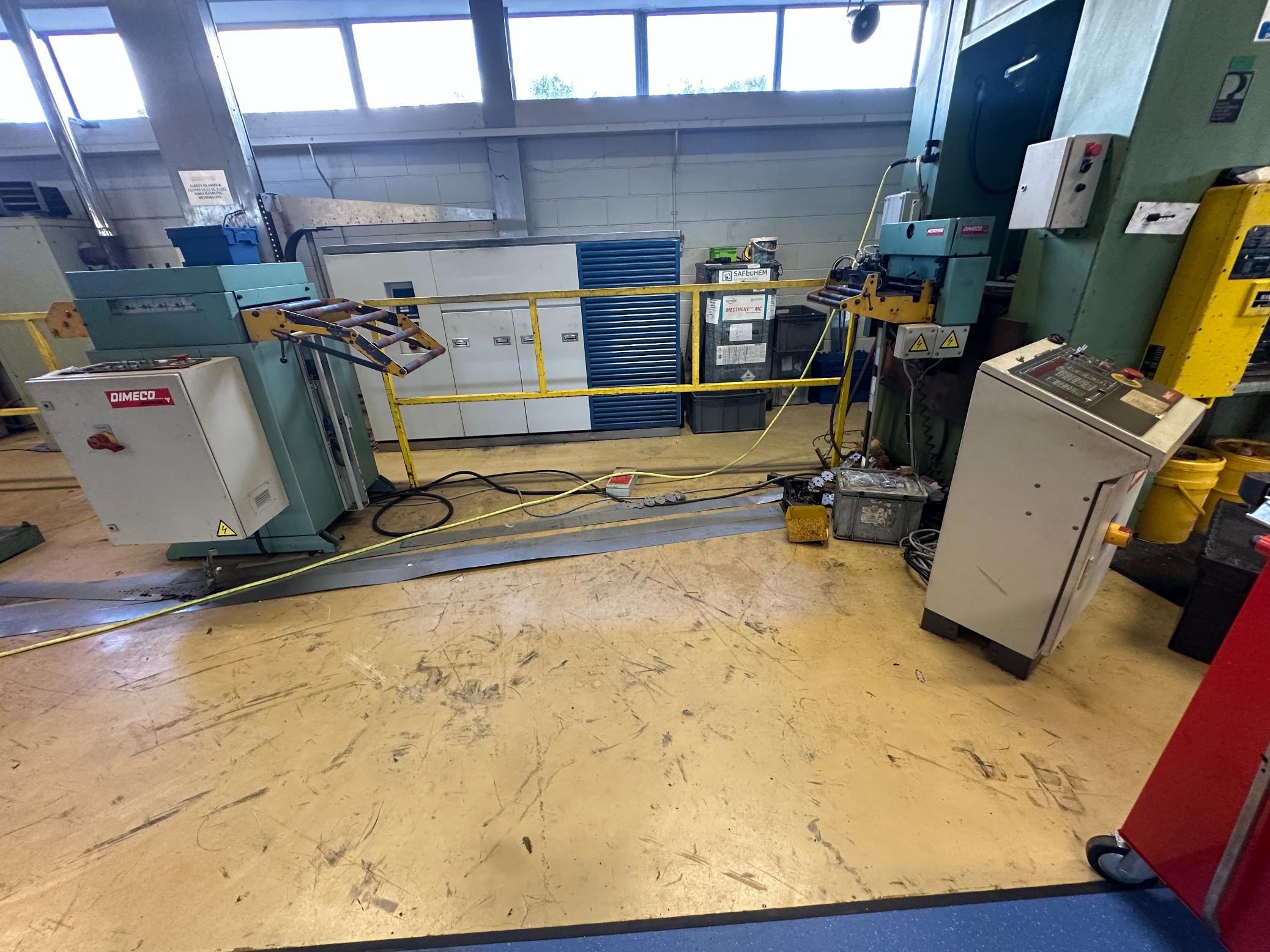

Dimeco Coil Handling Line – 1990

The press is supplied with a Dimeco coil handling line manufactured in 1990, comprising three principal units.

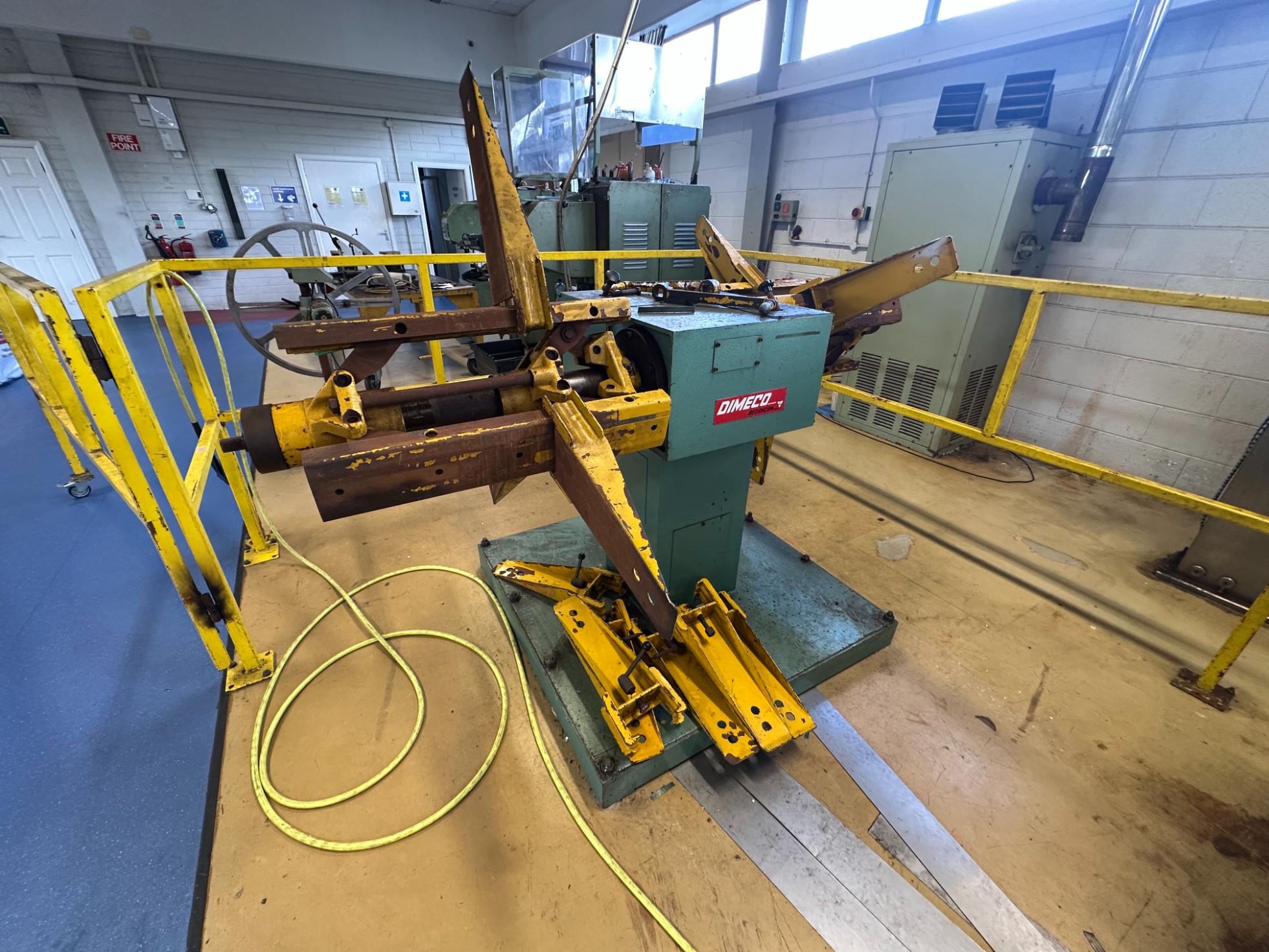

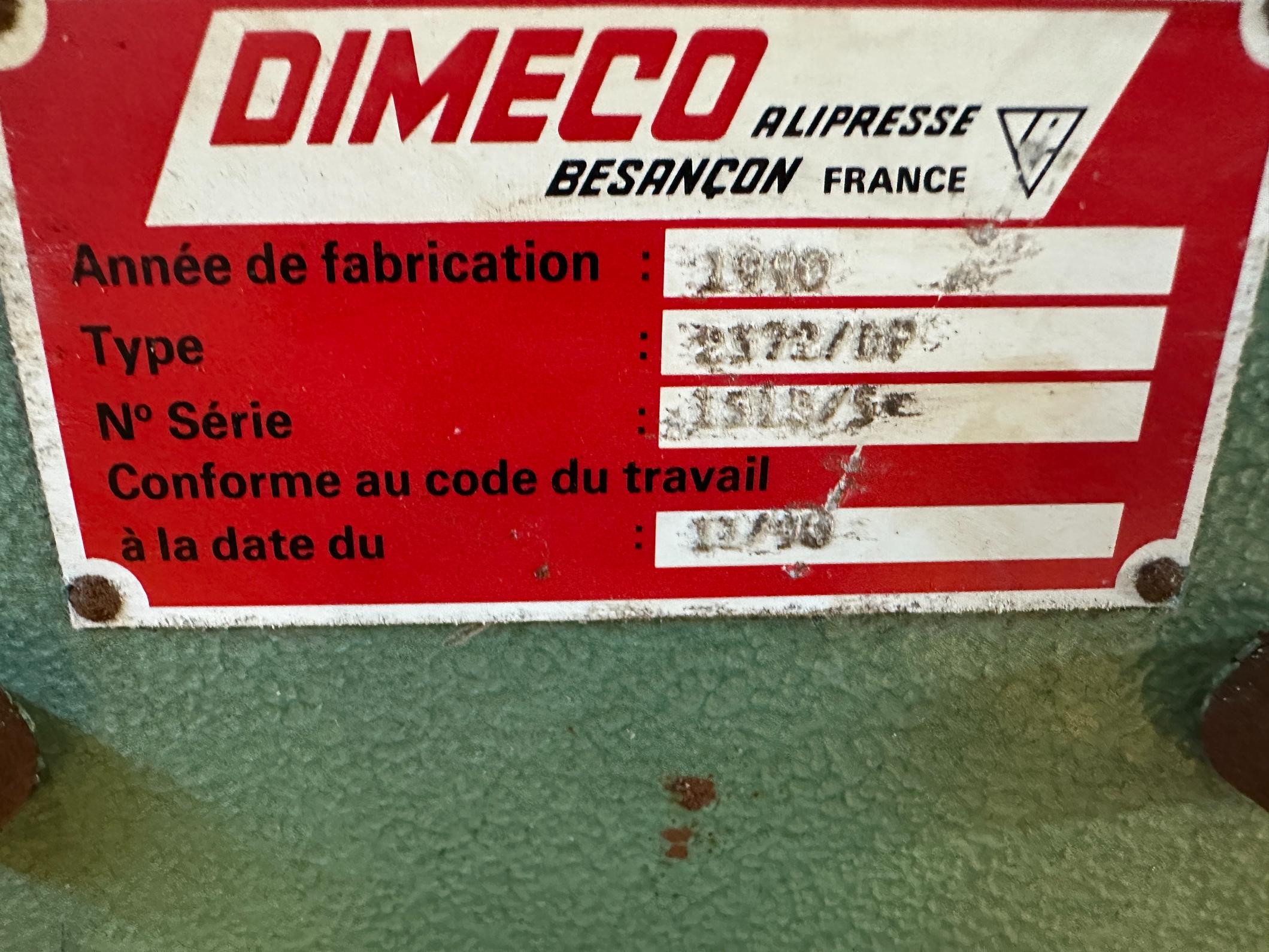

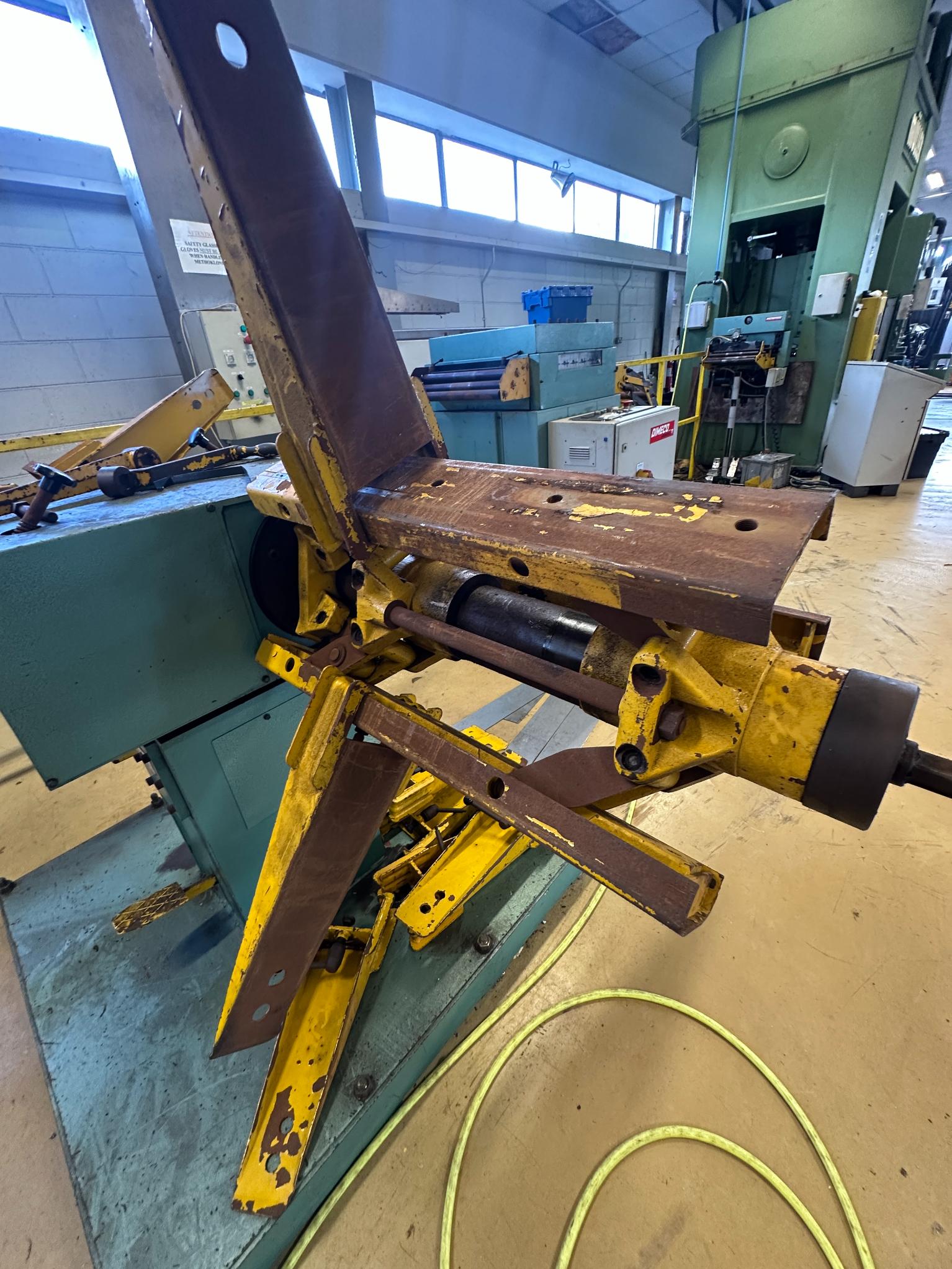

Dimeco Type 2372/19 Powered Decoiler

Manufacturer: Dimeco

Type: 2372/19

Year: 1990

Powered coil decoiler for presenting sheet strip from coil into the downstream straightening and levelling equipment.

Dimeco's 2372 family is associated with industrial powered coil unwinding equipment, including double-head powered decoilers used in automated press lines.

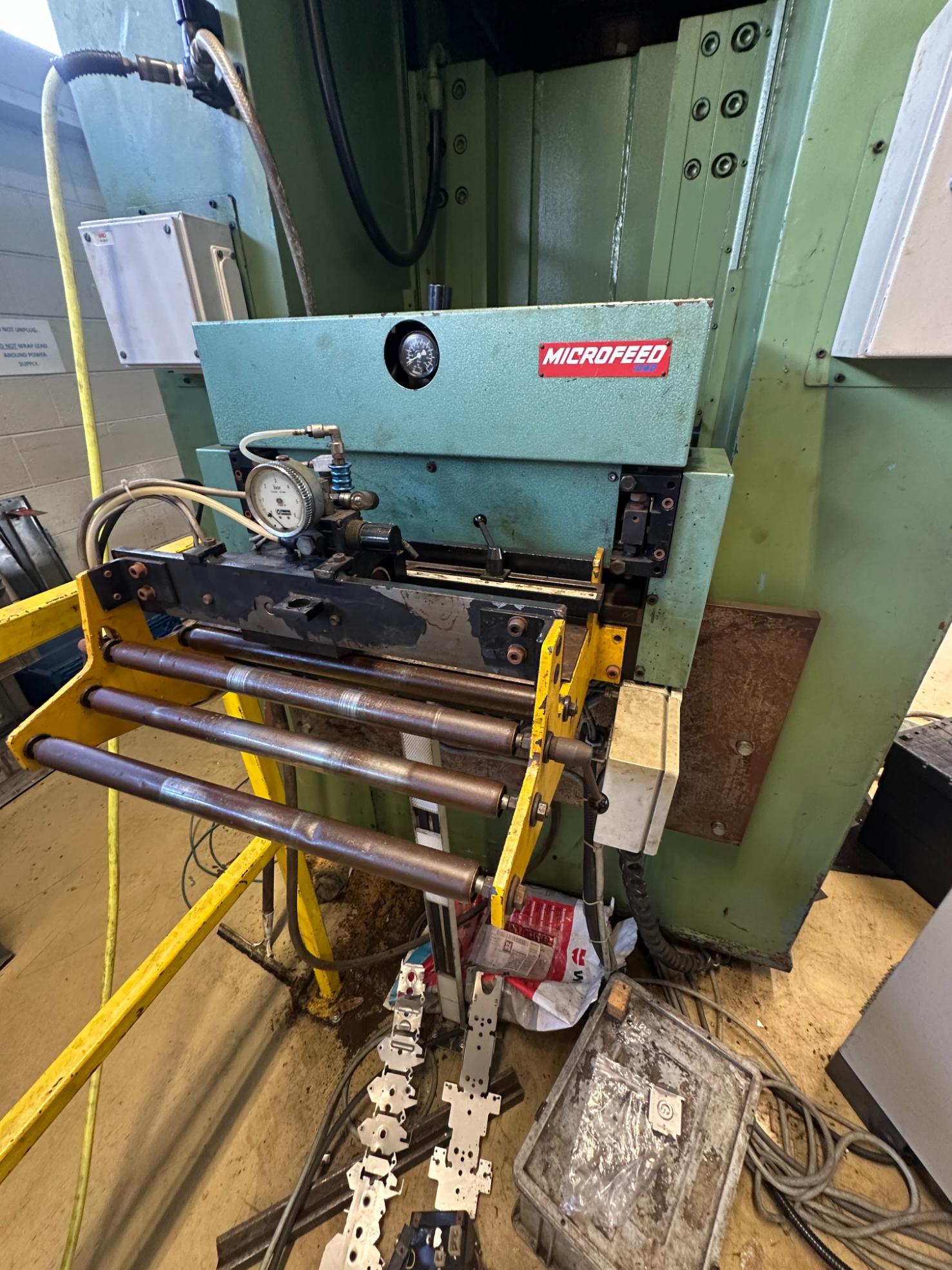

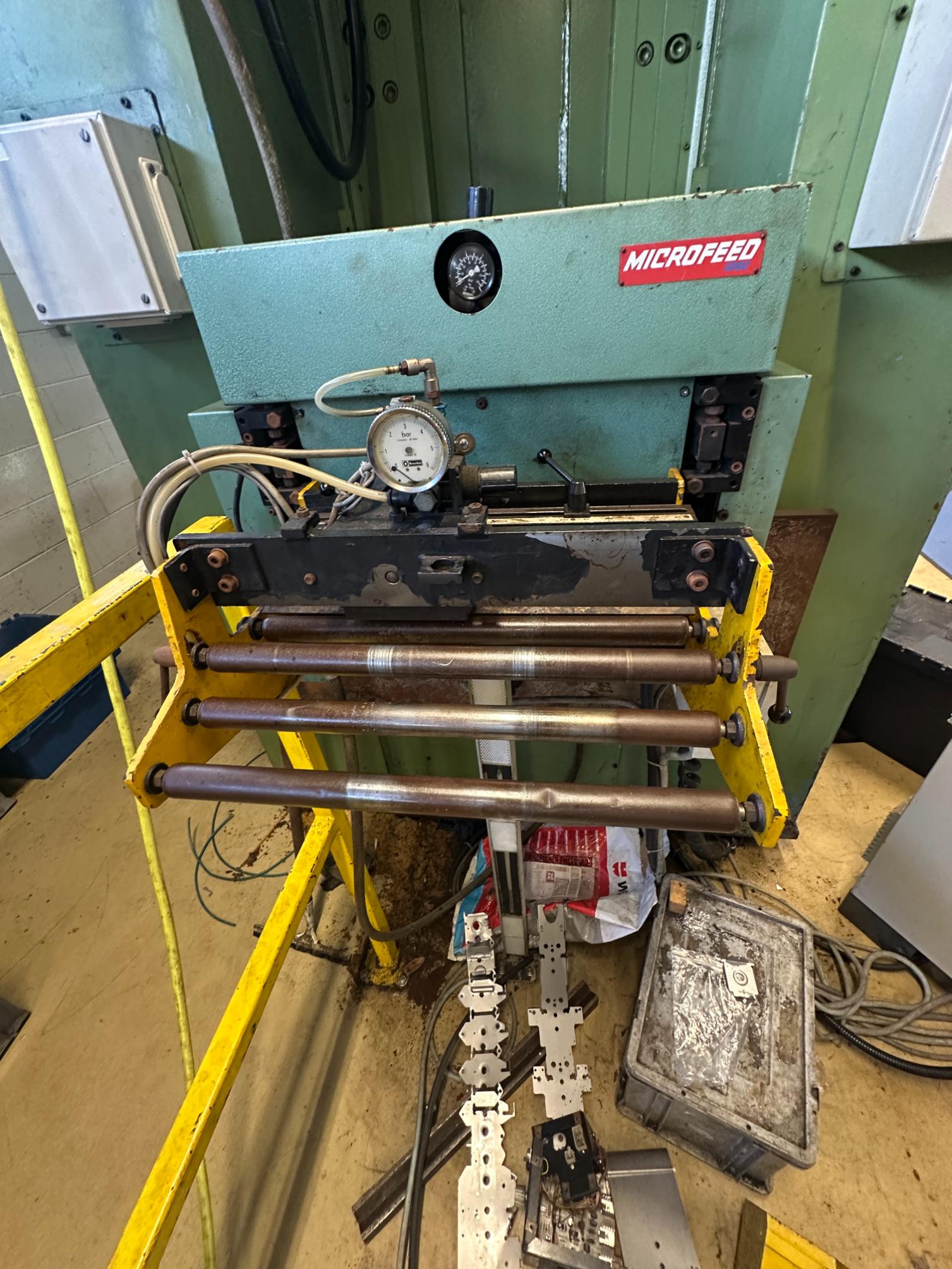

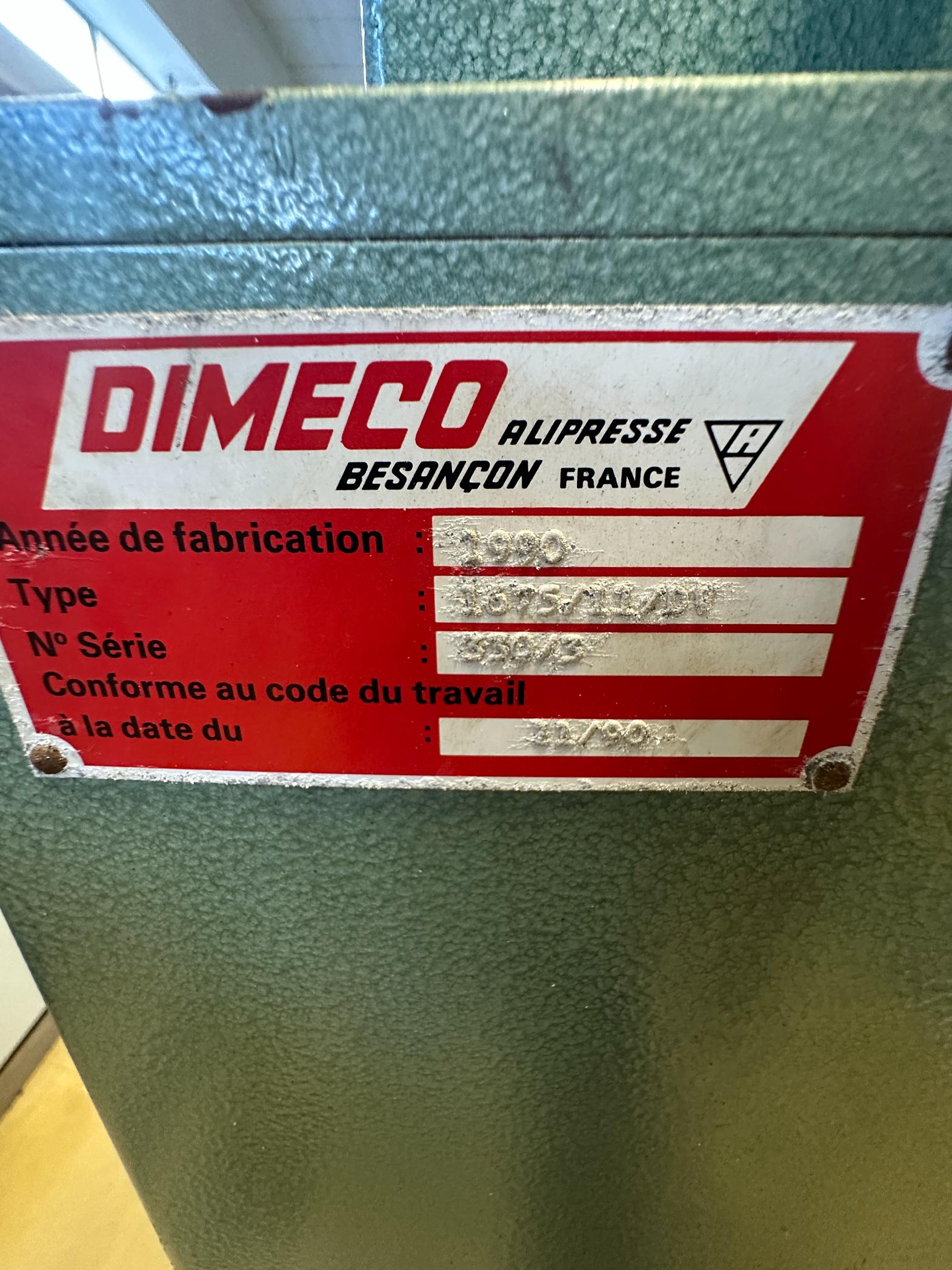

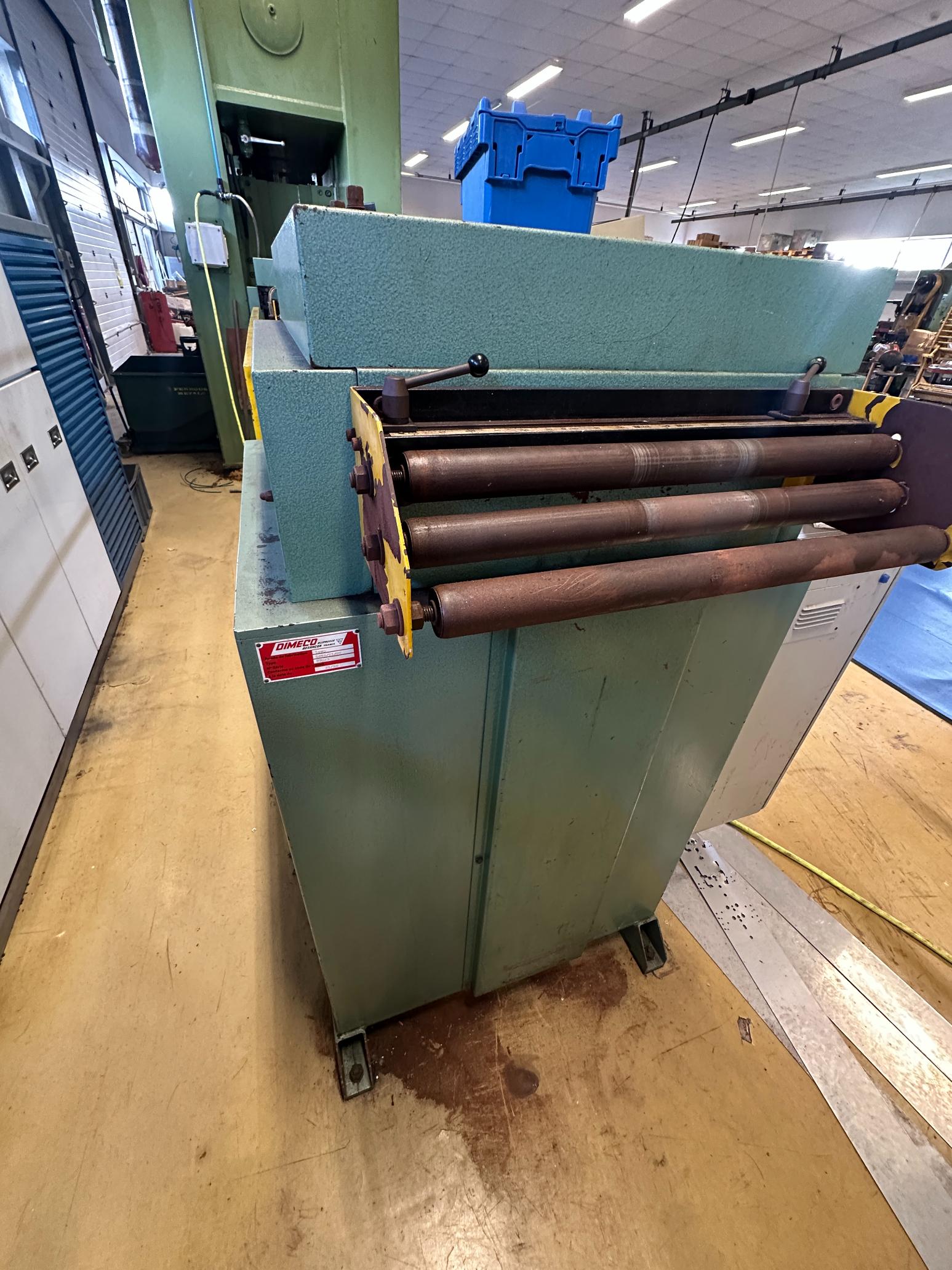

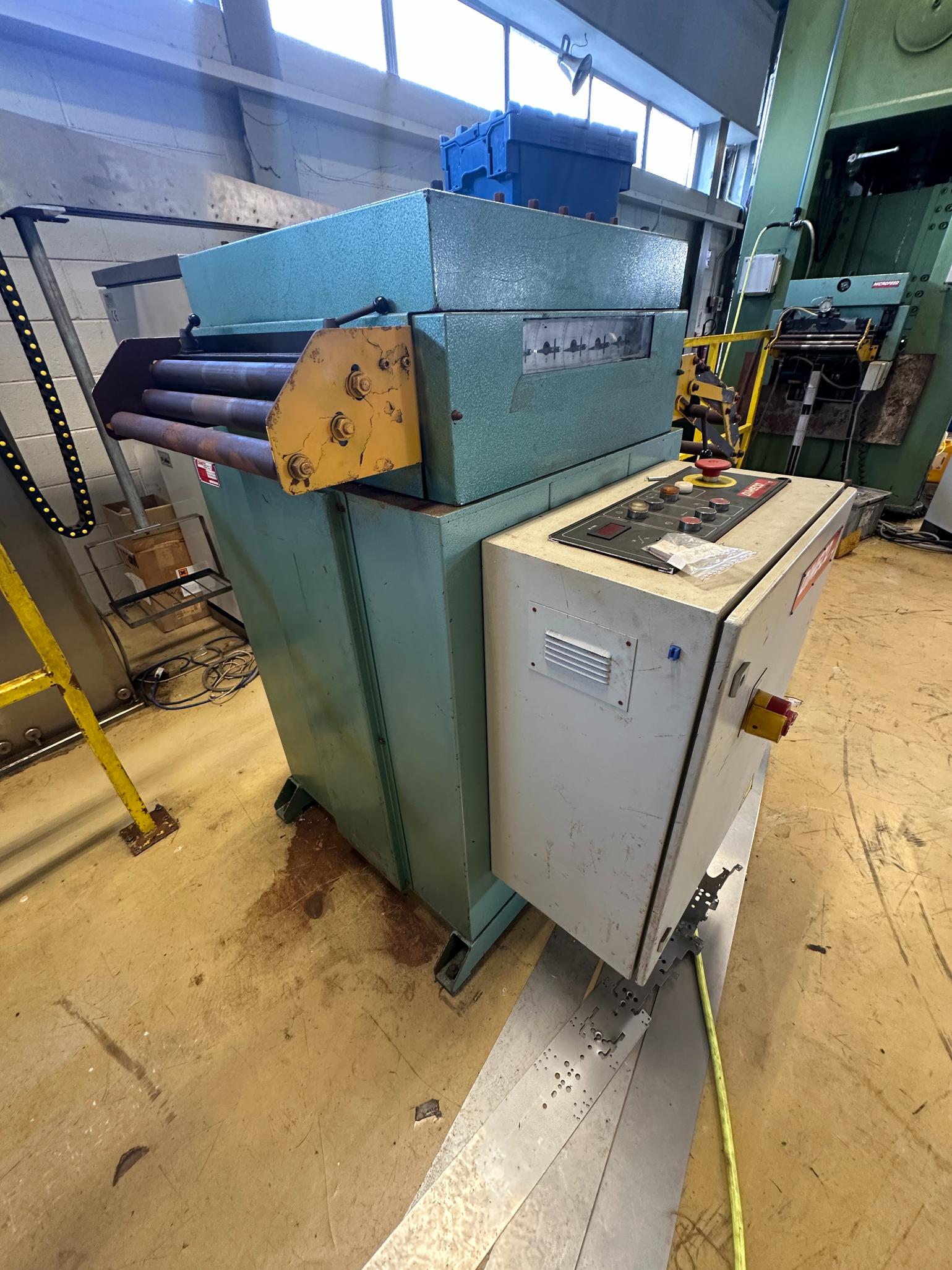

Dimeco Type 1675/11/DV Straightener

Manufacturer: Dimeco

Model: 1675/11/DV

Year: 1990

Powered precision straightening unit designed to remove coil set and improve strip flatness before material enters the press.

Published specifications for the closely related Dimeco 1675/11/D include:

• Maximum strip width: approx. 550 mm
• Strip thickness: approx. 0.4–1.6 mm
• 11 straightening rolls
• Straightening roll diameter: approx. 60 mm
• 4 driven / feed rolls
• Strip speed: approx. 4–50 m/min
• Drive power: approx. 3 kW

This multi-roll straightening is used to remove coil set and other shape defects before further processing; higher-roll-count precision straighteners provide greater material correction than simple straighteners.

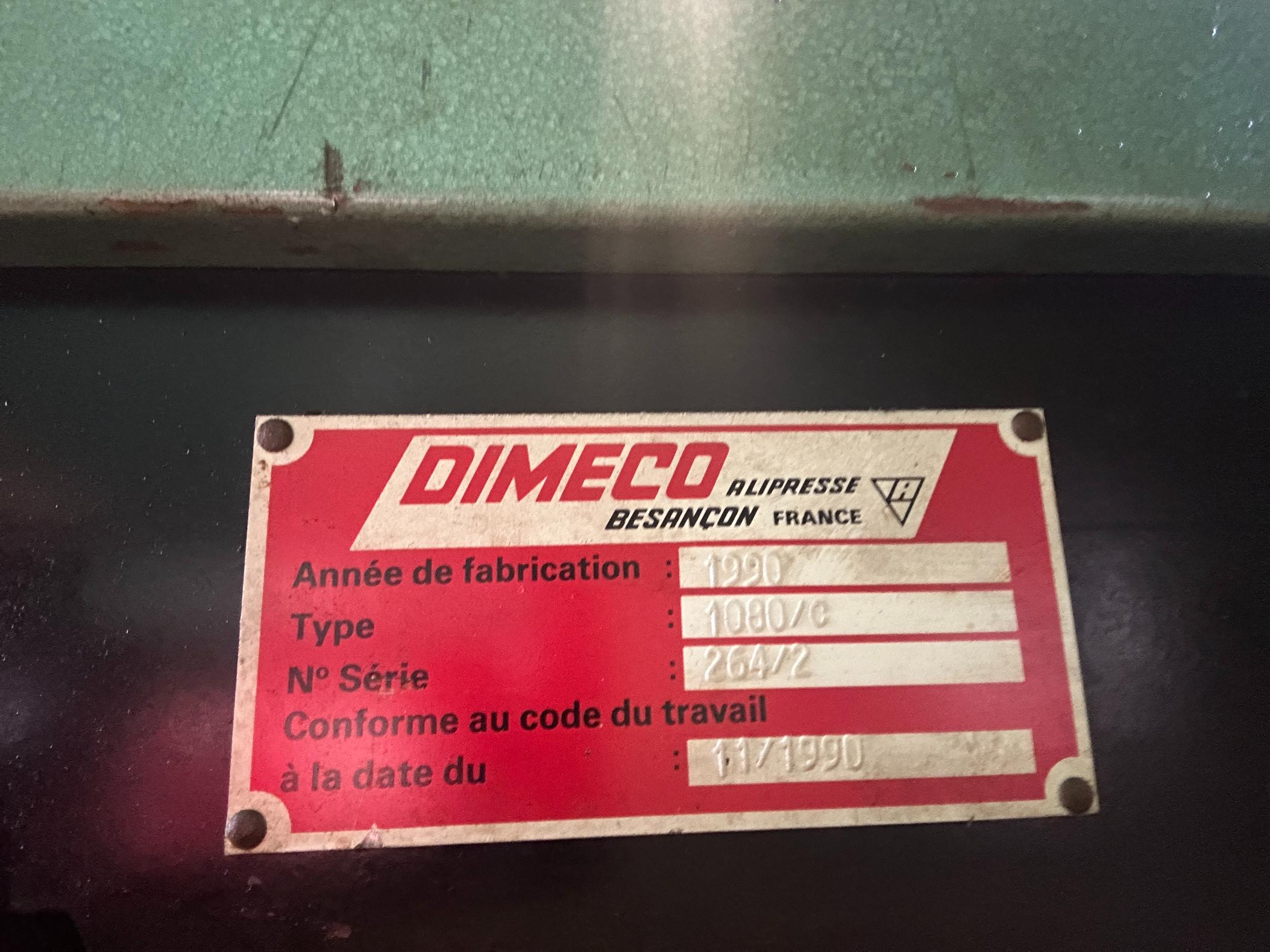

Dimeco Type 1080/C Leveller

Manufacturer: Dimeco

Type: 1080/C

Year: 1990

Levelling unit forming part of the coil processing line and intended to further prepare strip material before entry into the press.

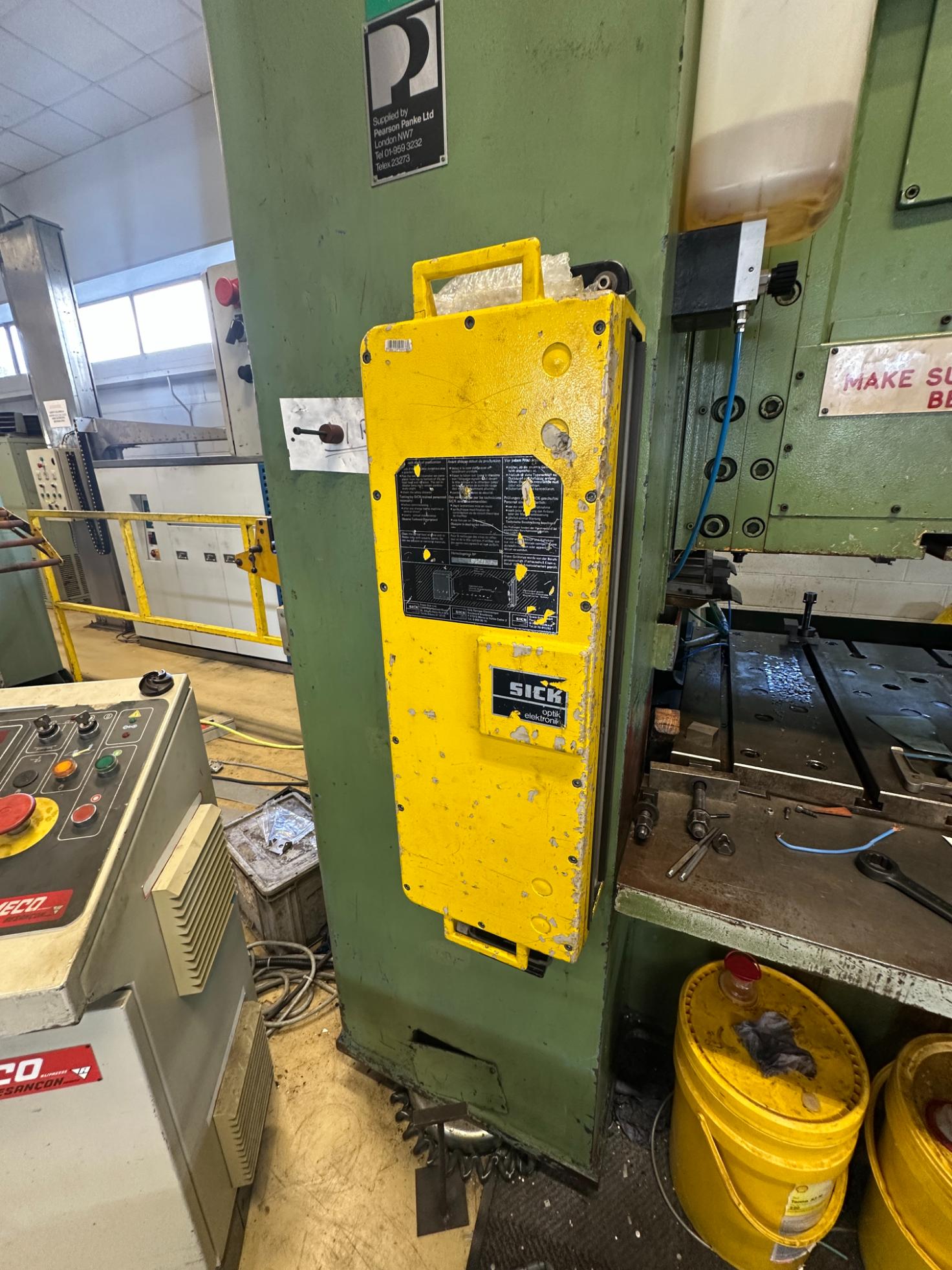

Safety Equipment

The press is equipped with a safety light curtain, providing operator protection across the working area.

Also included:

• Allen-Bradley operator control
• Hydraulic draw cushion
• Coil handling equipment
• Powered material preparation equipment

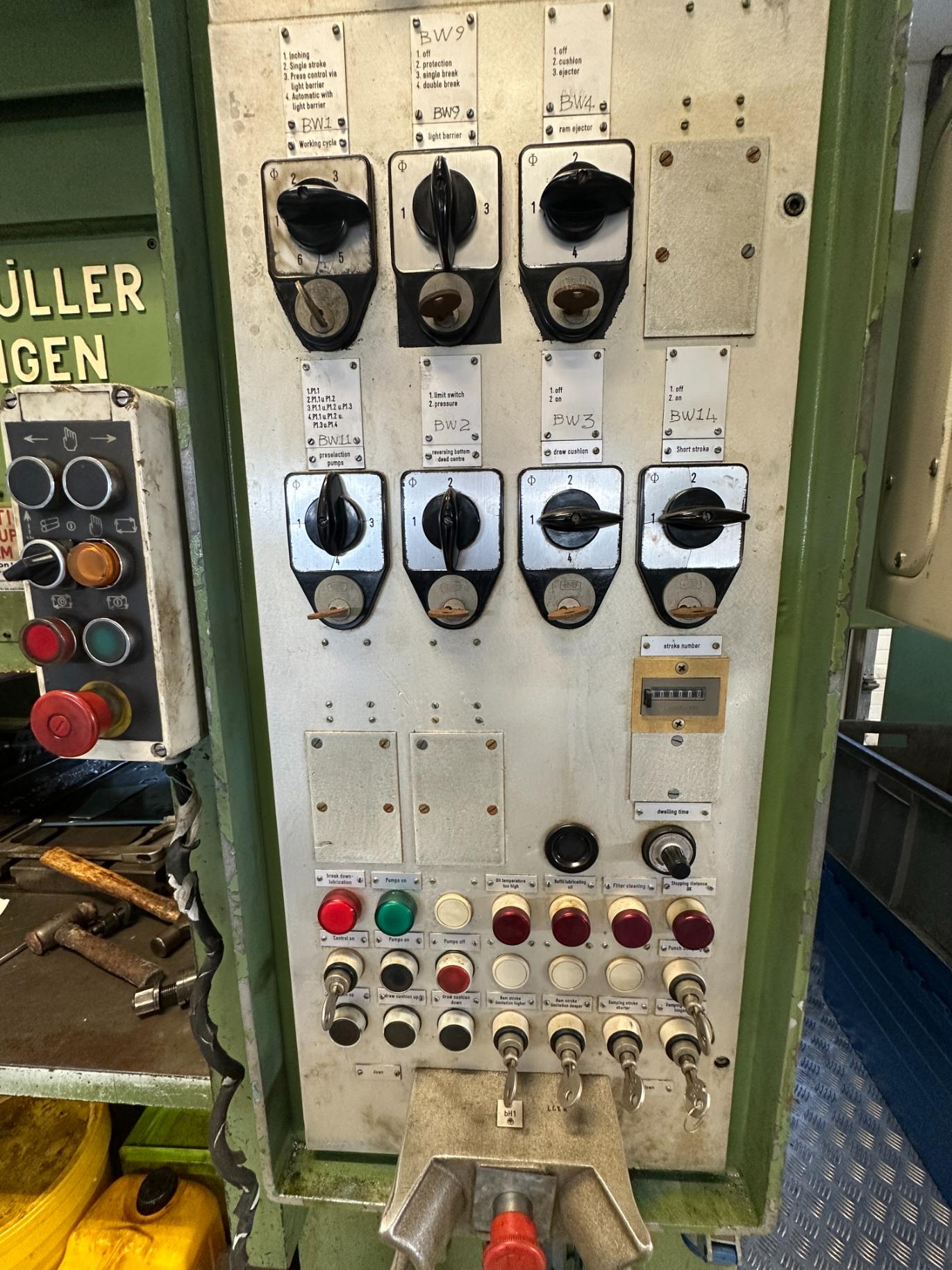

• Production press controls
• Emergency-stop/safety system

Typical Applications

This Fritz Müller 250-ton hydraulic press and Dimeco coil line would be suitable for applications including:

• Coil-fed sheet metal pressing
• Sheet metal stamping
• Hydraulic forming
• Deep drawing
• Metal blanking
• Punching
• Component forming
• Pressed component manufacture
• Automotive component production
• Appliance component manufacture
• Electrical enclosure components
• Industrial sheet-metal components
• Progressive production
• Coil strip processing
• High-volume repetitive presswork
• Tool and die production applications

The combination of the hydraulic draw cushion and coil handling line makes it particularly relevant for buyers looking for a 250-ton coil-fed hydraulic drawing press, rather than simply a general-purpose workshop press.

Machine Highlights

• 250 tonne / approximately 2,500 kN capacity
• 900 × 1100 mm bed
• German-built Fritz Müller hydraulic press
• Double-column hydraulic construction
• Hydraulic draw cushion
• Allen-Bradley PanelView 600 operator control
• Safety light curtain
• Complete Dimeco coil line
• Dimeco 2372/19 powered decoiler
• Dimeco 1675/11/DV straightener
• Dimeco 1080/C leveller
• Dimeco equipment manufactured 1990
• Suitable for coil-fed production
• Suitable for forming, drawing, stamping and blanking

FAQ

What capacity is the Fritz Müller SDZ 250.6.2?

The press has a nominal pressing capacity of 250 tonnes / approximately 2,500 kN.

What size is the press bed?

The working bed measures approximately 900 × 1100 mm.

Does the Fritz Müller SDZ 250.6.2 have a draw cushion?

Yes. This machine is equipped with a hydraulic draw cushion, making it suitable for controlled sheet-metal forming and deep-drawing applications.

Does the machine have a modern operator control?

Yes. It is fitted with an Allen-Bradley PanelView 600 industrial operator interface.

Does the press include coil handling equipment?

Yes. It includes a 1990 Dimeco coil line consisting of a Type 2372/19 powered decoiler, Type 1675/11/DV straightener and Type 1080/C leveller.

What applications is this press suitable for?

Typical applications include coil-fed stamping, deep drawing, sheet-metal forming, blanking, punching and repetitive production pressing.

Condition & Sale Terms

Used machine complete with Dimeco coil handling equipment as described.

Sale Basis: EX WORKS

Dismantling, removal and loading are not included in the sale price and will be charged extra.

Please Note: All specifications, dimensions, capacities and descriptions are approximate and provided in good faith. Some supplementary specifications are based on published information for comparable Fritz Müller SDZ 250 and Dimeco machines and should be independently verified on the individual machine. Prospective purchasers should verify all important specifications, safety requirements and suitability for their intended application before purchase.
