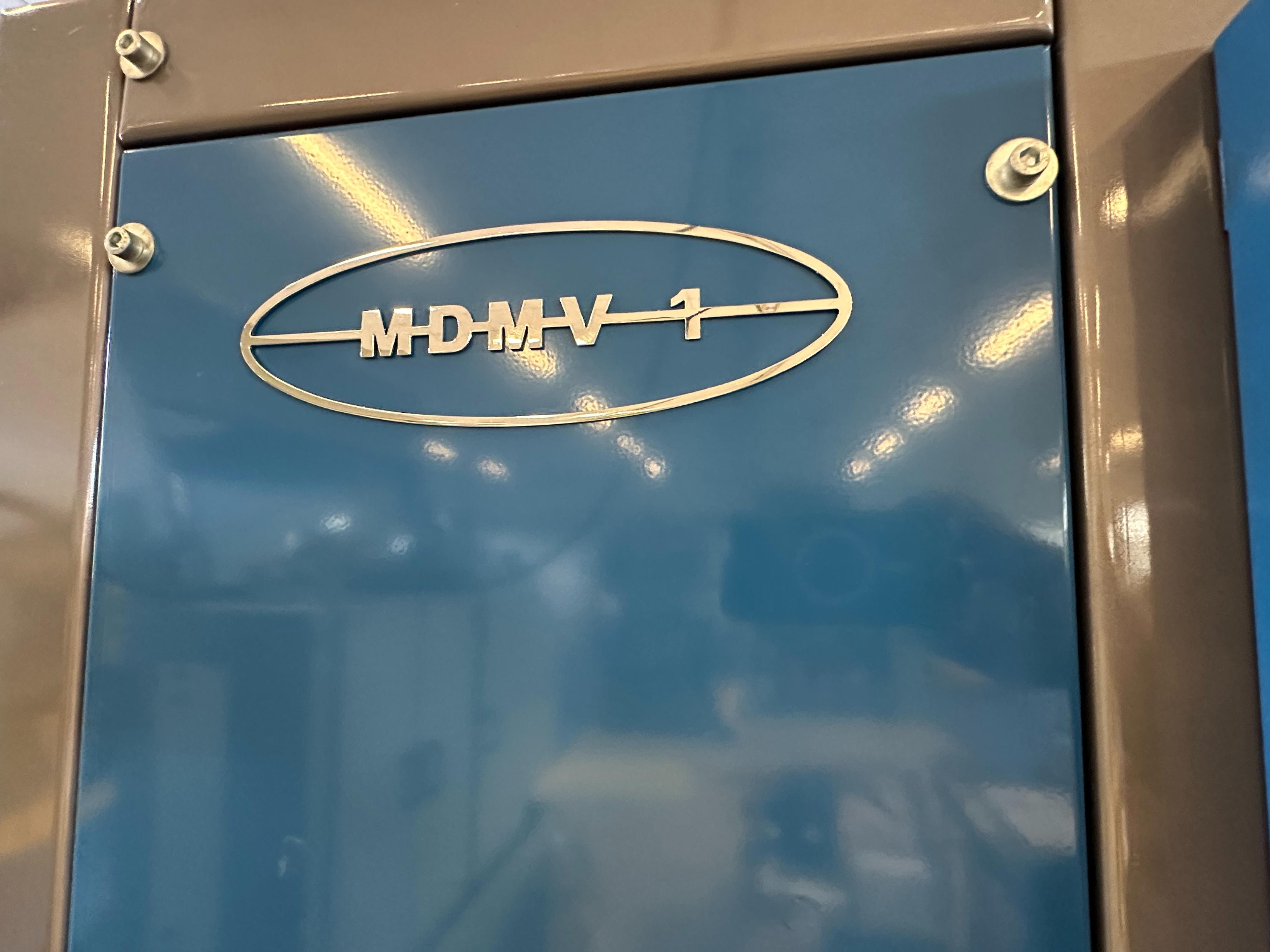

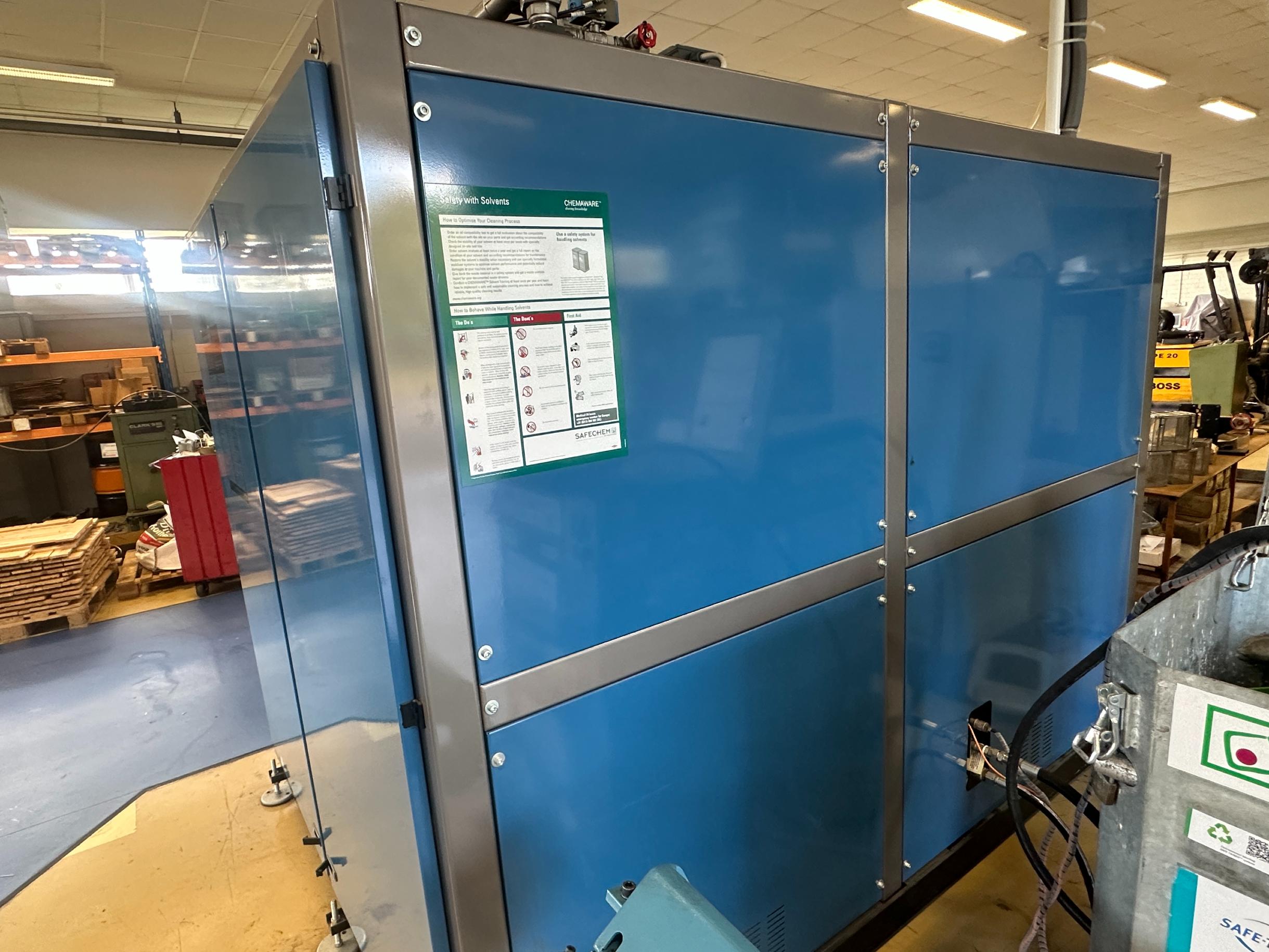

2018 Union MDMV 1 Vacuum Metal Degreasing Machine | 50kg

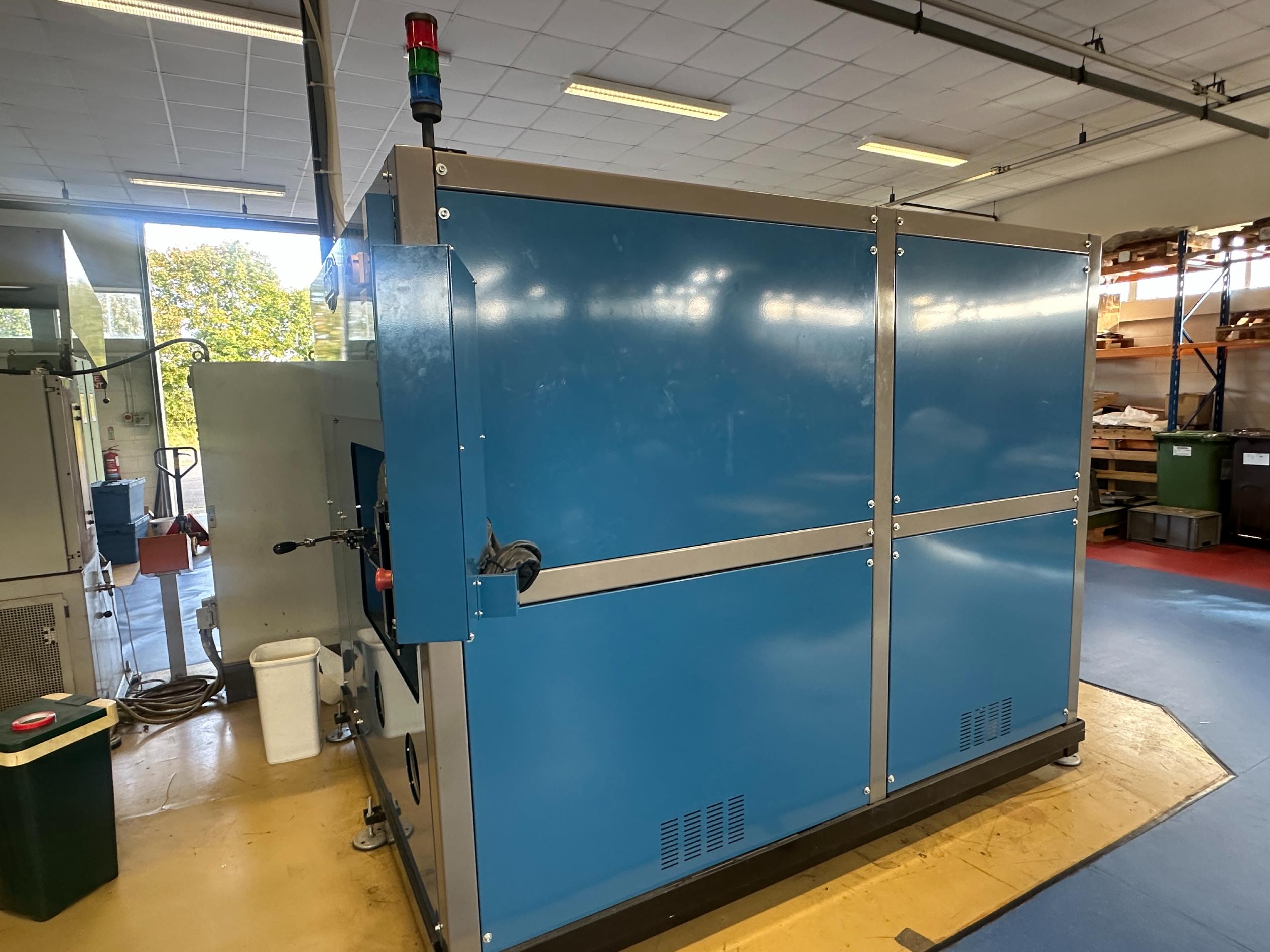

Used 2018 Union MDMV 1 closed-circuit vacuum solvent degreaser, 50kg basket, Dialog control, Industrial Frigo chiller and 2 Safechem units.

Manufacturer: Union

Model: MDMV 1

Machine Type: Closed-circuit vacuum solvent metal degreasing / component cleaning machine

Year: 2018

Condition: Excellent

Includes: Industrial Frigo GR2A 30/Z industrial water chiller & 2 x SAFECHEM SAFE-TAINER chemical storage/handling units

Machine Description

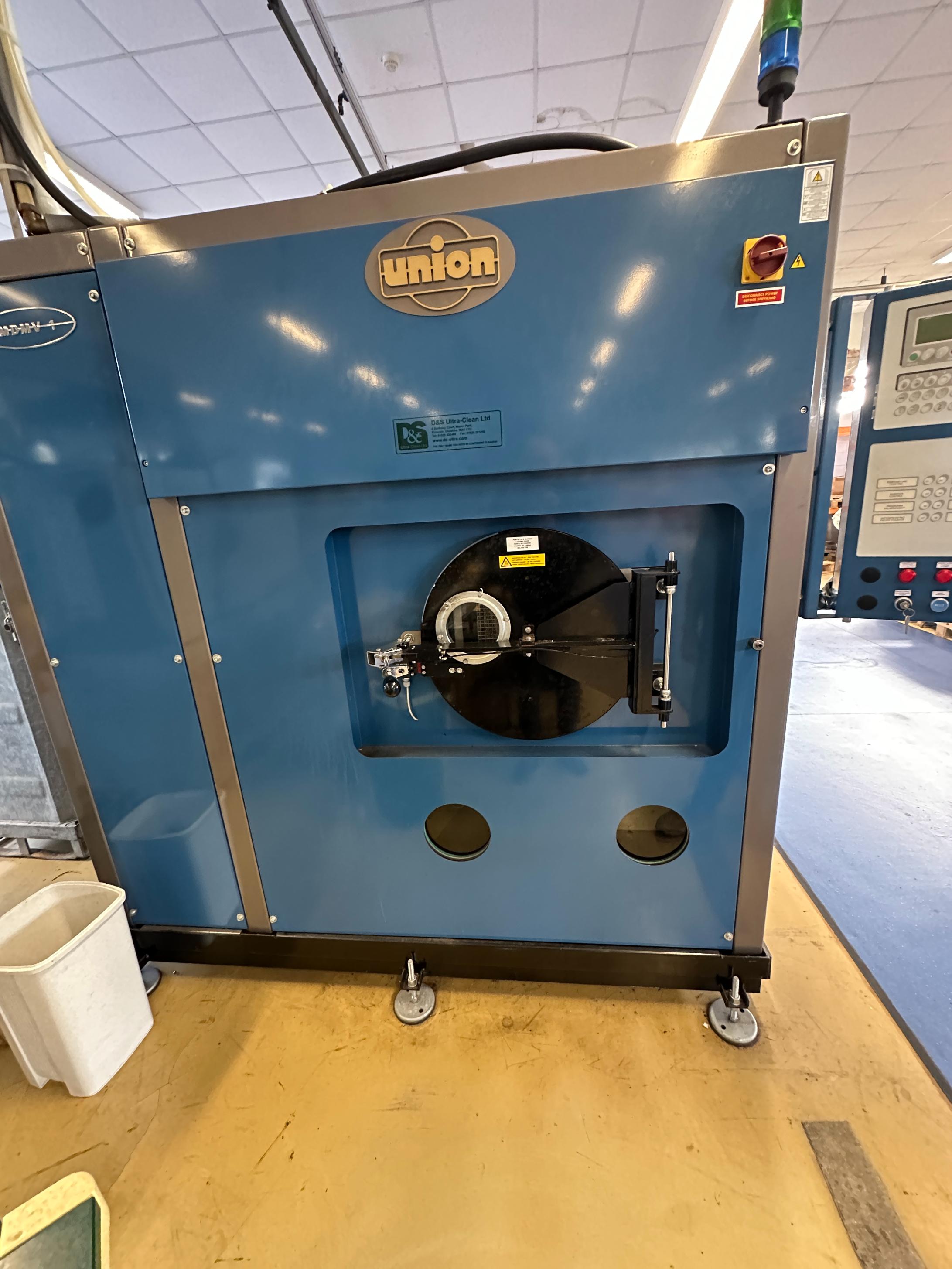

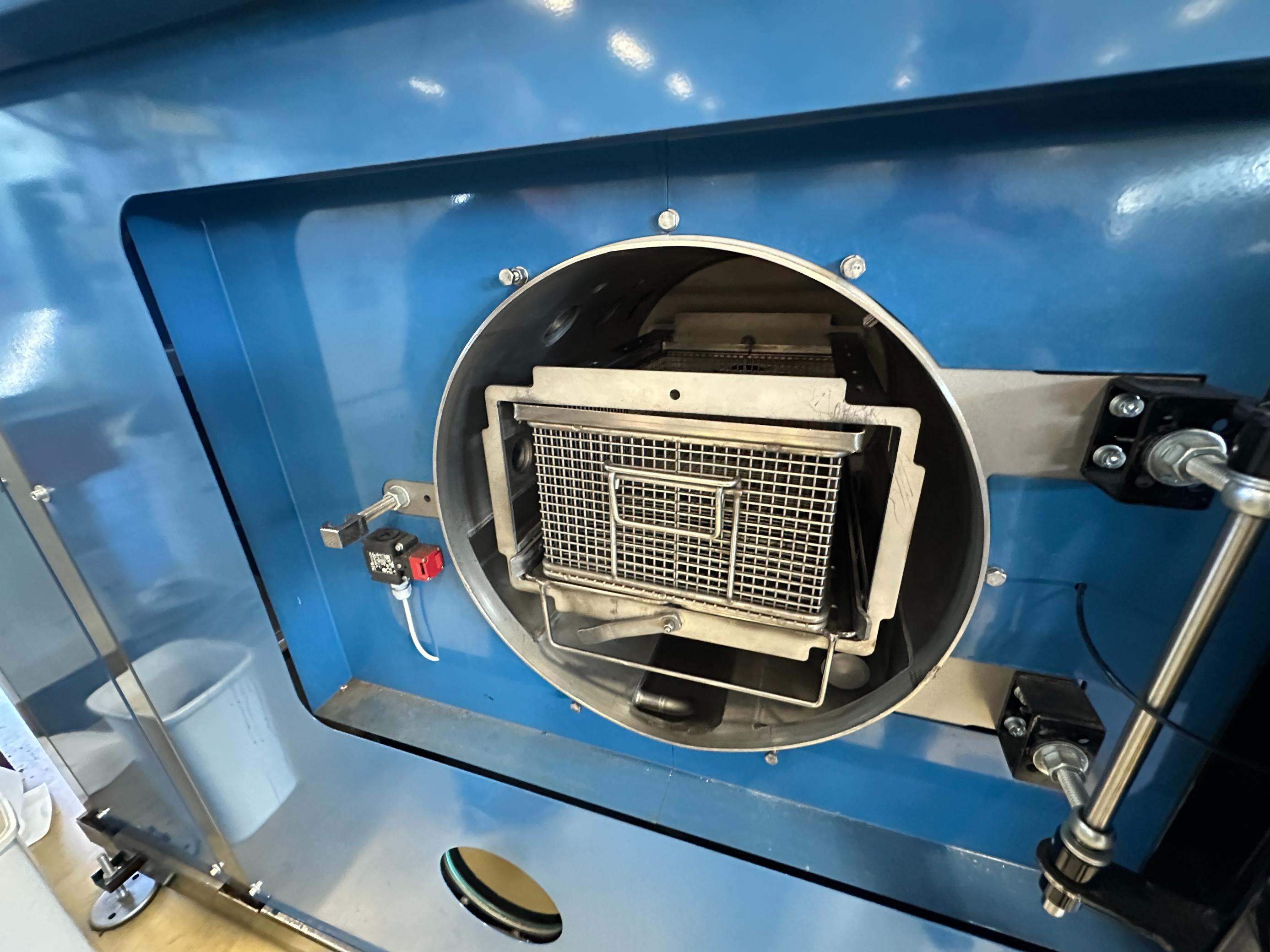

Used 2018 Union MDMV 1 industrial metal degreasing and component cleaning machine, designed for precision cleaning of small and complex metal components using super-stabilised perchloroethylene (PCE / PER / tetrachloroethylene).

This is a closed-circuit hermetic vacuum solvent cleaning system incorporating washing, rinsing, vapour degreasing, solvent recovery/distillation and vacuum drying within an enclosed process.

The machine has a maximum basket load of 50 kg and is equipped with Union Dialog control, an Industrial Frigo GR2A 30/Z industrial water chiller, and 2 x SAFECHEM SAFE-TAINER chemical storage/handling units complete with stainless steel containment trays.

Union describes the MDMV range as being specifically designed for small components and components with complex geometries such as blind holes. The machines operate under vacuum and incorporate continuous solvent distillation with automatic final stripping of residues.

This makes the MDMV 1 particularly suitable for demanding industrial cleaning applications in sectors including precision engineering, CNC machining, aerospace, automotive, medical component manufacture, toolmaking and general metalworking.

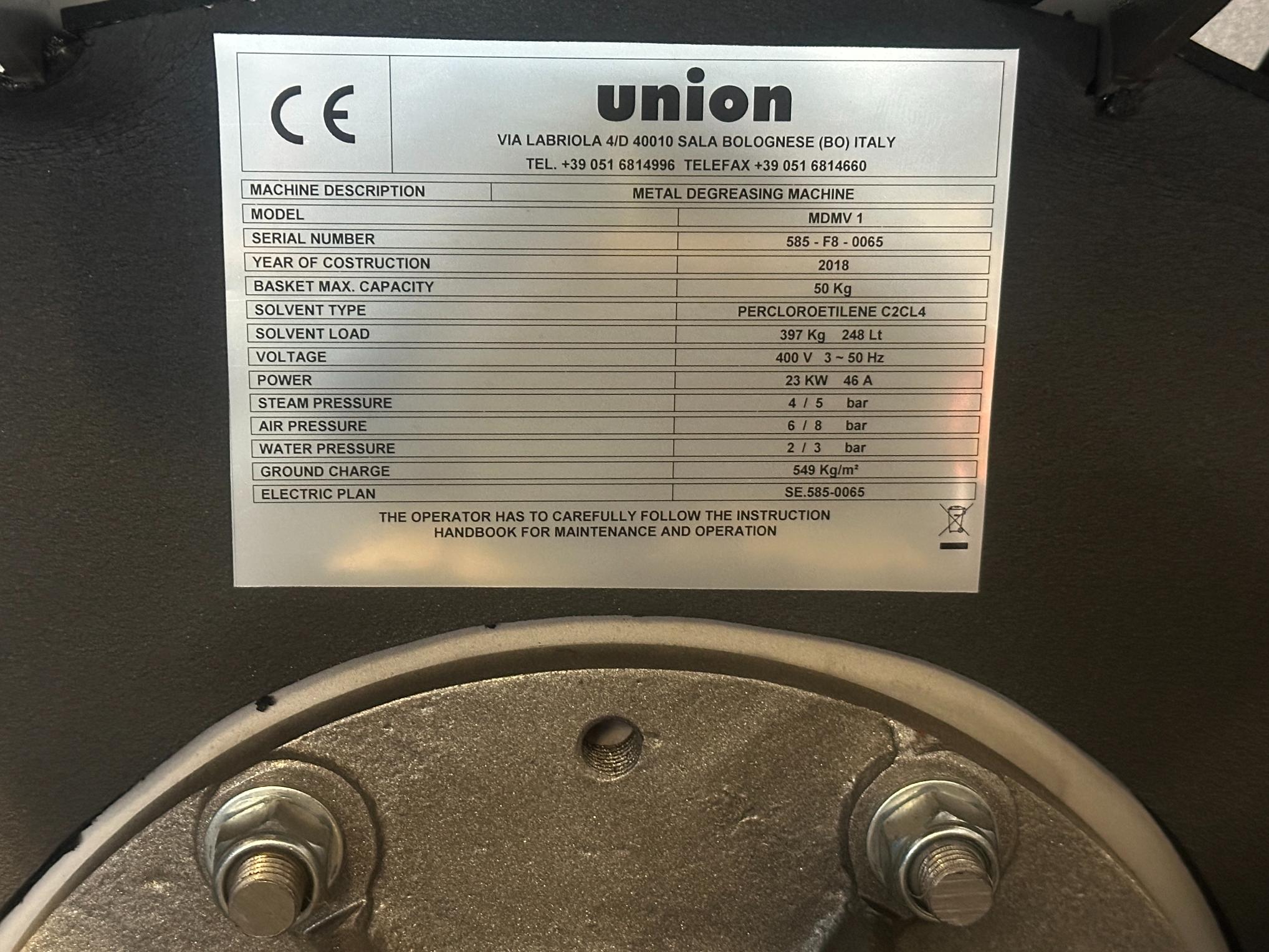

Technical Specifications

Manufacturer: Union S.p.A.

Model: MDMV 1

Machine Type: Closed-circuit vacuum solvent metal degreasing / component cleaning machine

Year: 2018

Serial Number: 585-F8-0065

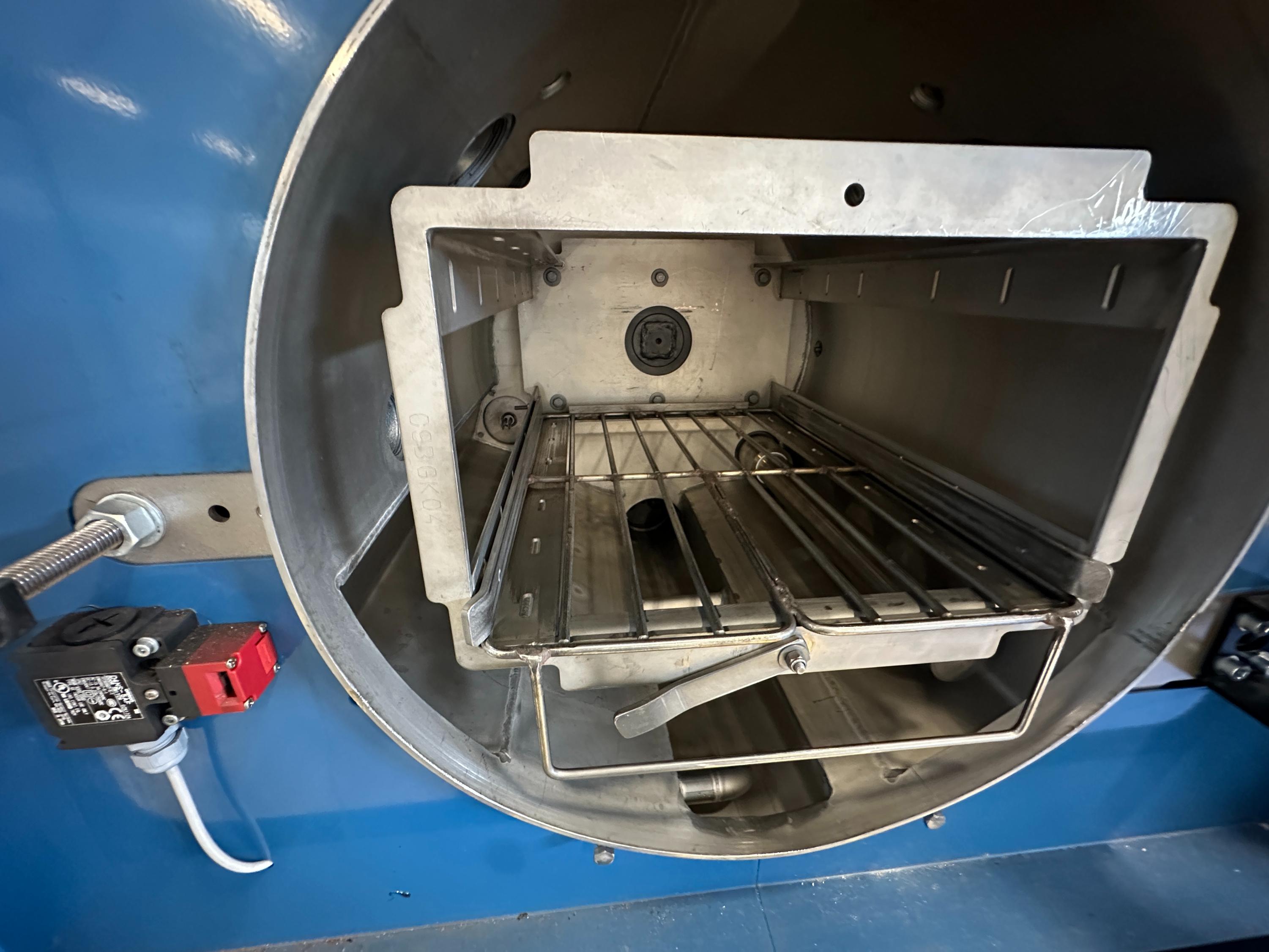

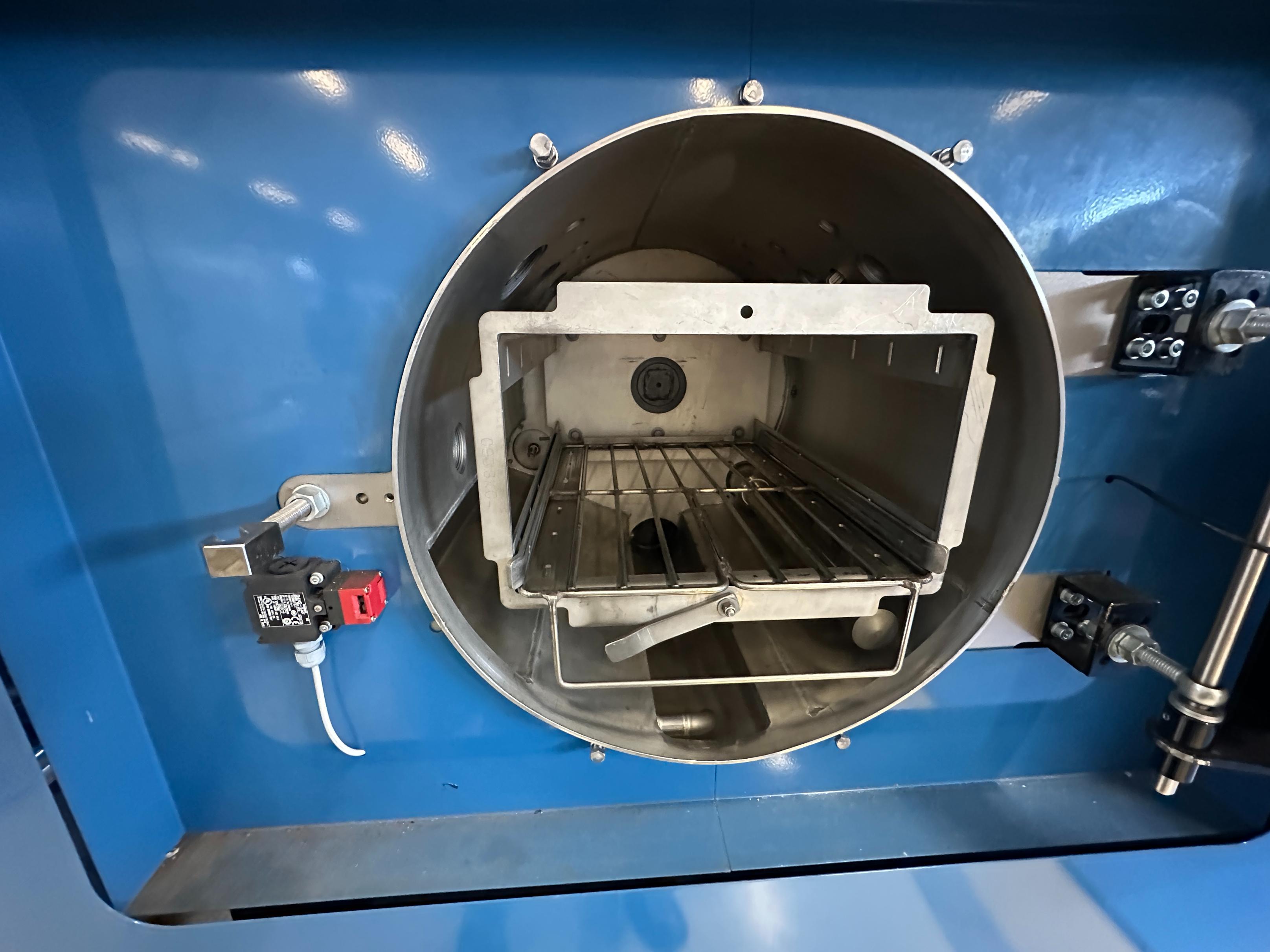

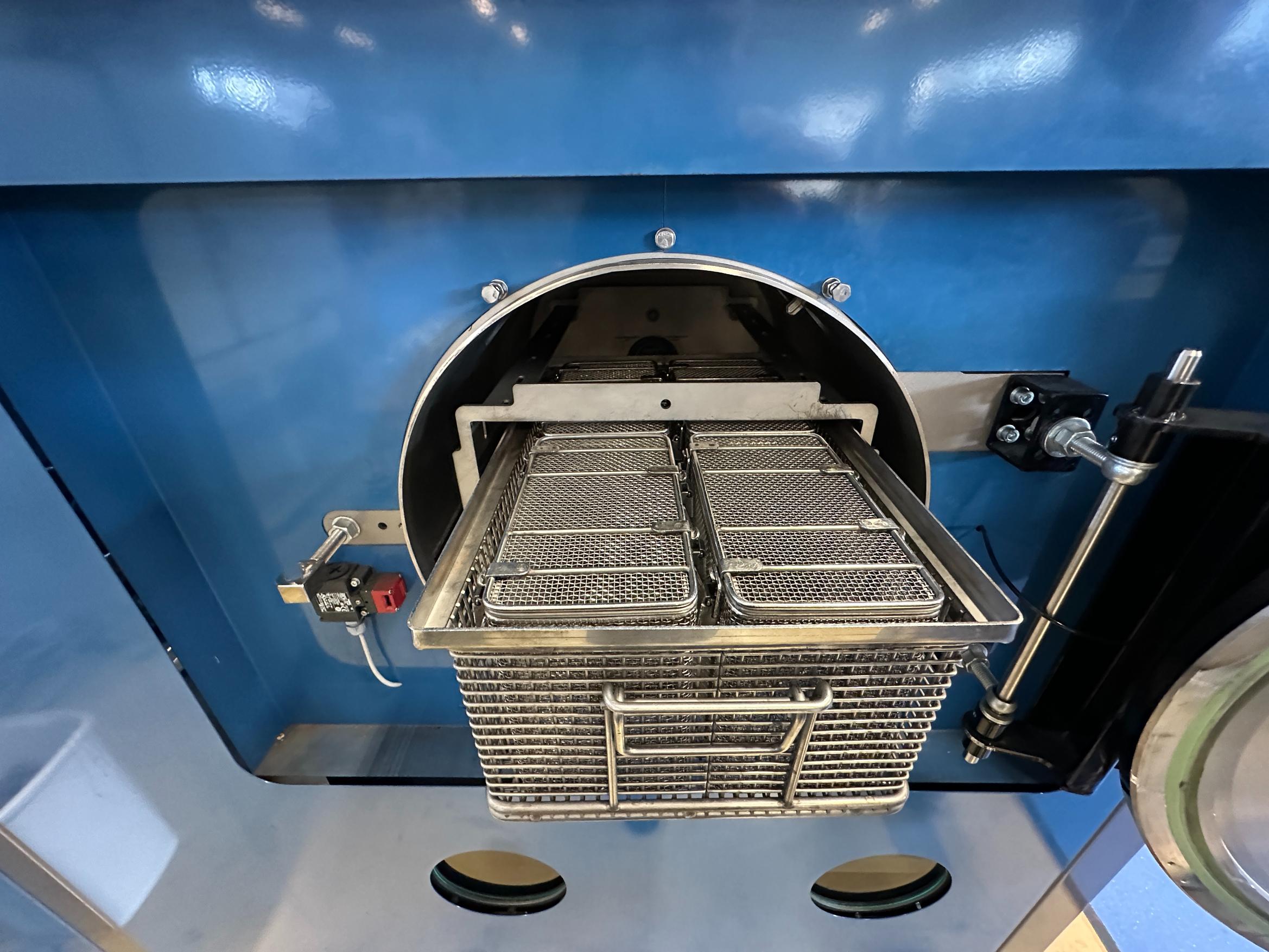

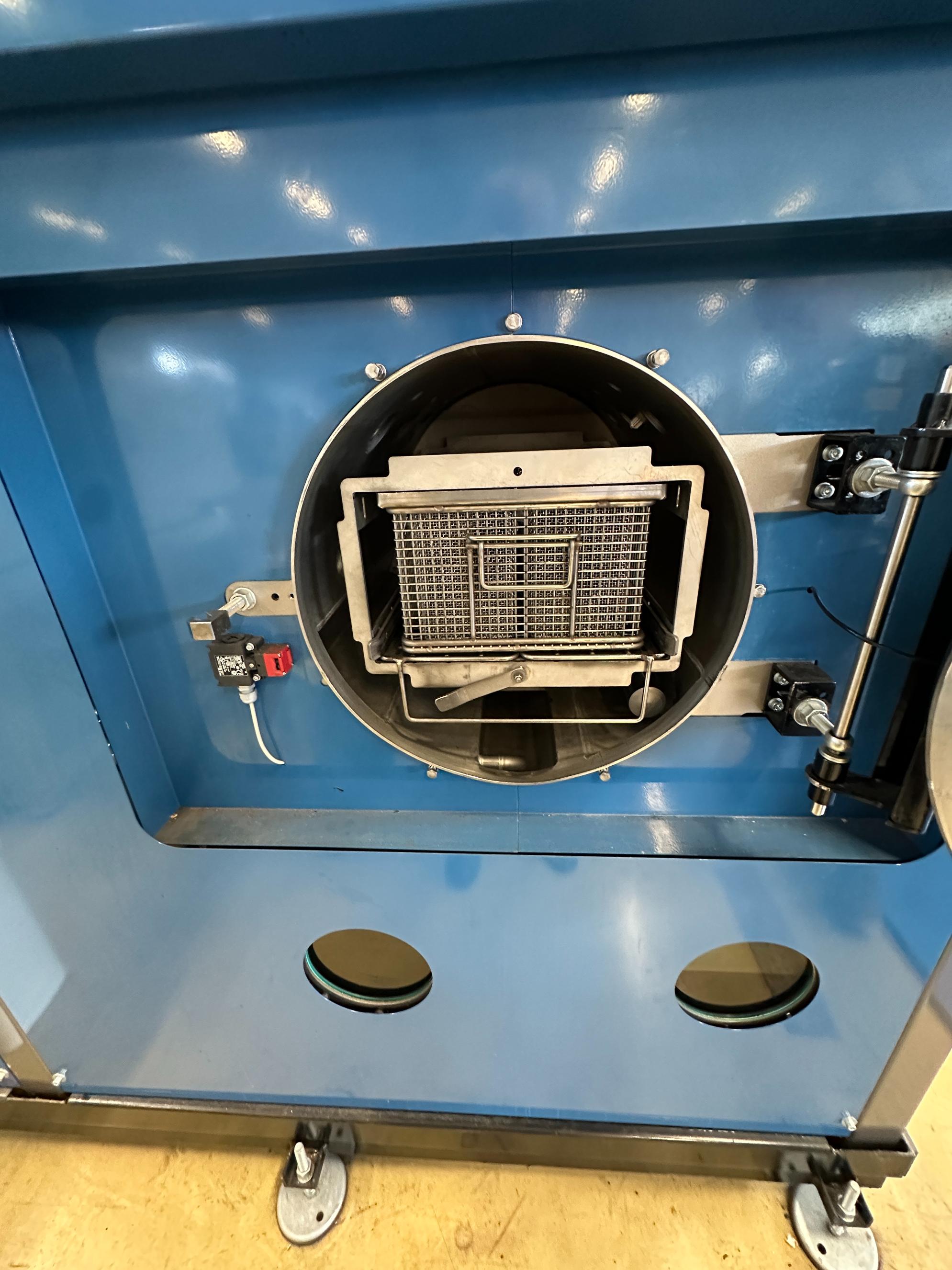

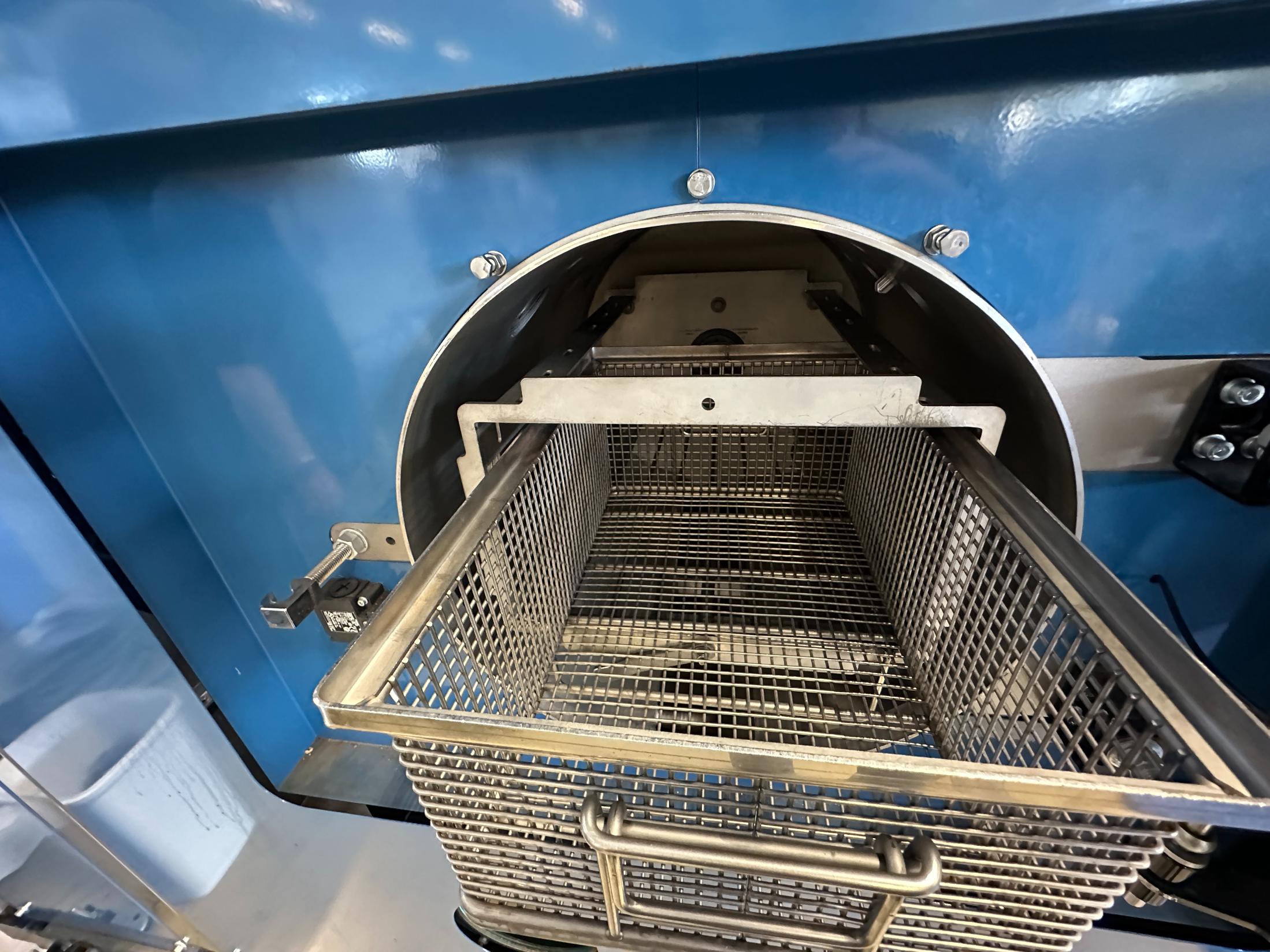

Maximum Basket Capacity: 50 kg

Solvent Type: Perchloroethylene / PCE / PER / Tetrachloroethylene – C₂Cl₄

Solvent Load: Approx. 397 kg / 248 litres

Main Electrical Supply: 400 V / 3 Phase / 50 Hz

Installed Power: Approx. 23 kW

Rated Current: Approx. 46 A

Steam Pressure Requirement: Approx. 4–5 bar

Compressed Air Requirement: Approx. 6–8 bar

Water Pressure Requirement: Approx. 2–3 bar

Floor / Ground Loading: Approx. 549 kg/m²

Control: Union Dialog electronic control

Cleaning Process & Machine Functions

The Union MDMV series is designed as an enclosed solvent-cleaning system capable of combining several cleaning processes in a programmable cycle.

The principal MDMV functions are:

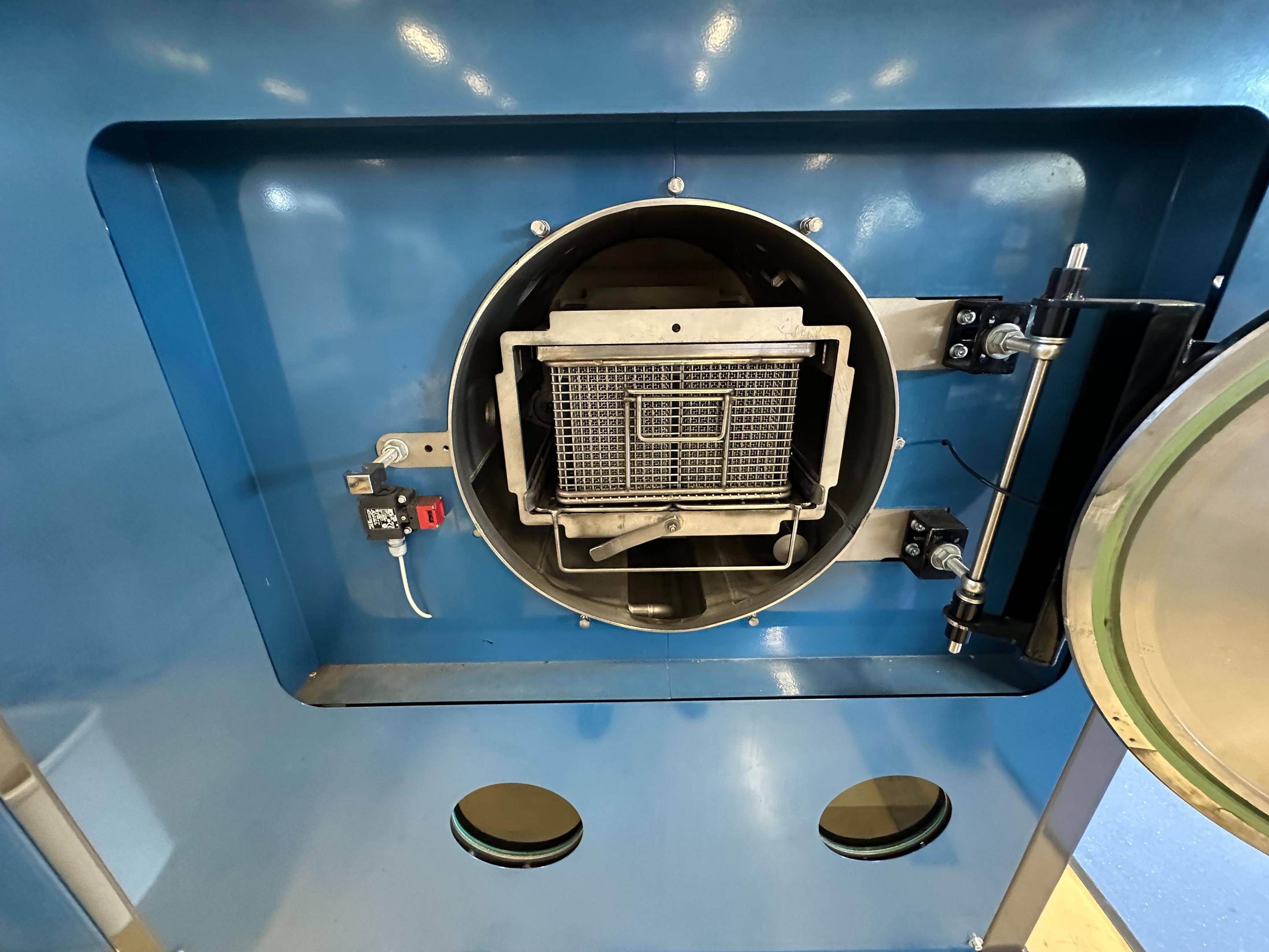

• Basket rotation and oscillation
• Spray cleaning
• Immersion cleaning
• Solvent vapour cleaning / vapour degreasing
• Vacuum drying
• Integral solvent recycling by distillation
• Activated-carbon vapour abatement
• PLC-controlled operating cycles

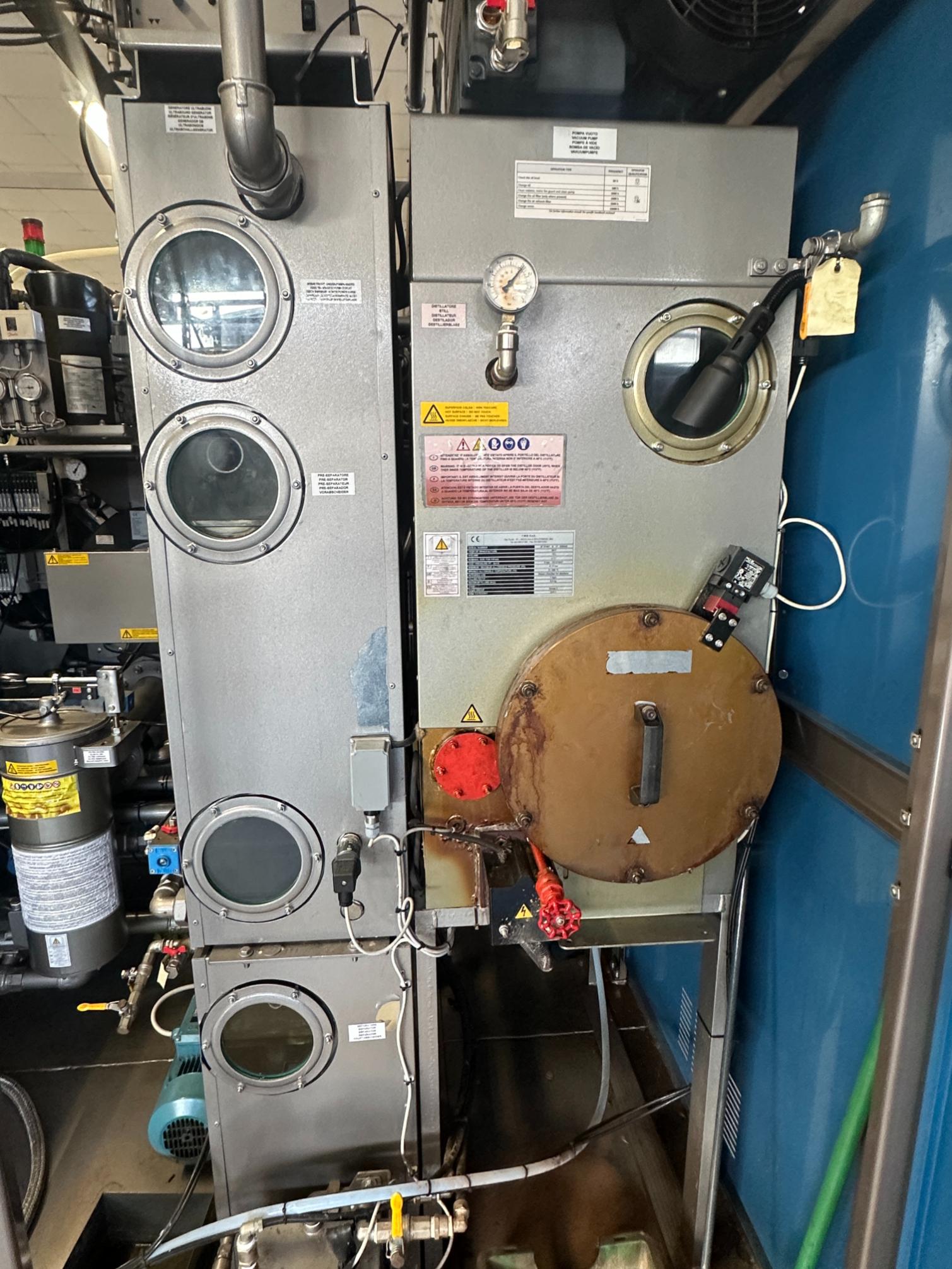

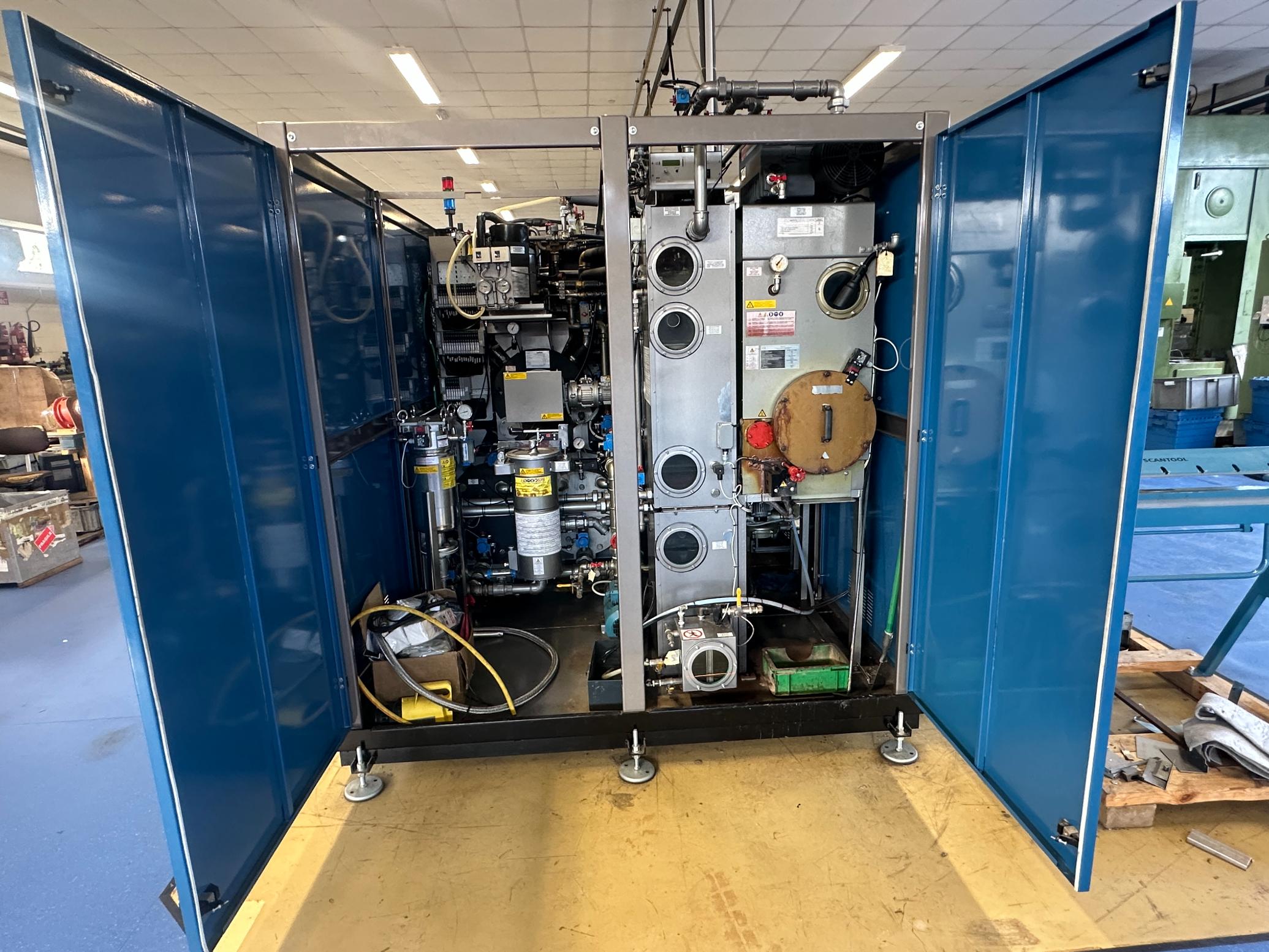

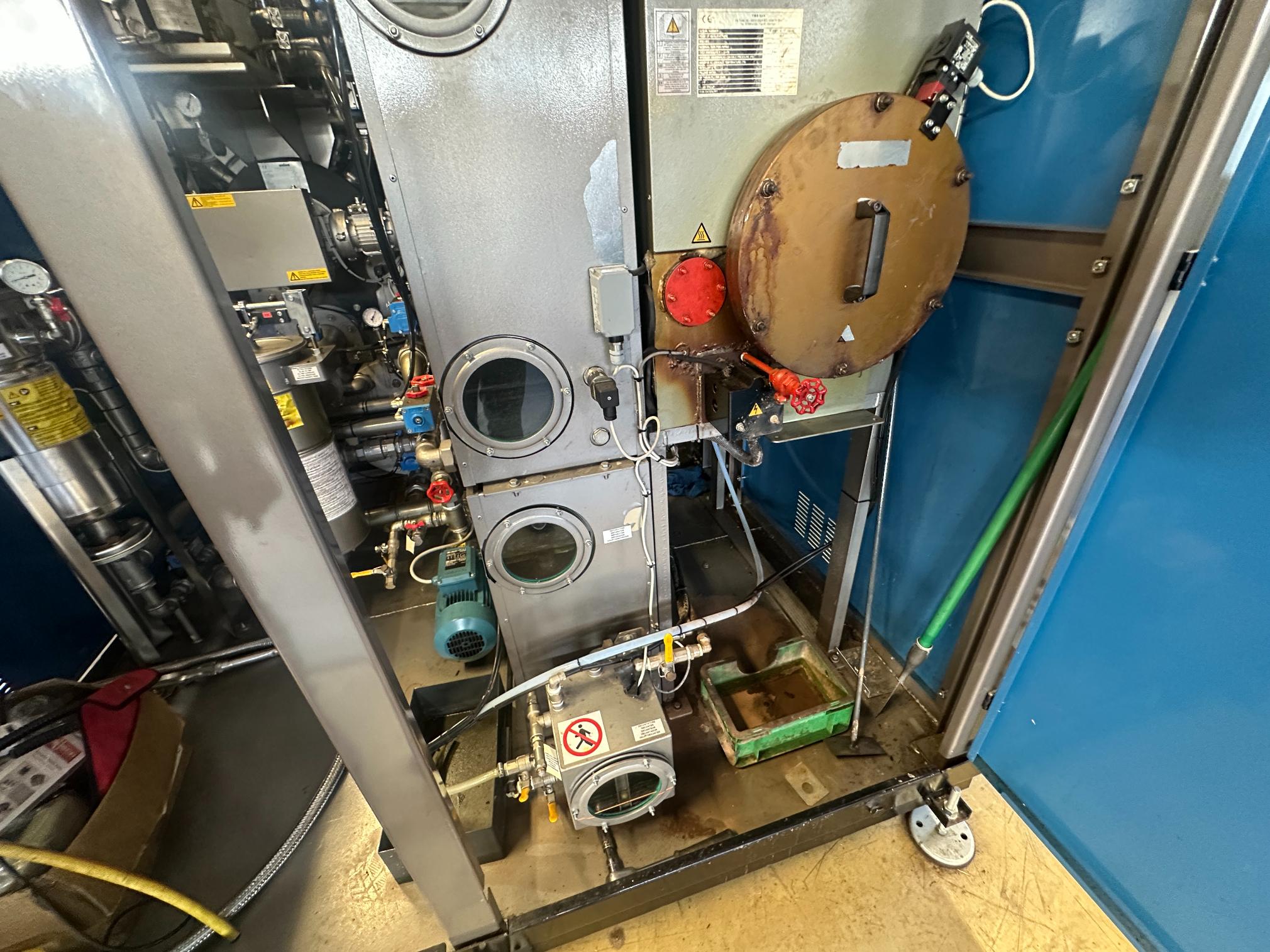

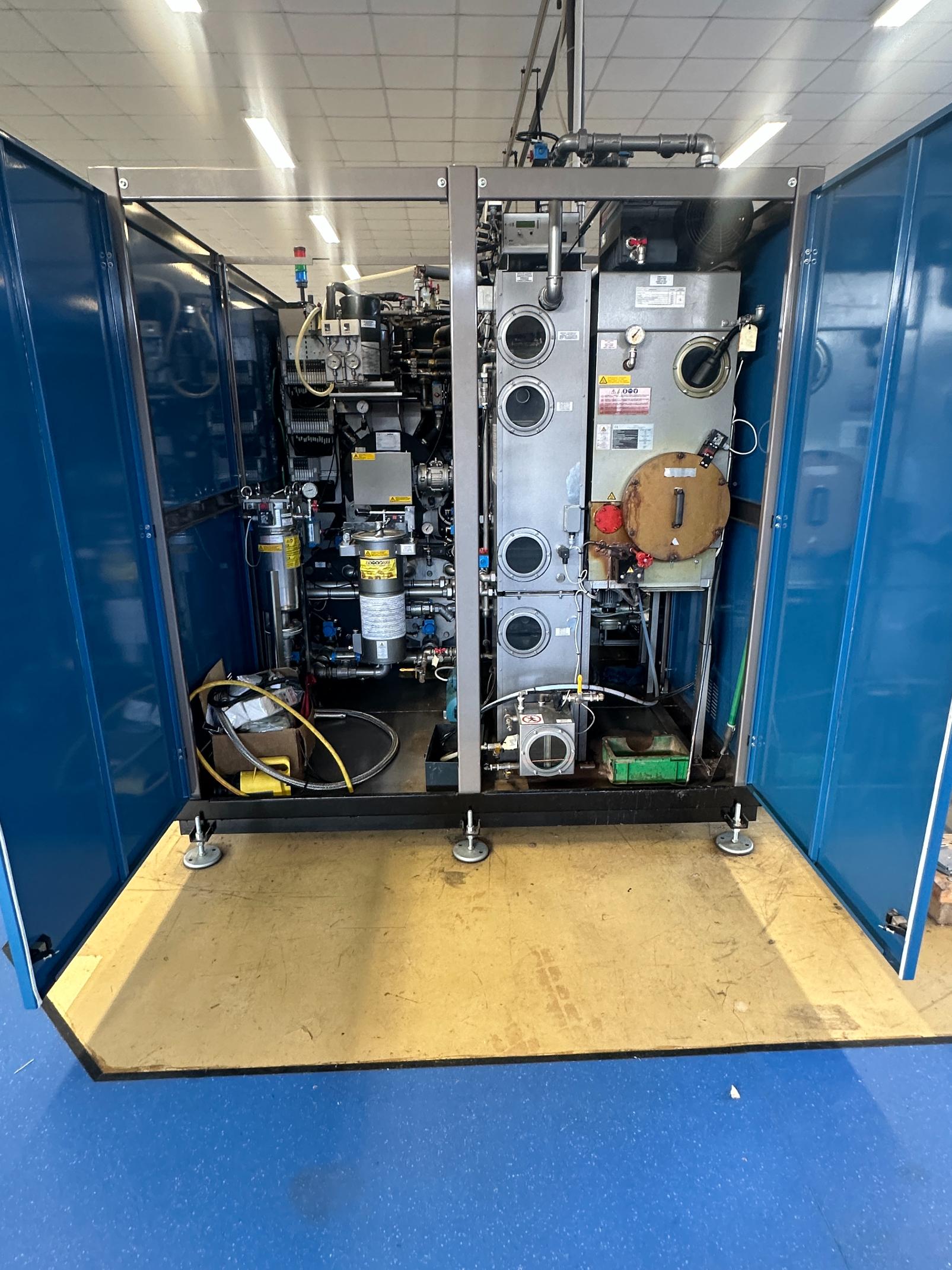

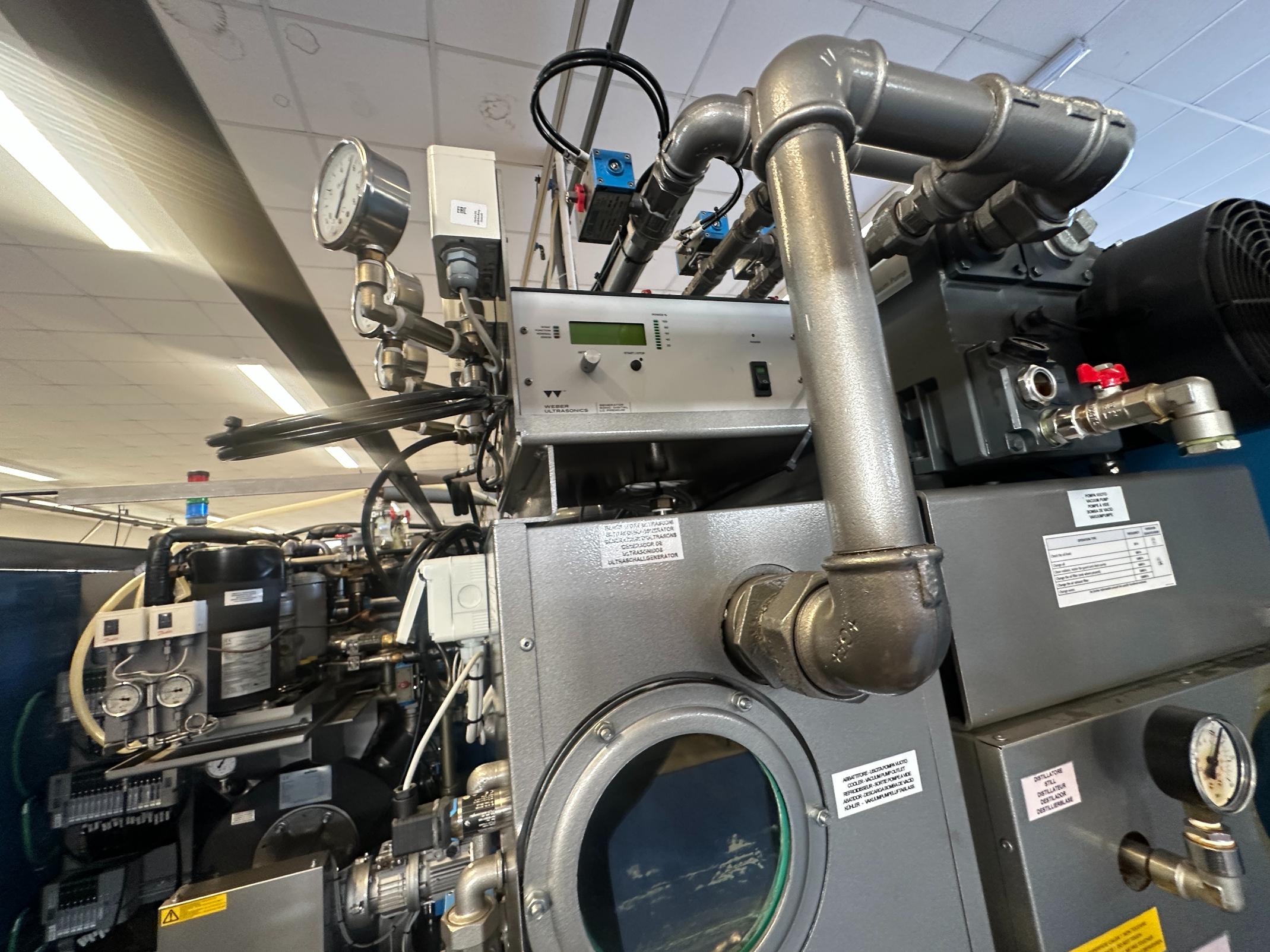

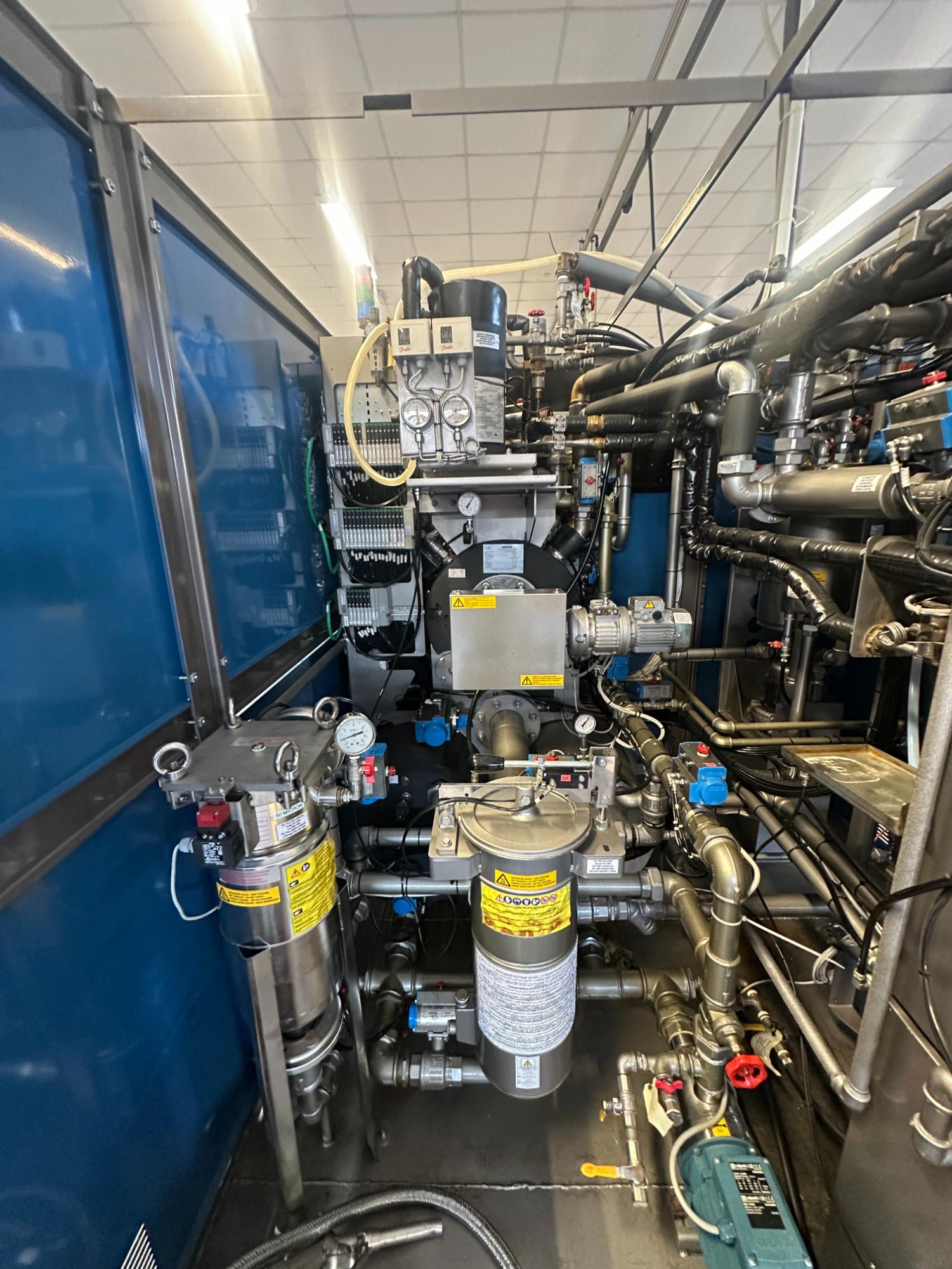

This particular machine also has a substantial integrated solvent-management system incorporating working and recovery tanks, solvent pump, fine filtration, swarf filtration, still/distillation system, condenser, heat exchanger, separator, decanter, vacuum pump and active-carbon treatment.

Continuous Solvent Recovery

A particularly useful feature of the MDMV design is the continuous solvent distillation/recovery system.

Union states that MDMV machines operate under vacuum for rapid washing cycles and use continuous vacuum distillation with automatic final stripping of residues, allowing contaminated solvent to be regenerated and reused during production.

This gives the machine an important advantage over simple open solvent tanks or manual degreasing systems: solvent cleanliness can be maintained automatically rather than continually replacing contaminated solvent.

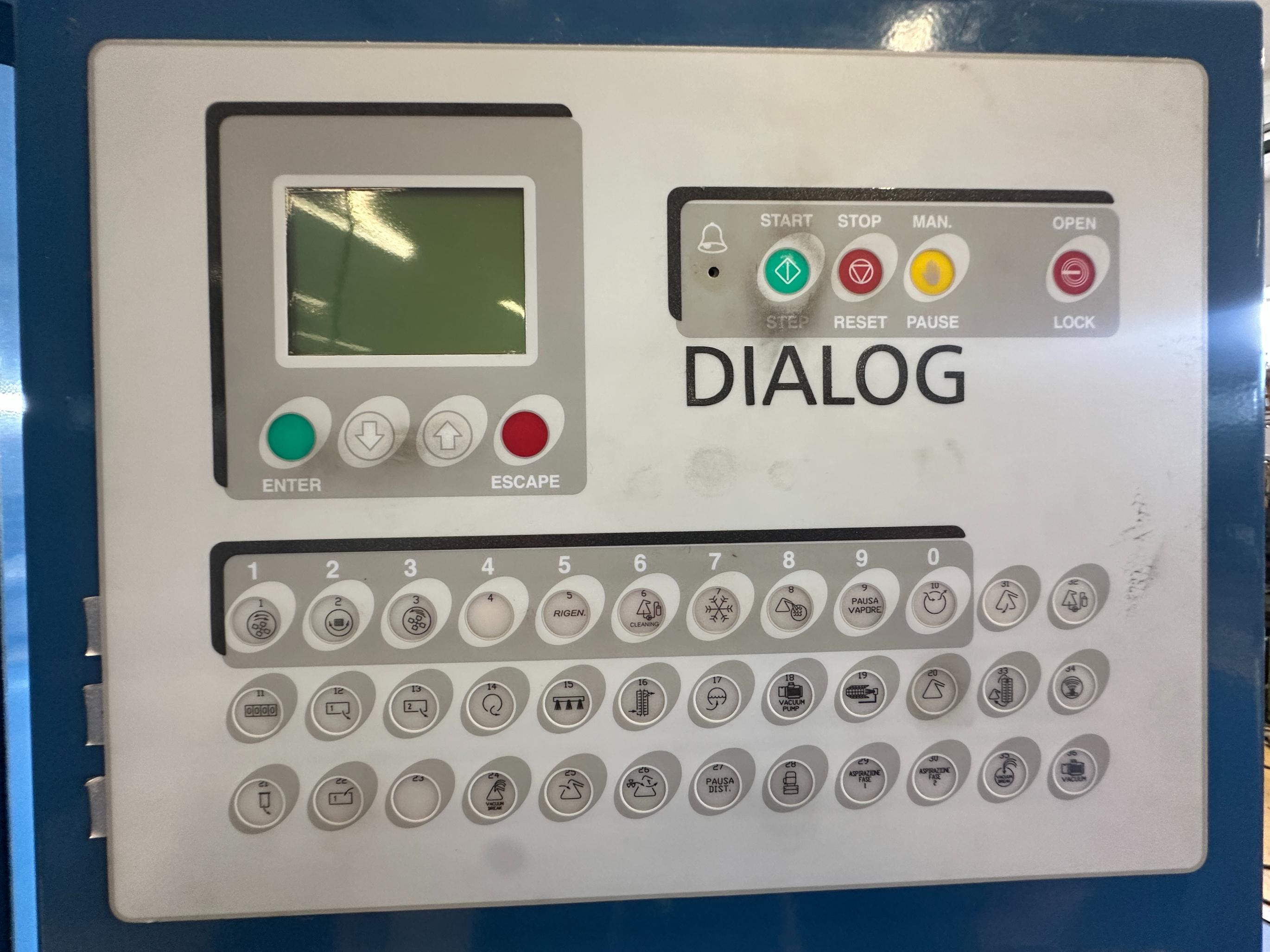

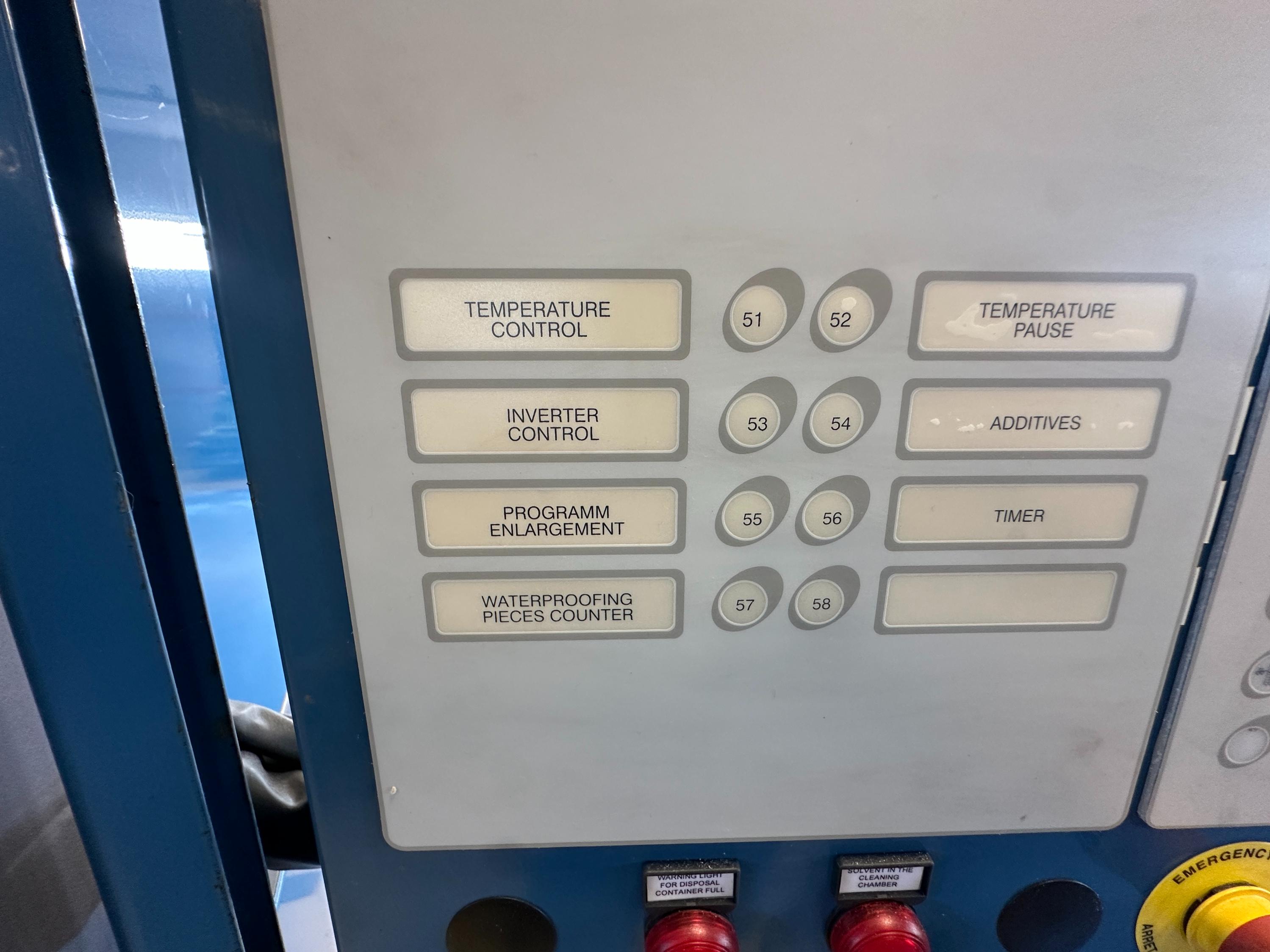

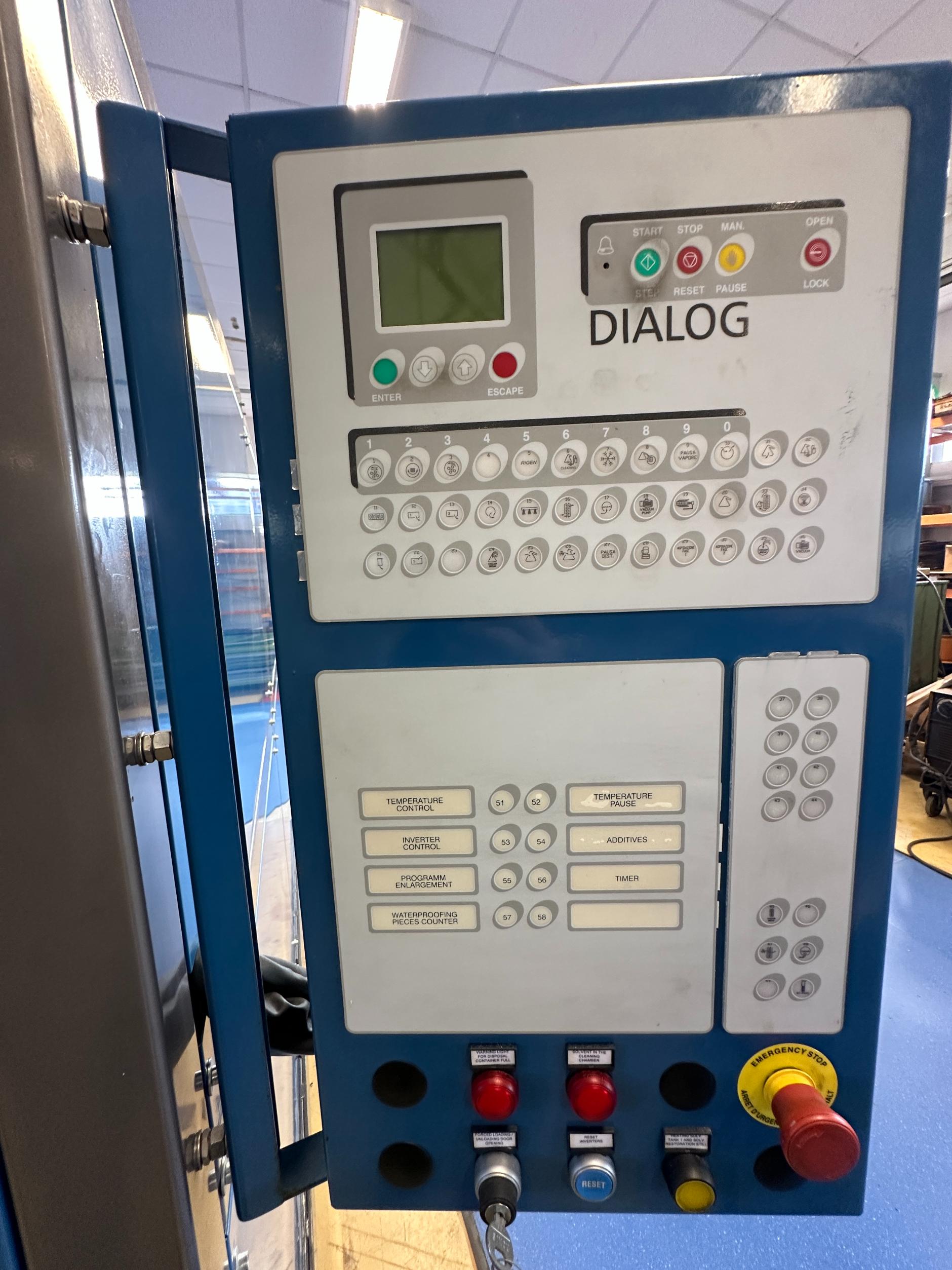

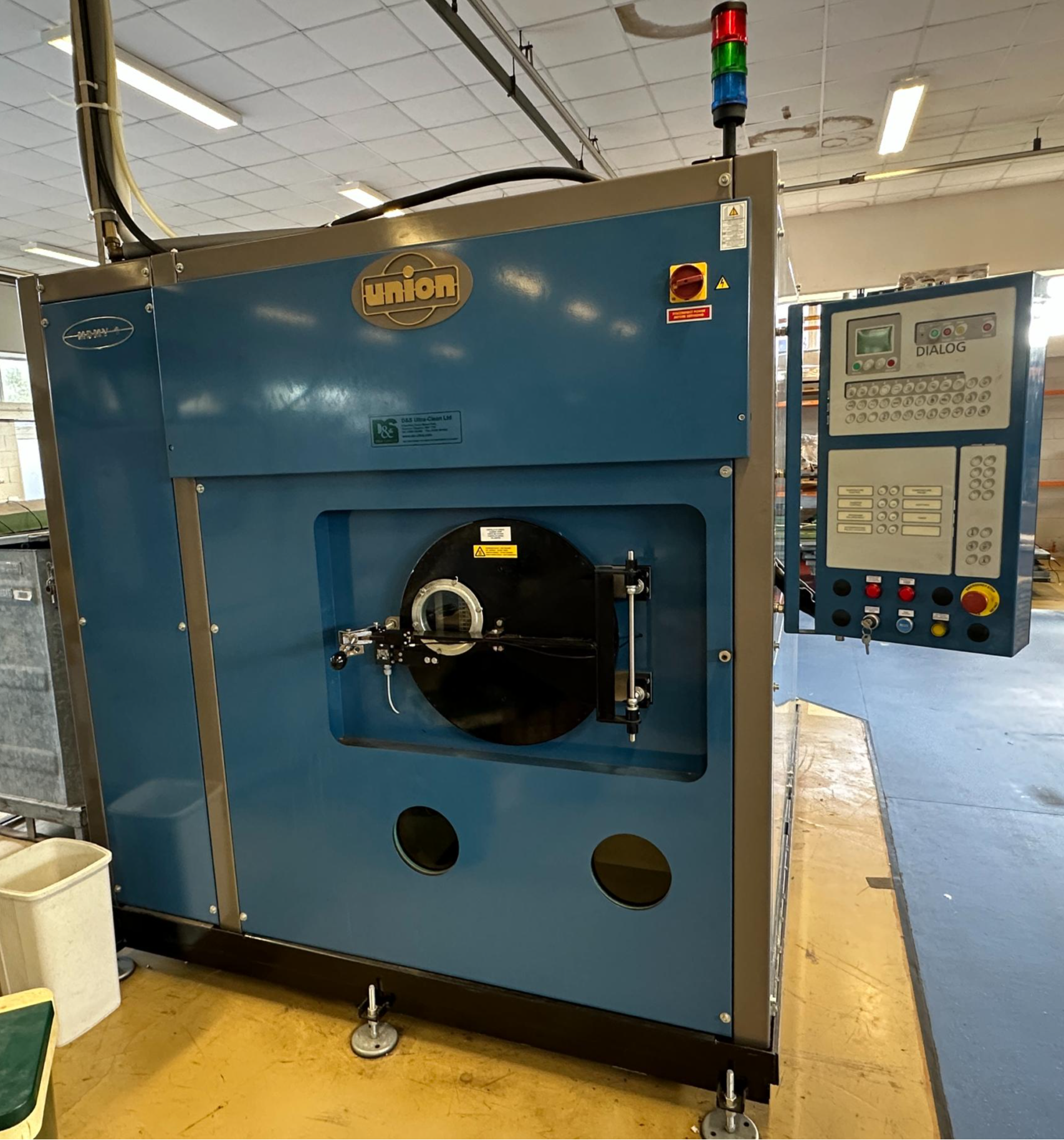

Union Dialog Control

The machine is fitted with Union Dialog electronic control for managing the cleaning process and cycle parameters.

Earlier Union technical literature for this machine family describes the Dialog system as allowing operators to select and modify cleaning processes including:

• Hot or cold solvent washing
• Immersion washing
• Spray washing
• Solvent vapour treatment
• Drying cycles
• Programmable operating sequences

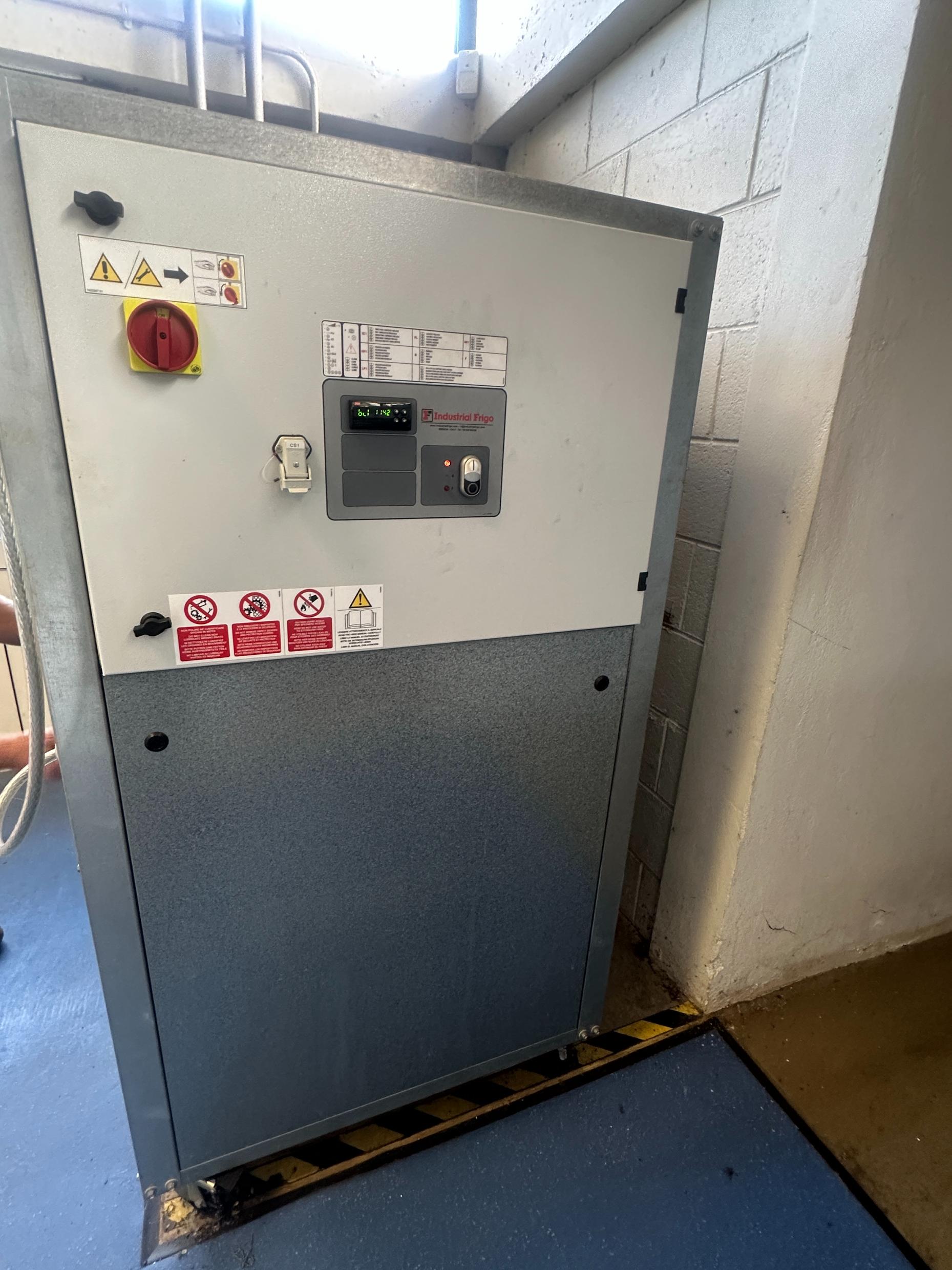

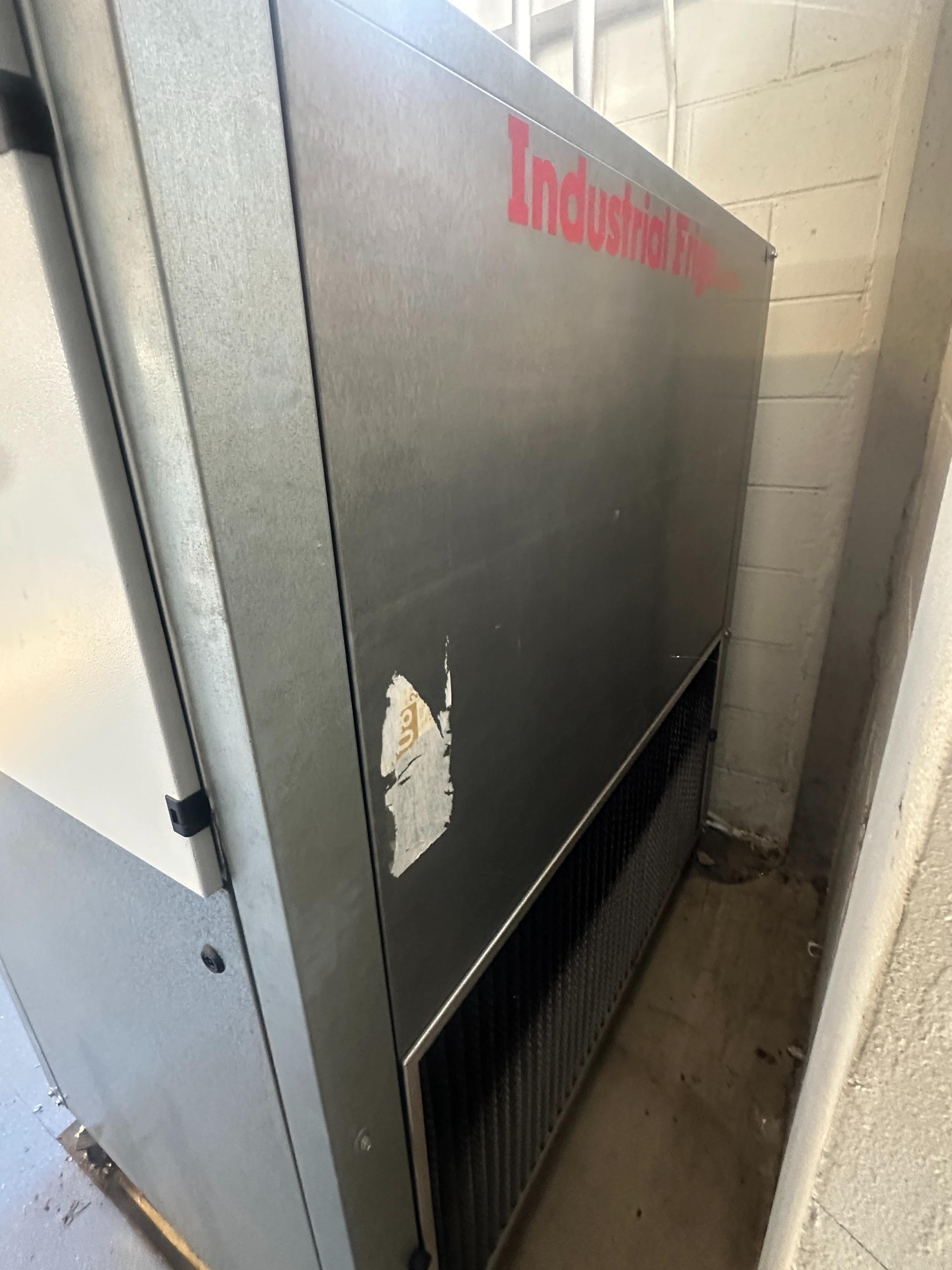

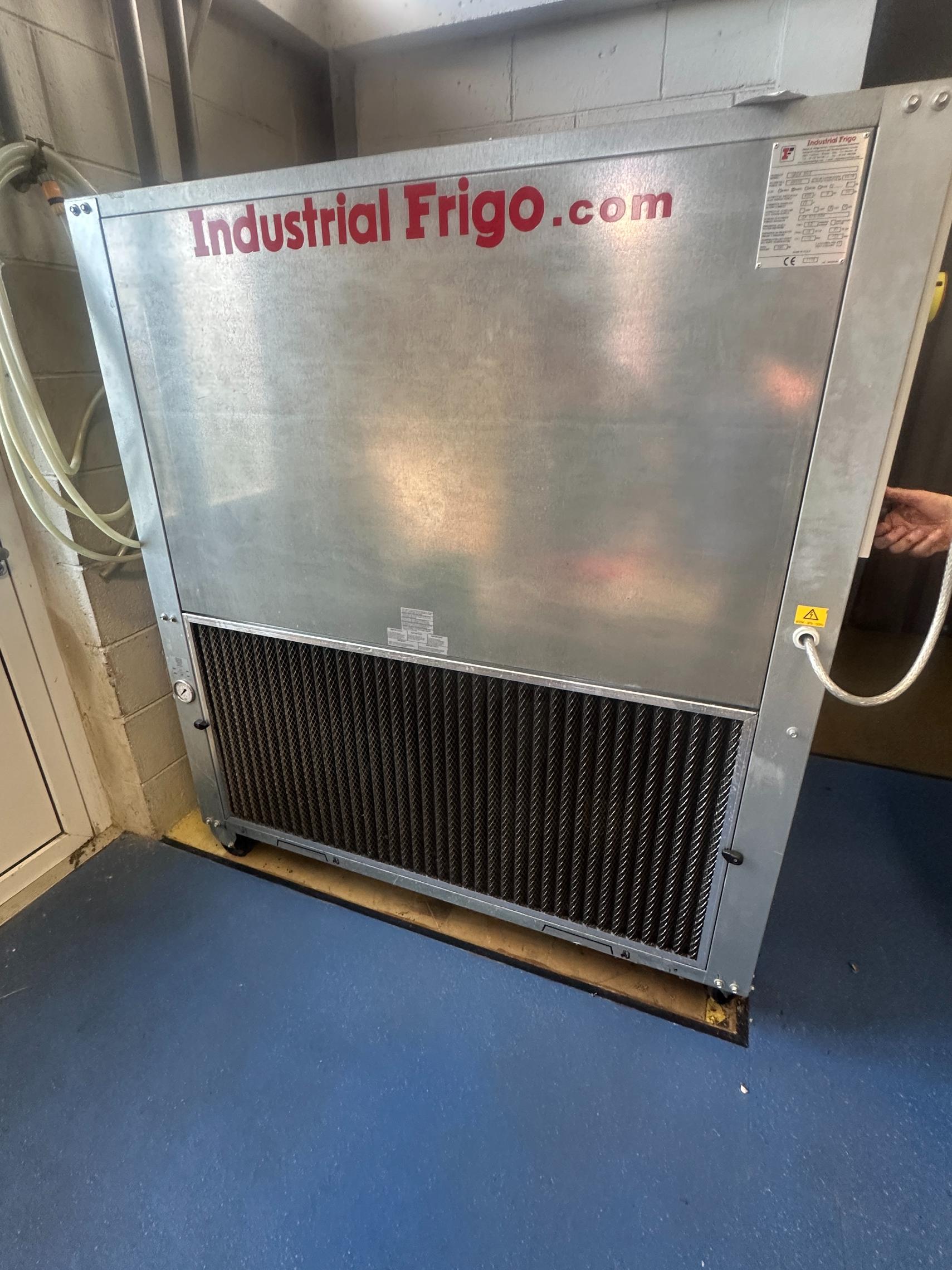

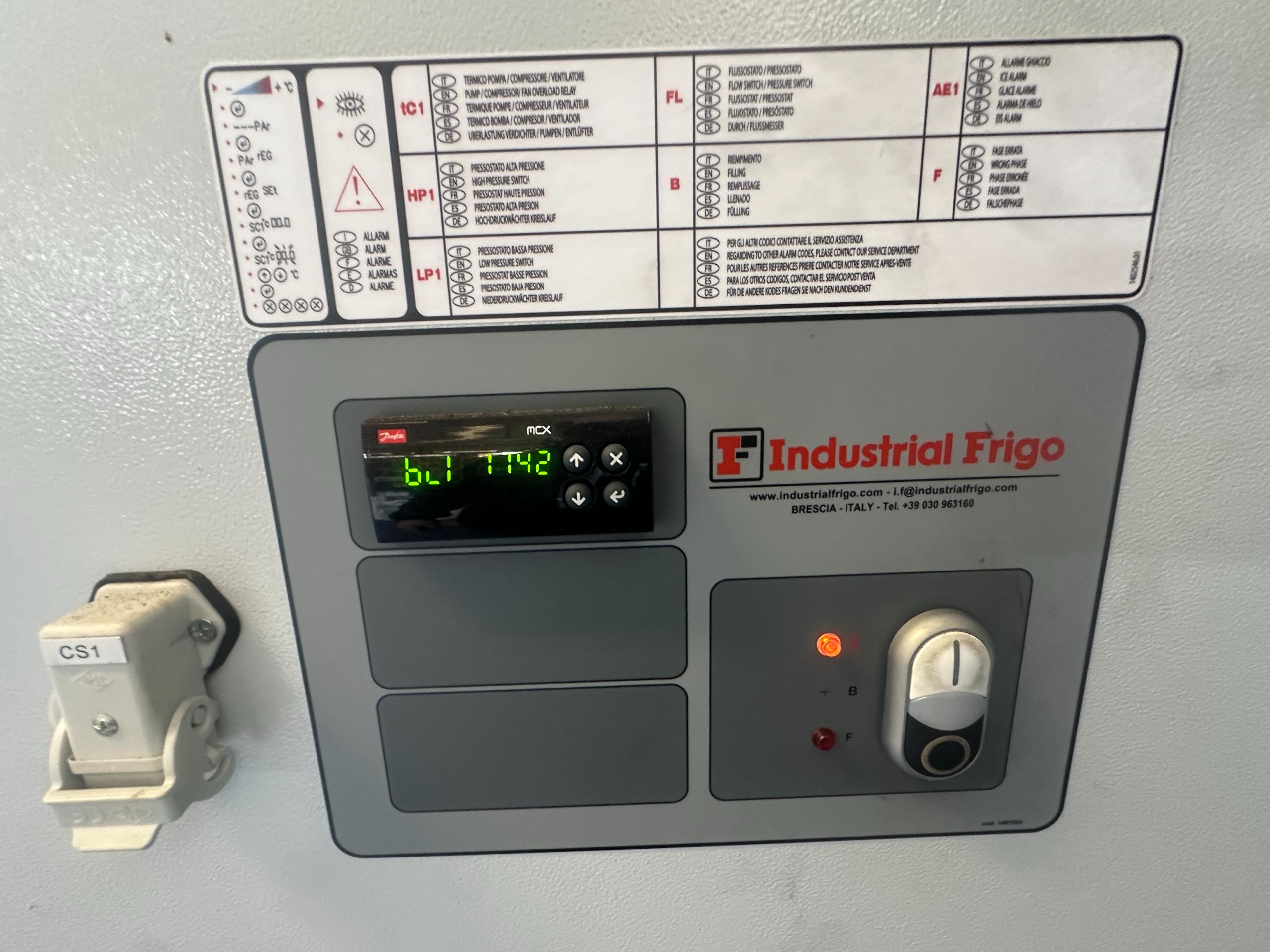

Industrial Frigo GR2A 30/Z Chiller Included

The machine is supplied with a 2018 Industrial Frigo GR2A 30/Z air-cooled industrial water chiller.

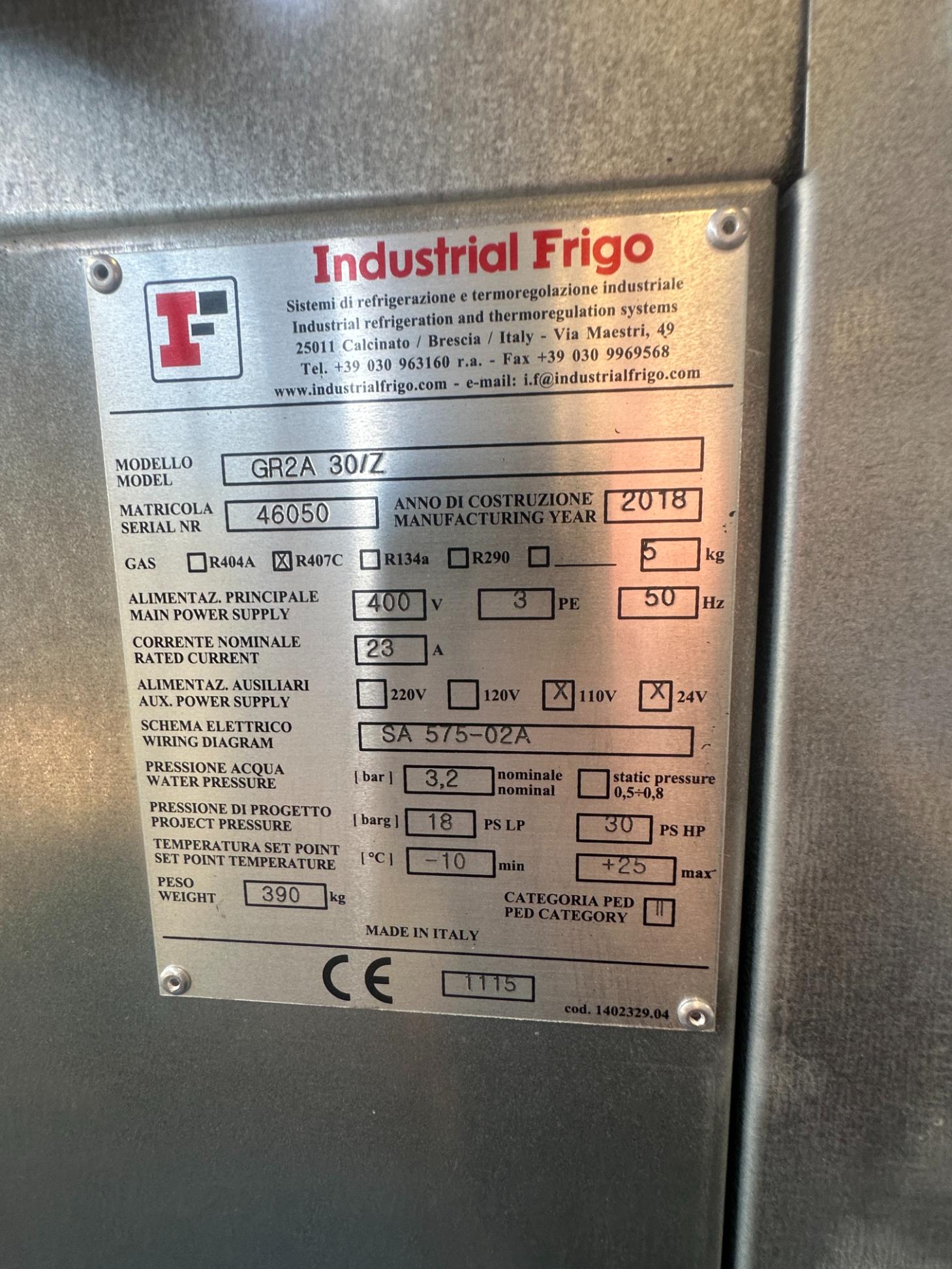

Chiller Specification

Manufacturer: Industrial Frigo

Model: GR2A 30/Z

Year: 2018

Serial Number: 46050

Refrigerant: R407C

Refrigerant Charge: Approx. 5 kg

Electrical Supply: 400 V / 3 Phase / 50 Hz

Rated Current: Approx. 23 A

Nominal Water Pressure: Approx. 3.2 bar

Temperature Set-Point Range: -10°C to +25°C

Weight: Approx. 390 kg

Industrial Frigo data for the GR2A 30/Z indicates a nominal cooling capacity of approximately 28 kW, pump capacity of approximately 80 litres/min, approximately 3.2 bar pump pressure and approximately 170 litre internal tank capacity, depending on operating conditions and specification.

The GR2A is an air-cooled industrial process chiller designed for dedicated or centralised cooling circuits.

Also included are:

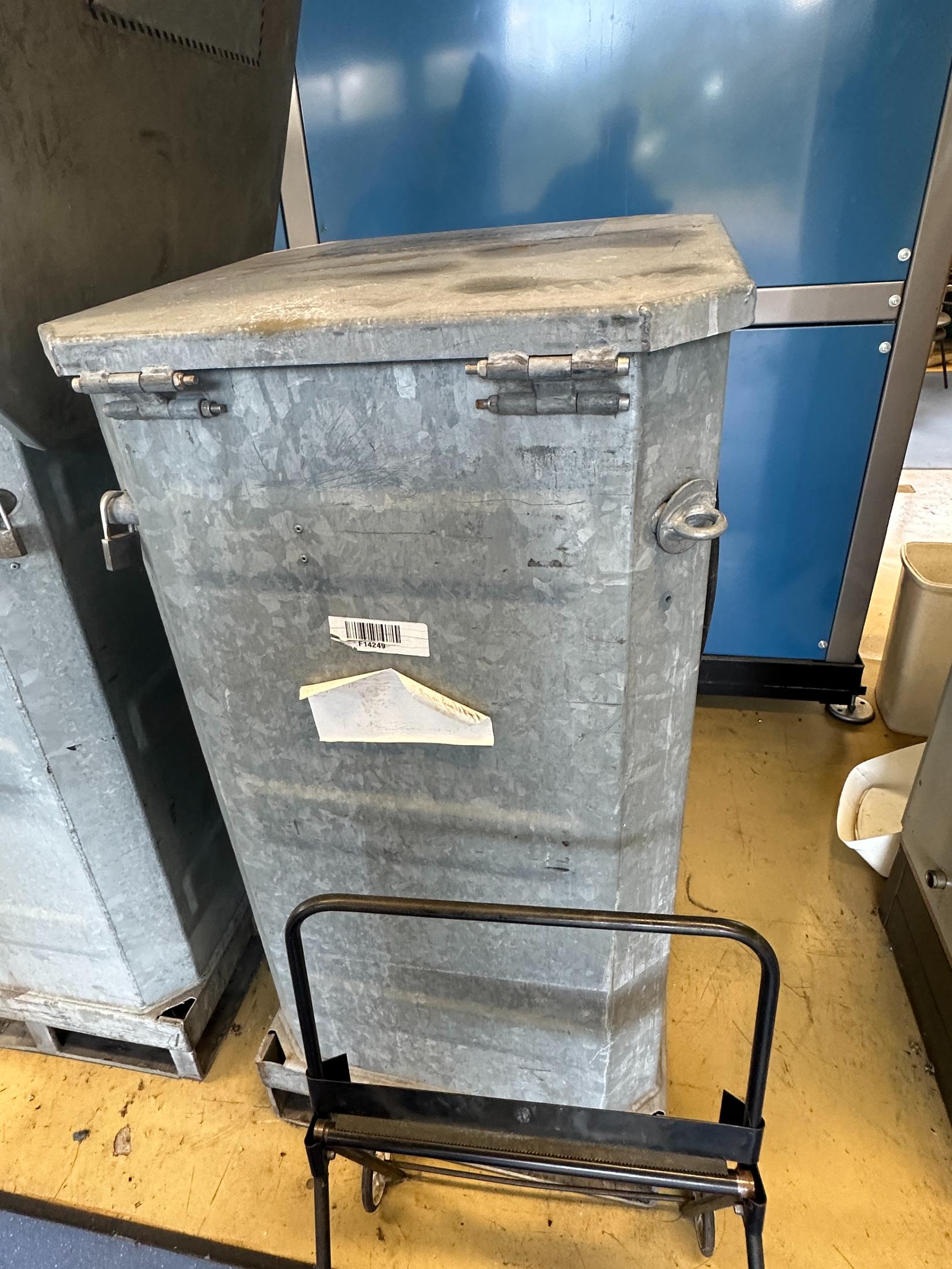

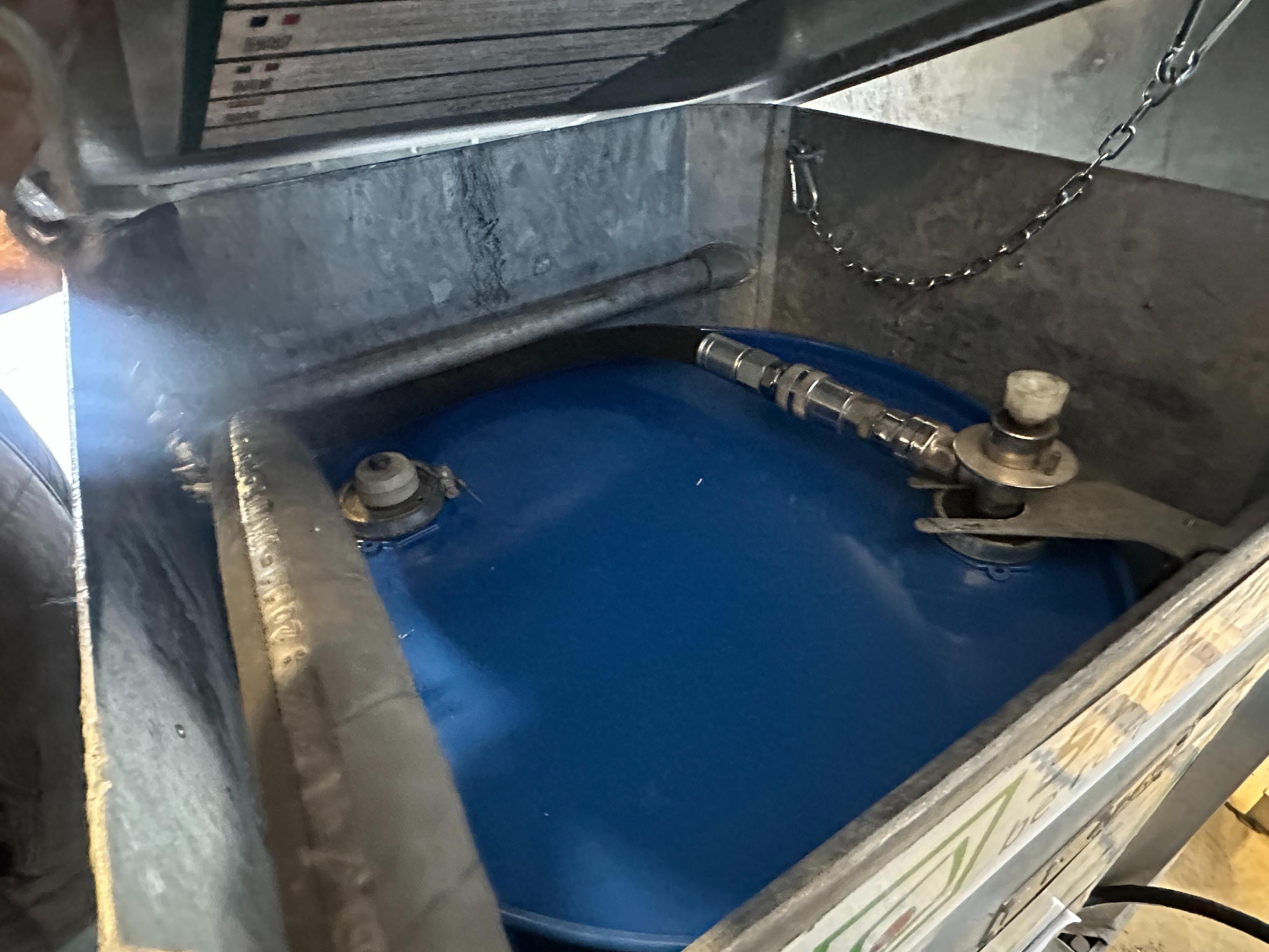

2 x SAFECHEM SAFE-TAINER chemical / solvent storage and handling units

Complete with stainless steel containment trays

The SAFE-TAINER system is specifically designed as a closed-loop solvent handling system. SAFECHEM describes the system as using separate protected containers for fresh solvent supply and collection of used solvent, reducing the handling and exposure associated with transferring cleaning solvents.

SAFECHEM states that the SAFE-TAINER system can be connected to closed cleaning machines and is suitable for handling chlorinated solvents as well as modified alcohols.

These are therefore a useful addition to the Union installation rather than simply loose chemical storage tanks.

Main Components / Equipment

The complete installation includes:

• 2018 Union MDMV 1 metal degreasing machine
• 50 kg maximum basket capacity
• Union Dialog control
• Closed-circuit solvent cleaning system
• Vacuum cleaning/drying system
• Rotating / oscillating basket system
• Spray cleaning capability
• Immersion cleaning capability
• Solvent vapour degreasing
• Integral solvent distillation and recovery
• Working solvent tank
• Recovered-solvent / waiting tank
• Solvent circulation pump
• Fine solvent filtration
• Swarf filtration
• Vacuum pump
• Condenser
• Heat exchanger
• Water / solvent separation
• Decanter
• Active-carbon vapour treatment system
• Floor safety / spill-containment tank
• 2018 Industrial Frigo GR2A 30/Z industrial chiller
• 2 x SAFECHEM SAFE-TAINER chemical handling/storage units
• Stainless steel containment trays
• Use and maintenance handbook
• Electrical documentation

Typical Applications

The Union MDMV 1 is particularly suited to precision cleaning and degreasing of:

• CNC machined components
• Turned components
• Milled parts
• Precision engineering components
• Components with blind holes and internal passages
• Aerospace components
• Automotive parts
• Hydraulic components
• Medical engineering parts
• Tooling and dies
• Bearings
• Gears and transmission components
• Pressed and stamped components
• Parts contaminated with machining oil
• Components contaminated with cutting fluids
• Components requiring a high standard of final cleanliness

The MDMV series is particularly suitable for small components or parts with complex structures, including blind holes.

Key Machine Highlights

2018 machine

50 kg maximum basket load

Closed-circuit hermetic solvent cleaning

Configured for super-stabilised perchloroethylene / PCE / PER

Vacuum cleaning and vacuum drying

Spray, immersion and vapour cleaning processes

Basket rotation / oscillation

Continuous solvent distillation and recovery

Active-carbon vapour treatment

Union Dialog control

Industrial Frigo GR2A 30/Z chiller

2 x SAFECHEM SAFE-TAINER solvent handling units

Stainless steel containment trays

400 V / 3 phase / 50 Hz

23 kW machine power

Original operating and maintenance documentation

FAQ

What is a Union MDMV 1?

The Union MDMV 1 is a closed-circuit industrial solvent metal degreasing and component cleaning machine designed particularly for small precision components and parts with complex geometries.

What is the maximum load capacity of this Union MDMV 1?

This 2018 machine has a maximum basket capacity of approximately 50 kg.

What solvent does this machine use?

This particular machine is configured for super-stabilised perchloroethylene (PCE / PER / tetrachloroethylene, C₂Cl₄).

Does the Union MDMV 1 dry components after cleaning?

Yes. The MDMV range uses vacuum drying, helping remove residual solvent from cleaned components.

Does it recycle the cleaning solvent?

Yes. The system incorporates solvent filtration and continuous distillation/recovery, allowing solvent to be regenerated during operation.

What type of components is it designed to clean?

It is particularly suited to small precision components and components with complex shapes, internal passages or blind holes.

Condition & Availability

Used machine complete with auxiliary equipment as described.

Please contact us for availability, additional photographs, inspection arrangements, loading information and further technical details.

Please Note: All specifications, dimensions, capacities and descriptions are approximate and provided in good faith. Prospective purchasers should independently verify all important specifications, machine configuration, solvent compatibility, regulatory requirements and suitability for their intended application before purchase.
