2000 Presse Ross 40V-4 40 Ton Mechanical Press with Soprem Decoiler

2000 Presse Ross 40V-4 40 Ton Mechanical Press with Soprem Decoiler

Used 2000 Presse Ross 40V-4 40 ton mechanical press with Brankamp monitoring, Soprem powered decoiler, 7–100 mm stroke and safety guarding.

Manufacturer: Presse Ross

Model: 40V-4

Machine Type: Mechanical Press

Year: 2000

Condition: Very Good

Includes:

Brankamp Prokos PK550/3 Process Monitoring Control

Interlocked safety guards

Soprem Powered Decoiler

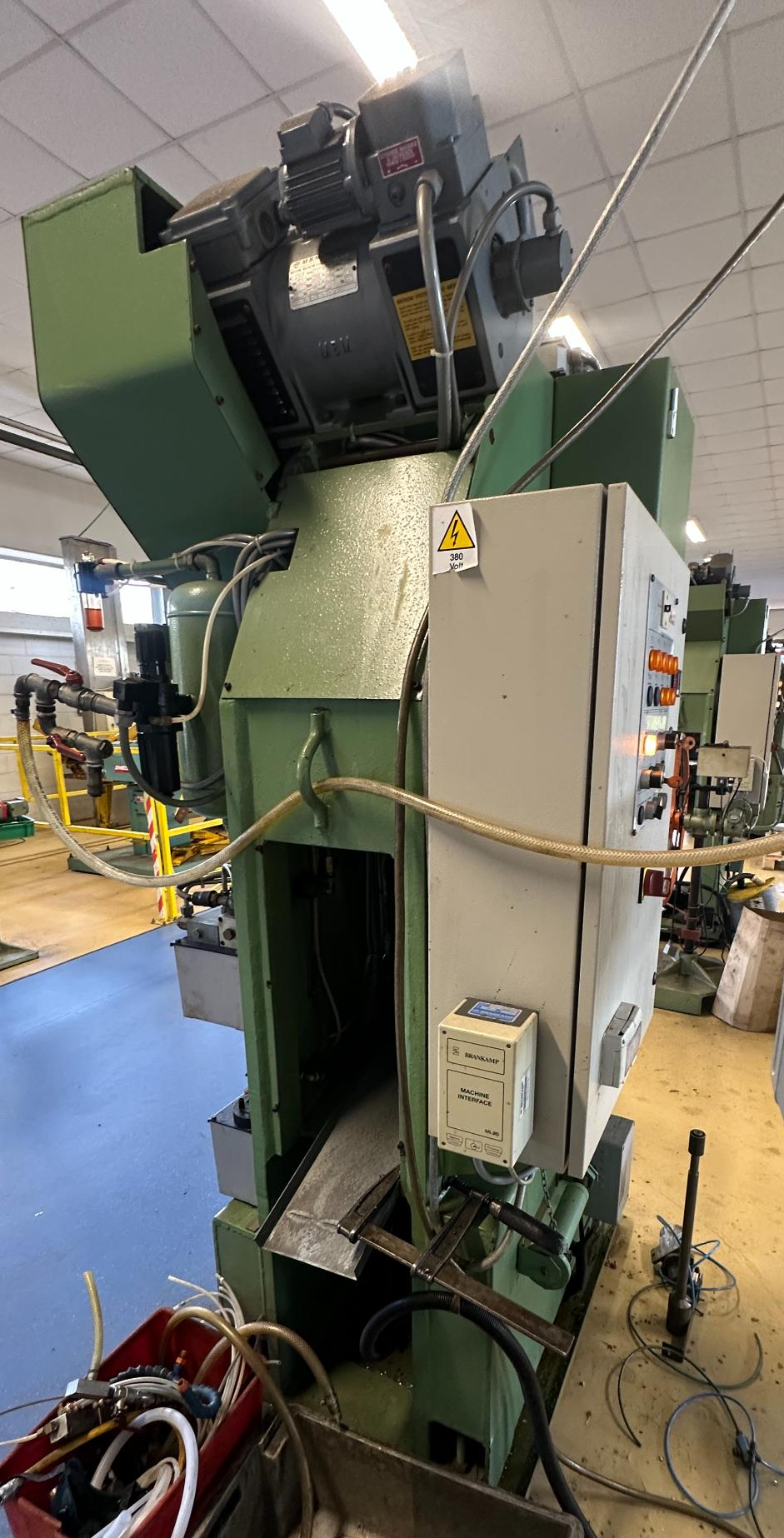

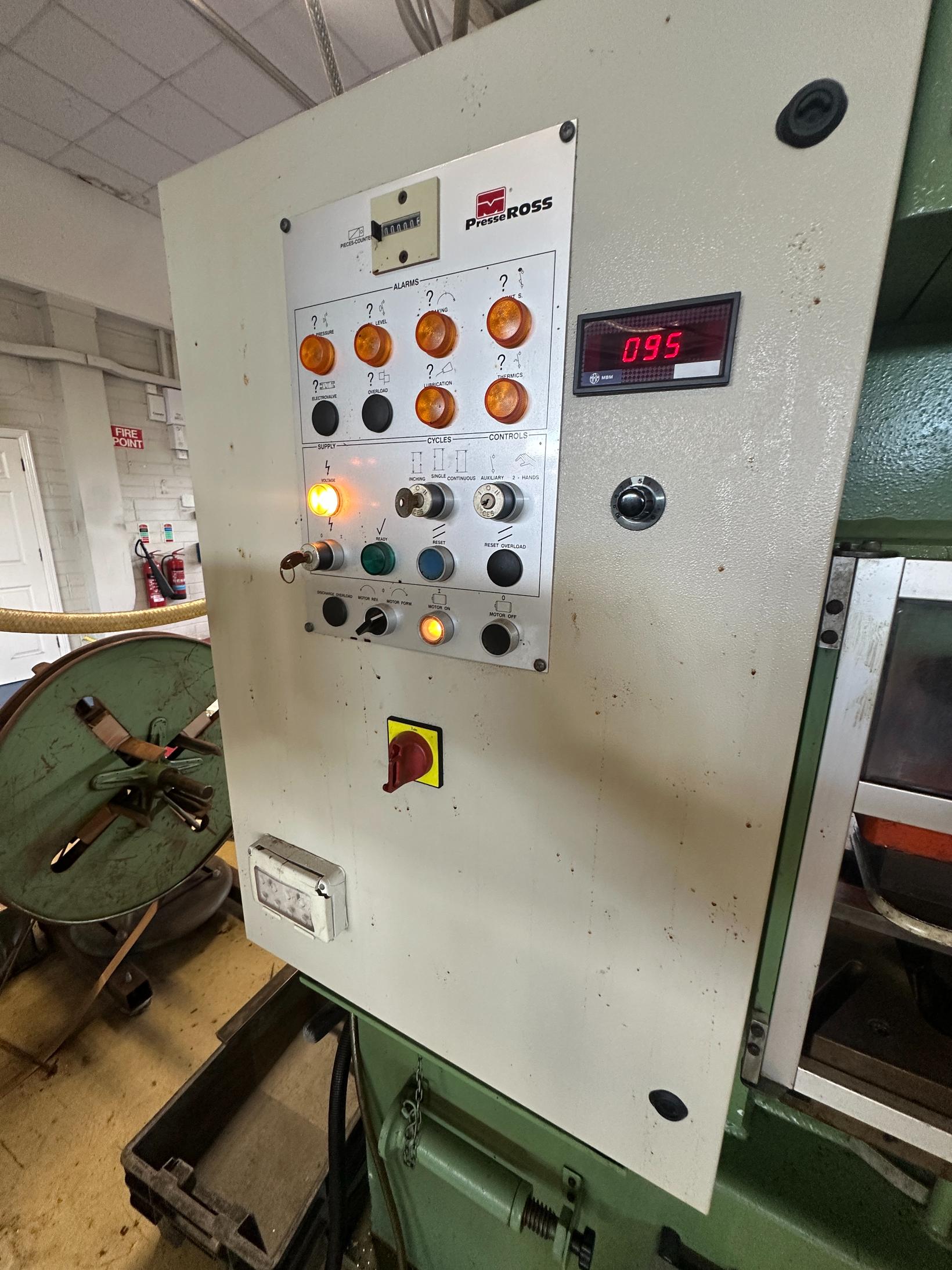

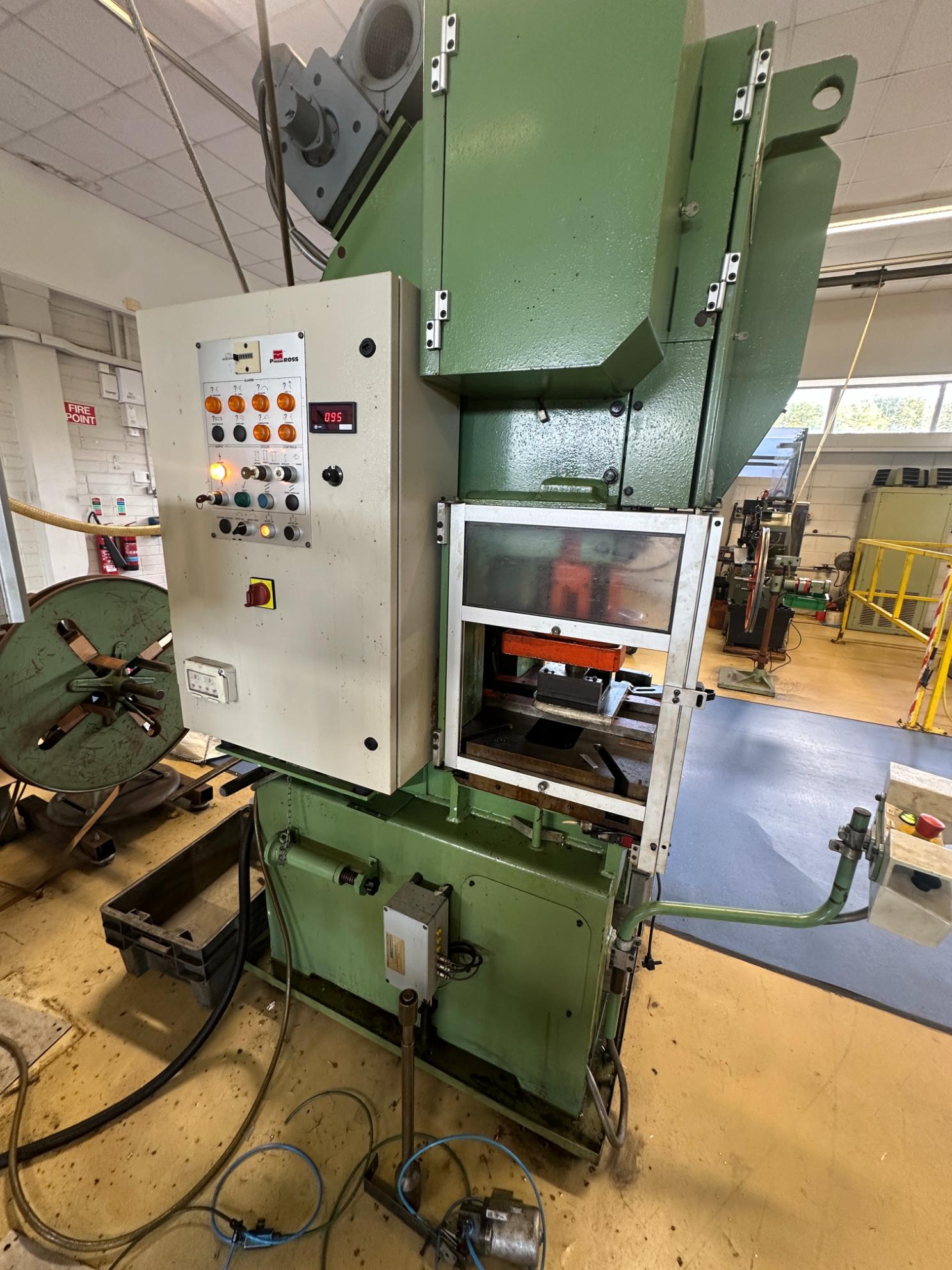

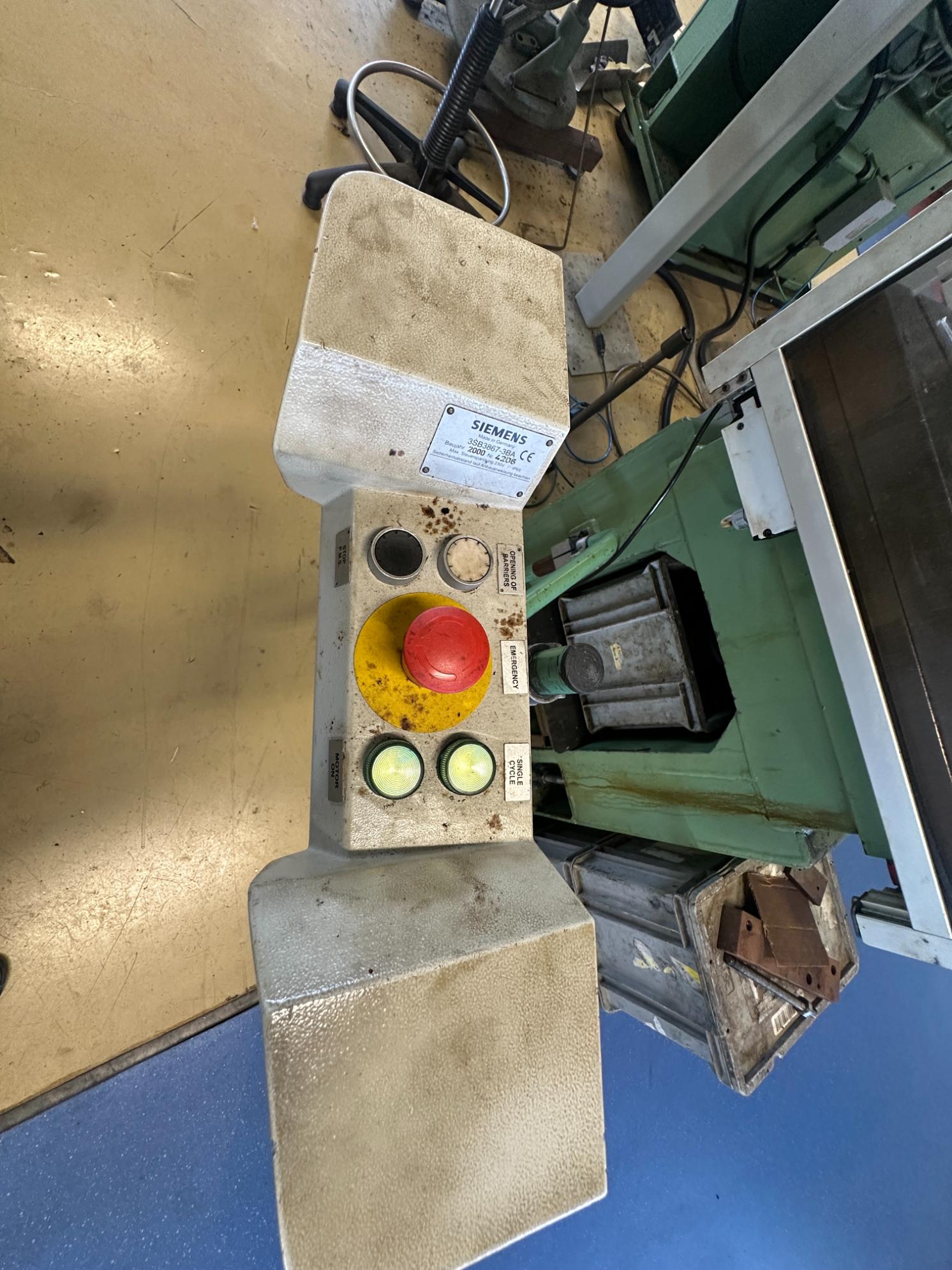

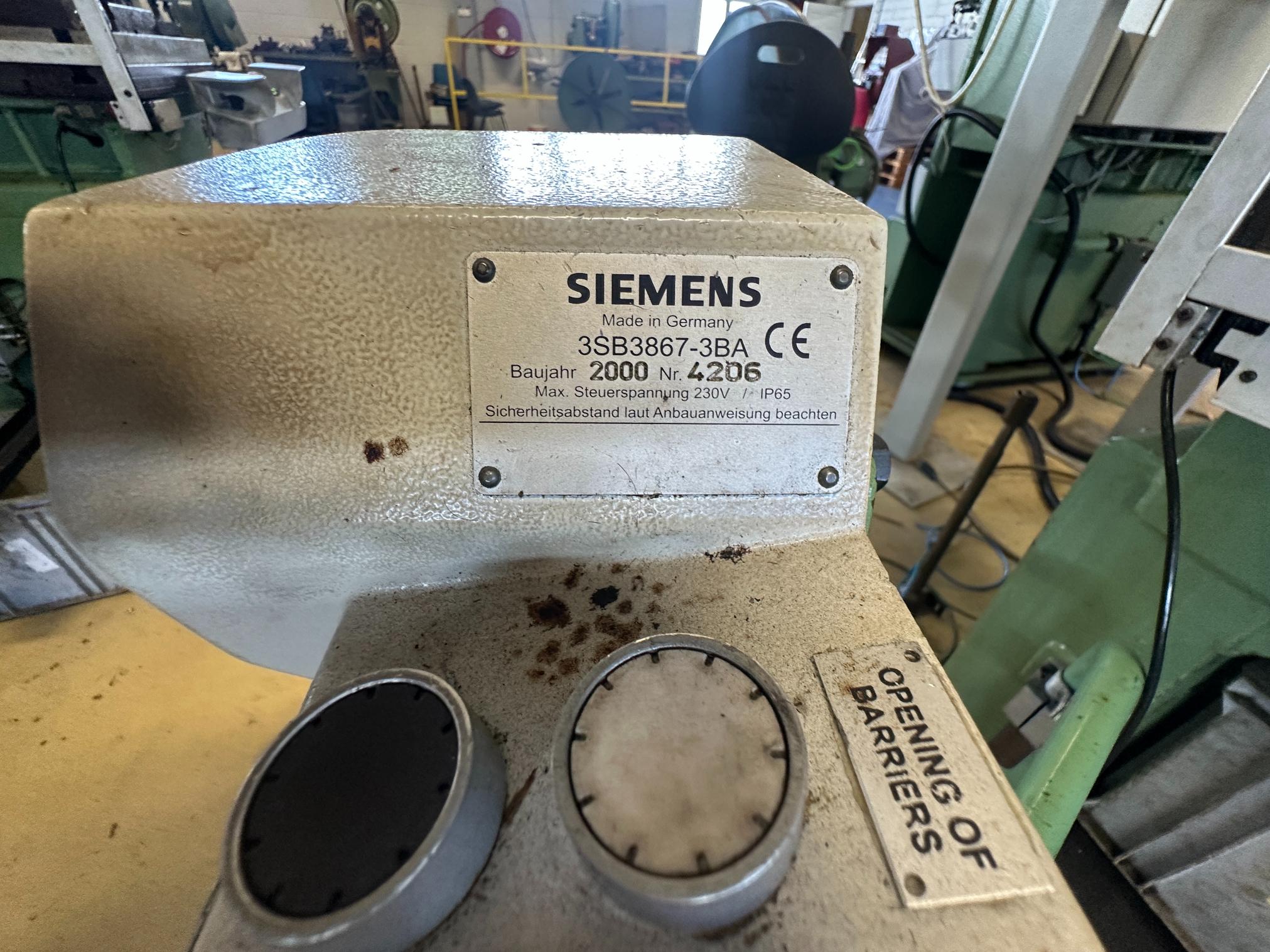

Separate control panel with two hand control

Machine Description

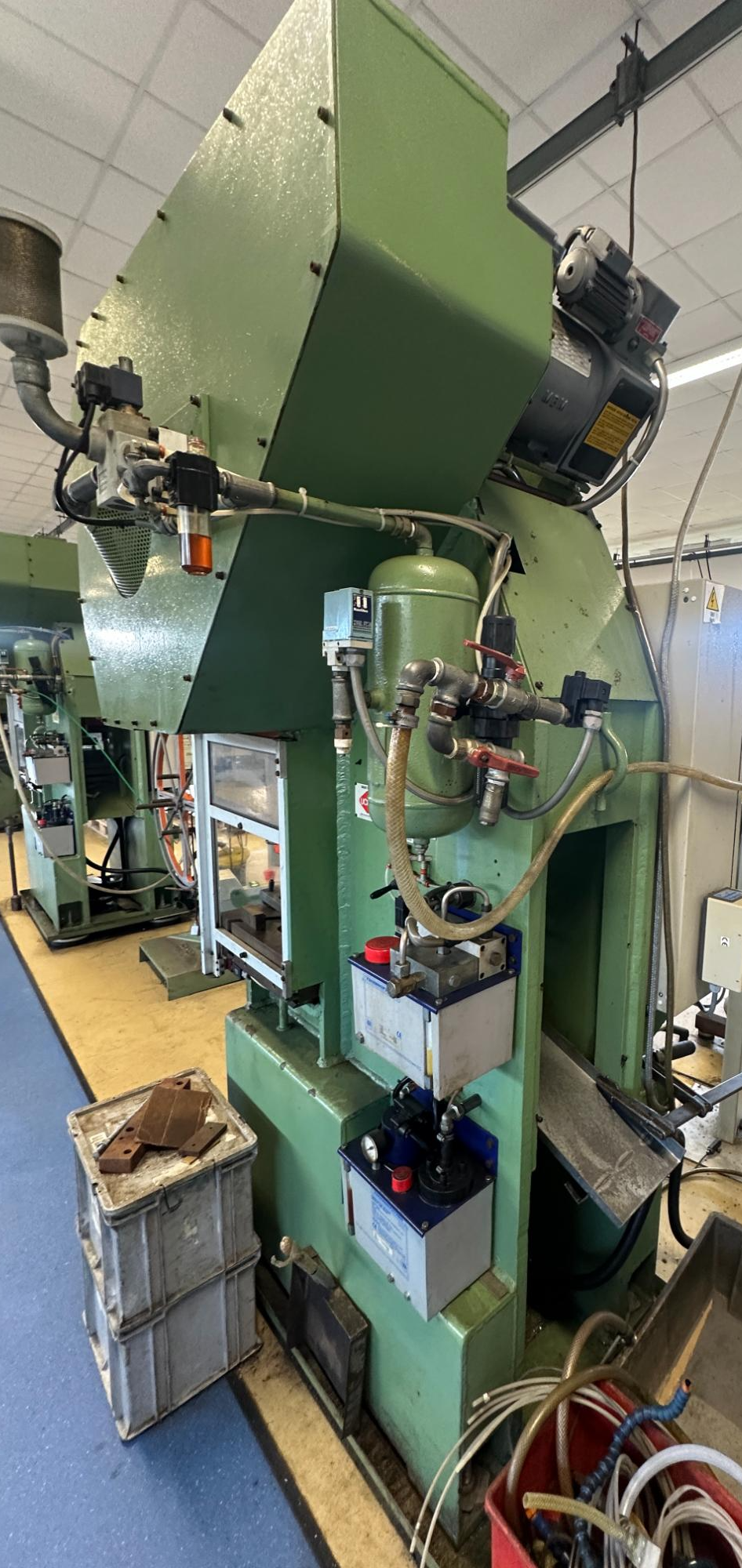

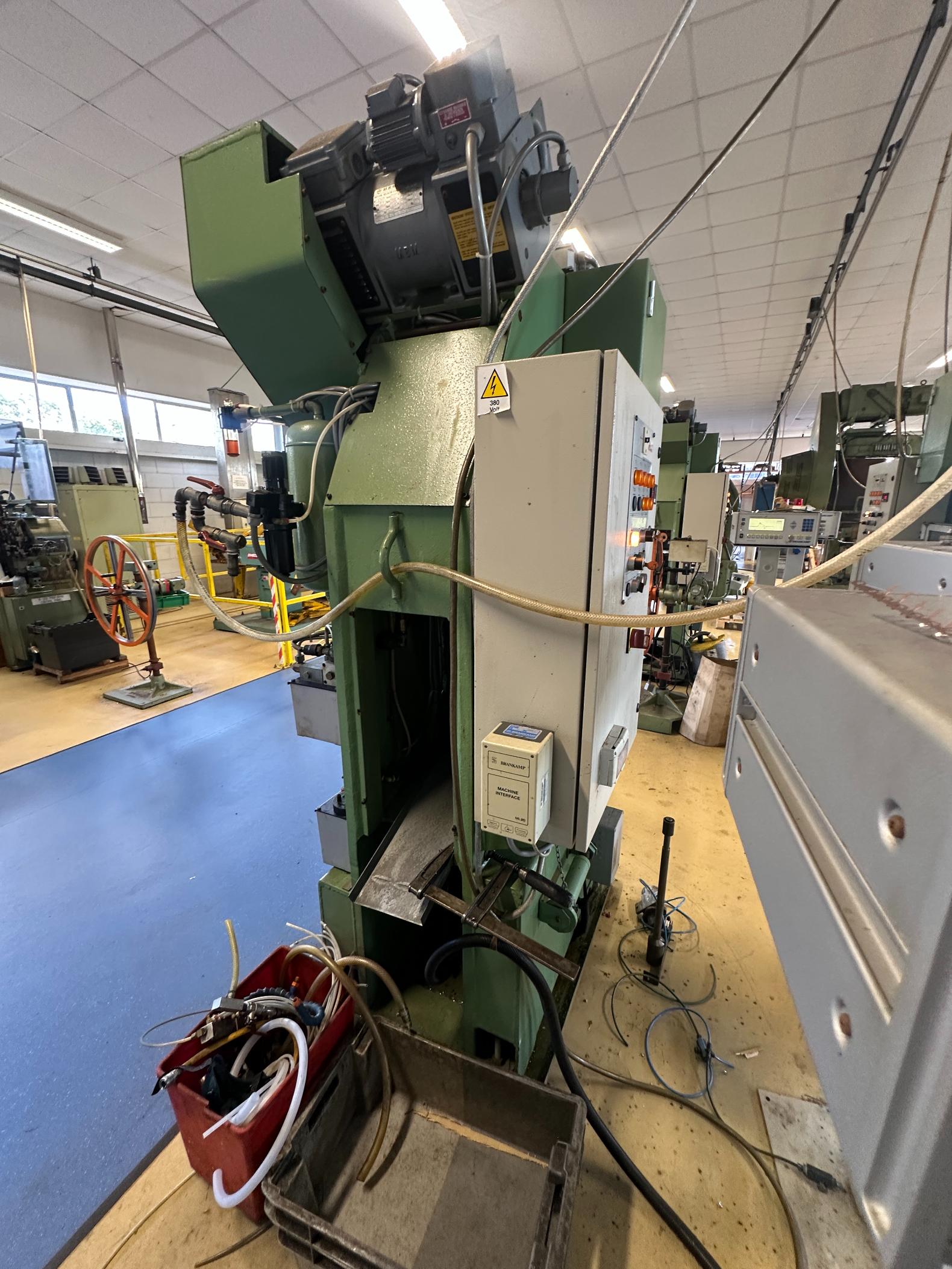

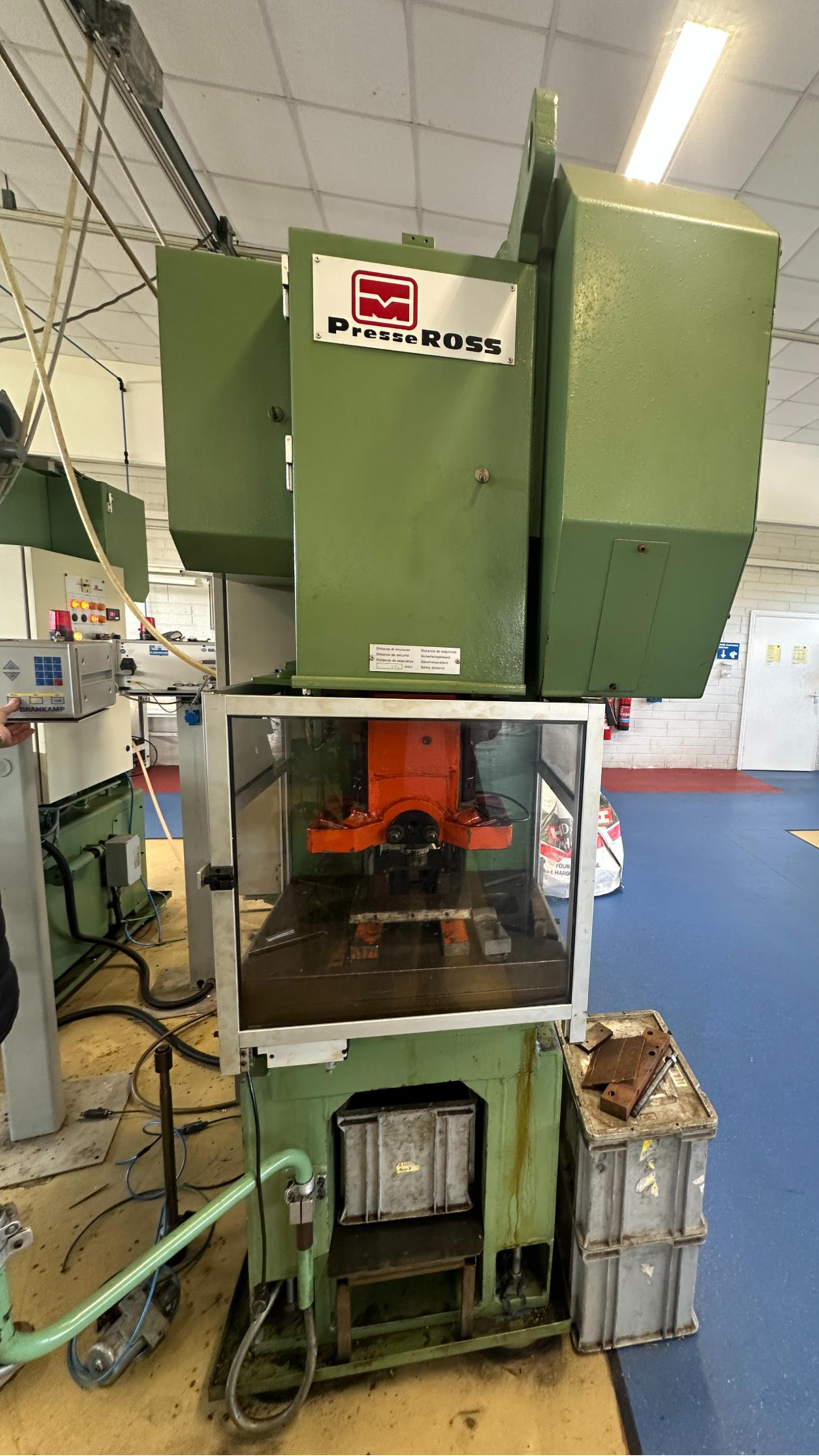

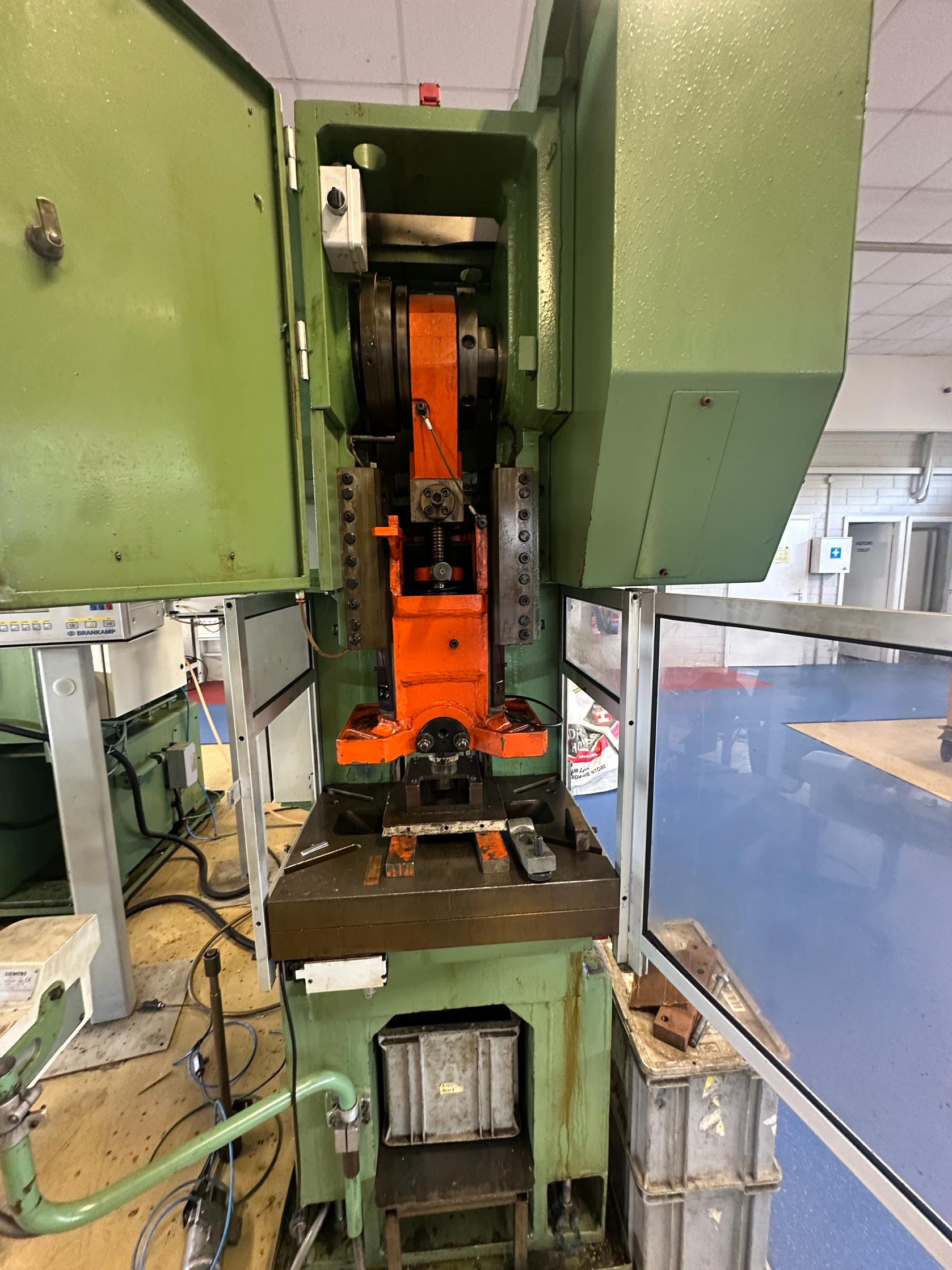

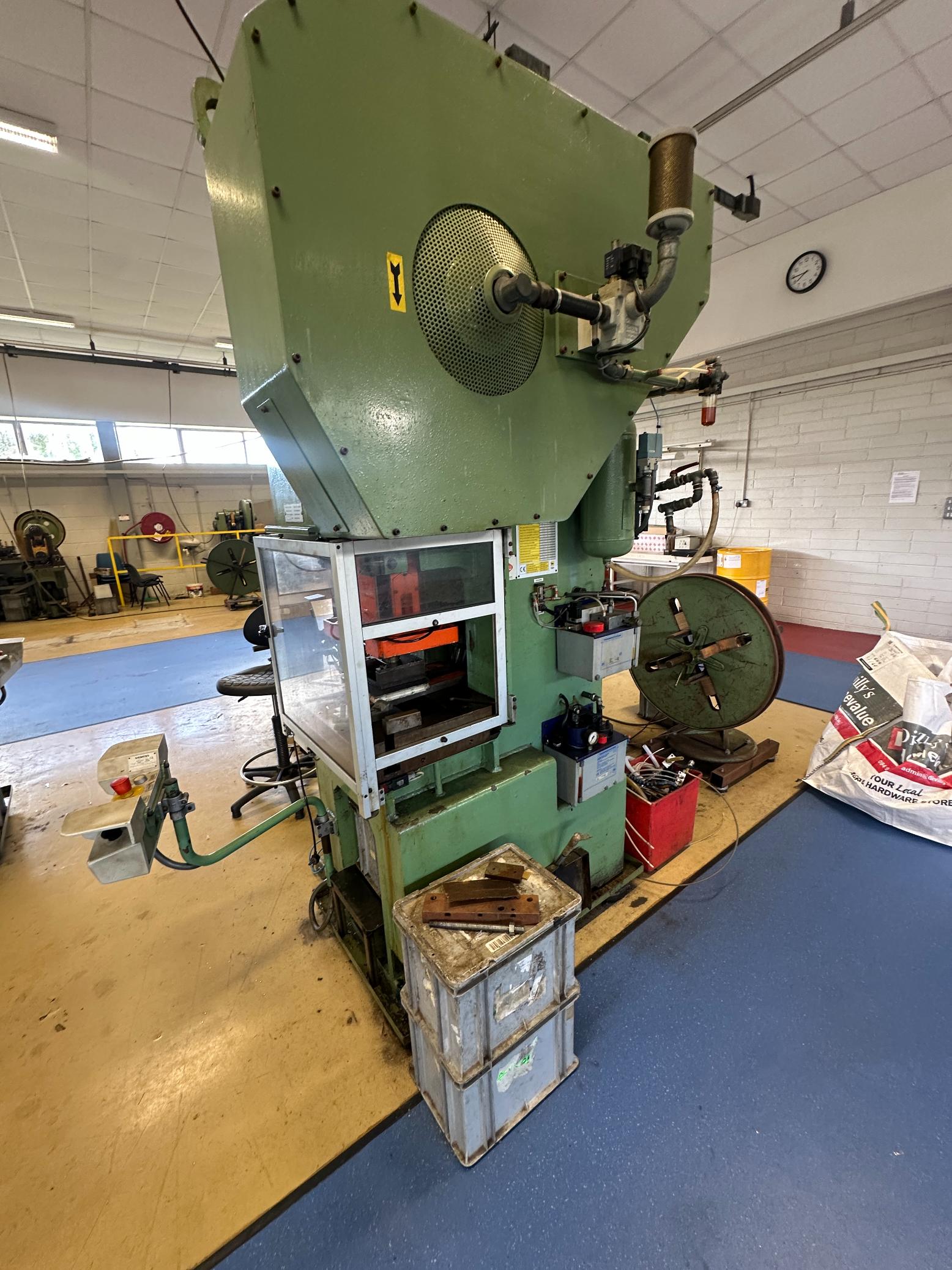

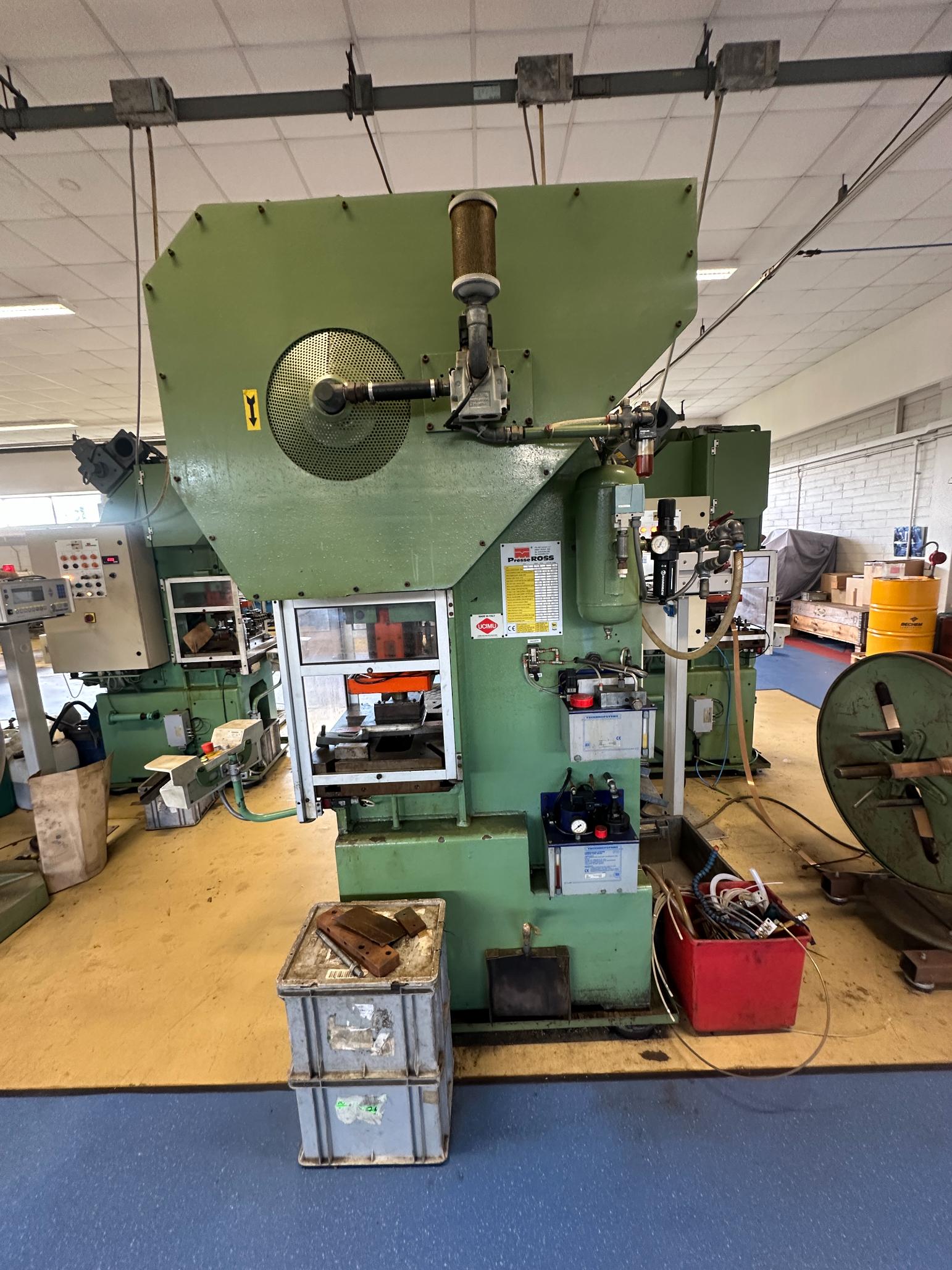

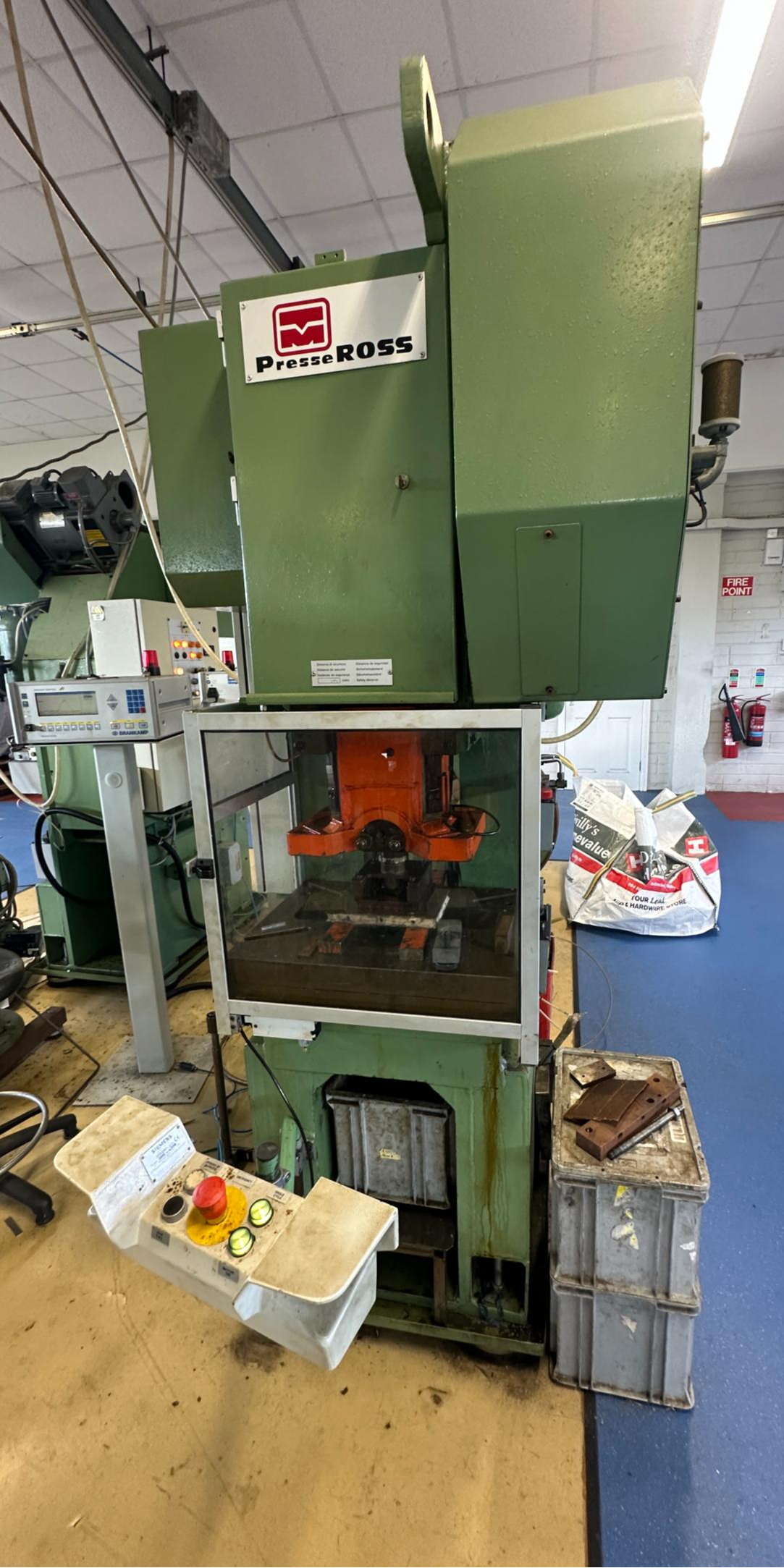

Used 2000 Presse Ross Type 40V-4 40 tonne mechanical eccentric press, complete with Brankamp Prokos PK550/3 process monitoring system and Soprem powered decoiler.

Manufactured in Italy, the Presse Ross 40V-4 is a variable-speed mechanical production press with a nominal pressing capacity of 400 kN / approximately 40 tonnes, an adjustable 7–100 mm slide stroke, 60 mm slide adjustment and operating speeds from approximately 68 to 203 strokes per minute.

The combination of an adjustable stroke, variable press speed, Brankamp process monitoring and powered OBRU decoiler makes this machine particularly suitable for coil-fed sheet metal stamping, blanking, punching, forming and repetitive component production.

Published specifications for other Presse Ross 40 V4 machines confirm the model's 40 tonne capacity, 7–100 mm stroke and 600 × 450 mm table dimensions.

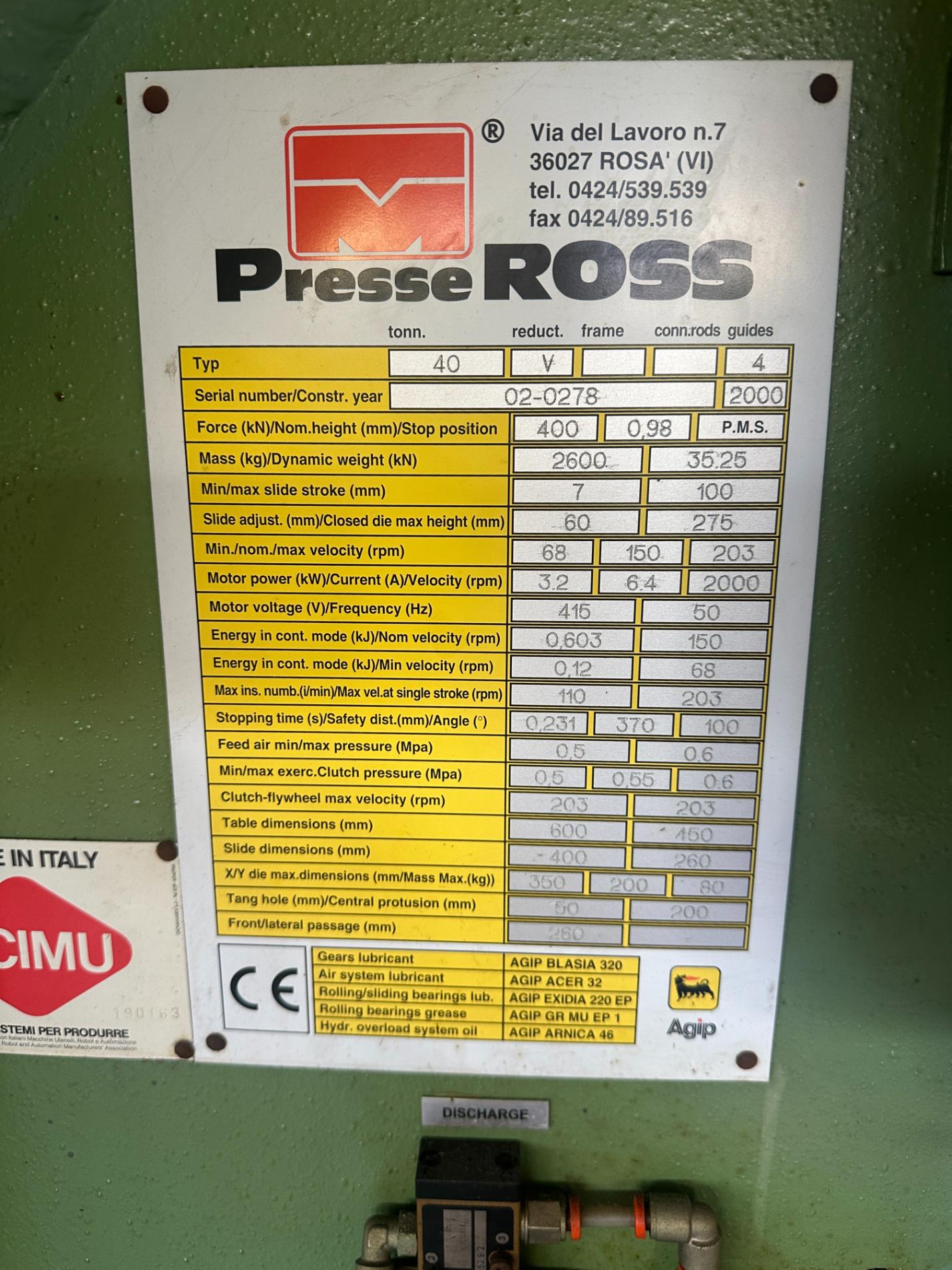

Technical Specification

Manufacturer: Presse Ross

Model / Type: 40V-4

Year: 2000

Serial Number: 02-0278

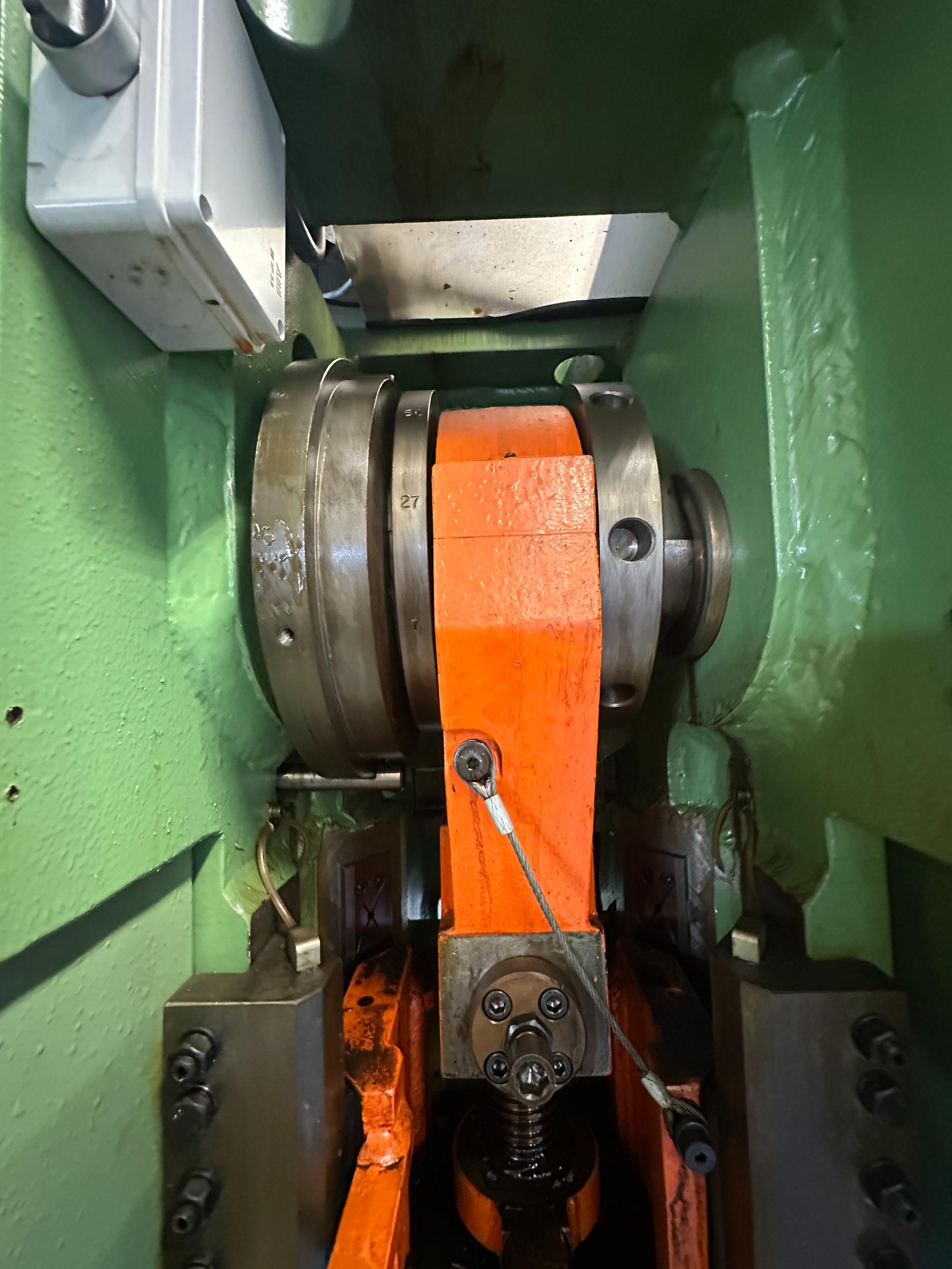

Press Type: Mechanical eccentric / flywheel press

Nominal Press Force: 400 kN / approx. 40 tonnes

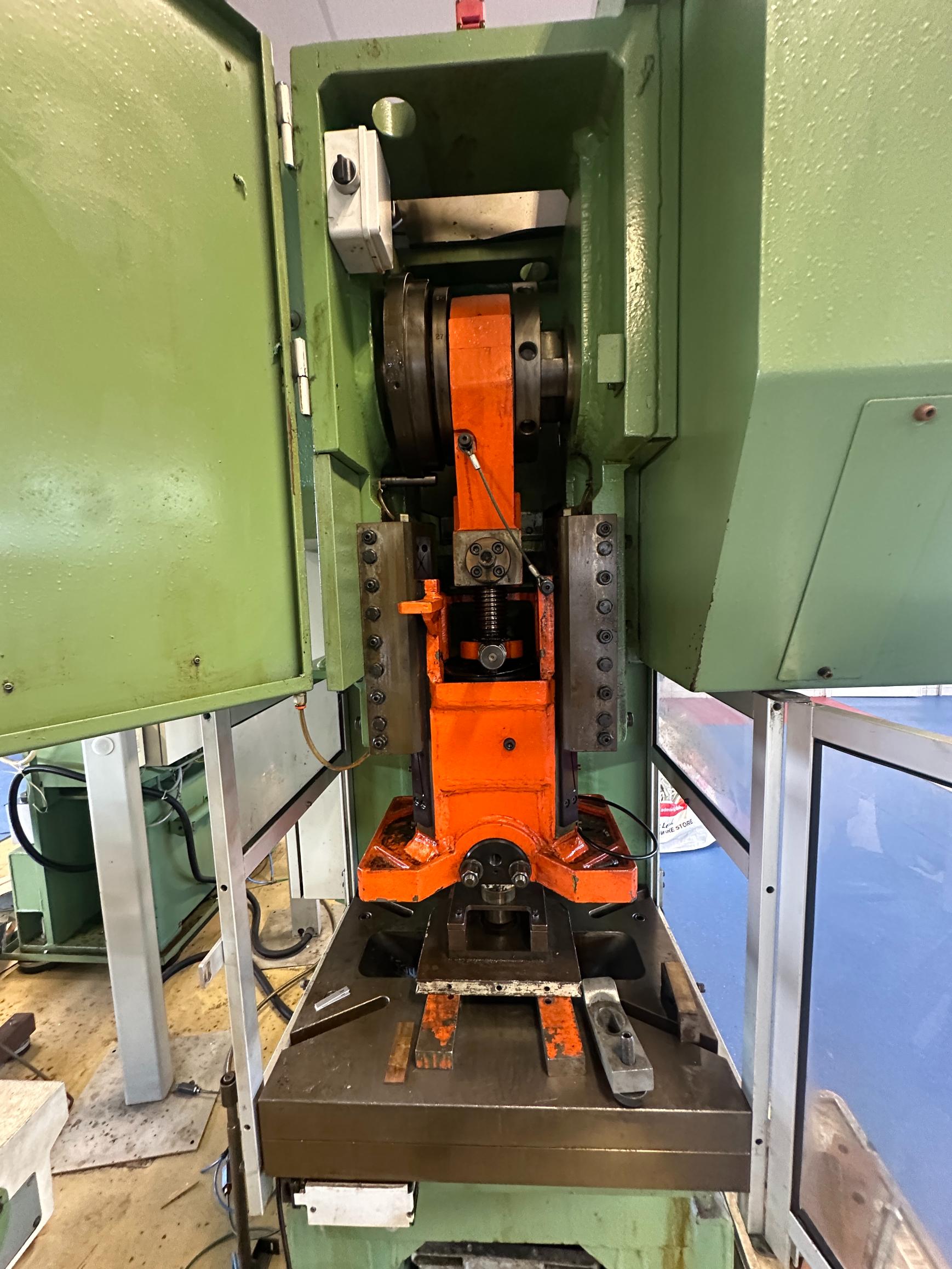

Ram / Slide Guides: 4

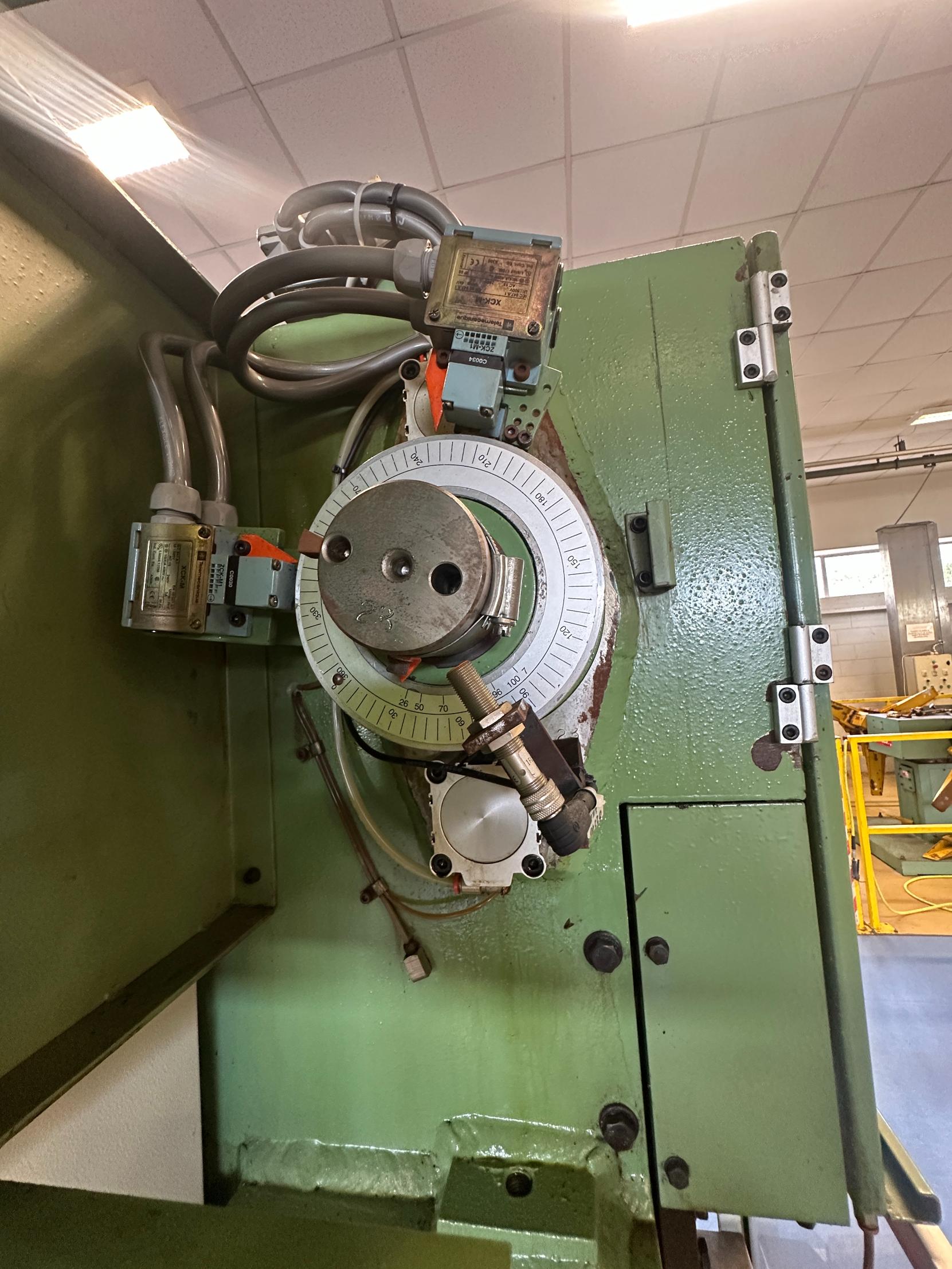

Adjustable Stroke: 7–100 mm

Ram / Slide Adjustment: 60 mm

Maximum Shut / Closed Die Height: 275 mm

Variable Stroke Rate: Approx. 68–203 strokes/min

Nominal Speed: 150 strokes/min

Throat Depth: Approx. 200 mm

Frame Opening / Passage: Approx. 260 mm

Table Size: 600 × 450 mm

Table Thickness: Approx. 55 mm

Table Opening: Approx. 120 mm

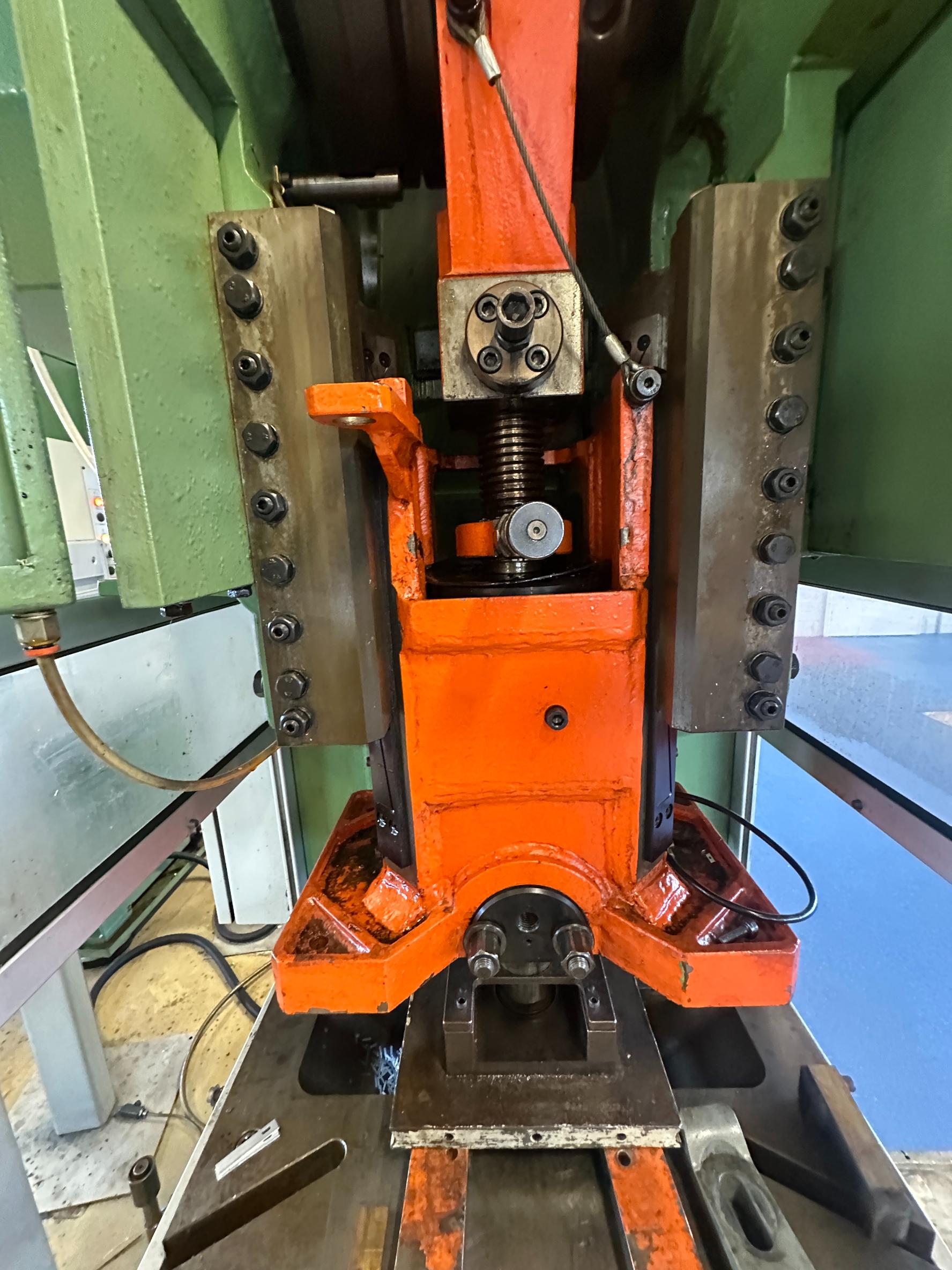

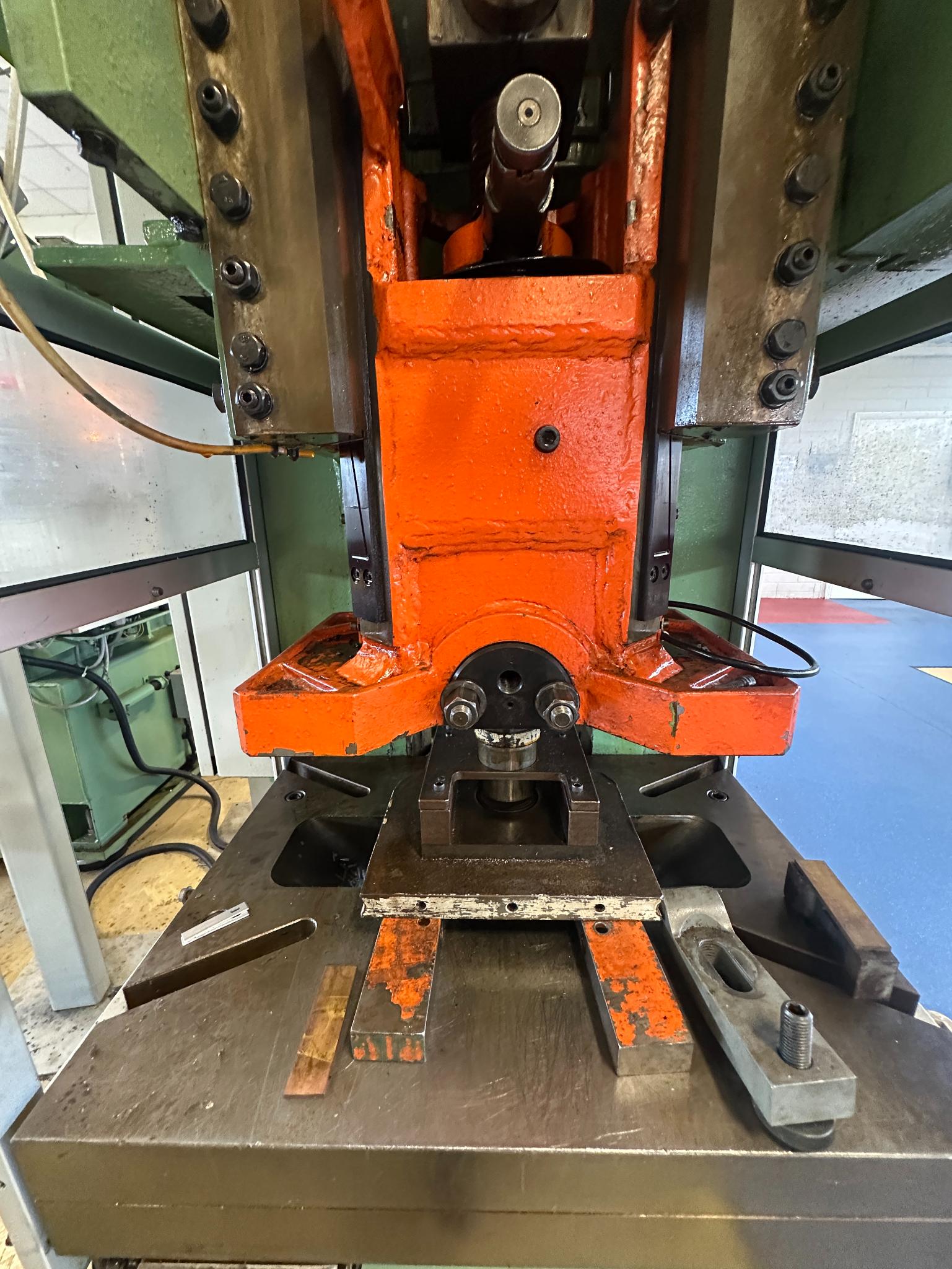

Ram / Slide Surface: 400 × 260 mm

Maximum Die Size: Approx. 350 × 200 mm

Maximum Die Weight: Approx. 50 kg

Tool Shank / Ram Bore: 50 mm

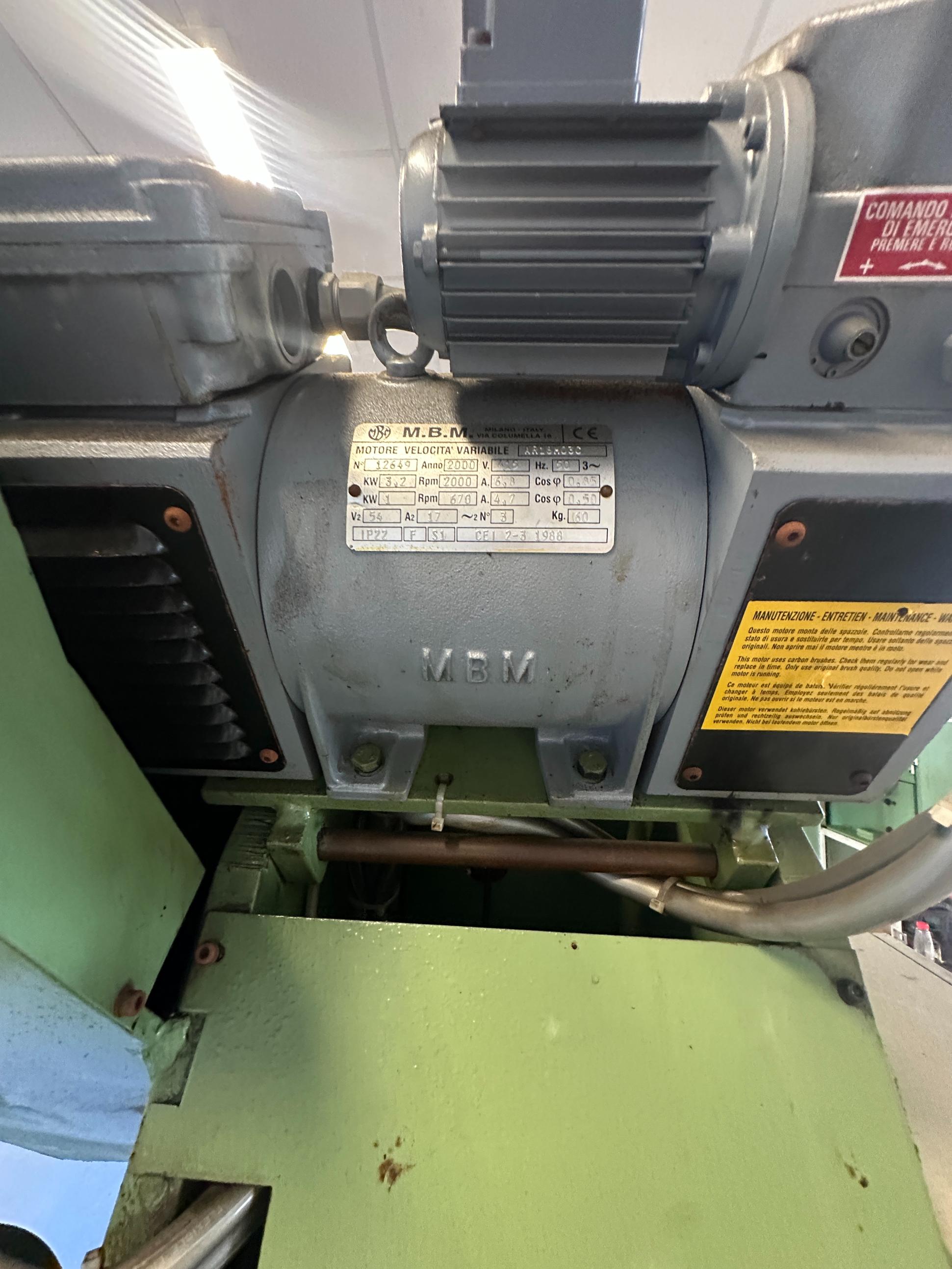

Motor Power: 3.2 kW

Motor Speed: 2,000 rpm

Electrical Supply: 380 V / 50 Hz

Maximum Flywheel Speed: Approx. 203 rpm

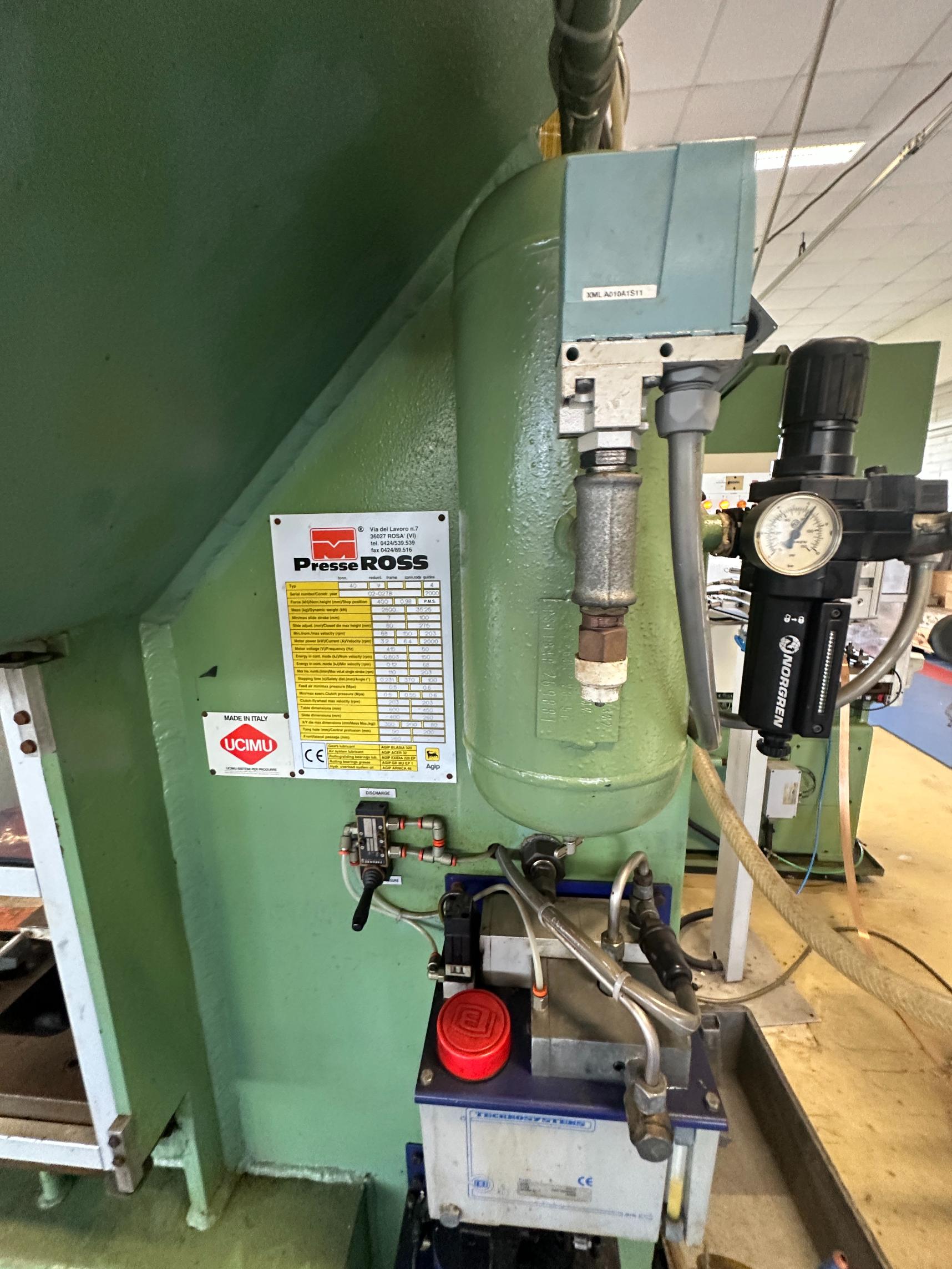

Compressed Air Supply: Approx. 0.5–0.7 MPa/ 5-6 Bar

Machine Weight: Approx. 2,600 kg

Included Equipment

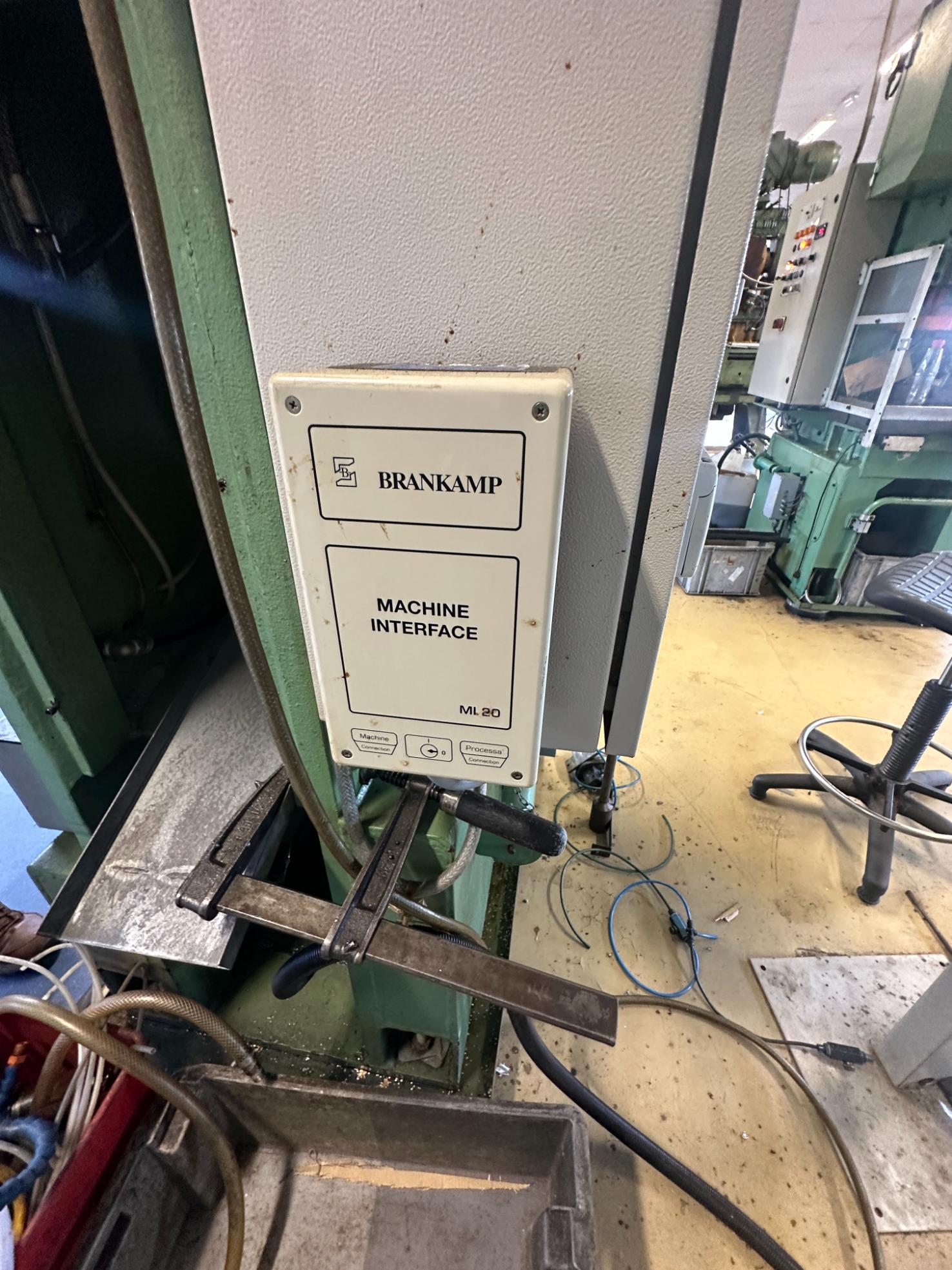

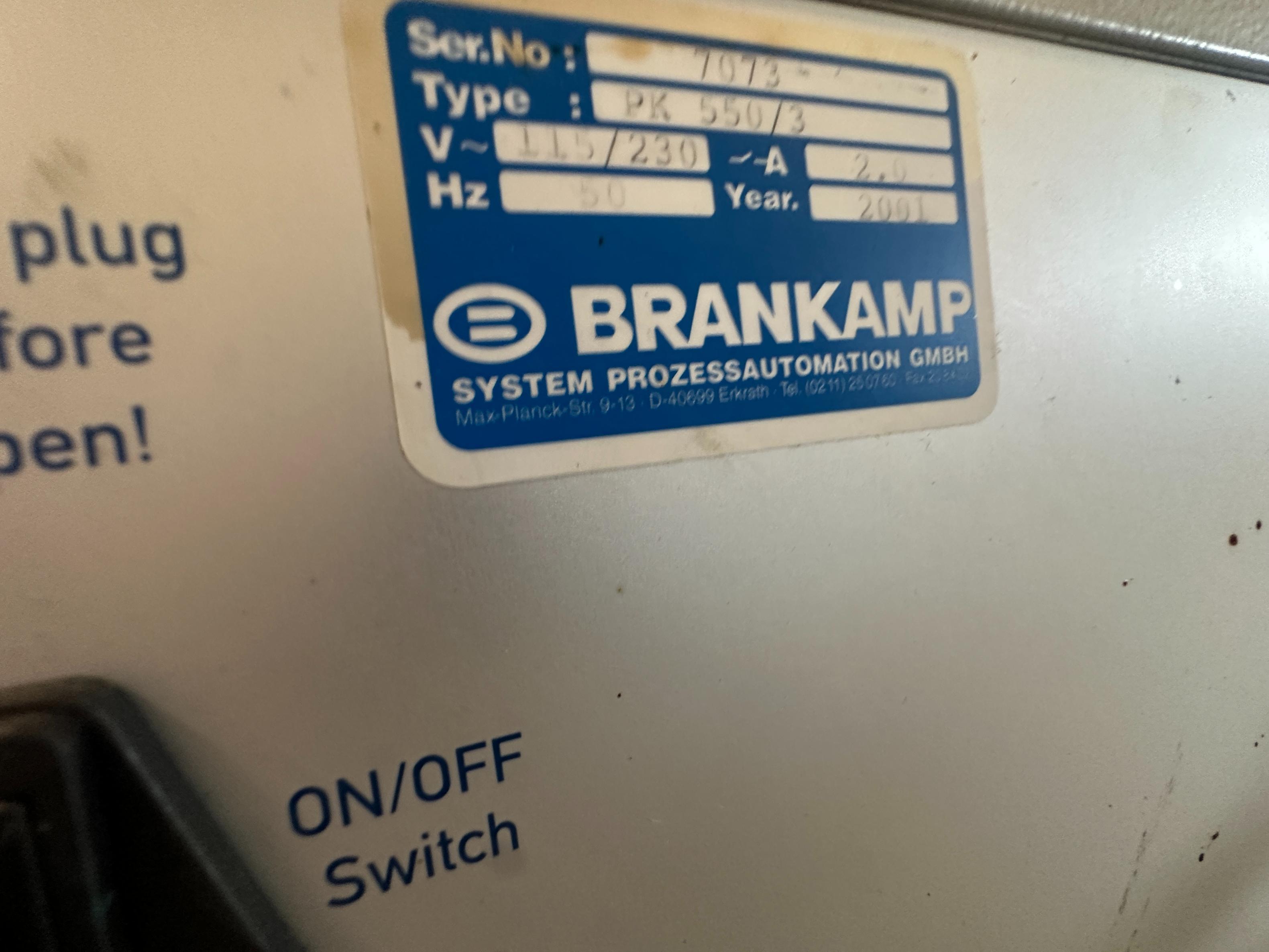

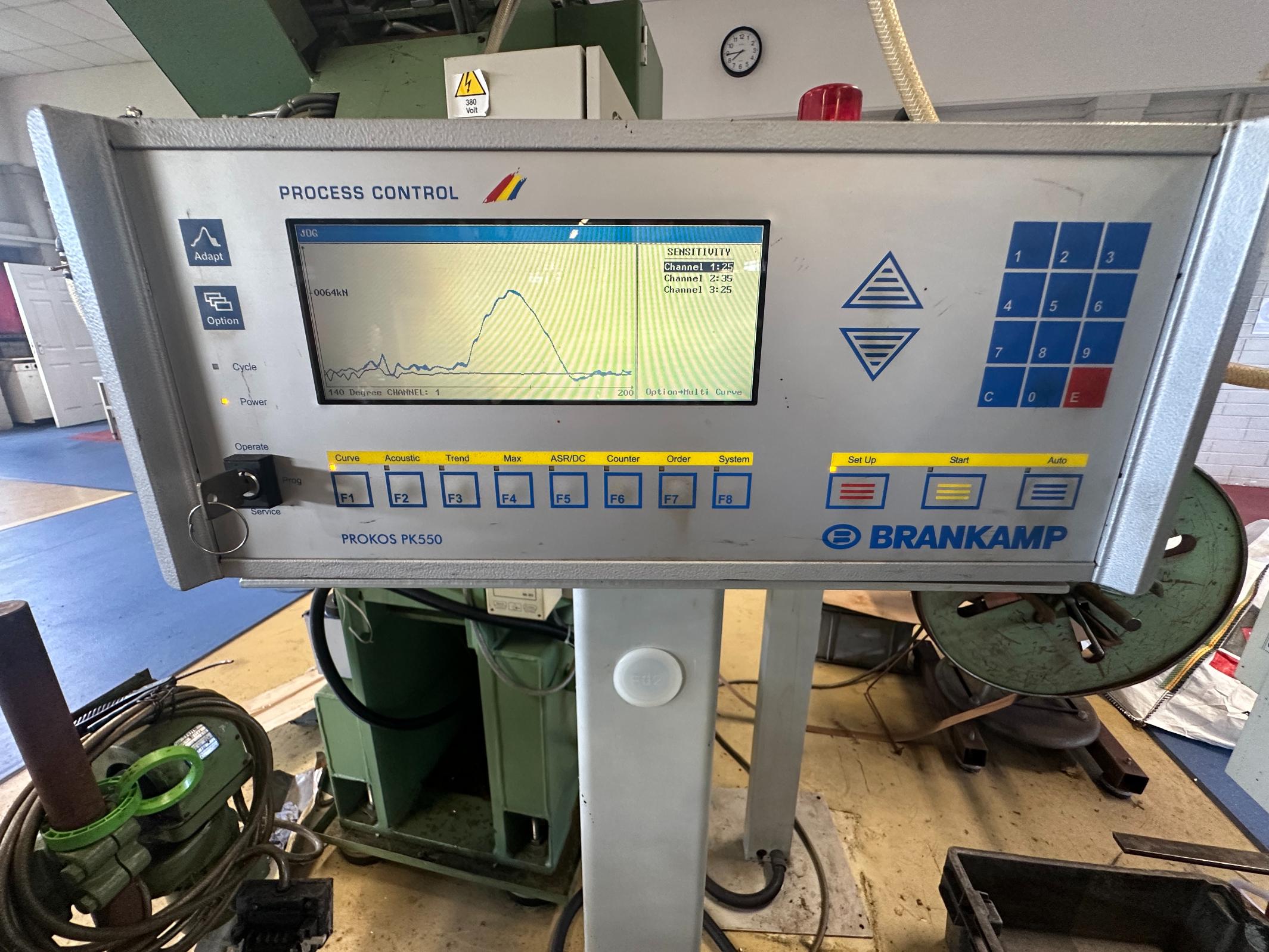

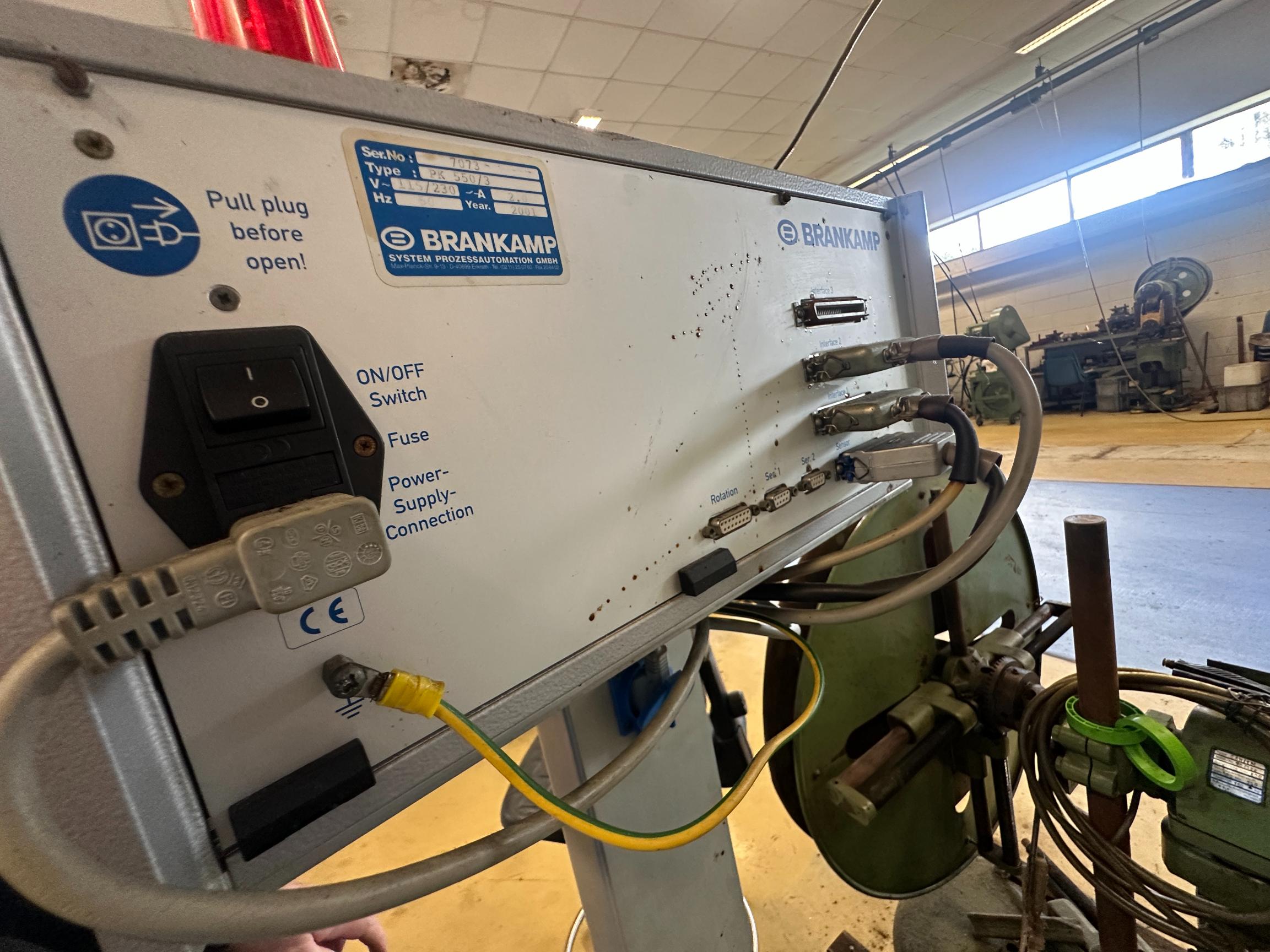

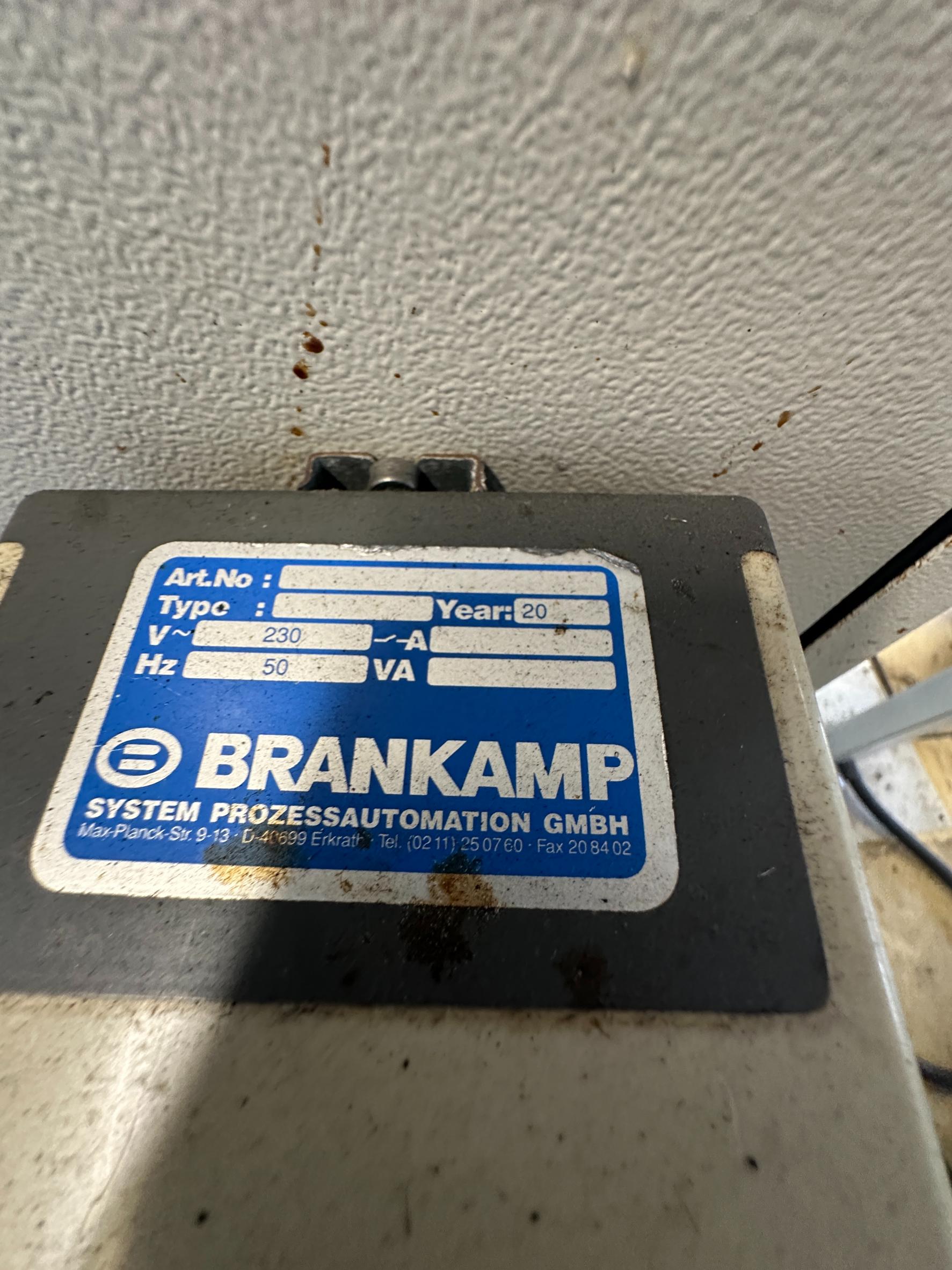

Brankamp Prokos PK550/3 Process Monitoring Control

The press is equipped with a Brankamp Prokos PK550/3 process monitoring system for monitoring conditions during the pressing/forming cycle.

Brankamp systems are used on mechanical forming presses to monitor process signals and identify deviations during production, helping with tool protection, process control and production quality monitoring. Brankamp process-monitoring systems are widely used in press and forming applications for this purpose.

Typical monitoring functions can include:

• Press/forming force monitoring
• Detection of abnormal press cycles
• Tool protection
• Production-process monitoring
• Detection of component or material variations
• Monitoring repetitive stamping operations

Soprem RMI 50 F1 Powered Decoiler

Year: 1992

Powered automatic/manual coil decoiler for feeding strip material to the press, making the machine particularly suitable for repetitive and coil-fed press production.

Typical Applications

This Presse Ross 40V-4 mechanical press would be suitable for:

• Sheet metal stamping
• Metal blanking
• Punching and piercing
• Component forming
• Coil-fed stamping
• Progressive die work
• Repetitive production presswork
• Strip-fed component manufacture
• General sheet metal pressing
• Small and medium pressed components
• High-speed production pressing

Machine Highlights

• 40 tonne / 400 kN press capacity
• 7–100 mm adjustable stroke
• 60 mm slide adjustment
• Variable speed: approximately 68–203 strokes/min
• 600 × 450 mm table
• 400 × 260 mm slide
• Brankamp Prokos PK550/3 process monitoring
• Soprem powered decoiler
• Up to 200 mm strip width on decoiler
• 415 V / 50 Hz
• Approx. 2,600 kg press weight
• Italian-manufactured production press

FAQ

What capacity is the Presse Ross 40V-4?

The Presse Ross 40V-4 is a 400 kN / approximately 40 tonne mechanical eccentric press.

What stroke does the Presse Ross 40V-4 have?

The slide stroke is adjustable from approximately 7 to 100 mm.

How fast does it operate?

The press has a variable operating range of approximately 68–203 strokes per minute.

Does this machine include a decoiler?

Yes. This machine is supplied with an Soprem powered decoiler, suitable for coil strip up to approximately 200 mm wide.

Does it have process monitoring?

Yes. It is equipped with a Brankamp Prokos PK550/3 process monitoring system.

Condition

Used machine. Please contact us for further details, price, photographs, inspection arrangements and availability.

Please Note: All specifications, dimensions, capacities and descriptions are approximate and provided in good faith. Prospective purchasers should independently verify all important specifications and machine suitability before purchase.
