1999 Presse Ross 40V-4 40 Ton Mechanical Press for Sale

1999 Presse Ross 40V-4 40 Ton Mechanical Press with Finzer Decoiler

Used 1999 Presse Ross 40V-4 40 ton mechanical press with Brankamp monitoring, Finzer powered decoiler, 7–100 mm stroke and safety guarding.

Manufacturer: Presse Ross

Model: 40V-4

Machine Type: Mechanical Press

Year: 1999

Condition: Very Good

Includes:

Brankamp Prokos PK550/3 Process Monitoring Control

Interlocked safety guards

Finzer Decoiler

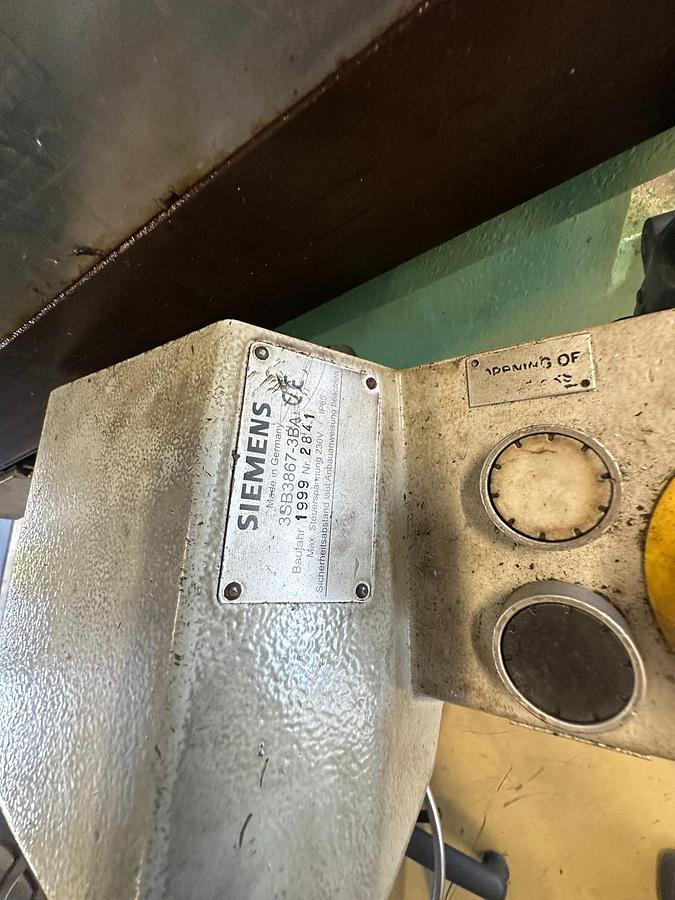

Separate control panel with two hand control

Machine Description

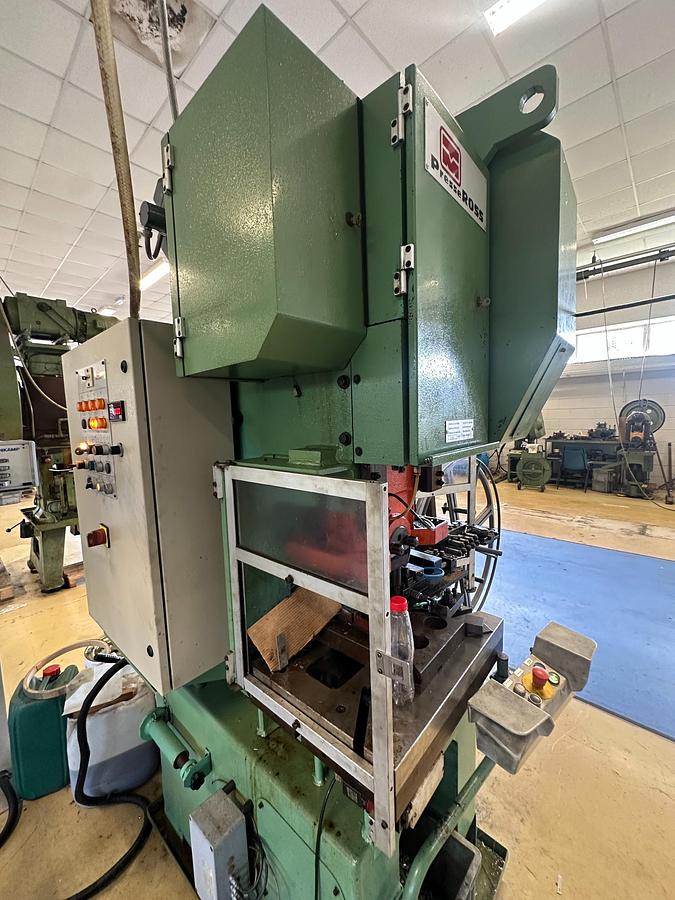

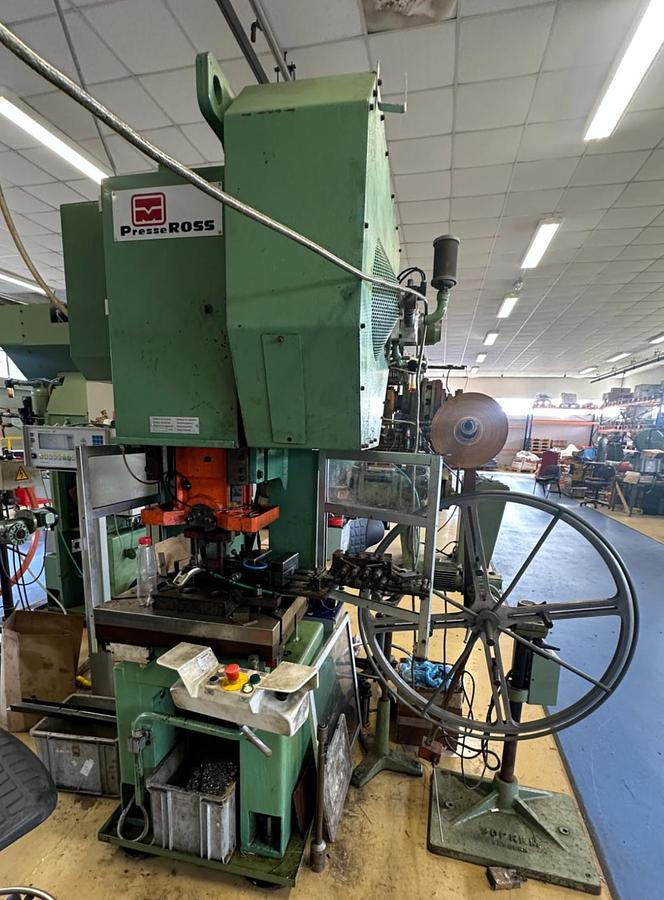

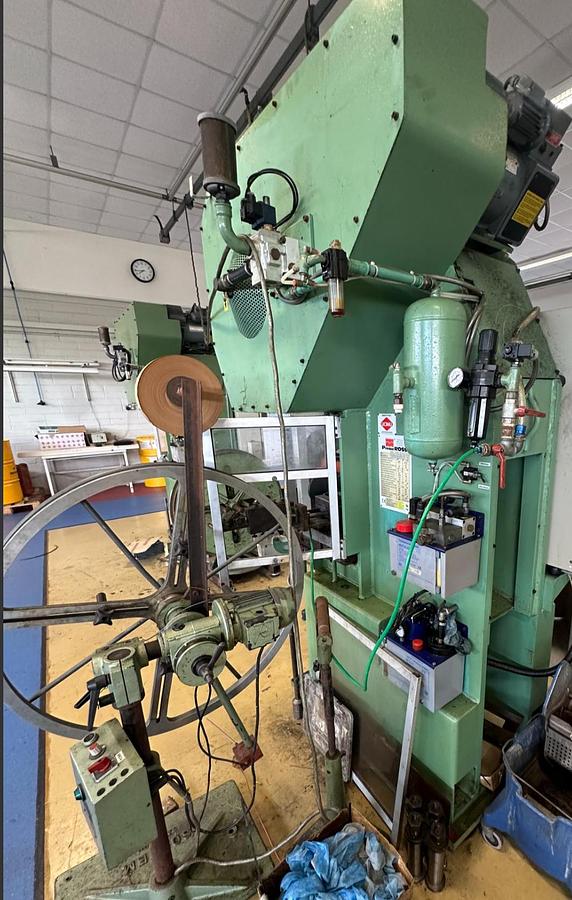

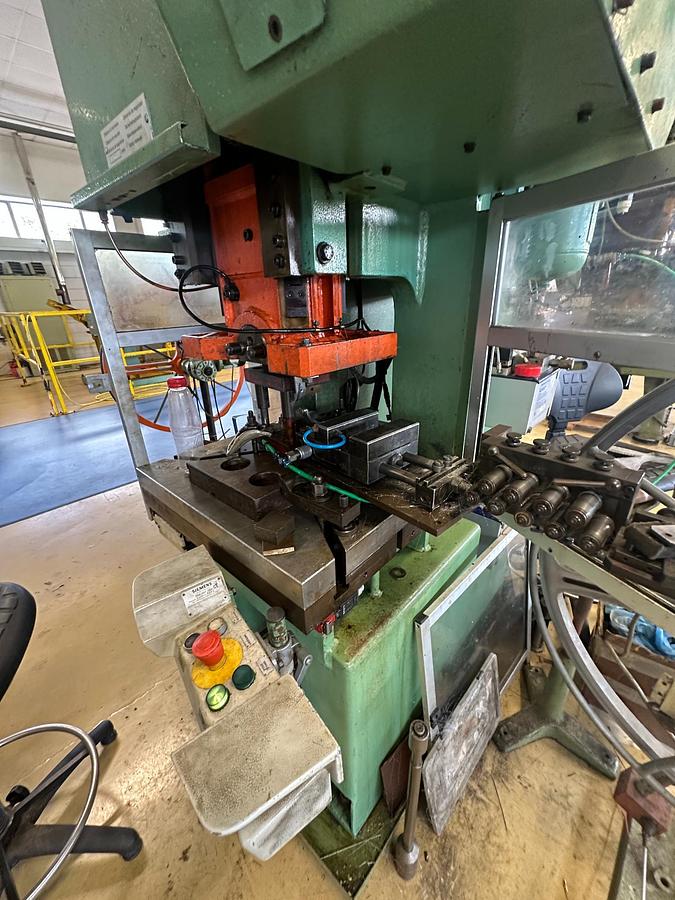

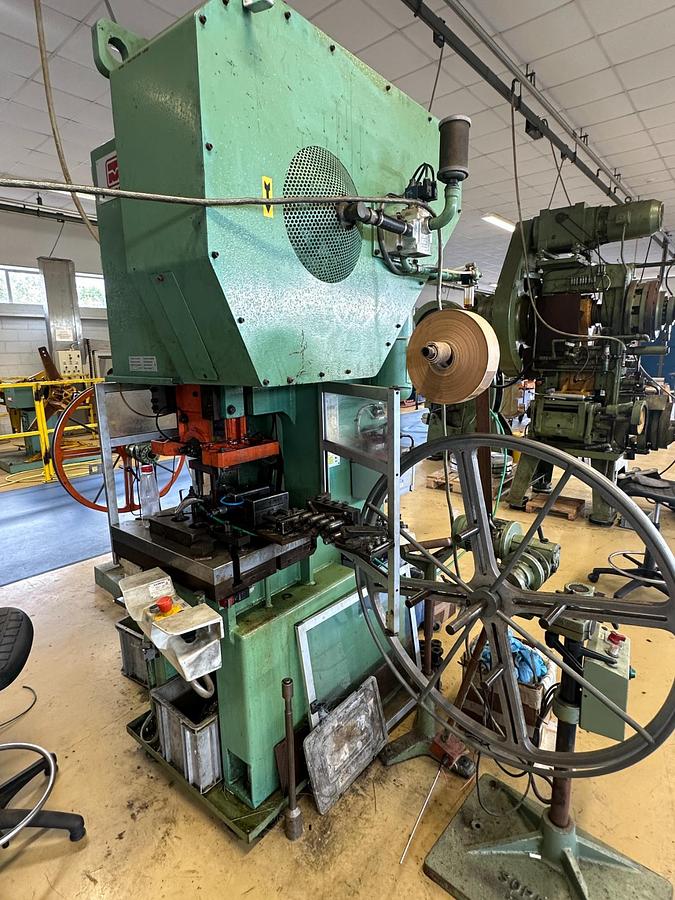

Used 1999 Presse Ross Type 40V-4 40 tonne mechanical eccentric press, complete with Brankamp Prokos PK550/3 process monitoring system, Finzer SOP 20/H/900 powered decoiler, interlocked safety guarding and separate operator control panel with two-hand operation.

Manufactured in Italy, the Presse Ross 40V-4 is a variable-speed mechanical power press rated at 400 kN / approximately 40 tonnes, with an adjustable 7–100 mm slide stroke, 60 mm slide adjustment and a working speed range of approximately 68–203 strokes per minute.

With its powered Finzer decoiler and process-monitoring equipment, this machine is particularly suited to coil-fed stamping, blanking, punching, forming and repetitive production presswork.

Technical Specification

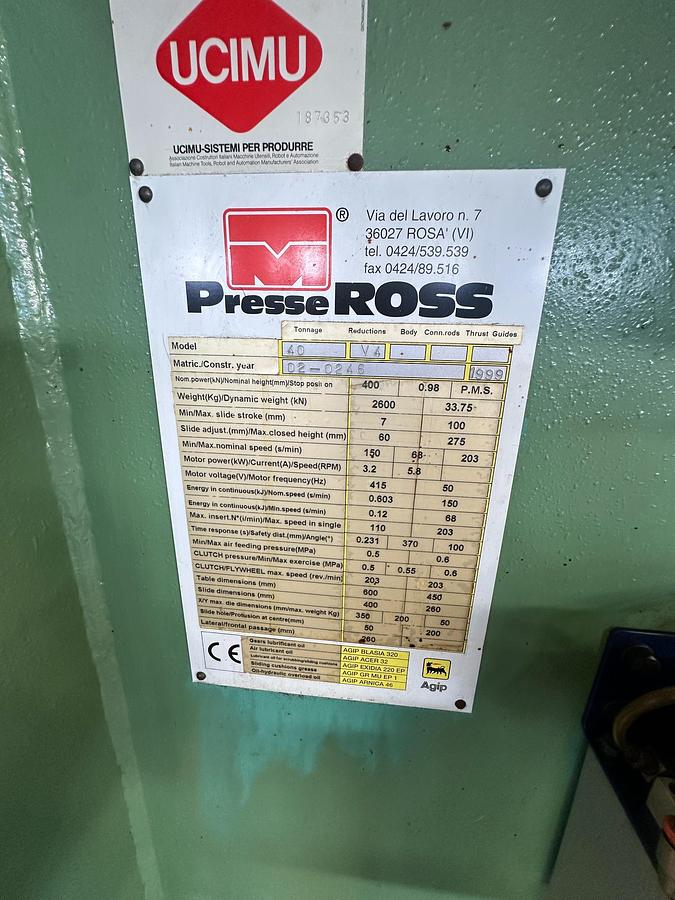

Manufacturer: Presse Ross

Model / Type: 40V-4/ 40 V4

Year: 1999

Serial Number: 02-0246

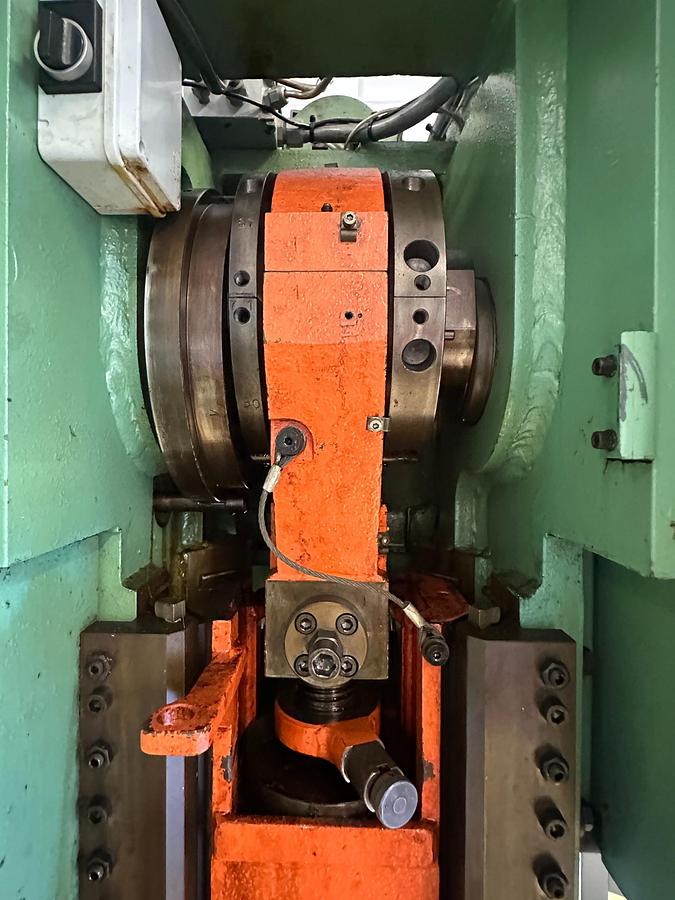

Press Type: Mechanical eccentric / flywheel press

Nominal Press Force: 400 kN / approx. 40 tonnes

Ram / Slide Guides: 4

Adjustable Stroke: 7–100 mm

Ram / Slide Adjustment: 60 mm

Maximum Shut / Closed Die Height: 275 mm

Variable Stroke Rate: Approx. 68–203 strokes/min

Nominal Speed: 150 strokes/min

Throat Depth: Approx. 200 mm

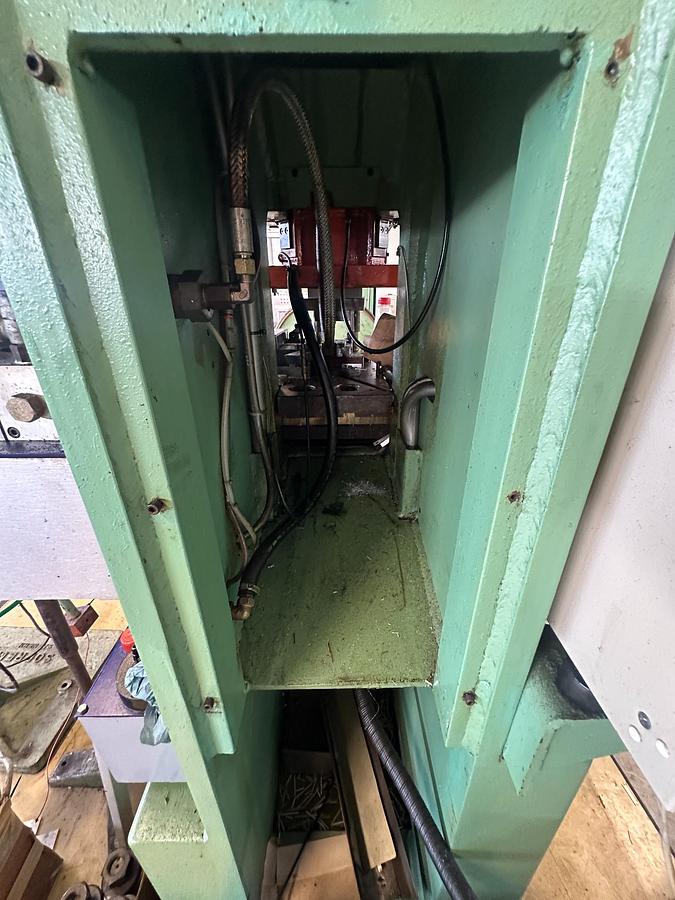

Frame Opening / Passage: Approx. 260 mm

Table Size: 600 × 450 mm

Table Thickness: Approx. 55 mm

Table Opening: Approx. 120 mm

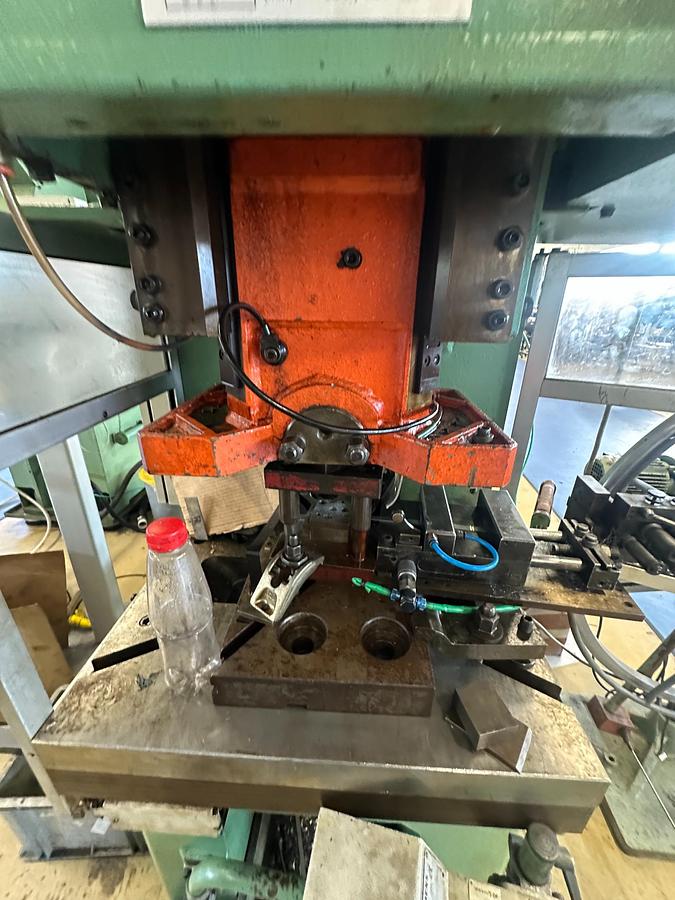

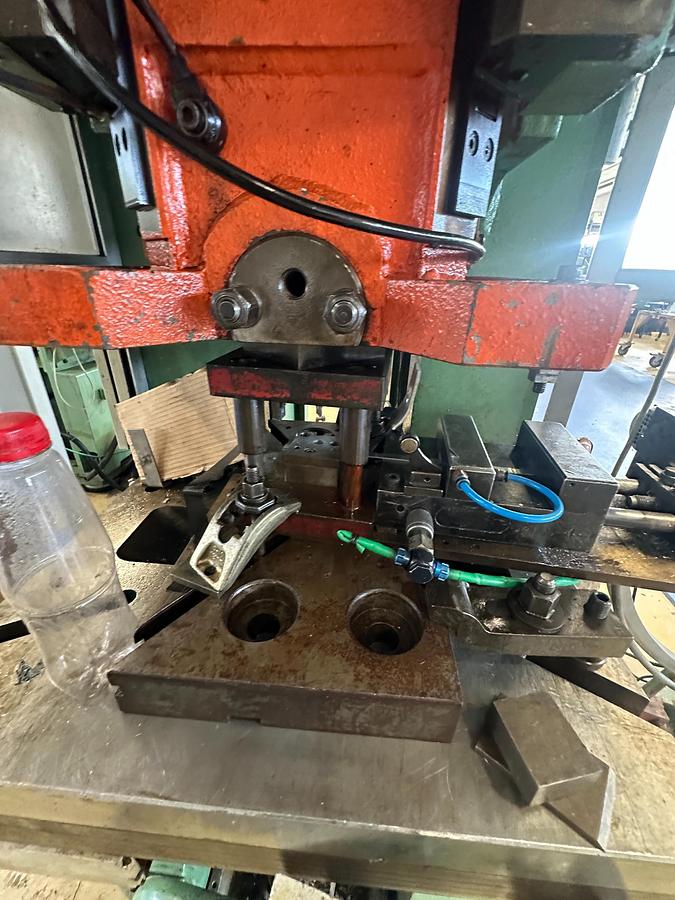

Ram / Slide Surface: 400 × 260 mm

Maximum Die Size: Approx. 350 × 200 mm

Maximum Die Weight: Approx. 50 kg

Tool Shank / Ram Bore: 50 mm

Motor Power: 3.2 kW

Motor Speed: 2,000 rpm

Electrical Supply: 380 V / 50 Hz

Maximum Flywheel Speed: Approx. 203 rpm

Compressed Air Supply: Approx. 0.5–0.7 MPa/ 5-6 Bar

Machine Weight: Approx. 2,600 kg

Included Equipment

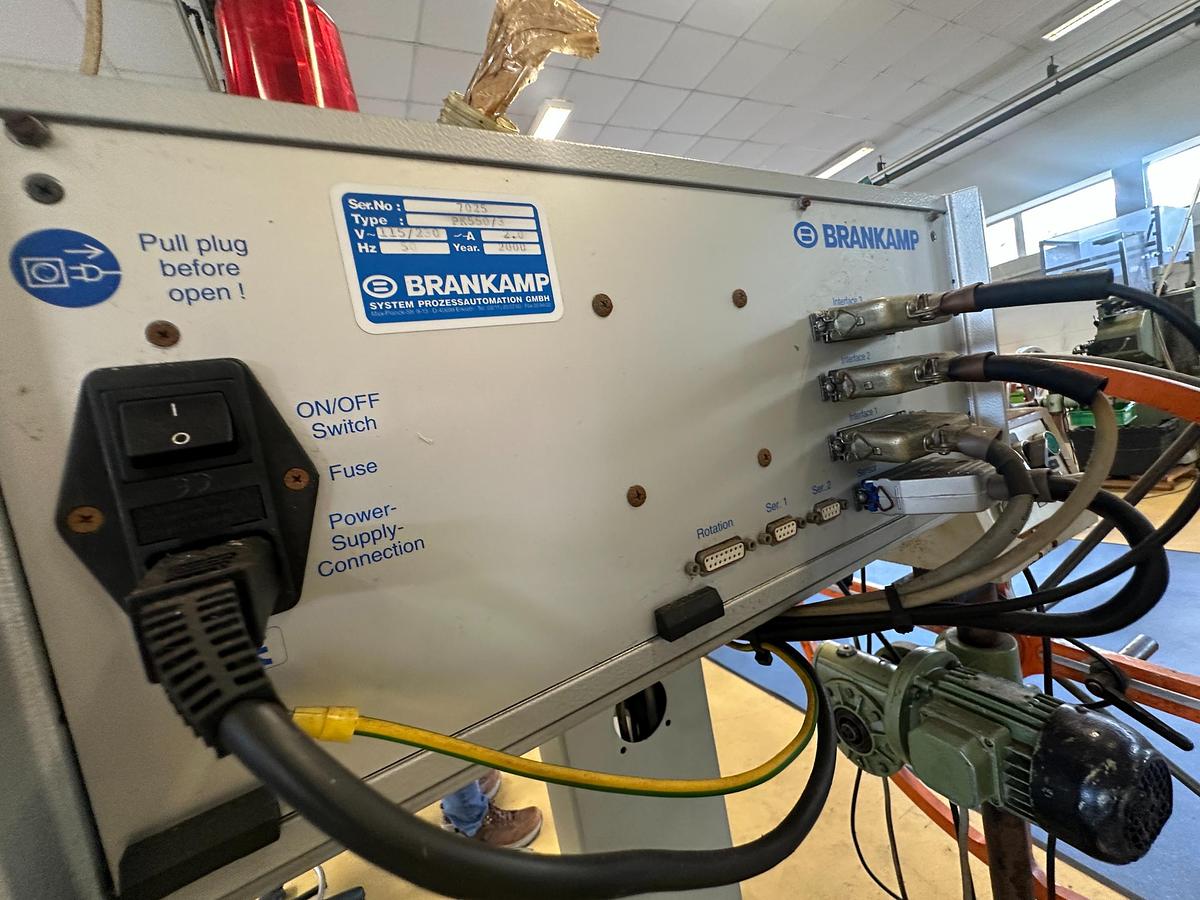

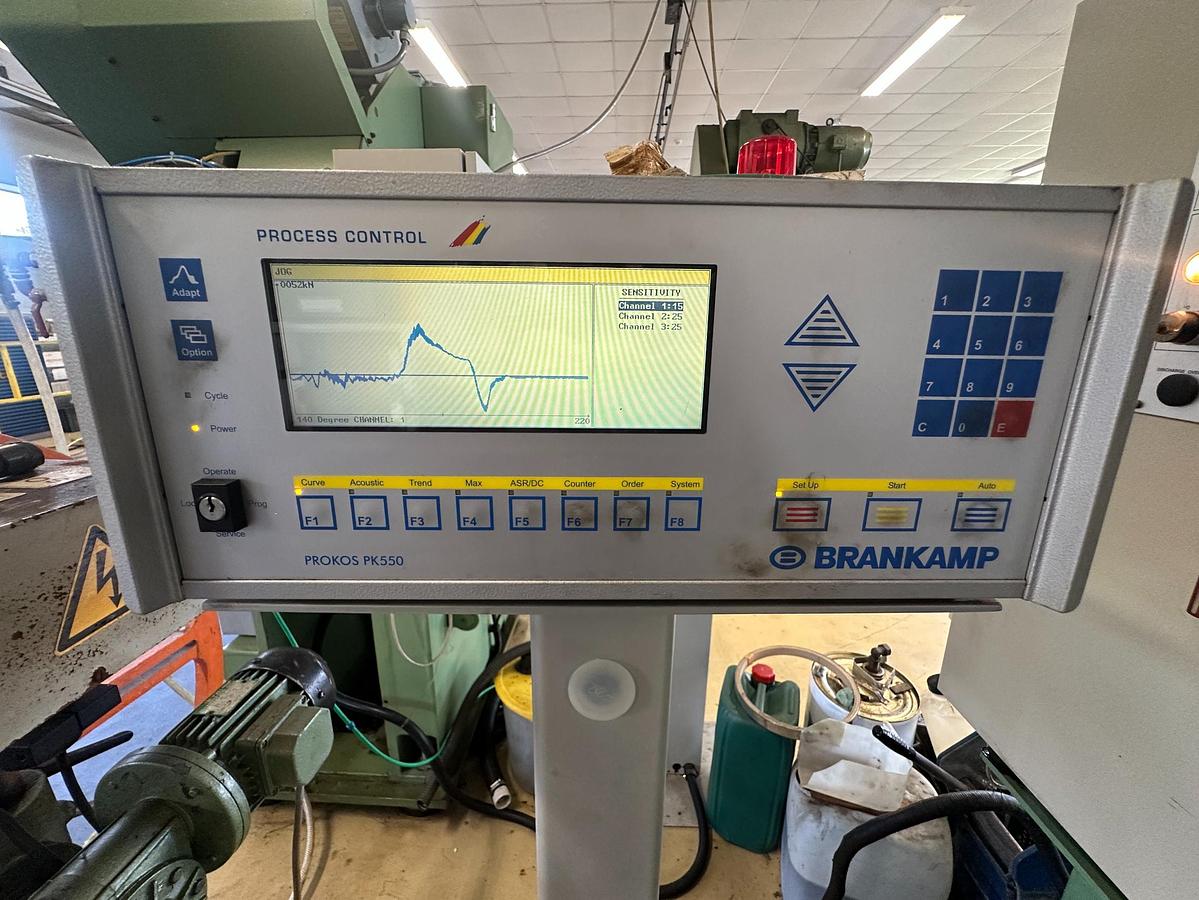

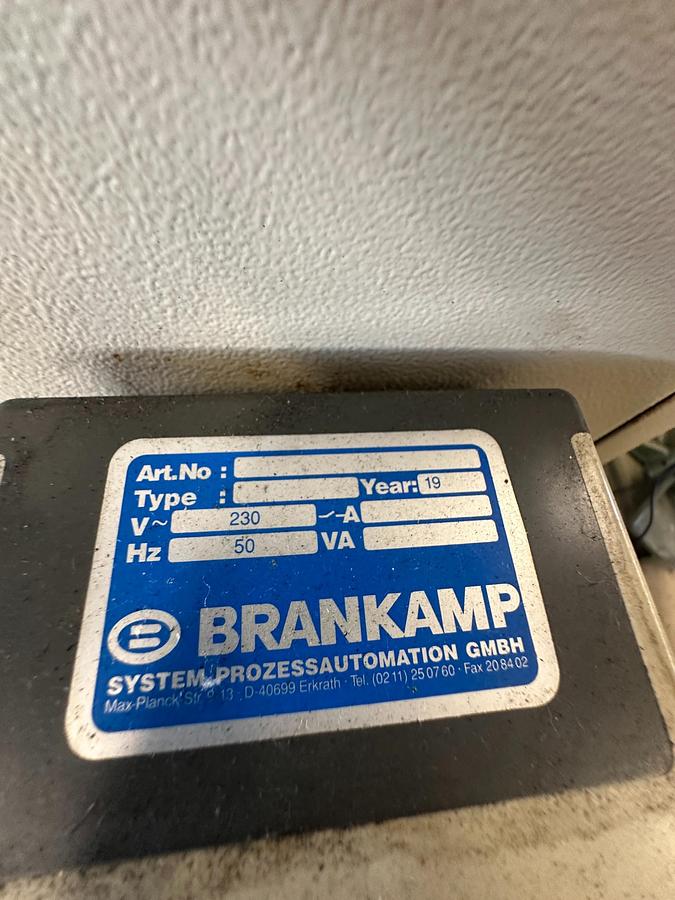

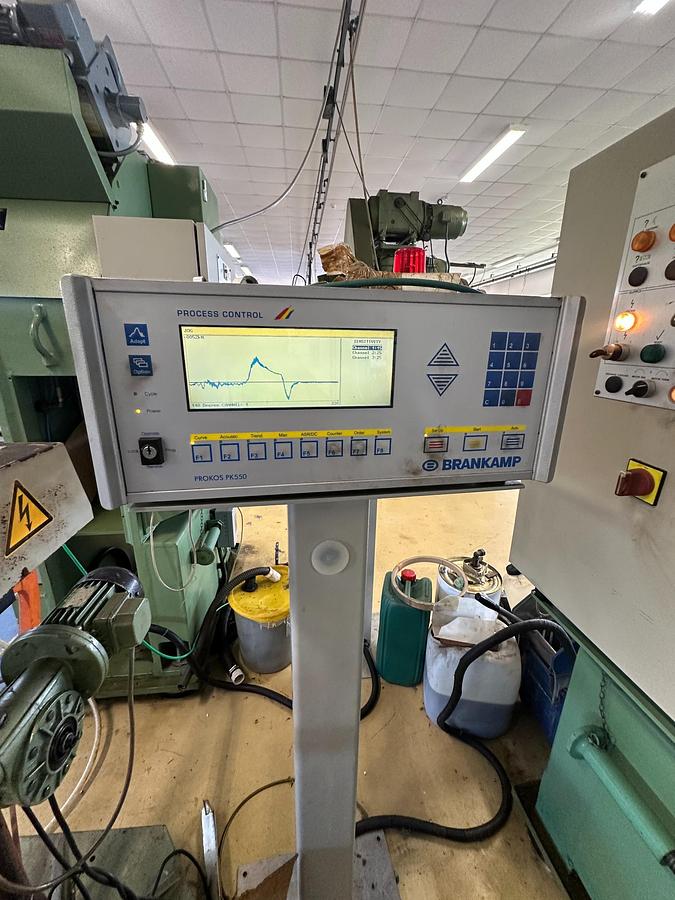

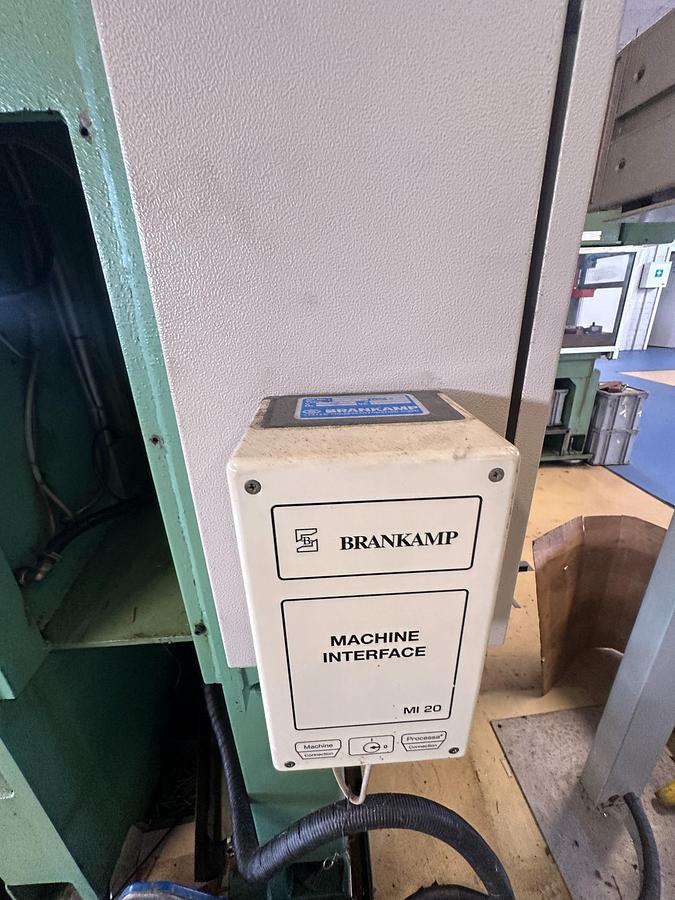

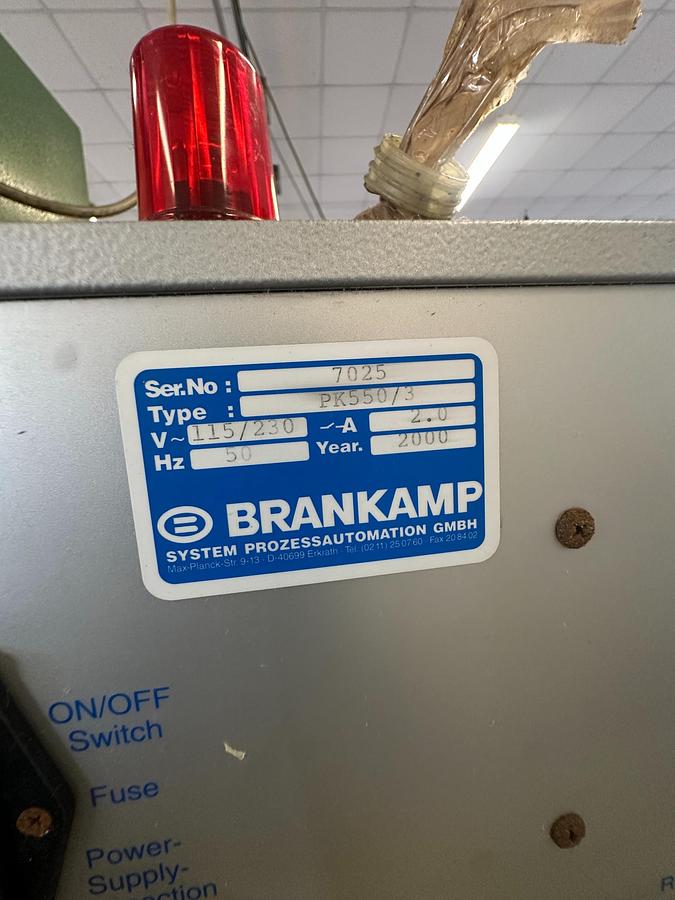

Brankamp Prokos PK550/3 Process Monitoring Control

Brankamp / Prokos process monitoring equipment designed for monitoring forming and press-production processes. Systems in the Prokos family evaluate signals generated during the forming operation and can identify abnormal process conditions or deviations. Prokos specialises specifically in process monitoring for stamping, cold forming and related metal-forming machinery.

This type of monitoring can be particularly useful for:

• Press force monitoring
• Tool and process protection
• Identifying abnormal forming conditions
• Production quality monitoring
• Detecting changes during repetitive press cycles

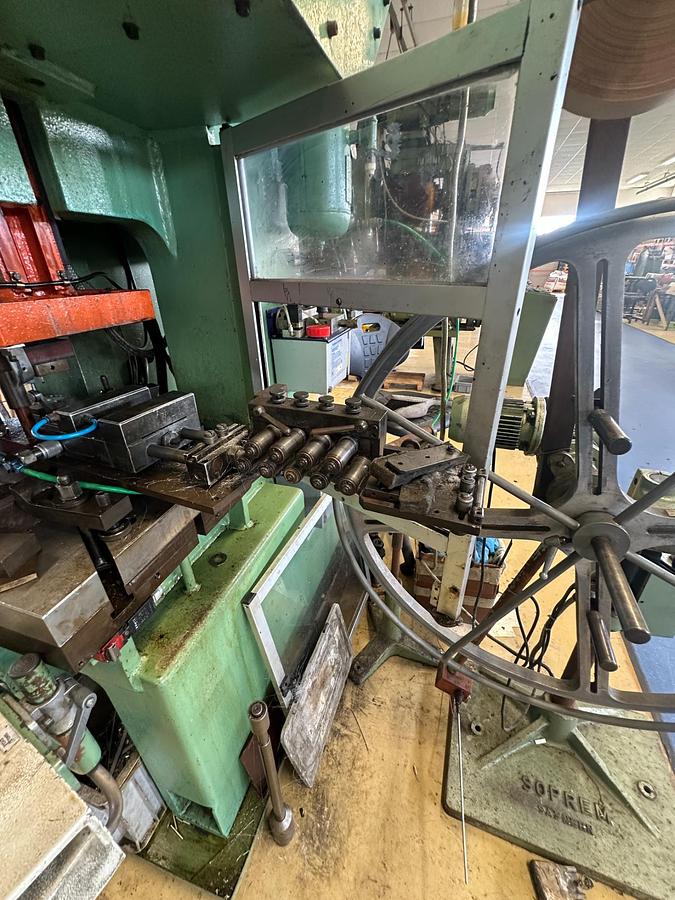

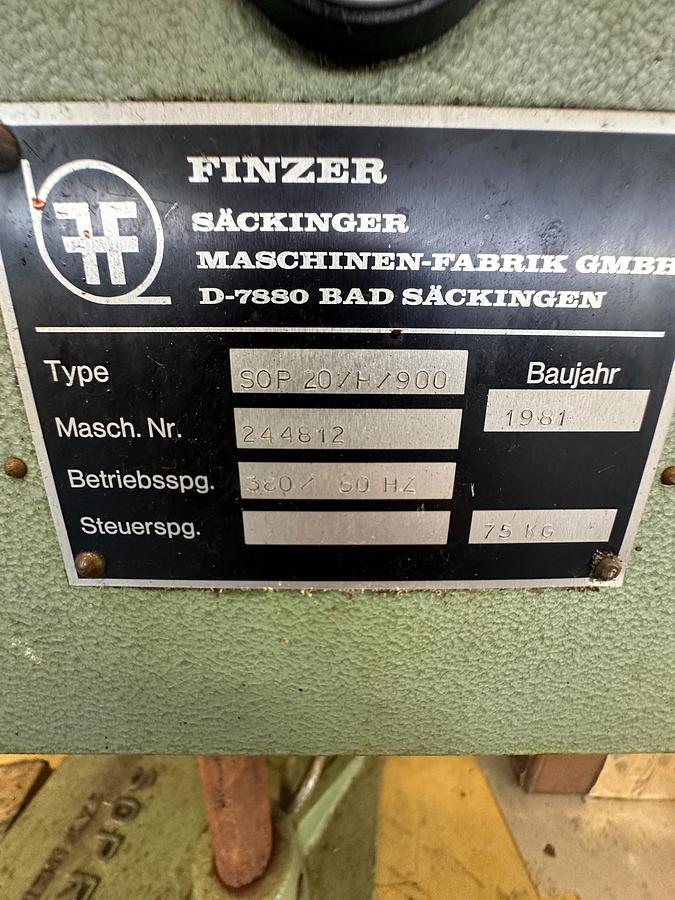

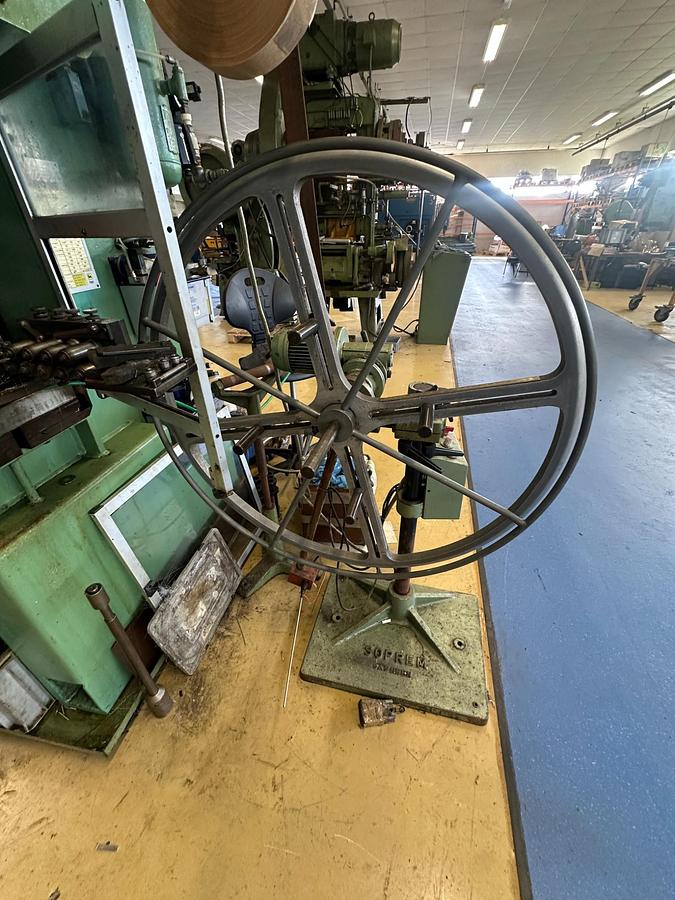

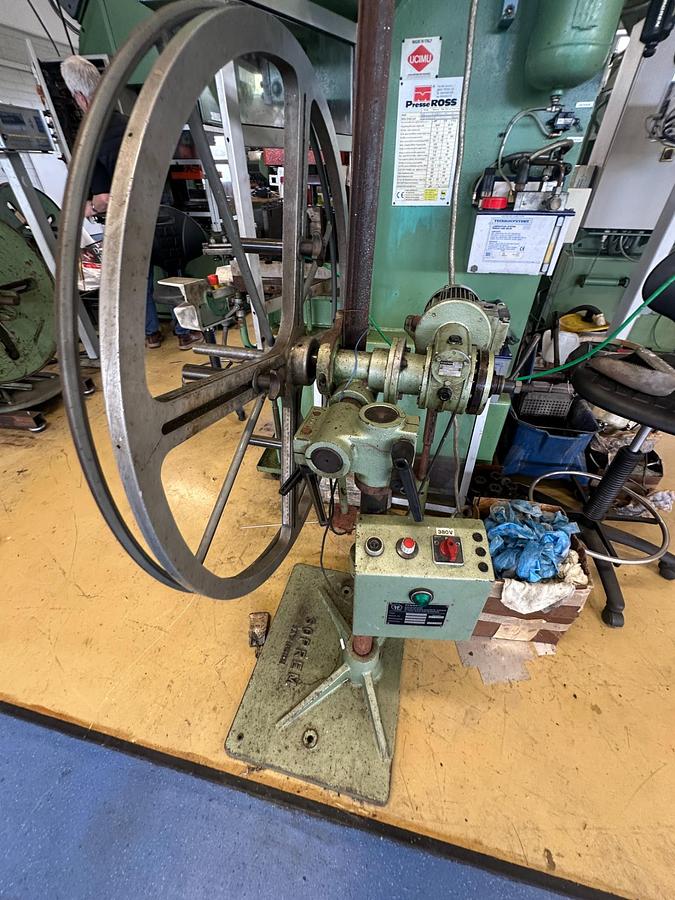

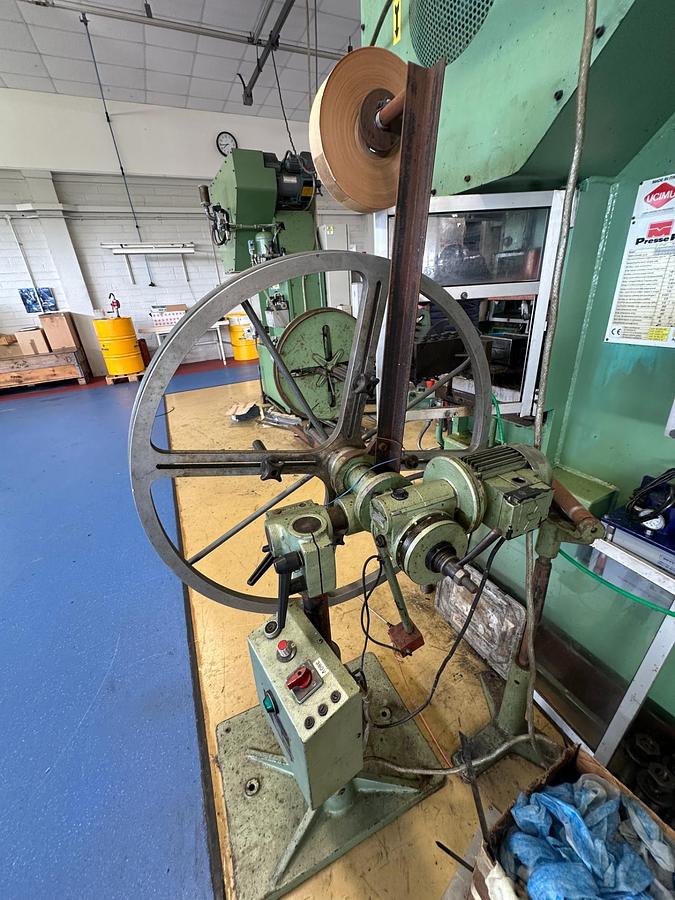

Finzer SOP 20/H/900 Powered Decoiler

The press is supplied with a Finzer SOP 20/H/900 powered decoiler, providing powered material unwinding for coil-fed press applications.

This makes the machine particularly suitable for repetitive strip-fed and coil-fed production.

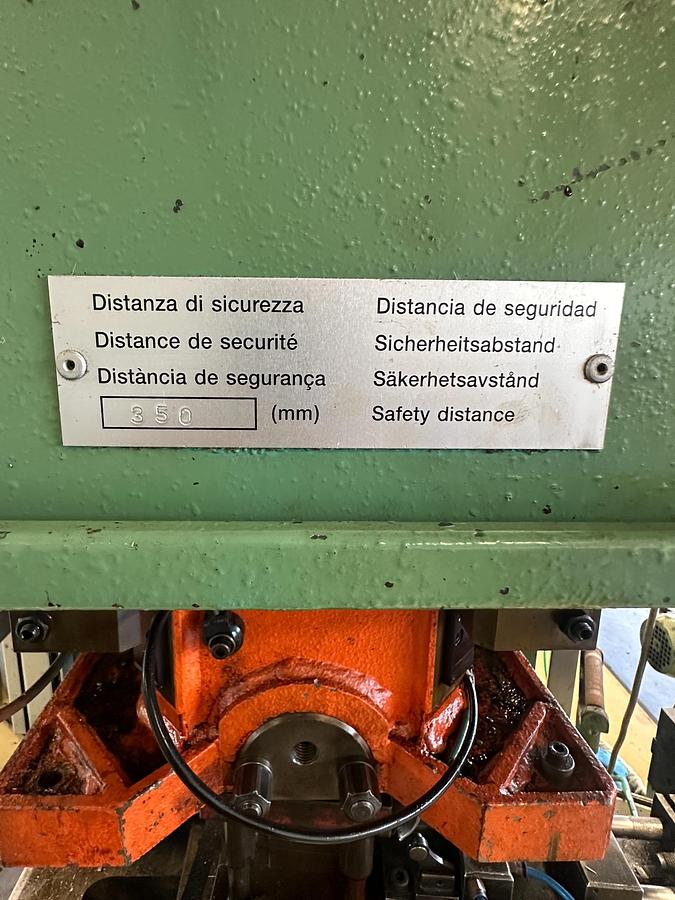

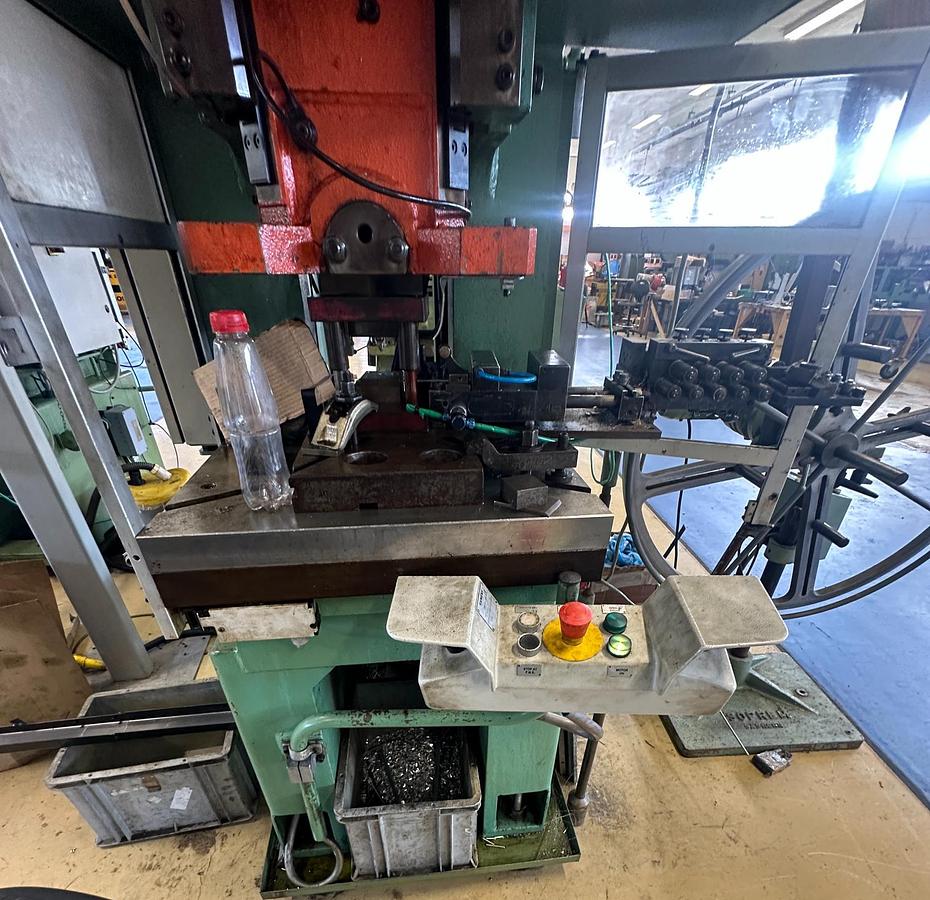

Safety & Operator Equipment

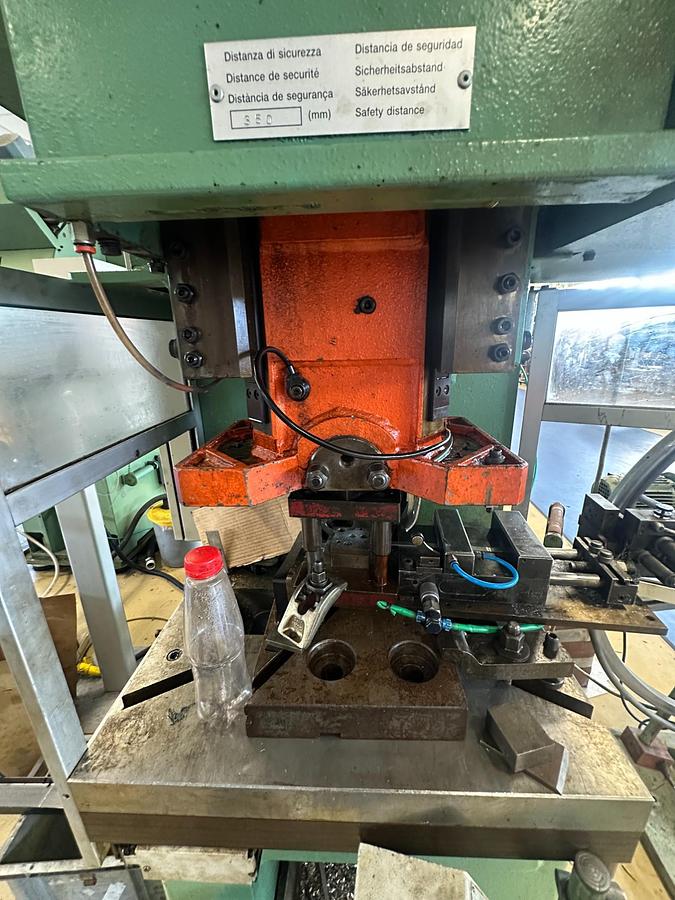

• Interlocked safety guarding

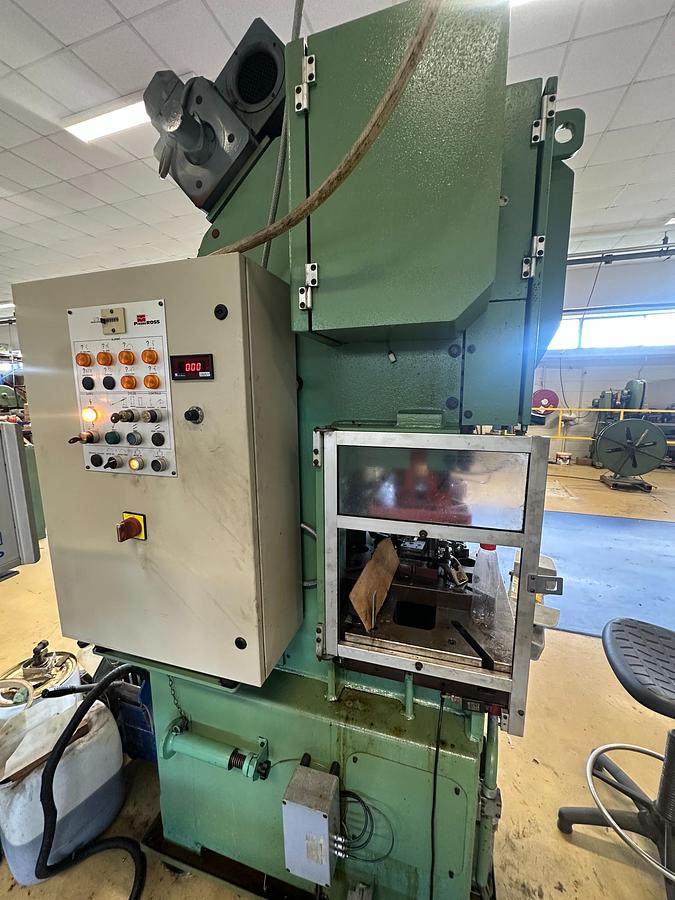

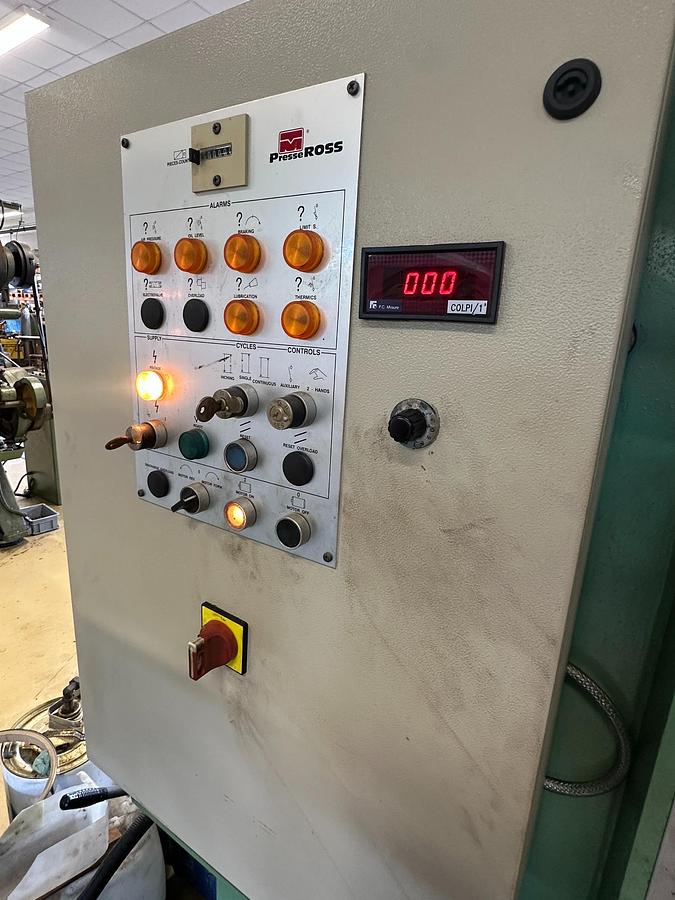

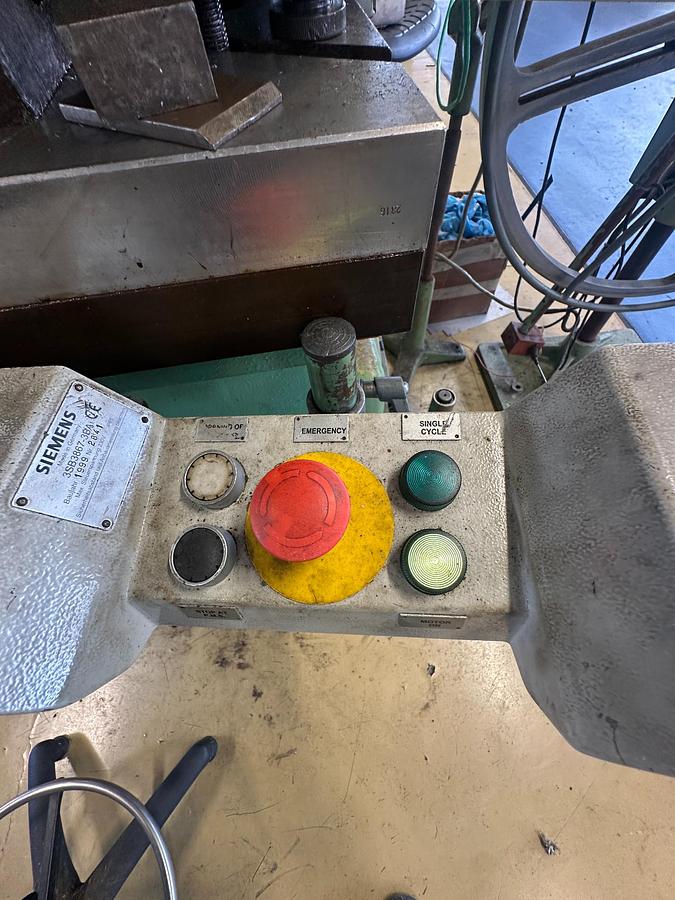

• Separate operator control panel
• Two-hand press control
• Emergency-stop facilities
• Guard interlocking system
• Pneumatic clutch/brake system

Typical Applications

The Presse Ross 40V-4 is suitable for:

• Sheet metal stamping
• Metal blanking
• Punching
• Piercing
• Component forming
• Coil-fed presswork
• Progressive die production
• High-volume repetitive pressing
• Small and medium pressed components
• General metalworking production
• Press tool and stamping operations

The combination of an adjustable stroke, variable speed and powered decoiler makes this machine particularly suitable for continuous production and coil-fed component manufacture.

Machine Highlights

• 40 tonne / 400 kN pressing capacity
• 7–100 mm adjustable stroke
• 68–203 strokes/min variable operating speed
• 600 × 450 mm bolster/table
• 400 × 260 mm slide
• Brankamp Prokos PK550/3 process monitoring
• Finzer SOP 20/H/900 powered decoiler
• Interlocked safety guarding
• Separate two-hand operator control
• 415 V / 50 Hz
• Approx. 2,600 kg machine weight
• Italian-manufactured mechanical production press

Condition

Used machine. Please contact us for price, further photographs, technical information, inspection arrangements and availability.

Please Note: All specifications, dimensions, capacities and descriptions are approximate and provided in good faith. Prospective purchasers should independently verify all important specifications and machine suitability before purchase.
