2001 Presse Ross 40V-4 40 Ton Mechanical Press for Sale

2001 Presse Ross Type 40V-4 40 Ton Mechanical Eccentric Press with Soprem Decoiler & Brankamp Process Monitoring

Used 2001 Presse Ross 40V-4 40 ton mechanical press with Brankamp Prokos PK550/3 monitoring, Soprem powered decoiler and safety guarding.

Manufacturer: Presse Ross

Model: 40V-4

Machine Type: Mechanical Press

Year: 2001

Condition: Very Good

Includes:

Brankamp Prokos PK550/3 Process Monitoring Control

Soprem RMI 50 F1 Powered Auto/Manual Decoiler

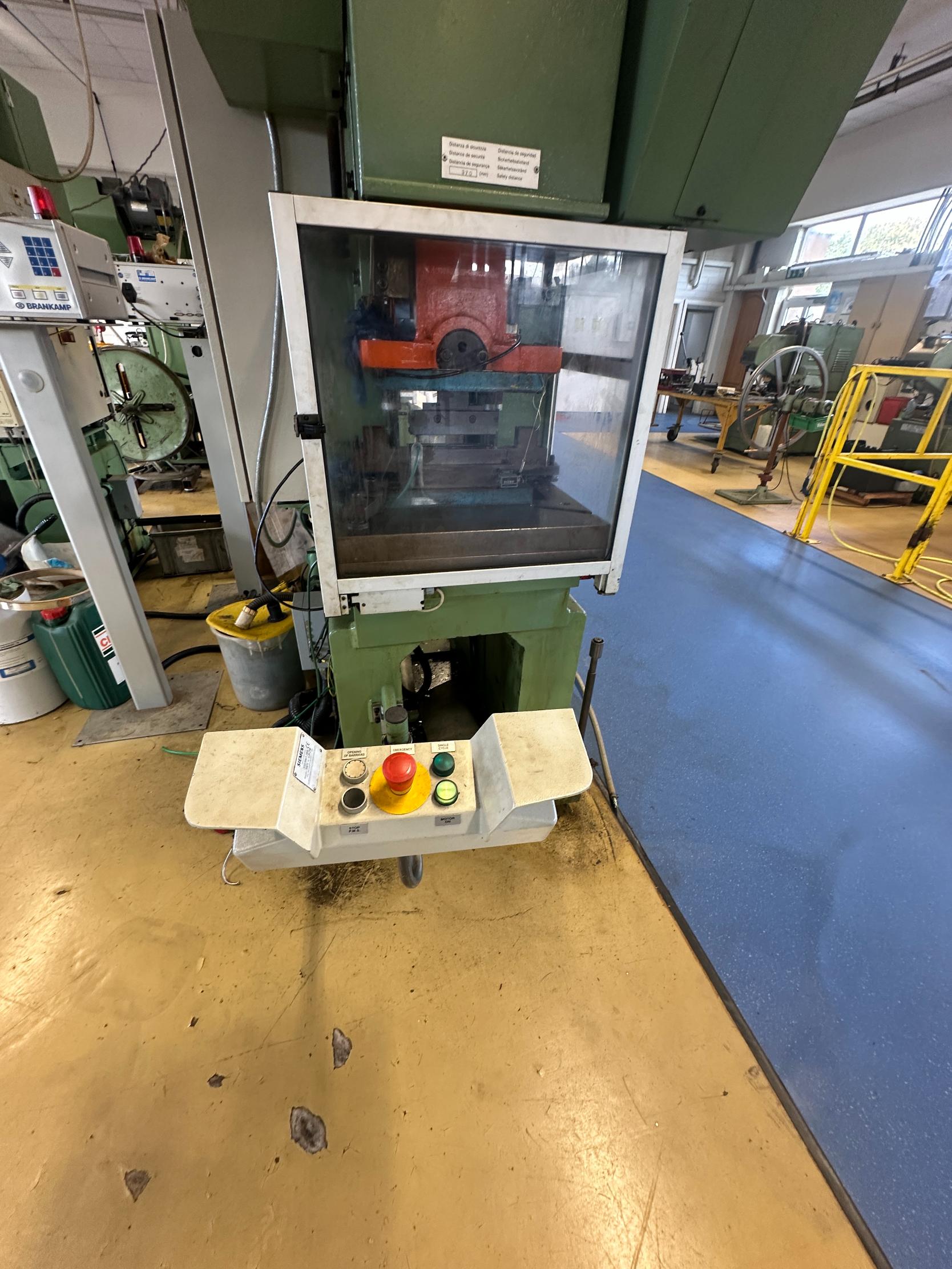

Interlocked safety guards

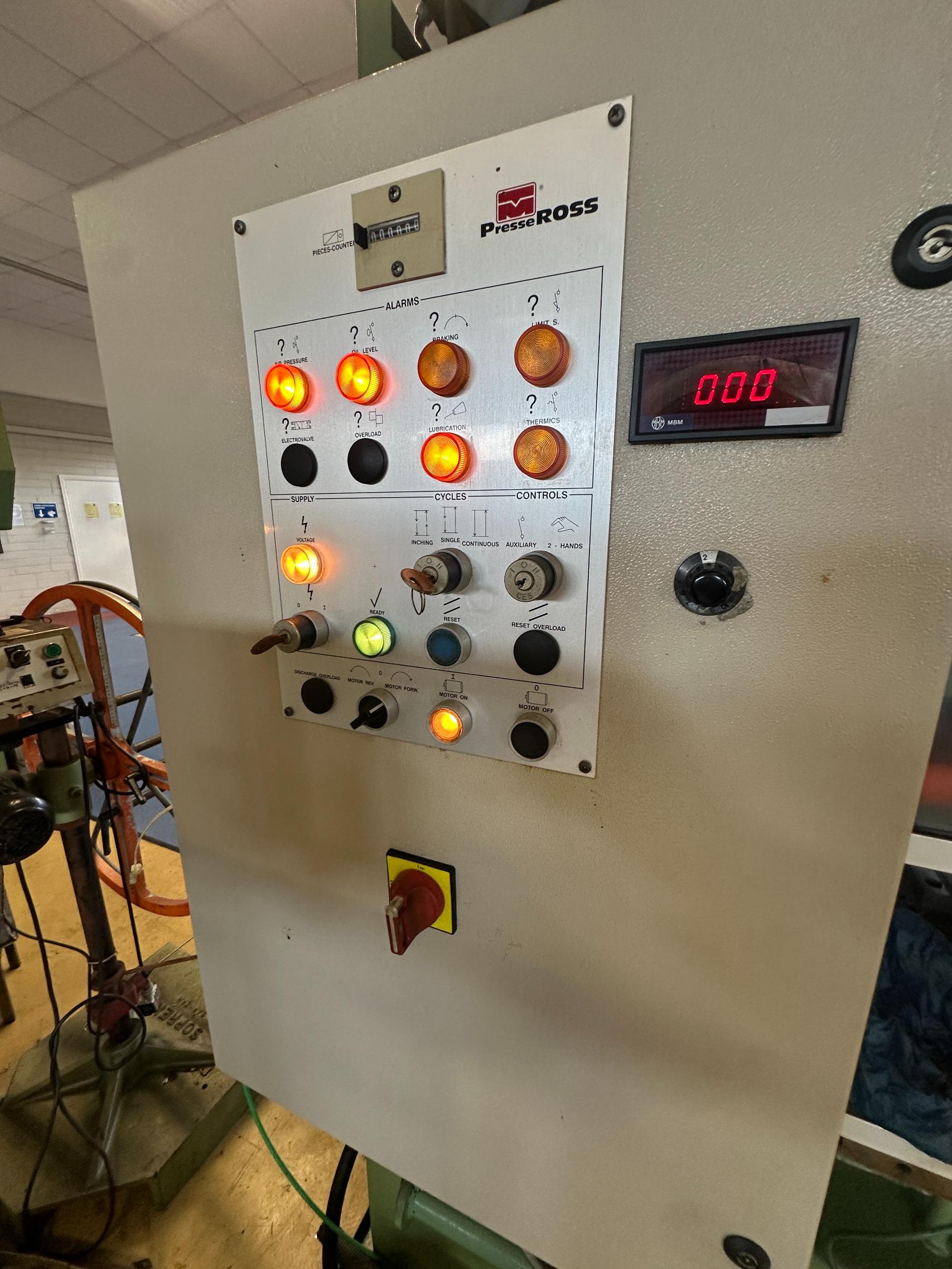

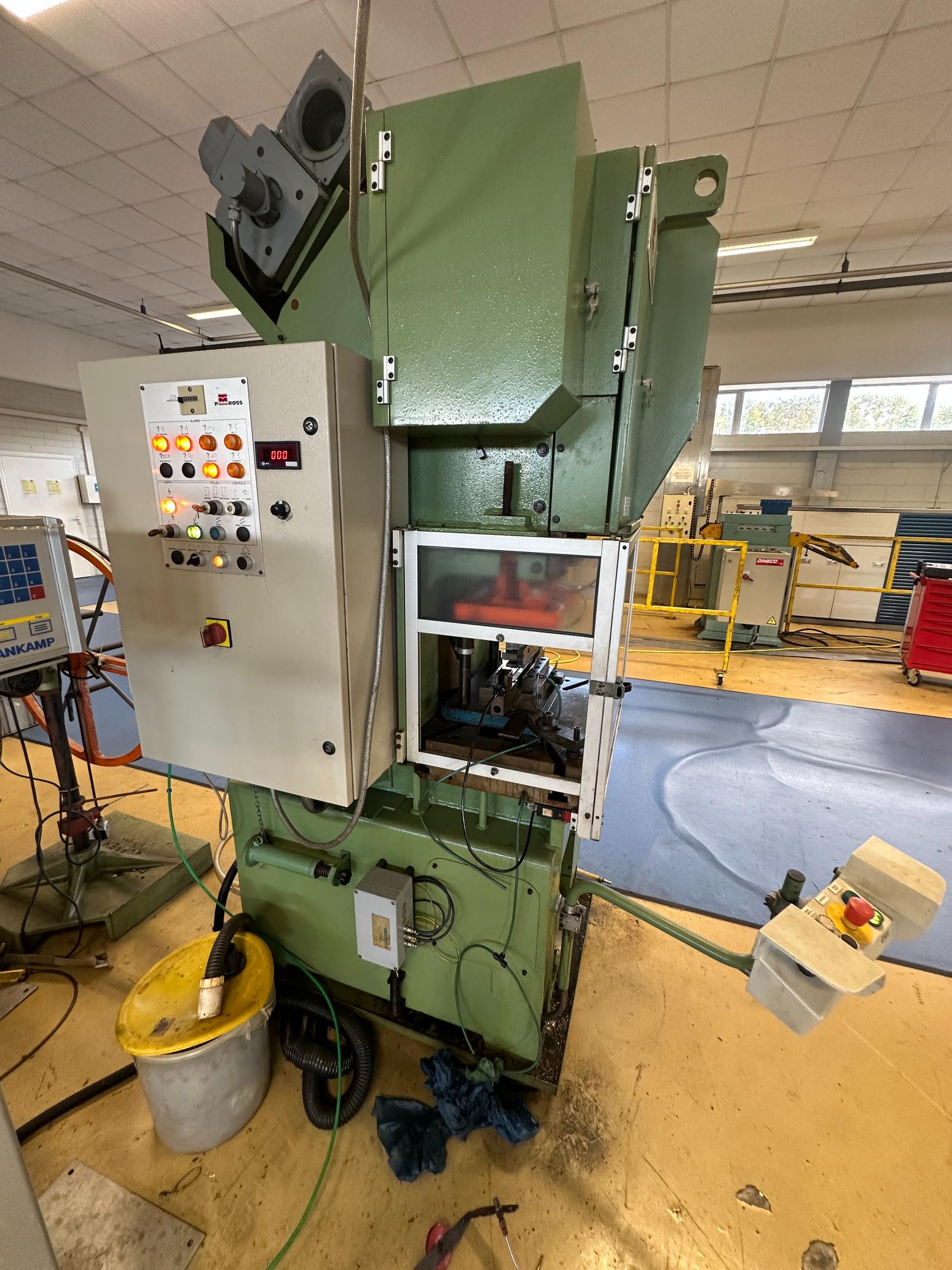

Separate control panel with two hand control

Machine Description

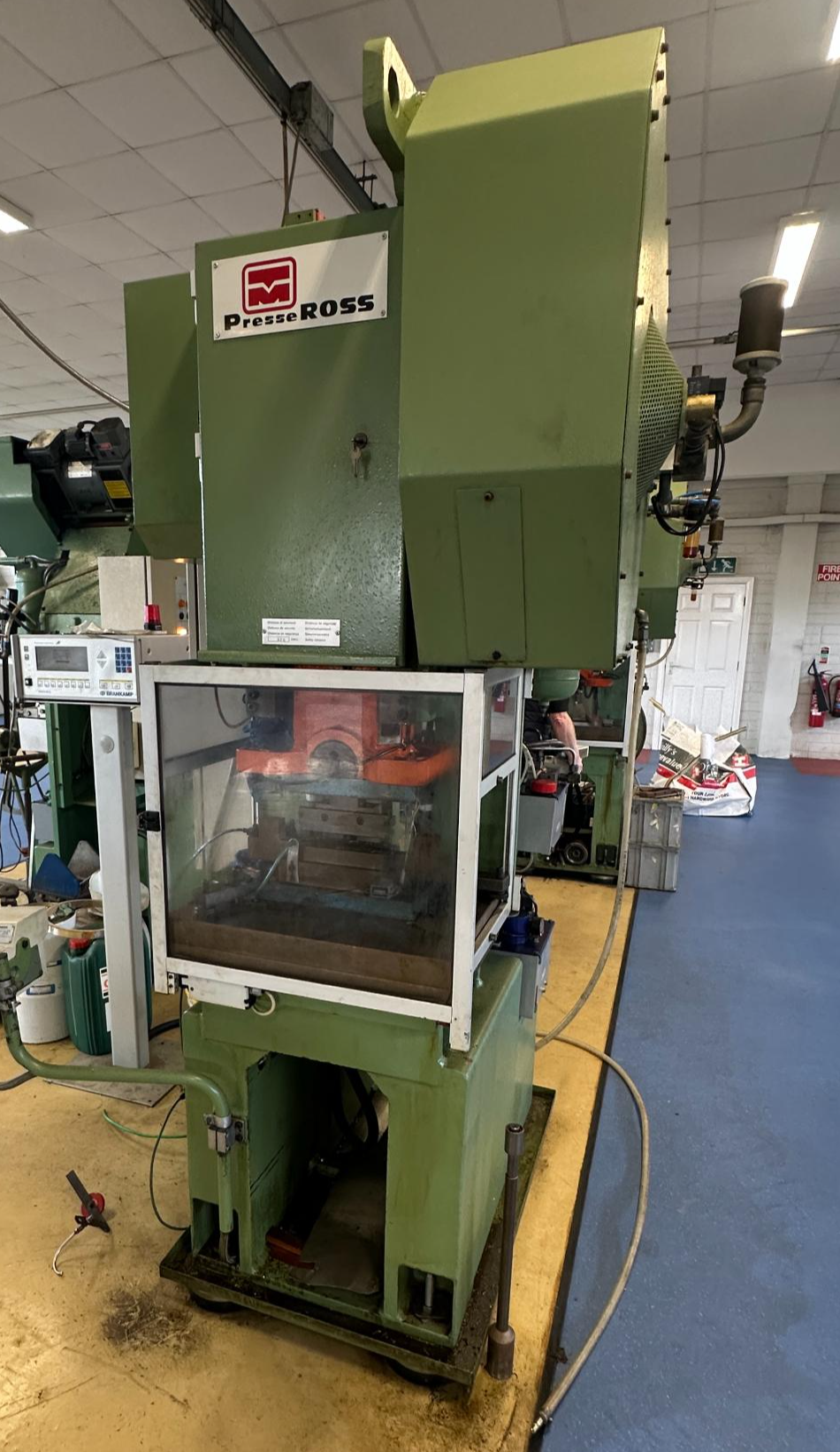

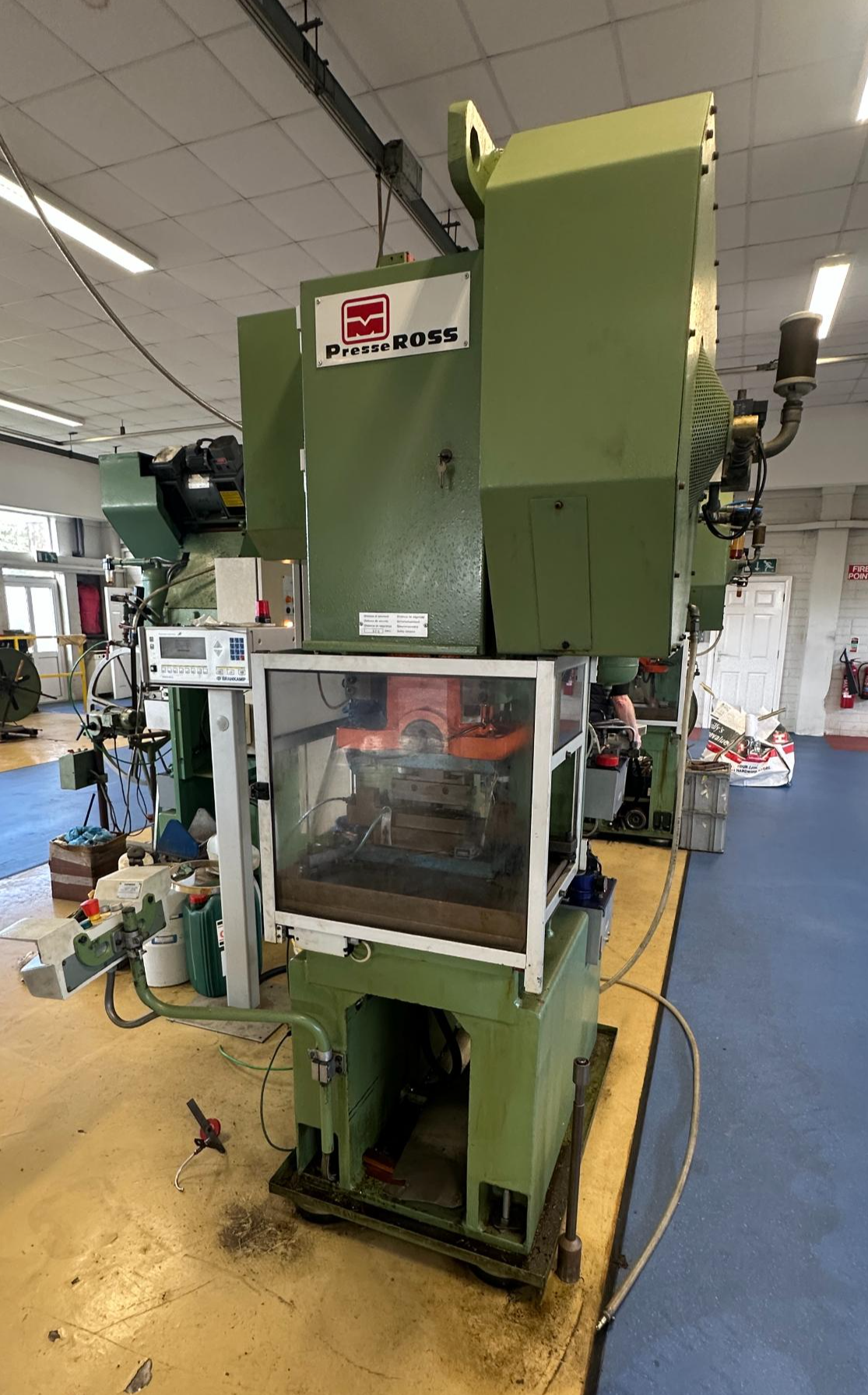

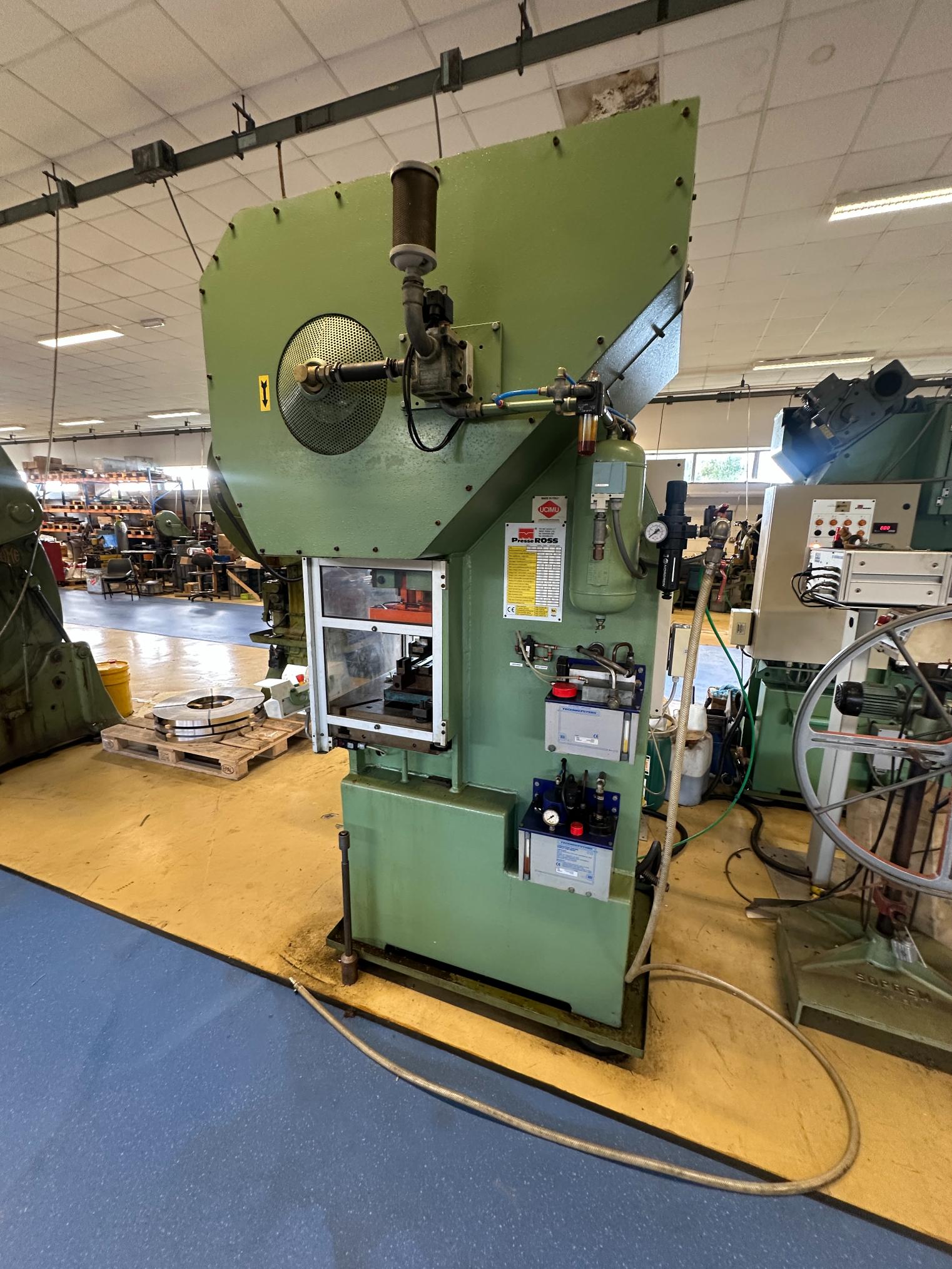

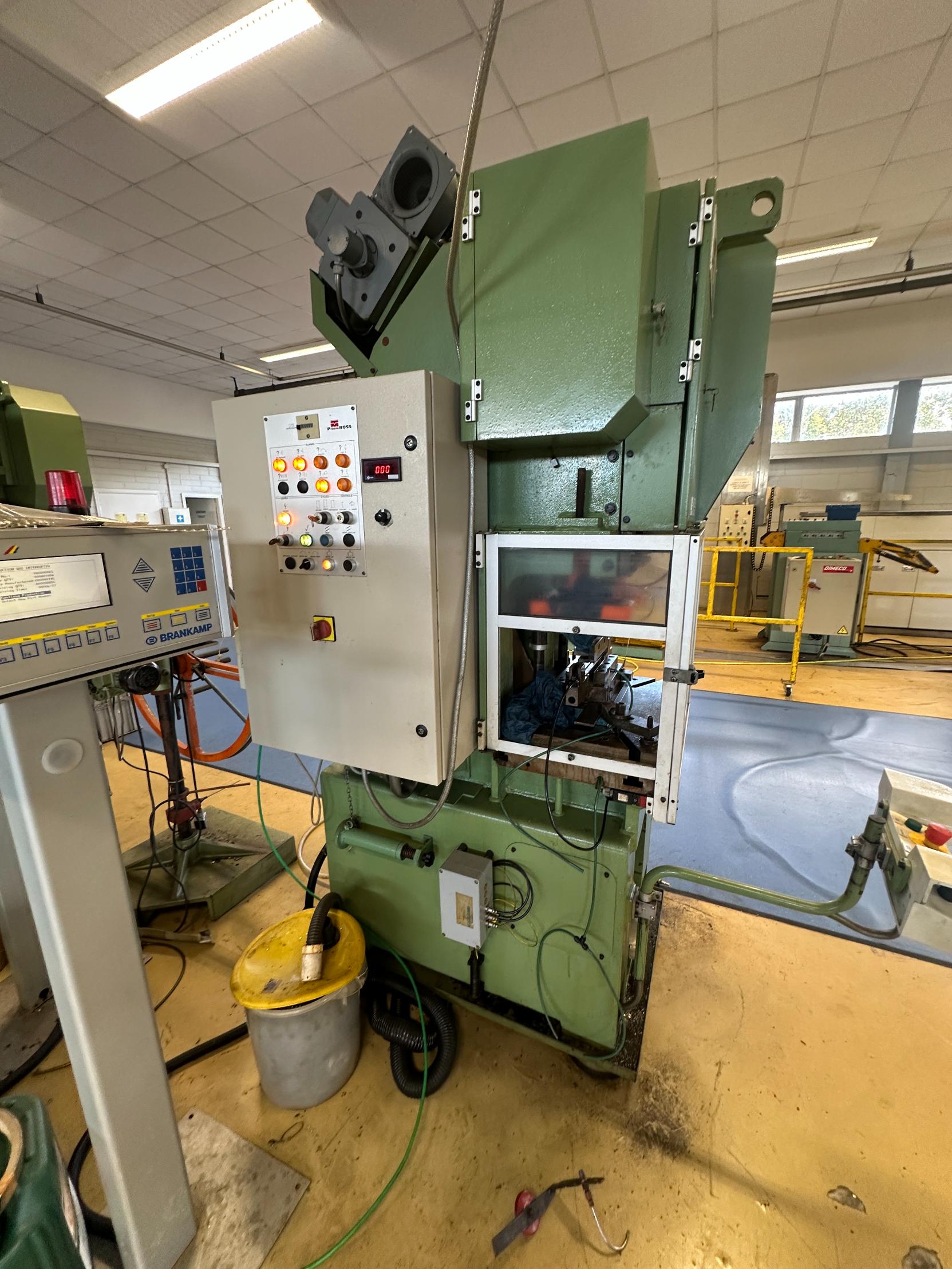

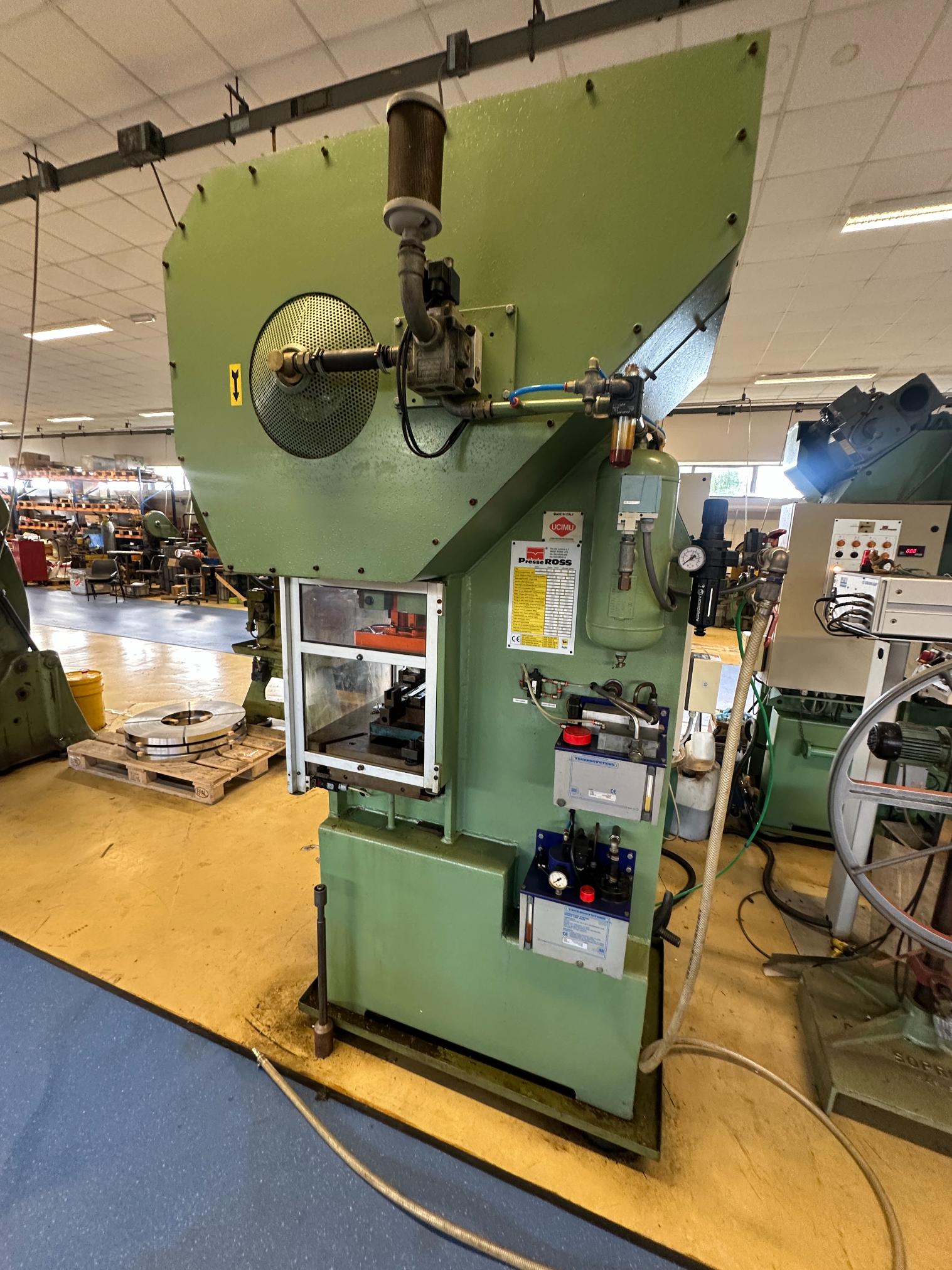

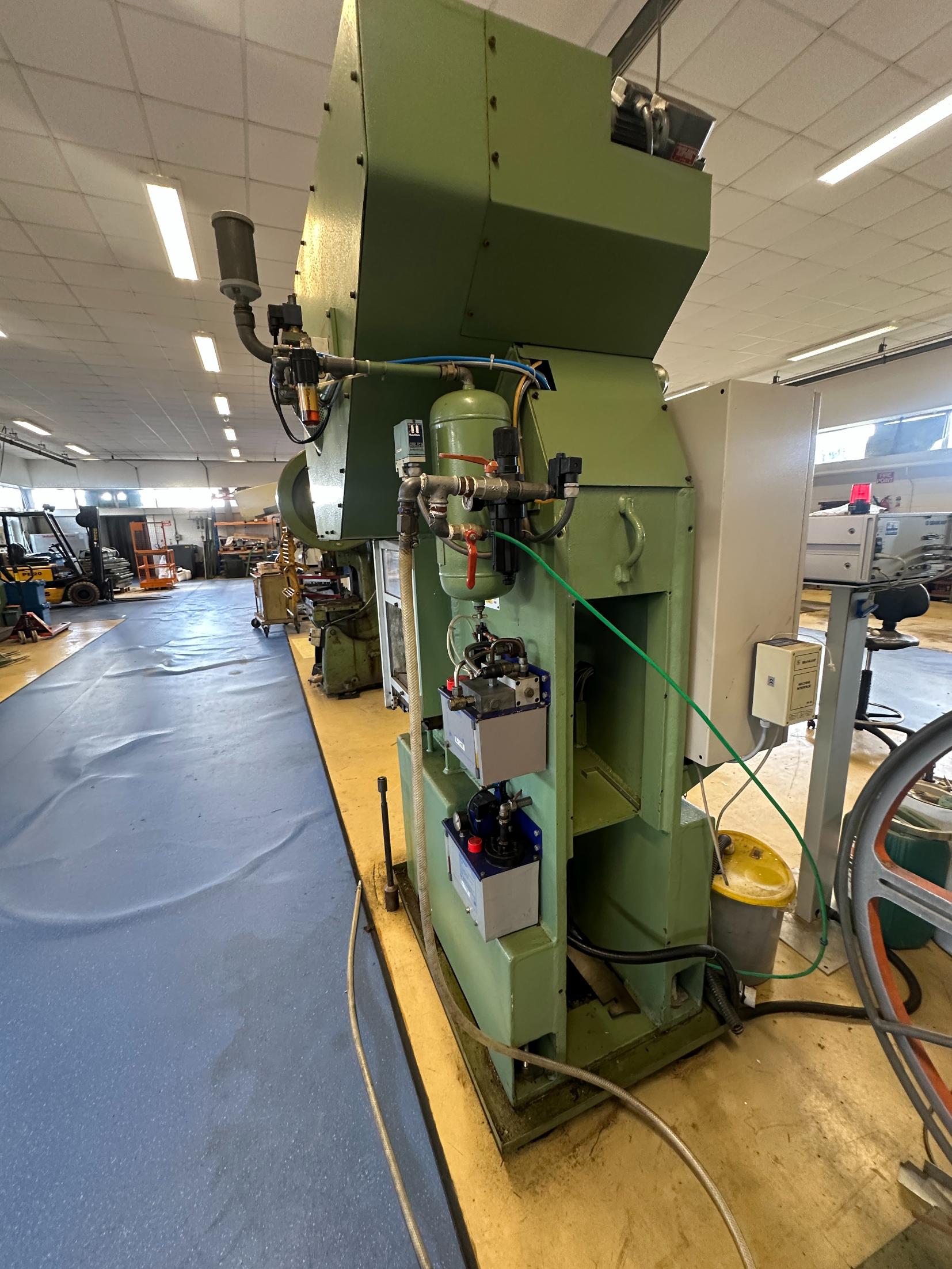

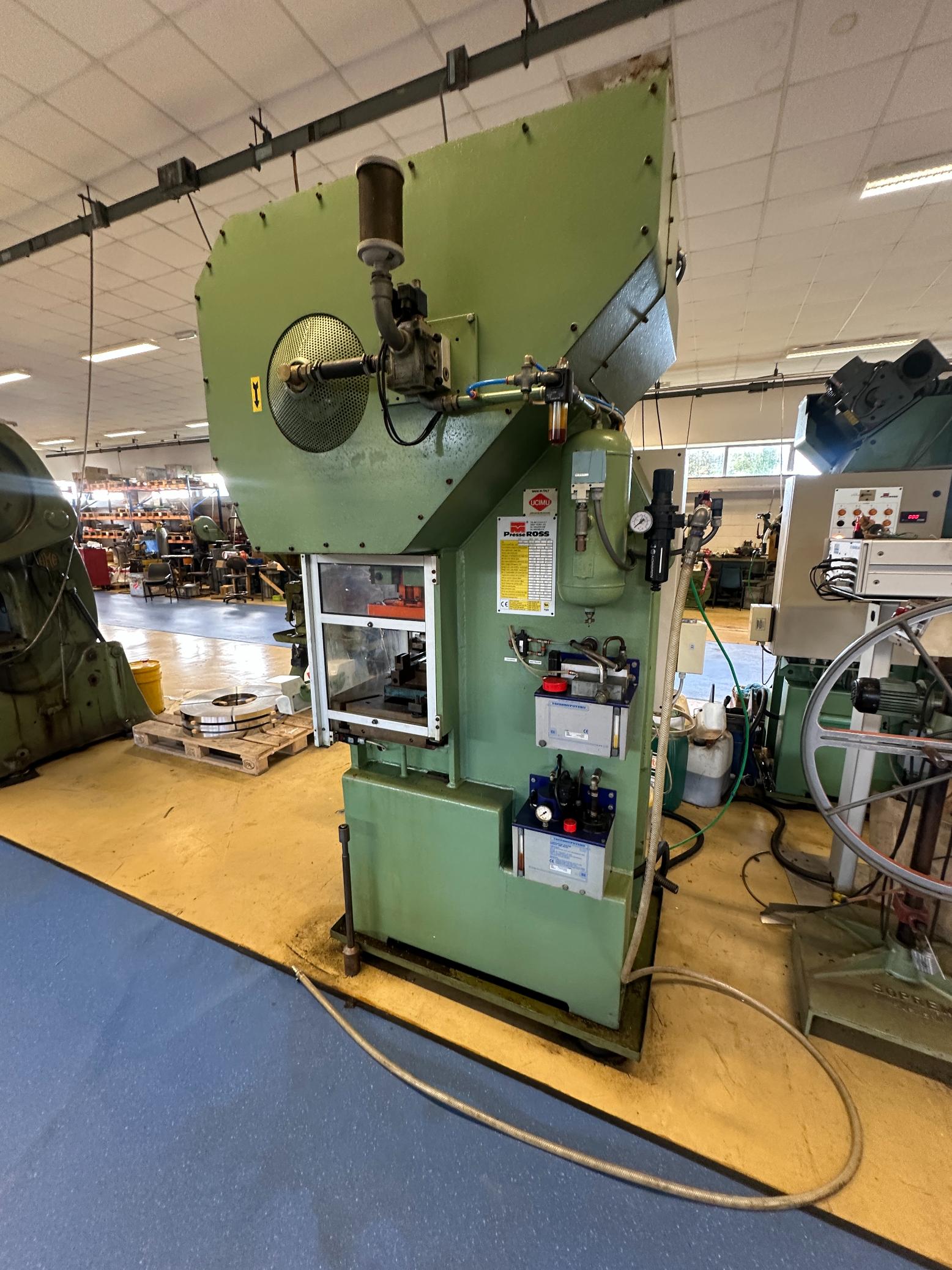

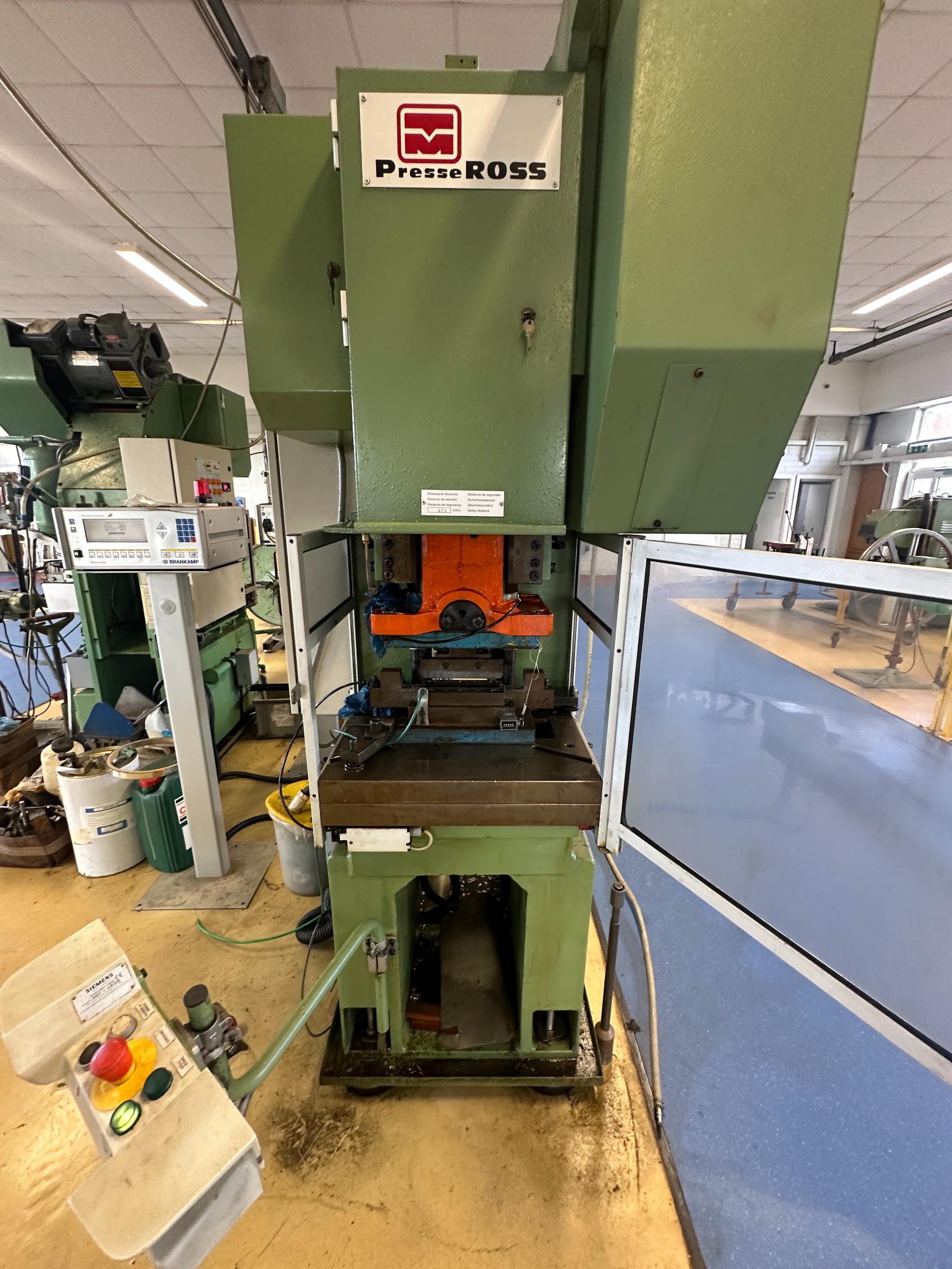

Used 2001 Presse Ross Type 40V-4 40 tonne mechanical eccentric power press, complete with Brankamp Prokos PK550/3 process monitoring control, Soprem RMI 50 F1 powered automatic/manual decoiler, interlocked perimeter safety guarding and separate control panel with two-hand operation.

This Italian-built Presse Ross 40V-4 mechanical stamping press has a nominal pressing capacity of 400 kN / 40 tonnes, an adjustable 7–100 mm ram stroke and variable operating speed of approximately 68–203 strokes per minute.

The machine is particularly suited to sheet metal stamping, blanking, punching, forming, pressing and coil-fed production applications.

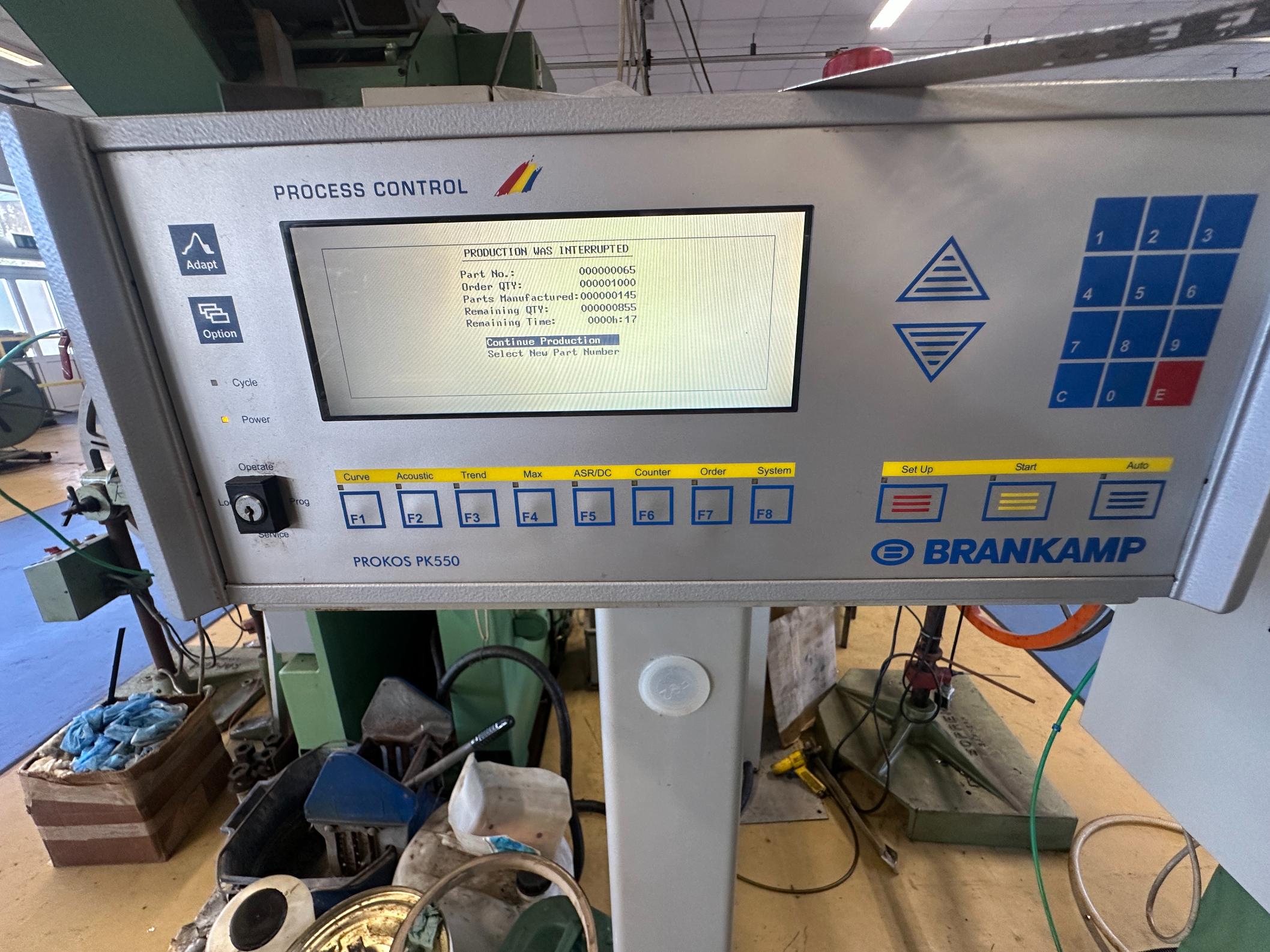

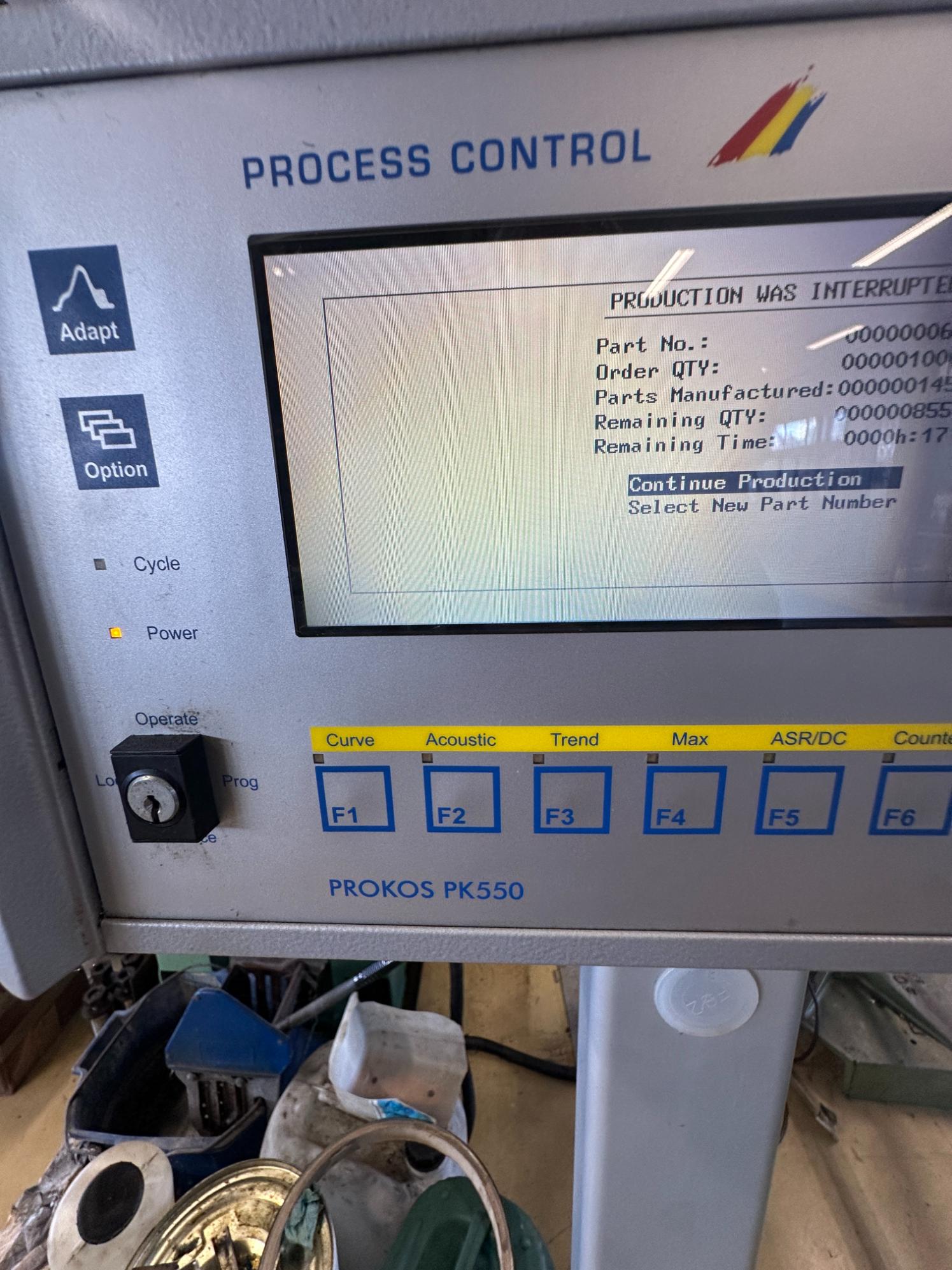

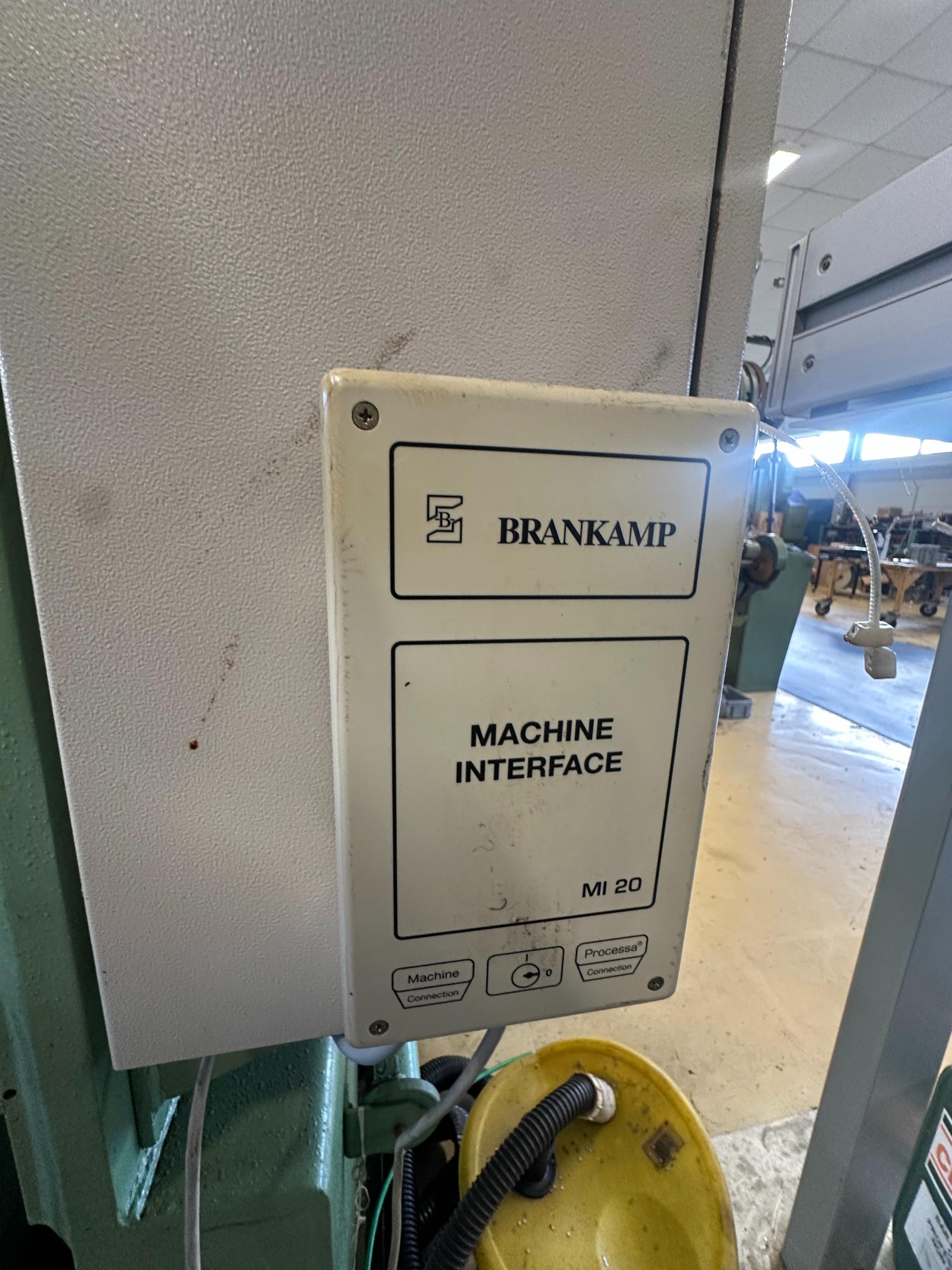

The included Brankamp Prokos PK550/3 process monitoring system is designed for monitoring press-production parameters and identifying abnormal process conditions. Brankamp/Prokos systems of this type monitor manufacturing process signals such as pressing/forming forces and can be used to identify deviations during production.

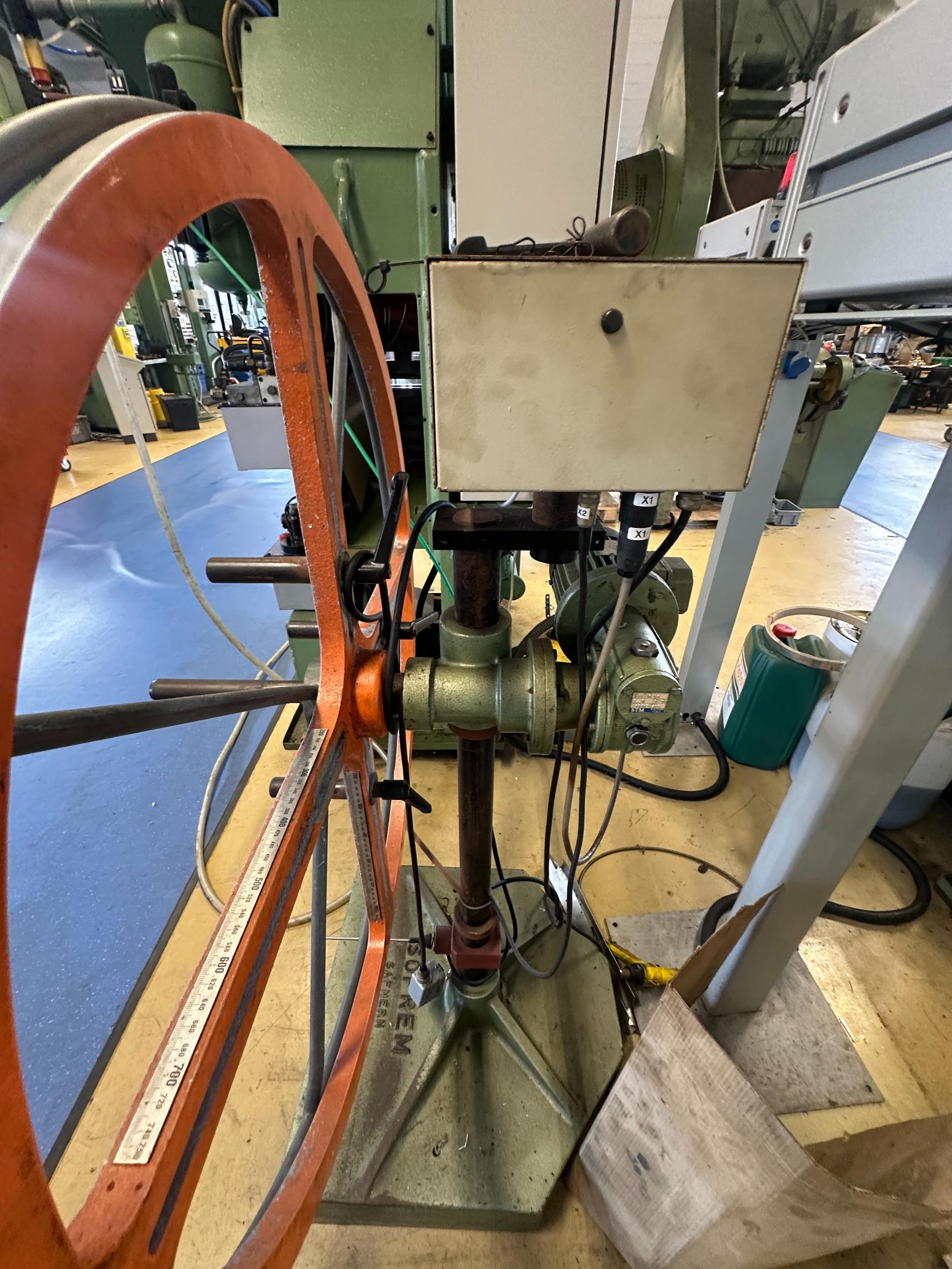

A 1992 Soprem powered auto/manual decoiler is also included, allowing the press to be incorporated into a coil-fed stamping arrangement. Soprem specialises in powered decoiling and strip-handling equipment designed for feeding strip material into mechanical presses and other production machinery.

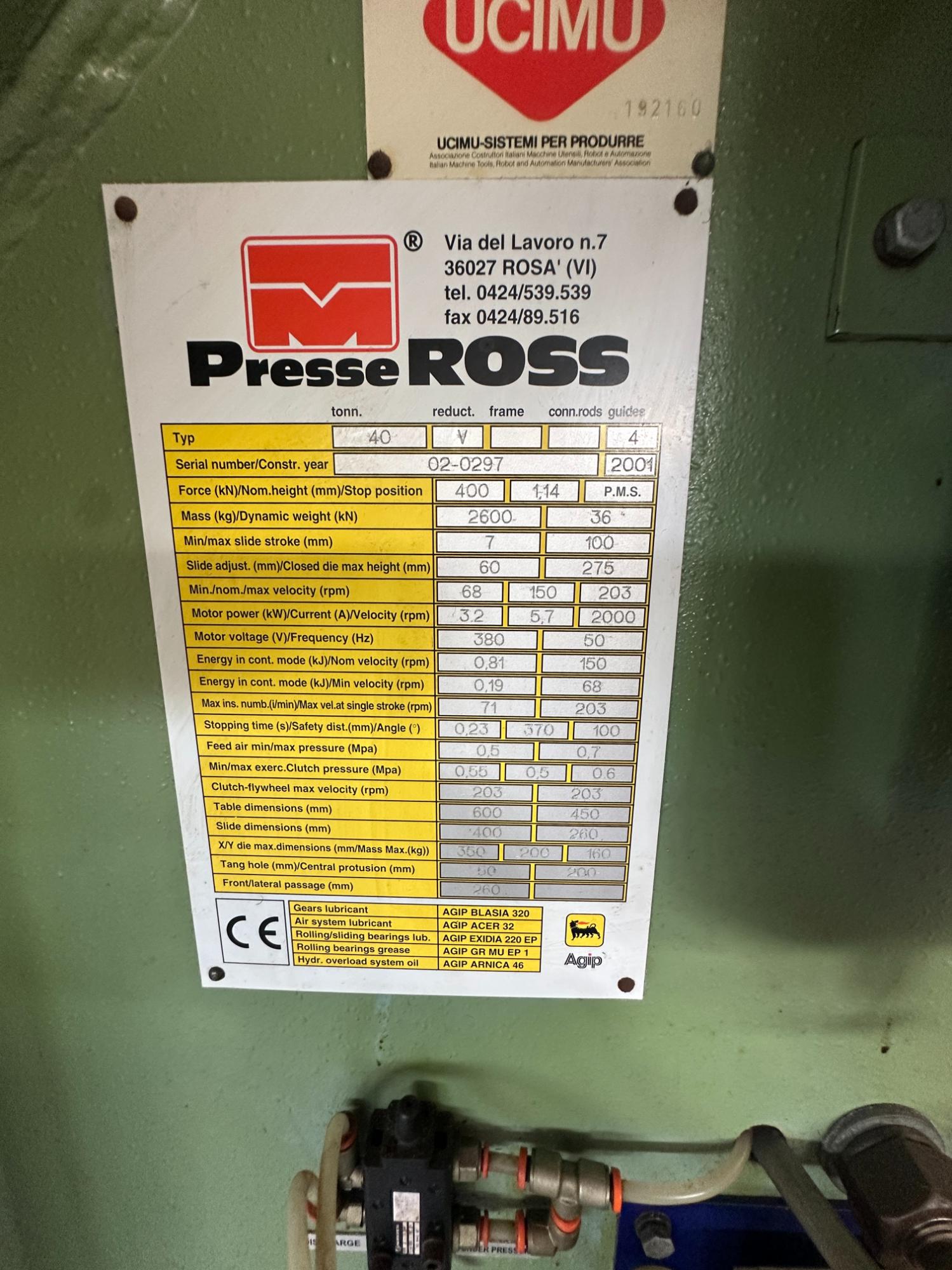

Technical Specification

Manufacturer: Presse Ross

Model / Type: 40V-4

Year: 2001

Serial Number: 02-0297

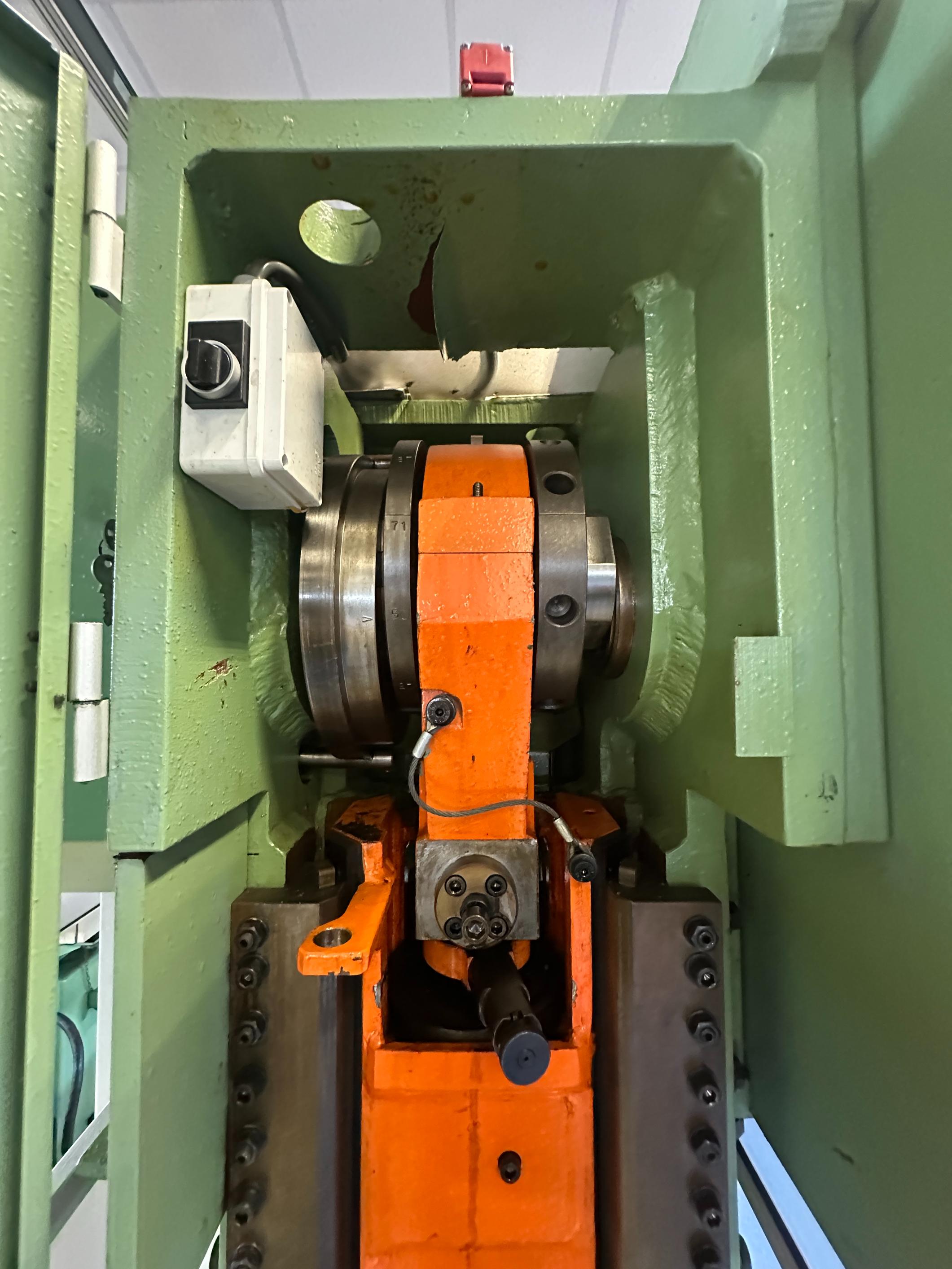

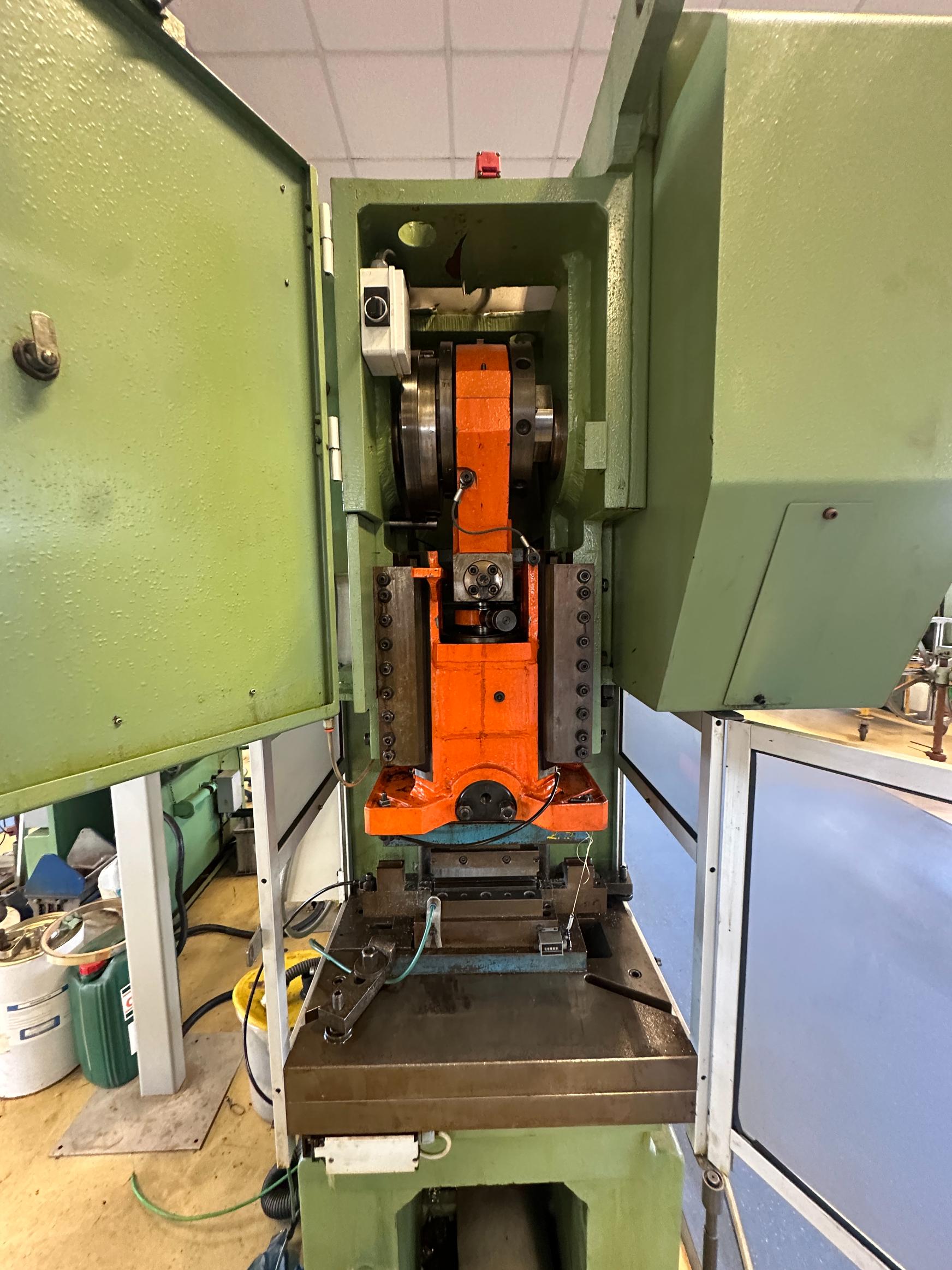

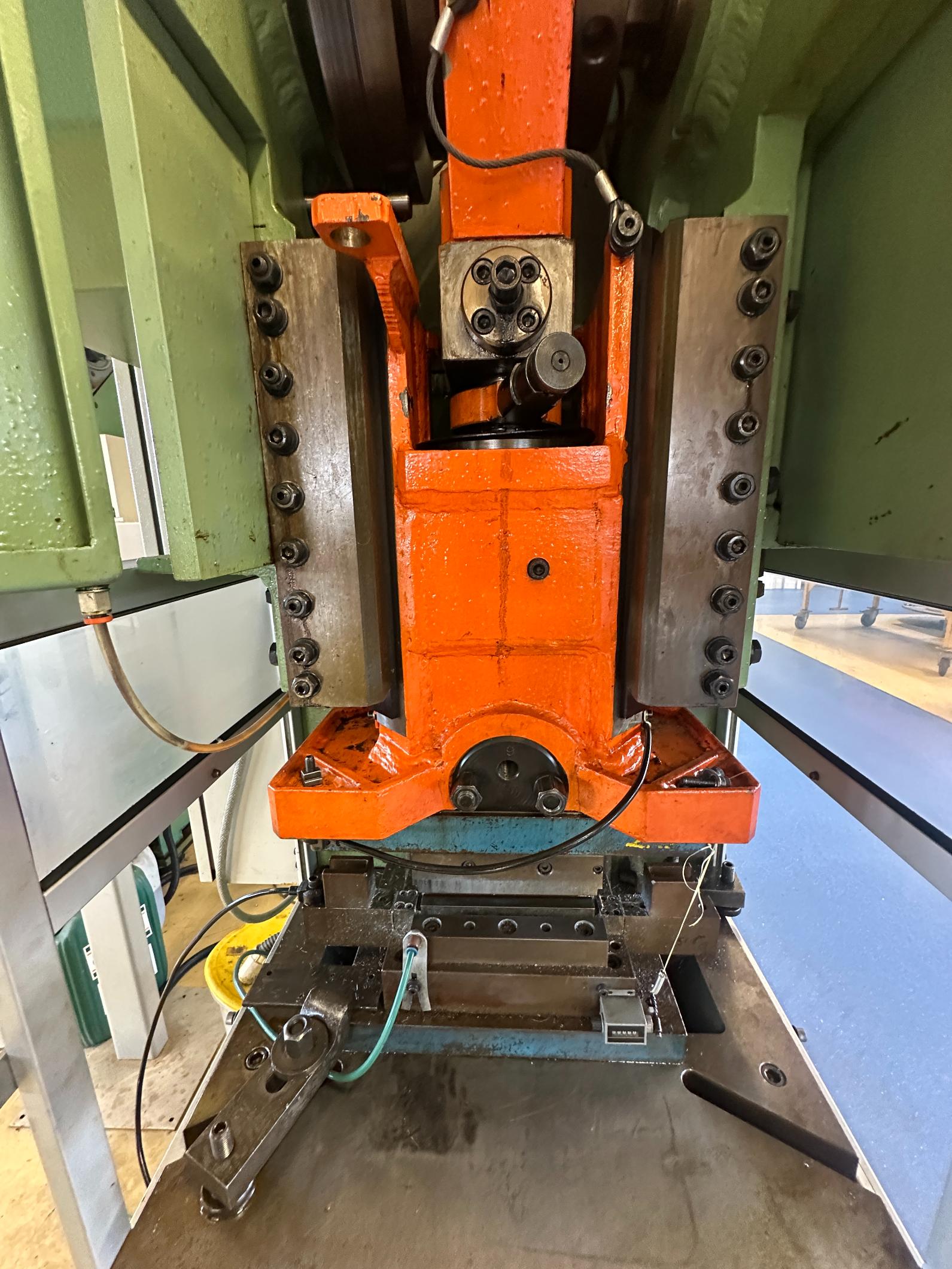

Press Type: Mechanical eccentric / flywheel press

Nominal Press Force: 400 kN / approx. 40 tonnes

Ram / Slide Guides: 4

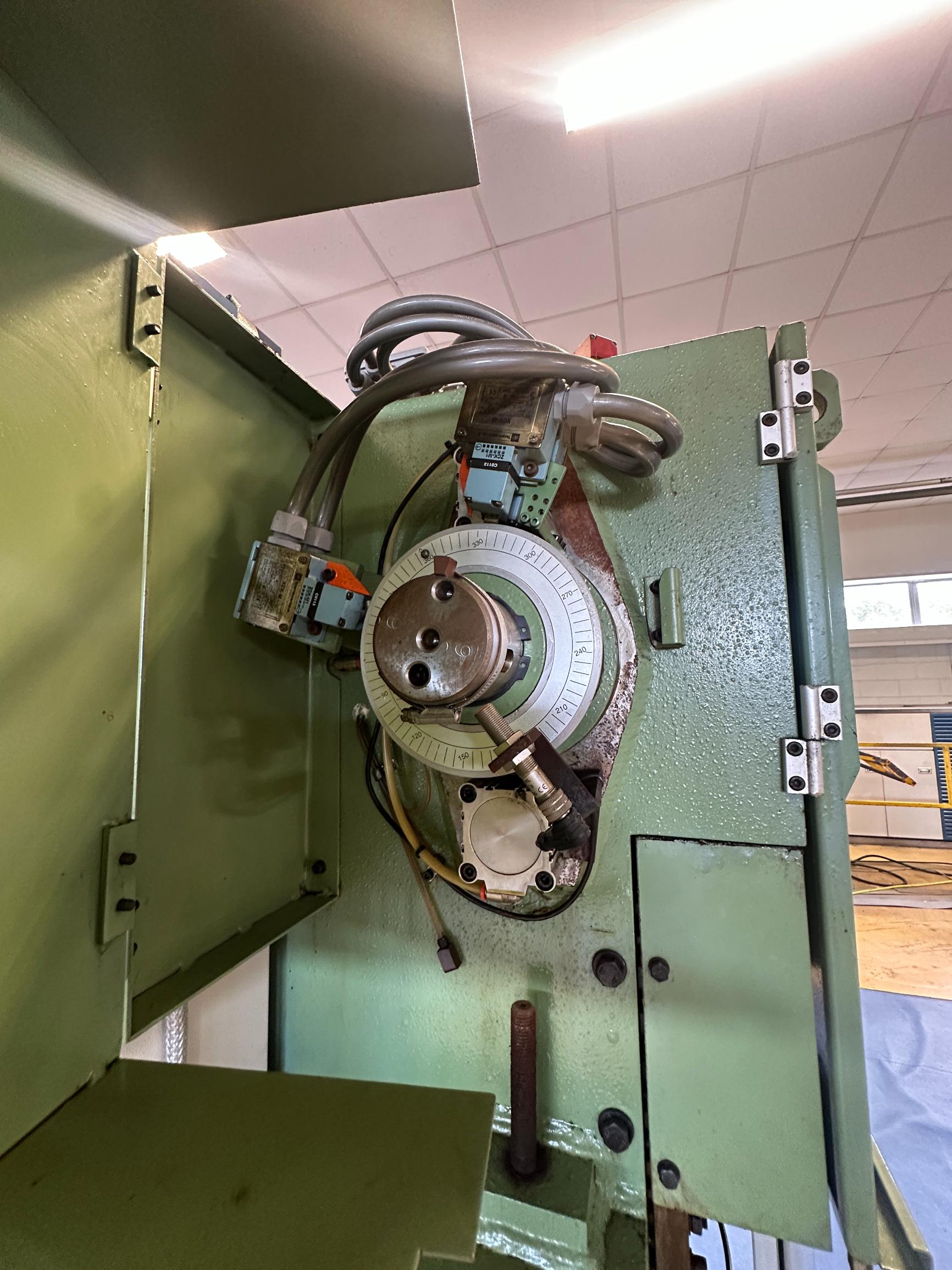

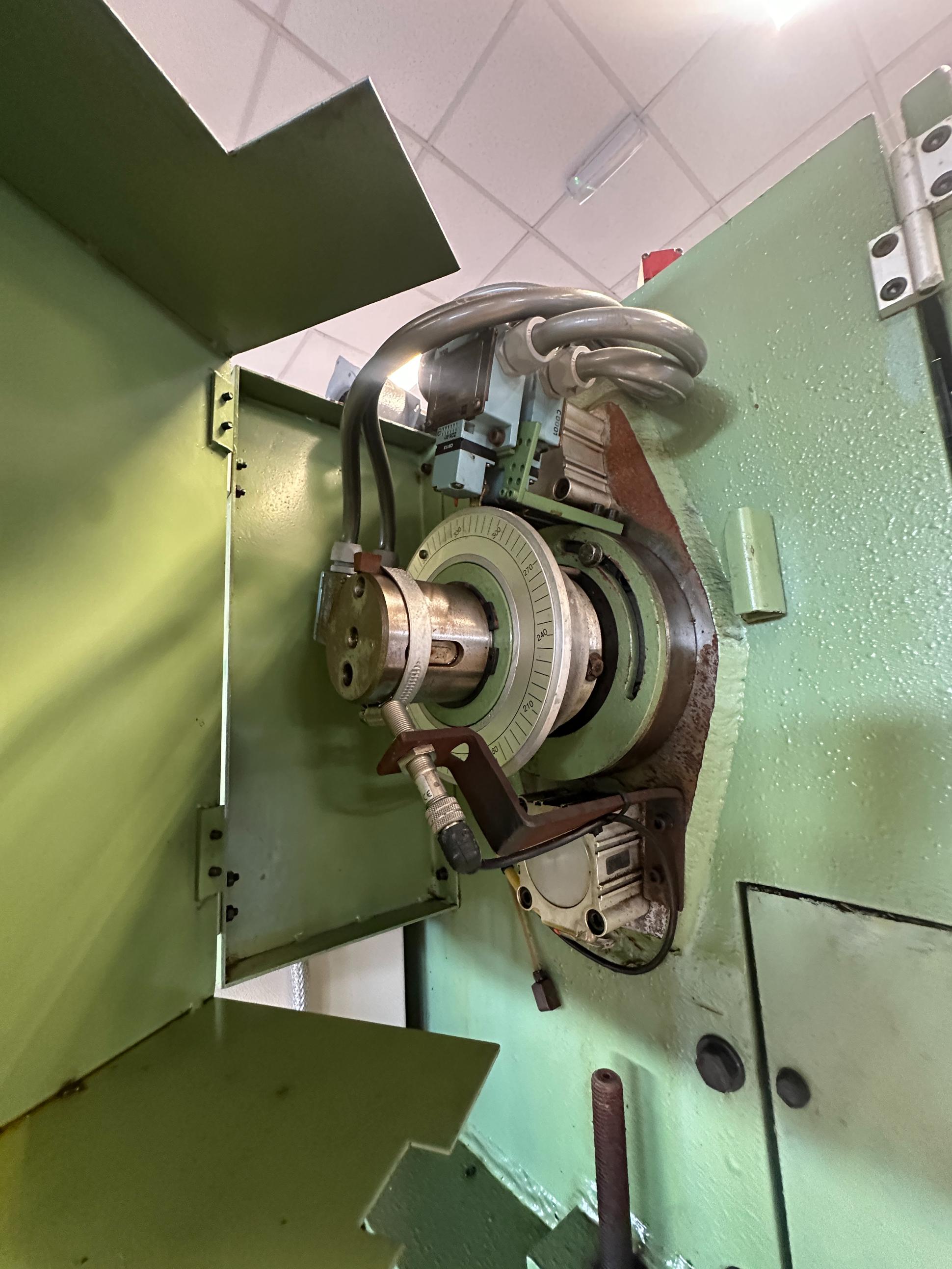

Adjustable Stroke: 7–100 mm

Ram / Slide Adjustment: 60 mm

Maximum Shut / Closed Die Height: 275 mm

Variable Stroke Rate: Approx. 68–203 strokes/min

Nominal Speed: 150 strokes/min

Throat Depth: Approx. 200 mm

Frame Opening / Passage: Approx. 260 mm

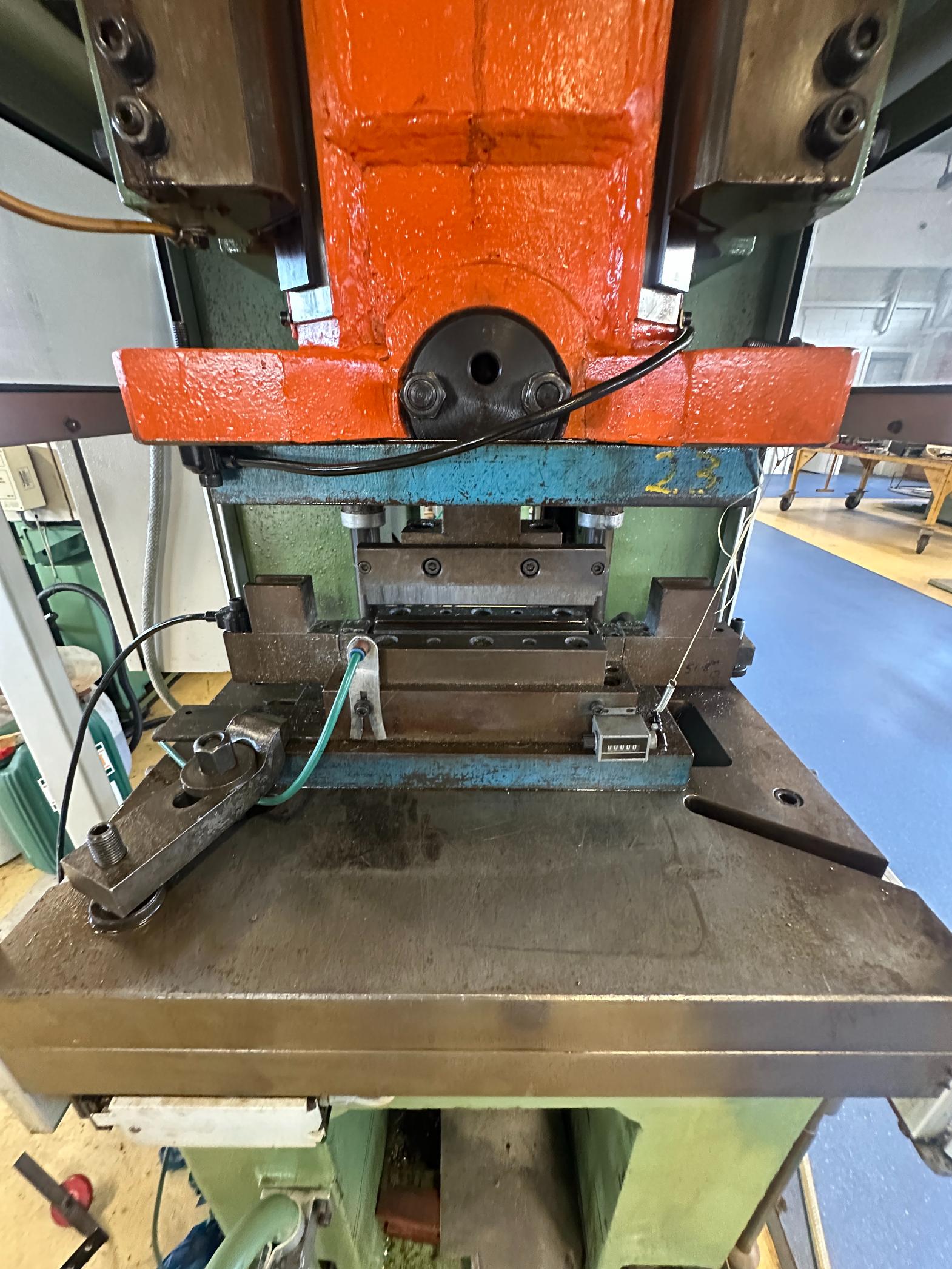

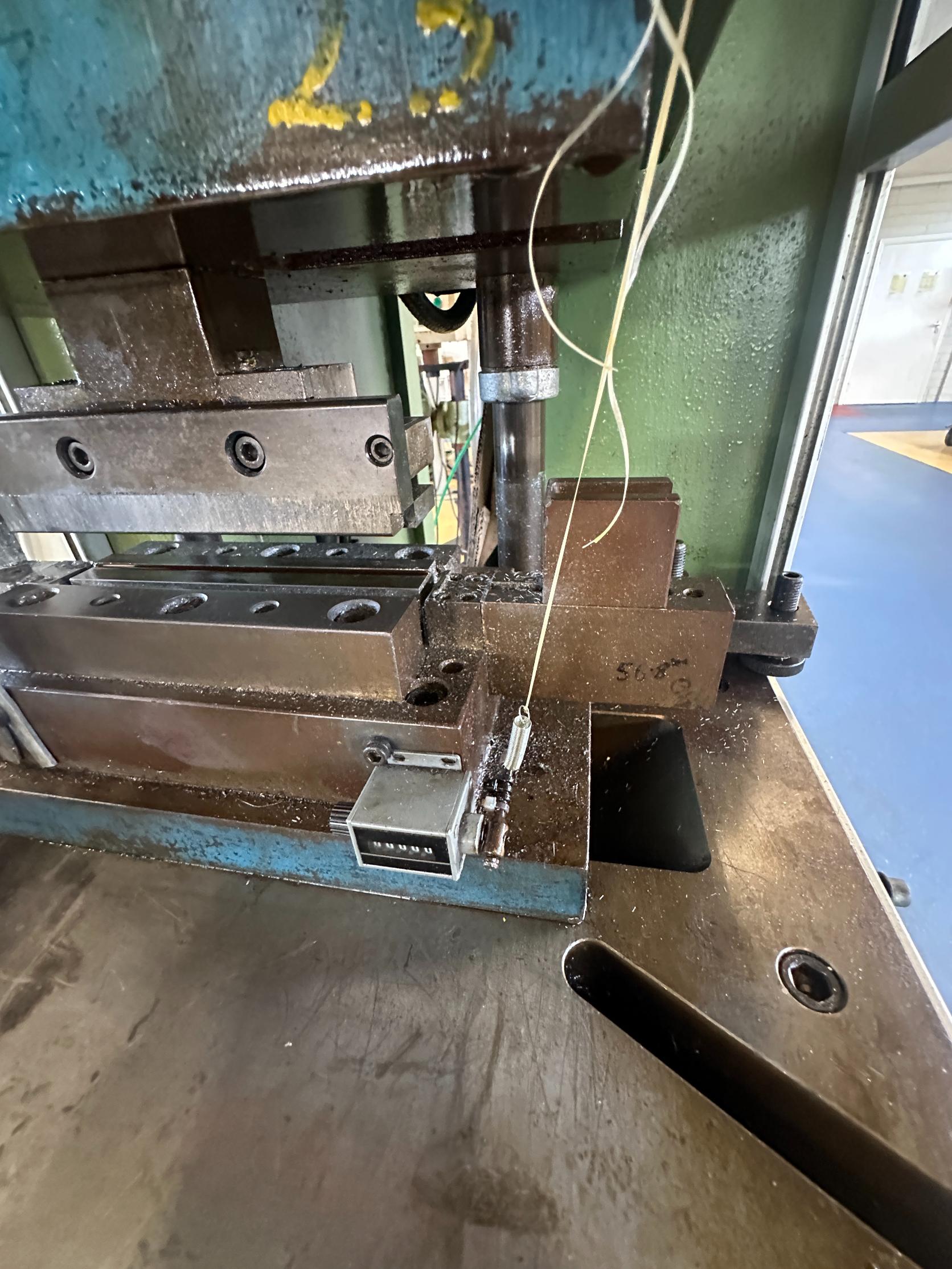

Table Size: 600 × 450 mm

Table Thickness: Approx. 55 mm

Table Opening: Approx. 120 mm

Ram / Slide Surface: 400 × 260 mm

Tool Shank / Ram Bore: 50 mm

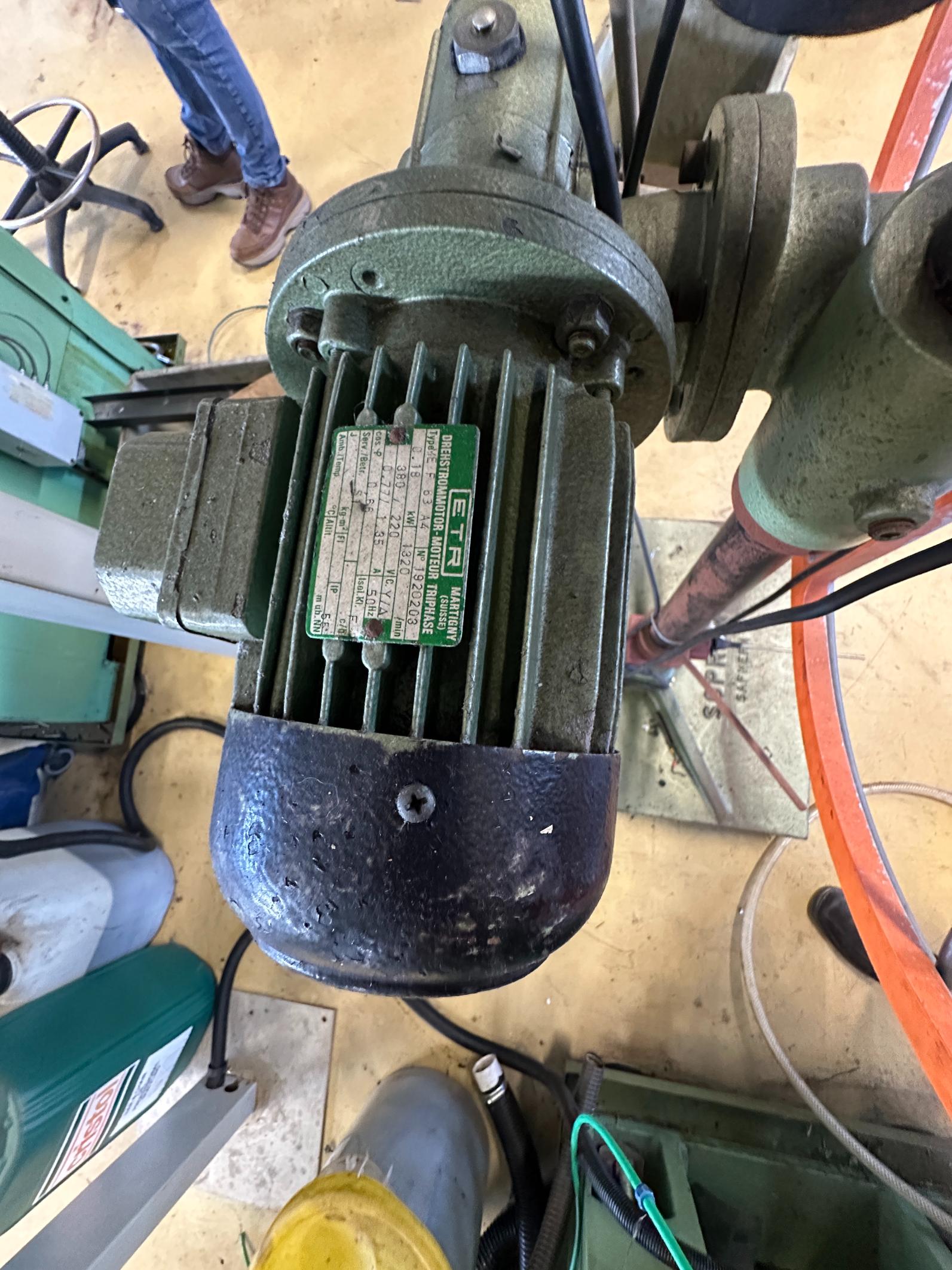

Motor Power: 3.2 kW

Motor Speed: 2,000 rpm

Electrical Supply: 380 V / 50 Hz

Maximum Flywheel Speed: Approx. 203 rpm

Compressed Air Supply: Approx. 0.5–0.7 MPa

Machine Weight: Approx. 2,600 kg

Included Equipment

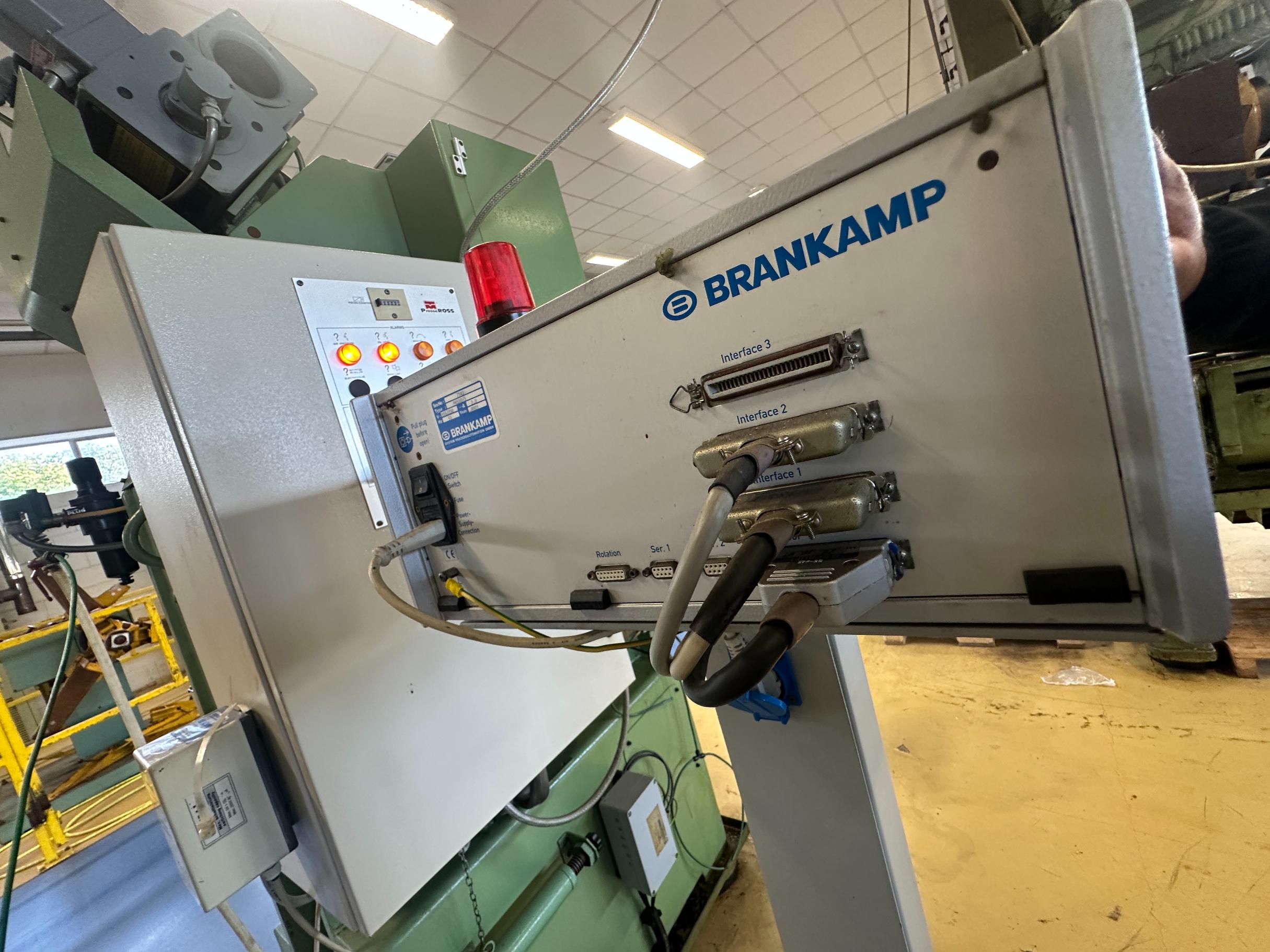

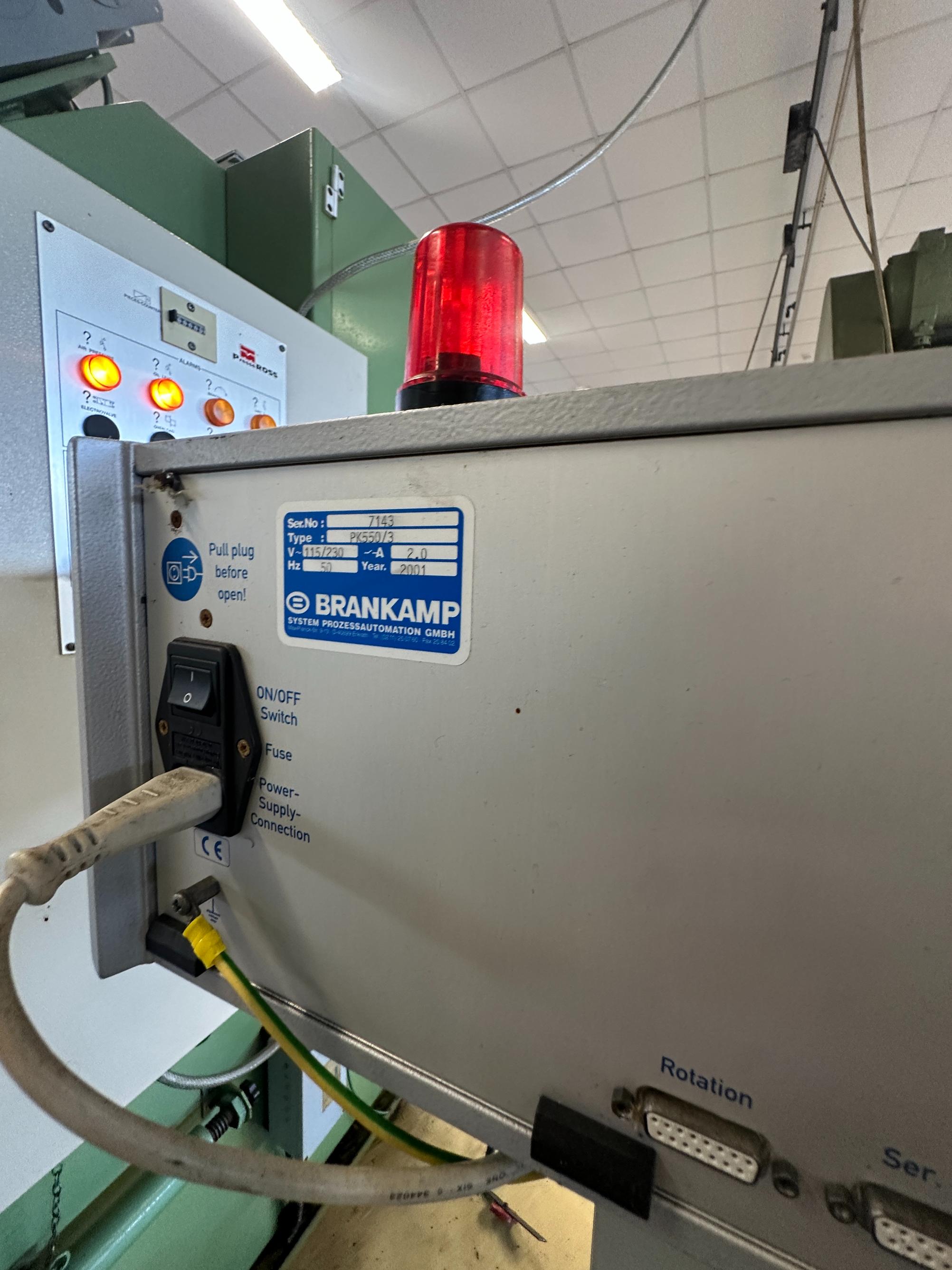

Brankamp Prokos PK550/3 Process Monitoring Control

Process monitoring equipment for monitoring press operation and production parameters, useful for detecting process deviations and helping protect tooling and production quality.

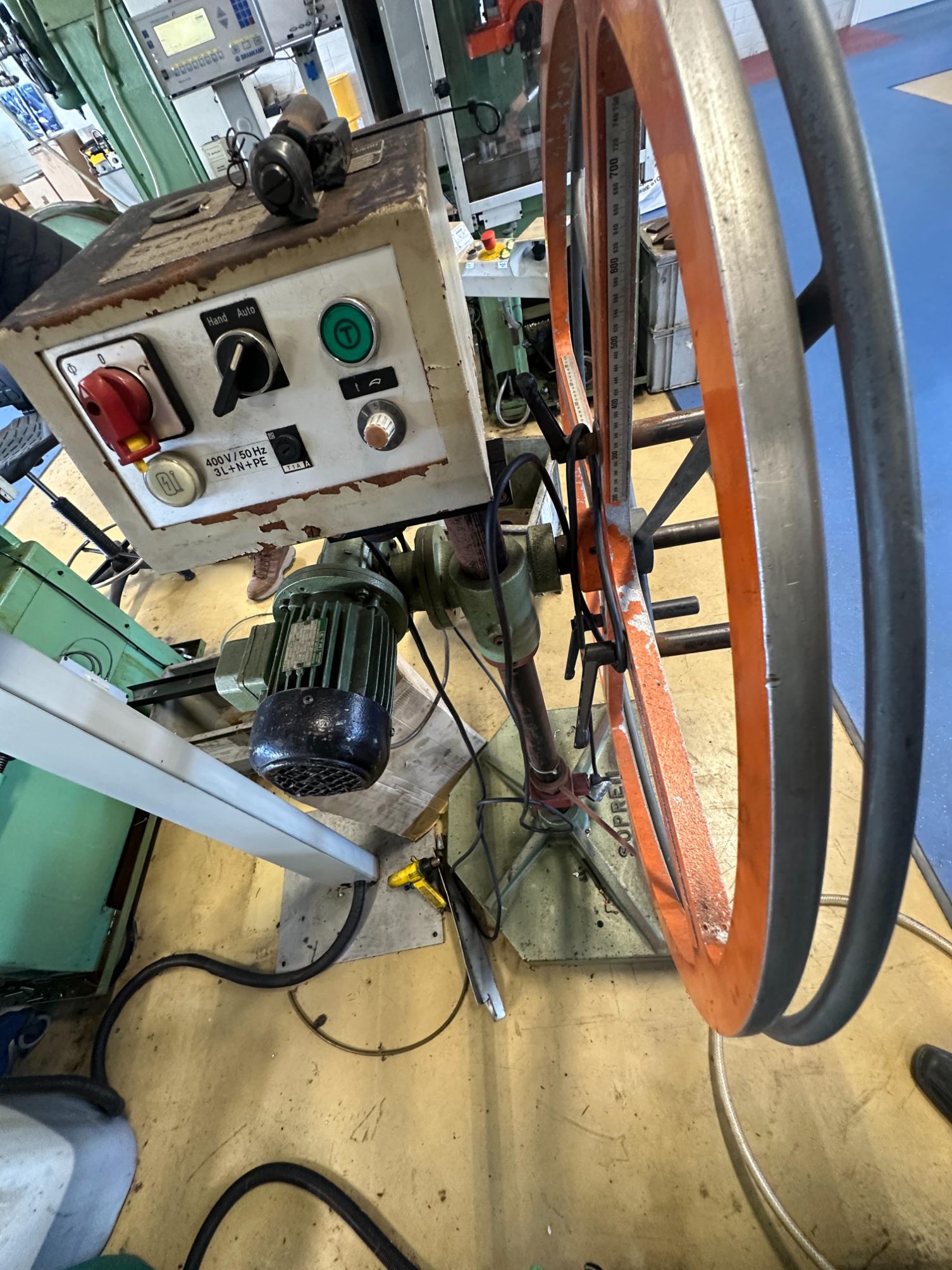

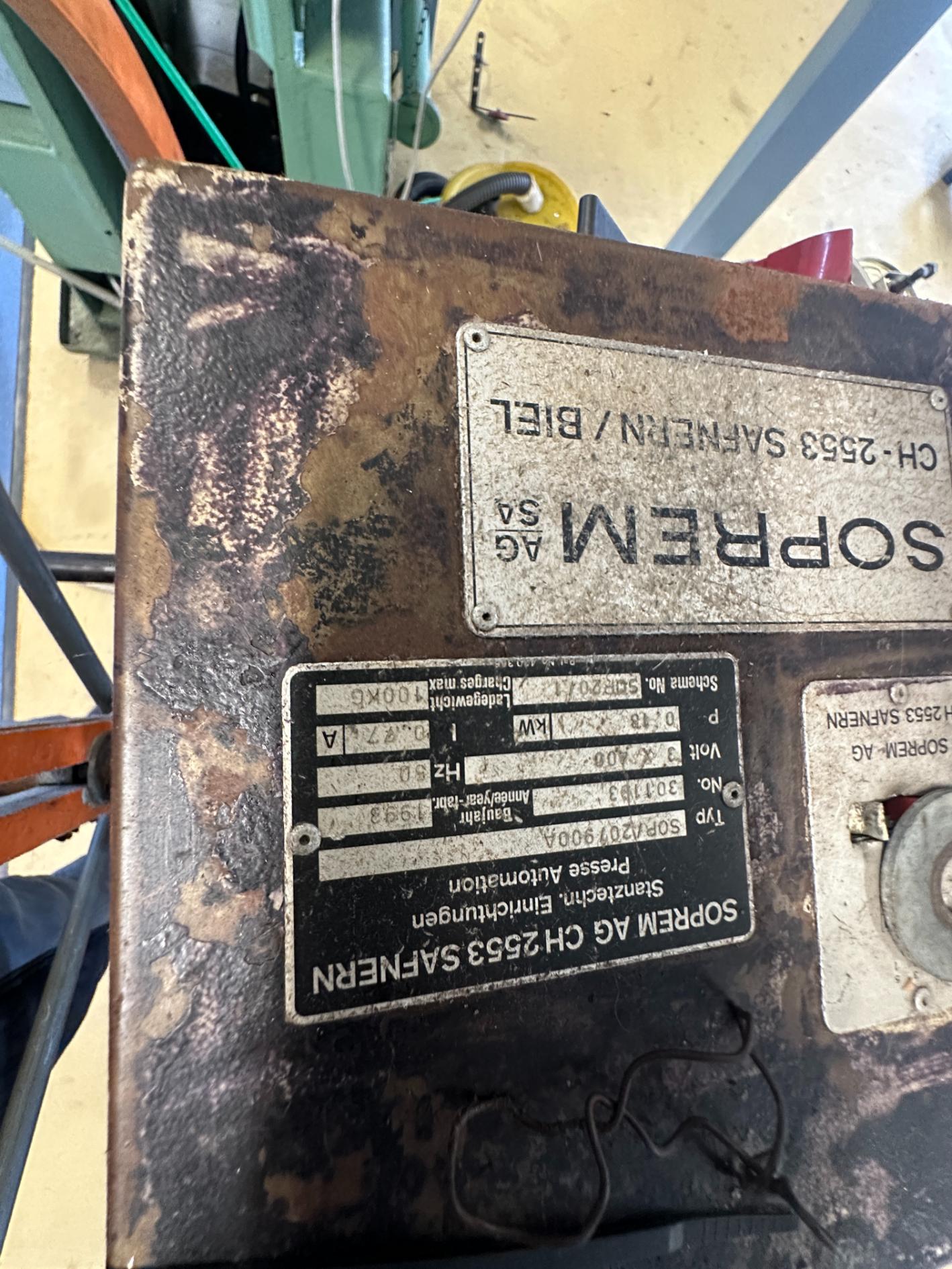

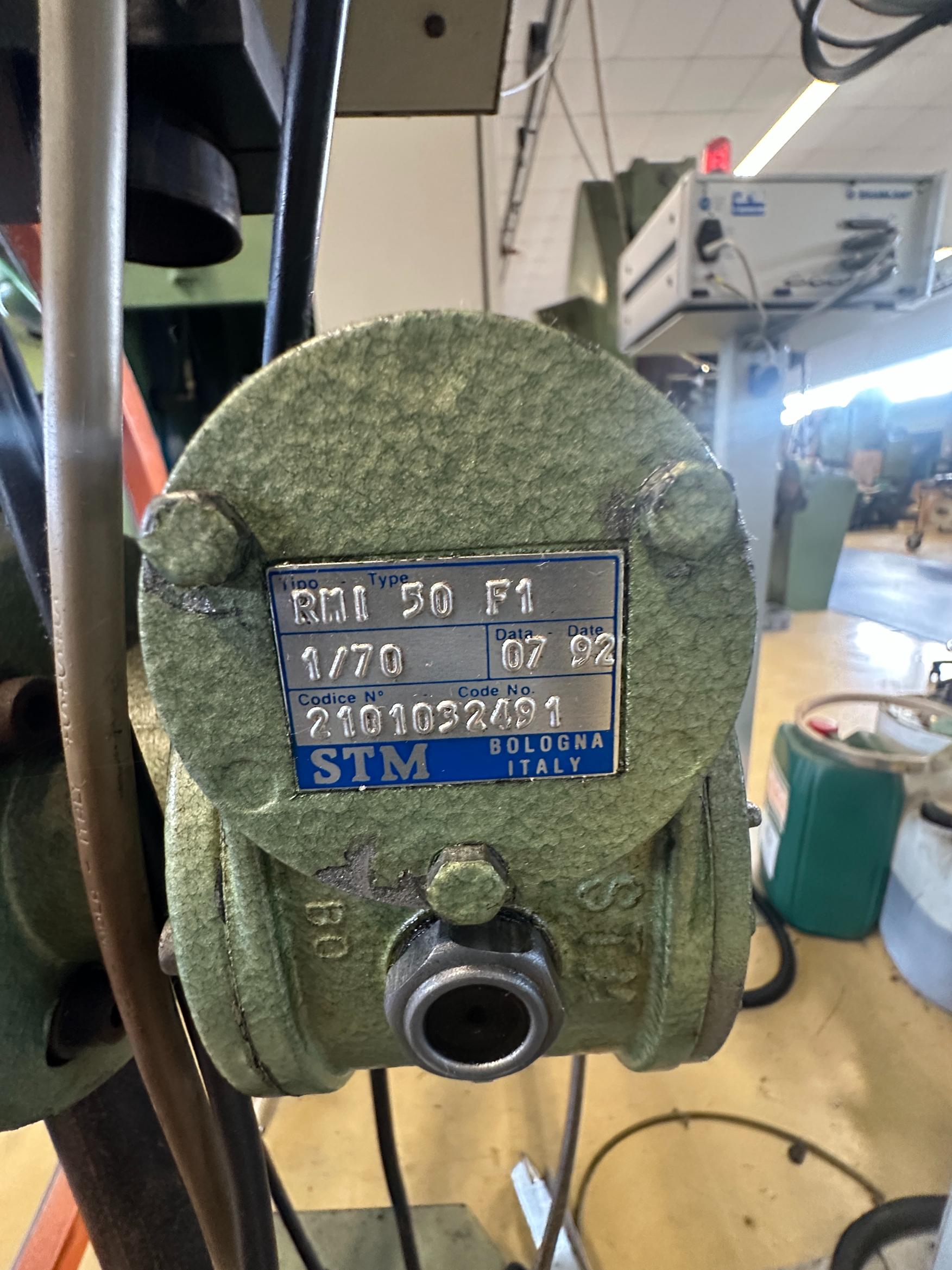

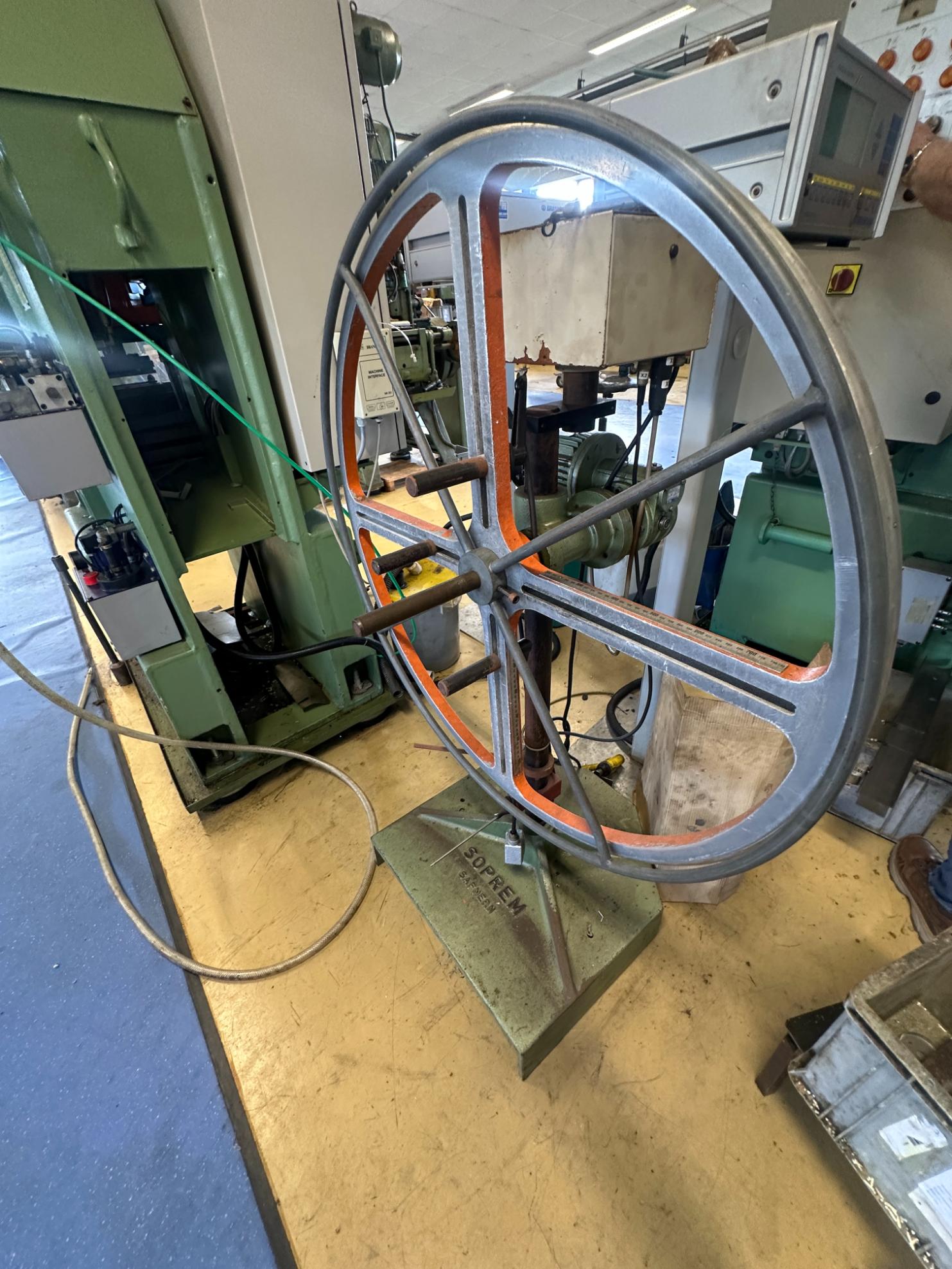

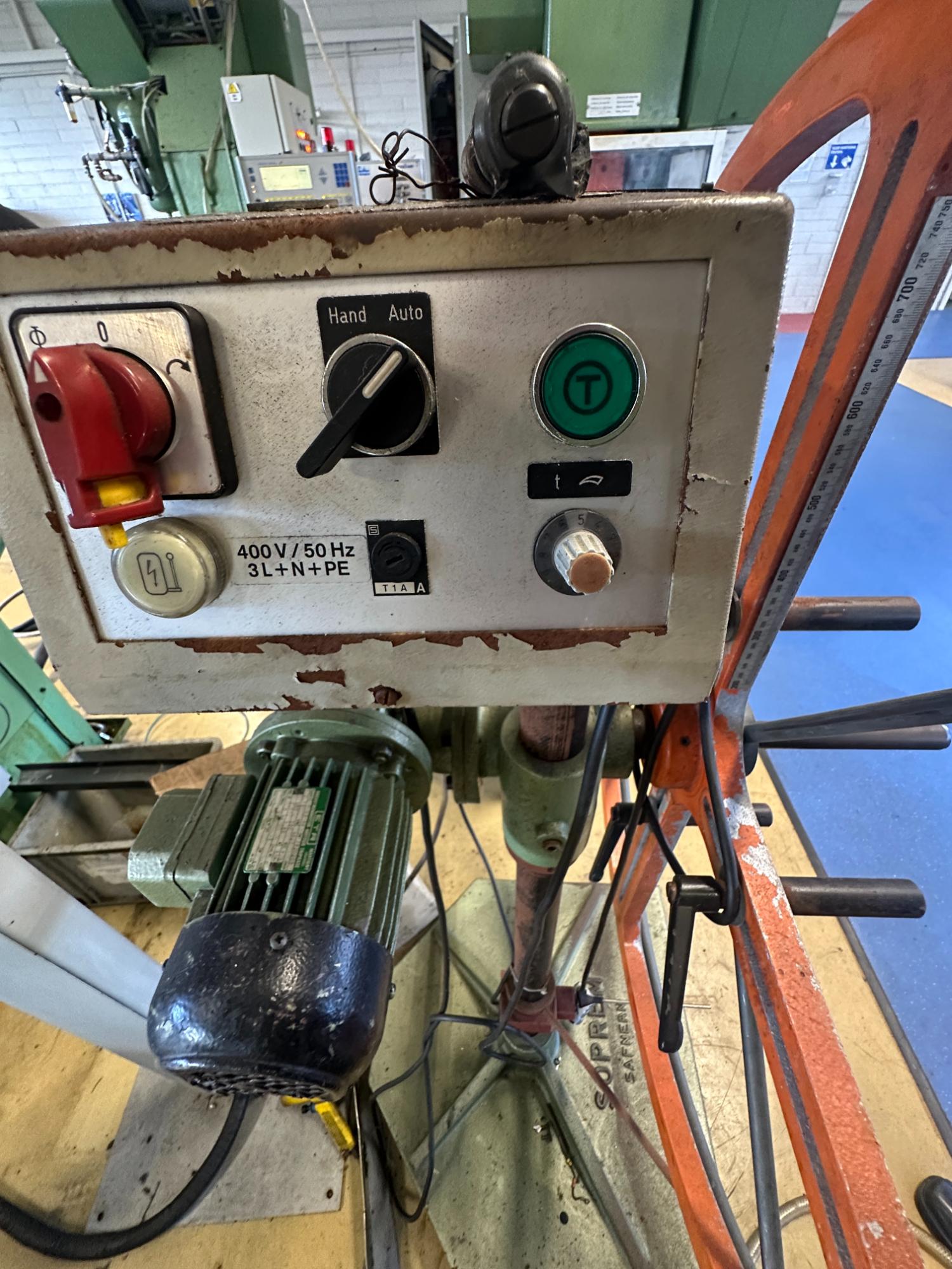

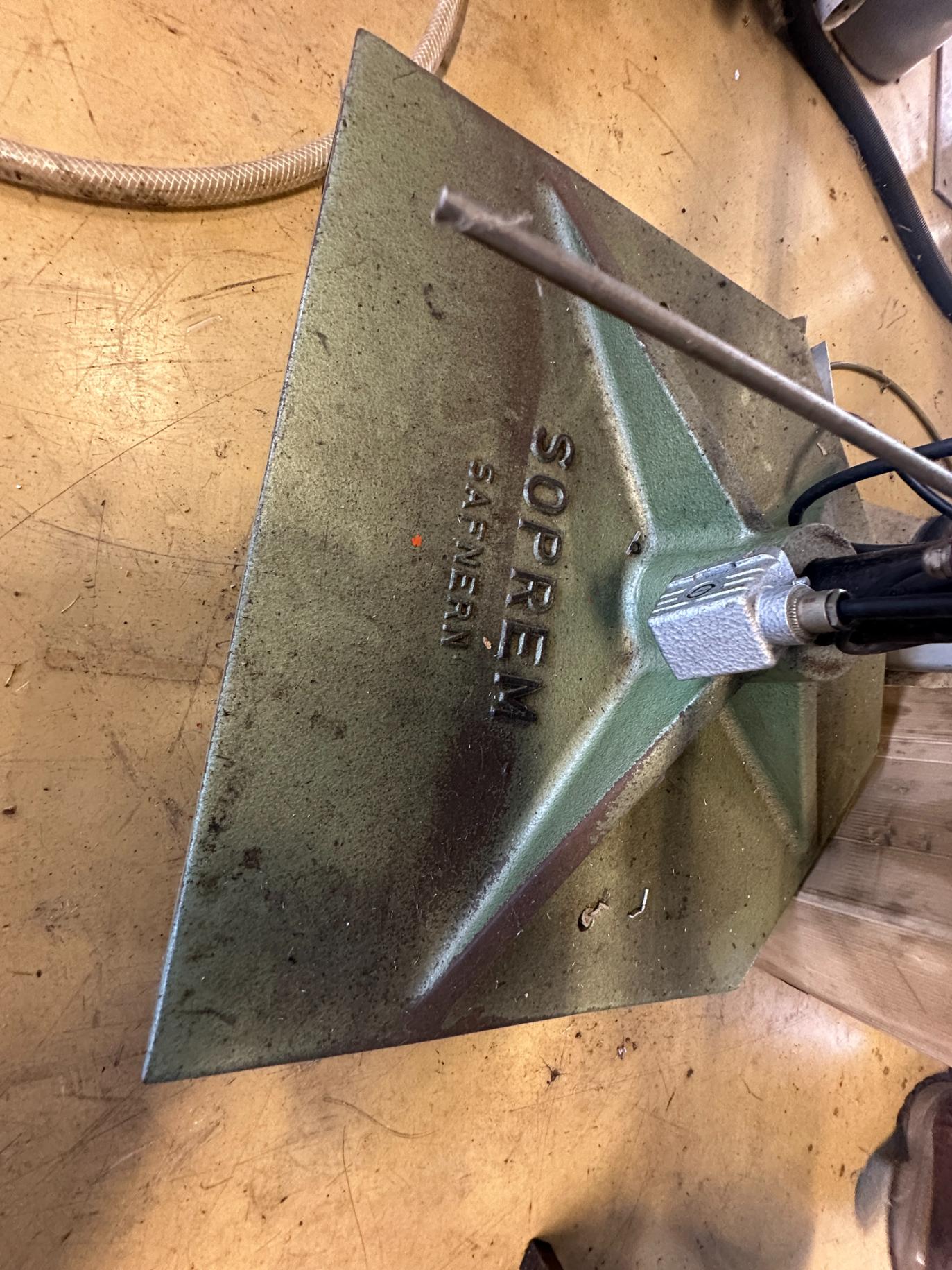

Soprem RMI 50 F1 Powered Decoiler – 1992

Powered coil decoiler with automatic/manual operation, suitable for supplying strip material to the press for coil-fed production.

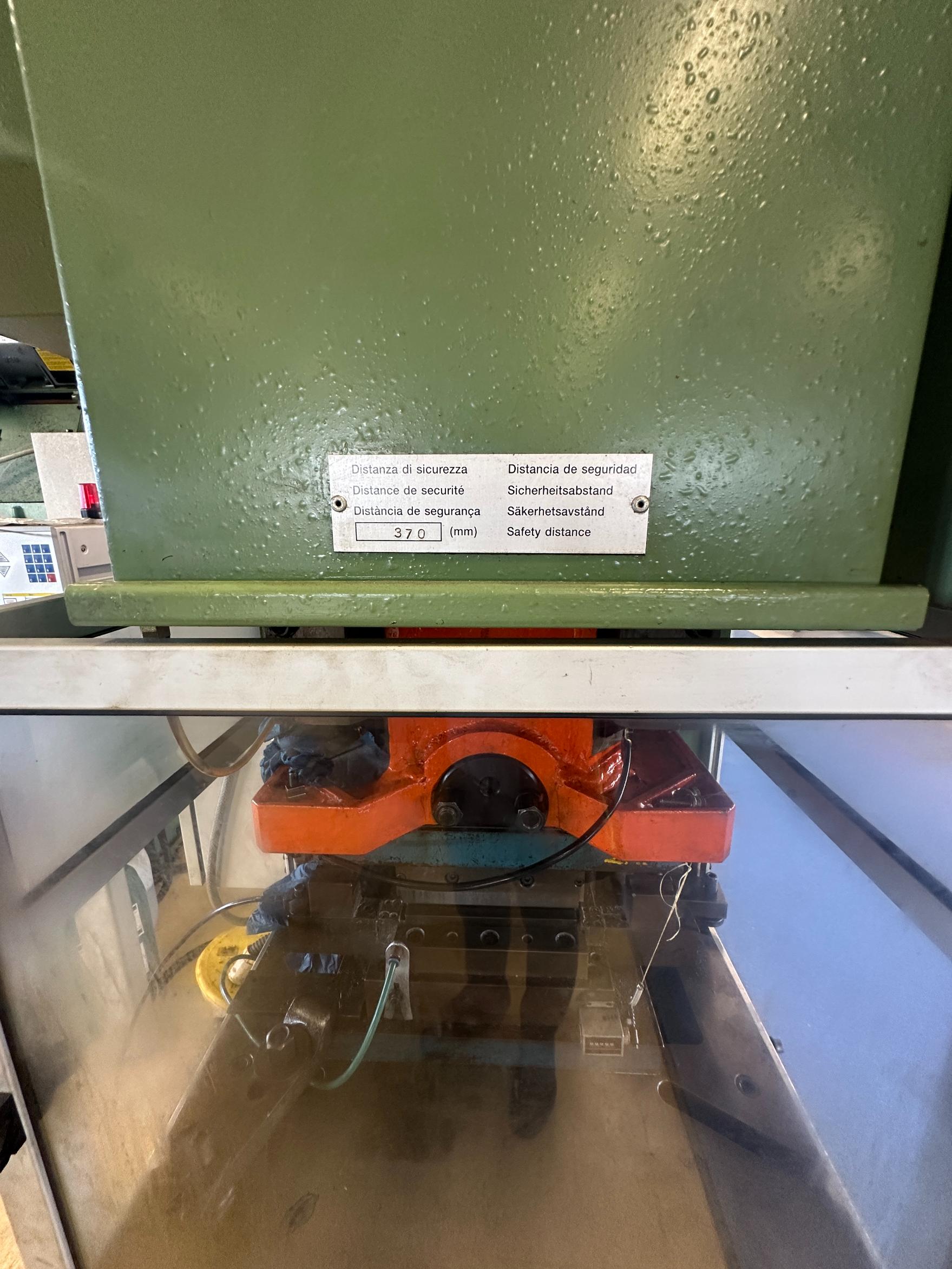

Safety Equipment

• Interlocked safety guarding

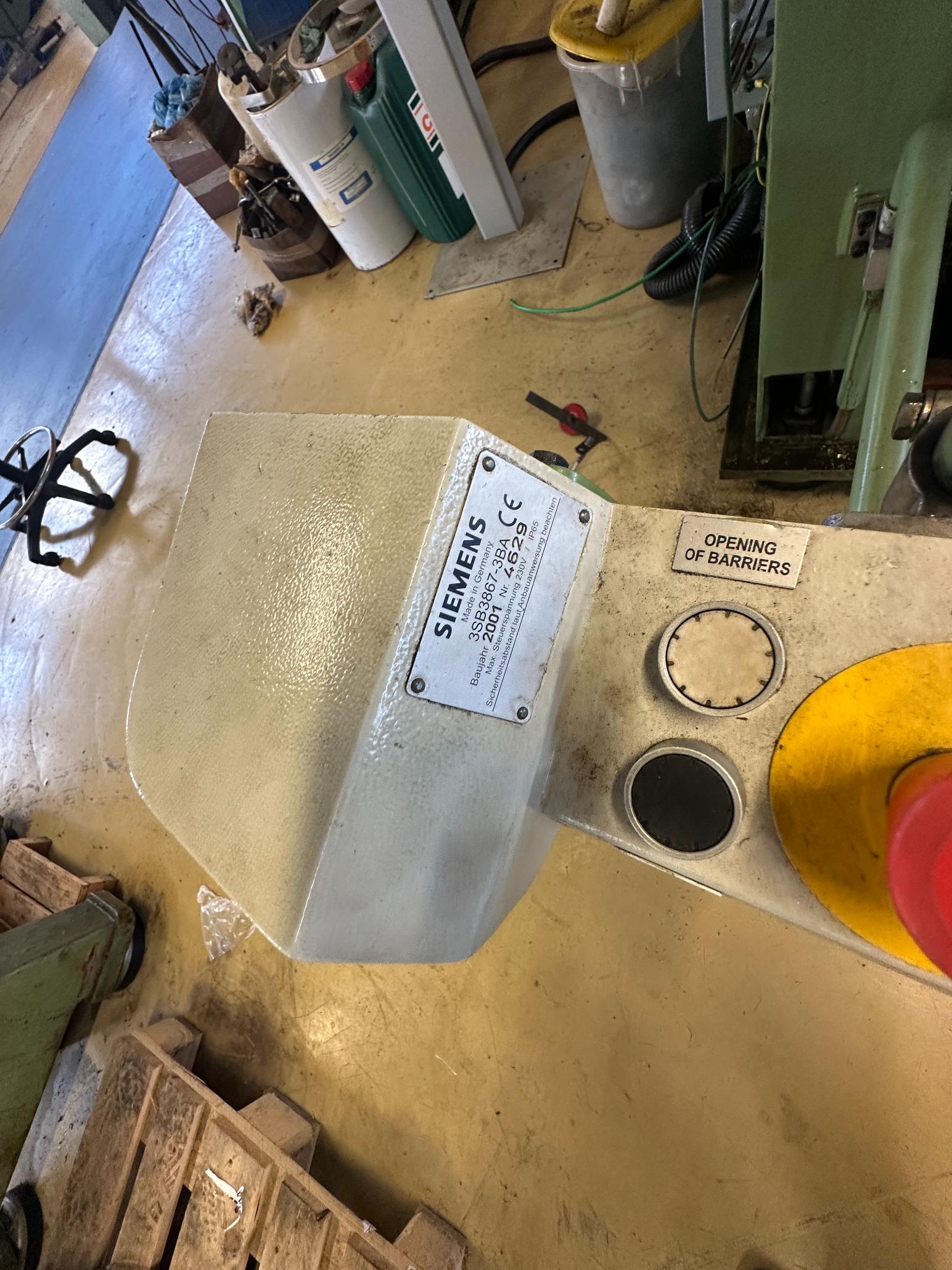

• Separate operator control panel

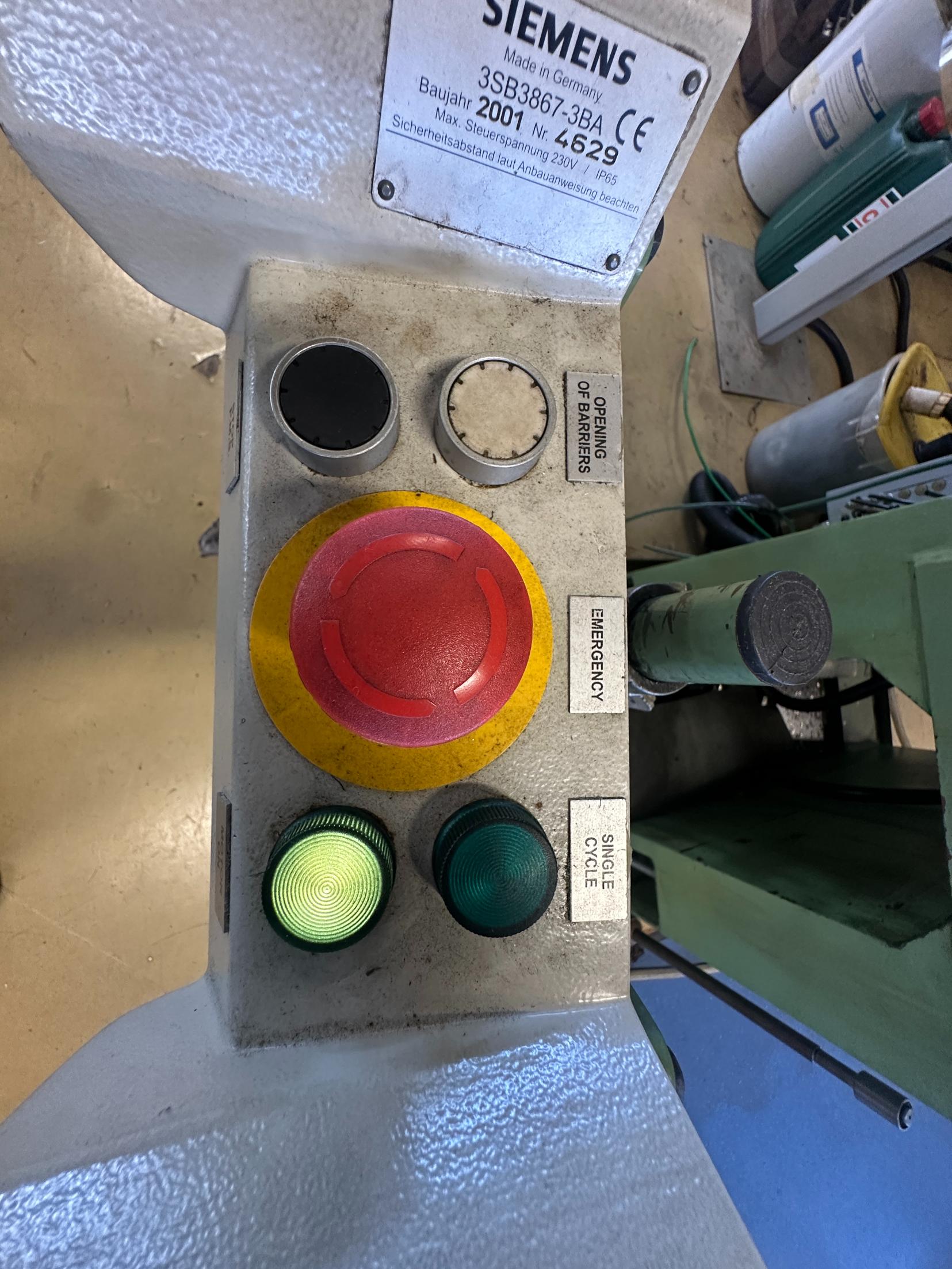

• Two-hand press control
• Guard interlocking
• Emergency-stop controls

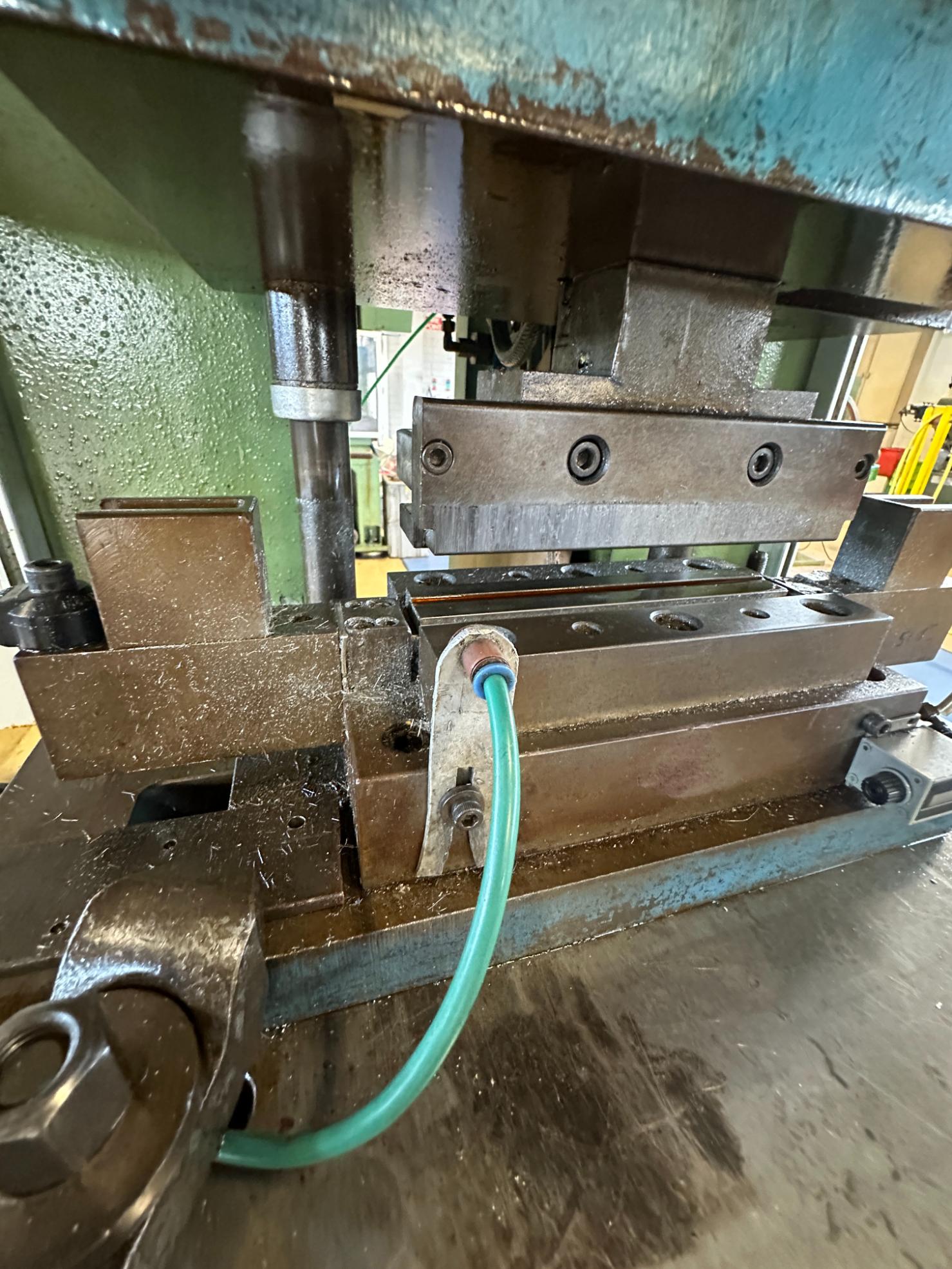

Typical Applications

The Presse Ross 40V-4 is suitable for a wide range of metalworking and production operations including:

• Sheet metal stamping
• Presswork
• Metal forming
• Blanking
• Punching
• Piercing
• Progressive-die production
• Coil-fed presswork
• Component manufacture
• High-speed repetitive press production
• Small and medium metal stamping components

With its variable 68–203 strokes/min speed range, adjustable stroke and powered Soprem decoiler, this machine is particularly suited to repetitive production and coil-fed stamping work.

Machine Highlights

40 tonne / 400 kN capacity

Variable-speed mechanical press

7–100 mm adjustable stroke

Up to approximately 203 strokes/min

600 × 450 mm bolster/table

Brankamp Prokos PK550/3 process monitoring

Soprem powered automatic/manual decoiler included

Interlocked safety guarding

Separate two-hand control station

Italian-manufactured Presse Ross press

Presse Ross is an established Italian press manufacturer; the Presse Ross business subsequently became part of OMERA, which continues to manufacture eccentric mechanical presses and related production equipment.

Condition

Used machine. Please contact us for further information, photographs, availability, inspection arrangements and pricing.

Please Note: All specifications, dimensions, capacities and descriptions are approximate and provided in good faith. Prospective purchasers should independently verify all important specifications and machine suitability before purchase.
