2023 DNE Global LC 3 Fiber Laser

2023 DNE LC3 3015 6kW Fibre Laser Cutting Machine

Used 2023 DNE LC3 3015 6kW CNC Fibre Laser Cutting Machine for Sale – 3000 x 1500mm – MAX Photonics 6000W Laser Source – Sheet Transfer Table

Machine Manufacturer: DNE

Model: LC 3 6000

Machine Type: Fiber Laser Cutting Machine

Capacity: 3000 x 1500mm

Year: 2023

Control: CNC

Condition: Excellent Condition

Price: Includes Decommissioning & Loading

Description

High-specification 2023 DNE LC3 3015 6kW fibre laser cutting machine available for sale.

The DNE LC3 is a modern CNC fibre laser designed for fast, accurate cutting of mild steel, stainless steel, aluminium, brass and copper. This machine is equipped with a 6kW / 6000W MAX Photonics fibre laser source and is configured for standard 3000 x 1500mm sheet processing.

The machine also includes a sheet transfer table, helping streamline loading and unloading of sheet material and making it particularly suitable for production fabrication environments.

Built as part of the DNE/Bystronic fibre laser range, the LC3 combines high cutting speeds, straightforward operation and relatively low running costs compared with traditional CO2 laser cutting systems.

Main Specifications

Manufacturer: DNE

Model: LC3 3015

Year: 2023

Machine Type: CNC Fibre Laser Cutting Machine

Laser Power: 6kW / 6,000W

Laser Source: MAX Photonics Fibre Laser

Nominal Sheet Size: 3,000 x 1,500mm

Approx. Cutting Area: 3,106 x 1,582mm

Z-Axis Travel: Approx. 100mm

Maximum Sheet Weight: Approx. 900kg

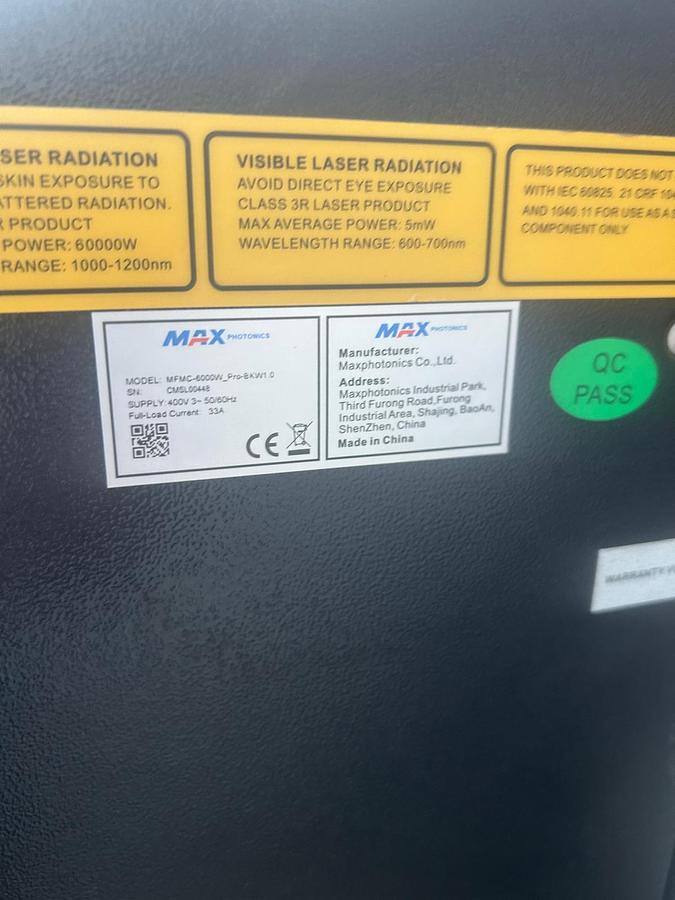

Laser Source

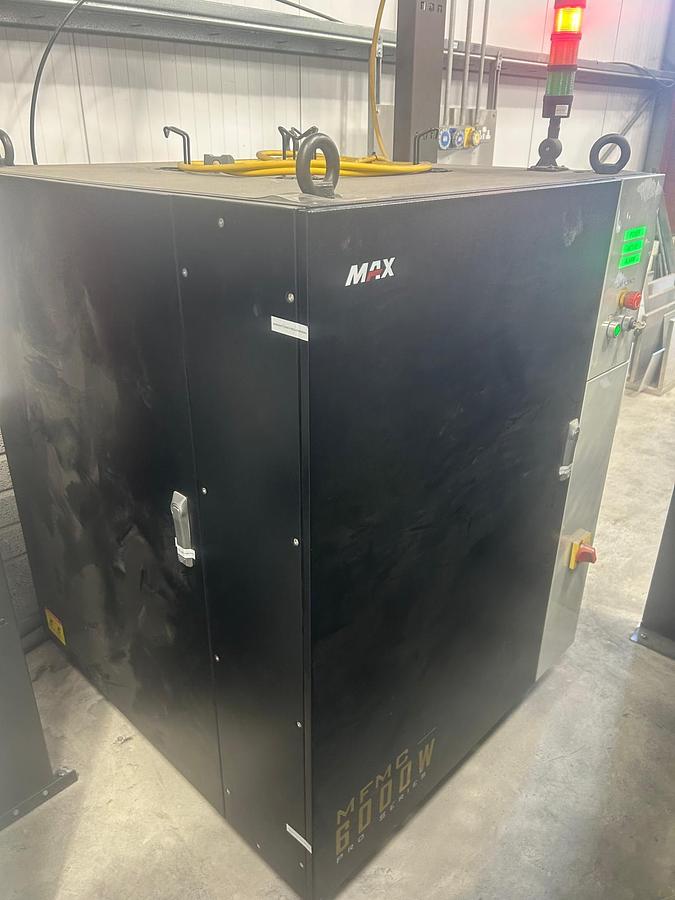

The machine is fitted with a: MAX Photonics 6kW / 6000W Fibre Laser Source

MAX Photonics fibre laser technology is widely used in industrial sheet-metal cutting applications and offers efficient cutting with relatively low maintenance requirements.

The 6kW power level provides a good balance between high-speed thin-sheet cutting and the ability to process heavier plate.

Approximate Cutting Capacities

Depending on material grade, assist gas, nozzle arrangement and cutting parameters, published capacities for the 6kW LC3 include approximately:

Mild Steel: Up to 20mm

Stainless Steel: Up to 20mm

Aluminium: Up to 20mm

Brass: Up to 10mm

Copper: Up to 10mm

Actual production cutting capacity, speed and edge quality will depend on the material specification and cutting parameters being used.

Machine Performance

Maximum X/Y Positioning Speed: Approx. 100m/min

Maximum Simultaneous Positioning Speed: Approx. 140m/min

Position Repeatability: Approx. 0.05mm

Average Bilateral Position Deviation: Approx. 0.10mm

Edge Detection Accuracy: Approx. ±0.5mm

These characteristics make the LC3 suitable for both high-speed thin-sheet work and general production fabrication.

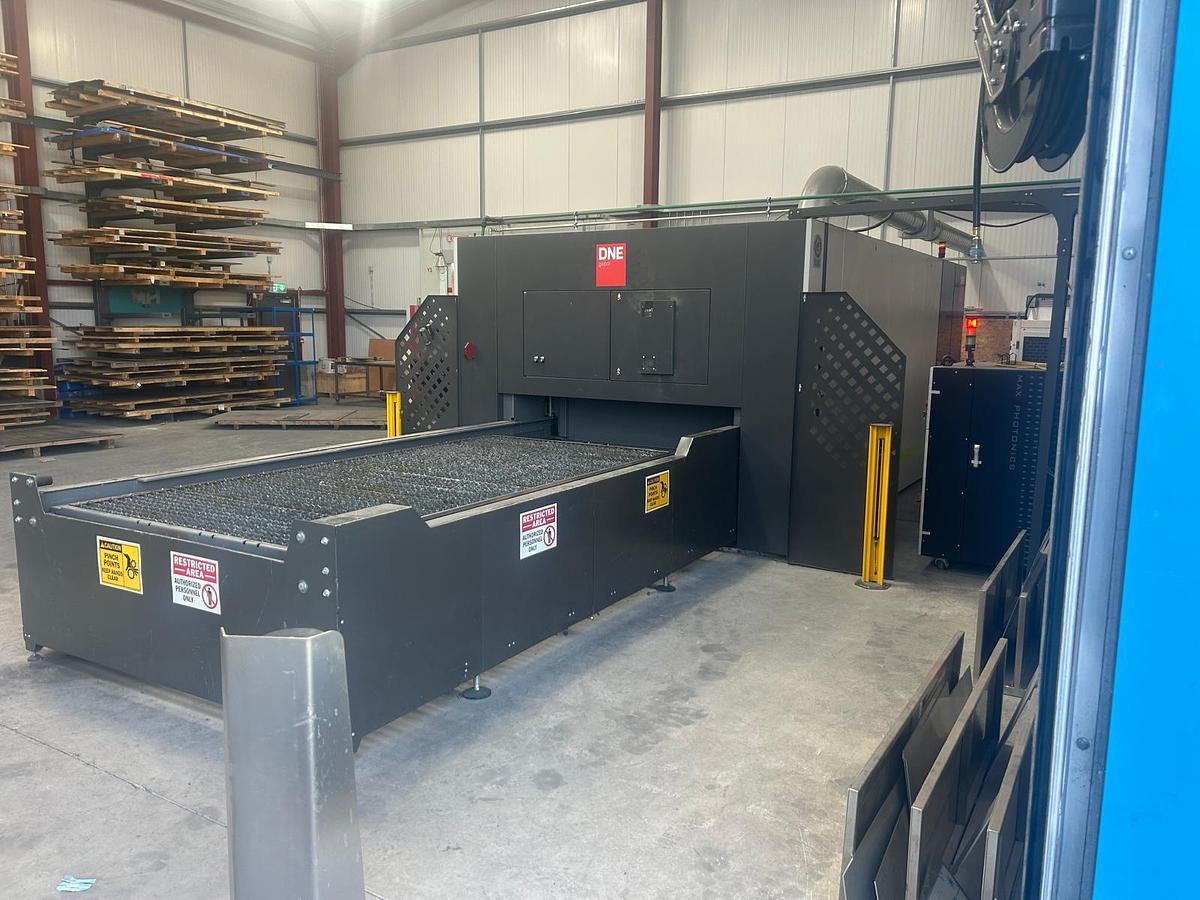

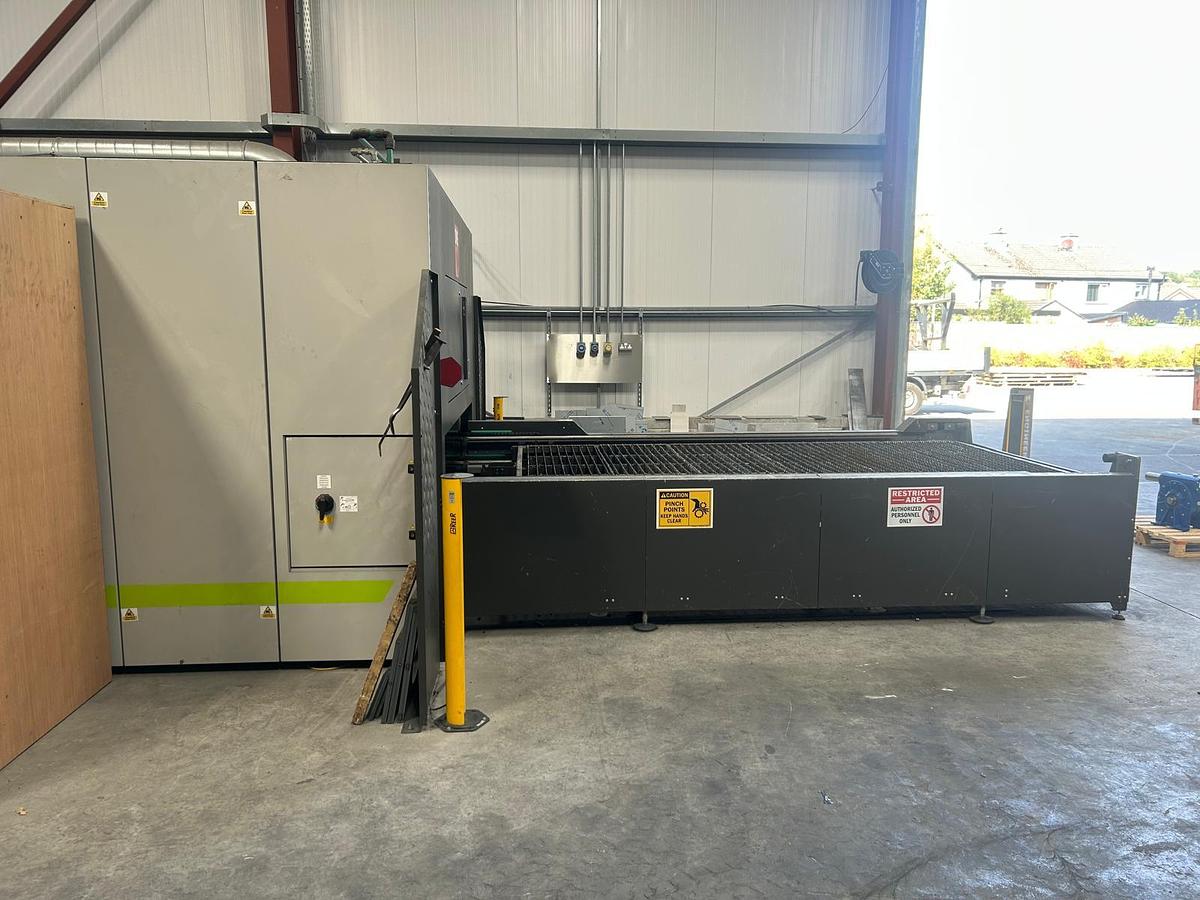

Sheet Transfer Table

This machine includes a sheet transfer table.

The transfer table assists with the movement and handling of sheet material during production, helping reduce manual handling and improve workflow around the laser cutting system.

This is particularly useful for fabrication companies processing regular batches of 3000 x 1500mm sheet.

Shuttle / Pallet Table System

The DNE LC3 is designed with a sheet handling arrangement intended to minimise non-cutting time between jobs.

Approximate Table Change Time: 24 seconds

The rapid table exchange system allows the next sheet to be prepared while the machine is cutting, improving overall machine utilisation.

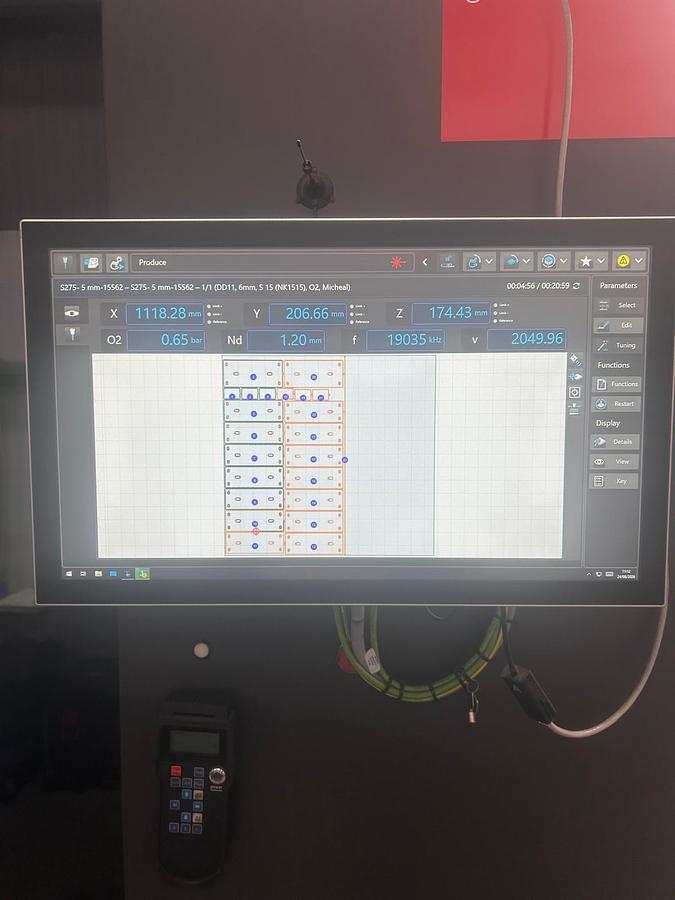

Control & Operating System

The LC3 generation was supplied with a modern touchscreen-based control system designed for straightforward machine operation.

Typical features include:

• Large touchscreen interface
• ByVision Cutting software
• Graphical job setup
• Automatic cutting parameter management
• Nesting and production preparation capability
• Sheet edge detection
• Fibre laser process monitoring
• User-friendly operator interface

Approximate Machine Dimensions

Overall Length: Approx. 10,561mm

Overall Width: Approx. 5,903mm

Overall Height: Approx. 2,744mm

Approximate Machine Weight: 11,800kg

Transport dimensions and lifting requirements should be confirmed prior to collection.

Key Features

• 2023 machine
• 6kW / 6000W fibre laser
• MAX Photonics laser source
• 3000 x 1500mm sheet capacity
• Approx. 3,106 x 1,582mm cutting area
• Sheet transfer table included
• High-speed CNC positioning
• Dual pallet / shuttle table arrangement
• Approx. 24-second table exchange
• Maximum sheet weight approx. 900kg
• Suitable for mild steel
• Suitable for stainless steel
• Suitable for aluminium
• Suitable for brass
• Suitable for copper
• Modern CNC touchscreen control
• Compact and efficient fibre laser technology
• Suitable for production sheet-metal fabrication

Typical Applications

The DNE LC3 6kW fibre laser is suitable for:

• General sheet-metal fabrication
• Structural fabrication
• Stainless steel fabrication
• Aluminium fabrication
• Electrical enclosure manufacture
• HVAC manufacture
• Agricultural equipment manufacture
• Automotive components
• Engineering subcontracting
• Precision sheet-metal work
• Prototype production
• Batch production
• High-volume sheet cutting
• Mild steel plate cutting
• Stainless steel laser cutting
• Aluminium laser cutting

Modern 6kW Fibre Laser for Production Fabrication

A 6kW fibre laser offers a significant production advantage over lower-powered systems where higher cutting speeds and increased material thickness capacity are required.

The combination of a 6,000W MAX Photonics laser source, 3,000 x 1,500mm sheet format and sheet transfer system makes this DNE LC3 particularly suitable for busy fabrication companies looking for a modern production laser without moving to a much larger-format machine.

Its 2023 build year also makes it a considerably newer alternative to many used fibre laser cutting machines currently available on the second-hand market.

Used DNE Fibre Laser for Sale

Used Machine Tools Ireland supplies used CNC laser cutting machines, press brakes, guillotines and fabrication machinery throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

Contact us if you are searching for a:

used DNE LC3, DNE LC3 3015 for sale, used 6kW fibre laser, 6000W fibre laser cutting machine, MAX Photonics laser for sale, 3000 x 1500 fibre laser, used CNC laser Ireland, second-hand fibre laser UK, used laser cutting machine Europe, sheet metal laser cutter, 6kW laser cutting machine, DNE Bystronic laser, fibre laser with transfer table or used fabrication machinery.

Worldwide delivery can be arranged.

Manufacturer: DNE

Model: LC3 3015

Year: 2023

Laser Power: 6kW / 6000W

Laser Source: MAX Photonics

Sheet Size: 3000 x 1500mm

Additional Equipment: Sheet Transfer Table

Please Note

All specifications, cutting capacities, dimensions, weights and machine details quoted above are approximate and are provided for guidance only. Actual cutting performance will depend on material grade, assist gas, nozzle configuration, machine condition and cutting parameters. Prospective purchasers should verify all important specifications and operating requirements prior to purchase.
