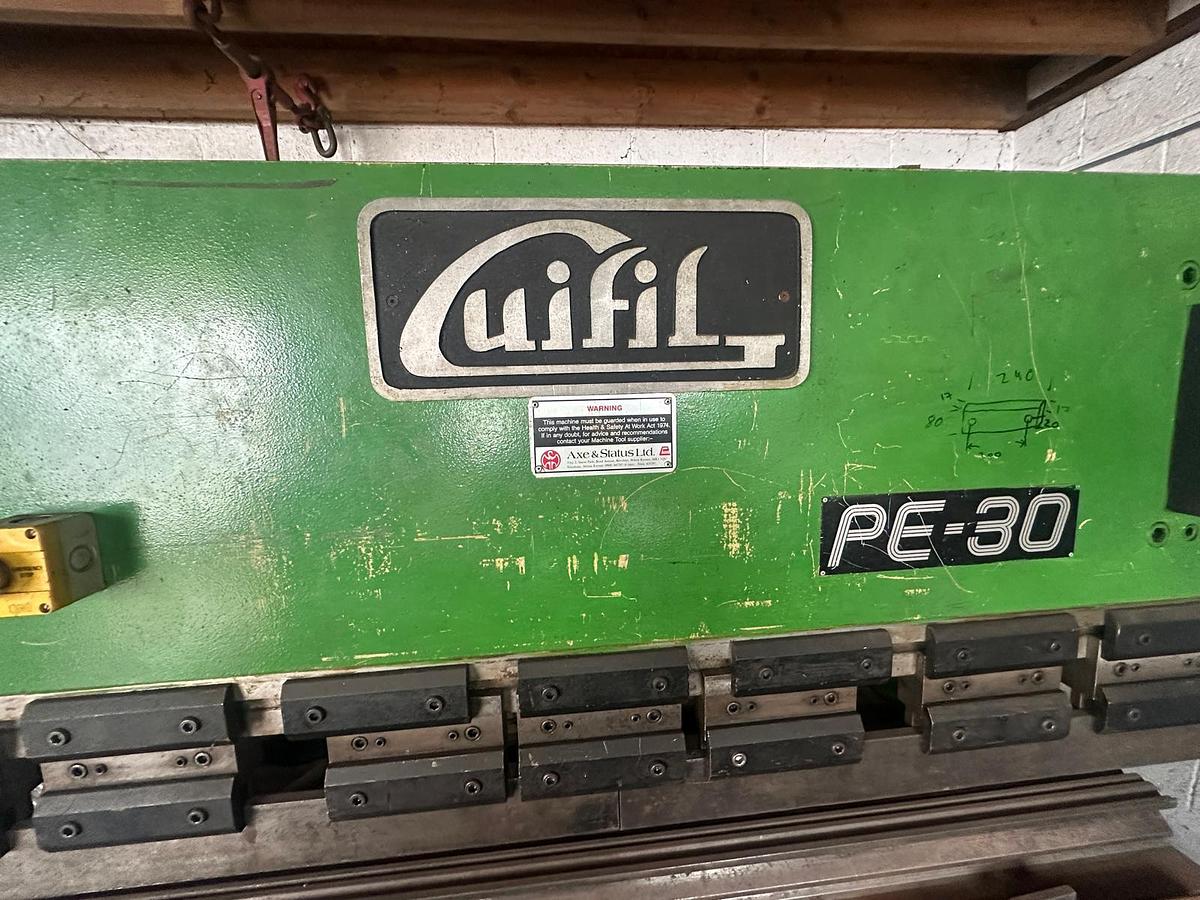

1990 Guifil PE 15-30 Pressbrake

1990 Guifil PE 15-30 Hydraulic Press Brake – 30 Ton x 1500mm

Used Guifil PE 15-30 Hydraulic Press Brake for Sale – 30 Tonne Capacity – 1500mm Bending Length – Complete with Gooseneck Top Tool & Multi-Vee Bottom Tool

Machine Manufacturer: Guifil

Model: PE 15-30

Machine Type: Manual UpStroking Pressbrake

Capacity: 1500 x 30T

Year: 1990

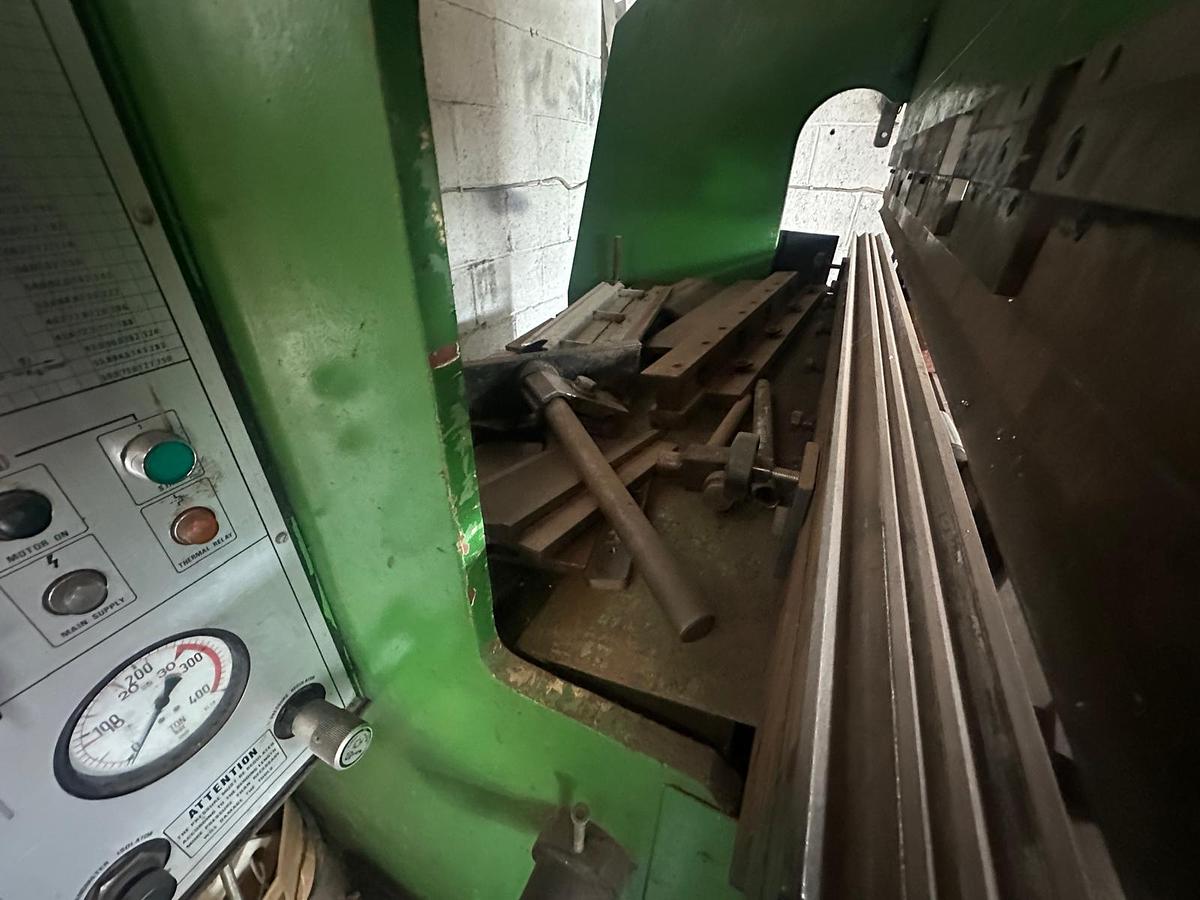

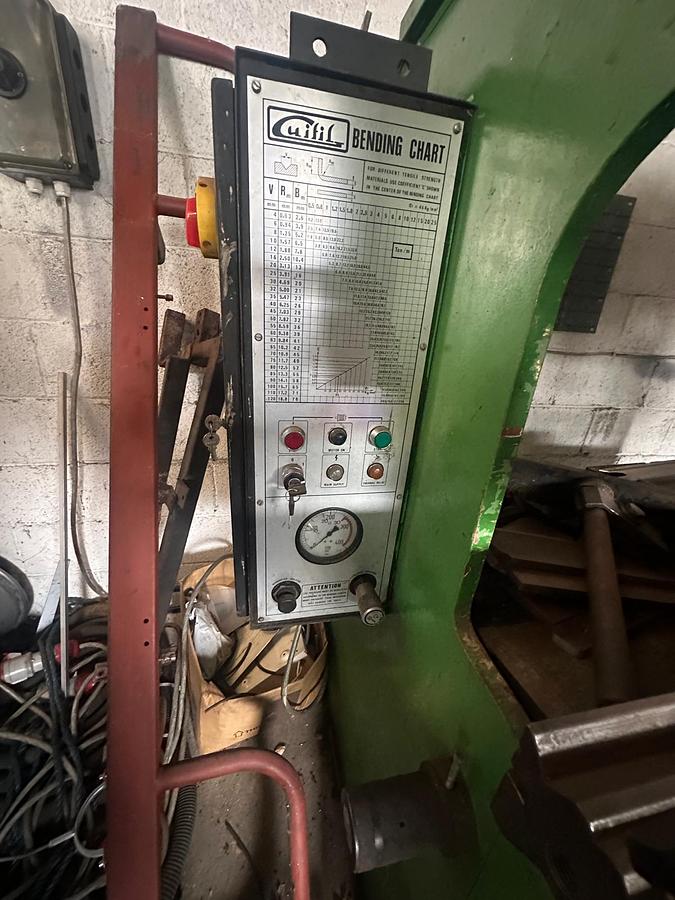

Control: Manual

Condition: Working Well

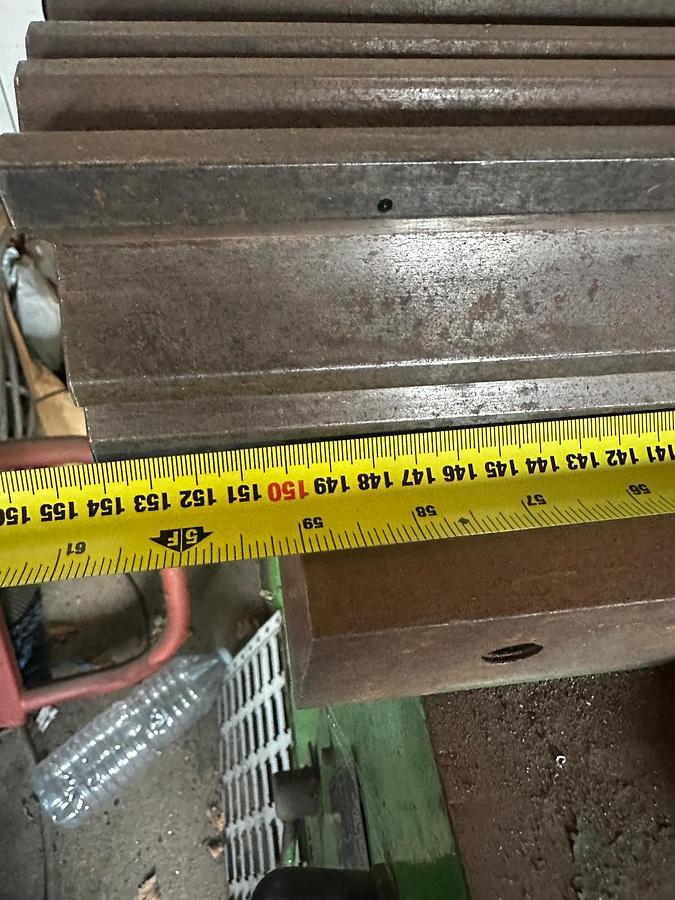

Tooling: Gooseneck Top Tool & Multi-Vee Bottom Die

Includes: Manual Back Gauge Fingers

Price: Ex Works

Description

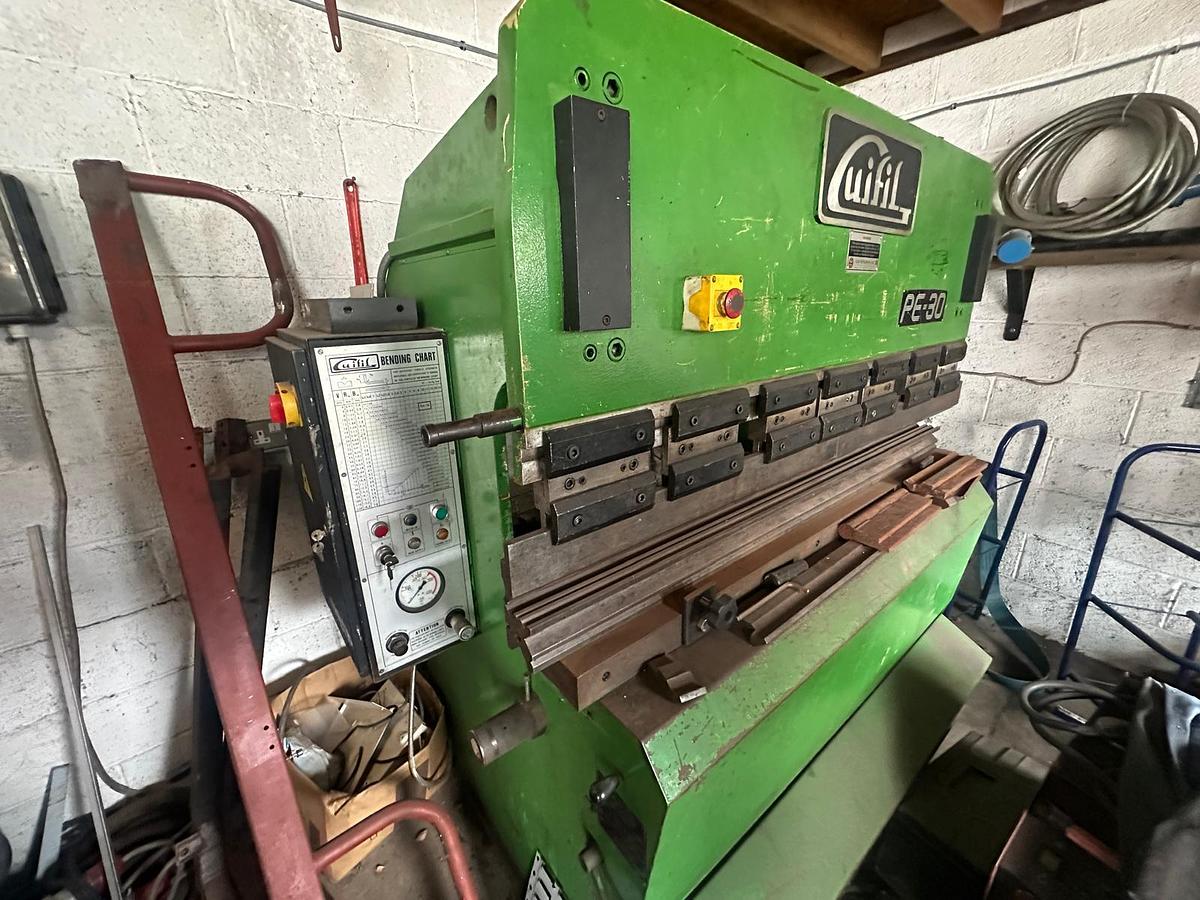

Used 1990 Guifil PE 15-30 hydraulic press brake available for sale.

The Guifil PE 15-30 is a compact, robust hydraulic press brake designed for general sheet metal bending and fabrication work. With a nominal pressing capacity of approximately 30 tonnes and a maximum bending length of approximately 1,500mm, this machine is well suited to fabrication workshops, maintenance departments, engineering companies and general sheet-metal applications.

The PE series uses Guifil's established hydraulic upstroking design, with the lower beam moving upwards during the bending cycle.

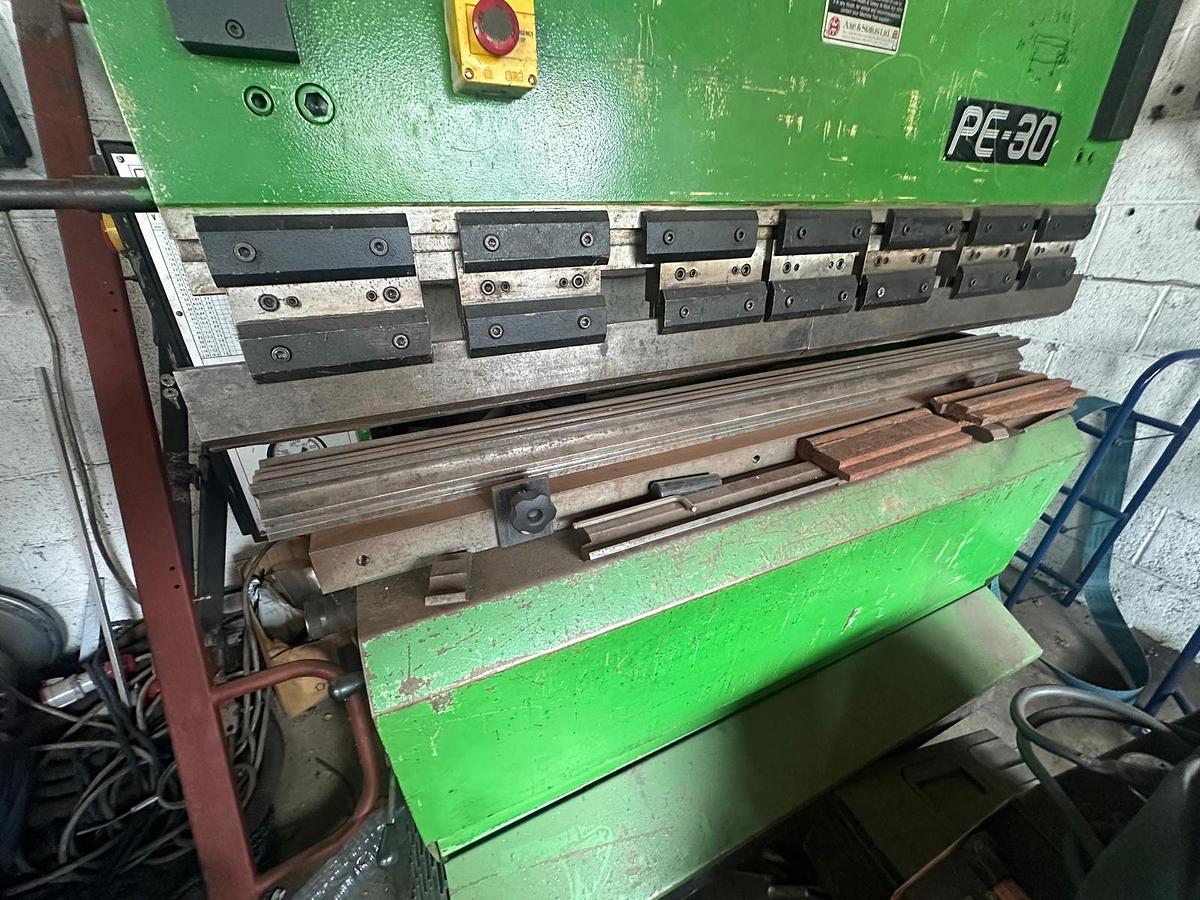

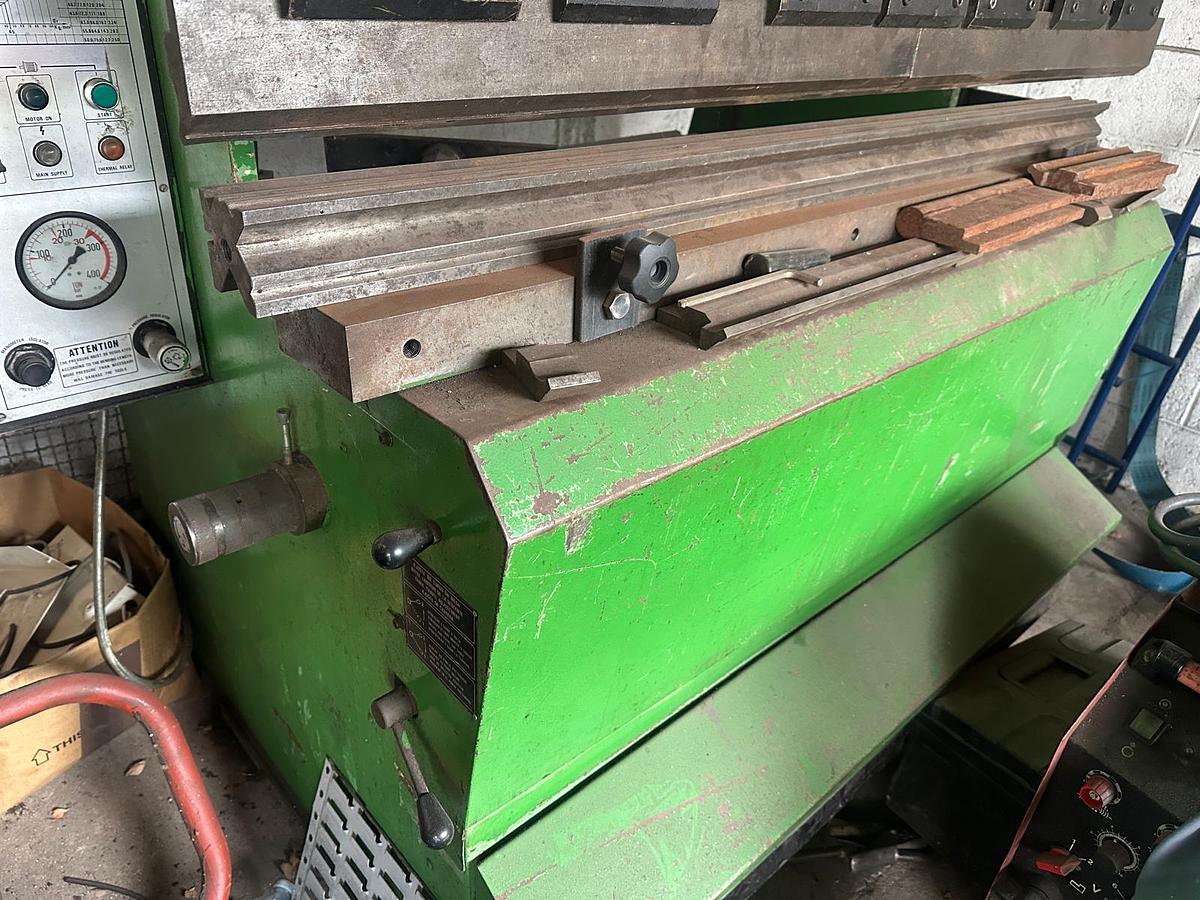

This machine is supplied complete with a gooseneck top press brake tool and Multi-Vee bottom die, making it suitable for a range of general bending operations.

Main Specifications

Manufacturer: Guifil

Model: PE 15-30 / PE30-15

Year: 1990

Machine Type: Hydraulic Press Brake

Pressing Capacity: Approx. 30 tonnes

Maximum Bending Length: Approx. 1,500mm

Distance Between Frames: Approx. 1,350–1,355mm

Throat Depth: Approx. 250mm

Ram / Beam Stroke: Approx. 100mm

Open Height Without Tooling: Approx. 305mm

Machine Configuration: Hydraulic Upstroking Press Brake

Approximate Working Speeds

Approach Speed: Approx. 45mm/sec

Bending Speed: Approx. 12mm/sec

Return Speed: Approx. 65mm/sec

Motor & Electrical

Motor Power: Approx. 4.1kW / 5.5HP according to original Guifil literature

Electrical Supply: Typically 400/415V, 3 Phase, 50Hz on European specification machines

Electrical and motor details should be confirmed from the machine data plate.

Approximate Machine Dimensions

Overall Length: Approx. 1,830mm

Overall Depth: Approx. 1,270–1,280mm

Overall Height: Approx. 1,780mm

Machine Weight: Approx. 1,950kg

Tooling Included

• Gooseneck top press brake tool

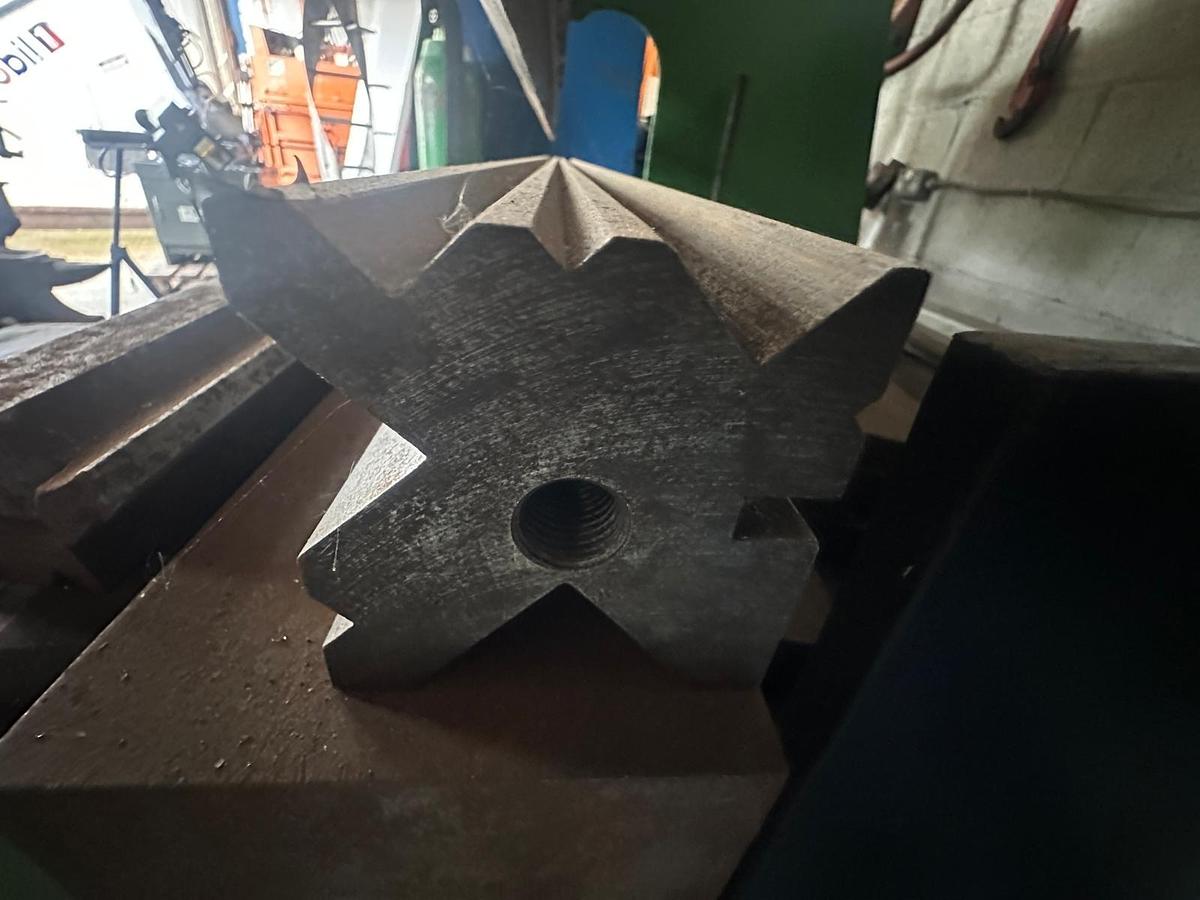

• Multi-Vee bottom press brake die
• Hydraulic upstroking bending system

Typical Applications

This used 30 tonne press brake is suitable for:

• Sheet metal bending
• Mild steel fabrication
• Stainless steel fabrication
• Aluminium bending
• Electrical enclosure manufacture
• General engineering
• Maintenance workshops
• Light fabrication work
• Prototype and small-batch sheet-metal production
• General-purpose metal forming

Compact 1.5 Metre Hydraulic Press Brake

The Guifil PE 15-30 is particularly suited to workshops requiring a compact press brake without the footprint or power requirements of a larger CNC machine.

Its combination of approximately 30 tonnes pressing force and 1,500mm working length makes it a useful machine for smaller brackets, panels, enclosures, covers and general fabricated components.

The included gooseneck punch and Multi-Vee bottom tooling provide added versatility for a variety of bend profiles and material thicknesses.

Looking for a Used Press Brake in Ireland, UK or Europe?

Used Machine Tools Ireland supplies used fabrication machinery to customers throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

If you are searching for a:

used Guifil press brake, used 30 tonne press brake, 1500mm press brake, 1.5 metre hydraulic press brake, used hydraulic press brake Ireland, second-hand press brake UK, sheet metal bending machine, fabrication machinery, manual press brake, compact press brake, used metalworking machinery or Guifil PE 15-30 for sale, please contact us for further information.

Worldwide delivery can be arranged.

Make: Guifil

Model: PE 15-30

Year: 1990

Capacity: Approx. 30 Tonnes

Bending Length: Approx. 1,500mm

Tooling: Gooseneck Top Tool & Multi-Vee Bottom Die

Please Note: All specifications, dimensions, capacities and machine details quoted above are approximate and are provided for guidance only. Prospective purchasers should verify all important specifications and operating requirements prior to purchase.
